SONOFF NSPanel Pro 86 Black Smart Wall Touch Screen Switch 7*7 Smart Home Control Panel with Zigbee 3.0 Gateway
Out Of Stock
SONOFF NSPanel Pro transforms a simple wall switch into a full smart-home dashboard. With a touchscreen display, built-in Zigbee gateway, and Wi-Fi connectivity, it lets you control and automate lights, plugs, sensors, cameras, and more — all from one central panel.
Whether you want to manage devices centrally, build smart scenes, monitor cameras, or integrate voice assistants — NSPanel Pro offers a unified, elegant interface for homes, apartments, offices, or smart villas.
يحوّل SONOFF NSPanel Pro مفتاح الحائط العادي إلى لوحة تحكم متكاملة للمنزل الذكي. بفضل شاشة اللمس وبوابة Zigbee المدمجة واتصال Wi-Fi، يتيح لك التحكم وأتمتة الإضاءة والمقابس وأجهزة الاستشعار والكاميرات وغيرها، كل ذلك من لوحة مركزية واحدة.
سواء كنت ترغب في إدارة الأجهزة مركزيًا، أو إنشاء مشاهد ذكية، أو مراقبة الكاميرات، أو الدمج مع المساعدات الصوتية، فإن NSPanel Pro يوفر واجهة موحّدة وأنيقة تناسب المنازل والشقق والمكاتب والفلل الذكية.

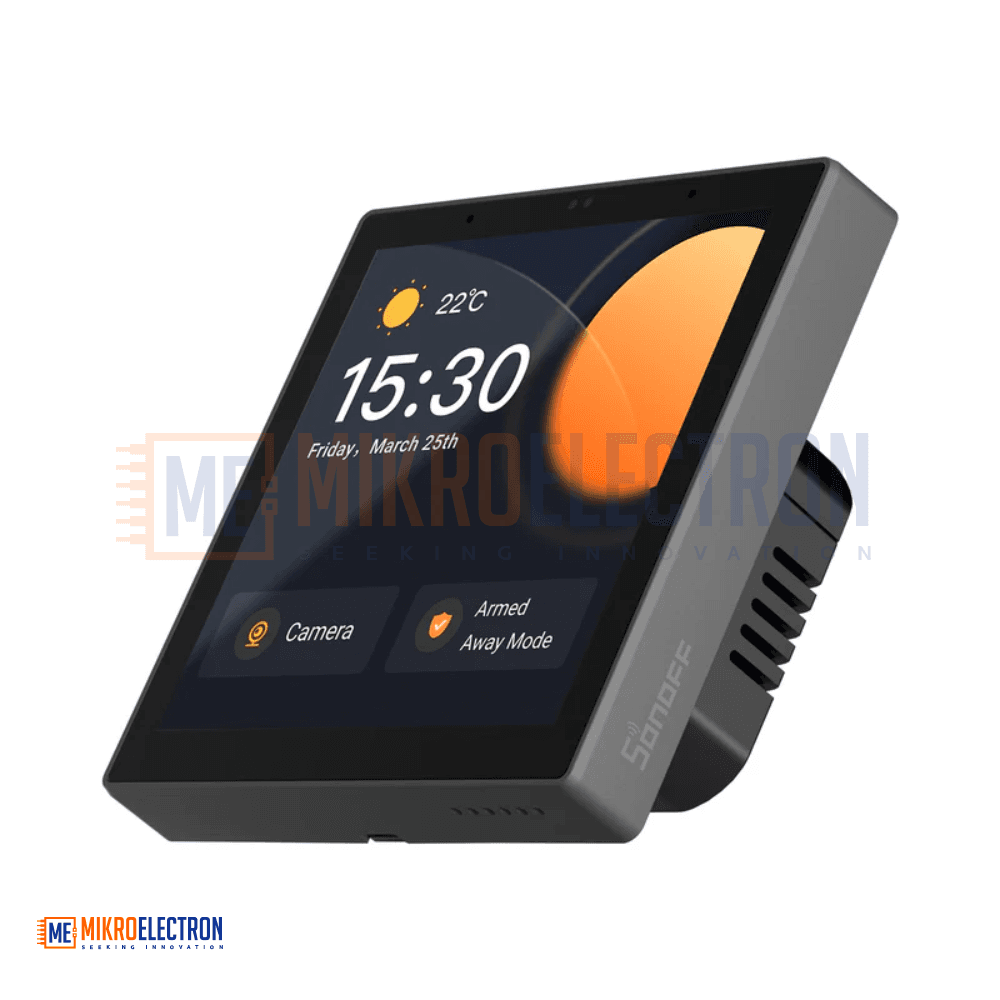

The SONOFF NSPanel Pro 86 is an advanced all-in-one smart home control panel designed to replace a standard wall switch and transform it into a centralized automation hub. Featuring a 3.95-inch capacitive touchscreen, built-in Zigbee 3.0 gateway, Wi-Fi connectivity, and Matter support, NSPanel Pro provides a unified interface to control, monitor, and automate your entire smart home ecosystem.

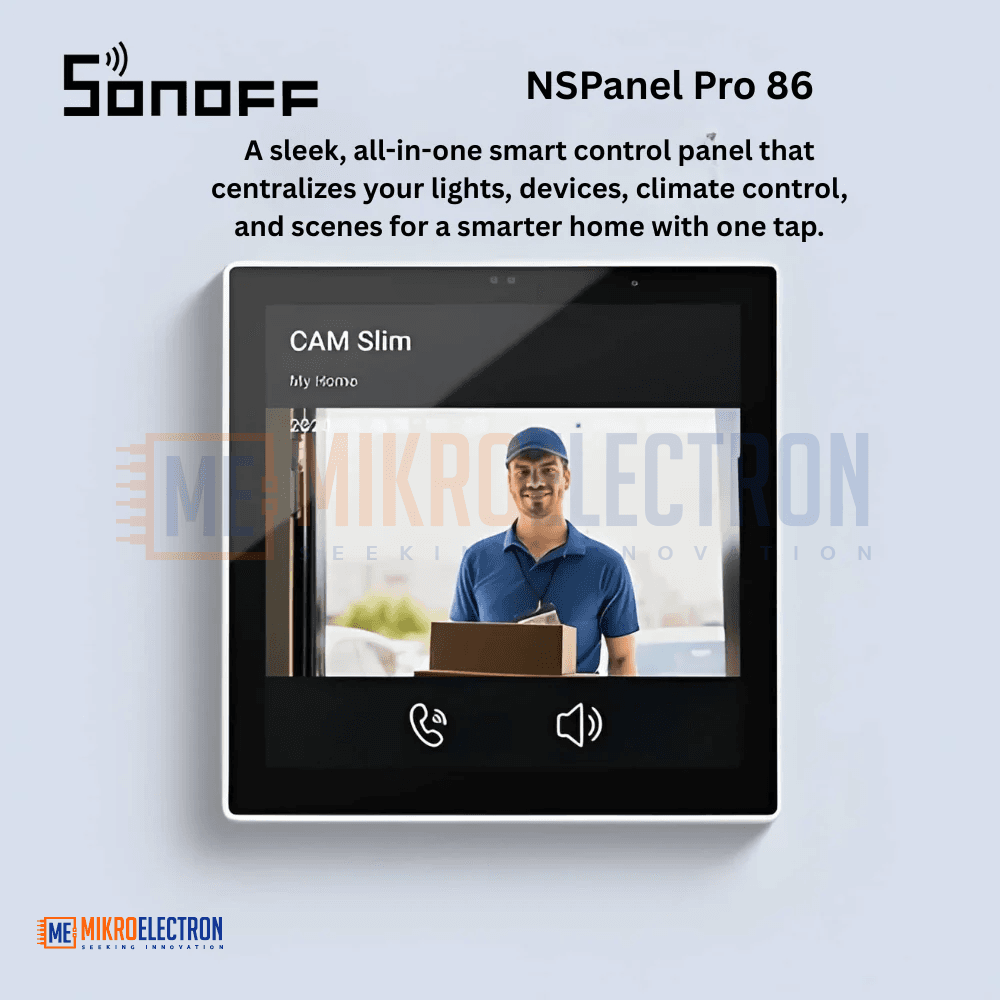

From lighting and smart plugs to sensors, cameras, and security modes, NSPanel Pro enables seamless control through an intuitive dashboard. It supports real-time device status, custom automation scenes, live camera monitoring, and two-way audio communication, making it ideal for residential, commercial, and smart building applications.

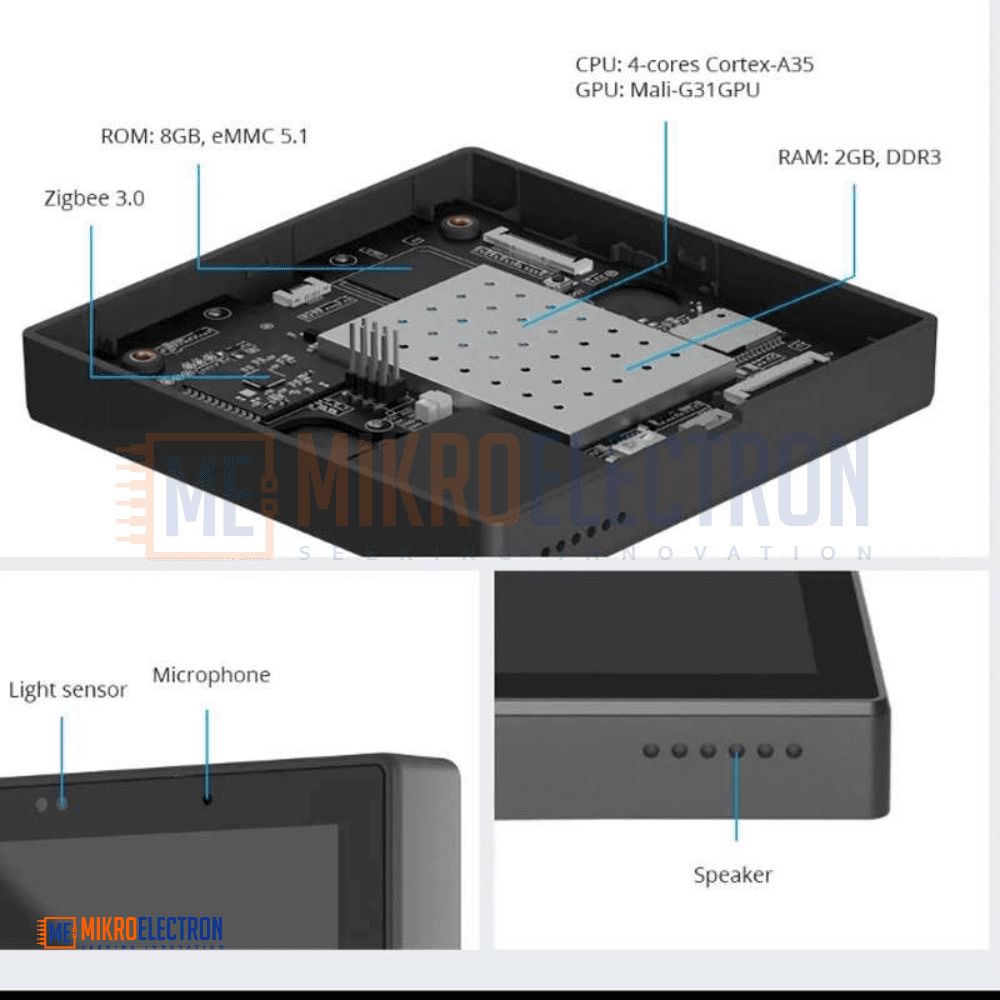

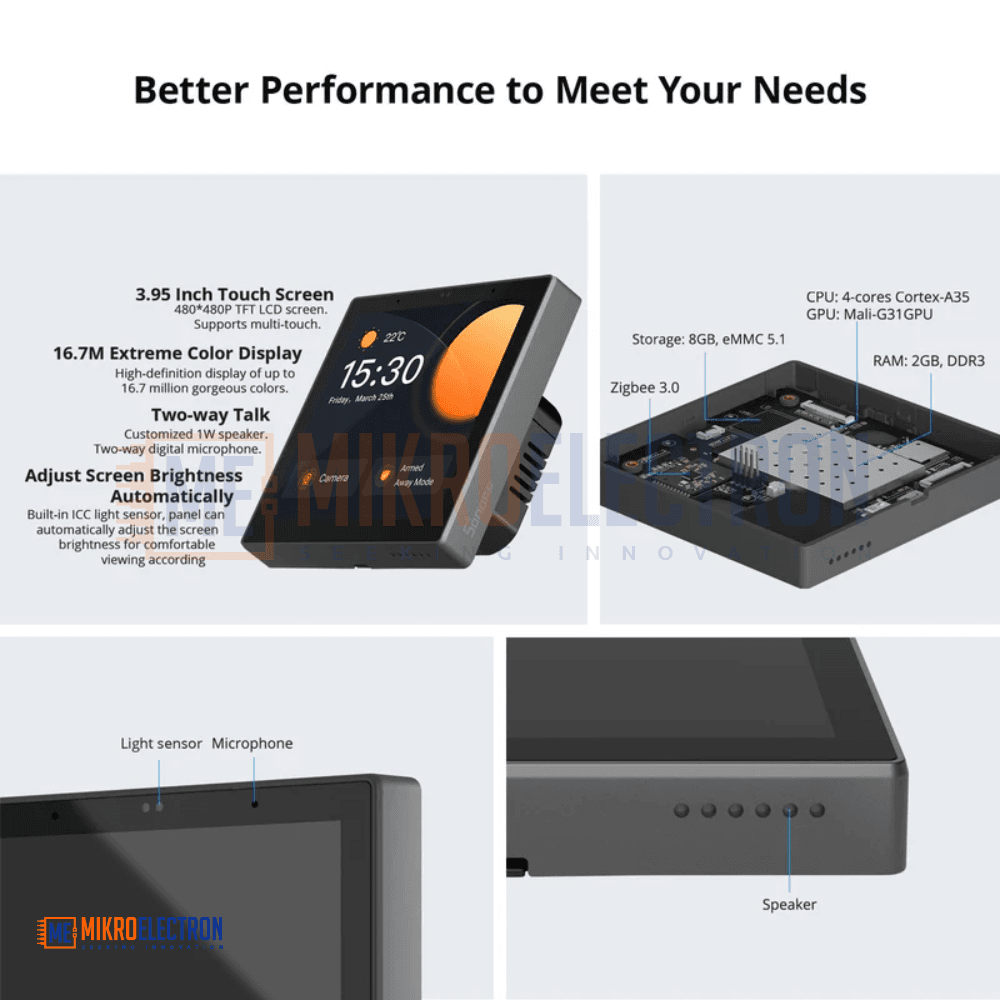

Powered by a quad-core Cortex-A35 processor, 2GB RAM, and 8GB internal storage, the NSPanel Pro delivers smooth performance, fast response, and reliable multitasking. With voice assistant compatibility (Alexa, Google Home, Siri via ecosystem integration) and eWeLink app support, it ensures both local and remote control convenience.

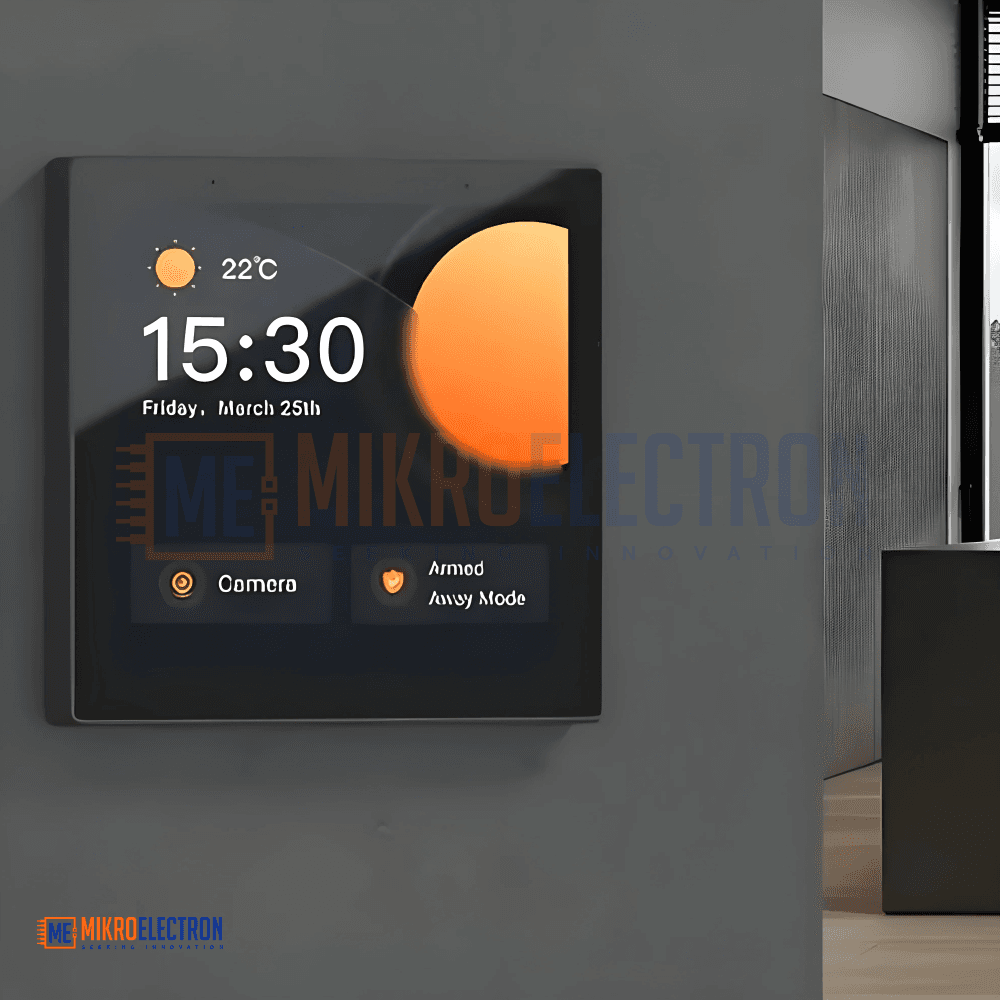

Designed for EU 86-type wall boxes, NSPanel Pro installs cleanly into walls, offering a modern, elegant, and space-saving smart control solution.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SONOFF NSPanel Pro |
| Panel Size | EU 86-type |
| Screen Size | 3.95" capacitive touchscreen |
| Resolution | 480 × 480 |
| Processor | Quad-core Cortex-A35 (PX30) |
| GPU | Mali-G31 |
| RAM | 2GB DDR3 |
| Storage | 8GB eMMC 5.1 |
| Connectivity | Wi-Fi 2.4GHz + Zigbee 3.0 |
| Zigbee Protocol | IEEE 802.15.4 (Zigbee 3.0) |
| Wi-Fi Protocol | IEEE 802.11 b/g/n |
| Matter Support | Yes |
| Power Supply | 95–240 V AC, 50/60 Hz |
| Power Consumption | Max 5W (≈150mA) |
| Audio | Built-in speaker & microphone |
| Mobile App | eWeLink |
| Voice Control | Alexa, Google Home, Siri |
| Material | PC V0 + CRS + tempered glass |
| Dimensions | 86 × 86 × 39.5 mm |
| Mounting | Standard wall box (EU 86) |
Typical Applications
Smart homes & apartments
Villas & luxury residences
Offices & commercial buildings
Smart hotels & hospitality projects
Central home automation dashboards
Security monitoring stations
Safety & Installation Notes
Installation must be performed by a qualified electrician
Turn off power before installation
Indoor use only
Compatible with standard EU wall boxes
Why Choose SONOFF NSPanel Pro?
Replaces multiple smart devices with one centralized control panel
Built-in Zigbee gateway — no extra hub needed
Supports automation, security, cameras, and intercom
Matter-ready for future smart ecosystems
Elegant wall-mounted design for modern interiors
