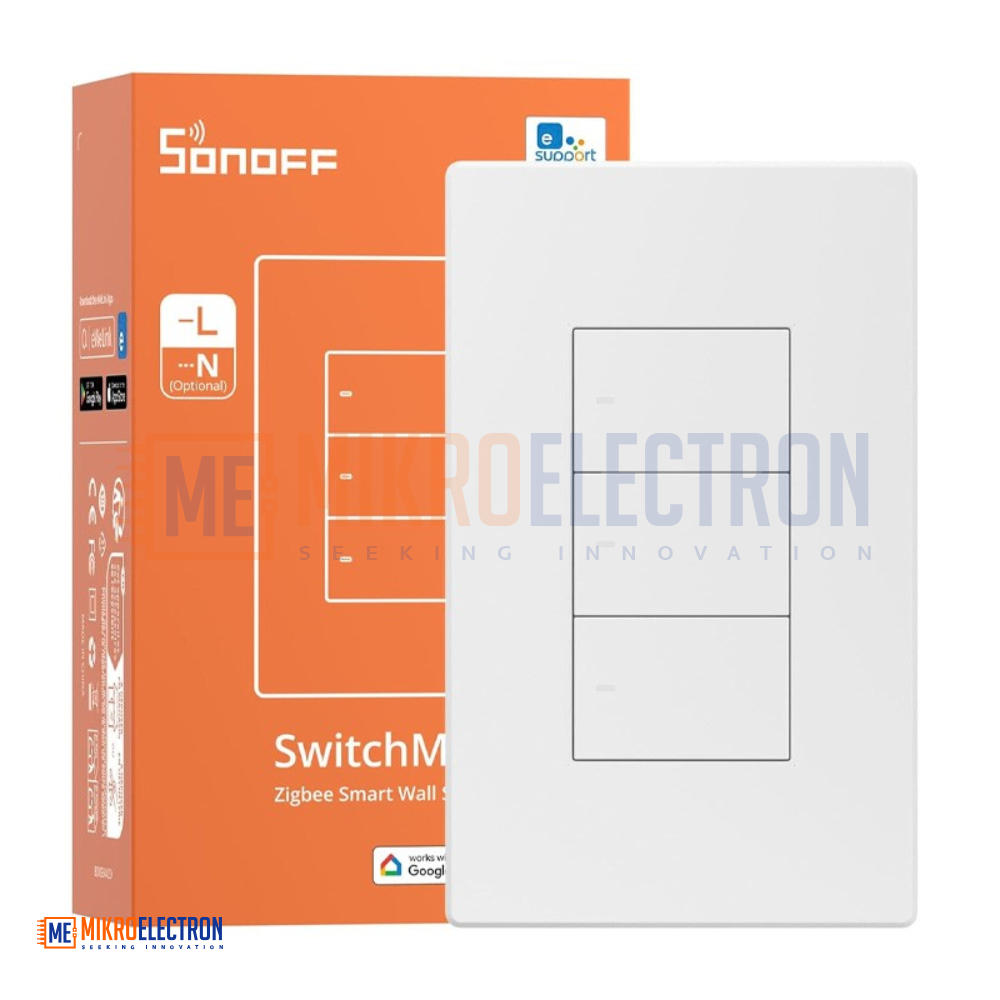

Sonoff SwitchMan ZBM5-3C-120W White Smart Magic Zigbee Wall Switch 3 Gang
Out Of Stock
The SONOFF ZBM5-XC-120W Zigbee Smart Switch delivers reliable smart lighting control with support for both neutral and no-neutral wiring. Available in 1-gang, 2-gang, and 3-gang versions, it supports remote control, scheduling, and advanced automation. With Zigbee 3.0 connectivity, it integrates seamlessly into smart home ecosystems while enhancing Zigbee mesh stability. Its safe, durable design makes it ideal for modern residential smart automation.
مفتاح SONOFF ZBM5-XC-120W الذكي يعمل بتقنية Zigbee 3.0 ويوفر تحكمًا موثوقًا بالإضاءة مع دعم التوصيل بوجود سلك المحايد أو بدونه. يتوفر بعدة خيارات (1، 2، أو 3 مفاتيح) ليلائم مختلف الاحتياجات. يدعم التحكم عن بُعد، الجداول الزمنية، والأتمتة الذكية، كما يساهم في تقوية شبكة Zigbee داخل المنزل. تصميمه الآمن والمتين يجعله مناسبًا للمنازل الذكية الحديثة.
The SONOFF ZBM5-XC-120W Series Zigbee Smart Switch is designed for flexible and reliable smart lighting control in modern homes. Supporting Zigbee 3.0, it ensures low-latency communication and stable integration with SONOFF Zigbee hubs, Home Assistant via ZBDongle, and other Zigbee ecosystems.

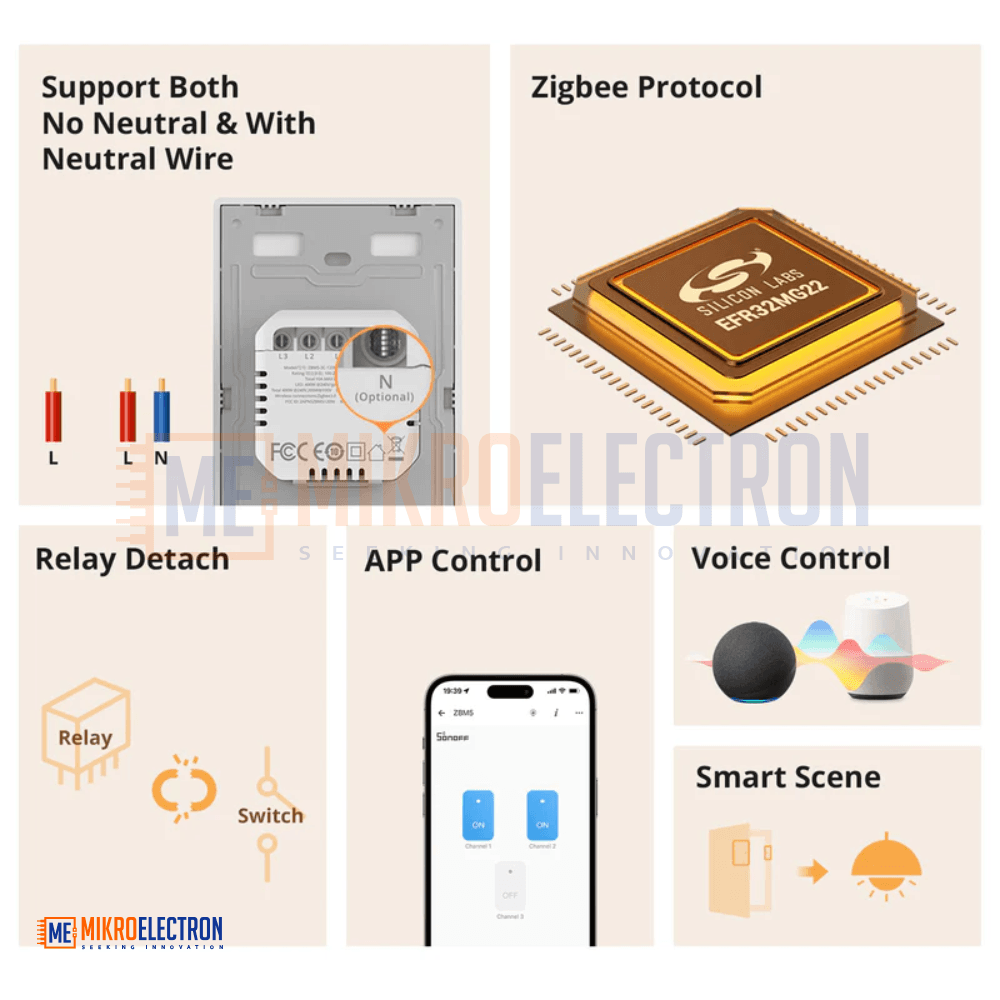

With dual wiring support, the ZBM5 series can be installed in both new constructions with neutral wiring and older homes without a neutral wire. Its Detach Relay Mode allows smart scene control even when the physical switch is off, while maintaining manual operation during network outages. When installed in neutral-required mode, the switch also functions as a Zigbee router, strengthening overall network coverage and reliability.
Technical Specifications
Model Line: SONOFF ZBM5 Series (ZBM5-XC-120W)
Wireless Protocol: Zigbee 3.0
Input Voltage: 100–240 V AC, 50/60 Hz
Output Power: Up to 120 W per channel
Gang Options: 1-gang / 2-gang / 3-gang
Wiring Modes: Neutral-required and No-neutral supported
Maximum Current: Up to 10 A per gang
Operating Temperature: -10°C to +40°C
Mounting Type: Standard 86 mm wall box
Material: Flame-retardant PC housing
Applications
Smart lighting control in homes and apartments
Retrofit smart switch installations in older buildings
Zigbee-based smart home systems
Automation scenes and scheduled lighting
Home Assistant and SONOFF ecosystem integration
Whole-home Zigbee mesh network expansion
Why Choose the SONOFF ZBM5 120 W Series?
Works with or without a neutral wire for flexible installations
Supports high-load and low-power lighting safely
Strengthens Zigbee mesh network for reliable connectivity
Compatible with app-based automation, smart scenes, and voice control
Elegant and compact design suitable for modern interiors
