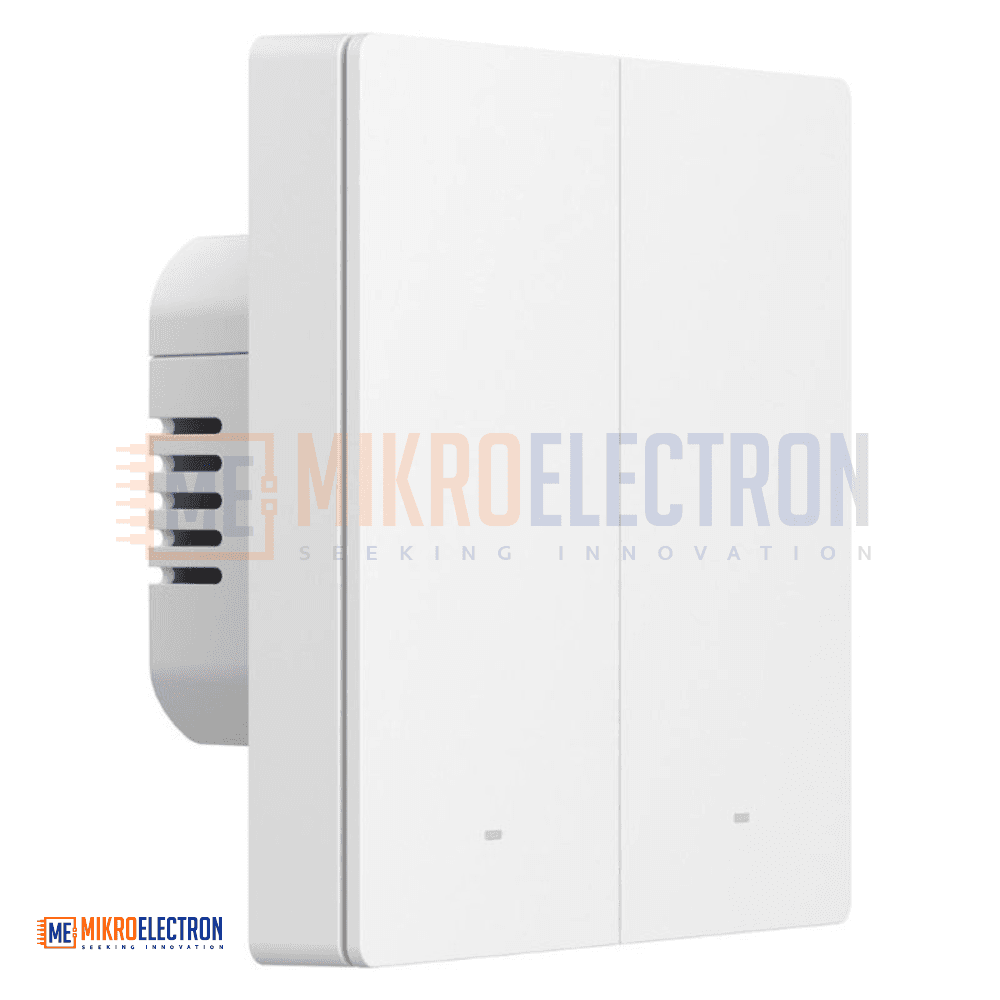

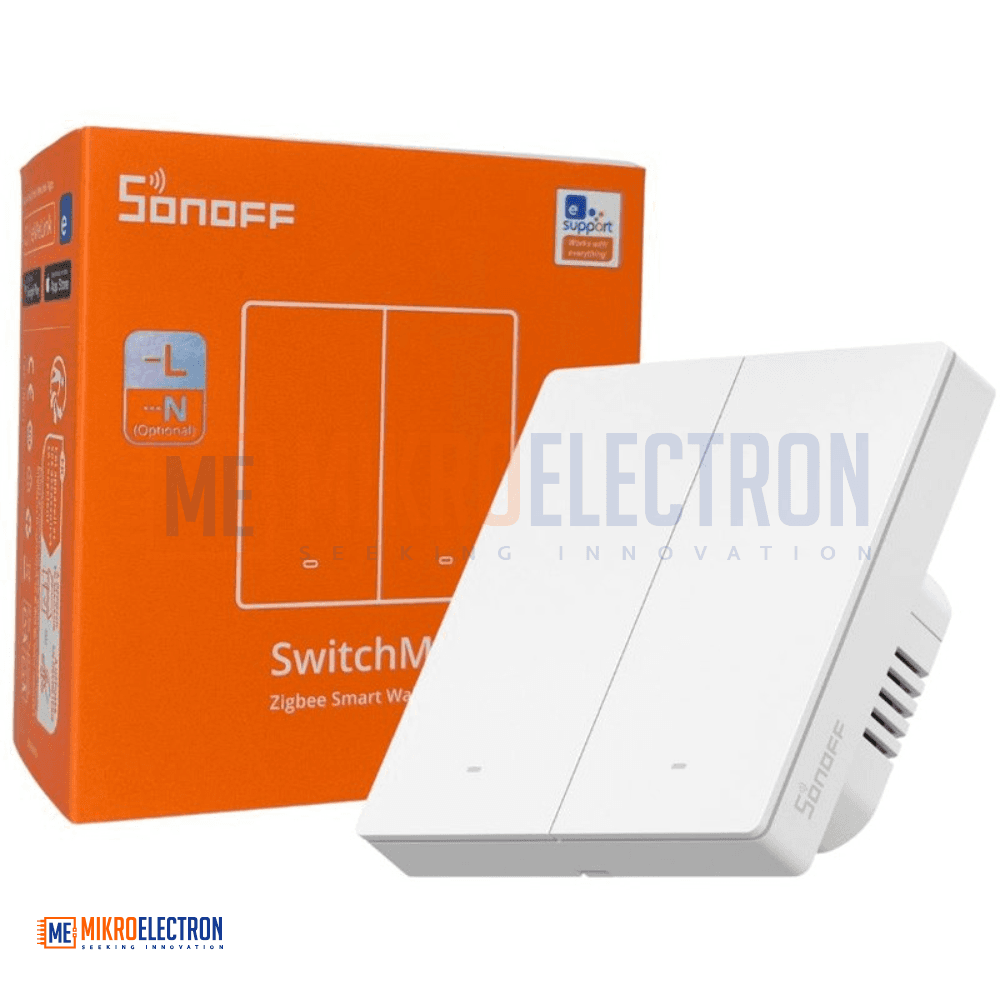

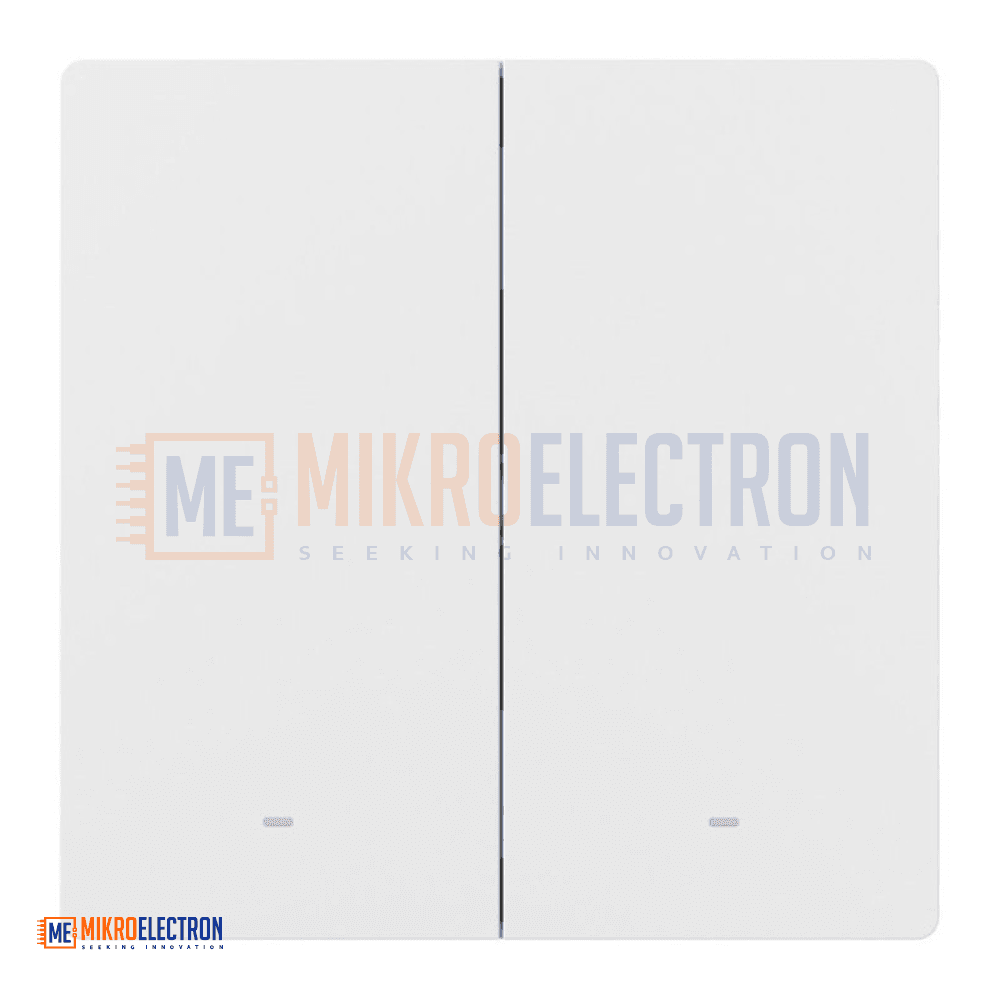

Sonoff 2 Gang SwitchMan ZBM5-2C-86W White Smart Zigbee Wall Switch 7*7
Out Of Stock
The SONOFF ZBM5-XC-86W Zigbee Smart Wall Switch upgrades traditional lighting into a fully automated smart system. Supporting both neutral and no-neutral wiring, and available in 1-gang, 2-gang, and 3-gang versions, it fits a wide range of installations. With remote control, scheduling, automation, and voice assistant support, it delivers flexible and reliable smart lighting control in modern and legacy homes.
مفتاح SONOFF ZBM5-XC-86W الذكي بتقنية Zigbee 3.0 يحول الإضاءة التقليدية إلى نظام ذكي متكامل. يدعم التركيب بوجود سلك المحايد أو بدونه، ويتوفر بخيارات 1 و2 و3 مفاتيح ليناسب مختلف التمديدات الكهربائية. يتيح التحكم عن بُعد، الجداول الزمنية، والأتمتة الذكية مع دعم الأوامر الصوتية. تصميمه العصري ووظائفه المتقدمة تجعله خيارًا مثاليًا لتحديث المنازل الحديثة والقديمة بكفاءة وأمان.
The SONOFF ZBM5-XC-86W Series Zigbee Smart Wall Switch is designed to provide intelligent lighting control with maximum installation flexibility. Built on Zigbee 3.0 technology, it ensures fast response times, stable connectivity, and broad compatibility with SONOFF Zigbee hubs and other Zigbee-based smart home platforms.
Supporting both neutral-wire and no-neutral installations, the ZBM5 series is suitable for new constructions and retrofit projects. Detach Relay Mode allows smart lights to remain controllable through automation and scenes even when the physical switch is off. When installed in neutral mode, the switch also functions as a Zigbee mesh router, extending network coverage and improving overall system reliability.
Technical Specifications
Model Line: SONOFF ZBM5 Series (86 Type)
Communication Protocol: Zigbee 3.0
MCU: EFR32MG22
Input Voltage: 100–240 V AC, 50/60 Hz
Output Rating:
1 Gang: 10 A max resistive load
2 Gangs: 10 A per group, total 10 A
3 Gangs: 10 A per group, total 10 A
Maximum LED Load:
1 Gang: 400 W (240 V), 200 W (100 V)
2/3 Gangs: 400 W per button (240 V), total 400 W
Minimum Load: 3 W (no-neutral mode)
Wiring Modes: Phase + Neutral / Phase without Neutral
Voice Control: Amazon Alexa, Google Home, Siri

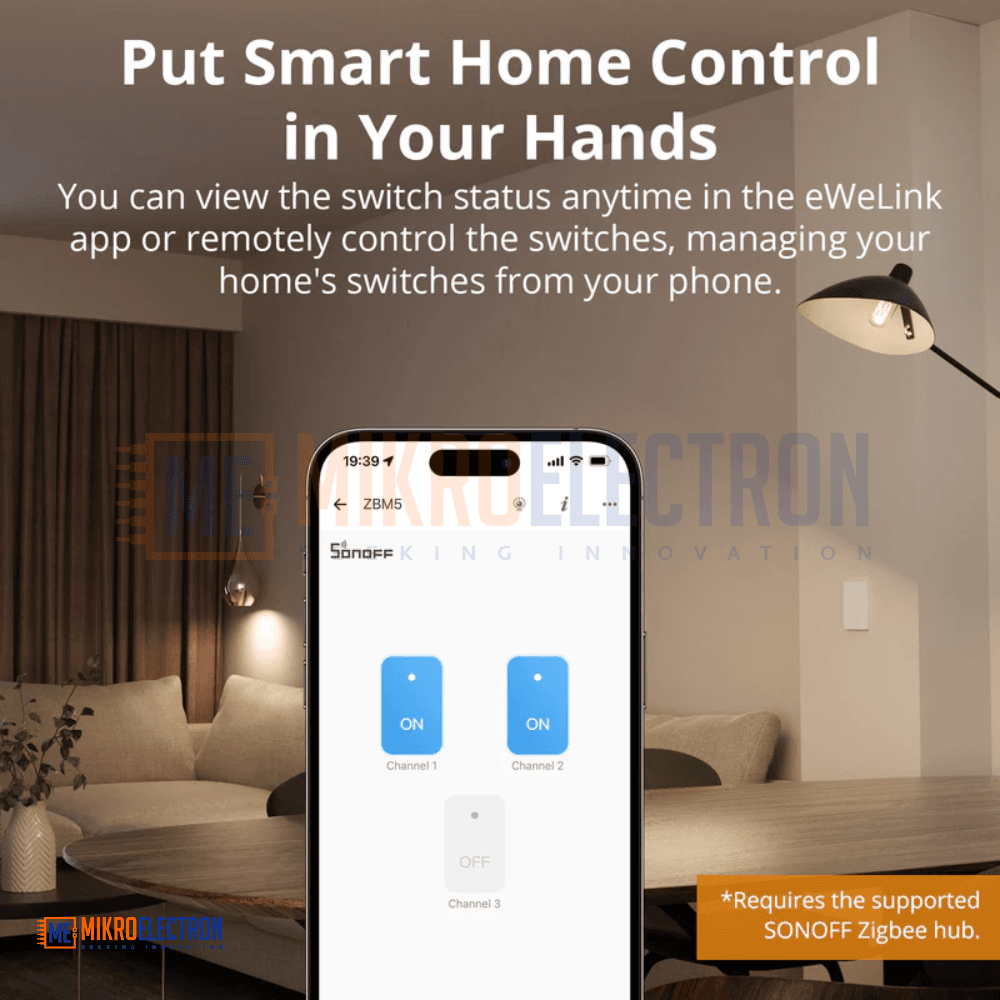

Mobile App: eWeLink
Material: PC + CRS

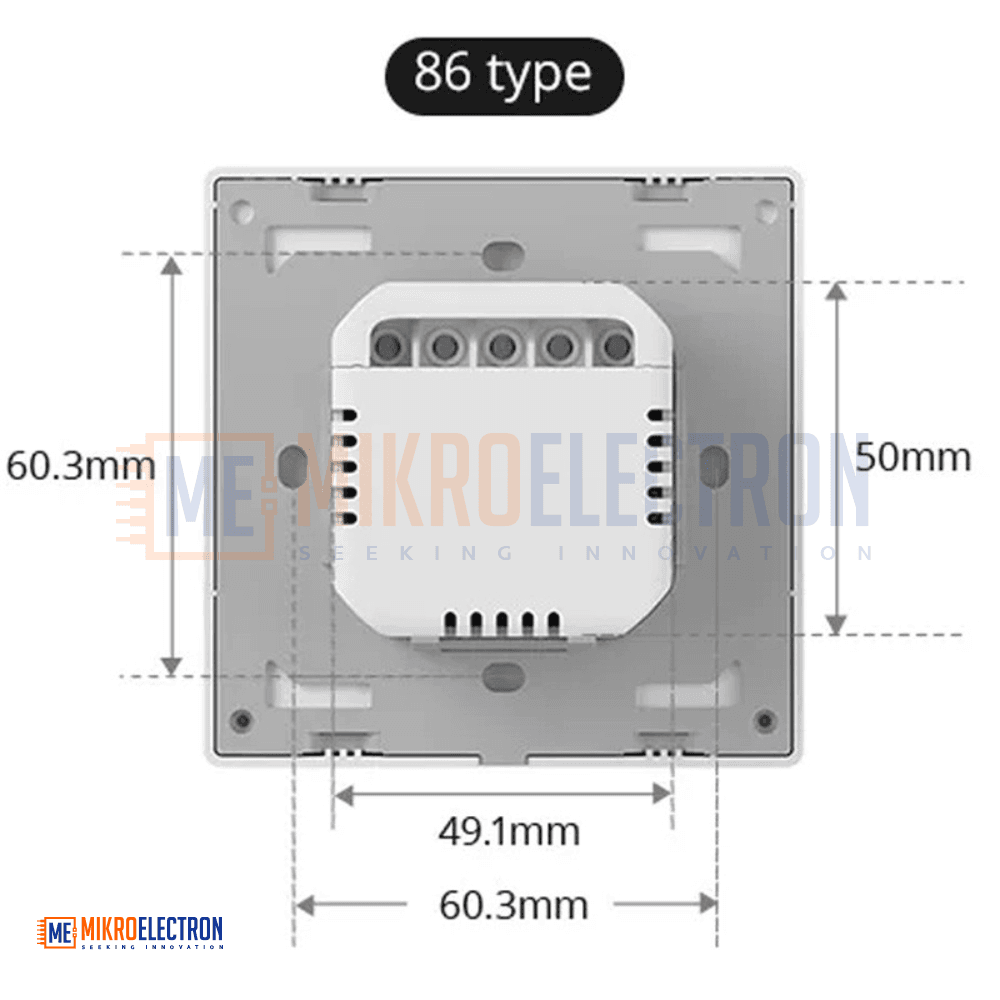

Dimensions: 87 × 87 × 40.2 mm
Operating Temperature: -10°C to +40°C
Working Humidity: 5% – 95% (non-condensing)
Mounting: 86 × 86 wall box or round box
Color: White
Applications
Smart lighting control in residential homes
Retrofit upgrades for older electrical systems
Zigbee-based smart home ecosystems
Automated lighting scenes and schedules
Integration with motion and environmental sensors
Apartments, villas, and smart renovation projects
Why Choose the ZBM5 Series?
Compatible with homes with or without neutral wiring
Strengthens your Zigbee mesh network
Supports advanced automation, smart scenes, and sensor integration
Hands-free control via voice assistants
Elegant design fits modern home décor
Reliable Zigbee connectivity with low latency
