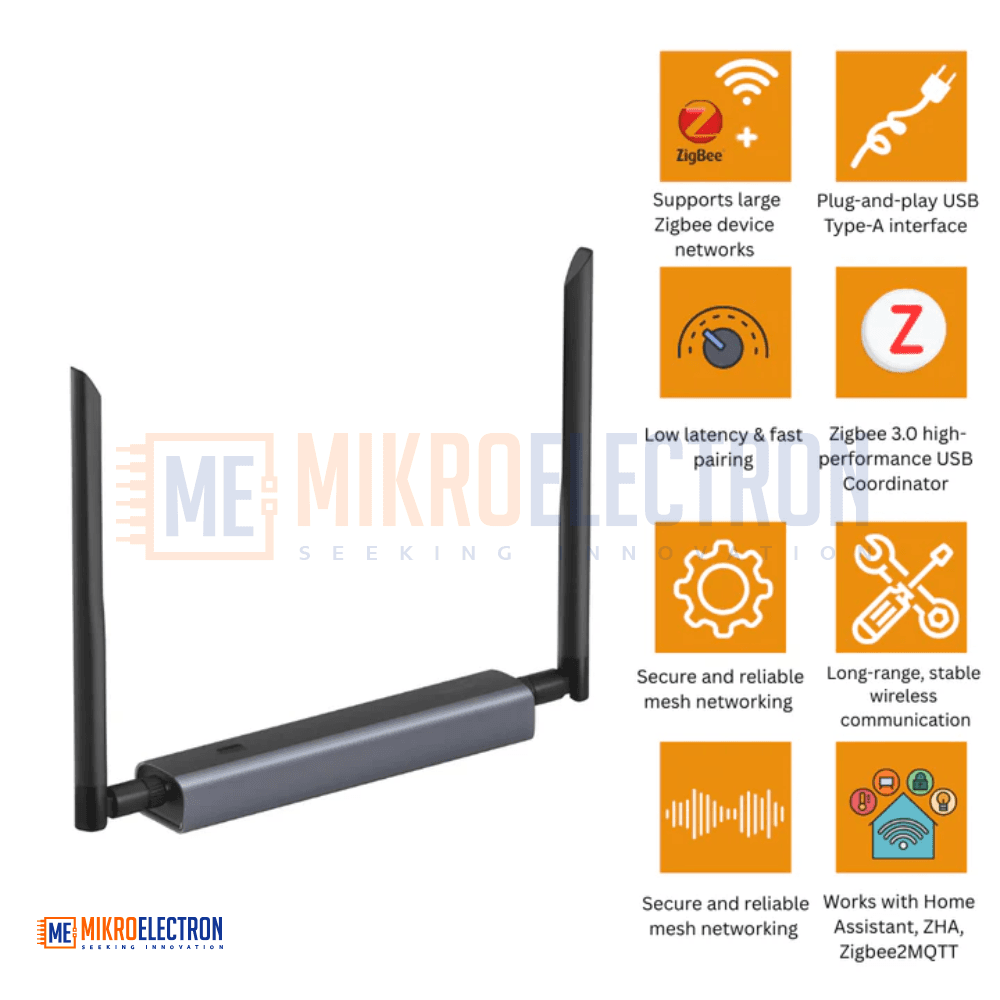

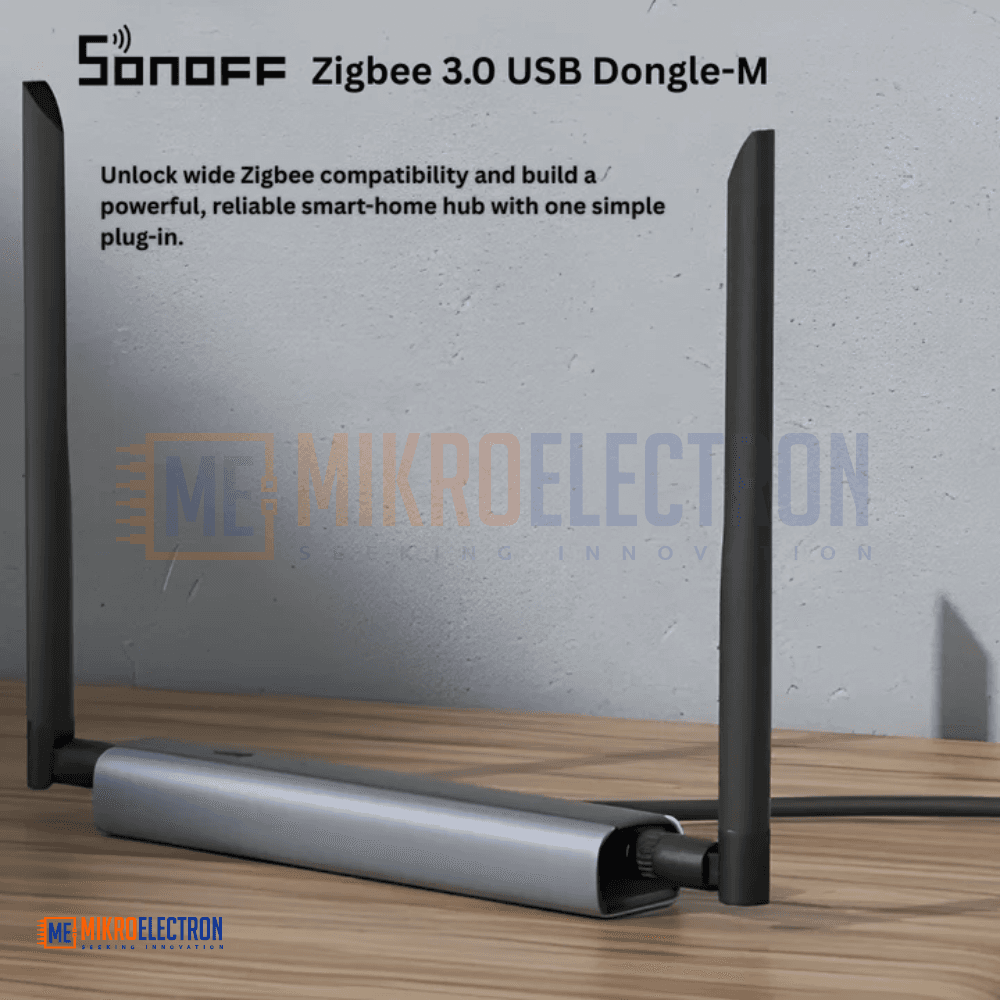

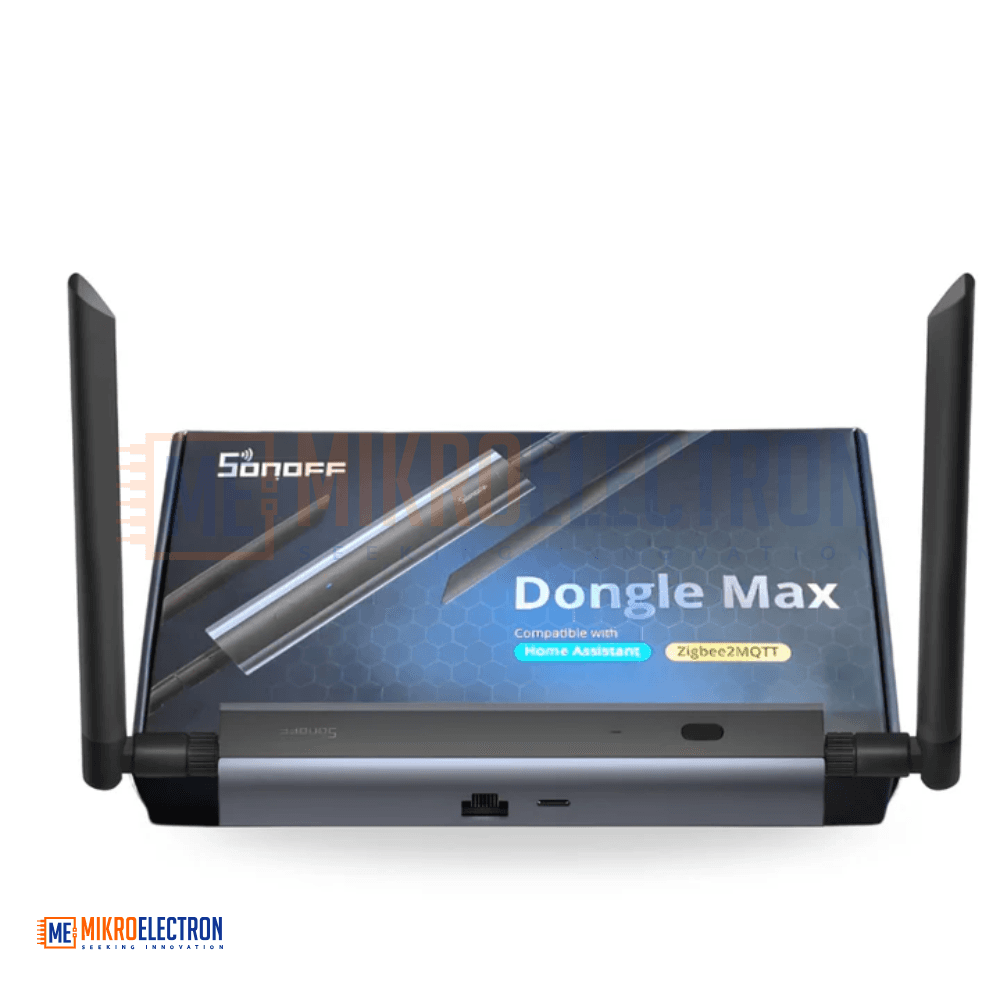

SONOFF Zigbee 3.0 USB Dongle-M Zigbee Gateway & Coordinator

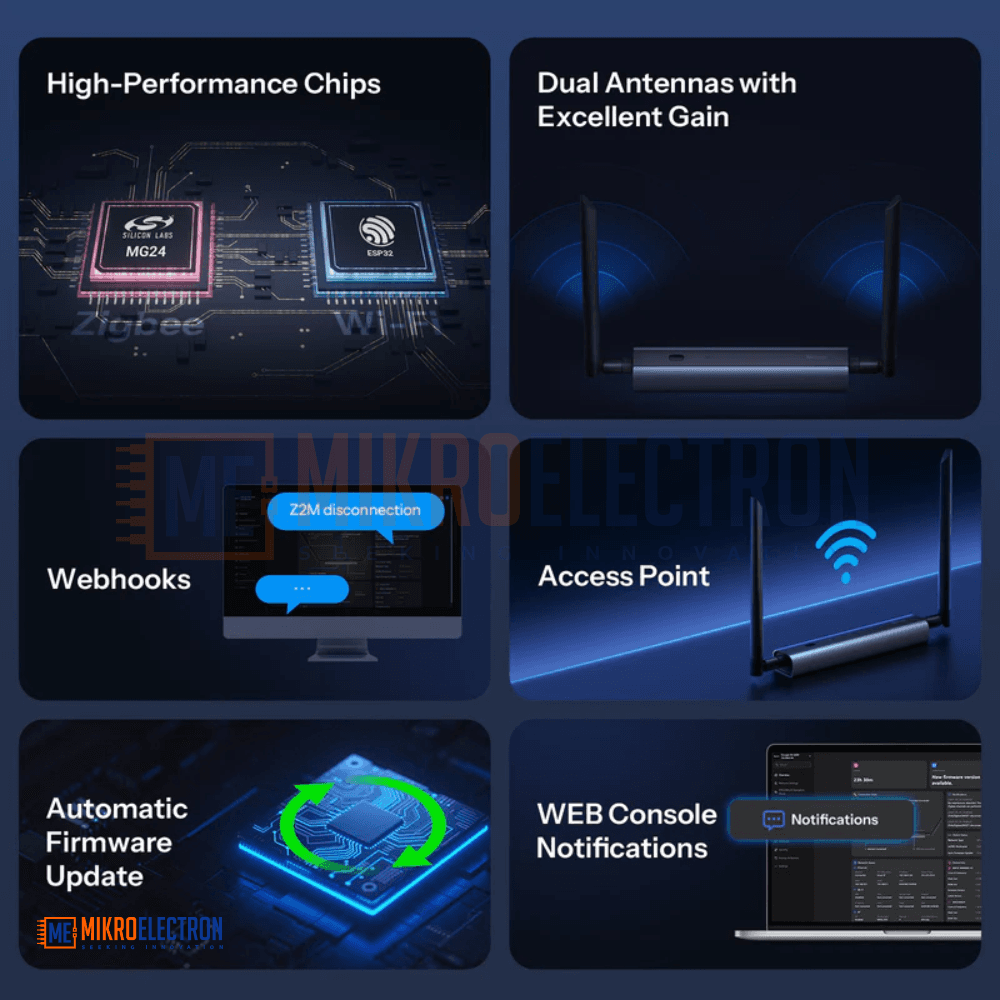

The SONOFF Zigbee 3.0 USB Dongle-M (Dongle Max) is a professional-grade Zigbee and Thread gateway designed for reliable, long-range smart home automation. Built on a powerful EFR32MG24 and ESP32D0WDR2 chipset combination, it delivers strong processing performance, stable operation, and future-ready expandability.

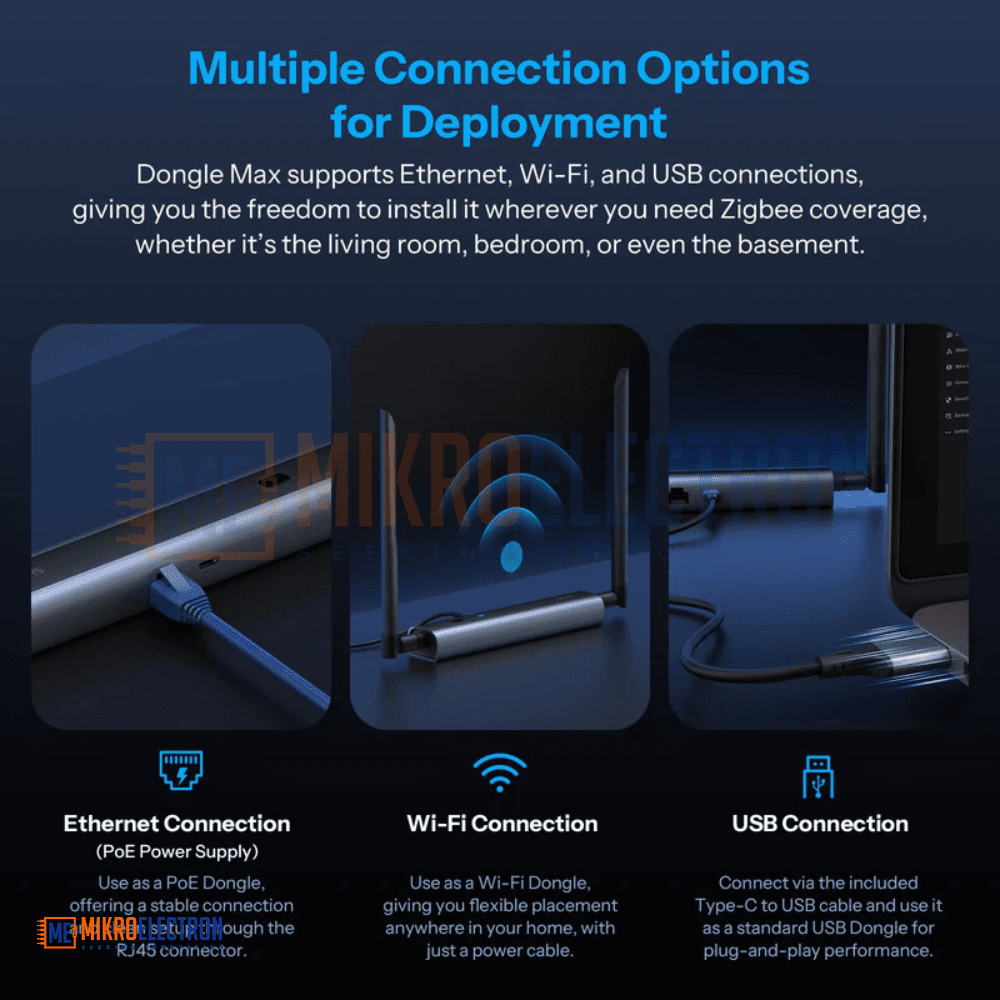

Dongle-M supports multiple connectivity options, including USB Type-C, Ethernet with PoE, and Wi-Fi, allowing flexible placement anywhere in the home or building for optimal Zigbee mesh coverage. Dual adjustable 5 dBi antennas provide 360-degree signal coverage, making it suitable for large homes and complex installations.

A built-in local web-based management interface enables easy configuration, device monitoring, firmware switching, log viewing, alerts, and advanced features such as webhooks and VPN-based remote access, all without command-line configuration.

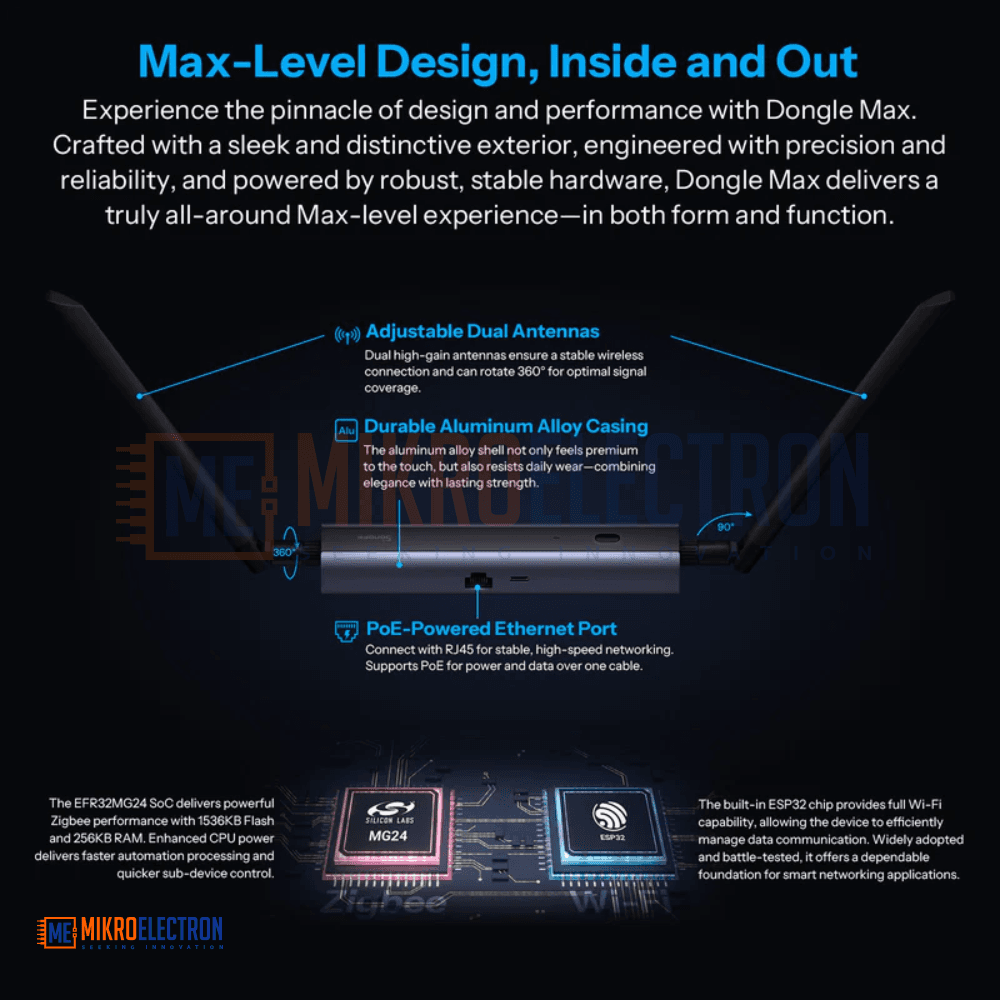

Operating as a Zigbee coordinator, Dongle-M can manage up to 50 direct child devices and scale to approximately 200 devices through Zigbee routers, with configurable support up to 100 direct children. Its durable aluminum housing ensures heat dissipation and long-term reliability, with CE, FCC, and RoHS certifications.

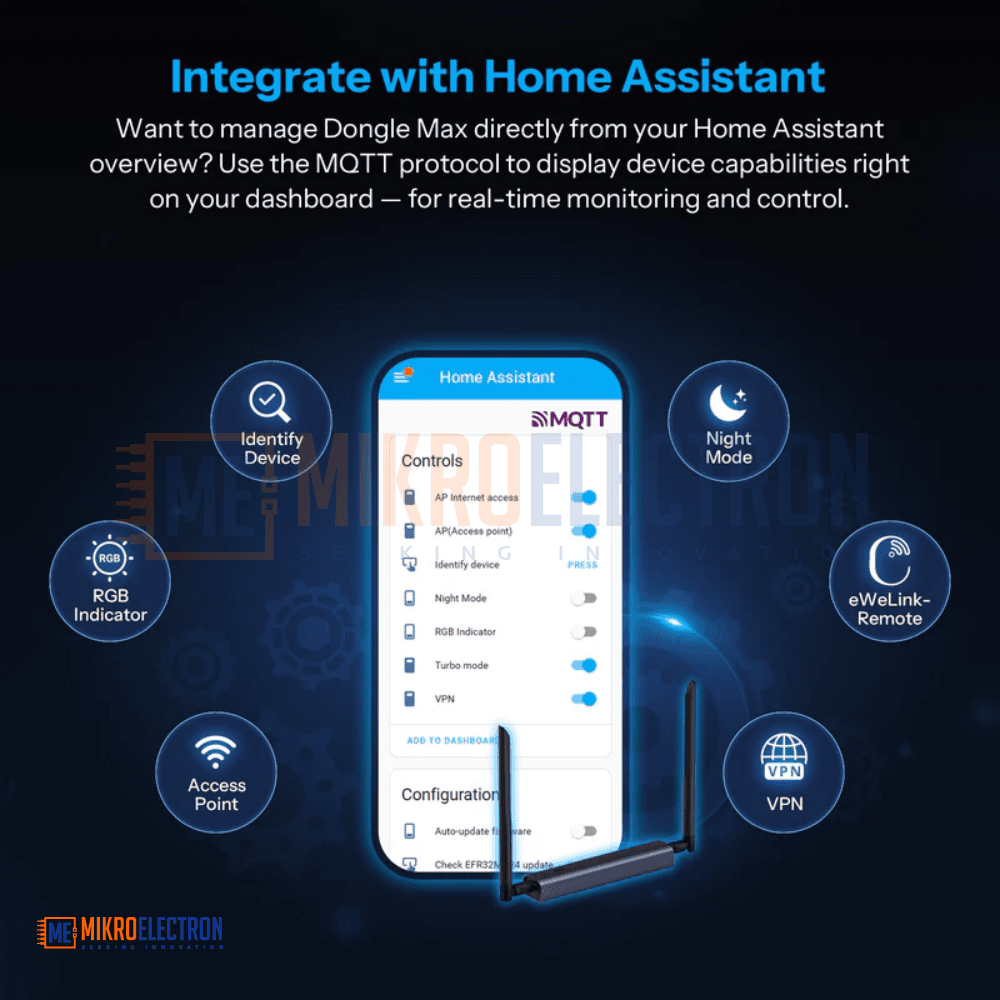

The dongle integrates seamlessly with popular smart home platforms including Home Assistant (ZHA and MQTT), Zigbee2MQTT, eWeLink CUBE, ioBroker, Domoticz, OpenHAB, and Jeedom, making it an ideal central hub for advanced smart home deployments.

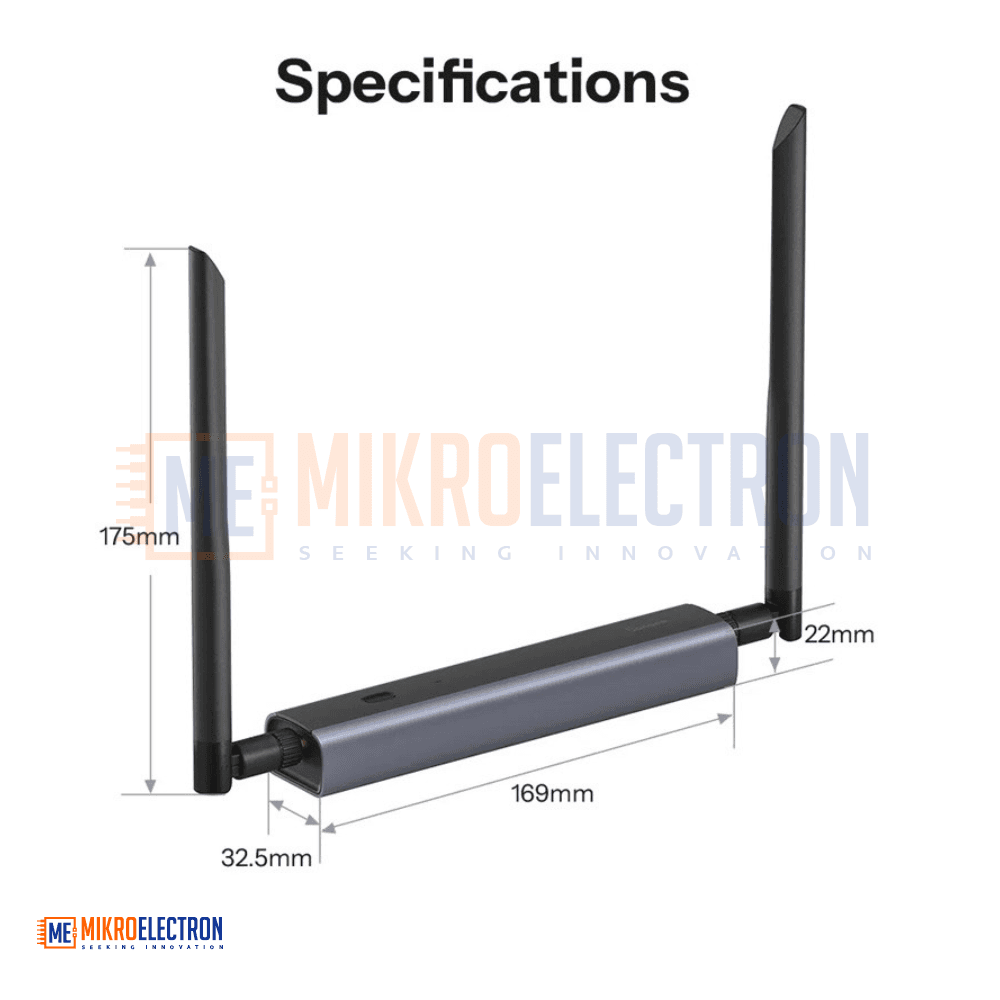

Technical Specifications:

Model: SONOFF Dongle-M

Product Type: Zigbee / Thread USB Gateway & Coordinator

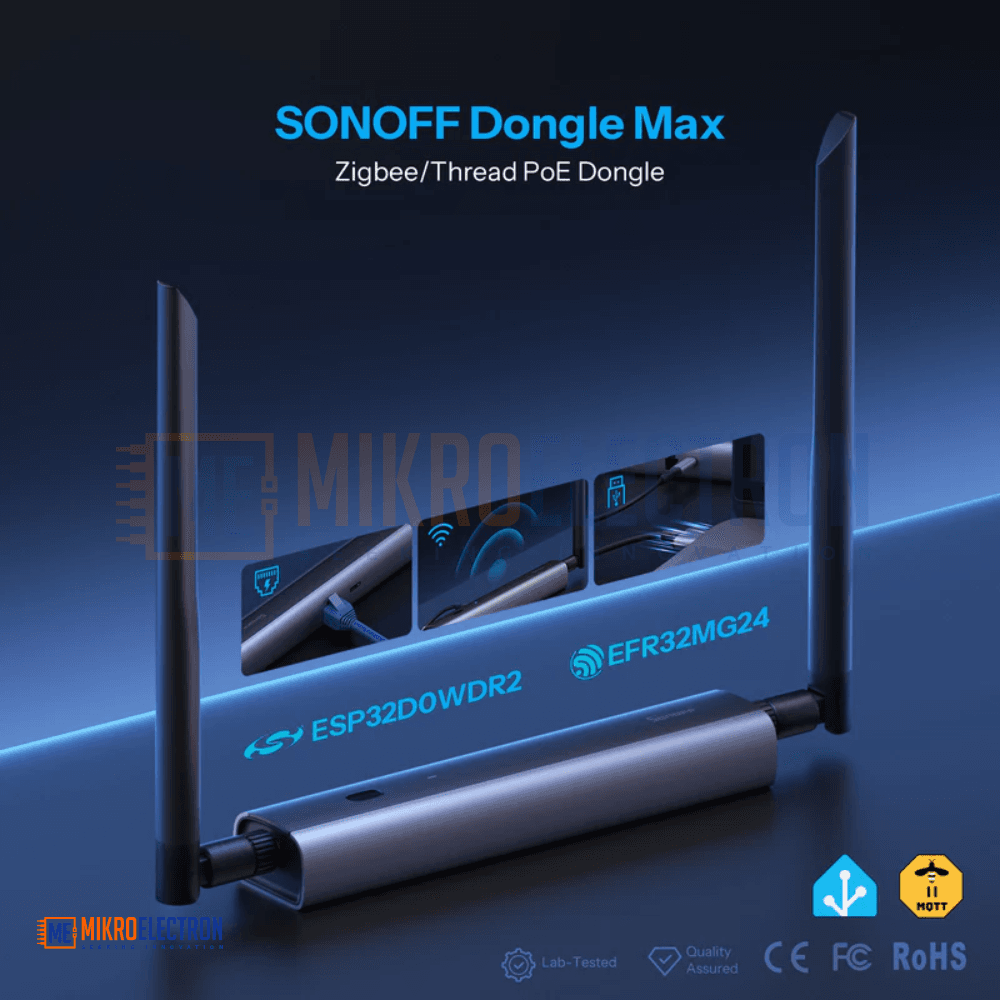

Chipset: EFR32MG24 + ESP32D0WDR2

Wireless Protocols: Zigbee 3.0, Thread, Wi-Fi IEEE 802.11 b/g/n (2.4 GHz)

Connectivity: USB Type-C, Ethernet (PoE), Wi-Fi

Input Power: 5 V ⎓ 1 A (USB-C), 48 V ⎓ 0.25 A (PoE)

Operating Temperature: –10 °C to +60 °C

Antennas: Dual adjustable 5 dBi

Housing Material: Aluminum, PC+ABS

Device Capacity: 50 direct child devices, up to 200 via routers

Management: Local web console, firmware updates, webhooks, VPN access

Applications:

Zigbee gateway and coordinator for smart homes

Home Assistant and Zigbee2MQTT deployments

Large-area Zigbee mesh networks

Professional and advanced home automation systems

Centralized management of Zigbee and Thread devices

 Why Choose SONOFF Dongle Max?

High-performance Zigbee/Thread coordinator with flexible deployment options.

Multiple connection methods (Ethernet, Wi-Fi, USB) for maximum placement freedom.

Local web interface for firmware updates, monitoring, and configuration without complex tools.

Strong 360° signal coverage and robust hardware ensure reliable connectivity.

Compatible with Home Assistant, Zigbee2MQTT, eWeLink CUBE, and other open-source platforms.
