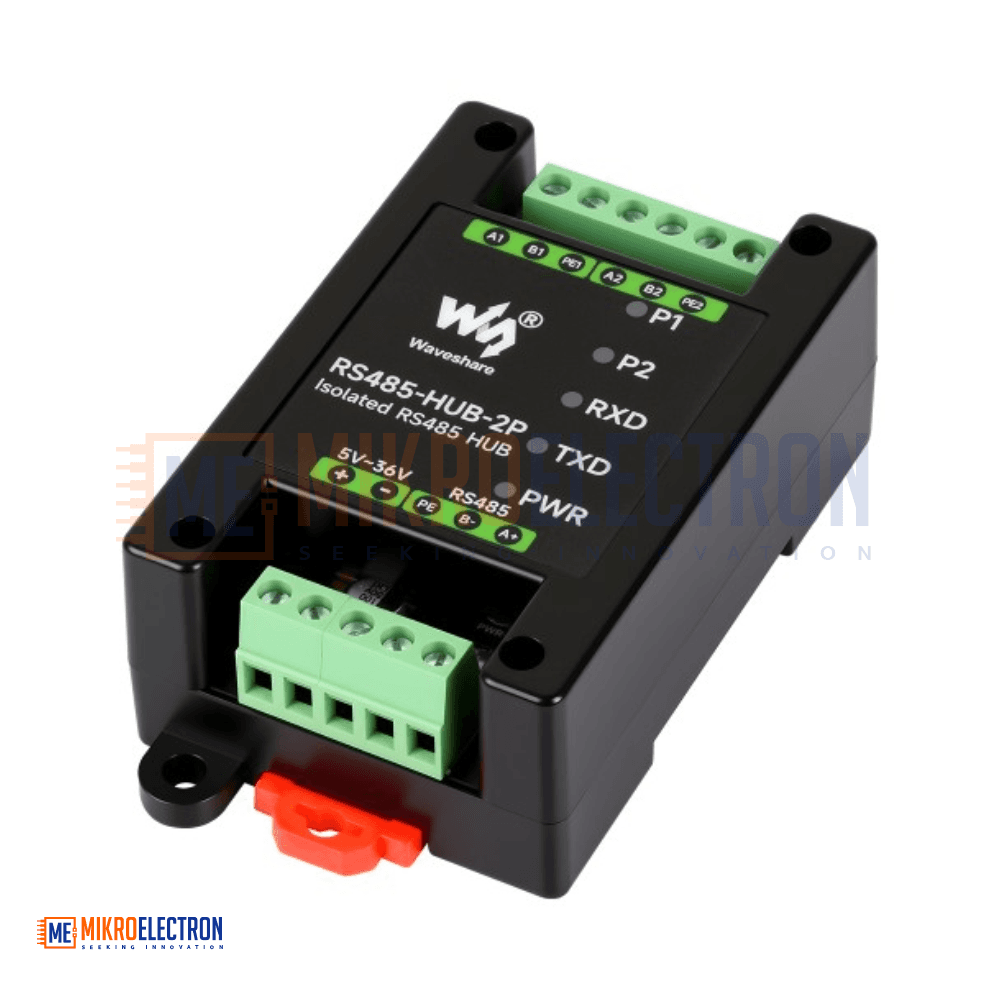

Industrial grade Isolated 2 Channel RS485 Hub Rail mount Support With Isolation And Signal Relay
The Industrial-grade 2-Channel RS485 Hub (RS485-HUB-2P) is a rail-mountable device that expands one RS485 master port into two isolated RS485 sub-ports. It provides signal relay, network extension, and electrical isolation, supporting up to 32 nodes per port. With a wide baud rate range (300–460,800 bps) and a 1200m communication distance at 9600 bps, this hub is ideal for industrial data acquisition, IoT gateways, intelligent instrument monitoring, and safety/security applications. Easy installation via rail-mount screw terminals ensures stable and reliable operation.
جهاز RS485-HUB-2P الصناعي هو موزع RS485 بموصل واحد رئيسي وقناتين فرعيتين مع عزل كهربائي، قابل للتركيب على السكك. يتيح توسيع الشبكة، تمرير الإشارات، وعزل الدائرة، ويدعم حتى 32 جهازًا لكل منفذ. نطاق سرعة البيانات واسع من 300 إلى 460,800bps، مع مسافة اتصال تصل إلى 1200 متر عند 9600bps. مثالي لتطبيقات جمع البيانات الصناعية، بوابات إنترنت الأشياء، مراقبة الأجهزة الذكية، وأنظمة الأمان، مع تركيب سهل وآمن على السكك.
The RS485-HUB-2P is an industrial-grade isolated RS485 hub designed to expand a single RS485 master port into two independent RS485 sub-ports. It enables signal relay, network extension, and electrical isolation, making it suitable for robust industrial communication systems. The hub provides reliable data transmission in harsh industrial environments and is cost-effective with a simple rail-mounted installation.
Each RS485 port can support up to 32 nodes, and the hub allows half-duplex transparent transmission in two-wire RS485 mode (A/B). The device automatically adapts to baud rates from 300 to 460,800 bps, while supporting communication distances up to 1200 meters at 9600 bps. With a wide operating temperature range (-45°C to +85°C) and humidity tolerance (<95% RH), the hub is suitable for industrial IoT gateways, intelligent instrumentation, data acquisition systems, and security monitoring applications.
The unit is powered via screw terminal input (DC 5–36V), and standard parallel or twisted-pair cables can be used for RS485 transmission.
Specifications
| Interface standard | Compliant with RS485 standard |
|---|---|
| Physical interface | RS485 screw terminals |
| Baud rate | 300~460800bps (self-adaptive) |
| supported nodes | Each RS485 port supports up to 32 nodes |
| Communication distance | 1200m (9600bps), the higher rate the shorter distance |
| Operating mode | RS485 two-wire (A, B), half-duplex transparent transmission |
| Power supply | DC 5V ~ 36V |
| Operating temperature | -45 ~ +85℃ |
| Environment humidity | <95%RH |
| Transmission medium | Normal parallel cables/twisted-pair cables |
Primary function
Supports RS485 network relay, extension and isolation functions
Application Diagram
Point-to-point RS485 Relay Communication
Supports RS485 one-to-two expansion, point-to-point, half-duplex, and relay communication
Point-to-multipoint RS485 Relay Communication
Supports RS485 bus star topology connection for flexible networking, with built-in signal relay and amplification
Multi-Device RS485 Cascading Communication
Supports cascading of multiple RS485 devices to solve multi-node networking connection issues in large systems, ensuring stable and reliable signal amplification
Industrial isolation protection

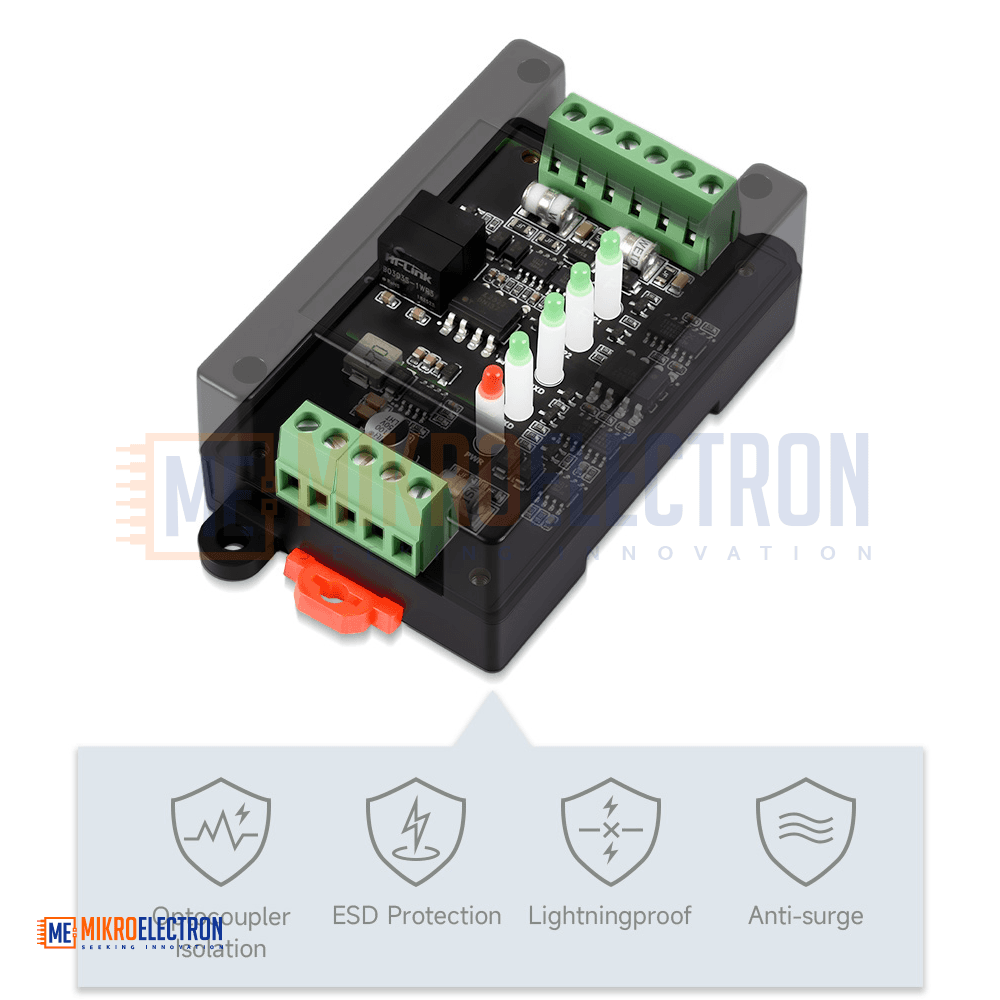

Built-in optoelectronic isolation circuit, can effectively isolate RS485 master and sub devices, provides multiple protection such as anti-electrostatic, lightningproof & anti-surge, which is suitable for the industrial environment with high reliability and safety requirements.
Wide baud rate range
Supports 300~460800bps Wide Baud Rate Communication Range (self-adaptive)

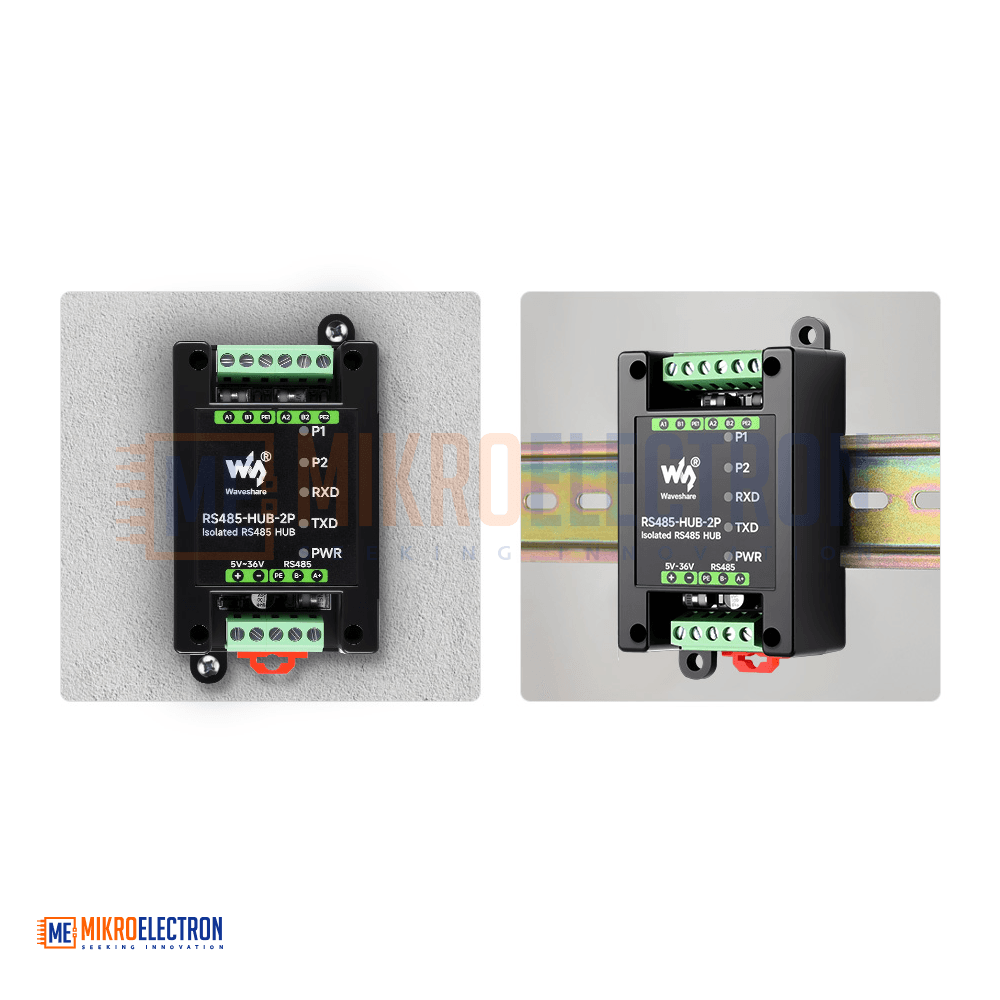

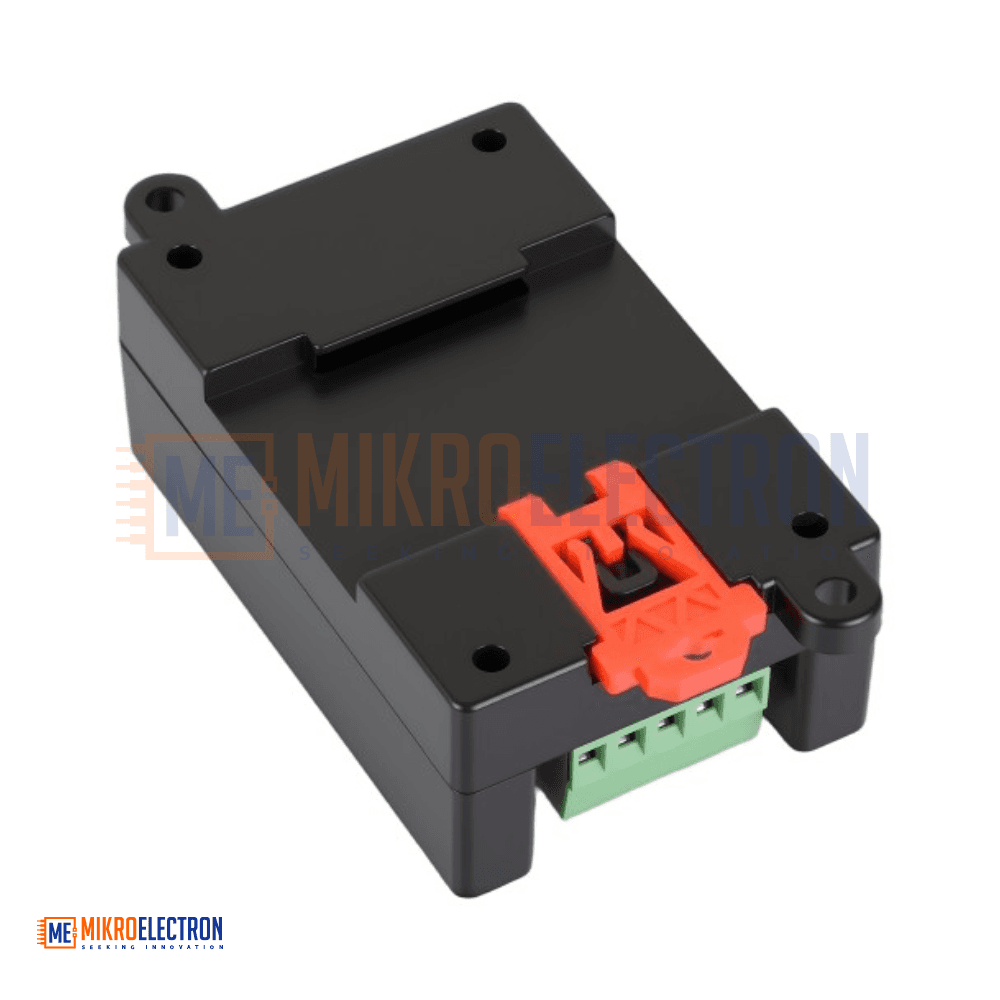

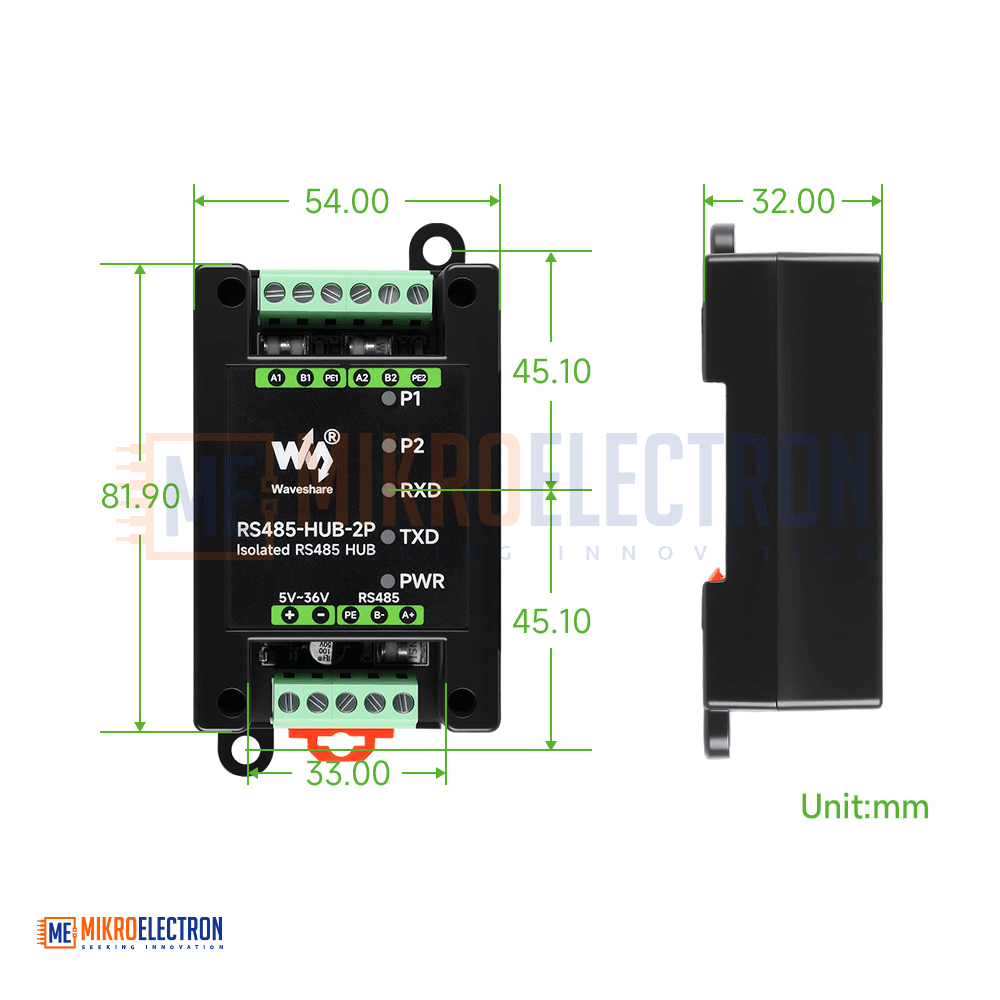

Wall-mount and Rail-mount Support

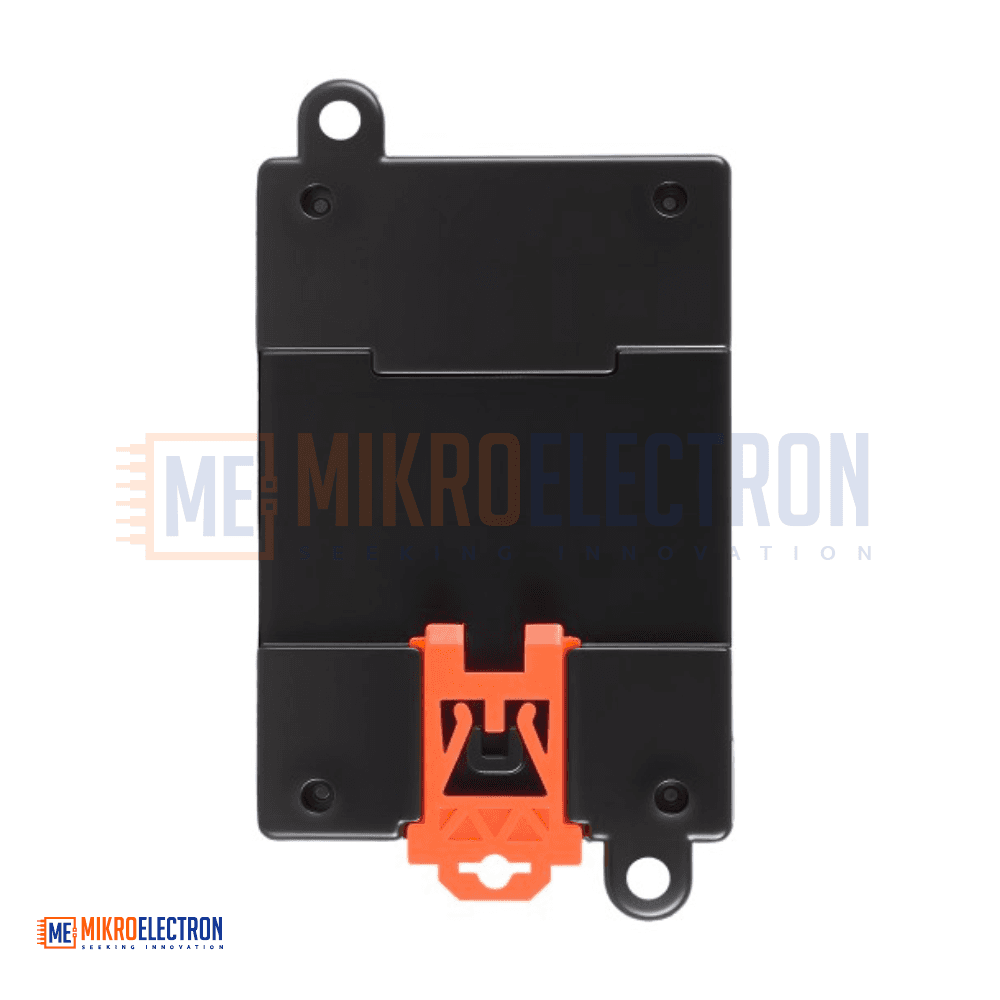

Supports 35mm standard guide rail, with rail-mount buckle, easy to install

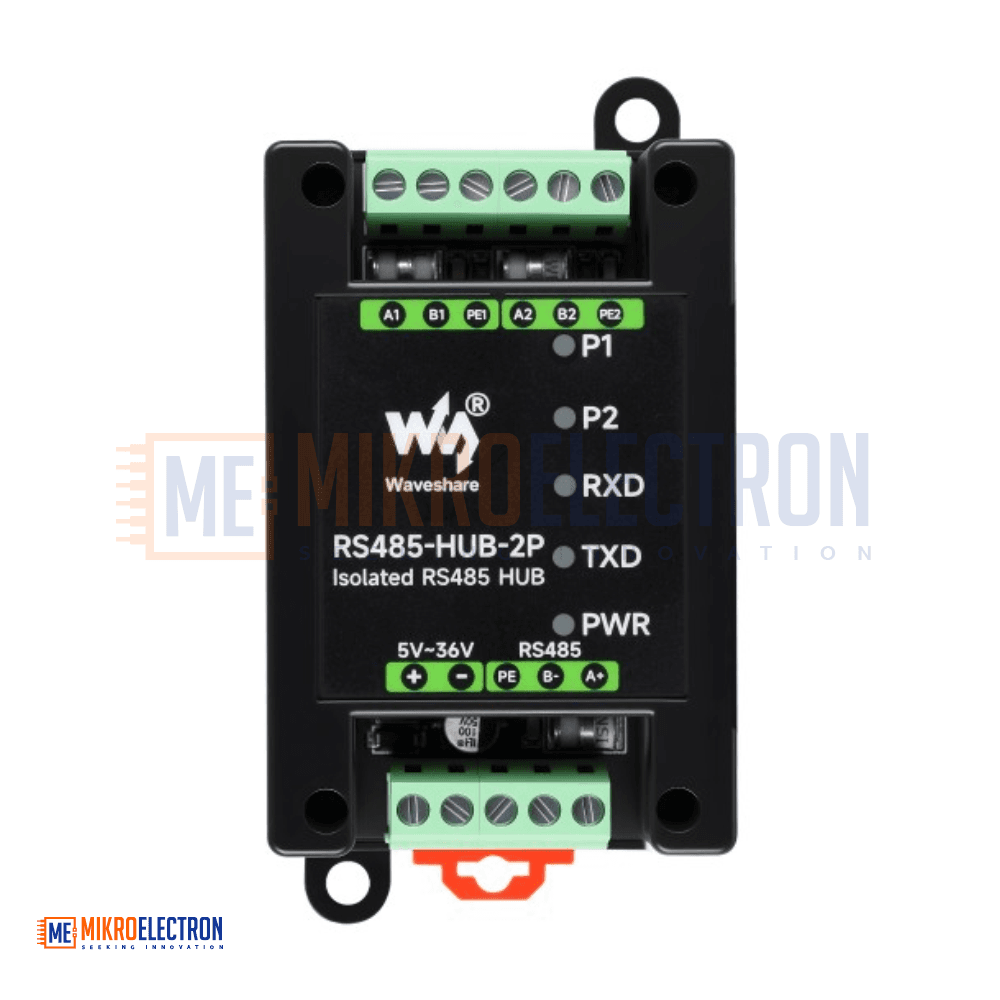

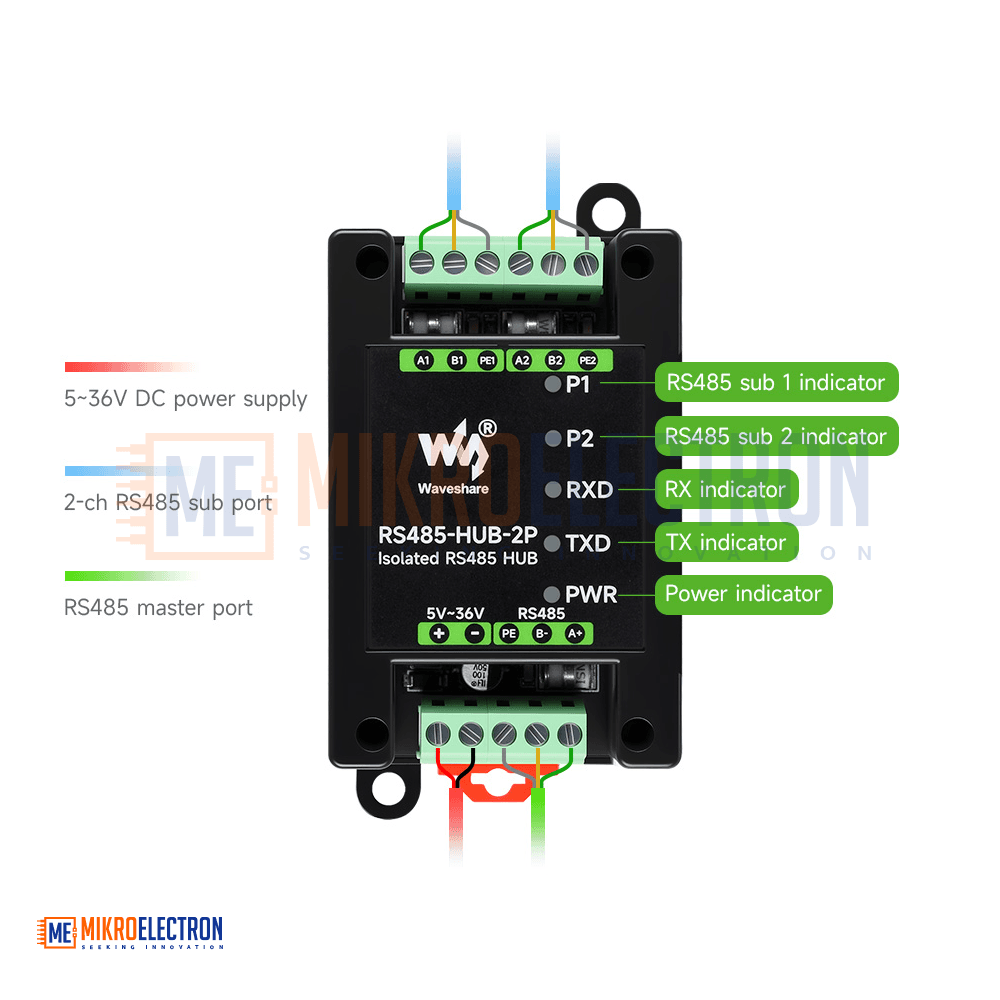

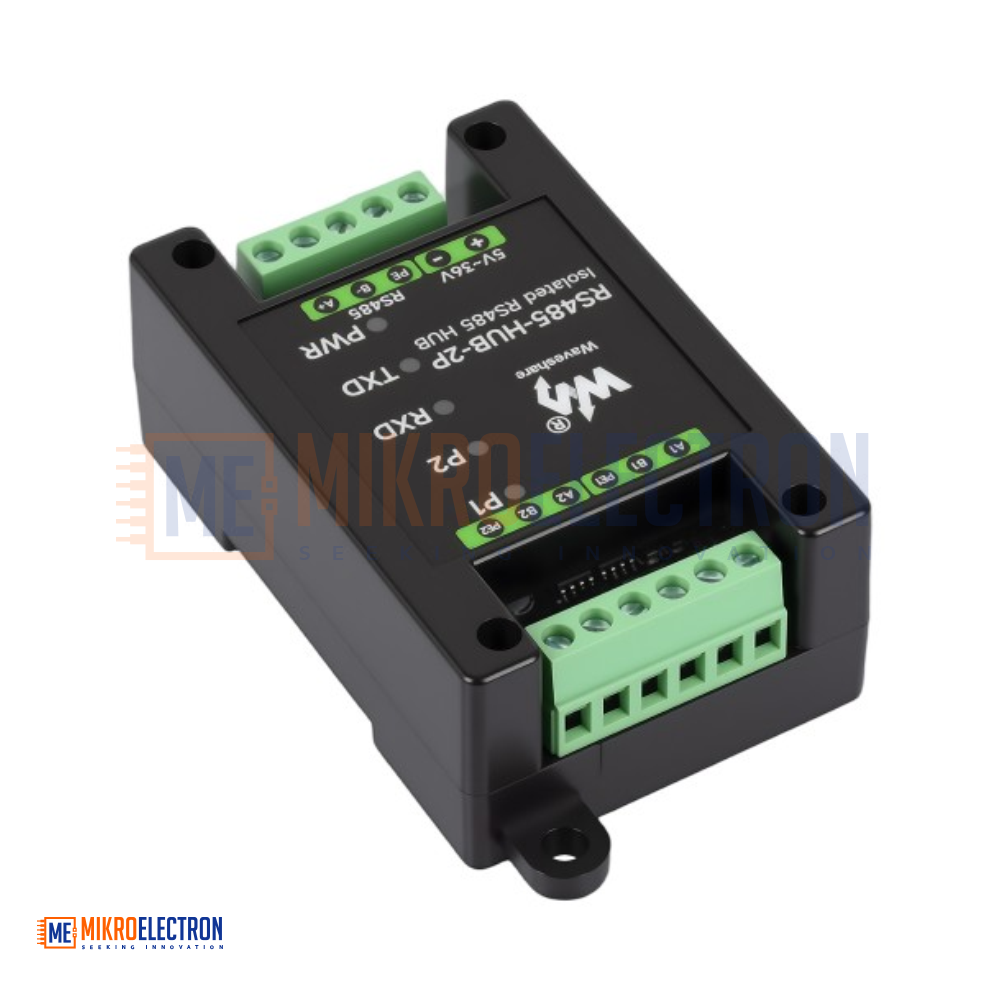

Interface introduction
