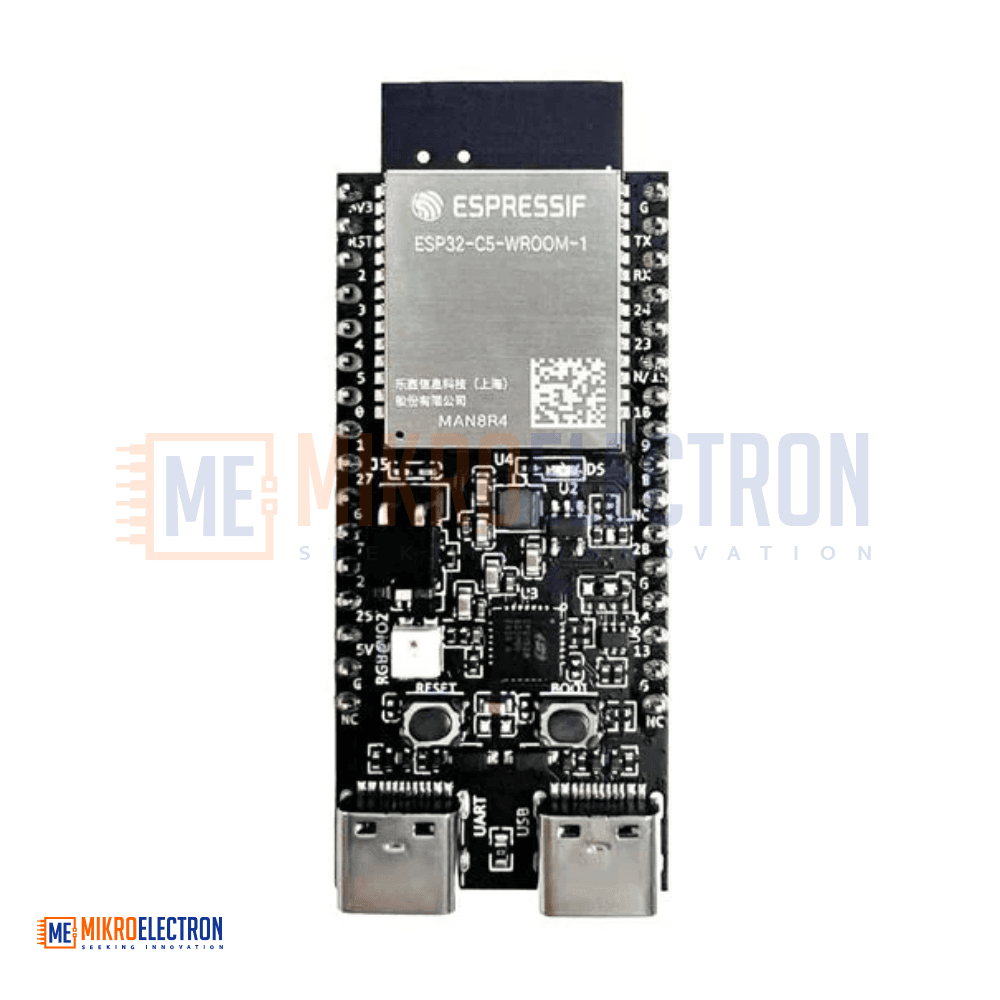

ESP32 C5 N8 DevKitC 1 Development Board with Dual Band WiFi6 ESP32-C5-WROOM-1 Module

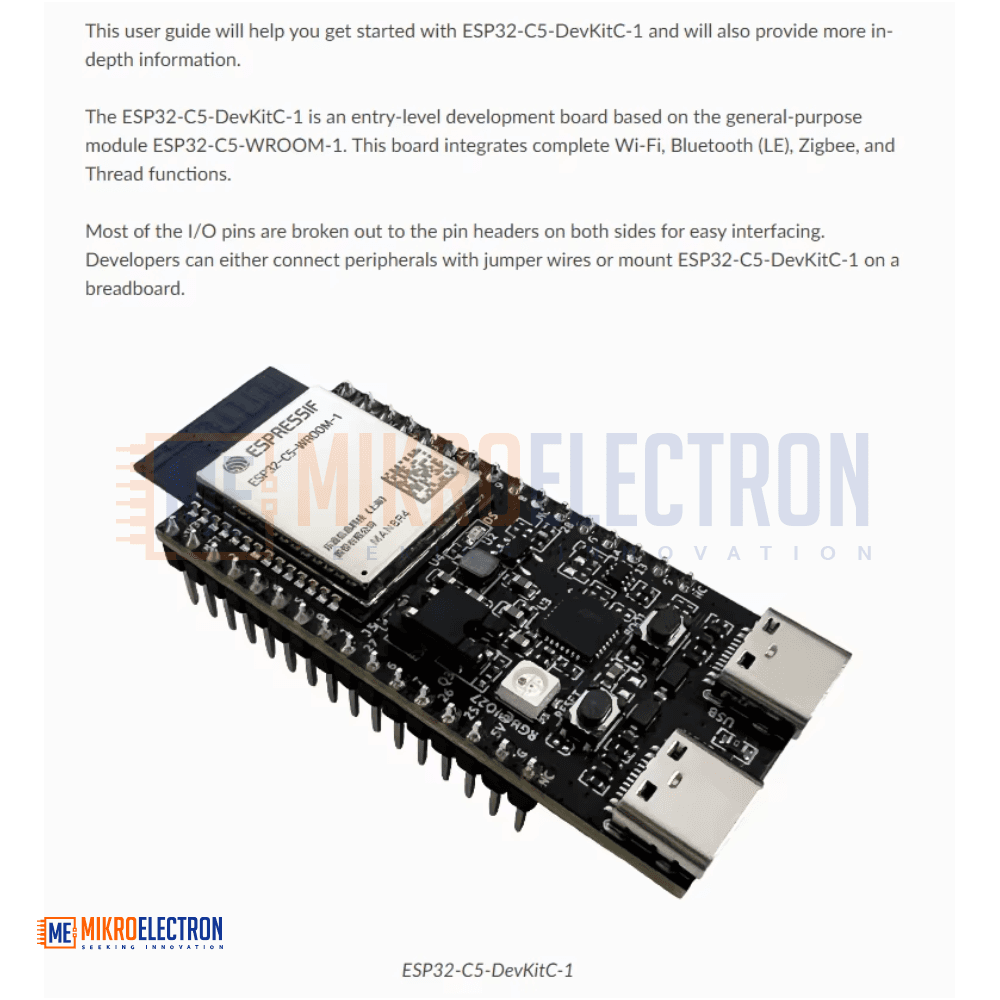

The ESP32-C5-DevKitC-1 is an entry-level development board built around the ESP32-C5-WROOM-1 module, delivering dual-band WiFi 6 (2.4GHz & 5GHz), Bluetooth LE 5, Zigbee, and Thread connectivity. It features dual USB Type-C ports, a high-speed USB-to-UART bridge (up to 3 Mbps), onboard RGB LED, Boot and Reset buttons, and a DC/DC power regulator. With breadboard-friendly GPIO access and ESP-IDF support, it is ideal for IoT prototyping, wireless research, and smart automation development.
لوحة التطوير ESP32-C5-DevKitC-1 هي لوحة مبتدئة تعتمد على وحدة ESP32-C5-WROOM-1، وتوفّر اتصالًا متقدمًا يشمل WiFi 6 مزدوج النطاق (2.4 جيجاهرتز و5 جيجاهرتز)، وBluetooth LE 5، بالإضافة إلى Zigbee وThread.
تتميز بوجود منفذي USB Type-C، وجسر USB إلى UART عالي السرعة (حتى 3 ميجابت/ثانية)، ومصباح RGB مدمج، وأزرار Boot وReset، إلى جانب منظم طاقة DC/DC.
كما توفّر أطراف GPIO متوافقة مع لوحات التجارب (Breadboard-friendly)، وتدعم بيئة التطوير ESP-IDF، مما يجعلها مثالية للنماذج الأولية لإنترنت الأشياء (IoT)، أبحاث الاتصالات اللاسلكية، وتطوير أنظمة الأتمتة الذكية.
The ESP32-C5-DevKitC-1 is a versatile and powerful development platform designed for next-generation wireless and IoT applications. It is built around the ESP32-C5-WROOM-1 module from Espressif Systems, supporting advanced multiprotocol connectivity including dual-band WiFi 6 (802.11ax), Bluetooth LE 5, Zigbee, and Thread (IEEE 802.15.4).

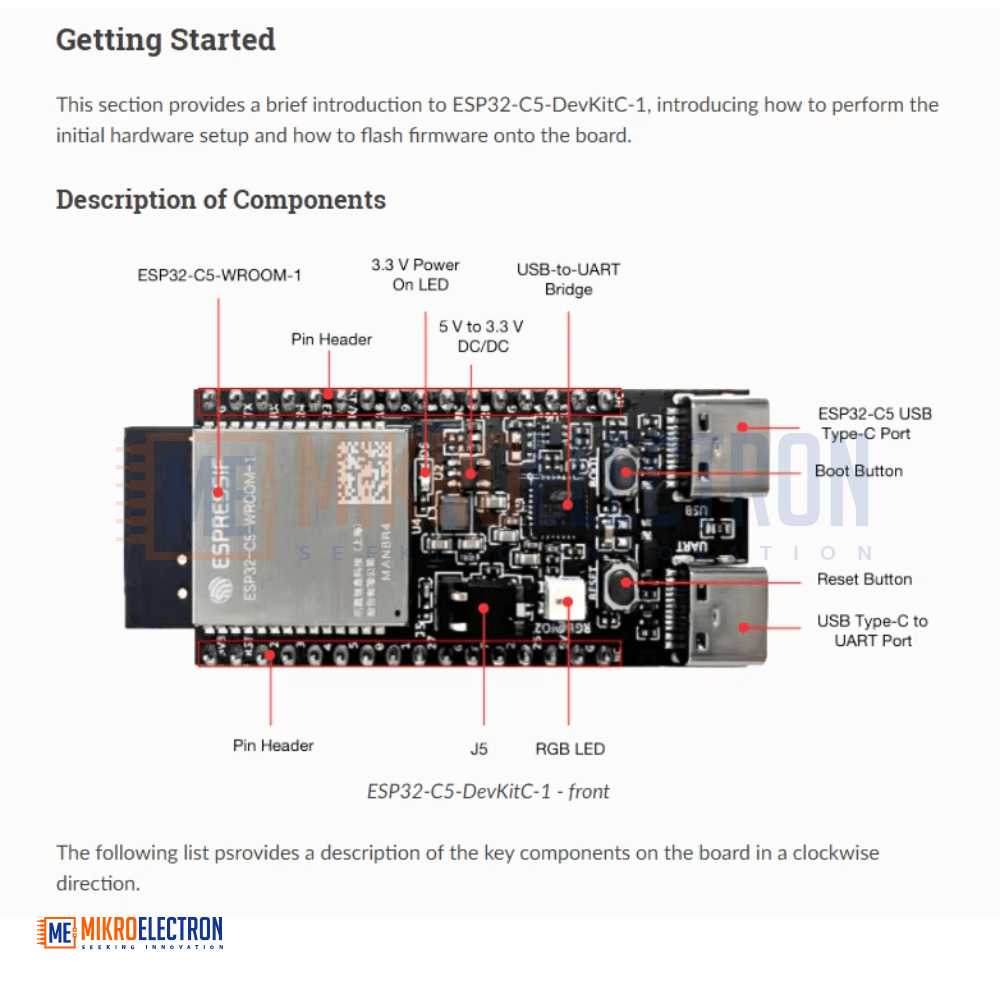

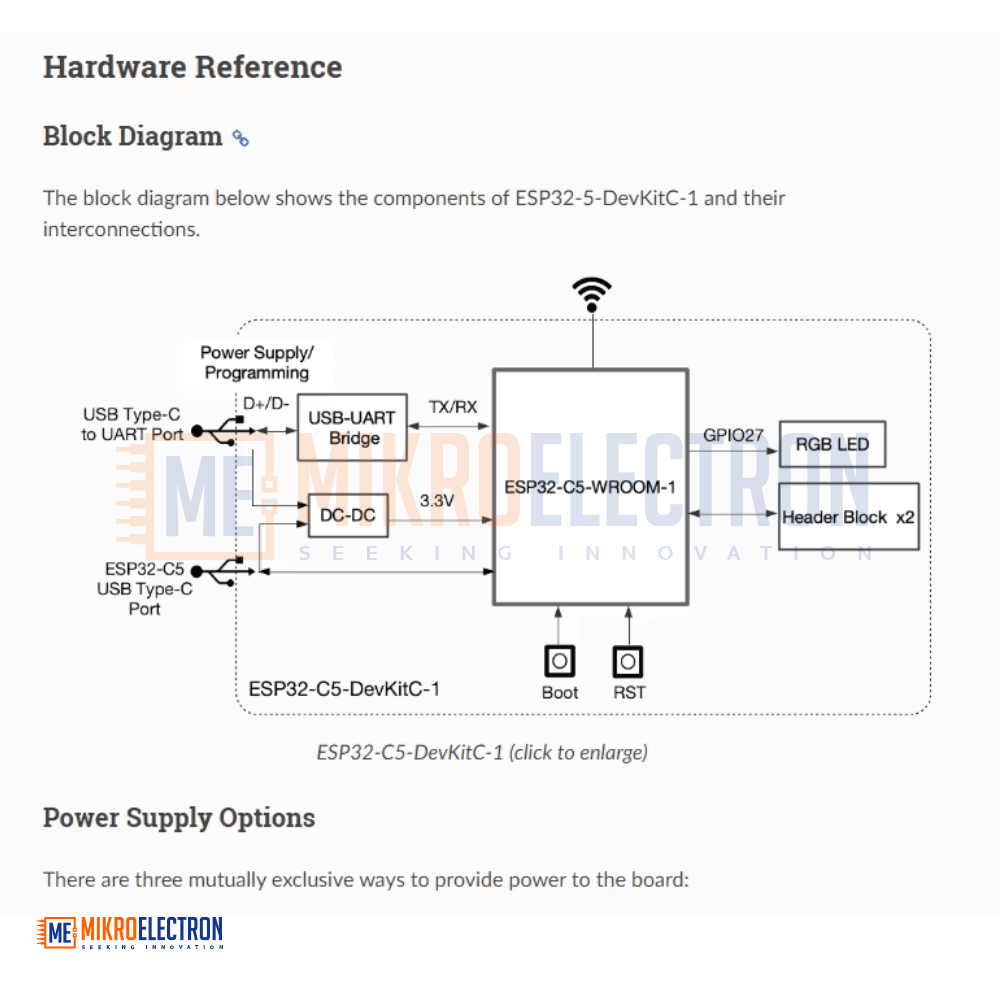

The board provides access to most GPIO pins via dual side headers, making it breadboard-friendly and ideal for rapid prototyping using jumper wires. It features two USB Type-C ports: one for USB-to-UART communication at speeds up to 3 Mbps, and another supporting USB 2.0 full-speed for flashing and native device communication.

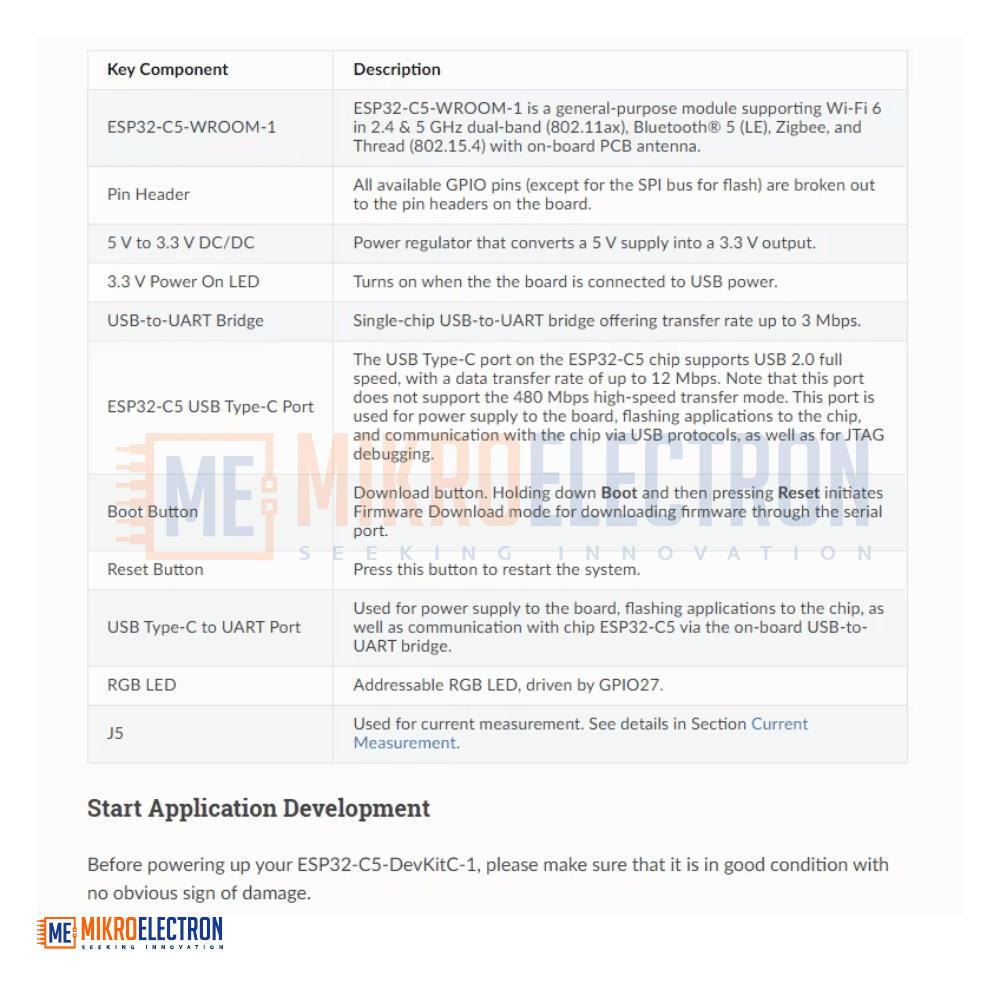

A high-efficiency 5V to 3.3V DC/DC regulator ensures stable power conversion. An onboard addressable RGB LED (GPIO27) provides programmable visual feedback. The board also includes Boot and Reset buttons for simplified firmware flashing and system control. Additionally, a dedicated current measurement header (J5) allows precise power profiling of the module during development.
Fully compatible with the ESP-IDF framework and supported by extensive documentation, the ESP32-C5-DevKitC-1 accelerates embedded development across IoT, automation, and wireless networking applications.
Specifications
🔸 Wireless Connectivity
WiFi 6 (802.11ax) dual-band: 2.4 GHz & 5 GHz
Bluetooth LE 5
Zigbee
Thread (802.15.4)
🔸 USB Support
USB 2.0 full-speed (native via ESP32-C5)
USB-to-UART bridge up to 3 Mbps

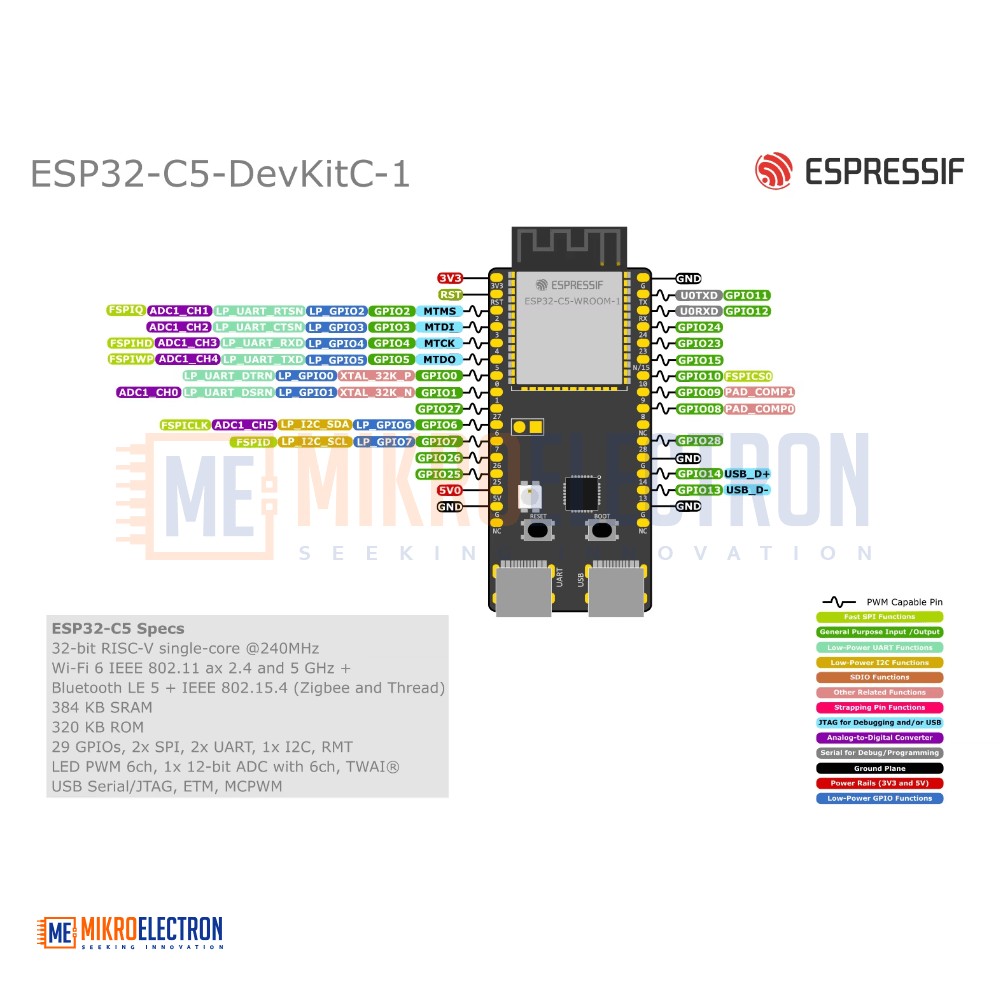

🔸 GPIO & Interfaces
Digital I/O
ADC
SPI
I2C
UART
PWM
Strapping pins exposed
🔸 Power Options
USB Type-C
5V header input
3.3V header input
🔸 Indicators & Controls
3.3V Power LED
Addressable RGB LED (GPIO27)
Boot button
Reset button
Applications
IoT gateways and hubs
Smart home and building automation
Industrial monitoring and control systems
Consumer electronics prototyping
Wireless networking research (WiFi 6, BLE, 802.15.4)
Embedded systems education and laboratory development
Multiprotocol wireless device development
