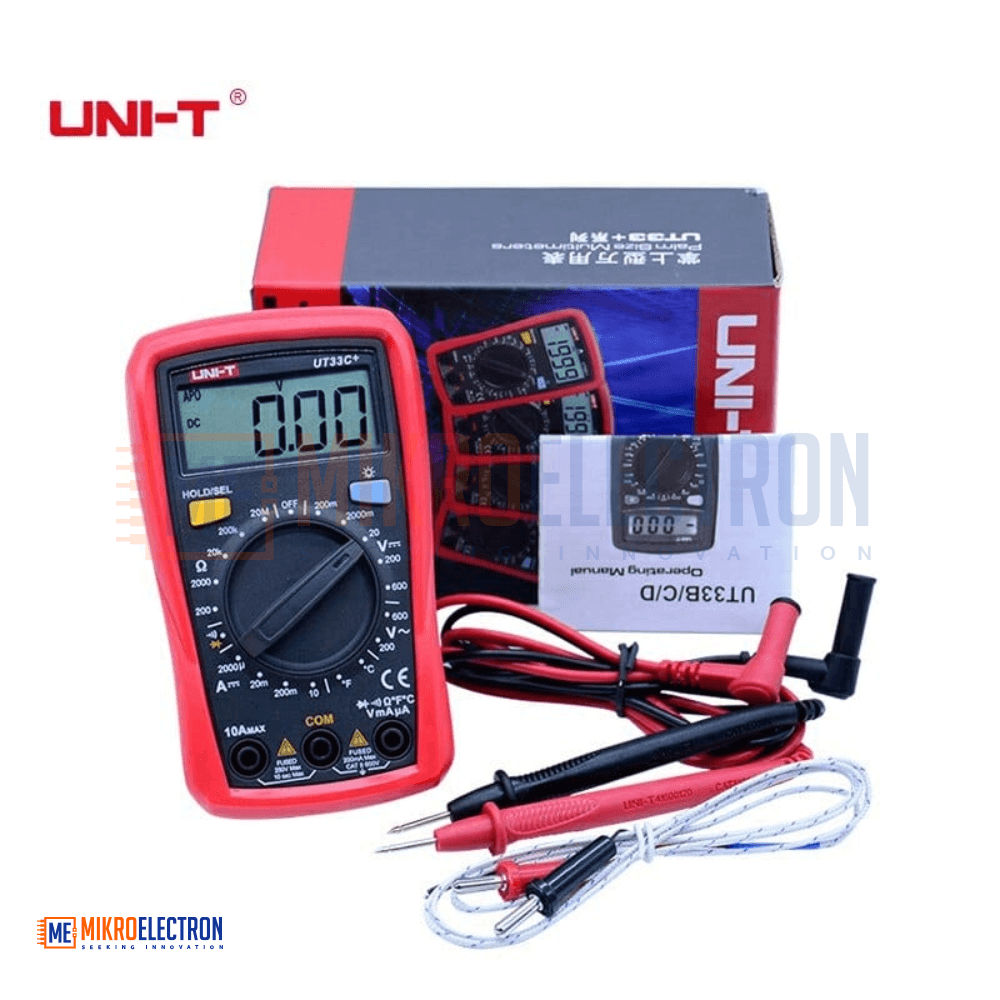

Uni-T UT33c+ Pocket Digital Multimeter With Battery
The UNI-T UT33C+ is a compact 2000-count digital multimeter designed for safe and accurate electrical measurements. Rated CAT II 600V and 2-meter drop-proof, it ensures durability and user protection. It measures DC/AC voltage, DC/AC current, resistance, continuity, diode, and temperature from -40°C to 1000°C using the included probe. Featuring a backlit LCD, manual range selection, and auto power-off, it is ideal for electrical troubleshooting, automotive diagnostics, HVAC systems, and educational use.
جهاز UNI-T UT33C+ هو ملتيميتر رقمي صغير الحجم بعداد 2000 قراءة، مصمم لقياسات دقيقة وآمنة. يتمتع بتصنيف أمان CAT II 600V ومقاومة سقوط حتى 2 متر. يقيس الجهد والتيار AC/DC، المقاومة، اختبار الدايود، الاستمرارية، ودرجة الحرارة من -40°C إلى 1000°C باستخدام المجس المرفق. مزود بشاشة بإضاءة خلفية وإيقاف تلقائي للطاقة، مناسب للصيانة الكهربائية، السيارات، أنظمة التكييف والمختبرات التعليمية.

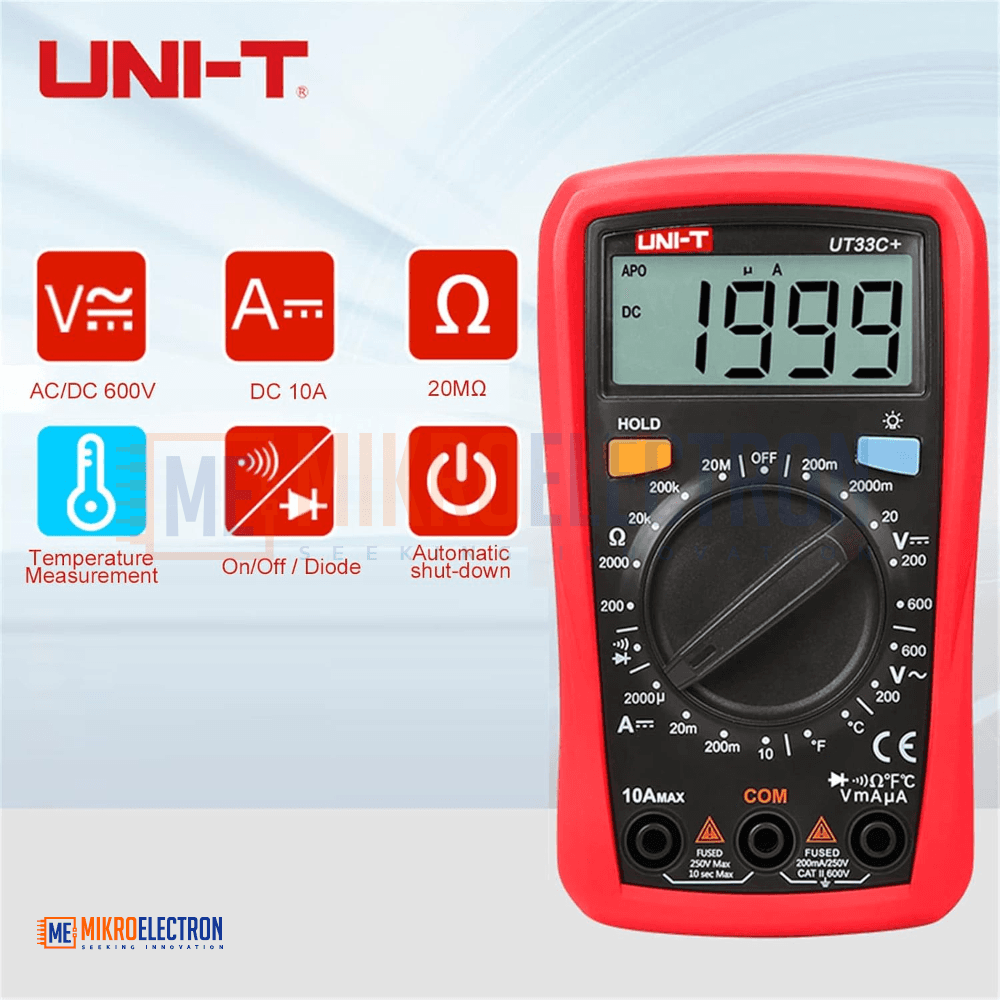

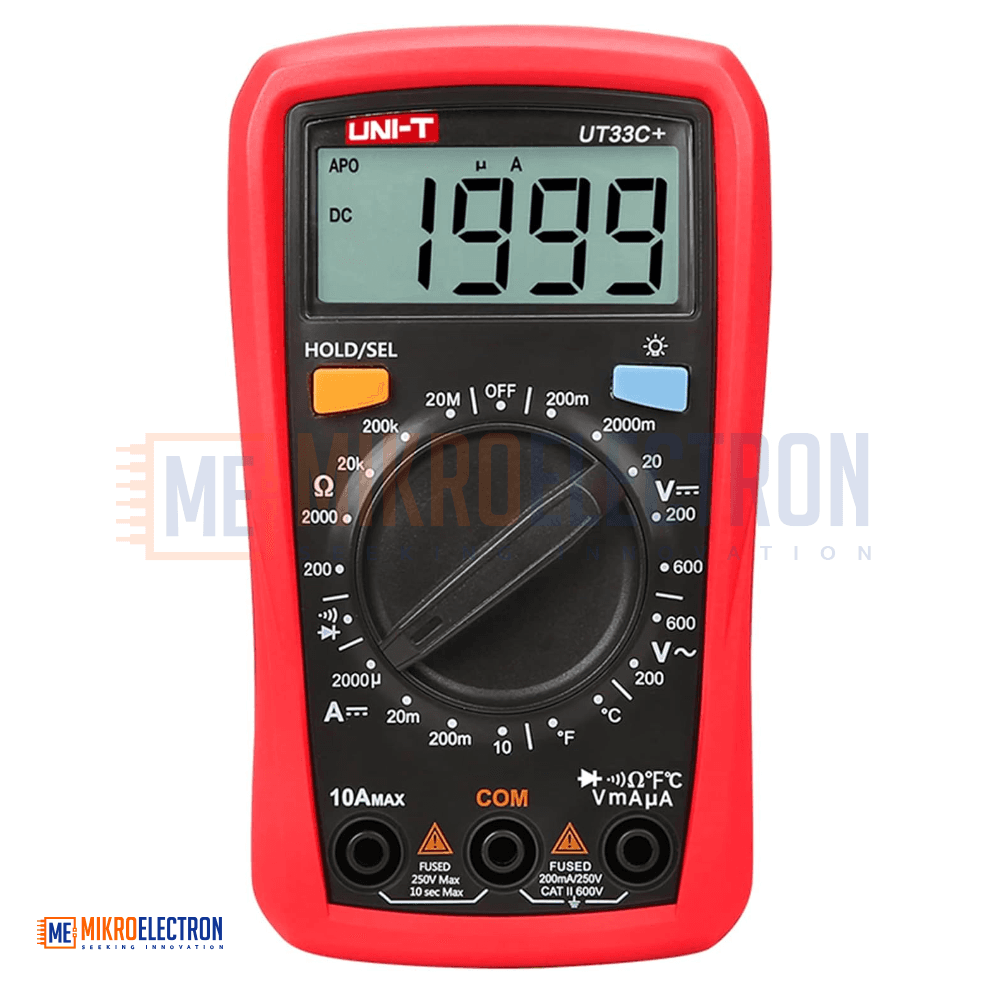

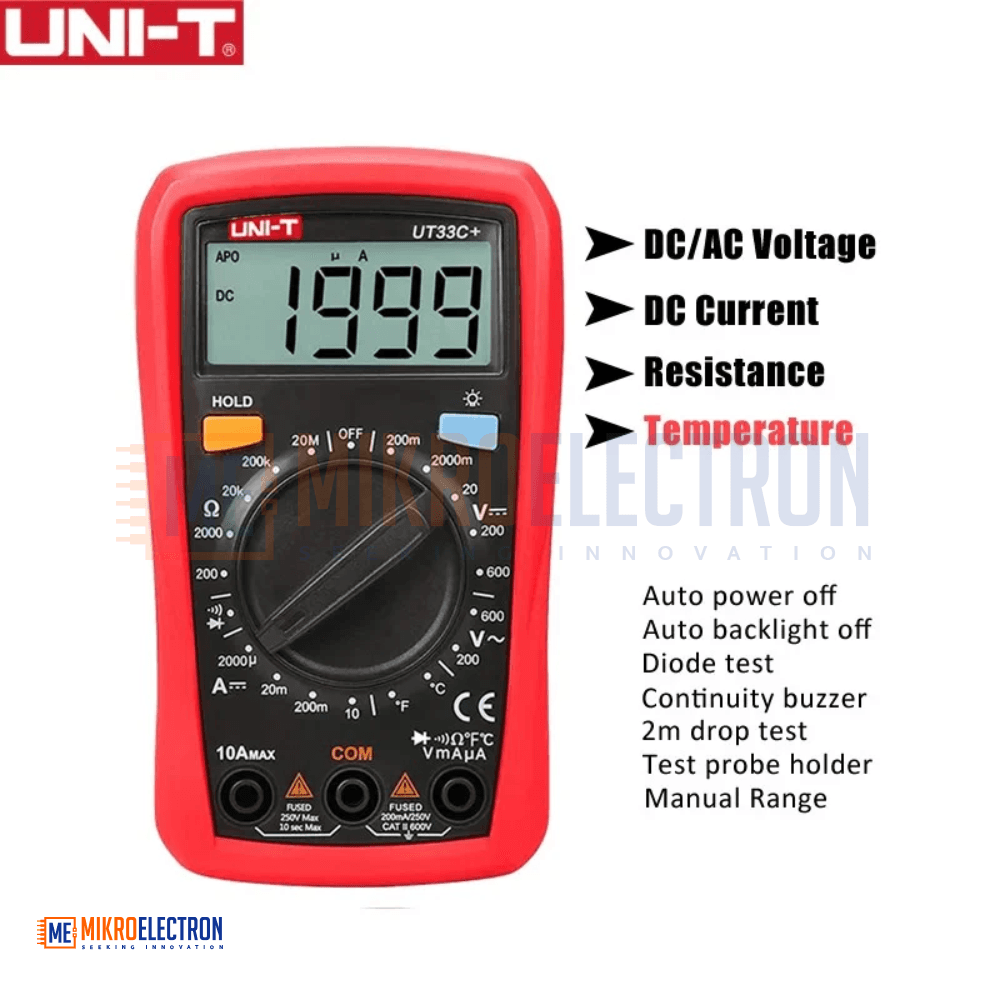

The UNI-T UT33C+ Pocket Digital Multimeter is part of the new-generation UT33+ series, designed to redefine entry-level multimeter performance. With a 2000-count LCD display and enhanced industrial design, this device delivers reliable measurements while maintaining compact portability.

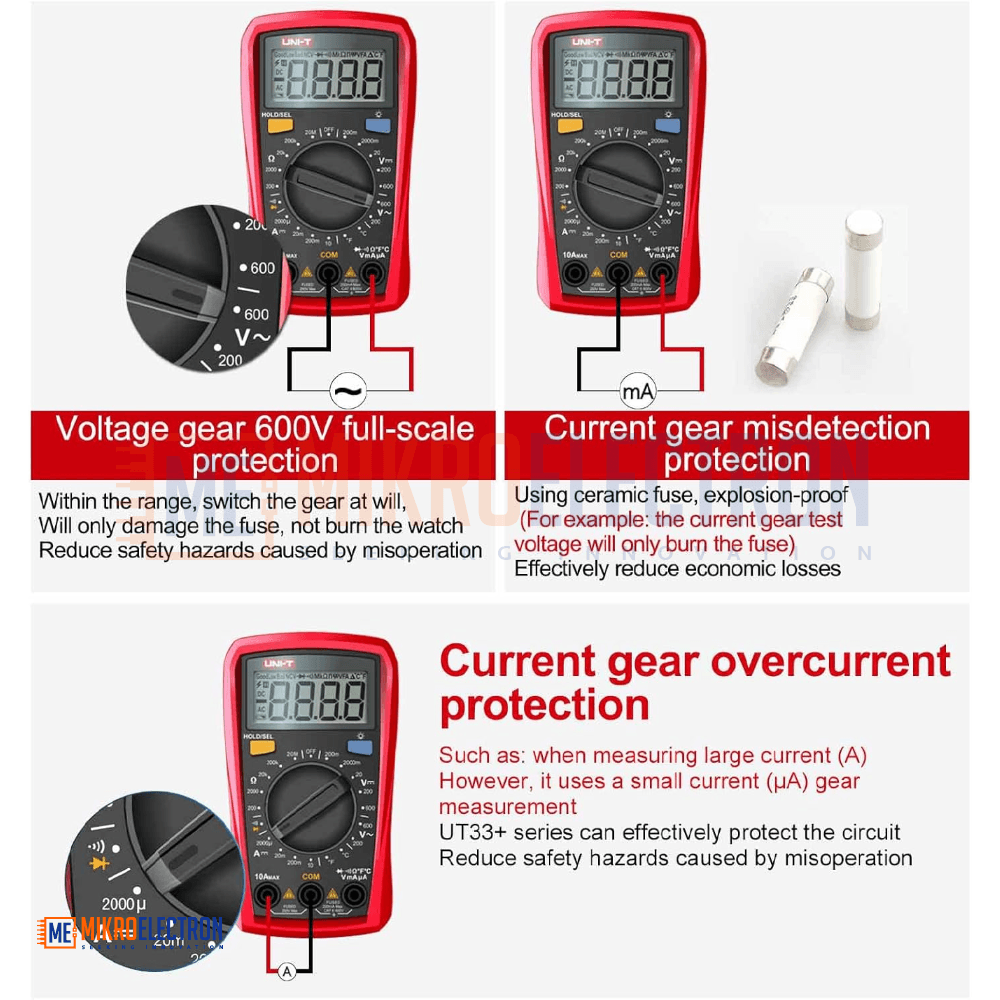

Engineered for safety, it carries a CAT II 600V rating and complies with a 2-meter drop test, ensuring durability in demanding environments. The multimeter supports DC and AC voltage measurement up to 600V, current measurement up to 10A, resistance up to 20MΩ, diode testing, and continuity buzzer functionality.

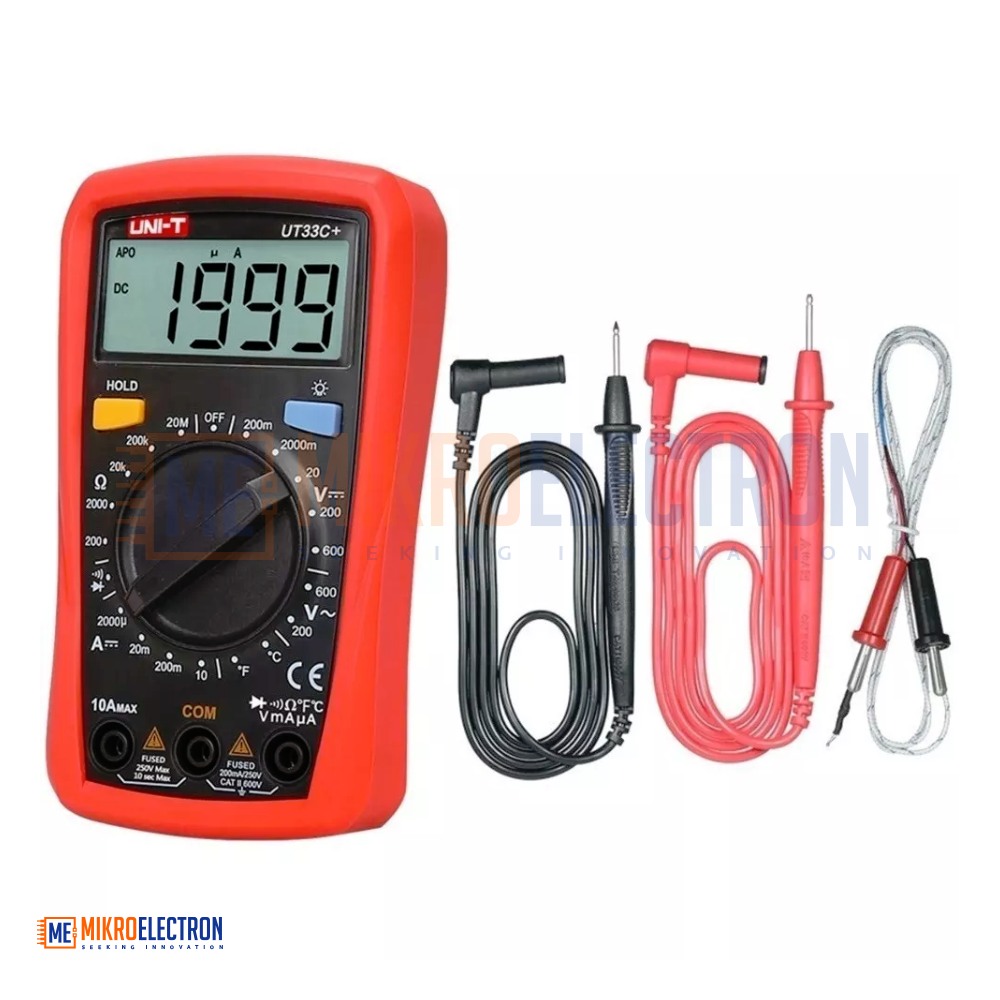

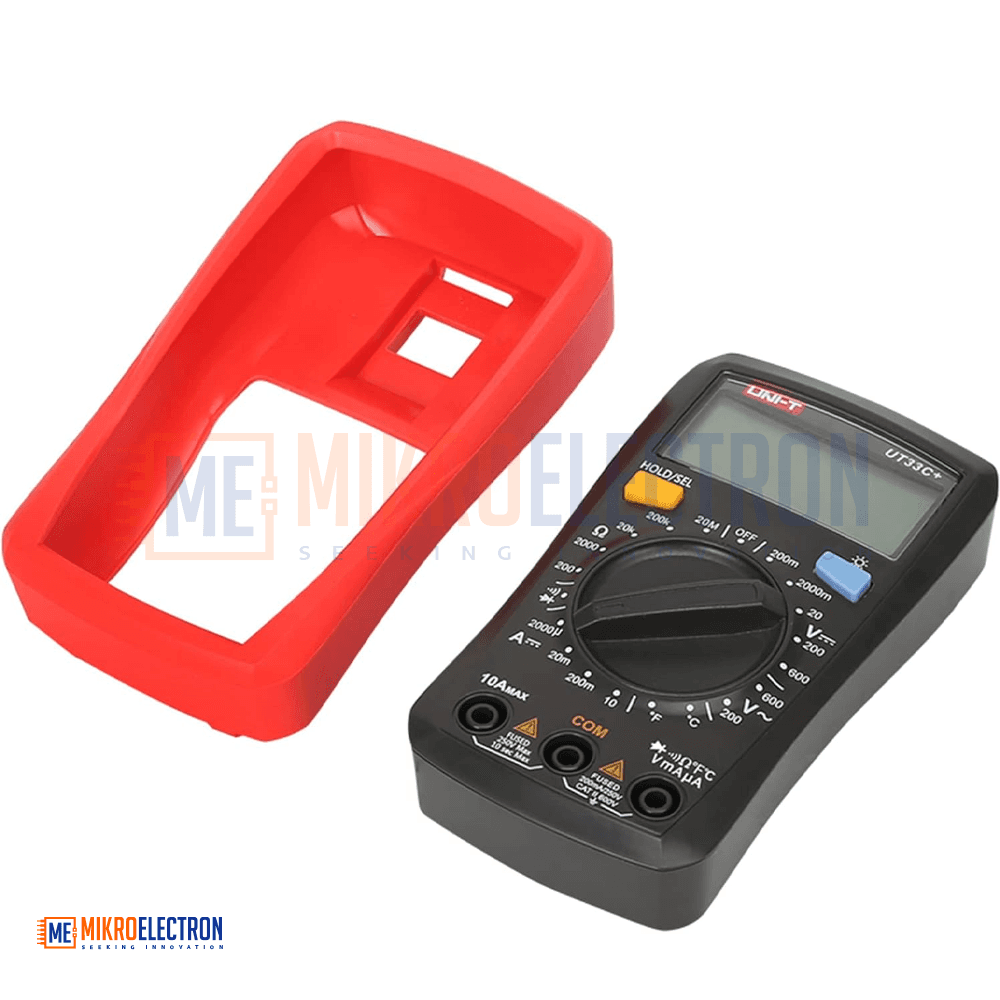

A key feature of the UT33C+ model is its temperature measurement capability using the included K-type thermocouple probe, covering a wide range from -40°C to 1000°C (-40°F to 1832°F). The clear backlit LCD ensures visibility in low-light conditions, while auto power-off helps extend battery life. Its ergonomic protective cover includes a test lead hanging groove for convenience during operation.
This multimeter is suitable for electrical troubleshooting, HVAC system diagnostics, automotive repair, educational labs, and general maintenance tasks.

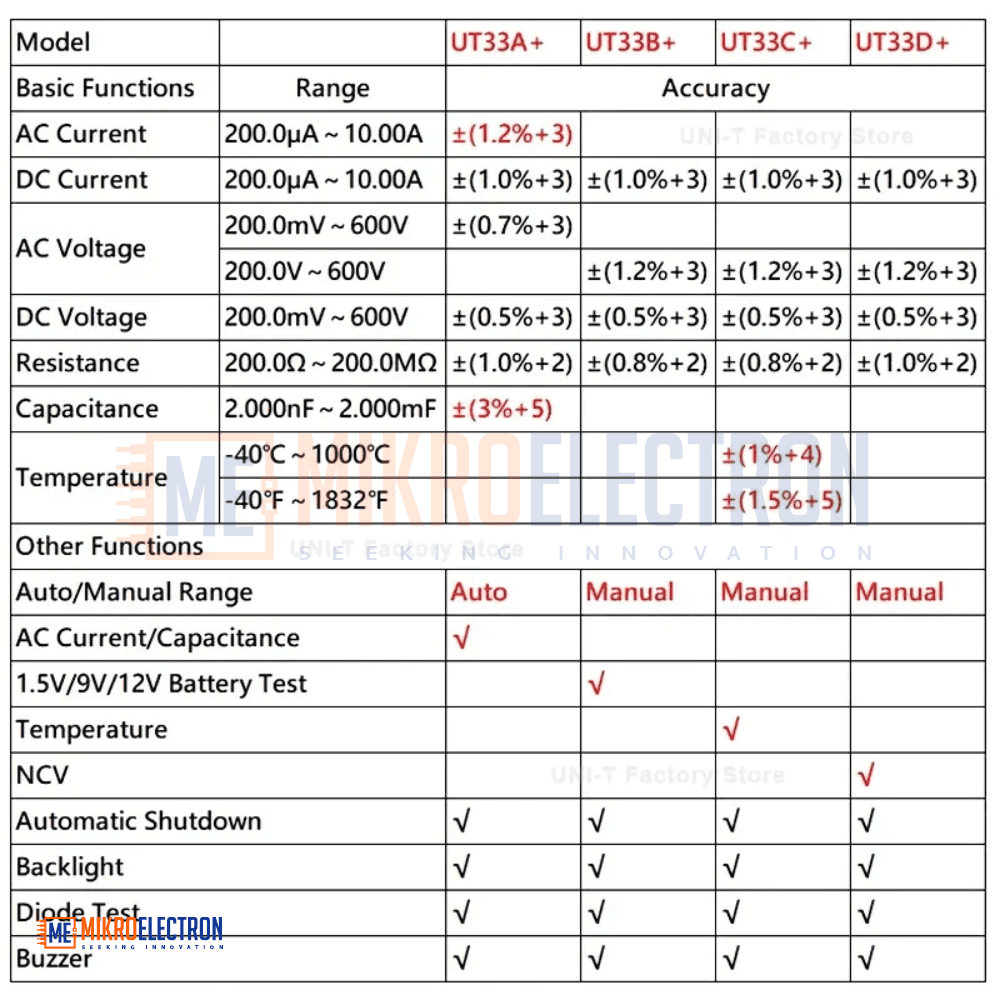

Specifications
Model: UNI-T UT33C+
Display Count: 2000 (1999 max reading)
Display Size: 53mm × 28mm LCD
DC Voltage: 200mV / 2V / 20V / 200V / 600V ±(0.5%+2)
AC Voltage: 200mV – 600V ±(0.7%+3)
DC Current: 200μA / 2mA / 20mA / 200mA / 10A ±(1.0%+2)
AC Current: Up to 10A ±(1.2%+3)
Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ ±(0.8%+2)
Temperature Range: -40°C to 1000°C ±(1.0%+4)
Temperature (°F): -40°F to 1832°F ±(1.5%+5)
Safety Rating: CAT II 600V
Drop Protection: 2 meters
Range Selection: Manual
Power Supply: 2 × 1.5V AAA batteries
Auto Power-Off: Yes
Backlight: Yes
Dimensions: 134 × 77 × 47 mm
Weight: 207g
Applications
Electrical troubleshooting
HVAC system testing
Automotive diagnostics
Electronic circuit testing
Educational laboratory experiments
Home appliance maintenance
Why Choose UT33C+?
- Enhanced Versatility: Adds temperature measurement (exclusive probe included) to core electrical functions, ideal for HVAC and thermal diagnostics.
- Accuracy & Range: Wide measurement ranges for DC/AC voltage/current, resistance, and temperature meet professional-grade standards.
- Portability: Compact, lightweight design (206g) with ergonomic grip for on-the-go use.
