868MHz LoRa Antenna Goose neck SMA Male
The 868MHz LoRa Gooseneck Antenna with SMA Male connector is a high-gain omni-directional antenna designed for reliable long-range LoRa communication. It supports both 868MHz frequency bands and provides 360-degree signal coverage for stable wireless connectivity. With a gain of 10 dBi and a standing wave ratio of ≤1.5, it ensures efficient signal transmission and improved communication distance. The flexible gooseneck design allows easy positioning for optimal performance. Measuring 232 mm in length and weighing 45 g, it is ideal for LoRa devices, IoT systems, and Meshtastic networks.
هوائي LoRa بتردد 868MHz بتصميم عنق الإوزة وموصل SMA ذكر، مصمم لتوفير اتصال لاسلكي بعيد المدى ومستقر. يدعم نطاقي التردد 868MHz ويوفر تغطية شاملة بزاوية 360° بفضل التصميم متعدد الاتجاهات. يتميز بكسب إشارة 10 dBi ونسبة موجة واقفة أقل من 1.5 مما يحسن كفاءة الإرسال ومدى الاتصال. يسمح التصميم المرن بتوجيه الهوائي بسهولة للحصول على أفضل أداء. بطول 232 مم ووزن 45 غرام، وهو مناسب لأجهزة LoRa وأنظمة إنترنت الأشياء وشبكات Meshtastic.
The 868MHz LoRa Gooseneck Antenna with SMA Male connector is designed to enhance wireless communication performance for LoRa and IoT devices. It supports both 868MHz frequency bands, making it compatible with many LoRa communication systems and long-range wireless applications.
This antenna features an omni-directional radiation pattern that provides 360-degree signal coverage, ensuring stable communication in multiple directions. With a high gain of 10 dBi, it significantly improves signal strength and extends communication range, even in challenging environments.
The antenna uses vertical polarization and maintains a standing wave ratio of ≤1.5, which helps optimize signal efficiency and minimize signal loss. It also supports a maximum input power of up to 20W and has an input impedance of 50 ohms for reliable RF performance.

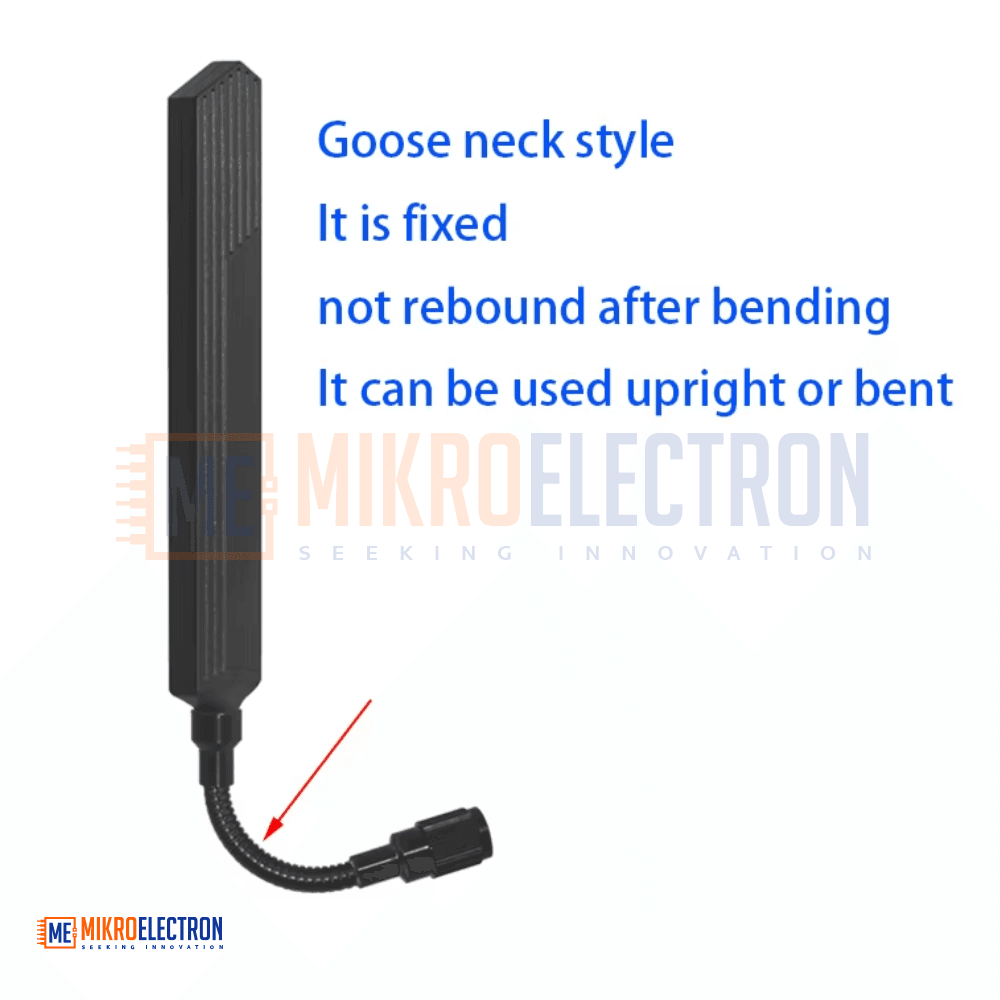

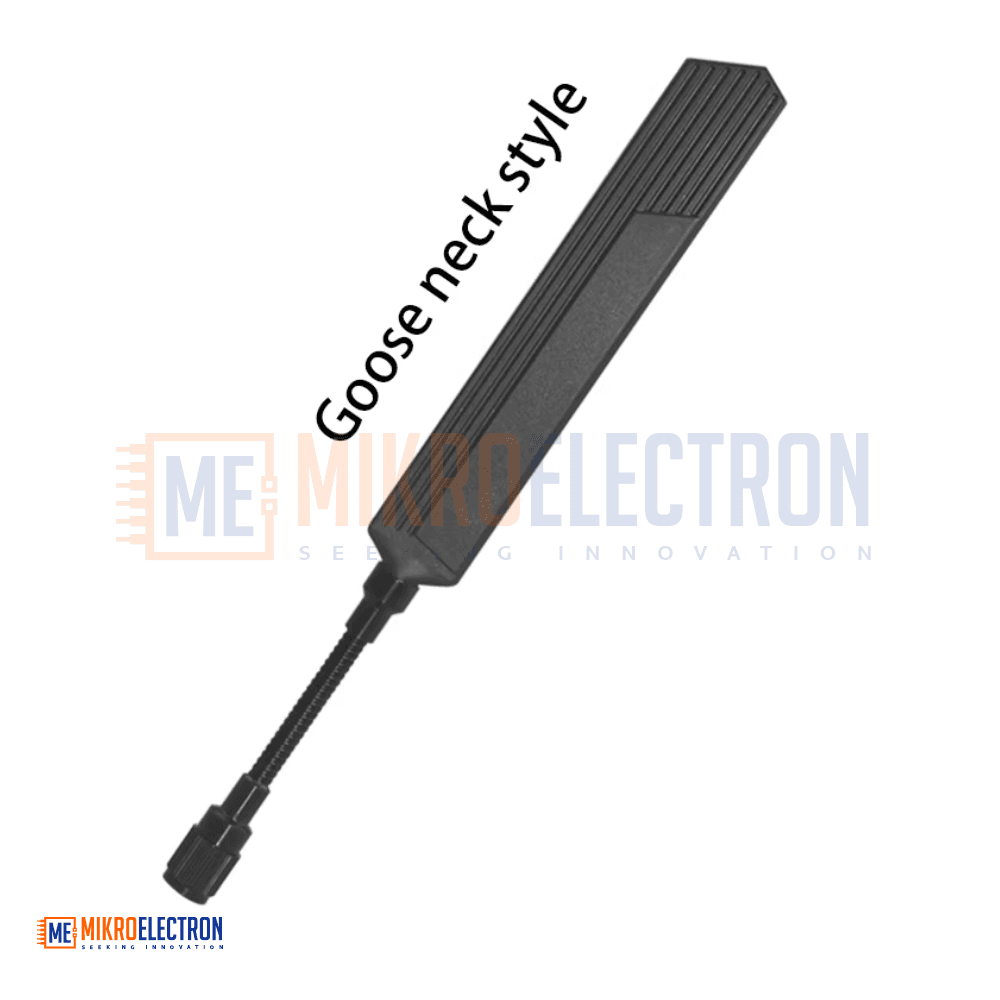

Its flexible gooseneck design allows users to easily adjust the antenna direction for optimal signal reception. The antenna measures approximately 232 mm in length and weighs only 45 g, making it lightweight yet durable for indoor and outdoor applications.
The SMA Male connector allows quick installation by directly connecting to compatible devices without the need for tools. Built with sturdy materials and a semi-metallic spring base connector, the antenna is designed to withstand various weather conditions and provide long-term reliable performance.
This antenna is particularly suitable for LoRa communication systems, IoT devices, Meshtastic networks, wireless monitoring systems, and other long-distance RF applications.
Specifications
Product Type: LoRa Gooseneck Antenna
Frequency Range: 868 MHz
Antenna Type: Omni-directional
Polarization: Vertical
Gain: 10 dBi
Standing Wave Ratio (SWR): ≤ 1.5
Maximum Input Power: 20 W
Input Impedance: 50 Ω

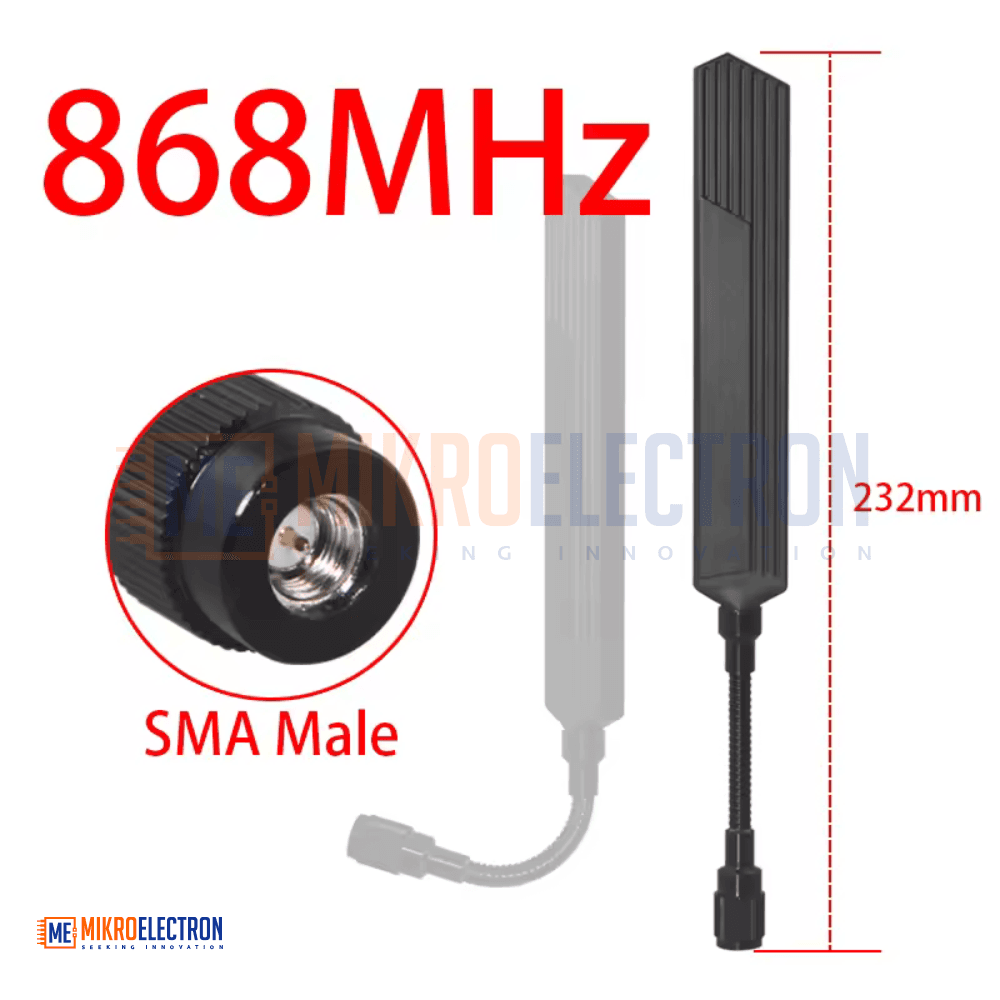

Connector Type: SMA Male

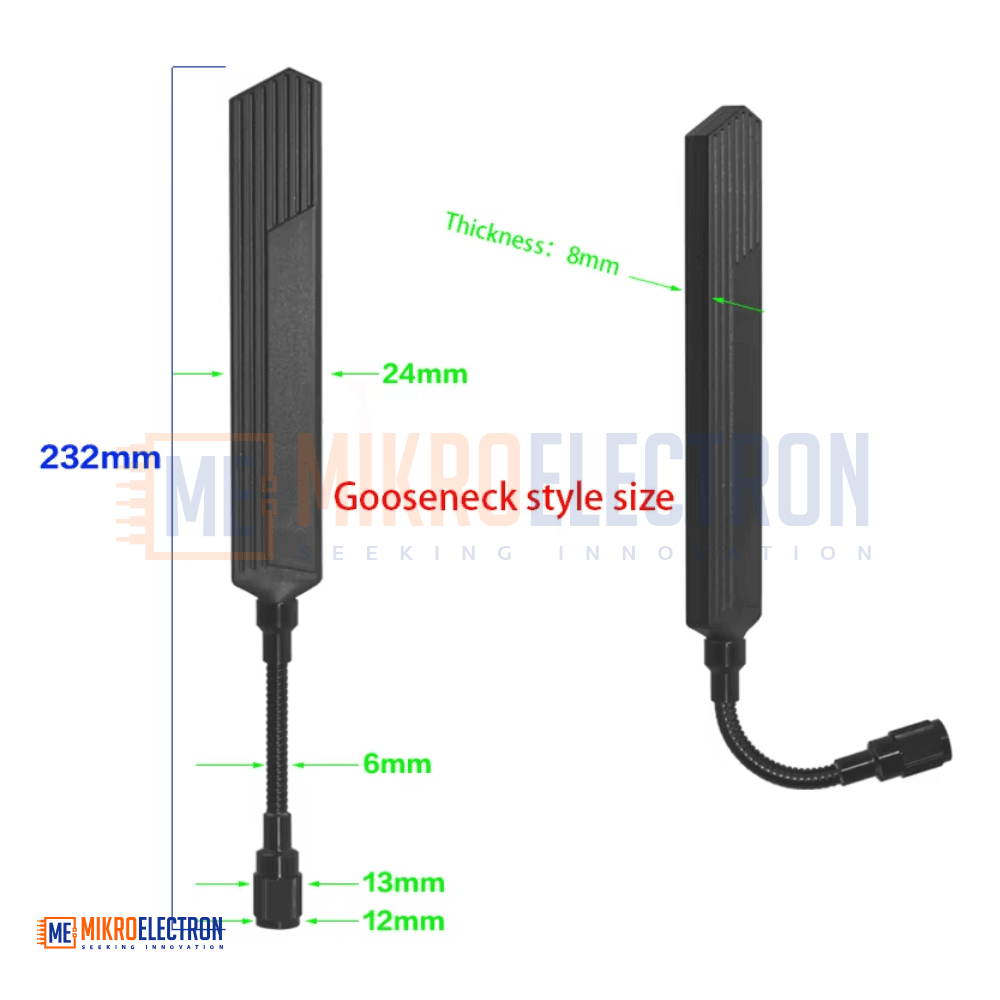

Antenna Length: 232 mm
Weight: 45 g
Applications
LoRa communication systems
Meshtastic LoRa networks
IoT wireless devices
Wireless monitoring systems
Long-range RF communication
Smart agriculture systems
Remote sensor networks
Industrial wireless communication
