ESP32 C6 N4 Dual Type-C Development Board 8MB Flash WiFi + Bluetooth
The ESP32-C6 N4 Dual Type-C Development Board is a compact and powerful WiFi + Bluetooth development platform based on the ESP32-C6-WROOM-1 module. Running at 160MHz with 512KB SRAM and 4MB Flash, it supports fast prototyping and IoT development. It features dual USB Type-C ports, onboard USB-to-serial converter, RGB LED, reset and download buttons. Compatible with Windows and Linux, this board is ideal for wireless communication, smart devices, and embedded system applications.
لوحة التطوير ESP32-C6 N4 Dual Type-C هي منصة تطوير مدمجة وقوية تدعم WiFi وBluetooth، وتعتمد على وحدة ESP32-C6-WROOM-1.
تعمل بتردد 160MHz وتحتوي على 512KB من ذاكرة SRAM و4MB من ذاكرة Flash، مما يجعلها مناسبة للنمذجة السريعة وتطوير تطبيقات إنترنت الأشياء (IoT).
تتميز بوجود منفذي USB Type-C، ومحوّل USB إلى تسلسلي (USB-to-Serial) مدمج، بالإضافة إلى LED RGB مدمج وأزرار Reset وDownload.
متوافقة مع أنظمة Windows وLinux، وتُعد خيارًا مثاليًا لمشاريع الاتصالات اللاسلكية، الأجهزة الذكية، وتطبيقات الأنظمة المدمجة.
The ESP32-C6 N4 Dual Type-C Development Board is a high-performance IoT development board designed for wireless connectivity and embedded applications. Built around the ESP32-C6-WROOM-1 module, it operates at a 160MHz main frequency and integrates 512KB SRAM with 4MB Flash memory for reliable and efficient performance.

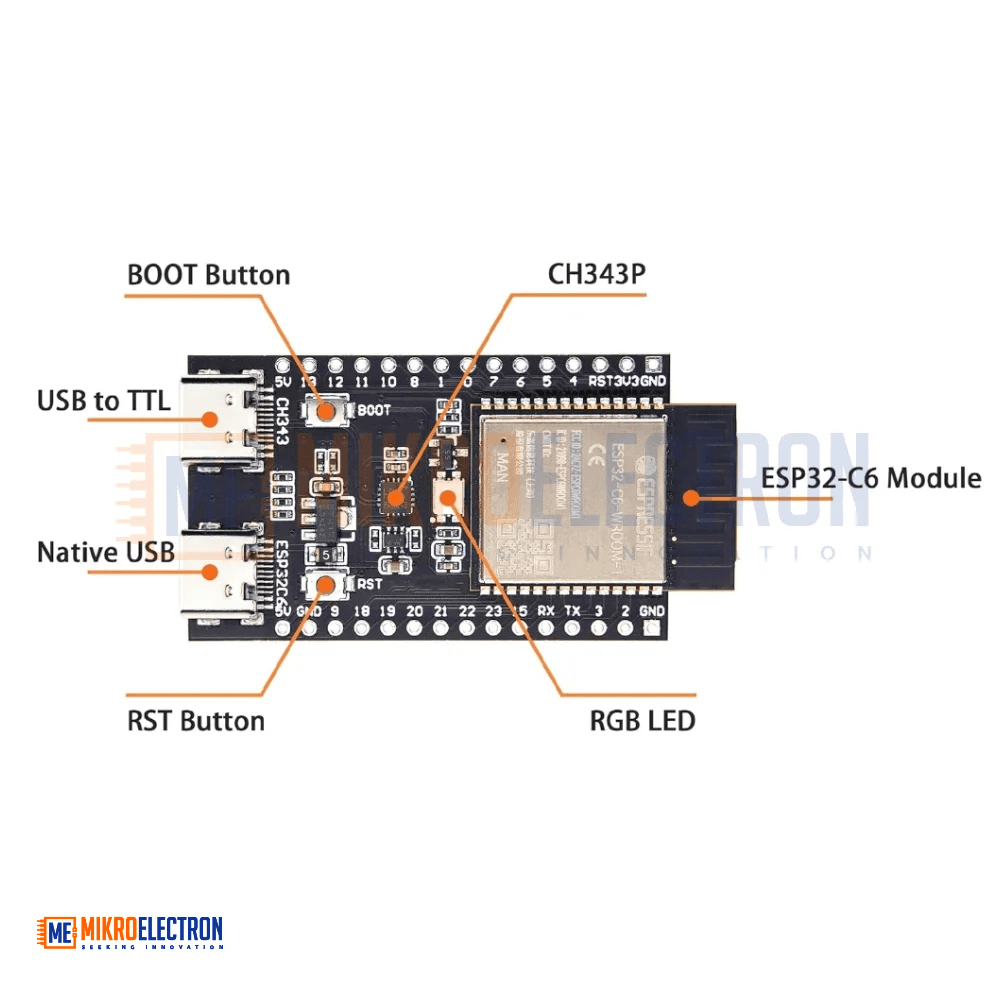

Designed for developers and makers, the board includes dual USB Type-C interfaces for power and programming, along with an onboard USB-to-serial converter for easy firmware uploading. A built-in full-color RGB LED enables visual status indication, while dedicated reset and download buttons simplify debugging and flashing.
Its compact size (approximately 5.3 × 2.8 cm) makes it ideal for space-constrained projects, rapid prototyping, and IoT product development. The board is fully compatible with Windows and Linux development environments.
Specifications
Module Model: ESP32-C6-WROOM-1
Main Frequency: 160MHz
SRAM: 512KB
Flash Memory: 4MB
Wireless Connectivity: WiFi + Bluetooth
USB Interface: Dual Type-C
USB to Serial: Onboard
Development Environment: Windows, Linux
RGB LED: Onboard full-color LED
Buttons: Reset Button, Download Button
Product Size: 5.3–5.4 cm × 2.8 cm
Applications
IoT device development
Smart home systems
Wireless sensor networks
Embedded system prototyping
Industrial automation
Smart control systems
Educational and research projects
