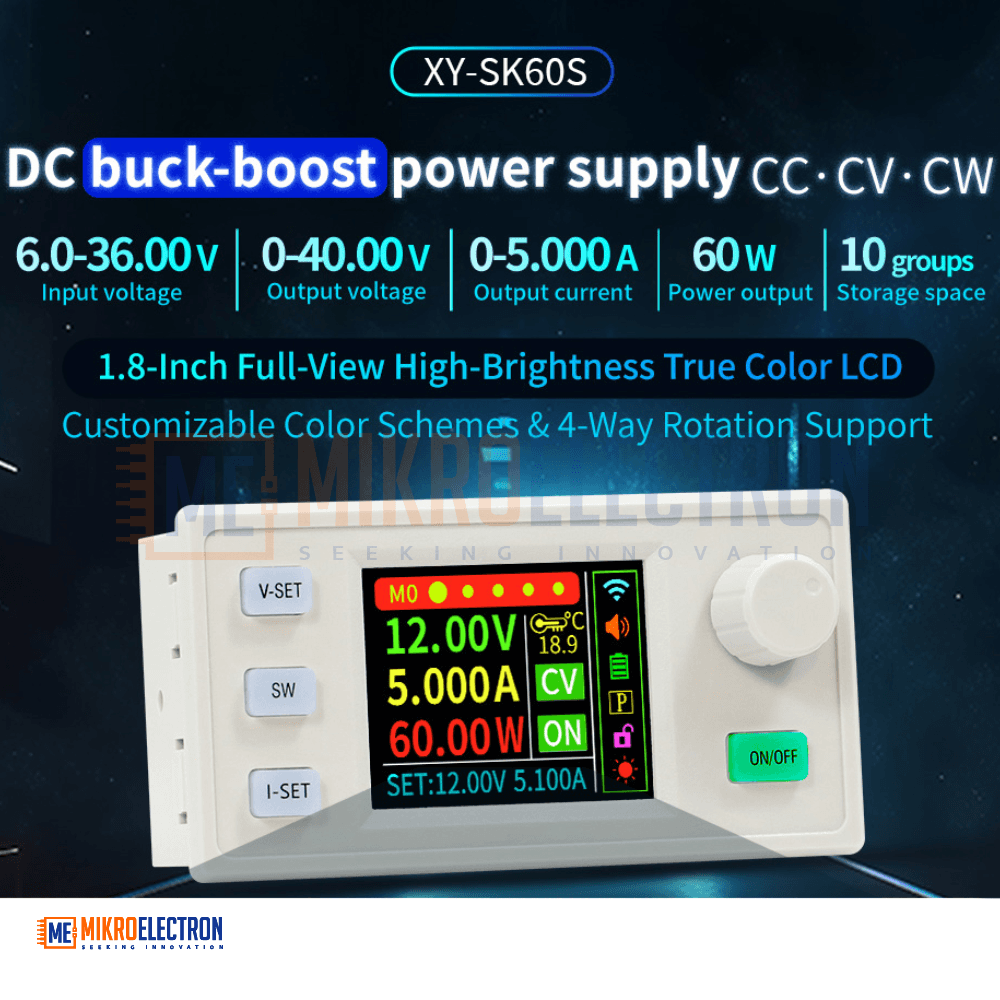

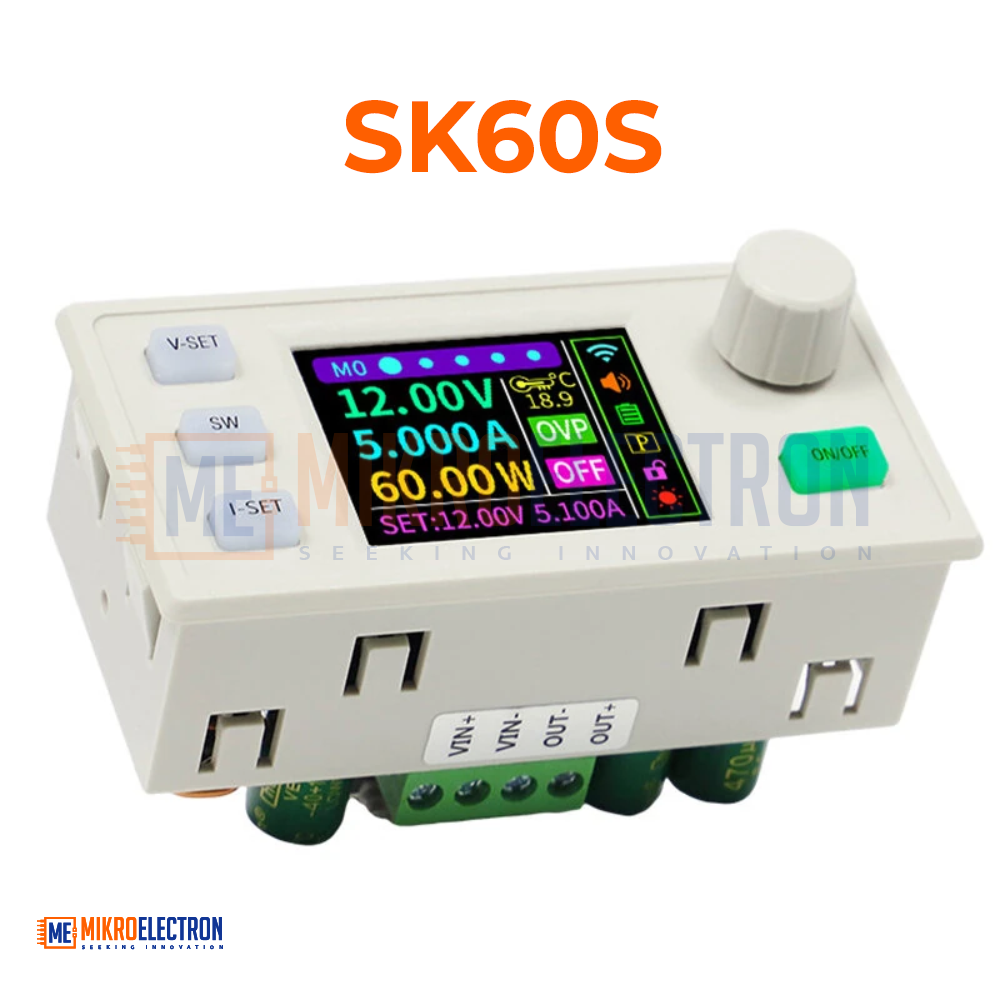

SK60S DC Buck-Boost Power Supply Module 40V 5A 60W MPPT Solar Charger Constant Voltage Current 1.8 inch LCD Display

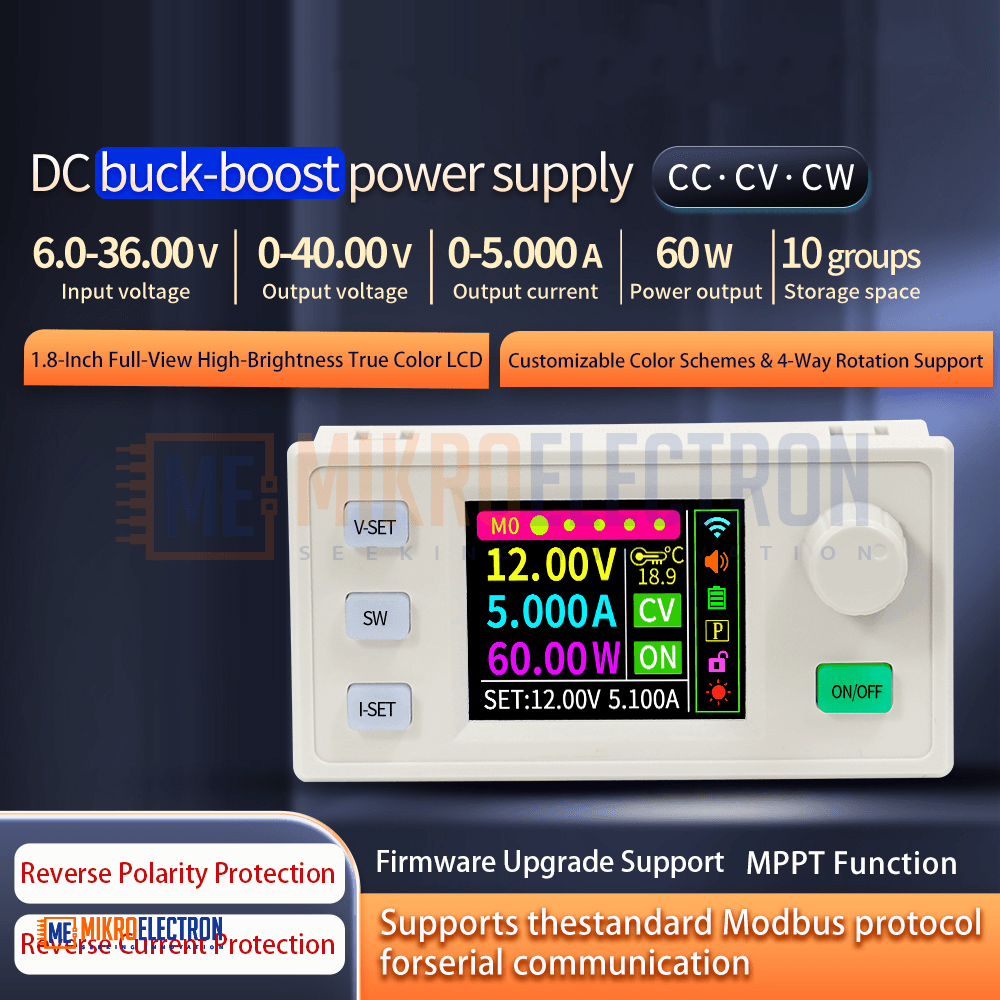

The SK60S DC Buck-Boost Power Supply Module is a high-performance adjustable DC converter designed for power regulation, battery charging, and solar energy applications. It can automatically step up or step down voltage, making it suitable for a wide range of electronic systems and power management tasks.

The module accepts an input voltage range from 6V to 36V and provides an adjustable output voltage from 0V to 40V with a maximum output current of 5A and a power capacity of up to 60W. With an efficient power conversion rate of approximately 88%, it ensures reliable and energy-efficient performance.

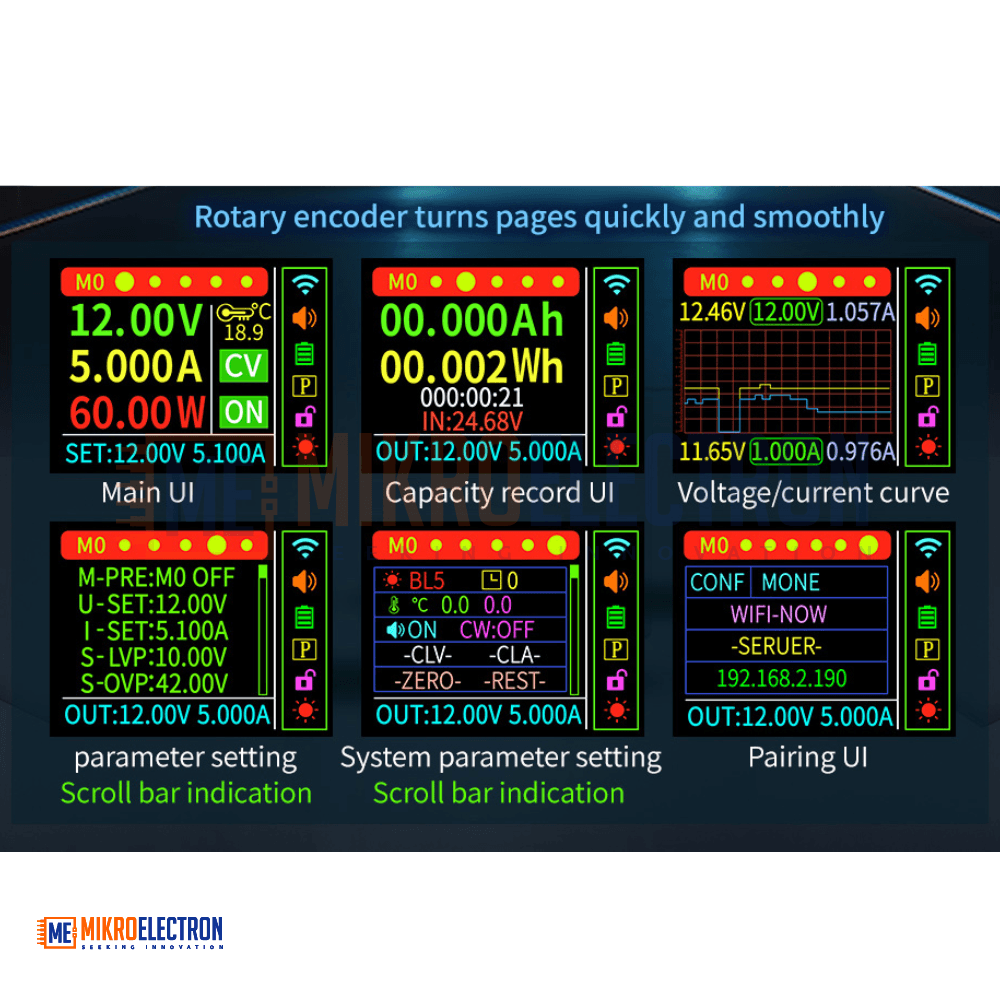

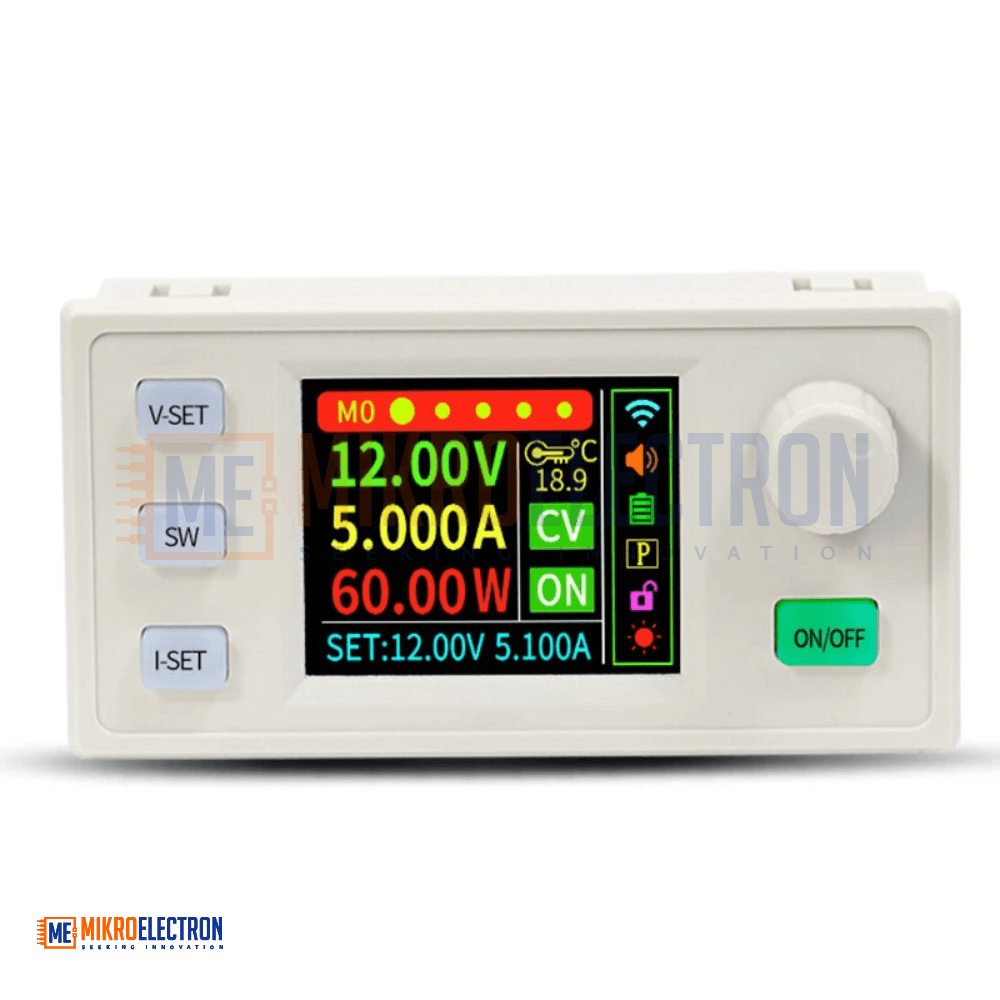

A 1.8-inch high-brightness full-color LCD display provides clear real-time monitoring of voltage, current, power, and system status. The display supports customizable interface colors and 360° rotation, allowing users to read data from different viewing angles.

The SK60S module integrates an advanced MPPT (Maximum Power Point Tracking) function, enabling efficient solar charging and improved energy utilization for photovoltaic systems.

For safety and reliability, the module includes multiple protection mechanisms such as reverse polarity protection, under-voltage protection, over-voltage protection, over-current protection, over-power protection, over-temperature protection, timeout protection, and energy capacity protection.

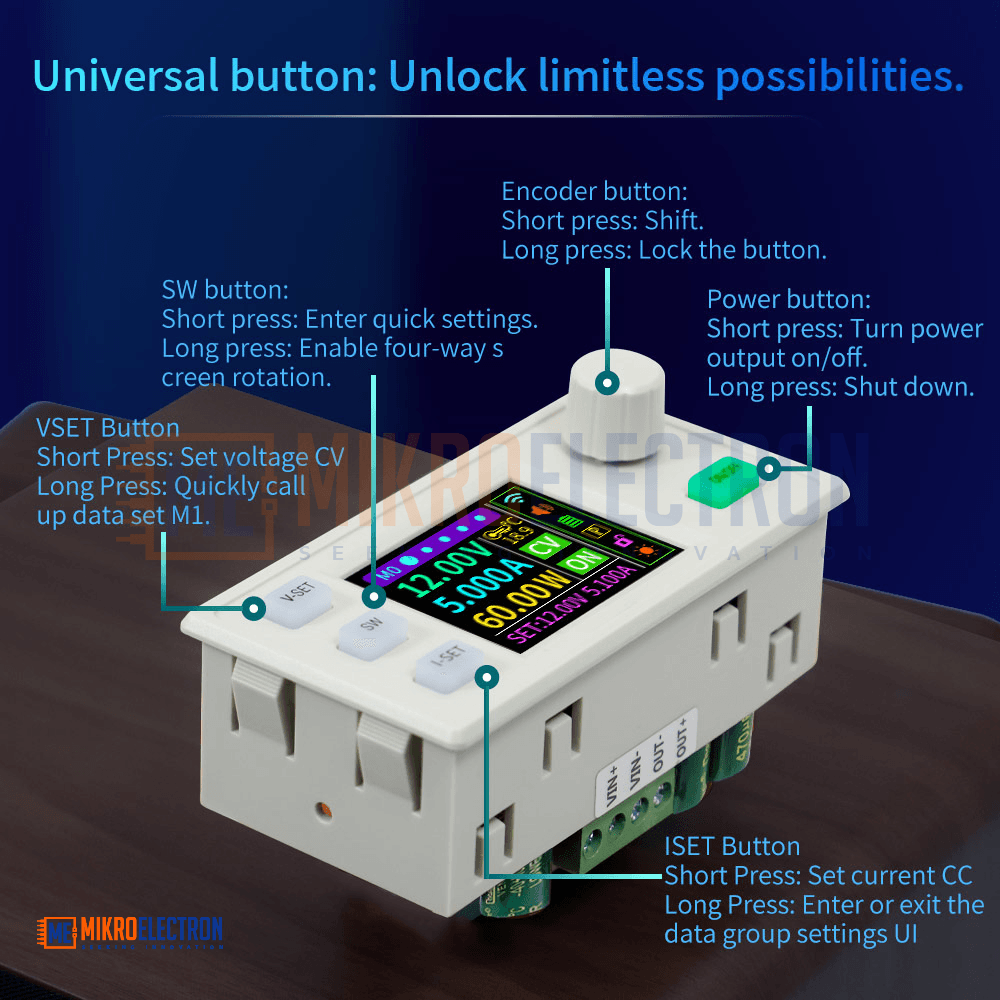

The module is housed in a durable fire-retardant enclosure with a secure double-buckle structure. User-friendly silicone buttons with indicator lights allow convenient power control and parameter adjustment, making operation simple and efficient.

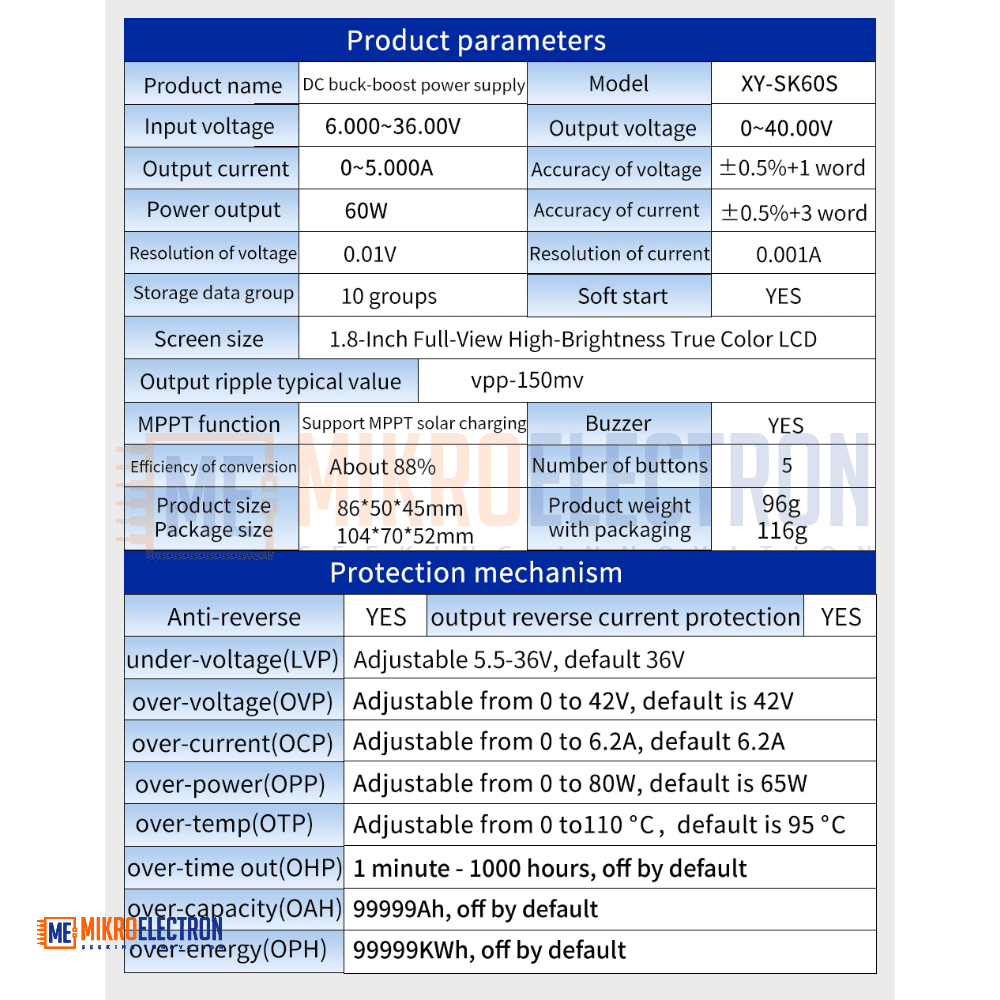

Specifications

Product Name: DC Buck-Boost Power Supply Module
Model: SK60S

Input Voltage: 6.0V – 36.0V
Output Voltage: 0.0V – 40.0V (adjustable)
Output Current: 0 – 5.000A
Maximum Output Power: 60W

Display:
1.8-inch full-view high-brightness color LCD

Voltage Accuracy: ±0.5% + 1 digit
Current Accuracy: ±0.5% + 3 digits

Voltage Resolution: 0.01V
Current Resolution: 0.001A

Conversion Efficiency: About 88%

Data Storage: 10 parameter groups

Protection Features:
Under-voltage protection
Over-voltage protection
Over-current protection
Over-power protection
Over-temperature protection
Reverse polarity protection
Reverse current protection
Over-time protection
Over-capacity protection
Over-energy protection

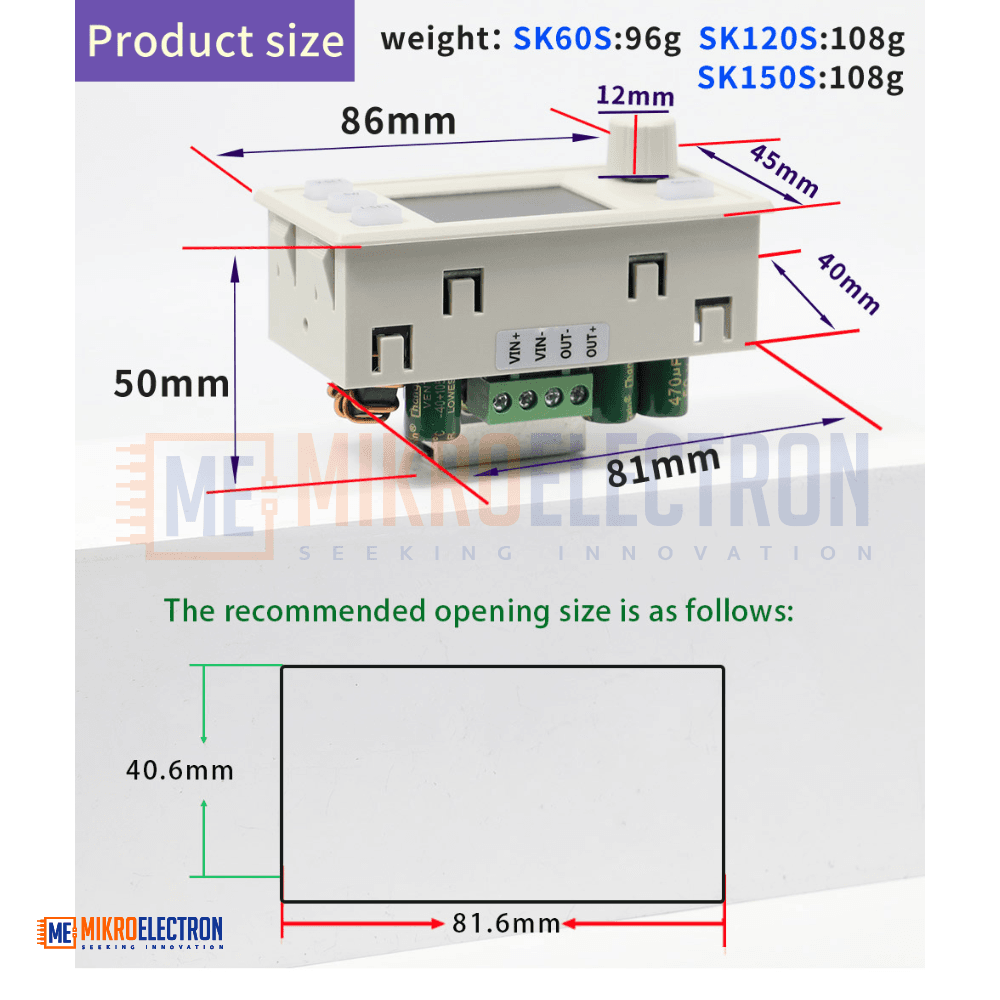

Product Size: 86 × 50 × 45 mm
Package Size: 104 × 70 × 52 mm
Product Weight: 96 g (116 g with packaging)

Applications

Solar charging systems
MPPT solar power control
Battery charging systems
Adjustable laboratory power supply
DIY electronics projects
Embedded power systems
Portable power devices
Voltage regulation for electronic equipment
