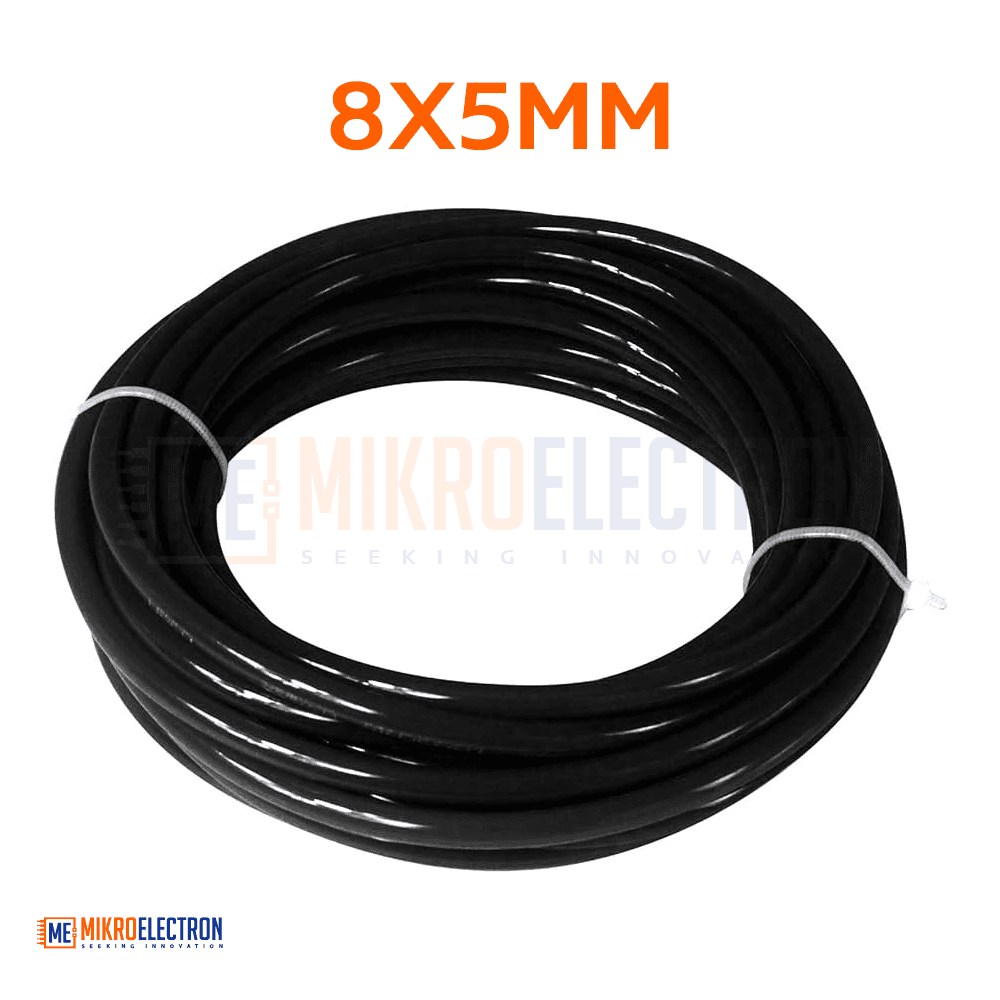

1m Pneumatic Hose PU Pipe 8 * 5 mm Air Tube Compressor Hose Black
This 1m Pneumatic PU Hose (8 × 5 mm) is a high-quality air tube made from durable polyurethane designed for air compressor and pneumatic systems. It offers excellent flexibility, high elasticity, and strong memory recovery, allowing it to bend repeatedly without kinking. The thick wall design provides superior resistance to abrasion, tearing, and impact, ensuring long service life. With a working pressure of 0.8 MPa and tensile strength of 400 Kg/cm², this hose performs reliably in demanding environments. Its lightweight structure, smooth airflow, and wide operating temperature range make it ideal for industrial, workshop, and automation applications.
خرطوم هواء نيوماتيك بطول 1 متر مصنوع من مادة البولي يوريثان عالية الجودة بمقاس 8 × 5 مم، مصمم للاستخدام مع الضواغط وأنظمة الهواء المضغوط. يتميز بمرونة عالية وقابلية ممتازة للانثناء مع قدرة على استعادة الشكل دون حدوث طيات. يوفر الجدار السميك مقاومة قوية للتآكل والتمزق والصدمات مما يضمن عمر استخدام طويل. يعمل بضغط تشغيل يصل إلى 0.8 ميجا باسكال مع قوة شد عالية تبلغ 400 كجم/سم². خفيف الوزن ويوفر تدفق هواء سلس، مما يجعله مناسبًا للاستخدام في الورش الصناعية وأنظمة التشغيل الآلي.

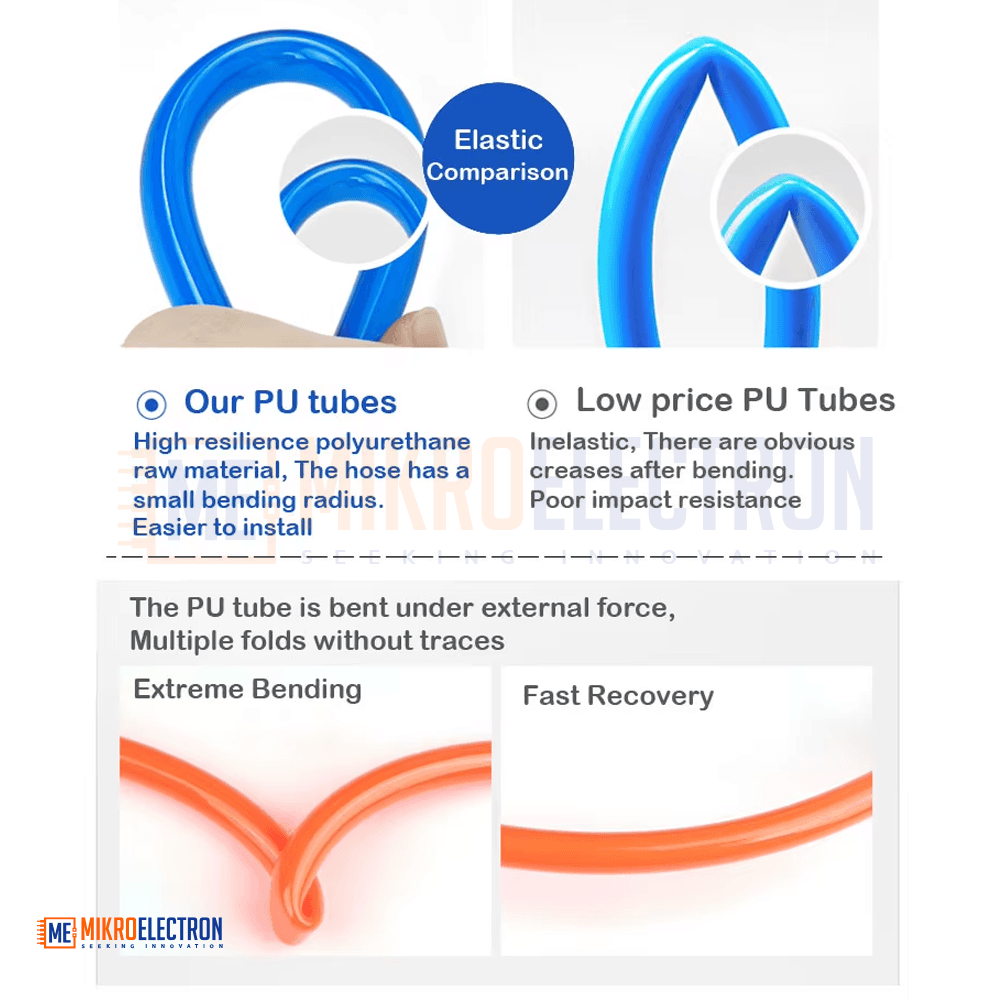

The 1m Pneumatic Hose PU Pipe (8 × 5 mm) is a durable and flexible air tube designed for pneumatic systems and air compressor applications. Manufactured from premium polyurethane material, this hose offers excellent elasticity, high tensile strength, and outstanding resistance to wear and tear. Its strong yet flexible structure allows repeated bending without kinking or deformation thanks to its memory recovery capability.
The thick wall construction enhances durability, providing superior resistance to abrasion, tearing, and impact in demanding environments. With a working pressure of 0.8 MPa and an operating temperature range from -20°C to 60°C, this pneumatic hose ensures stable and reliable performance in both industrial and workshop applications.
The precise diameter tolerance ensures a secure and leak-free connection with pneumatic fittings. Lightweight yet strong, this PU hose provides efficient airflow while maintaining long service life, making it an ideal choice for automation systems, air tools, and compressor connections.
Specifications
Product Name: PU Pneumatic Hose
Material: Polyurethane (PU)
Length: 1 Meter

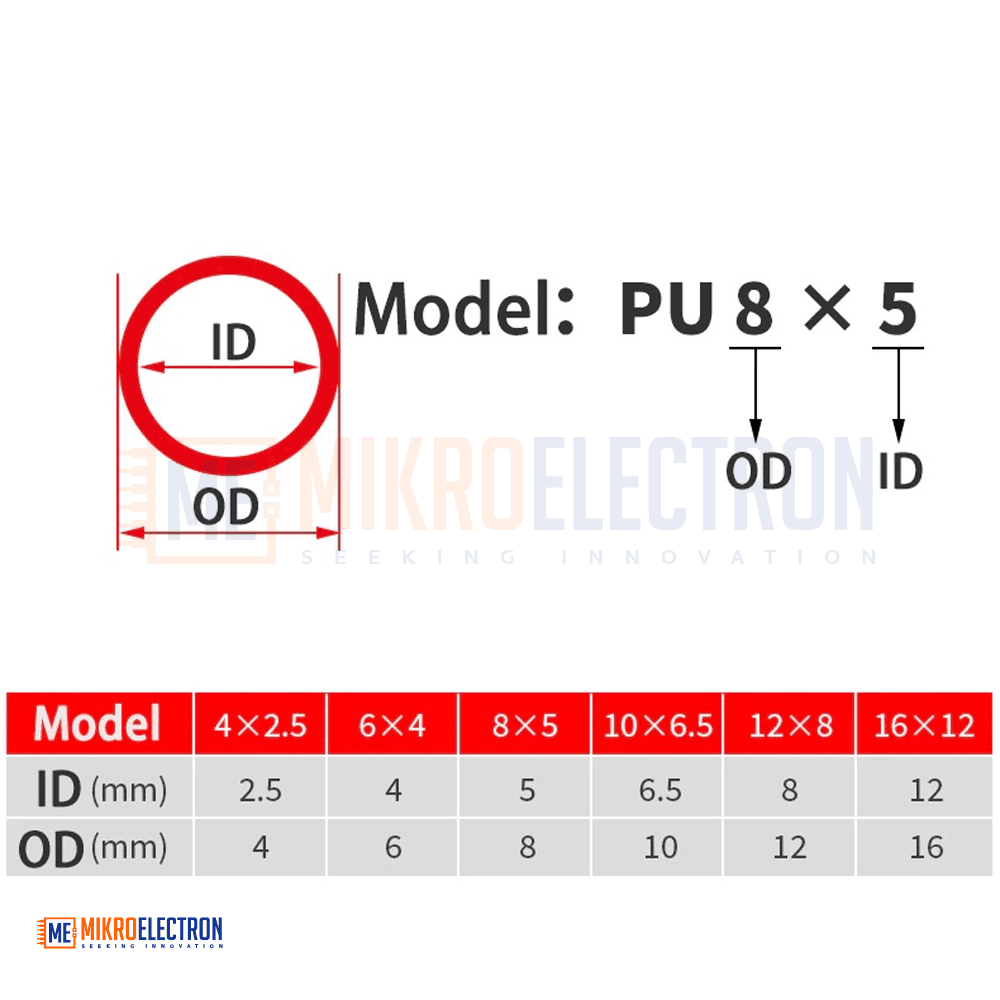

Outer Diameter: 8 mm
Inner Diameter: 5 mm
Working Pressure: 0.8 MPa
Operating Temperature: -20°C to 60°C
Tensile Strength: 400 Kg/cm²
Tear Strength: 110 Kg/cm²
Abrasion Resistance: 35 mg
Hardness: 95A
Elongation: 490% – 590%
Diameter Tolerance: ±0.1 mm + ±0.15 mm
Medium: Air
Applications
Air compressor connections
Pneumatic automation systems
Industrial machinery air lines
Workshop pneumatic tools
Robotics and automation equipment
Air control systems
DIY pneumatic projects
