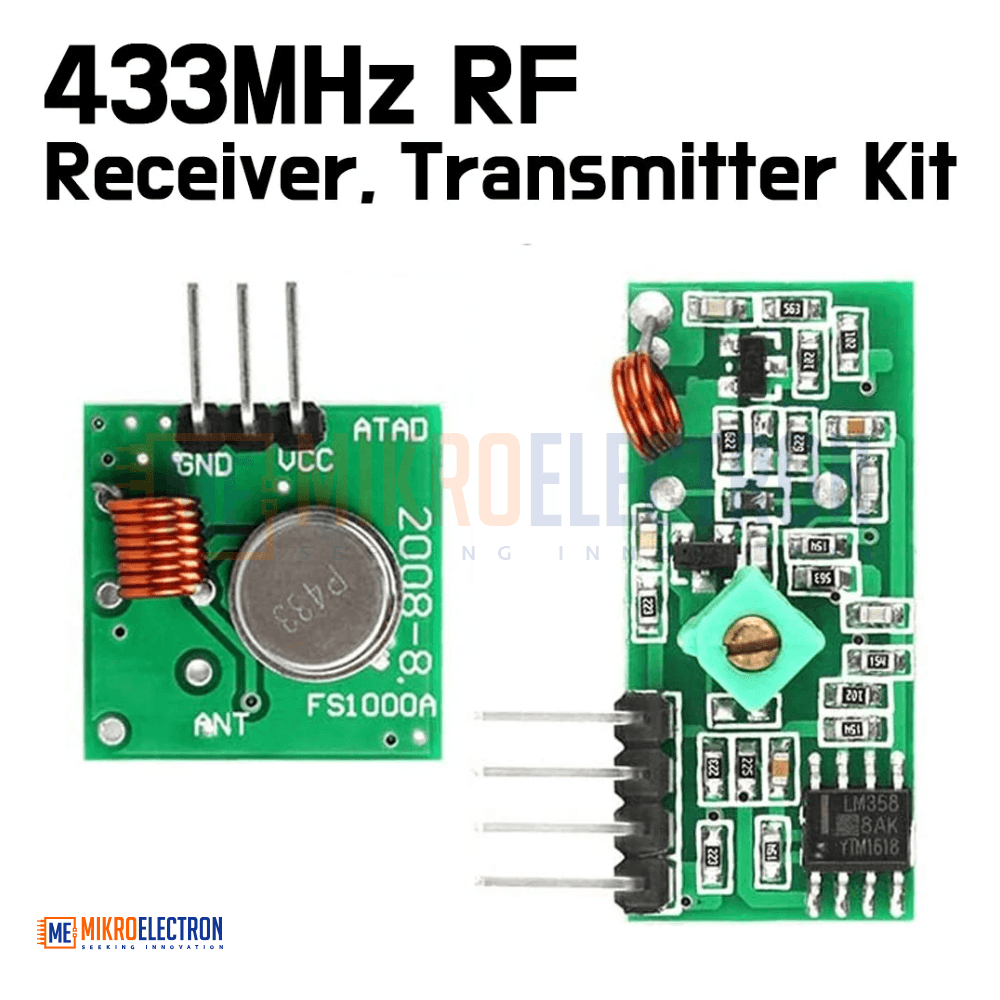

RF Wireless Tx & Rx Module 433Mhz

RF modules are widely used for wireless data transfers and remote control applications. These days, cost of RF modules are very low and are compact in size. Most of these RF modules are operating around 433MHz. Amplitude Shift Keying (ASK) or Frequency Shift Keying (FSK) are mainly used for wireless data transfers.


Technical parameters of the transmitter head

• Product Model: MX-FS-03V
• Launch distance :20-200 meters (different voltagedifferent results)
• Operating voltage :3.5-12V
• Dimensions: 19 * 19mm
• Operating mode: AM
• Transfer rate: 4KB / S
• Transmitting power: 10mW
• Transmitting frequency: 433M

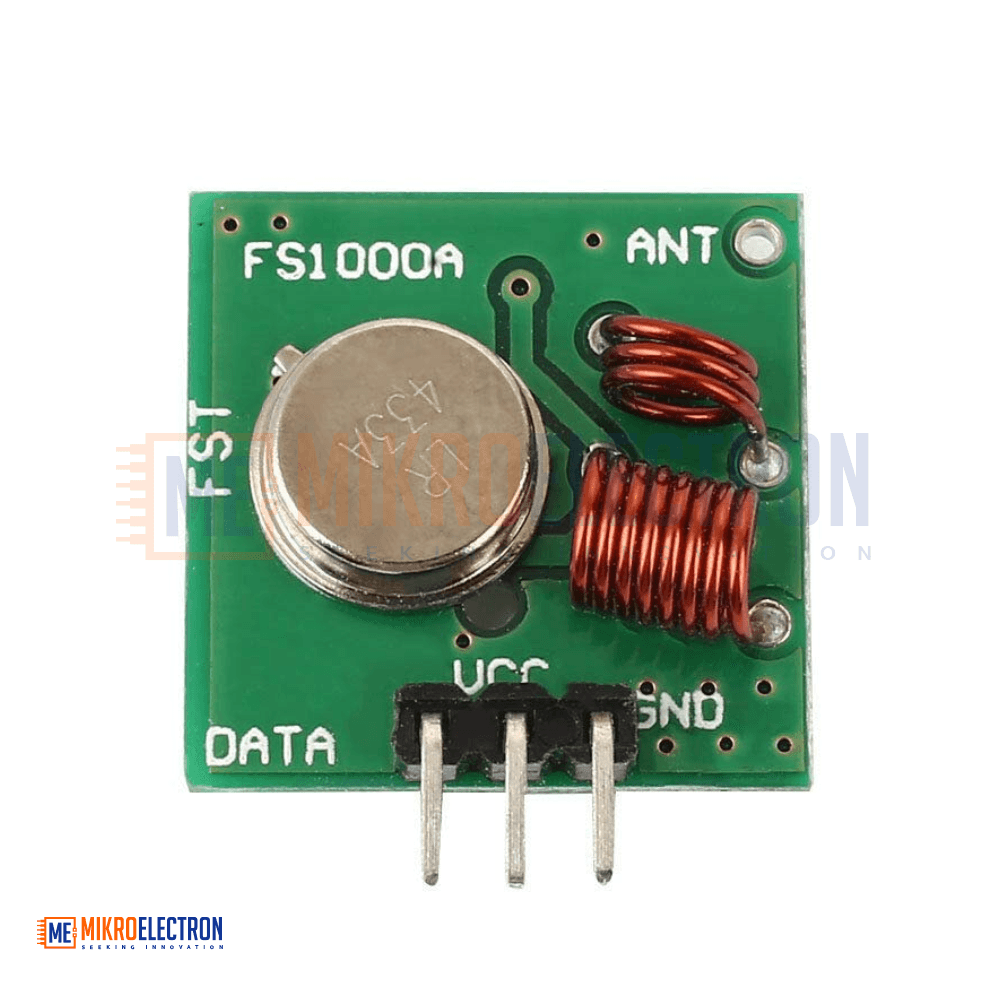

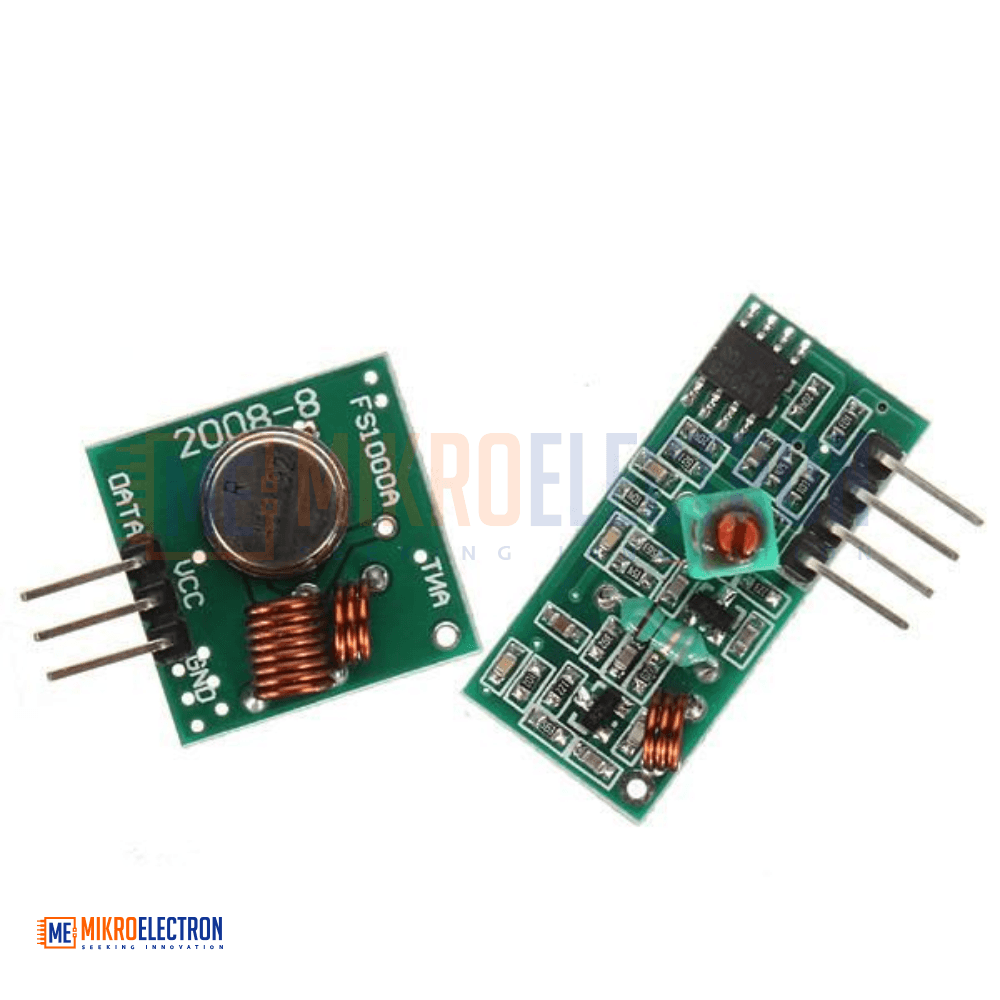

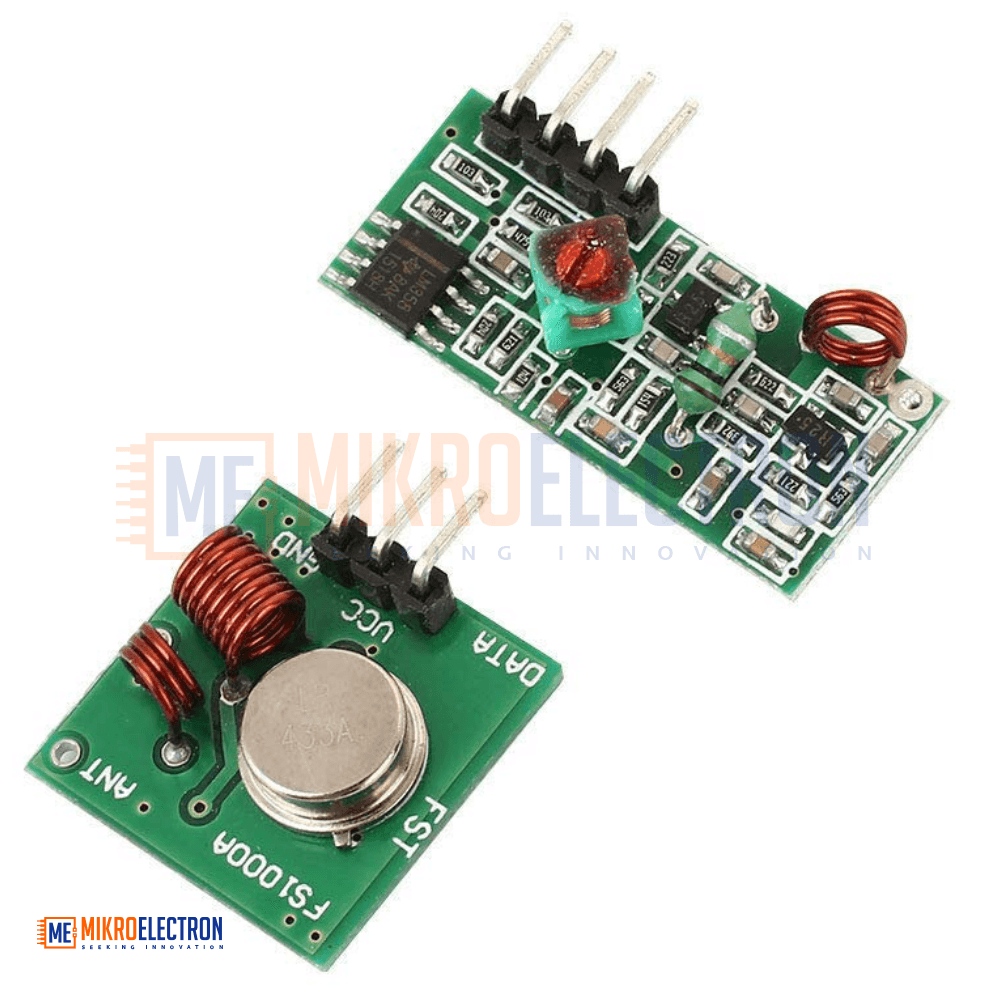

• Pinout from left → right: (DATA; VCC; GND)

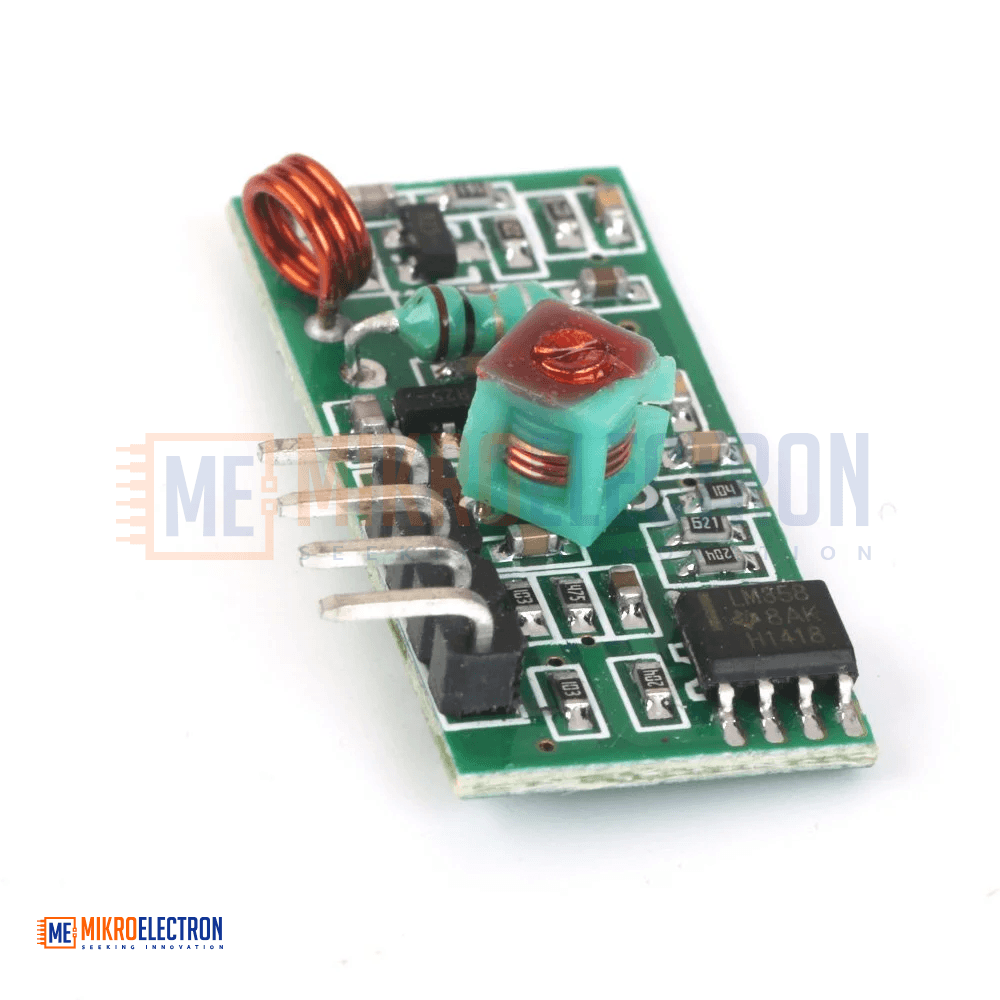

Receiver module parameters:-

• Operating mode: AM
• Operating voltage: DC5V
• Quiescent Current: 4mA
• Receiver sensitivity:-105DB
• Receivieng frequency: 433M
• Size: 30 * 14 * 7mm

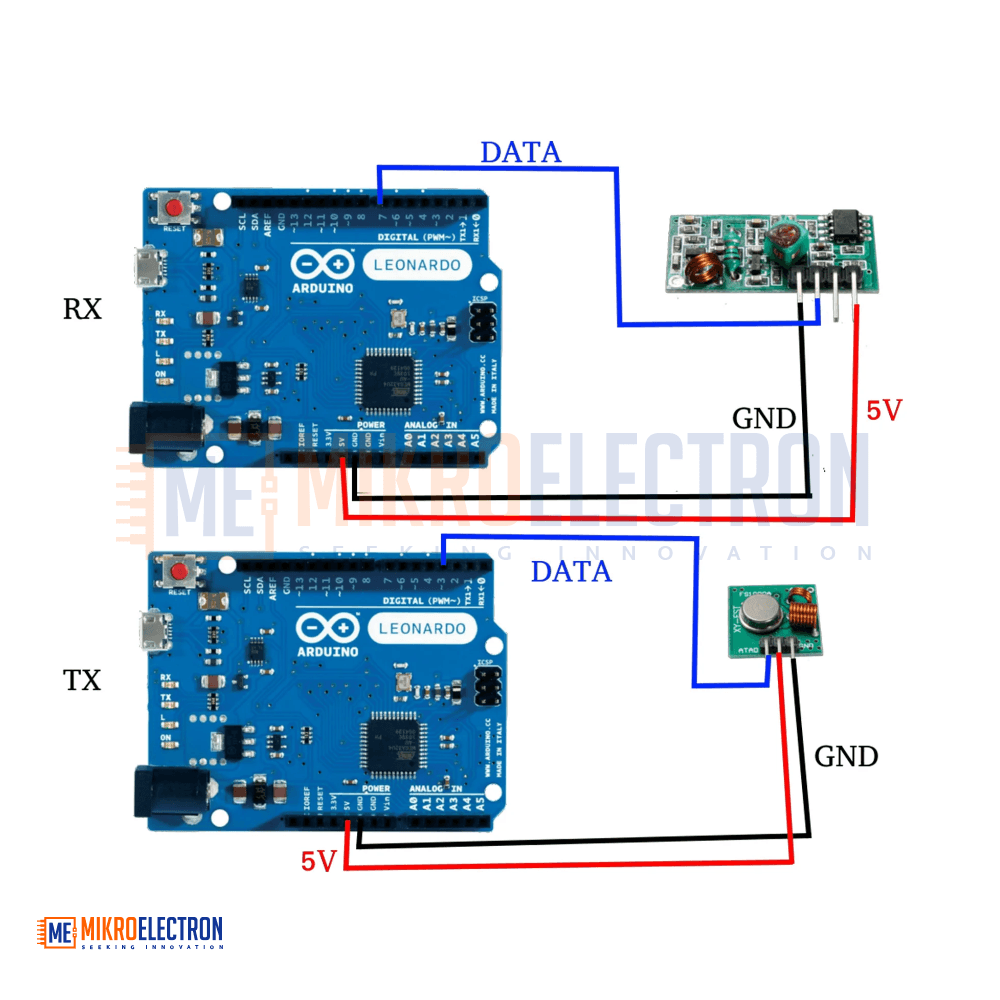

  here a circuit example for interfacing RF module using HT12E/D encoder decoder pair. The circuit attached here can be used to transfer data using the RF module. As I have explained earlier RF module mentioned here is having a single channel. So we can use only serial data transfers. This example uses HT12E/D encoder-decoder pair for converting the parallel data to serial and back.
