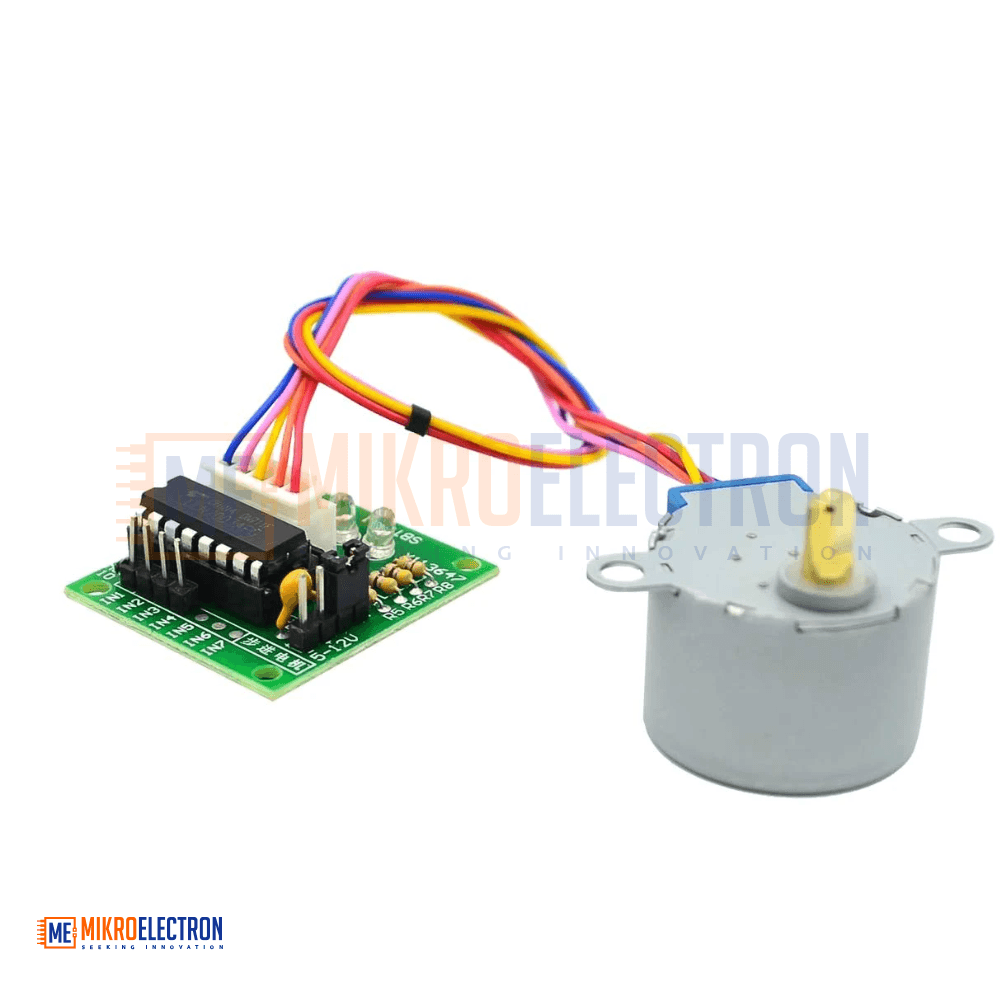

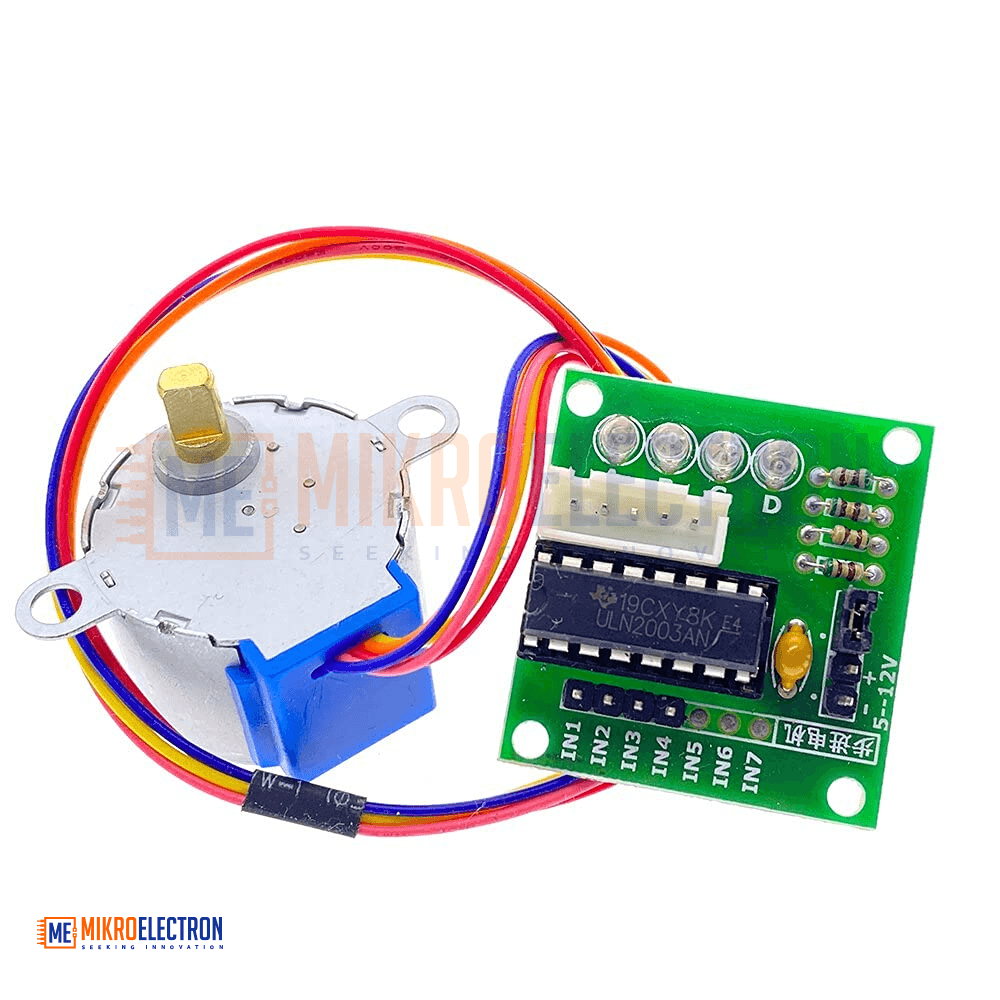

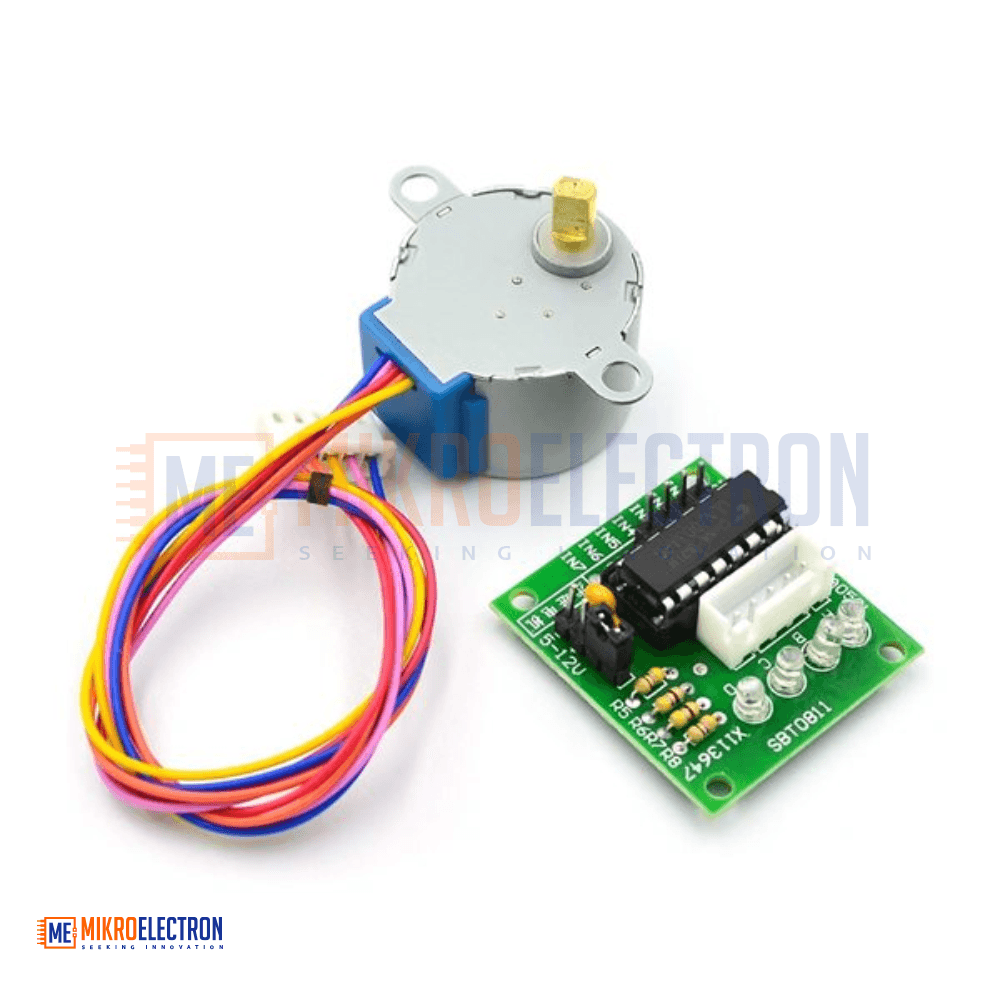

Stepper Motor With Drive Board ULN2003

5.0(1 review)
SKU: ME-160
JD3.50JD4.00

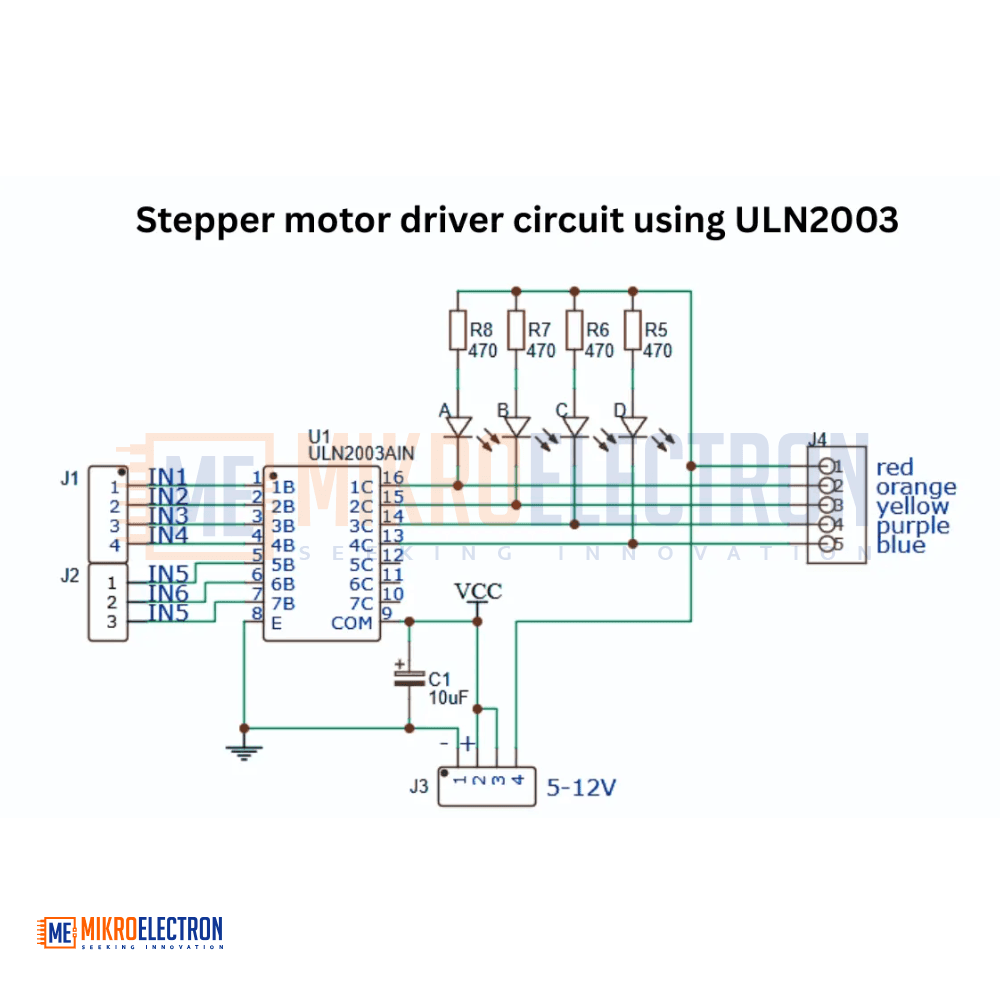

The driver is based on an integrated ULN2003 circuit that contains several Darlington configurations. It works at very good parameters along with the stepper motor in the kit.

يعتمد المشغِّل (الدوّار) على دارة متكاملة من نوع ULN2003 تحتوي على عدة تشكيلات دارلينغتون (Darlington). ويعمل هذا المشغِّل بمعاملات جيدة جدًا إلى جانب المحرك الخطوي الموجود في المجموعة.

Motors & Actuators

The driver is based on an integrated ULN2003 circuit that contains several Darlington configurations. It works at very good parameters along with the stepper motor in the kit.

  • Length: 274mm
  • Net weight: 43g
  • Brand new and high quality
  • Voltage: 5V
  • Diameter: 28mm
  • Step angle: 5.625 x 1 / 64
  • Reduction ratio: 1 / 64
  • 5 Line 4 phase can be driven by ordinary uln2003 chip can also be connected in phase 2 development board used for.
  • supporting the use of a direct plug and easy to use stepper motor used in the development board.

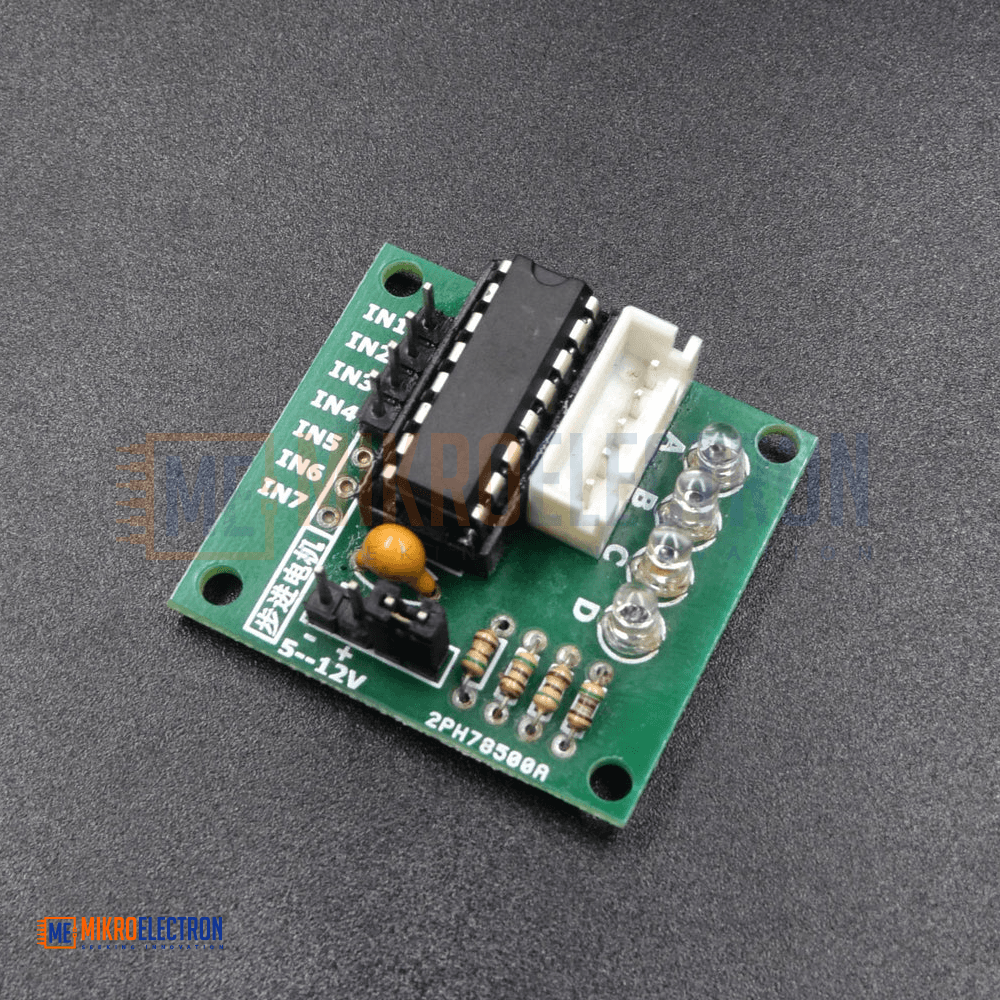

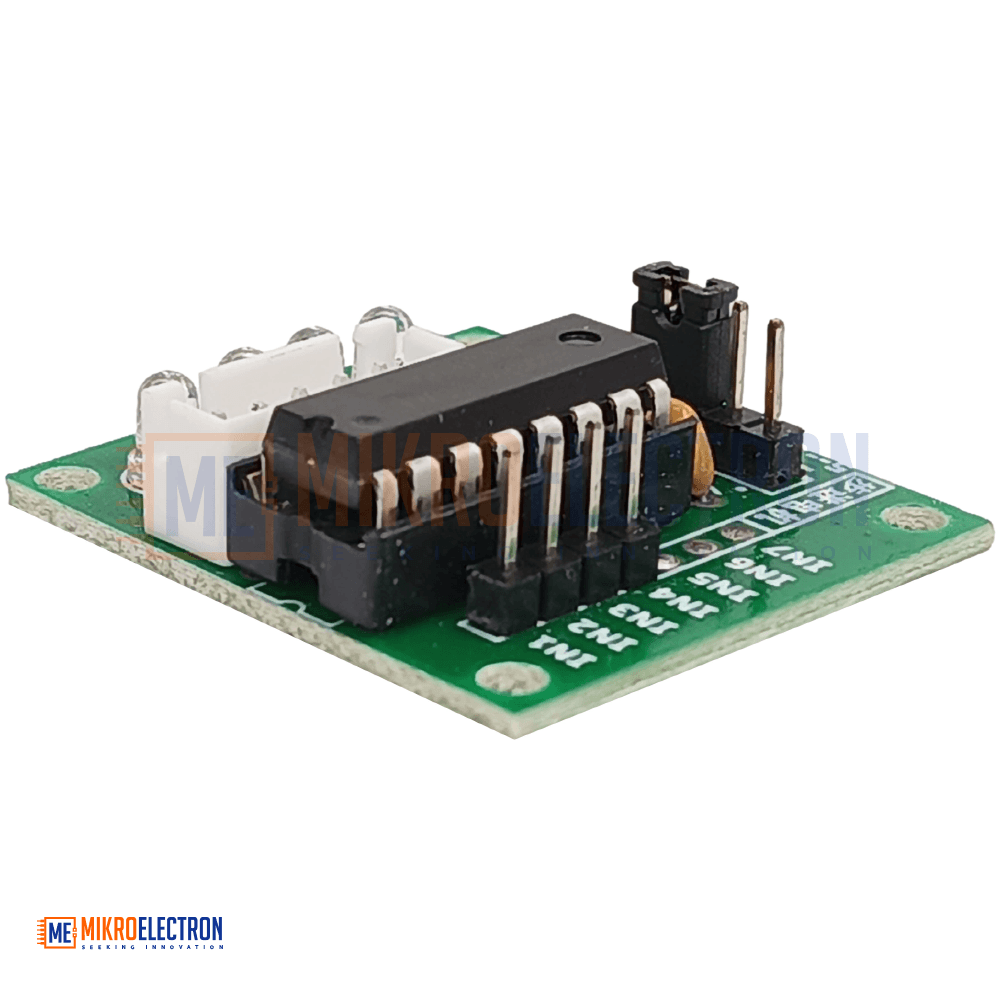

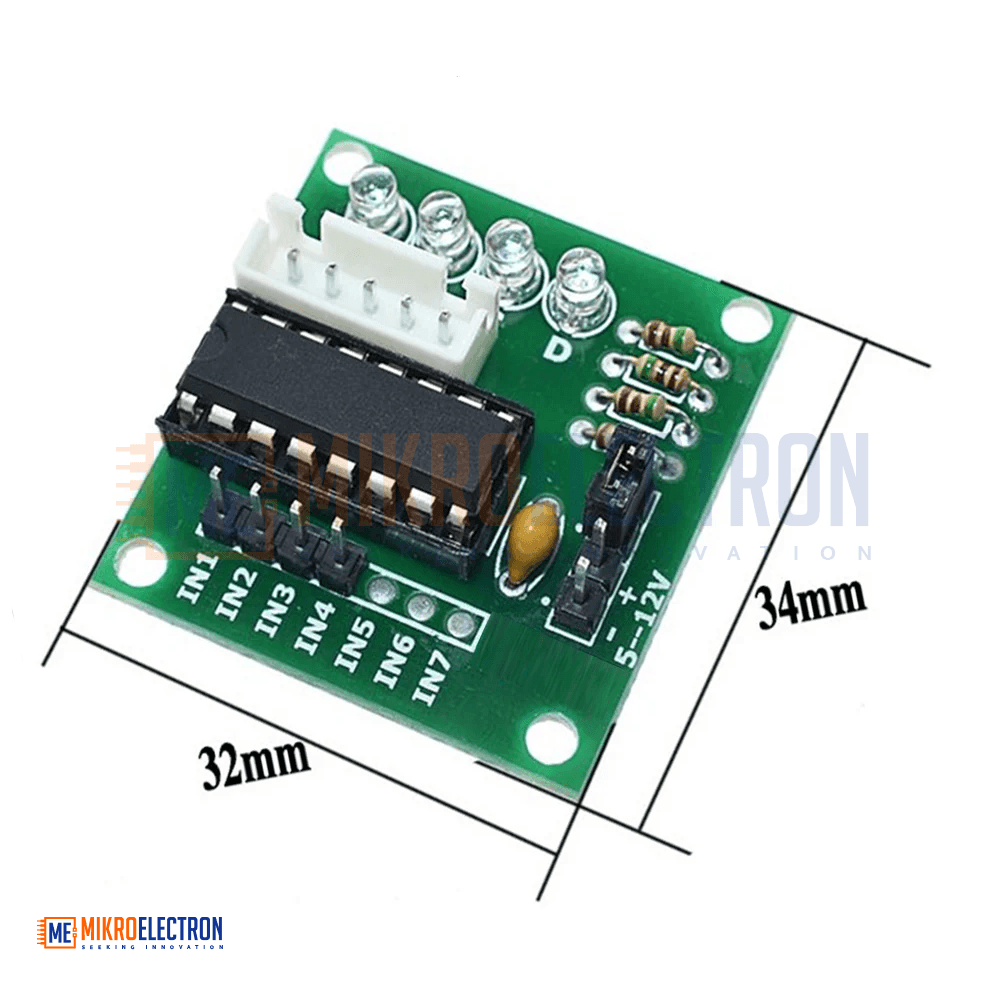

  • Stepper motor driver board with ULN2003

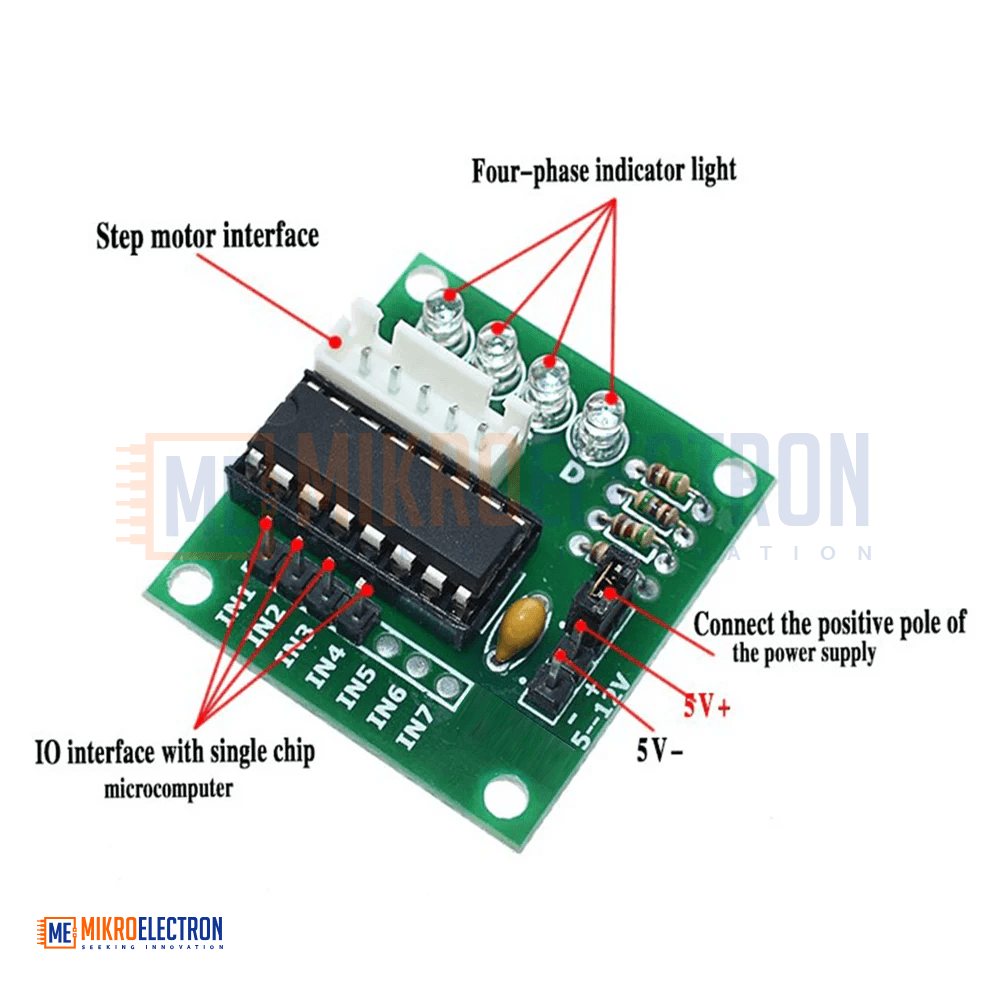

  • ABCD four-phase LED indicates the status of the stepper motor work
  • Stepper motor with a standard interfacewhen used directly pluggable
