UART/TTL WIFI MODULE

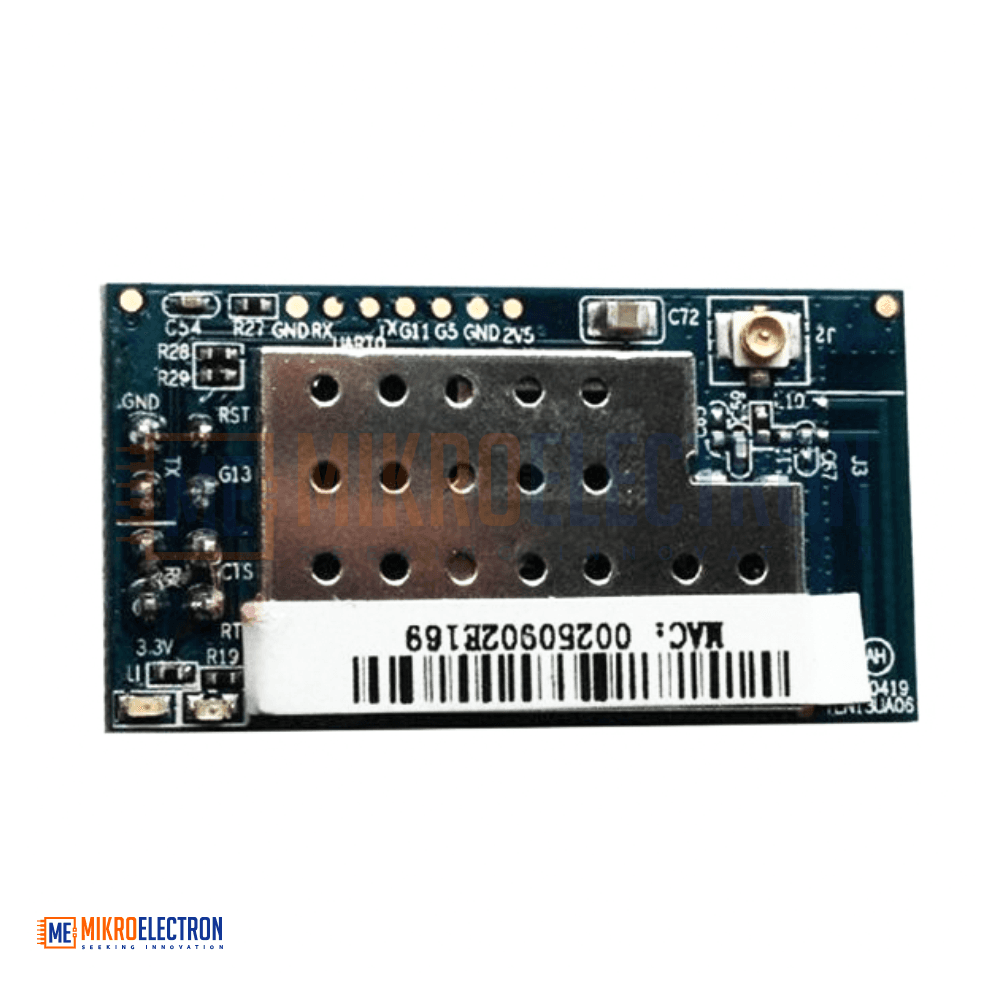

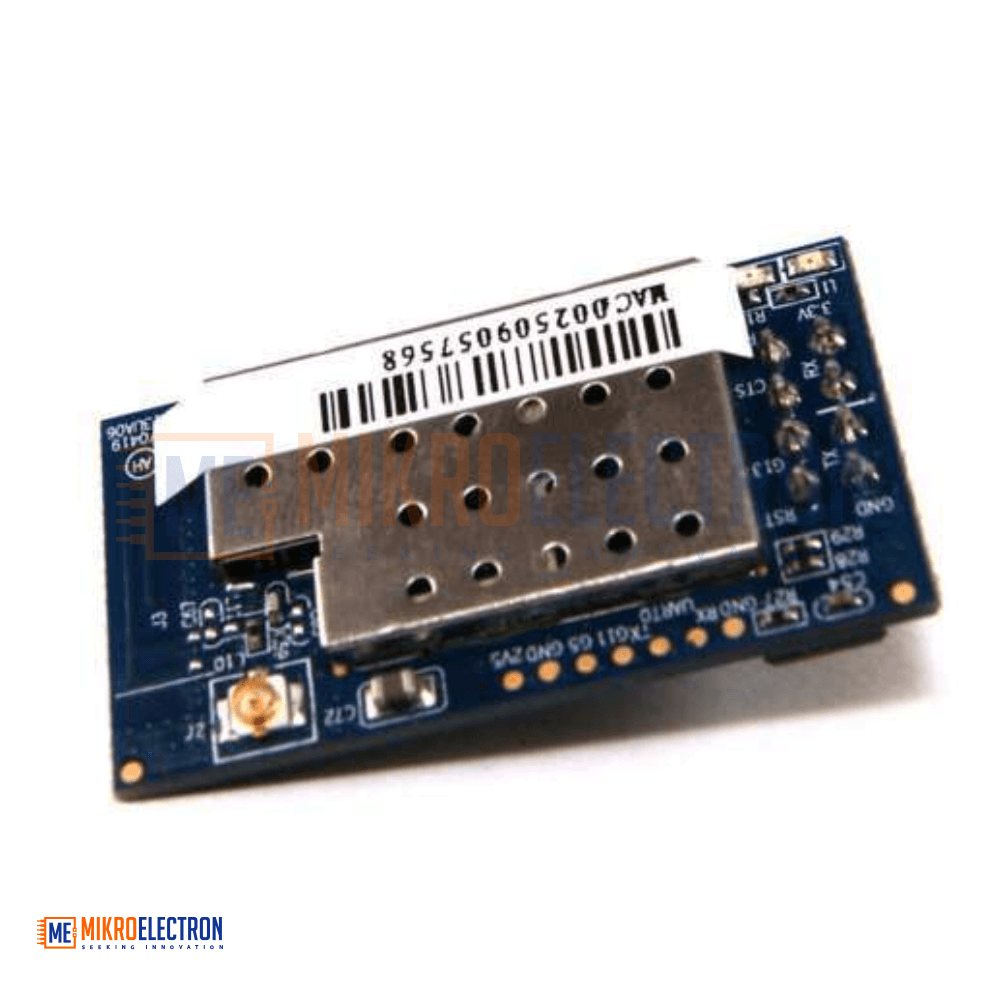

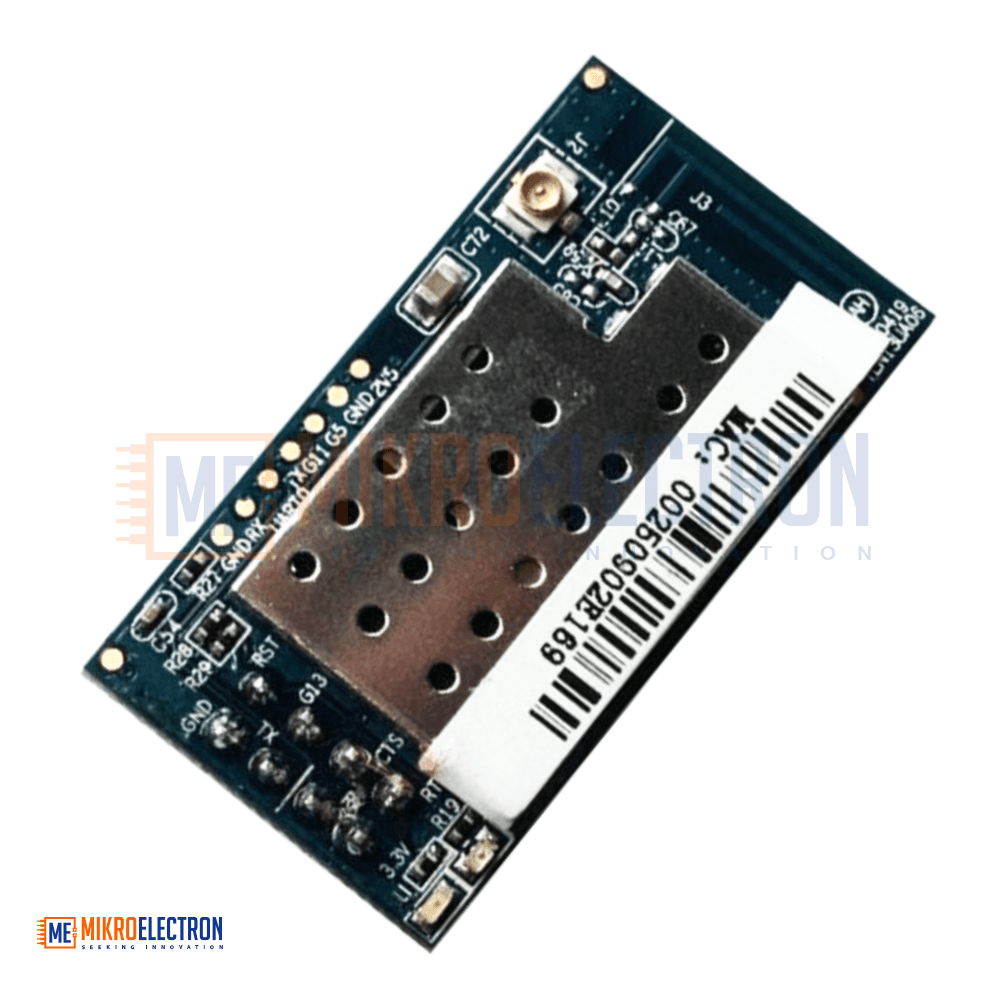

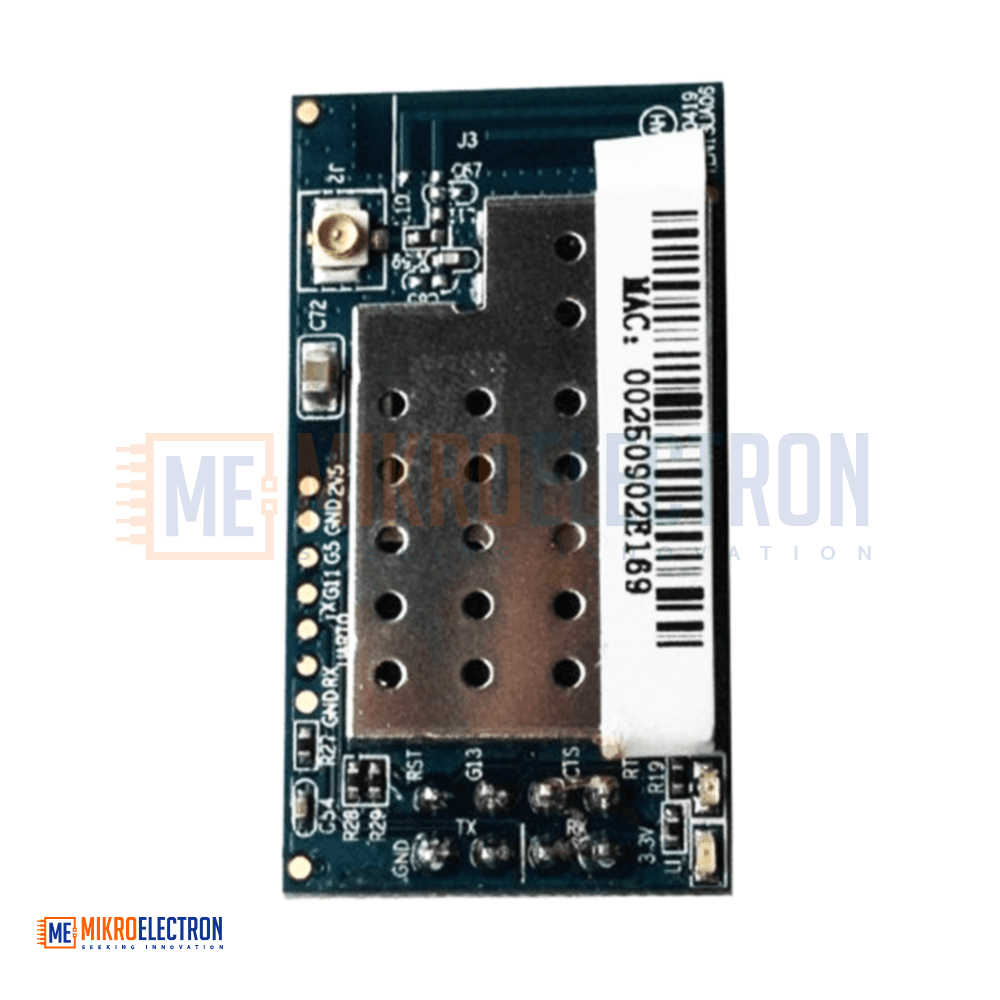

The TLN13UA06 UART/TTL WiFi Module is an embedded wireless networking solution developed for microcontroller and Arduino-based systems. Built around the HED10W07SN WiFi SoC chip, the module offers reliable wireless communication with compact dimensions and low power consumption.

The module communicates through a standard UART interface, allowing traditional serial devices to connect easily to WiFi networks without complex hardware modifications. It includes a built-in IEEE 802.11 protocol stack and complete TCP/IP networking support, enabling seamless wireless data transmission for IoT and embedded applications.

The TLN13UA06 supports transparent serial data transmission, AT command configuration, and both automatic and command operating modes. It also supports multiple wireless network configurations including Station (STA), Access Point (AP), and Ad-hoc modes.

With support for common internet protocols such as TCP, UDP, DHCP, DNS, and HTTP, the module is ideal for smart home systems, wireless sensor networks, industrial automation, and remote communication projects.

The module is FCC, CE, and RoHS certified, ensuring high reliability and compliance with international standards.

Specifications

• Model: TLN13UA06
• Interface Type: UART / TTL
• Communication Standard: IEEE 802.11 b/g/n
• Frequency Range: 2.412 ~ 2.484 GHz
• Power Supply: Single 3.3V
• Baud Rate Support: 1200bps ~ 115200bps
• Flow Control: RTS / CTS Hardware Flow Control
• Wireless Modes: STA / AP / Ad-hoc
• Network Protocols Supported:
  • TCP
  • UDP
  • ICMP
  • DHCP
  • DNS
  • HTTP
• Security Support:
  • WEP64 / WEP128
  • TKIP
  • CCMP (AES)
  • WPA-PSK / WPA2-PSK
• Configuration Methods:
  • AT Commands
  • WEB Server
  • Wireless Adapter
  • Serial Configuration
• Transmission Mode: Transparent Transmission
• Certifications: FCC, CE, RoHS
• Connector Type: Double 2×4 Pin Header

Applications

• IoT and smart home systems
• Arduino and microcontroller projects
• Wireless sensor networks
• Serial-to-WiFi communication systems
• Remote monitoring and control
• Industrial automation
• Embedded wireless networking
• Data logging and telemetry systems
• Wireless communication for robotics
• Internet-connected electronic devices
