NEUROSKY EEG BRAIN WAVE KIT
Out Of Stock

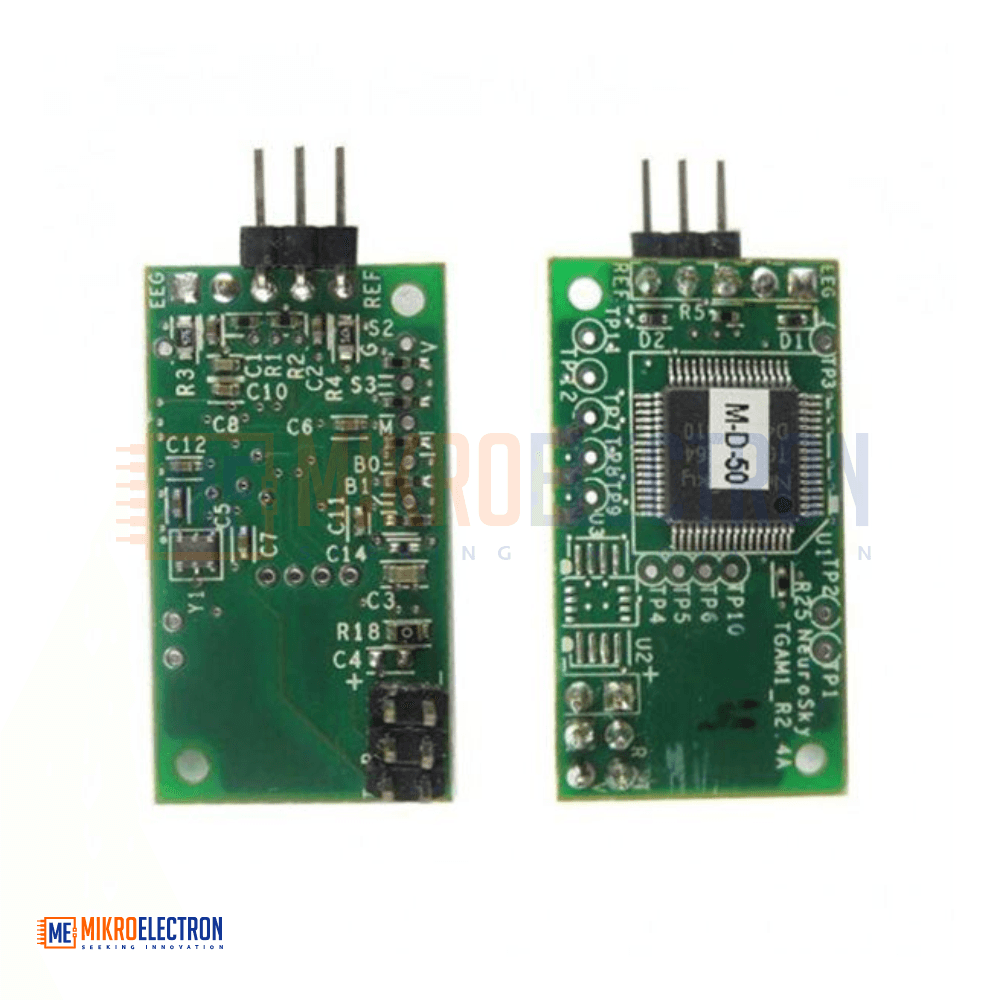

The NEUROSKY EEG Brain Wave Kit is an ultra-compact EEG module measuring just 2.79 x 1.52 x 0.25 cm and weighing only 130 mg. It features a single EEG channel plus reference electrode and ground wire, supporting dry electrodes for direct skin contact. With a 512Hz sampling rate, hardware filtering (0–100Hz), and anti-interference design, it captures weak brain wave signals accurately. Operates at 2.97–3.63V via UART serial port with selectable baud rates (1200, 9600, 57600). Includes ESD protection (4kV contact, 8kV air discharge).
مجموعة موجات الدماغ EEG من NEUROSKY هي وحدة EEG فائقة الصغر بأبعاد 2.79 × 1.52 × 0.25 سم ووزن 130 ملغم فقط. تحتوي على قناة EEG واحدة بالإضافة إلى قطب مرجعي وسلك أرضي، وتدعم الأقطاب الجافة للتلامس المباشر مع الجلد. بفضل معدل أخذ عينات 512 هرتز، فلترة مادية (0-100 هرتز)، وتصميم مضاد للتداخل، تلتقط إشارات موجات الدماغ الضعيفة بدقة. تعمل بجهد 2.97-3.63 فولت عبر منفذ تسلسلي UART مع سرعات باود قابلة للاختيار (1200، 9600، 57600). تتضمن حماية ESD (تفريغ تلامسي 4 كيلوفولت، تفريغ هوائي 8 كيلوفولت).
The NEUROSKY EEG Brain Wave Kit is a miniature, low-power biosignal acquisition module designed for capturing electroencephalography (EEG) signals. Its tiny form factor (2.79×1.52×0.25 cm) and extremely light weight (130 mg) make it suitable for wearable or portable brain-computer interface (BCI) applications. The kit provides a single differential EEG channel consisting of an active brain electrode, a reference electrode, and a ground wire. It natively supports dry electrodes – no conductive gel required – enabling quick setup and user-friendly operation.
The module samples raw brain signals at 512 Hz with a hardware bandpass filter of 0–100 Hz, effectively reducing low-frequency drift and high-frequency noise. Advanced anti-interference circuitry and filtering ensure reliable detection of weak brain wave signals (microvolt level). Built-in electrostatic discharge (ESD) protection withstands 4kV contact discharge and 8kV air discharge, safeguarding the device in real-world environments.
Power supply range is 2.97V to 3.63V, compatible with common 3.3V systems. Data output is via a UART serial port with selectable baud rates: 1200, 9600, or 57600 bps. The kit outputs 512 Hz original brain signal data, allowing developers to implement their own filtering, feature extraction, and classification algorithms.
Specifications
| Parameter | Details |
|---|---|
| Dimensions | 2.79 × 1.52 × 0.25 cm |
| Weight | 130 mg |
| Sampling Rate | 512 Hz |
| Hardware Filter | 0 – 100 Hz |
| ESD Protection | 4kV contact discharge, 8kV air discharge |
| Operating Voltage | 2.97 – 3.63 V |
| Interface | UART serial port |
| Baud Rates | 1200, 9600, 57600 |
| Electrode Type | Dry electrode compatible |
| Channels | 1 EEG brain electric channel + reference electrode + ground wire |
| Signal Output | 512 Hz original brain signal |
| Special Features | Weak brain wave signal detection, anti-interference, noise filtering |
Applications
Brain-Computer Interface (BCI) – control external devices (lights, games, robots) using mental commands.
Neurofeedback training – monitor and train focus, relaxation, or meditation states.
Sleep stage monitoring – capture delta, theta, and alpha waves for sleep analysis.
Wearable EEG headsets – integrate into headbands, caps, or AR/VR headsets.
Research and education – demonstrate EEG principles in laboratories or classrooms.
Cognitive load assessment – measure mental workload in real-time tasks.
