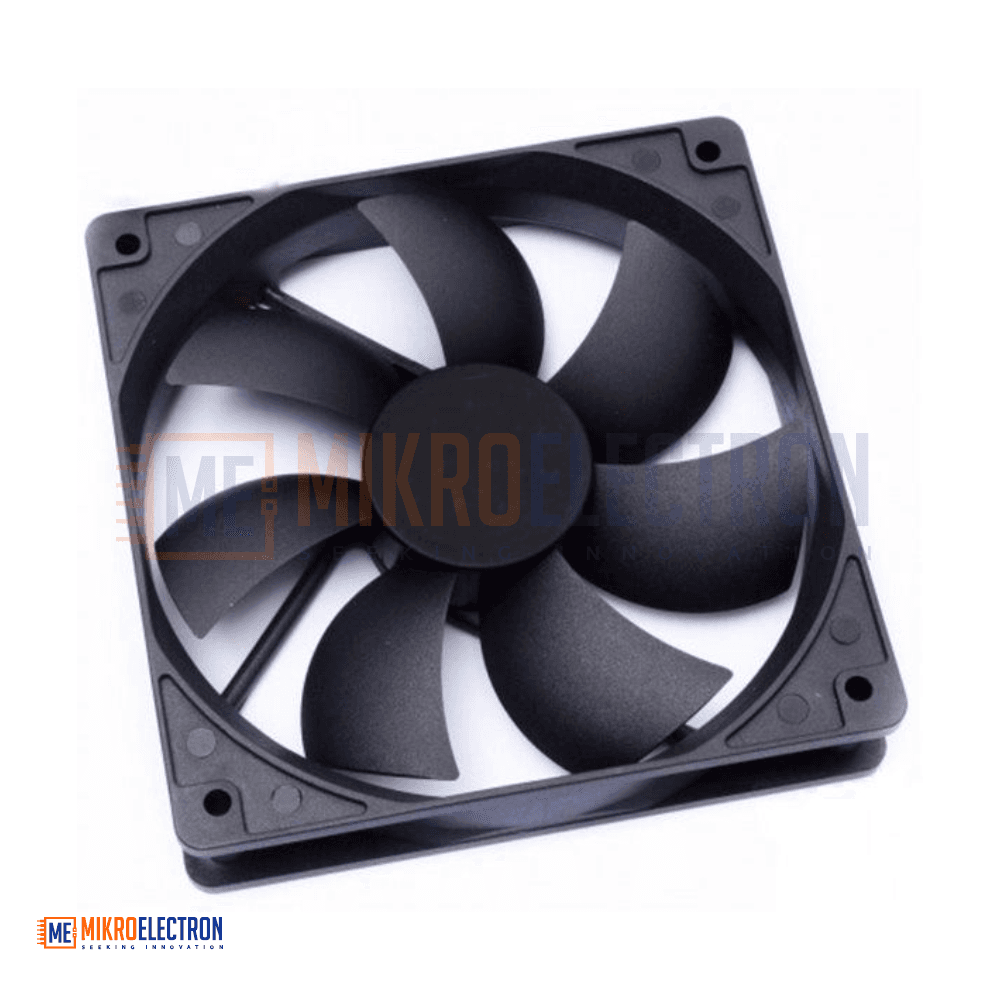

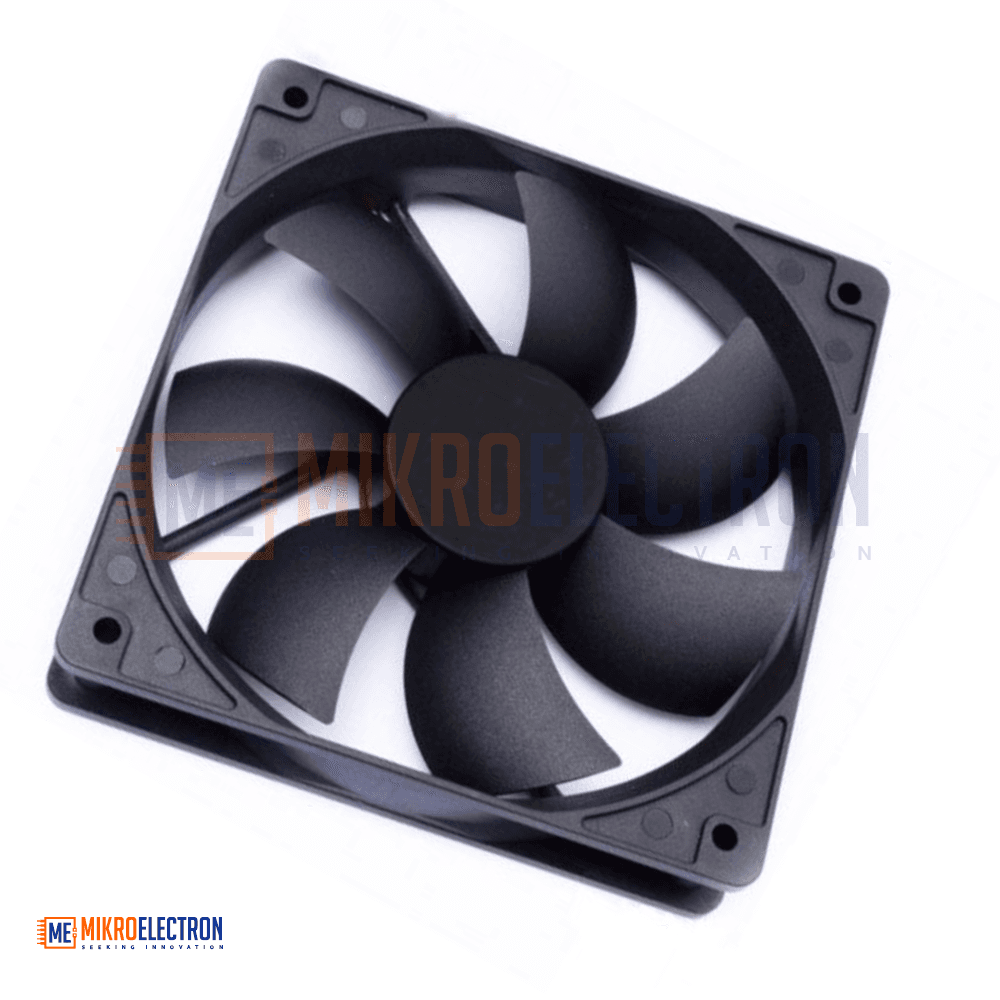

12V COOLING FAN 12cm x 12cm
The 12V Cooling Fan measures 120mm x 120mm x 15mm – ultra-slim for tight spaces. It runs on DC 12V with a rated current of 0.36A and spins at 1300 RPM ±10%, delivering 83.2 CFM airflow. Noise level is very low at less than 17 dBA. Features a 2-pin connector and sleeve bearing with a 30,000 hour lifespan. Ideal for cooling electronics, 3D printers, cabinets, and AV equipment where quiet operation and slim profile are essential.
مروحة التبريد 12 فولت بأبعاد 120 مم × 120 مم × 15 مم – فائقة النحافة للمساحات الضيقة. تعمل على تيار مستمر 12 فولت بتيار مقنن 0.36 أمبير وسرعة 1300 دورة/دقيقة ±10%، وتوفر تدفق هواء 83.2 قدم مكعب/دقيقة. مستوى الضوضاء منخفض جداً أقل من 17 ديسيبل. تحتوي على موصل ذو دبوسين ومحمل كم (Sleeve) بعمر تشغيلي 30,000 ساعة. مثالية لتبريد الإلكترونيات والطابعات ثلاثية الأبعاد والخزائن ومعدات الصوت والفيديو حيث الهدوء والحجم النحيف مطلوبان.
The 12V Cooling Fan (120mm x 120mm x 15mm) is a slim-profile axial fan designed for efficient air movement in space-constrained applications. With a 120mm square frame and only 15mm thickness, it fits where standard 25mm fans cannot. The fan operates on DC 12V with a rated current of 0.36A ±10%, consuming approximately 4.32 watts at full speed.
The motor spins at 1300 RPM ±10%, generating a substantial 83.2 CFM (Cubic Feet per Minute) of airflow – enough to cool enclosures, power supplies, or 3D printer control boards effectively. Despite this airflow, the noise level is impressively low at less than 17 dBA ±10%, making it suitable for noise-sensitive environments like recording studios, home theaters, or office equipment.
The fan uses a sleeve bearing design, which offers a 30,000-hour operational life at rated conditions – adequate for continuous use over several years. It features a simple 2-pin connector (typically red/black wires for +12V and ground). The rated speed tolerance and airflow figures ensure consistent performance, while the slim 15mm height allows mounting in 1U server chassis, slim HTPCs, or tight electronics cabinets.
Specifications
| Parameter | Details |
|---|---|
| Dimensions | 120mm × 120mm × 15mm |
| Connector | 2-pin |
| Rated Voltage | DC 12V |
| Rated Current | 0.36A ±10% |
| Rated Speed | 1300 RPM ±10% |
| Airflow | 83.2 CFM |
| Noise Level | <17 ±10% dBA |
| Bearing Type | Sleeve |
| Life Expectancy | 30,000 hours |
Applications
3D printers – cool control boards, stepper drivers, or print chambers.
Home theater / AV equipment – silent cooling for receivers, amplifiers, or media players.
Server and network equipment – 1U chassis, switches, routers, or NAS enclosures.
DIY electronics projects – power supplies, battery chargers, or workbench test gear.
Kitchen appliances – refrigerators, wine coolers, or ventilation panels.
LED lighting fixtures – active cooling for high-power COB LEDs.
Small enclosures – electrical cabinets, grow boxes, or fermentation chambers.
