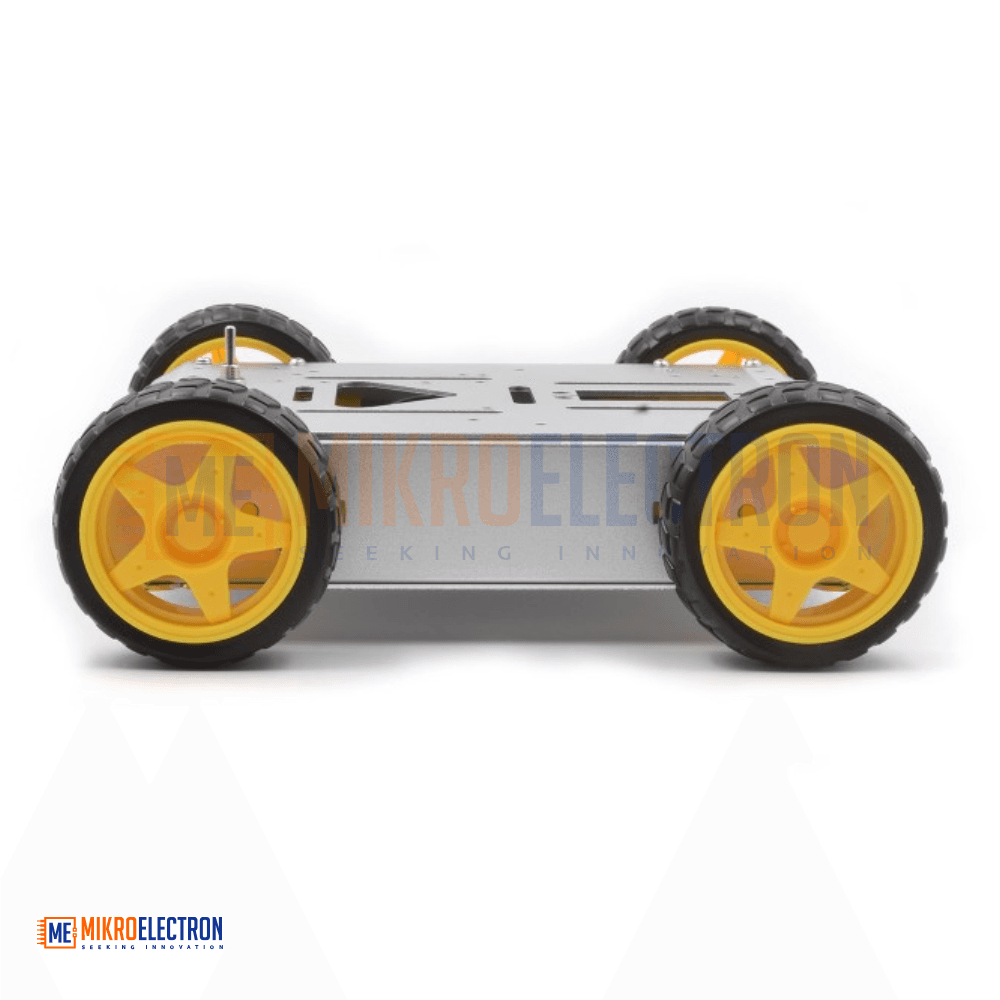

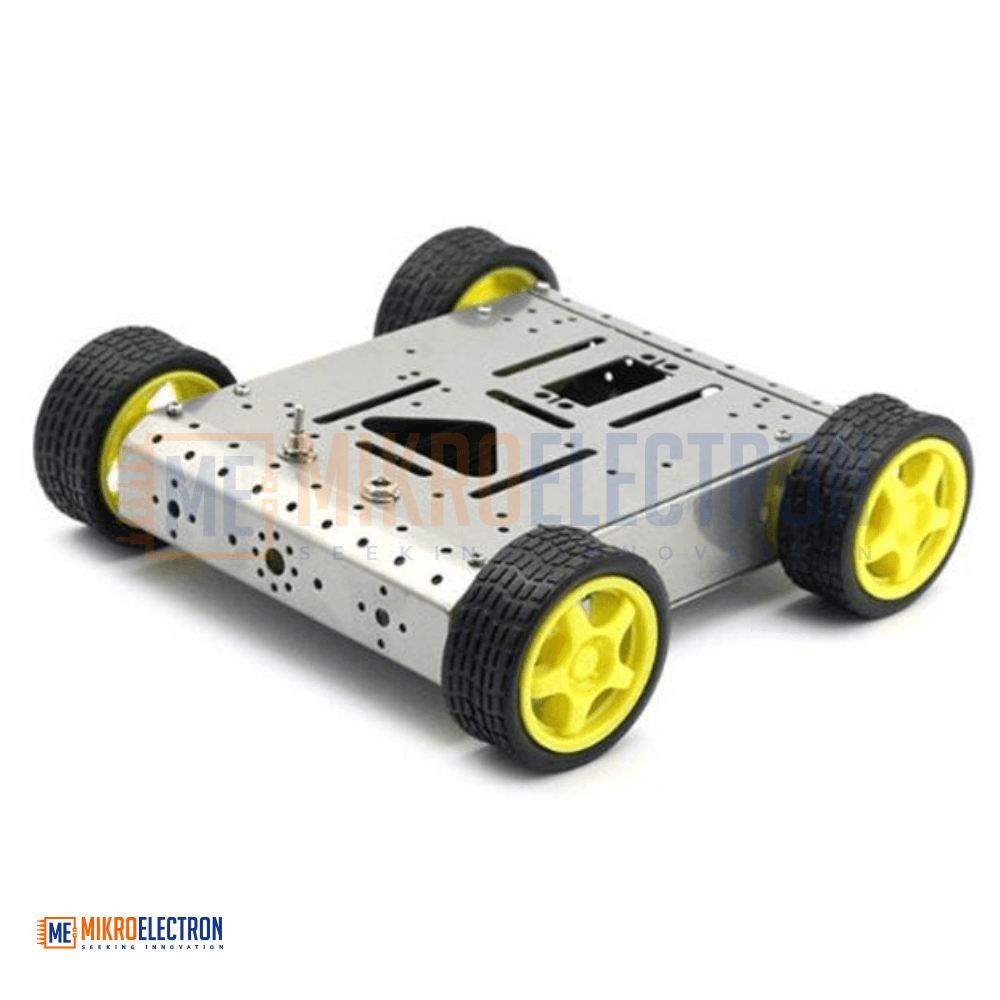

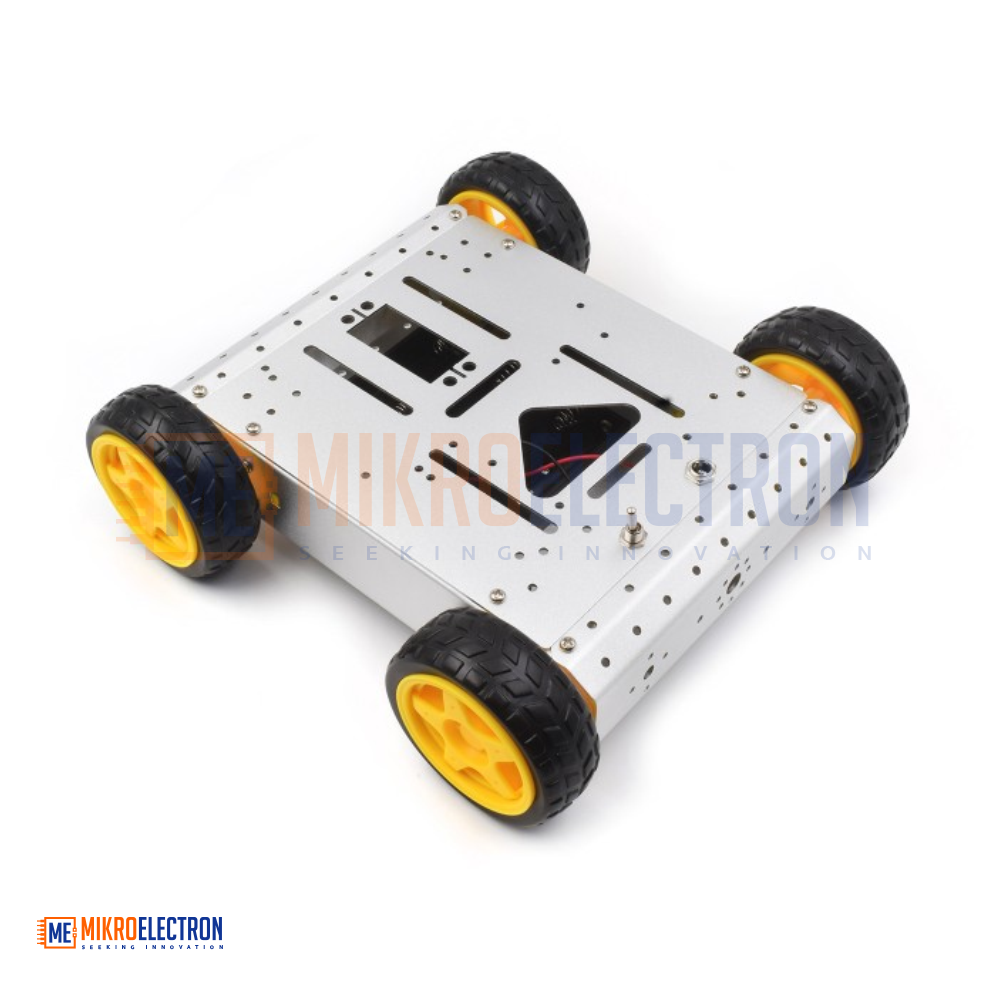

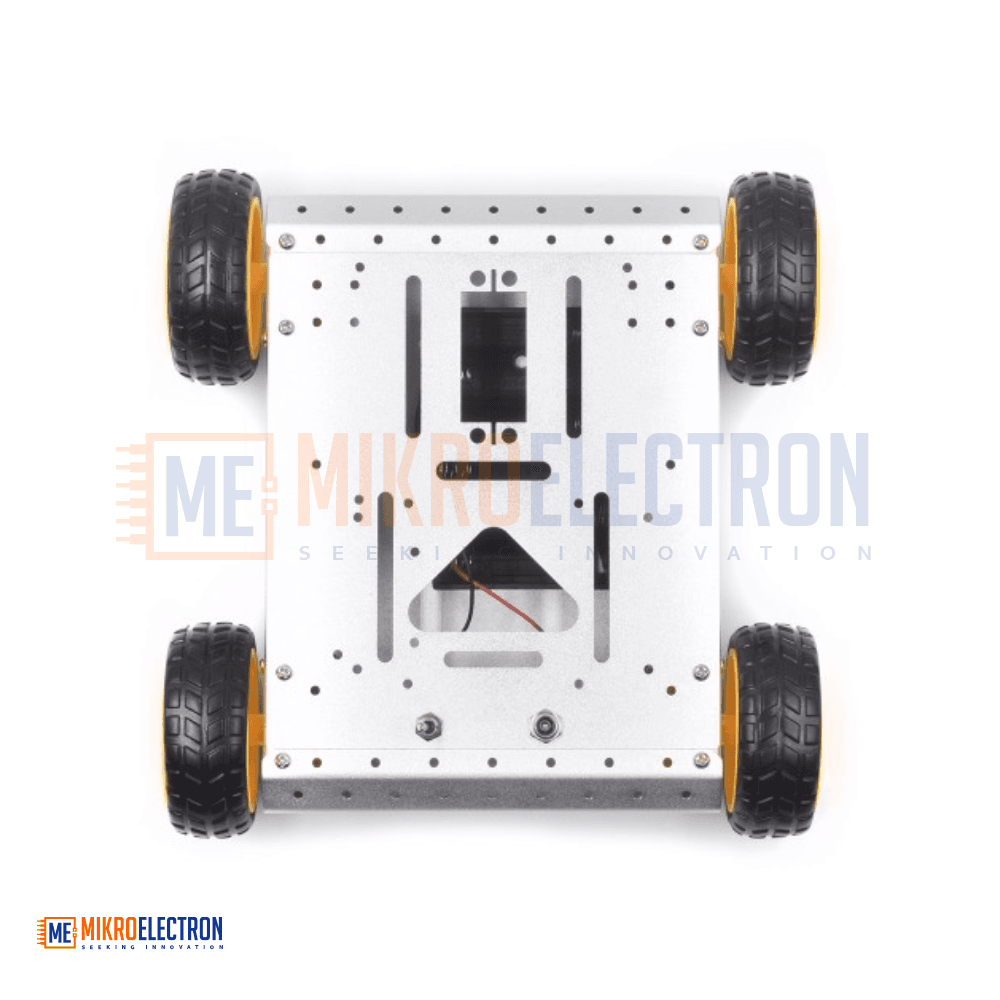

New 4WD DRIVE ALUMINUM MOBILE CAR ROBOT v2

The 4WD Drive Aluminum Mobile Car Robot V2 is a professional robotic vehicle chassis designed for robotics development, intelligent automation systems, and educational engineering projects. Featuring a durable aluminum alloy structure, the chassis combines lightweight construction with high mechanical strength and excellent resistance to deformation.

The platform is equipped with four geared DC motors and elastic rubber wheels that provide strong grip, shock absorption, and smooth movement across different surfaces. Its four-wheel-drive system ensures balanced power distribution and stable maneuverability for indoor and outdoor robotic applications.

This robotic platform includes multiple mounting holes for controllers, motor drivers, RF modules, sensors, collision switches, and pan-tilt mechanisms. It supports flexible integration with popular development boards such as Arduino, Raspberry Pi, ESP32, and other embedded systems.

The modern aluminum design, compact structure, and expandable layout make it ideal for obstacle-avoidance robots, surveillance systems, autonomous vehicles, and wireless-controlled robotic projects.

Specifications

• Product Type: 4WD Aluminum Mobile Robot Chassis V2
• Drive System: Four-Wheel Drive (4WD)
• Gear Reduction Ratio: 1:48
• No-Load Speed: 220 RPM
• Wheel Diameter: 65 mm
• Wheel Width: 26 mm
• Platform Length: 206 mm
• Platform Width: 200 mm
• Platform Height: 62 mm
• Platform Weight: 620 g
• Material: Aluminum Alloy
• Wheel Type: Elastic Rubber Tires

Applications

• Robotics and automation projects
• Arduino and Raspberry Pi robots
• Autonomous mobile robots
• Obstacle avoidance systems
• Wireless-controlled robotic vehicles
• Surveillance and monitoring robots
• STEM and engineering education
• AI and sensor integration projects
• Research and prototype development
• Smart robotic platforms
