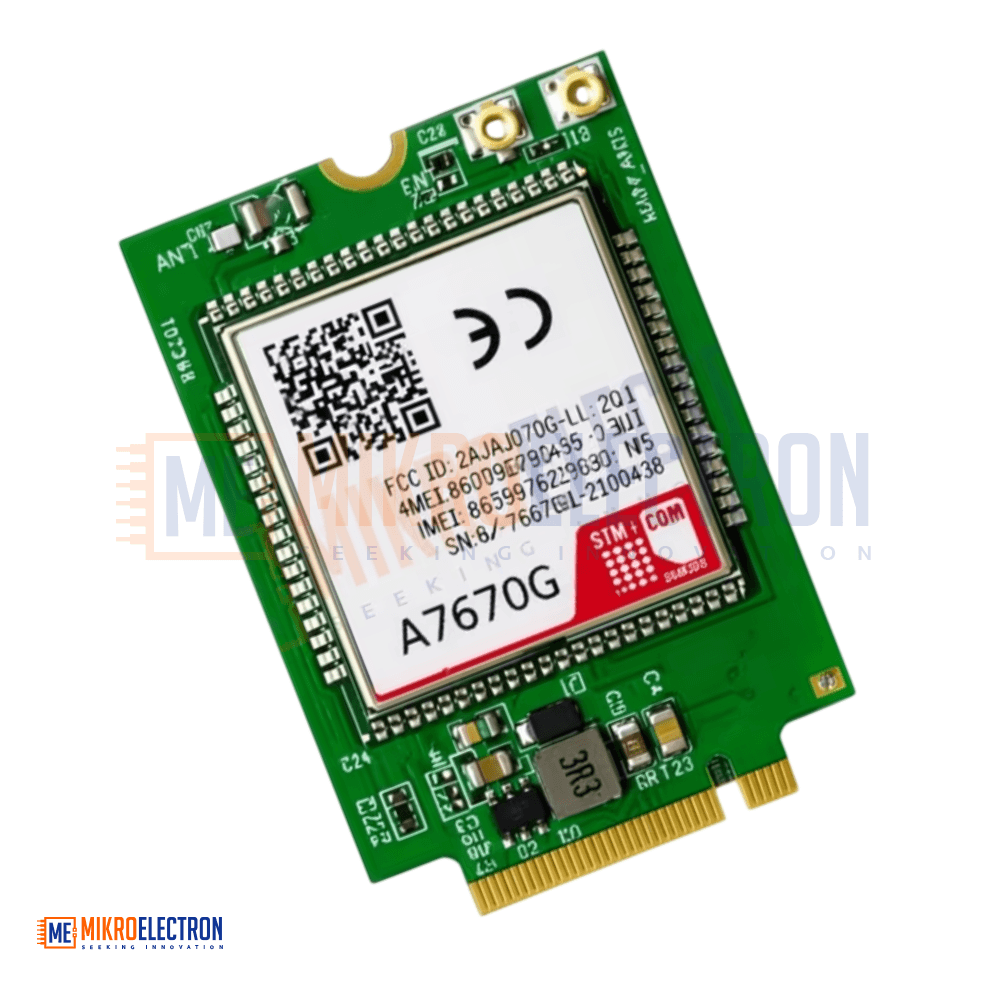

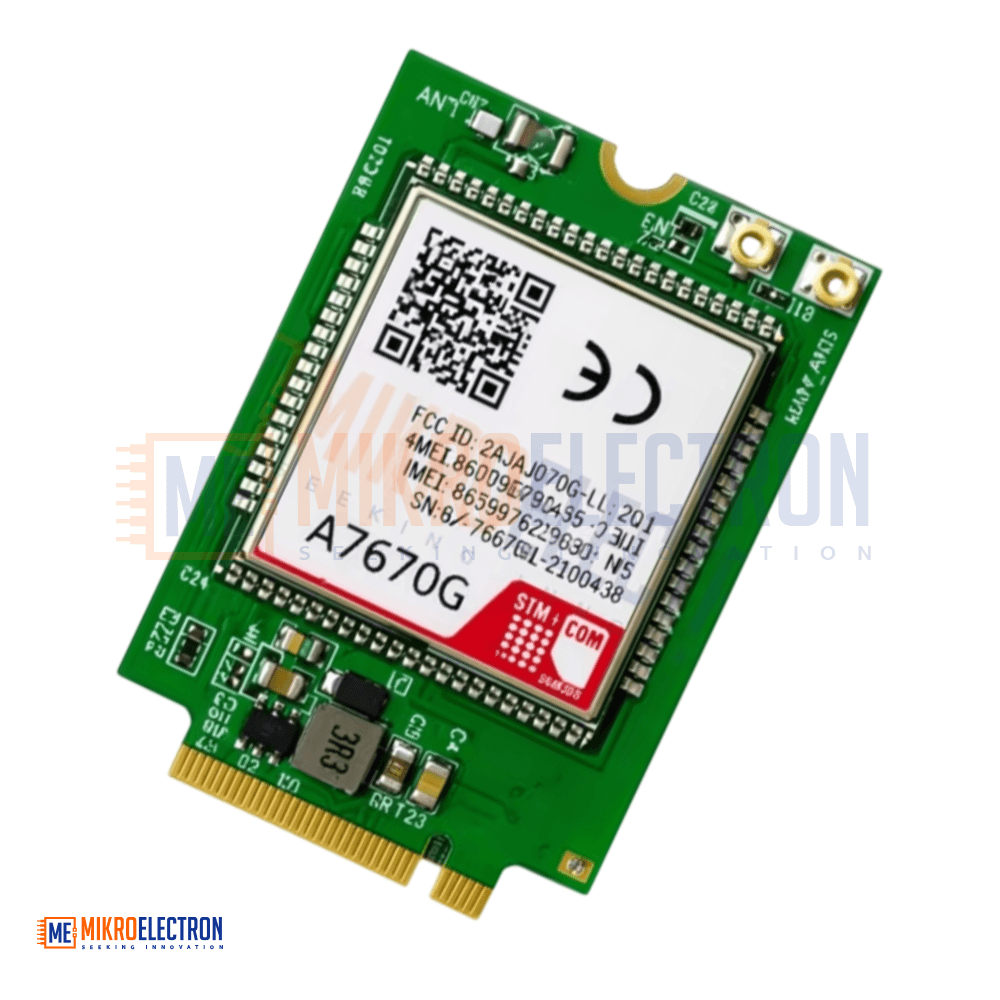

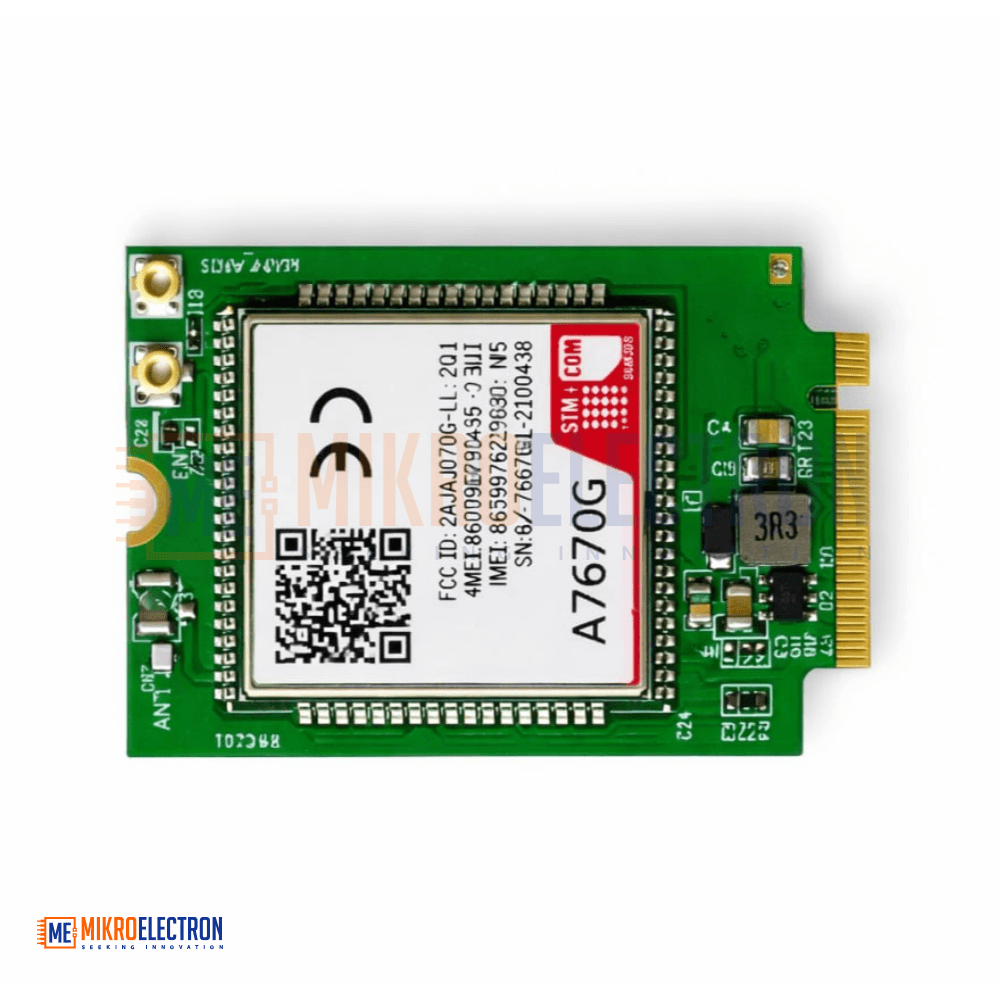

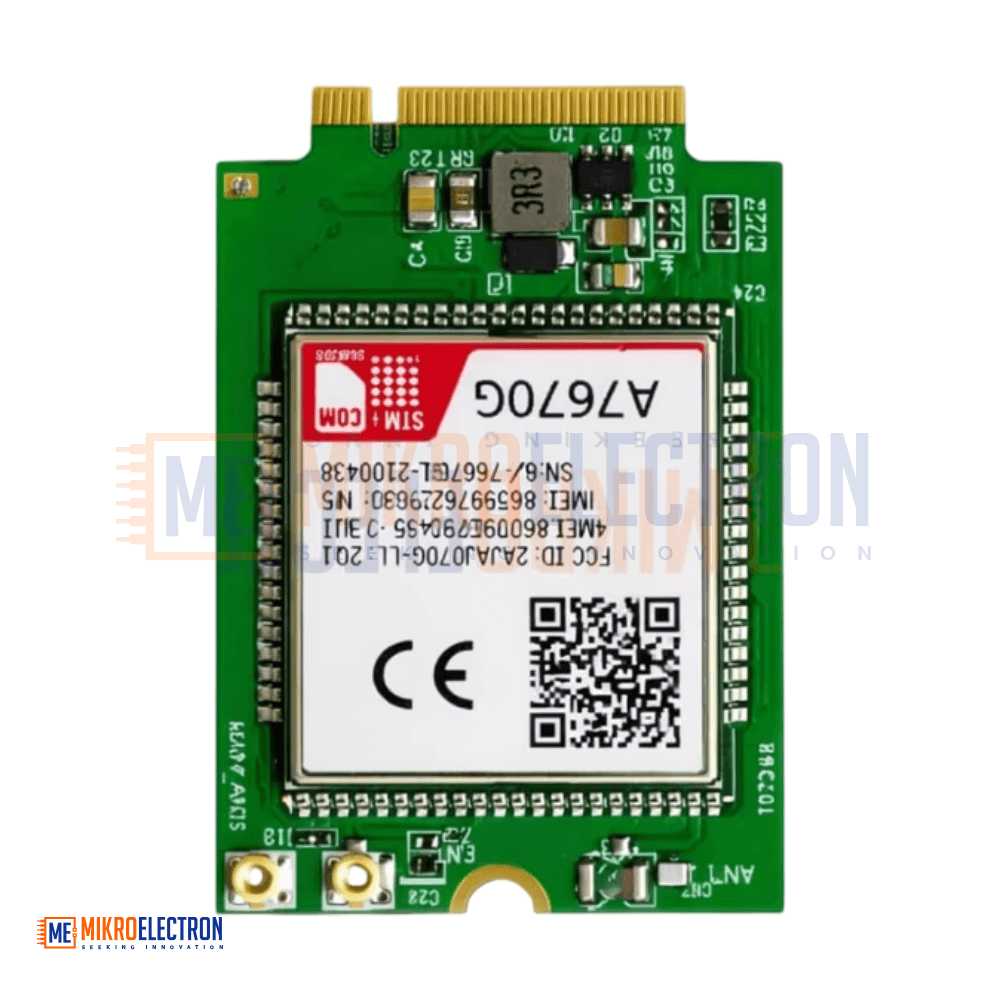

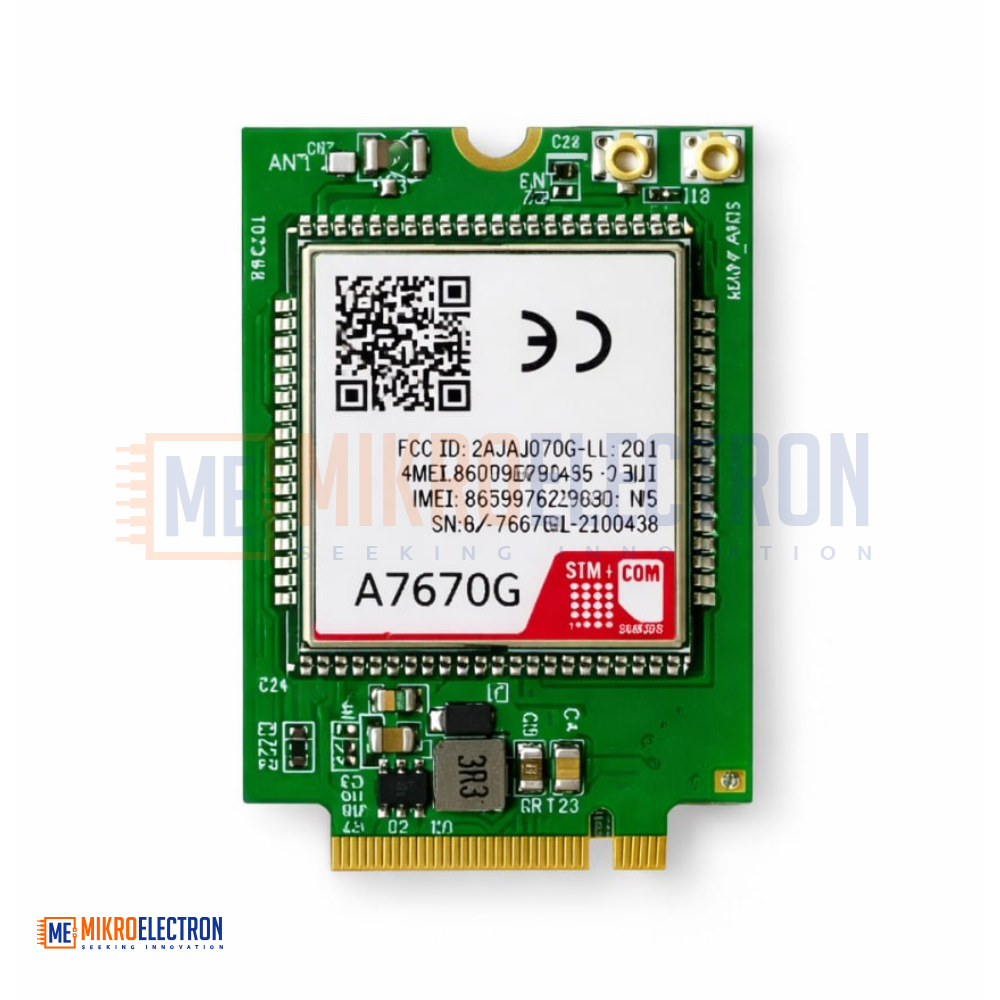

SIMCom A7670G 4G LTE Module Internal Card
Out Of Stock
The SIMCom A7670G is a 4G LTE Cat-1 internal module for IoT and embedded systems. It provides reliable wide-area cellular connectivity with 2G GSM fallback for areas with limited LTE coverage. Uses a Nano-SIM card and requires an external antenna for optimal signal strength. Its compact design allows easy integration into custom hardware. Ideal for smart meters, tracking devices, industrial controllers, and remote monitoring solutions requiring cost-effective, low-power cellular communication.
وحدة SIMCom A7670G هي وحدة داخلية 4G LTE من الفئة Cat-1 لأنظمة إنترنت الأشياء والمضمنة. توفر اتصالاً خلويًا موثوقًا واسع النطاق مع دعم احتياطي لشبكات 2G GSM في المناطق ذات تغطية LTE المحدودة. تستخدم بطاقة Nano-SIM وتتطلب هوائي خارجي لقوة إشارة مثالية. تصميمها المدمج يسمح بدمج سهل في الأجهزة المخصصة. مثالية للعدادات الذكية وأجهزة التتبع ووحدات التحكم الصناعية وحلول المراقبة عن بعد التي تحتاج اتصالاً خلويًا فعالاً من حيث التكلفة واستهلاك الطاقة.
The SIMCom A7670G 4G LTE Module is a compact, low-power cellular connectivity solution designed specifically for Internet of Things (IoT) and embedded applications. Built around the SIMCom A7670G chipset, this internal module supports LTE Category 1 (Cat-1) – a 4G standard that delivers sufficient data rates for most IoT use cases (up to 10 Mbps downlink / 5 Mbps uplink) while consuming significantly less power than higher LTE categories.
A key feature is the 2G GSM fallback capability. In areas where 4G LTE coverage is weak or unavailable, the module automatically switches to GSM networks (2G), ensuring continuous communication – critical for fleet tracking, remote sensors, or alarm systems operating in rural or underground environments. The module accepts a Nano-SIM card and requires an external antenna (not included) to optimize signal reception.
The module is presented in an internal card form factor (typically a small PCB with edge connectors or solder pads), allowing it to be integrated directly into custom hardware designs – such as smart meters, industrial controllers, or portable trackers. It communicates with a host microcontroller via standard interfaces (UART, USB, etc.) using AT commands. This module strikes an excellent balance between performance, power efficiency, and cost, making it a popular choice for commercial IoT deployments.
Specifications
| Parameter | Details |
|---|---|
| Module Type | 4G LTE Internal Card |
| Module Model | SIMCom A7670G |
| Cellular Category | LTE Cat-1 |
| Fallback Network | 2G GSM |
| SIM Type | Nano-SIM |
| Antenna Interface | External Antenna (e.g., U.FL or SMA) |
| Connectivity | Cellular Wide-Area Network (WAN) |
| Data Rate (LTE) | Up to 10 Mbps downlink / 5 Mbps uplink (typical) |
| Host Interface | UART, USB (varies by board version) |
| Control | AT commands |
| Form Factor | Internal module (PCB) |
| Applications | IoT, M2M, telematics |
Applications
Smart meters – electricity, water, gas meters with remote reading.
GPS vehicle trackers – real-time fleet management and asset tracking.
Industrial controllers – remote monitoring of PLCs, pumps, or generators.
Security alarms – backup communication for intrusion detection systems.
Environmental sensors – air quality, weather, or water level monitoring.
Smart vending machines – inventory and payment data transmission.
Healthcare devices – portable patient monitors with emergency alerts.
