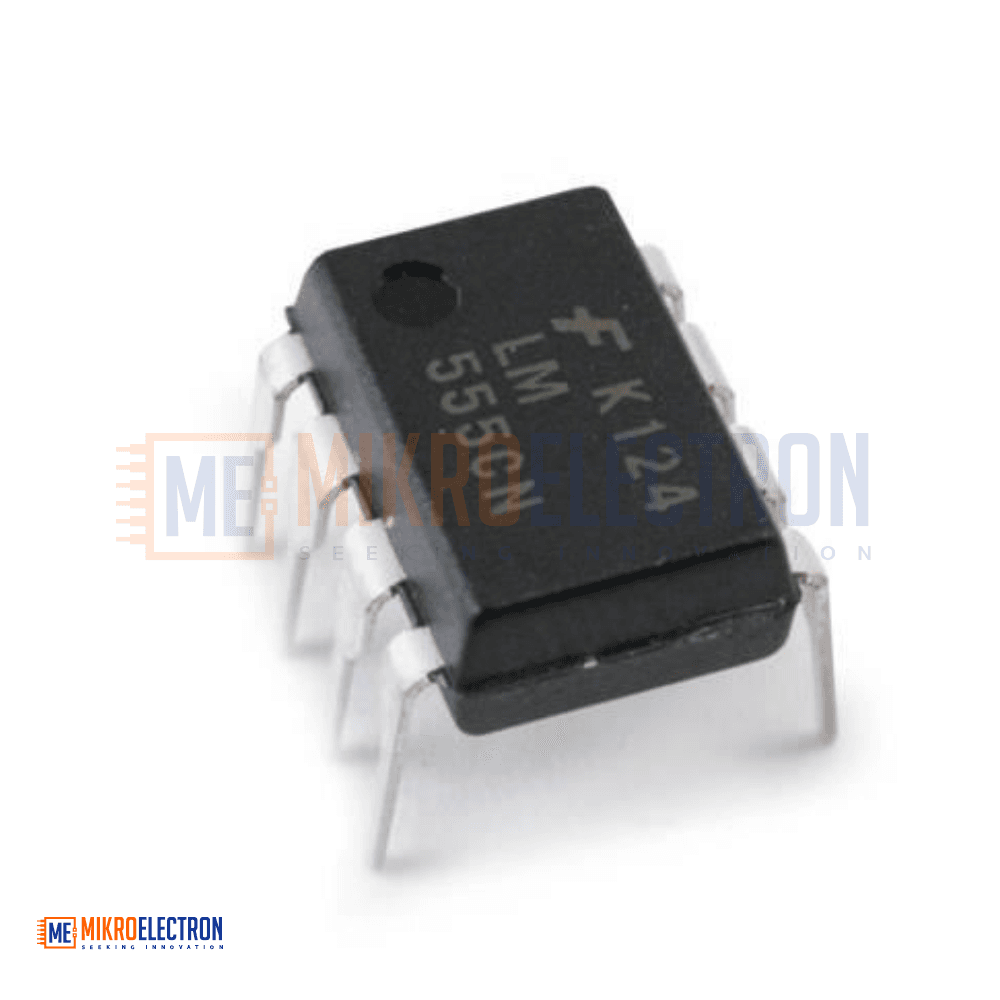

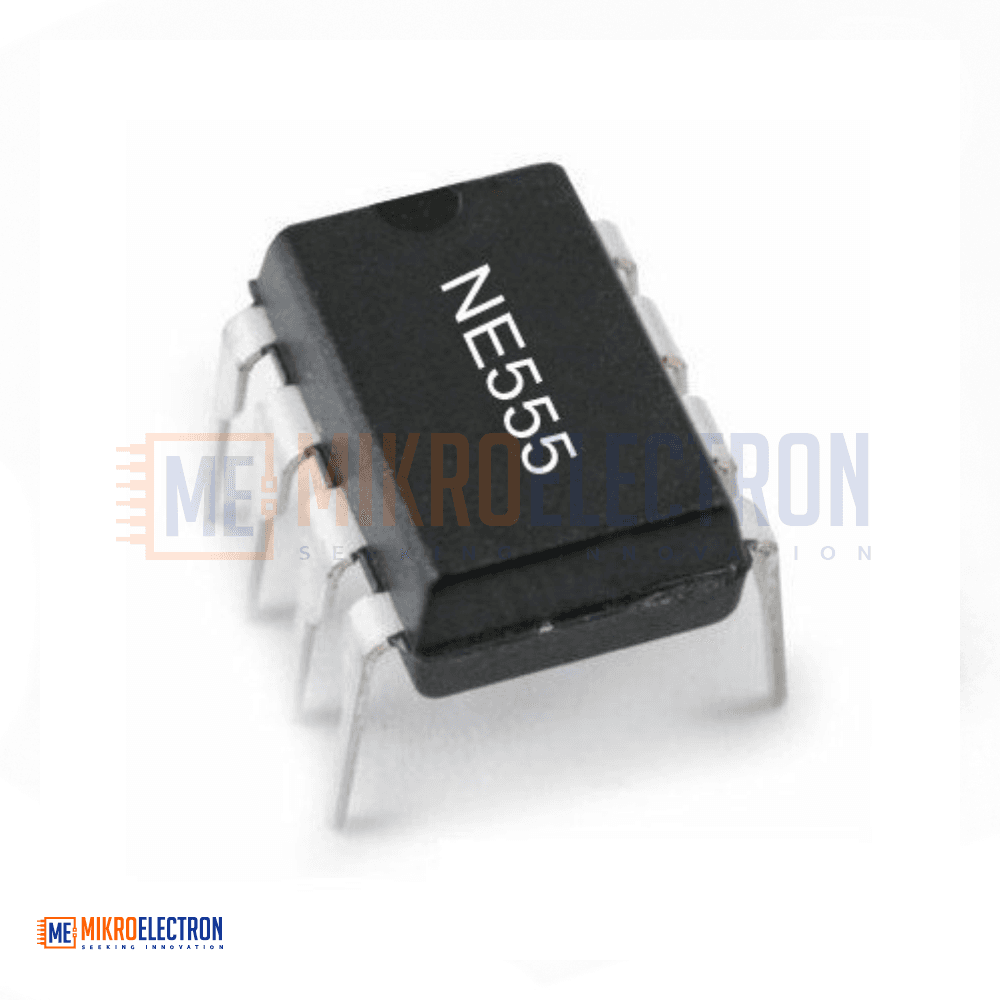

555 Timer

The 555 Timer IC is a legendary integrated circuit that has been a cornerstone of electronics design since its introduction in 1972. Manufactured by Texas Instruments (TI) and many other semiconductor companies, this remarkable chip continues to be one of the most widely used ICs in the world. Despite its simplicity, the 555 Timer is incredibly versatile, capable of functioning as an oscillator, timer, pulse generator, flip-flop, voltage-controlled oscillator (VCO), and much more. It operates in three primary modes: astable mode (for continuous oscillation and square wave generation), monostable mode (for one-shot pulse generation), and bistable mode (as a simple flip-flop). The chip consists of two comparators, a flip-flop, a discharge transistor, and a resistor voltage divider, all packed into a compact 8-pin DIP package. Timing intervals are set by external resistors and capacitors, allowing precise control from microseconds to hours. Its wide supply voltage range, strong output drive capability, and TTL compatibility make it perfect for blinking LEDs, generating tones, creating PWM signals, debouncing switches, and thousands of classic beginner to advanced projects.

Specifications

• IC Type: 555 Timer / Oscillator
• Manufacturer: Texas Instruments (TI) and others
• Supply Voltage Range: 4.5V to 16V DC
• Package Type: 8-pin DIP (Dual In-line Package)
• Timing Range: Microseconds to hours
• Operating Modes: Astable, Monostable, and Bistable
• Duty Cycle: Adjustable
• Output Current: Sink or source up to 200 mA
• Output Compatibility: TTL compatible
• Maximum Frequency: Up to 500 kHz (typical)
• Operating Temperature: 0°C to +70°C (commercial grade)
• Power Dissipation: Up to 600 mW
• Timing Accuracy: Typically ±1%

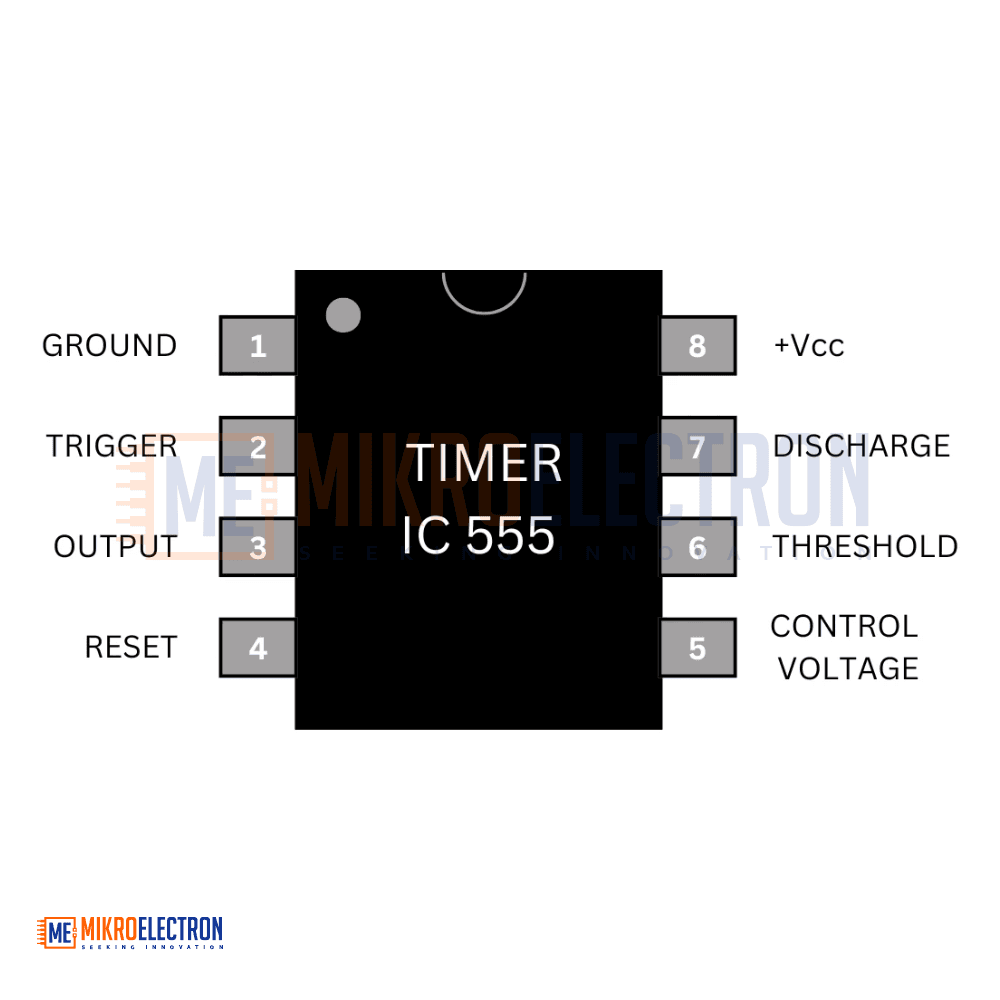

Pin Configuration

• Pin 1 (GND): Ground reference.
• Pin 2 (Trigger): Starts the timing cycle when pulled low.
• Pin 3 (Output): Output signal (high or low).
• Pin 4 (Reset): Resets the timer when pulled low.
• Pin 5 (Control Voltage): Allows external modulation of threshold voltage.
• Pin 6 (Threshold): Ends the timing cycle when exceeded.
• Pin 7 (Discharge): Discharges the timing capacitor.
• Pin 8 (VCC): Positive power supply (4.5V to 16V).

Applications

• Used in LED blinking circuits and flashing light projects.
• Essential in tone generation for buzzers, alarms, and sirens.
• Employed in Pulse Width Modulation (PWM) circuits for motor speed control.
• Used as a precision timer in automatic control systems.
• Applied in frequency generators and waveform generators.
• Common in switch debouncing circuits to clean up noisy inputs.
• Used in traffic light simulators and educational projects.
• Found in metronomes and musical tone generators.
• Employed in touch-sensitive switches and sensor triggers.
• Ideal for missed pulse detectors in communication systems.
• Used in time delay circuits for relays and automation.
• Applied in voltage-controlled oscillators (VCOs).
• Found in DC-to-DC converter circuits.
• Used in temperature monitoring and threshold detection.
• Common in game circuits, dice simulators, and hobbyist projects.
