9V Battery Connector lead wires 9V Battery Connector length：10cm

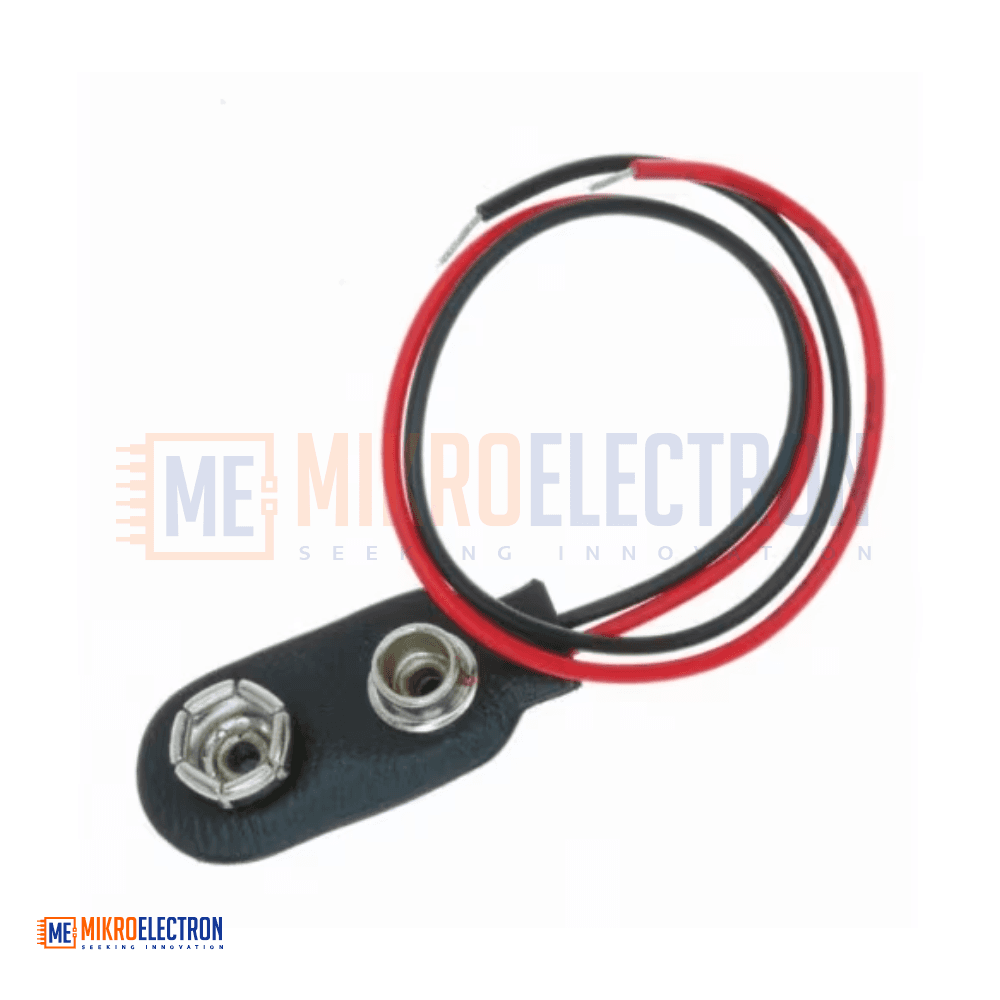

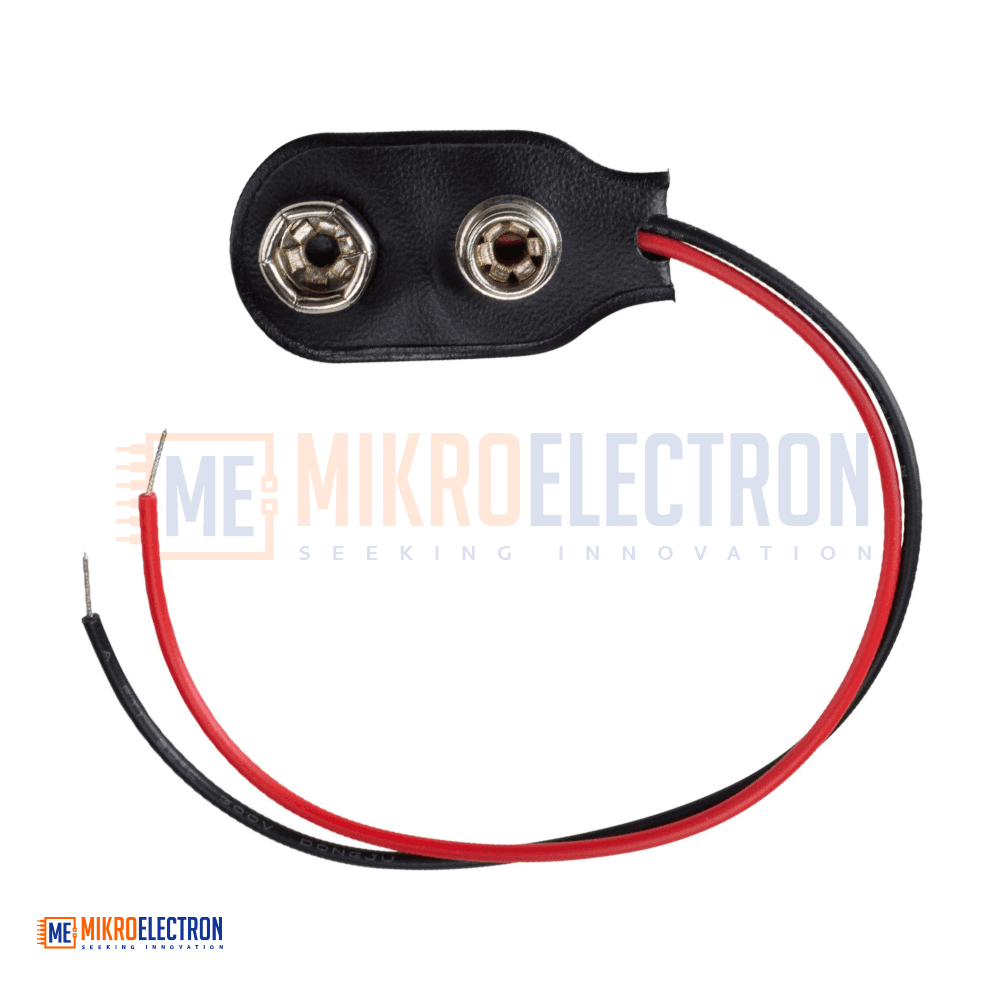

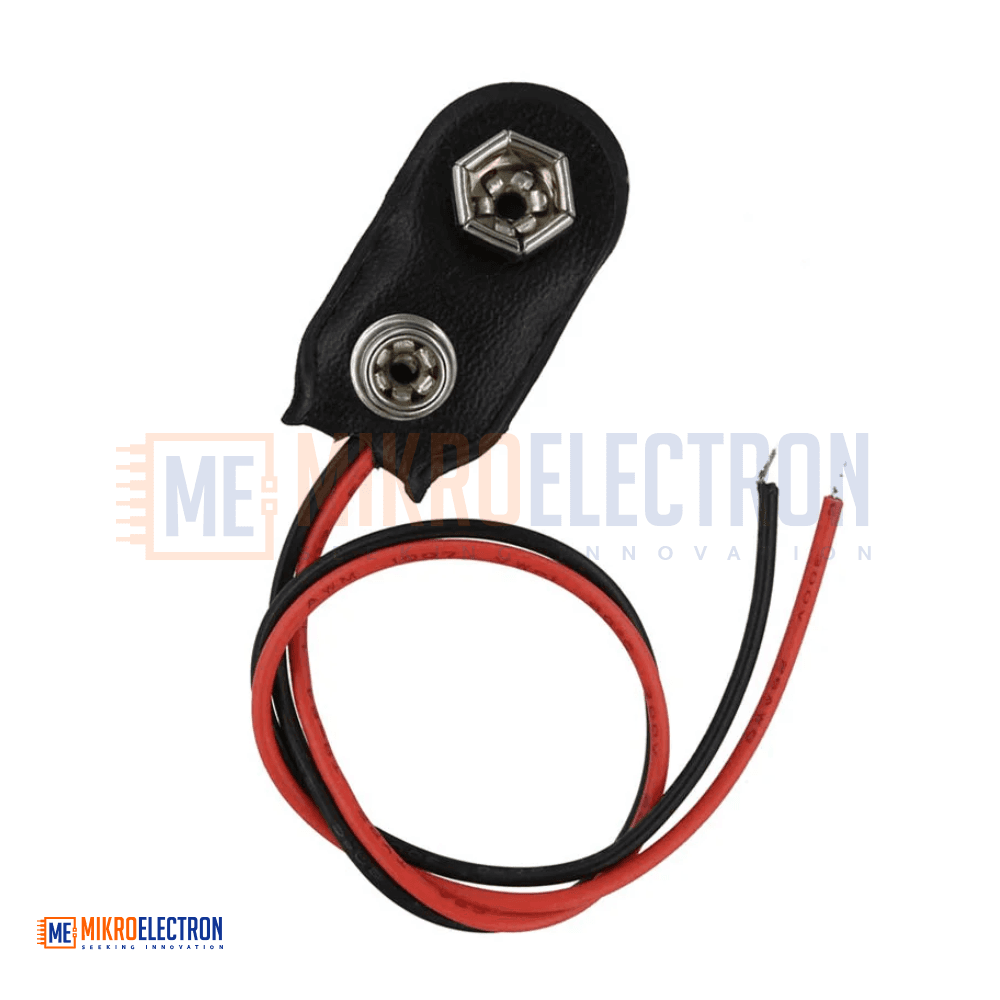

The 9V Battery Connector is a 10cm lead wire clip designed to quickly and safely connect a standard 9V battery to any electronic circuit. Featuring a durable PVC hard top with color-coded red (positive) and black (negative) wires, it uses high-quality UL 1007 #22 AWG wire for reliable current flow. Both ends are tinned for easy soldering, making it perfect for Arduino projects, DIY electronics, toys, portable devices, and prototyping circuits that require a 9V power source.
موصل بطارية 9 فولت هو سلك توصيل بطول 10 سم مصمم لتوصيل بطارية 9 فولت القياسية بأي دائرة إلكترونية بسرعة وأمان. يتميز برأس PVC صلب ومتين وسلكين ملوّنين، الأحمر للموجب والأسود للسالب، ويستخدم سلكًا عالي الجودة من نوع UL 1007 مقاس 22 AWG لضمان تدفق تيار موثوق. كلا الطرفين مقصدرين لتسهيل اللحام، مما يجعله مثاليًا لمشاريع الأردوينو والإلكترونيات اليدوية والألعاب والأجهزة المحمولة.

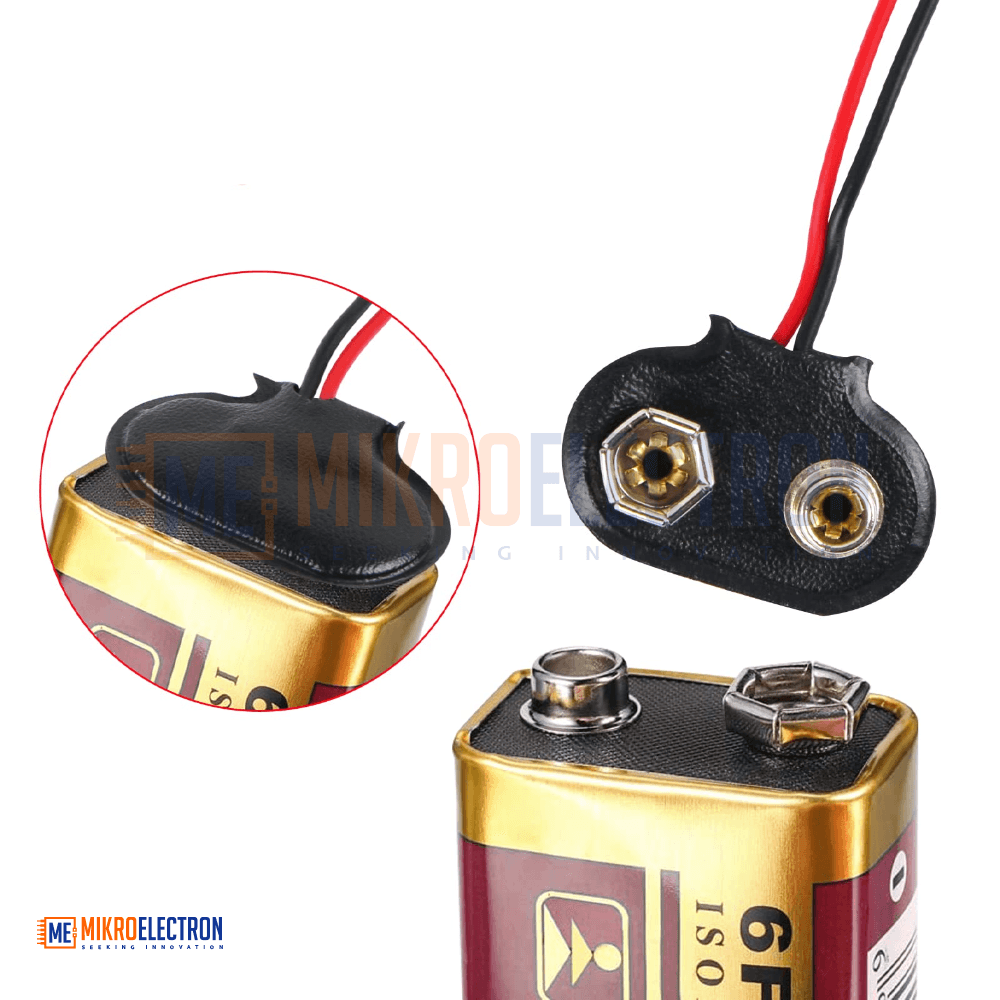

The 9V Battery Connector with Lead Wires is a simple yet essential accessory for electronics enthusiasts, students, and professionals who need to quickly integrate a 9V battery into their projects. Featuring a standard snap-on clip design, this connector securely attaches to the terminals of any standard 9V (PP3-style) battery, providing a stable and reliable electrical connection. The connector top is made from durable PVC (hard top) or PU soft leather, offering excellent protection against wear, moisture, and mechanical stress. The attached 10cm lead wires use UL 1007 #22 AWG cable — a widely recognized industry standard known for its flexibility, heat resistance, and insulation quality. The wires are available in single solid or stranded configurations, and both ends are tinned (4mm or 10mm) for easy and reliable soldering onto PCBs, breadboards, or terminal blocks. The red wire represents the positive terminal (+) and the black wire represents the negative terminal (–), following standard color coding conventions. Whether you're powering a small electronic toy, a telephone, a lighting meter, or a custom Arduino-based prototype, this battery connector is a reliable and cost-effective solution.
Specifications
- Battery Type Supported: 9V (PP3/6F22 standard battery)
- Wire Length: 10 cm (customizable on request)
- Wire Type: UL 1007 #22 AWG (or equivalent)
- Wire Configuration: Single solid wire or stranded wire

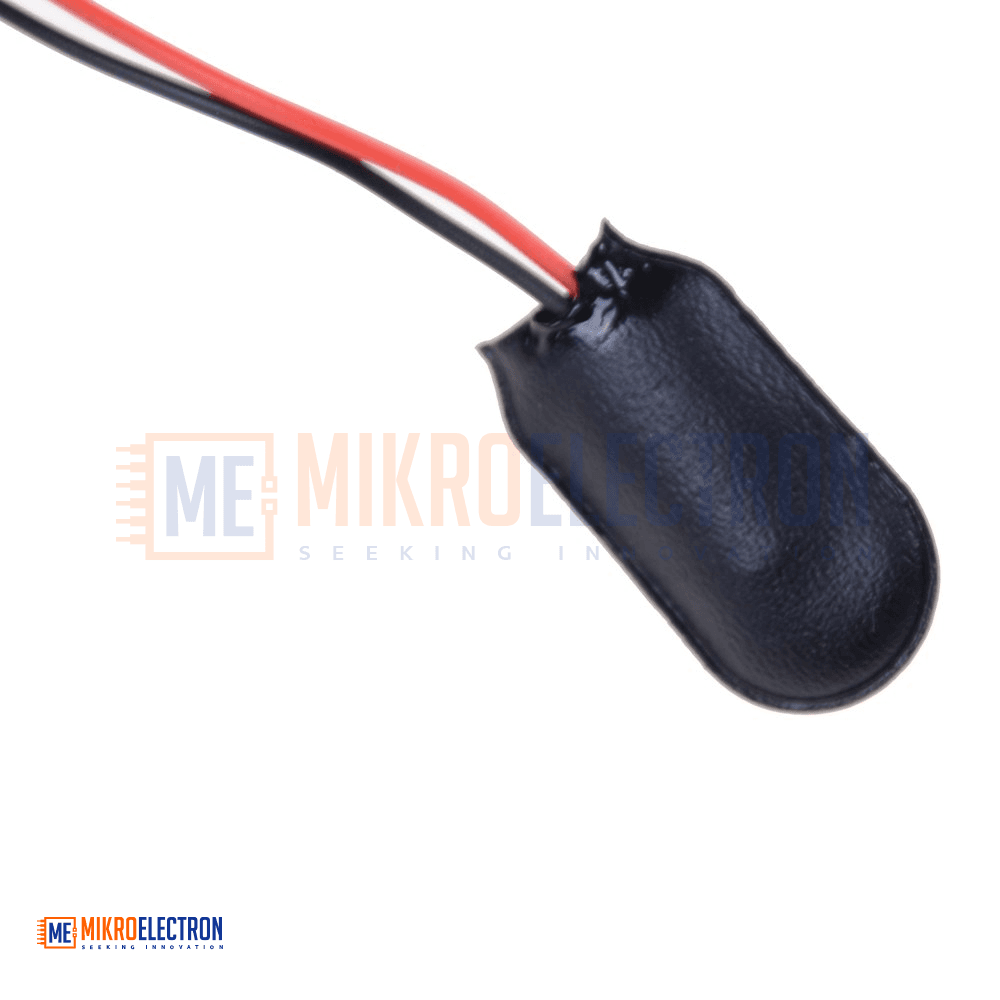

- Top Material: PVC (hard top) or PU (soft leather)
- Top Color: Black or blue (customizable)

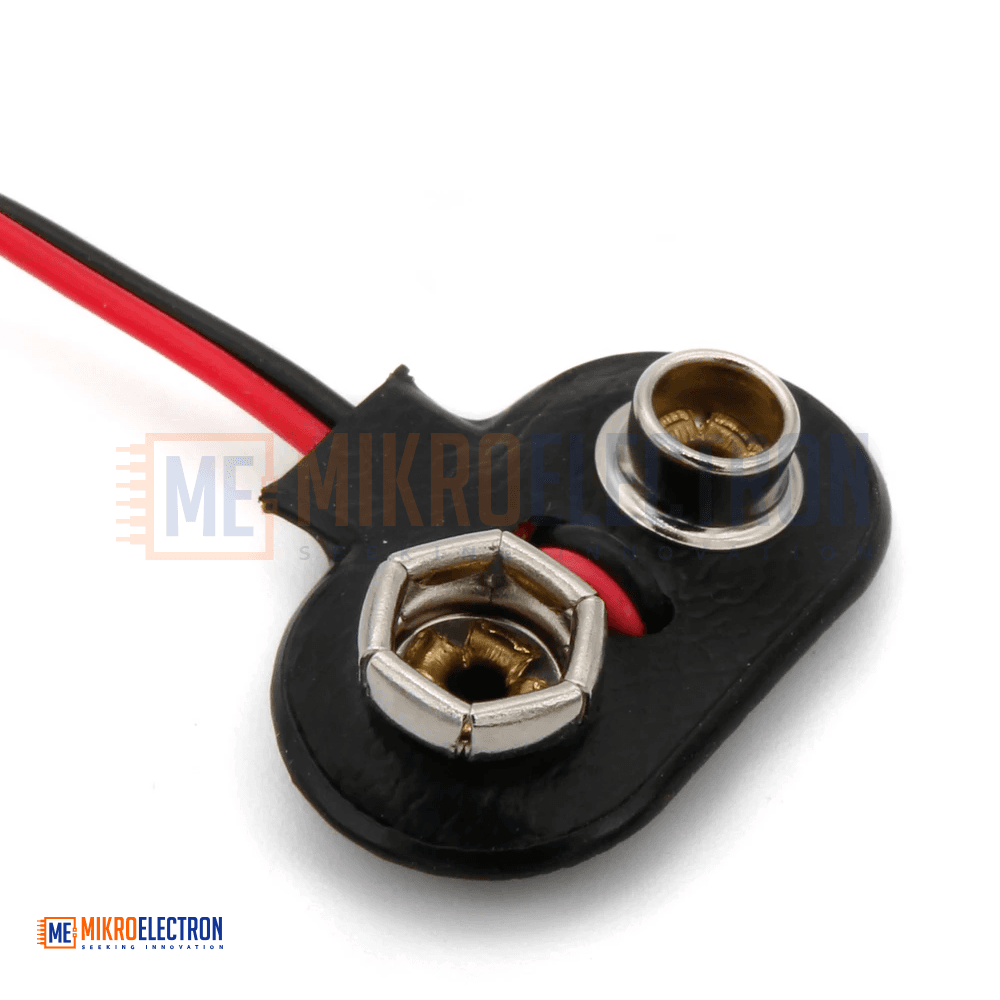

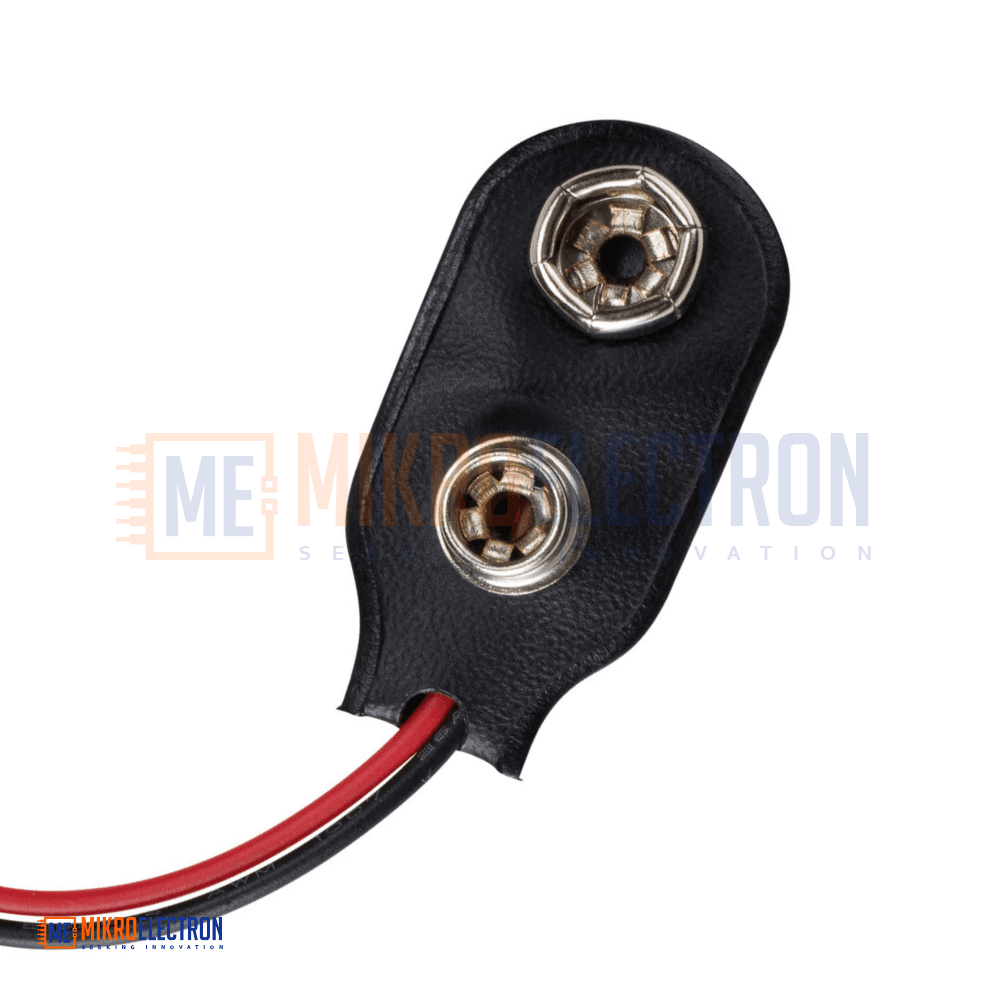

- Top Style: T-type or I-type connector
- Wire Colors: Red (positive) and Black (negative)
- Tinned Ends: 4 mm or 10 mm tinned on each end
- Current Rating: Up to 300 mA (typical for #22 AWG)
- Voltage Rating: 300V (standard UL 1007 rating)
- Operating Temperature: -20°C to +80°C
- Insulation: PVC insulation for safety and durability
- Customization: Length, color, and wire type can be tailored to order
Applications
- Used to connect 9V batteries to Arduino boards, breadboards, and PCBs.
- Employed in electronic toys and remote-controlled devices.
- Common in portable telephones, walkie-talkies, and hand phones.
- Used in lighting meters and electronic measuring instruments.
- Ideal for DIY electronics and hobby projects.
- Powers small portable devices like digital multimeters and test equipment.
- Used in smoke detectors and alarm systems.
- Applied in wireless microphones and audio equipment.
- Common in guitar effect pedals and musical electronics.
- Used in LED flashlights and portable lamps.
- Suitable for robotics projects requiring a 9V power source.
- Employed in educational electronics kits for teaching circuit building.
- Found in medical devices like portable glucose meters.
- Used in security sensors and wireless doorbells.
- Ideal for science fair projects and STEM learning activities.
