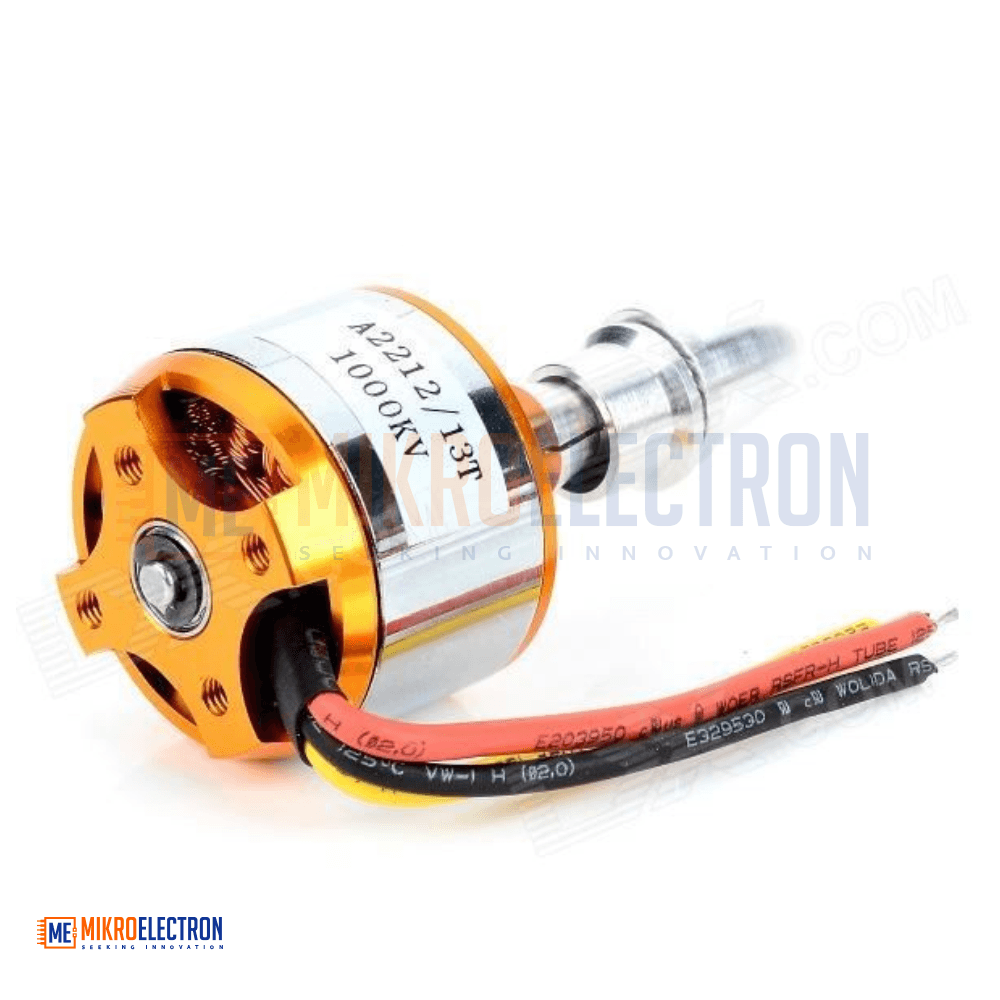

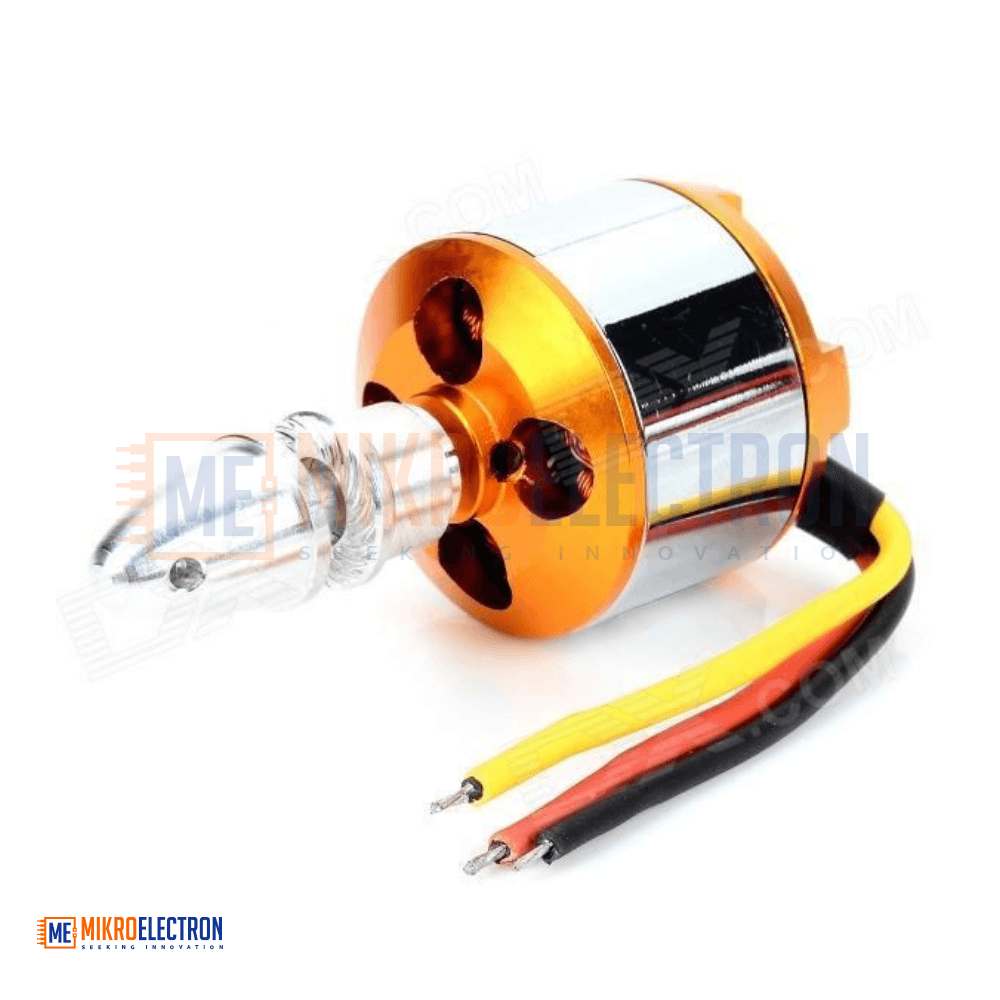

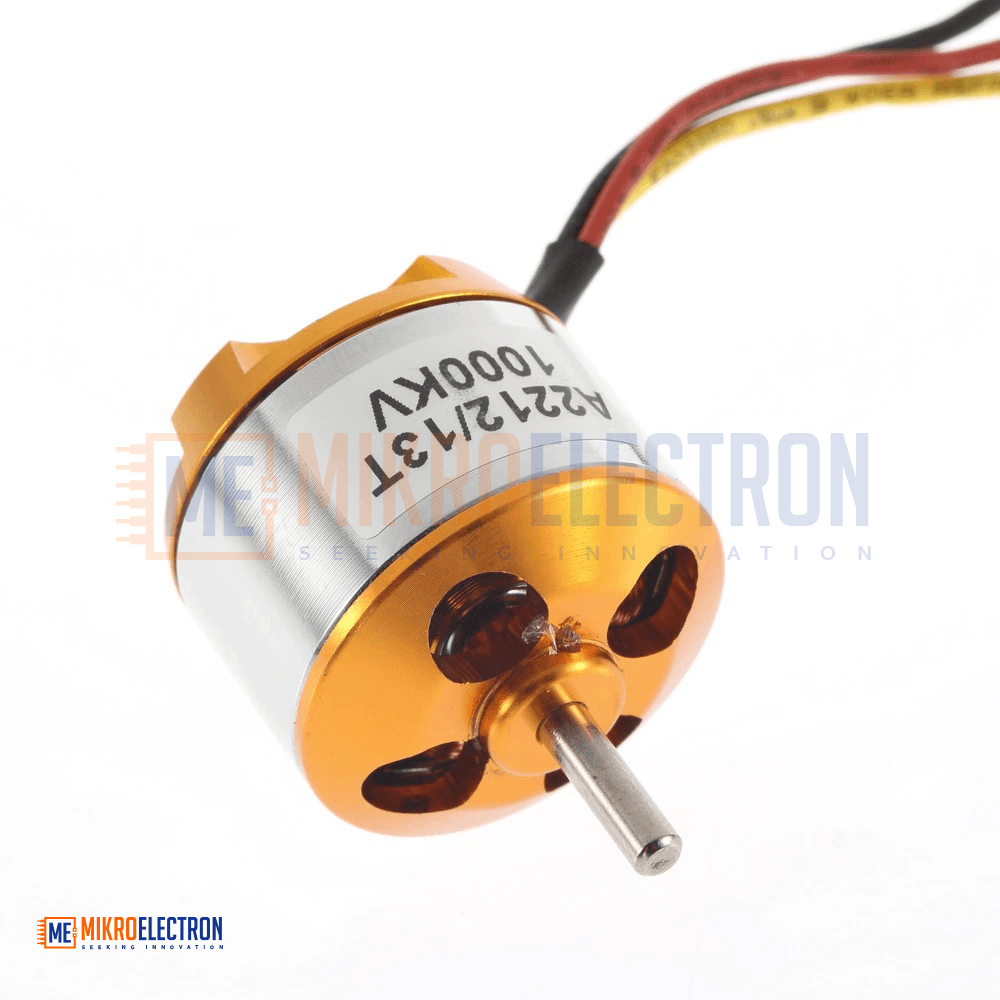

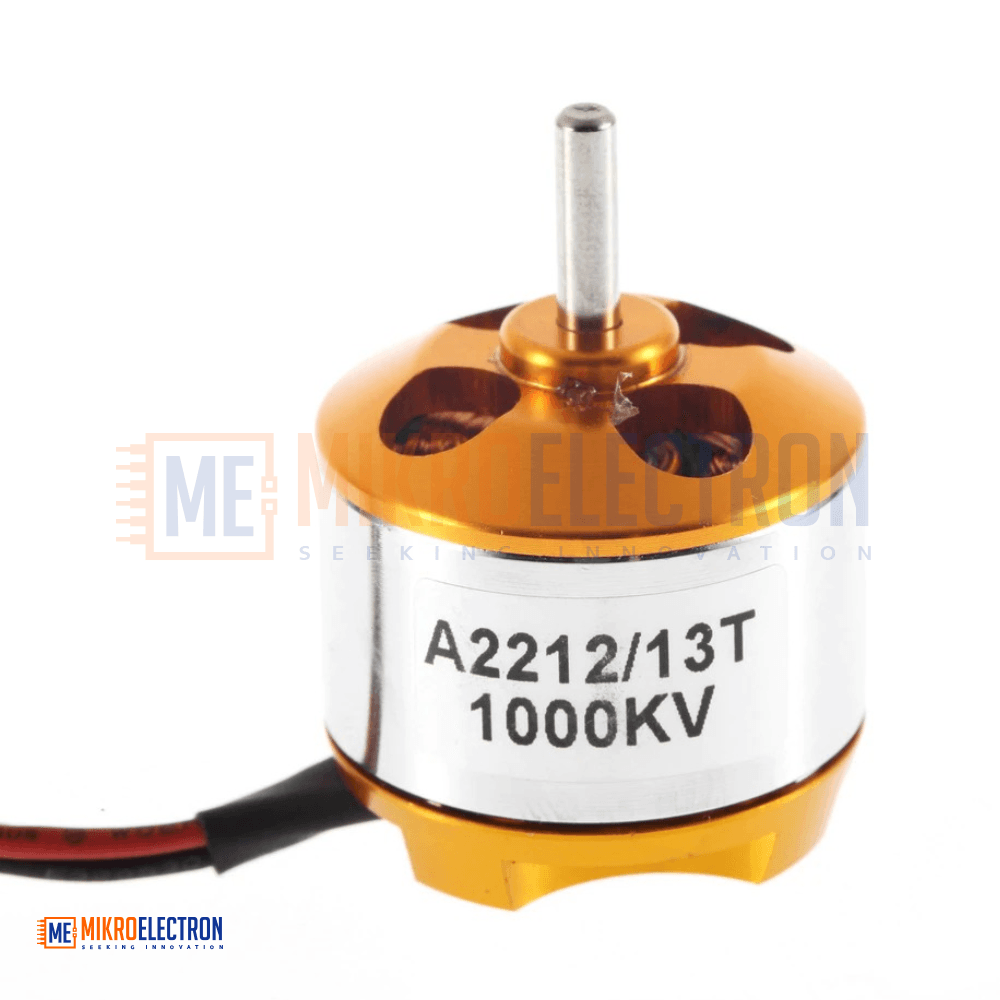

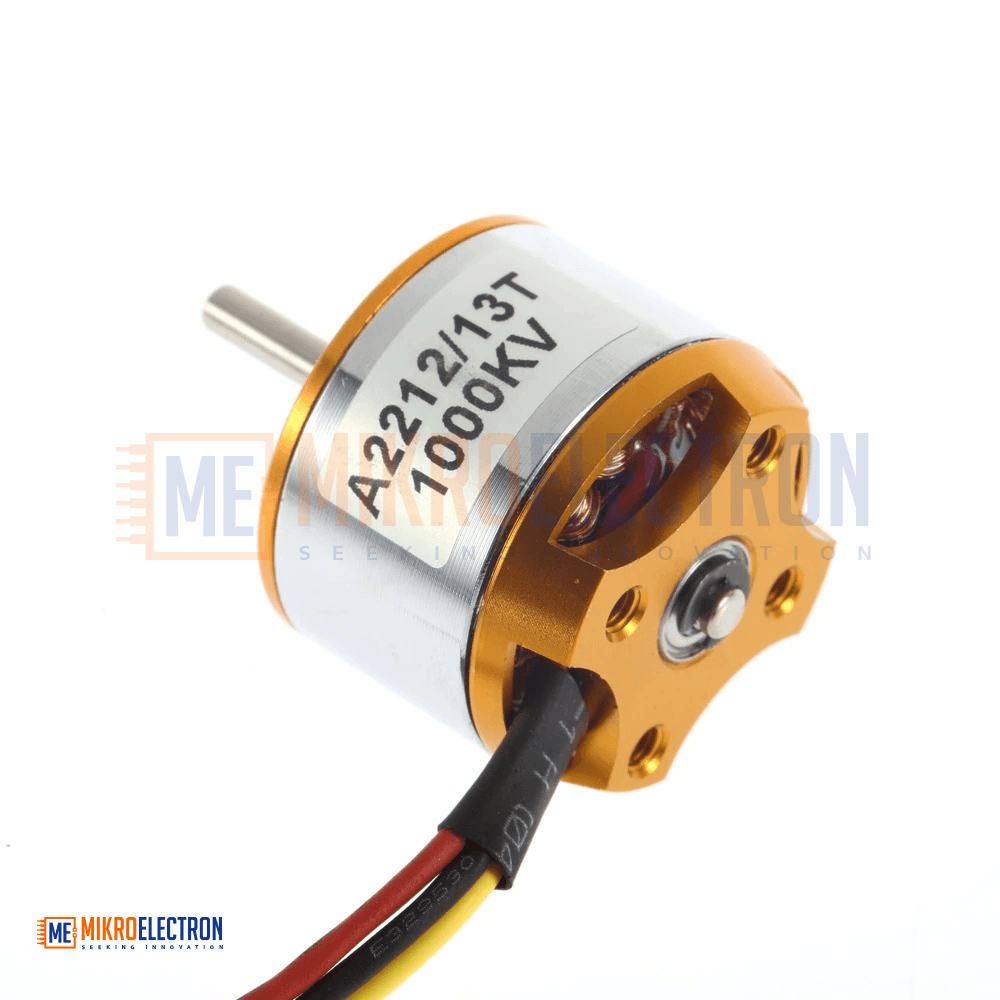

A2212/13T 1000KV Brushless Motor
The A2212/13T 1000KV Brushless Motor is a powerful and lightweight outrunner brushless motor designed for RC drones, quadcopters, and fixed-wing aircraft. With a 1000KV rating, 2–4S LiPo compatibility, and a maximum efficiency of 80%, it delivers smooth and reliable performance. Built with high-quality NMB ball bearings, N40UH magnets, and a CNC-machined aluminum case, this motor offers excellent durability, high-temperature resistance, and stable flight — perfect for RC enthusiasts and DIY drone builders.
محرك A2212/13T 1000KV Brushless هو محرك بدون فرش (Outrunner) قوي وخفيف الوزن، مصمم لـ طائرات الدرون والكوادكوبتر والطائرات ذات الأجنحة الثابتة. بمعدل 1000KV ودعم لبطاريات LiPo من 2 إلى 4 خلايا وكفاءة تصل إلى 80%، يقدم أداءً سلساً وموثوقاً. مصنوع من محامل كروية يابانية NMB، ومغناطيس N40UH، وهيكل ألمنيوم مصنّع بدقة CNC، مما يمنحه متانة عالية ومقاومة للحرارة، وهو خيار مثالي لهواة الطائرات اللاسلكية ومحبي بناء الدرون.
The A2212/13T 1000KV Brushless Motor is a high-performance outrunner brushless DC motor widely used in the RC hobby industry for powering multirotor drones, quadcopters, fixed-wing aircraft, and DIY flying platforms. With its compact size, lightweight build, and impressive thrust output, this motor has become one of the most popular choices among RC enthusiasts, students, and drone builders.
The A2212 features a KV rating of 1000, meaning it spins at 1000 RPM per volt when unloaded, providing the perfect balance between torque and speed for medium-sized propellers. It works seamlessly with 2–4 cell LiPo batteries and is paired ideally with a 30A ESC (Electronic Speed Controller) for smooth and responsive throttle control.
Engineered for durability and efficiency, the motor is built using premium Japanese NMB ball bearings for smooth rotation, Japanese Kawasaki stator steel for high magnetic efficiency, and oxygen-free pure copper windings to minimize resistance and heat. The CNC-machined aluminum case combined with N40UH high-temperature magnets and silicone-insulated lead wires ensures reliable performance even under sustained load and high ambient temperatures.

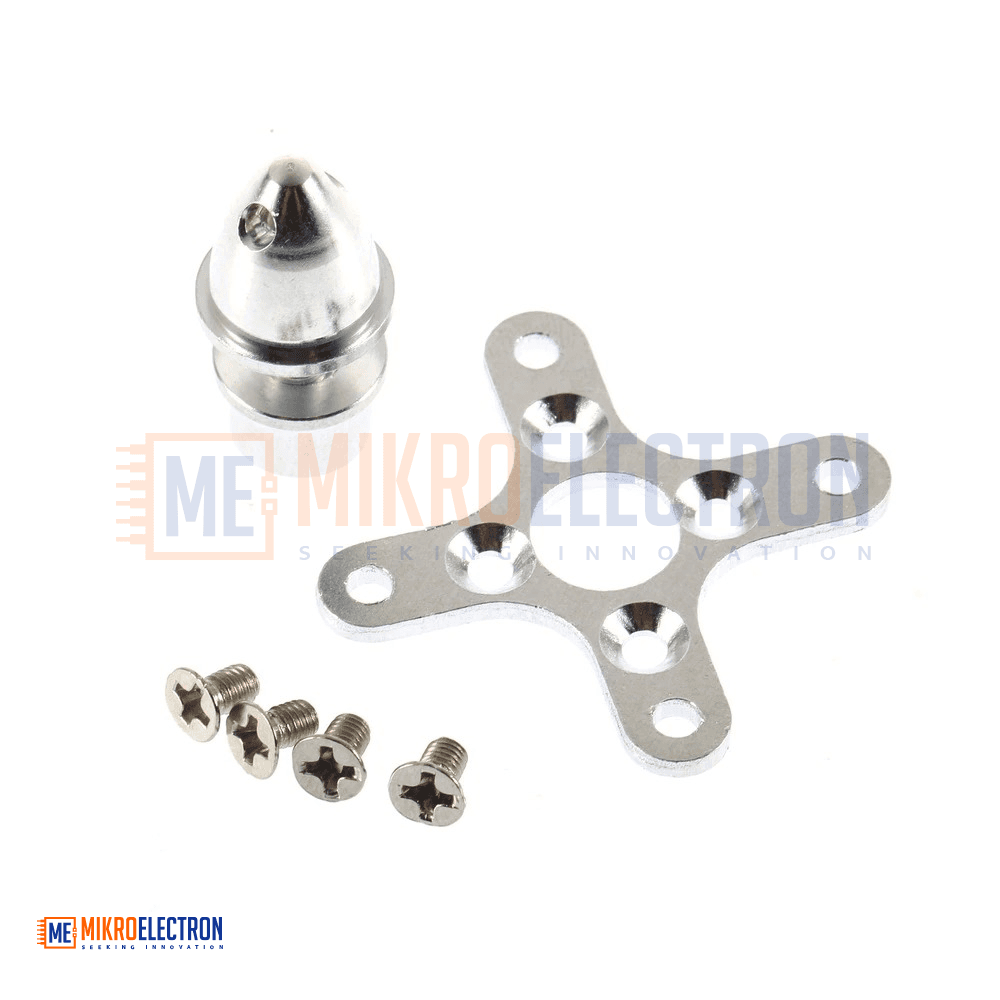

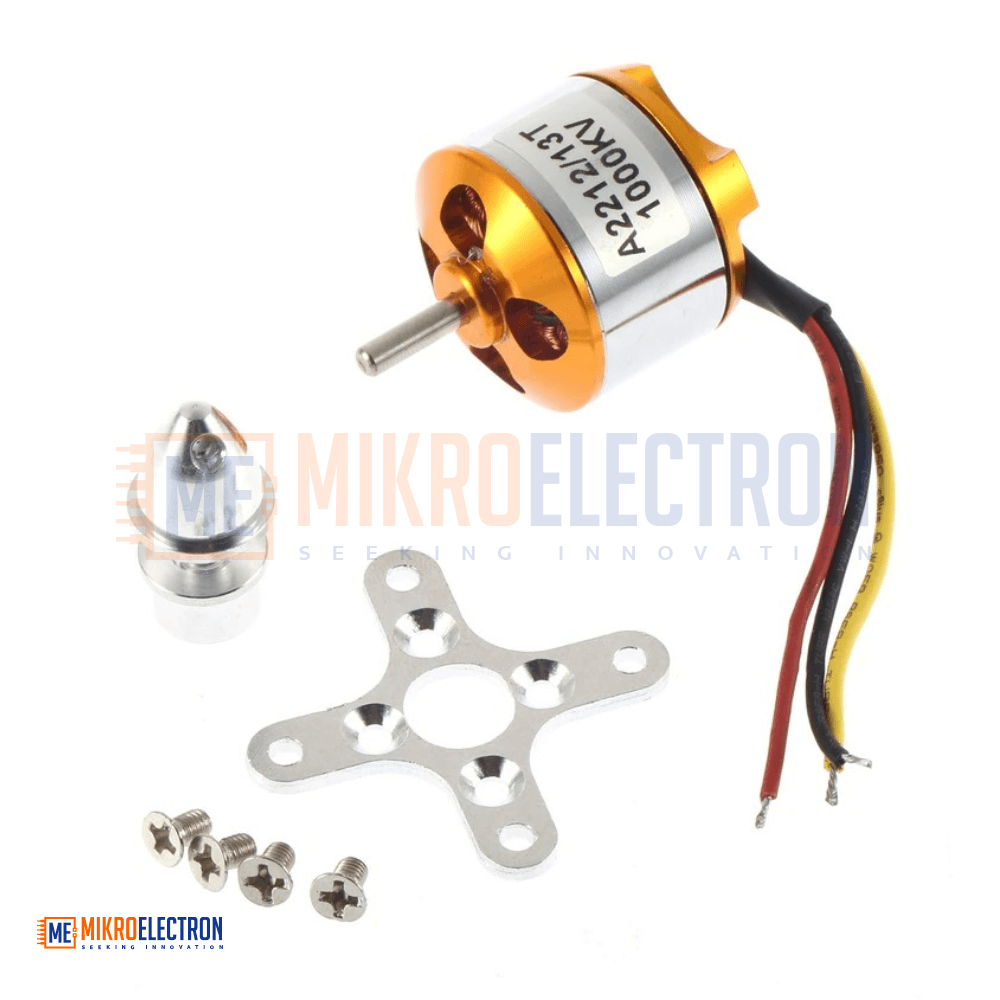

The motor comes complete with mounting hardware, a bullet-style propeller adapter, a cross wrench tool, and screws, making it ready to install right out of the box.
Specifications
- Model: A2212 / 13T
- Type: Outrunner Brushless DC Motor
- KV Rating: 1000 KV
- Maximum Efficiency: 80%
- Max Efficiency Current: 4 – 10A (>75%)
- Battery Compatibility: 2 – 4S LiPo
- Suggested Propeller: 1060 (within 6mm inner diameter)
- Recommended ESC: 30A (e.g., XXD HW30A)

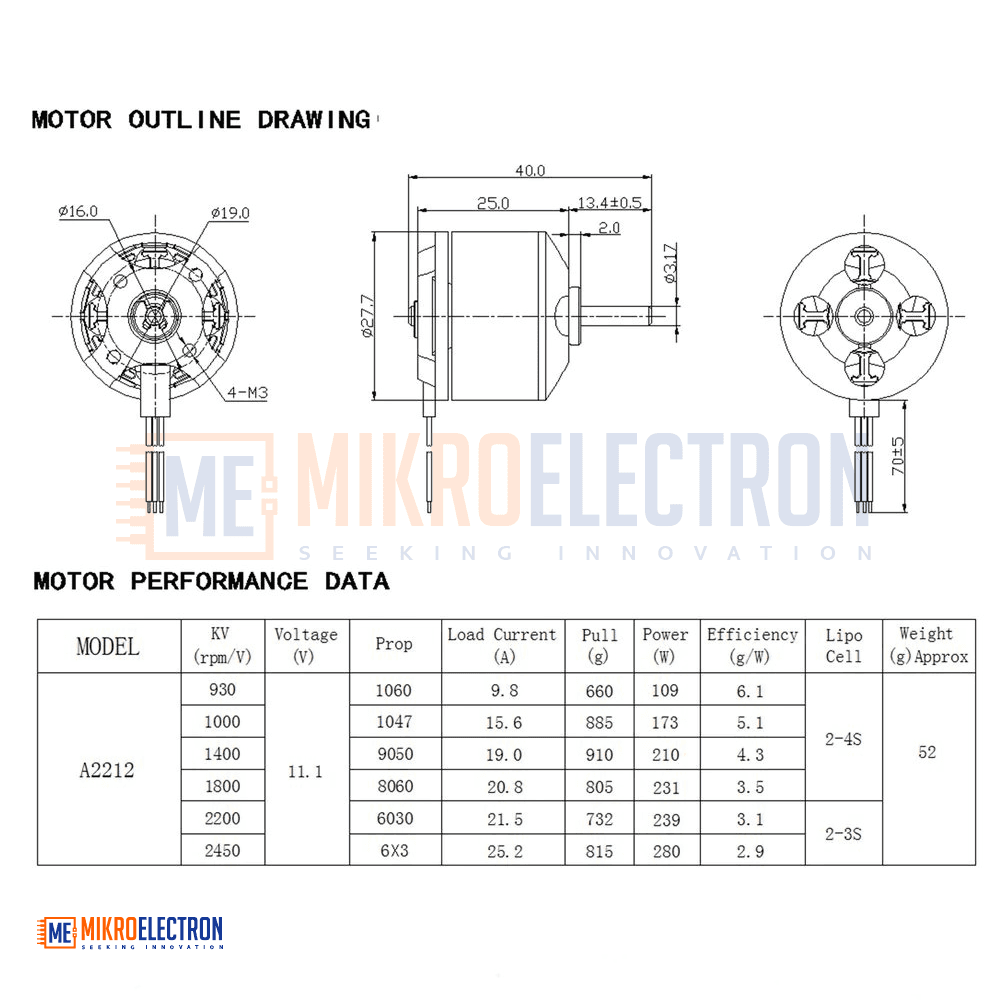

- Motor Dimensions: Φ27.5 x 30mm
- Overall Length: ~40mm
- Shaft (Output) Diameter: 3.17mm
- Weight: ~51 – 54g
- Case Material: CNC-Machined Aluminum Alloy
- Magnets: N40UH (High-Temperature)
- Bearings: Japanese NMB Ball Bearings
- Stator Steel: Japanese Kawasaki
- Winding: Oxygen-Free Pure Copper Wire
- Color: Yellow-Gold + Silver
Applications
- Quadcopters & Multirotor Drones — F450, S500, and DIY drone frames
- RC Fixed-Wing Airplanes — TB20 trainers, sport planes, and gliders
- FPV (First-Person View) Setups — stable thrust for aerial photography
- Hexacopters & Octocopters — aerial photography and survey platforms
- DIY UAV Projects — Arduino, Pixhawk, KK2.1.5, and APM-based builds
- Educational Robotics & STEM Projects — drone-building competitions
- Hobbyist Aerial Models — beginner to intermediate RC pilots
- Light Cargo & Delivery Drones — small payload transport prototypes
- Experimental Aircraft Builds — VTOL, tilt-rotor, and custom configurations
- Replacement Motor — upgrade for damaged or underpowered RC motors
