30A Brushless Motor Controller ESC
ESC 30A for Brushless Motor Electric Speed Controller

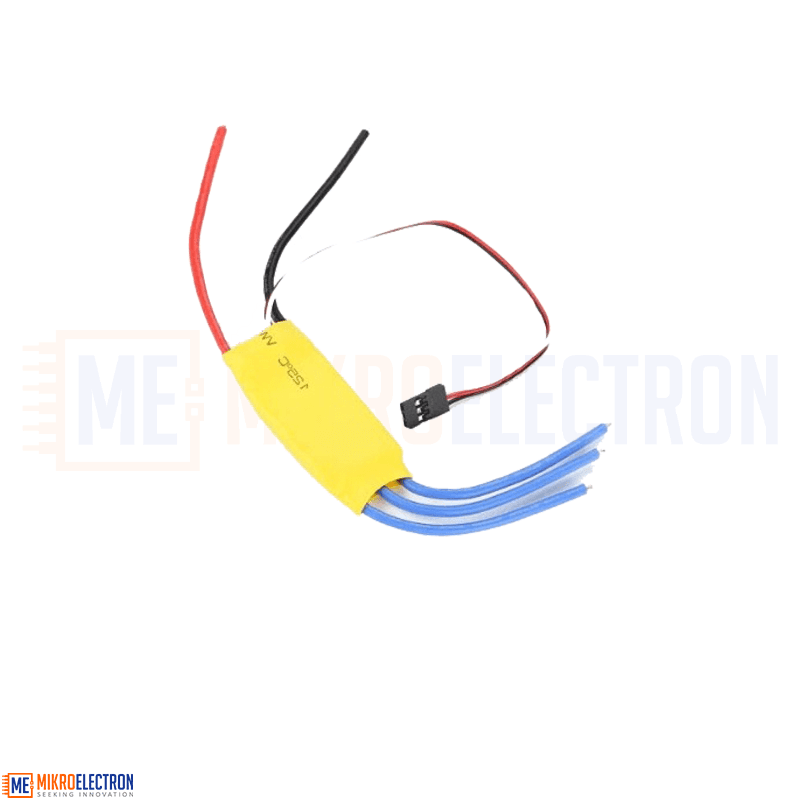

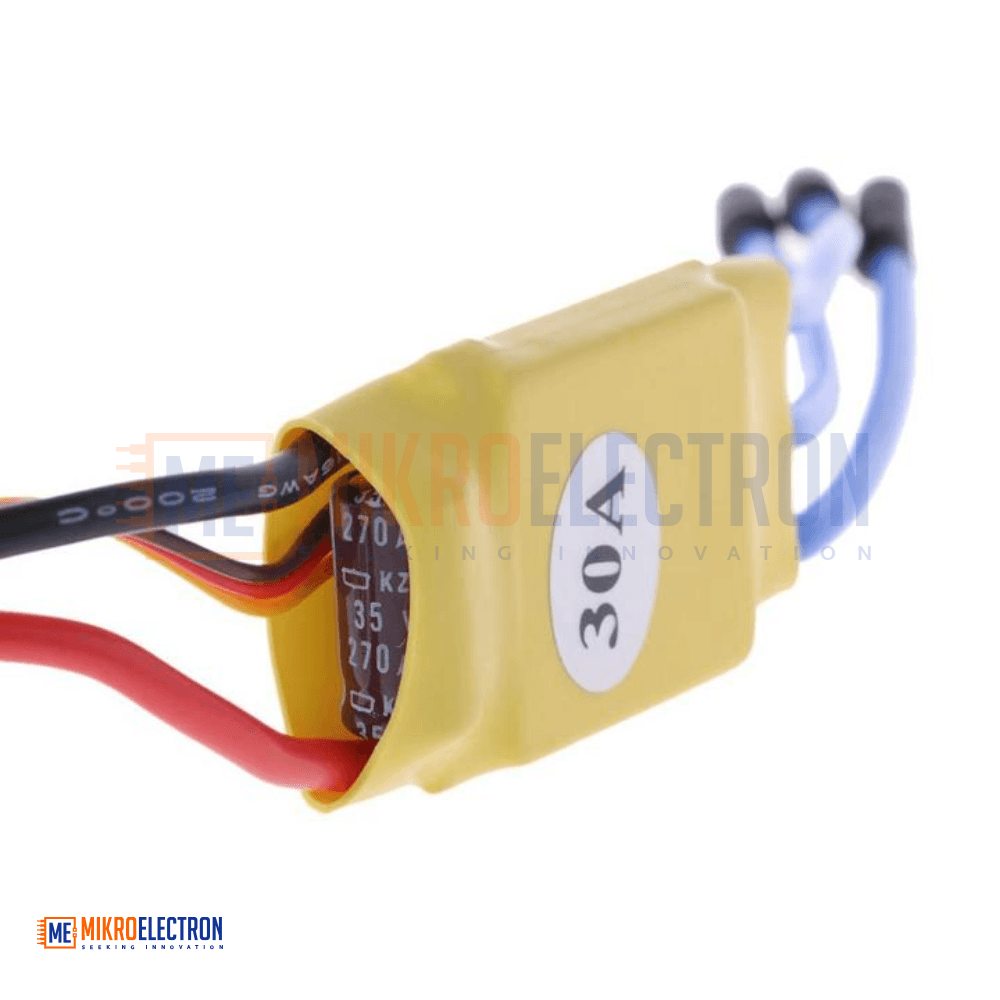

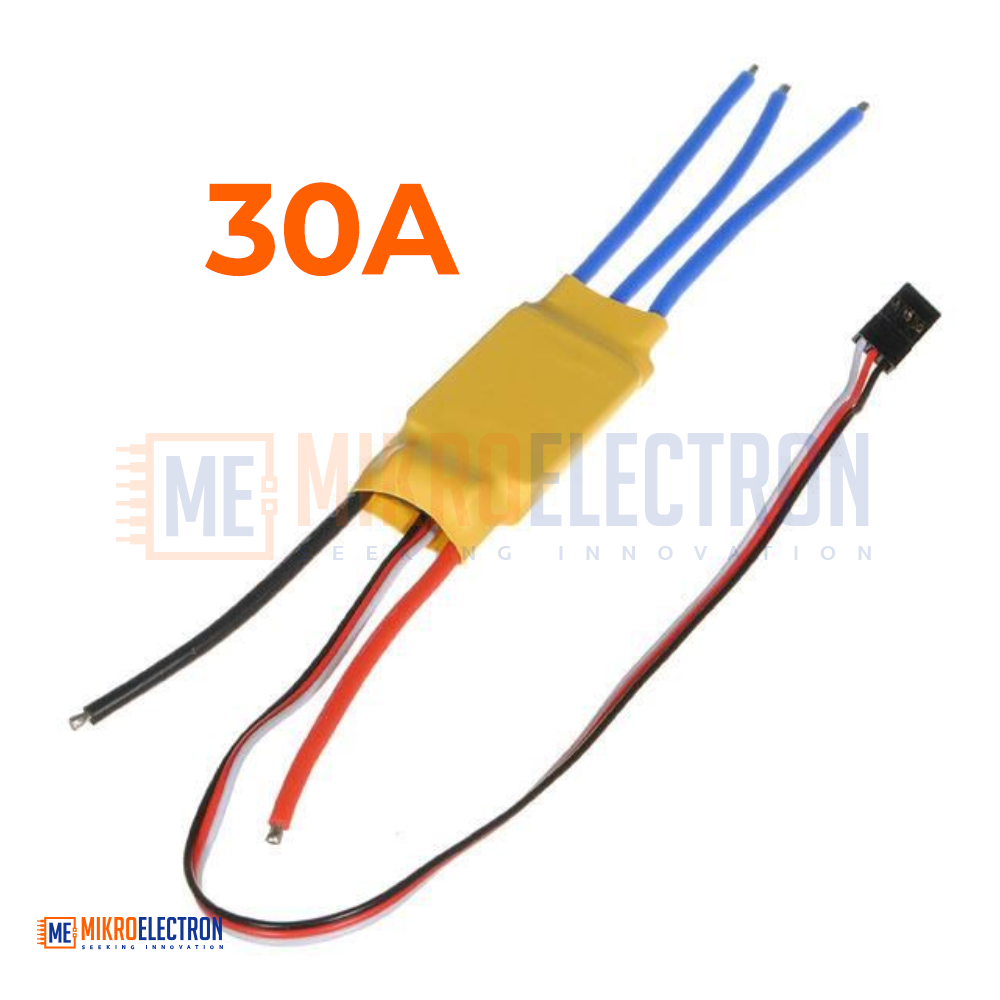

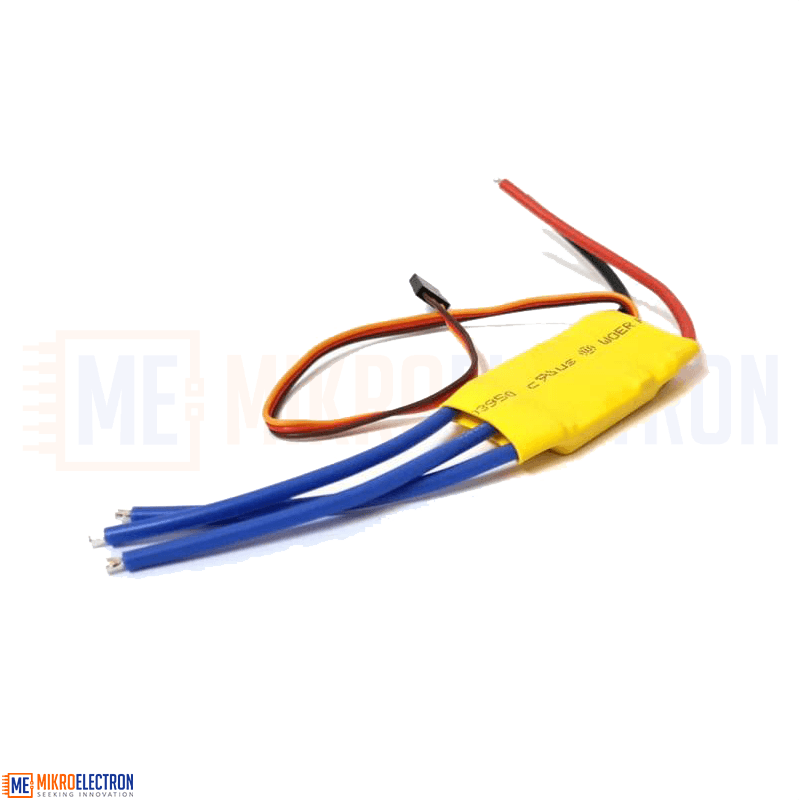

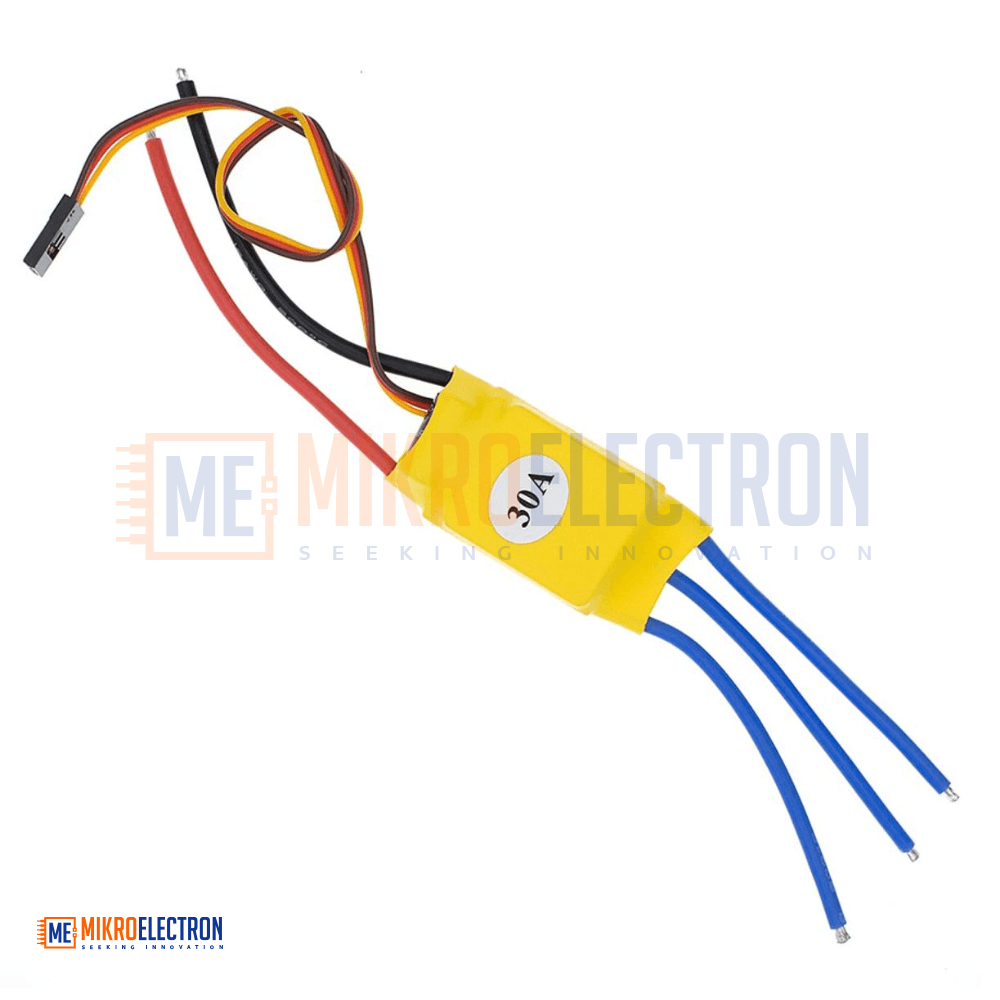

The XXD HW30A 30A Brushless ESC is a lightweight and powerful Electronic Speed Controller designed for RC airplanes, quadcopters, and drones. It delivers a constant current of 30A (peaks up to 40A) and supports 2–4S LiPo or 5–12 cell NiMH/NiCd batteries. Featuring a built-in 2A BEC, smooth throttle response, soft-start ramp-up, and low-voltage cutoff, it is ideal for hobbyists seeking a reliable, programmable ESC that runs cool under continuous load.
منظم سرعة المحرك XXD HW30A 30A هو متحكم سرعة إلكتروني (ESC) خفيف وقوي مصمم لطائرات RC والكوادكوبتر والدرونز. يوفر تياراً ثابتاً 30 أمبير (يصل إلى 40 أمبير) ويدعم بطاريات LiPo من 2 إلى 4 خلايا أو NiMH/NiCd من 5 إلى 12 خلية. يتميز بمنظم BEC مدمج 2 أمبير، واستجابة خانق سلسة، وبدء تشغيل تدريجي، وحماية من انخفاض الجهد، مما يجعله مثالياً للهواة الباحثين عن أداء موثوق.
The XXD HW30A 30A Brushless ESC (Electronic Speed Controller) is a high-performance and lightweight motor controller engineered for brushless DC motors used in RC airplanes, quadcopters, helicopters, and multi-rotor drones. With a robust 30A constant current rating and a short burst capacity of up to 40A (under 10 seconds), this ESC delivers smooth and precise speed control for a wide variety of brushless motors.
Powered by 2–4 cell LiPo batteries or 5–12 cell NiMH/NiCd packs (input range 5.6V–16.8V), the HW30A includes a built-in 2A linear BEC (Battery Eliminator Circuit) that supplies regulated power to your receiver and servos, eliminating the need for a separate battery. The ESC is optimized for smooth, linear throttle response, providing pilots with accurate motor control during flight maneuvers.
Built with low-resistance MOSFETs, the HW30A minimizes heat loss and runs significantly cooler than many competing ESCs of the same rating. It supports high-RPM motors and uses smaller MOSFETs to reduce overall weight without sacrificing performance — a critical advantage in aerial RC applications where every gram matters.
The ESC is fully programmable either through your transmitter or via an optional programming card, allowing you to customize parameters such as brake mode, throttle range, low-voltage cutoff, motor timing, and start-up behavior. Built-in safety features such as auto signal loss shutdown, safe power-arming, and auto motor cutoff with reset ensure reliable and safe operation in all flying conditions.
Specifications
- Model: XXD HW30A
- Constant Current: 30A
- Maximum Current: 40A (under 10 seconds burst)
- Input Voltage: 5.6V – 16.8V
- Battery Compatibility: 2–4 cell LiPo or 5–12 cell NiMH/NiCd
- BEC Output: 2A (Linear Mode)
- Maximum Cells (BEC disabled): 16 cells
- Low-Voltage Cutoff: Auto-detect and auto-set based on battery
- Throttle Range: Self-adjusting
- Connectors: Pre-soldered 3.5mm Bullet Plugs
- Dimensions: 45 x 24 x 11 mm
- Weight: 25g – 28g
- Operating Mode: Forward and Reverse motor operation supported
Applications
- RC Airplanes — fixed-wing trainers, sport models, and aerobatic planes
- Quadcopters & Multirotor Drones — racing, freestyle, and aerial photography
- RC Helicopters — small to medium-sized electric helicopters
- RC Boats — lightweight electric powerboats
- RC Cars & Buggies — selected brushless car setups
- DIY Drone Builds — Arduino, Pixhawk, and KK2-based custom flight controllers
- Educational Robotics — university and STEM projects involving brushless motors
- Hobbyist Workshops — building, testing, and tuning brushless motor systems
- FPV (First-Person View) Setups — smooth ESC response for video stability
- Experimental Aircraft Projects — gliders, VTOL prototypes, and custom builds
