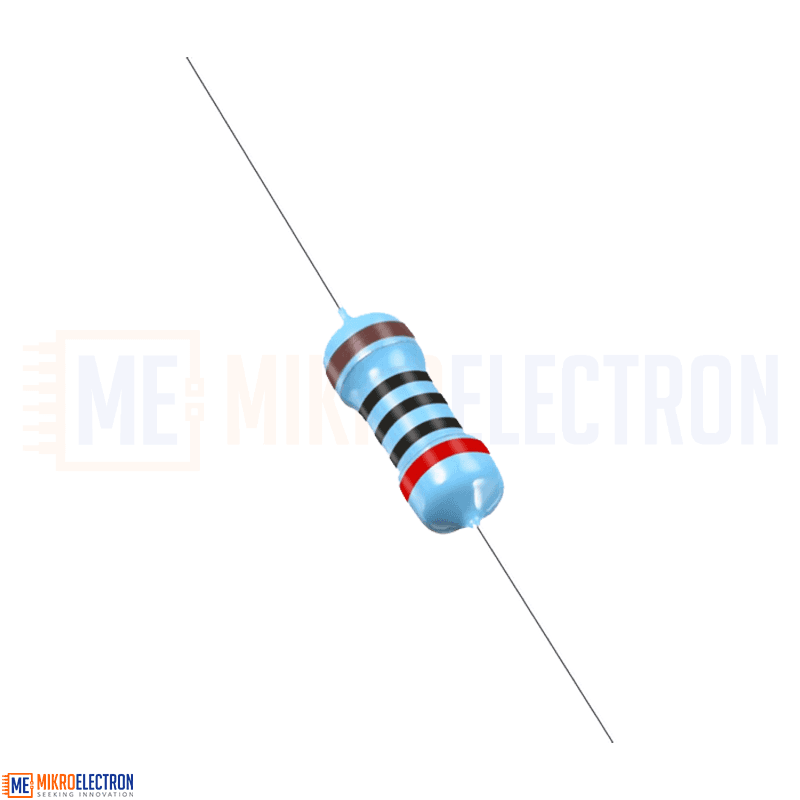

200 ohm Resistor
The 200Ω (Ohm) Resistor is a precision 1/4W metal film resistor with a tight 1% tolerance, ideal for DIY electronics, Arduino projects, and prototyping. This standard resistor value is widely used for LED current limiting, voltage division, and signal conditioning in low-power circuits. With excellent stability, low noise, and reliable long-term performance, it is a fundamental component for hobbyists, students, and engineers building circuits on breadboards, perfboards, or custom PCBs.
المقاومة 200 أوم هي مقاومة دقيقة من نوع Metal Film بقدرة 1/4 واط وتفاوت 1%، مثالية لـ مشاريع الإلكترونيات DIY ومشاريع Arduino والنماذج الأولية. تُستخدم هذه القيمة القياسية بشكل واسع في تحديد تيار الـ LED، وتقسيم الجهد، ومعالجة الإشارات ضمن الدوائر منخفضة الطاقة. تتميز بثبات ممتاز وضوضاء منخفضة وأداء موثوق طويل الأمد، وهي مكوّن أساسي للهواة والطلاب والمهندسين عند بناء الدوائر على لوحات التجارب أو ثنائيات الفينول النحاسية.
The 200Ω Resistor is a high-quality 1/4 Watt metal film resistor engineered to provide accurate and stable resistance in a wide variety of electronic applications. With a precise 1% tolerance, it ensures consistent and predictable performance for both analog and digital circuits. Metal film resistors are preferred over carbon film types because they deliver lower noise, superior thermal stability, and higher long-term accuracy, making them ideal for sensitive electronic designs.
The 200 ohm value is a standard E96-series resistor commonly used in LED current limiting circuits, particularly when driving standard or high-efficiency LEDs from 5V supplies such as Arduino, ESP32, and Raspberry Pi outputs. It provides a balanced trade-off between bright LED output and safe forward current. Beyond LEDs, this resistor is also widely used in voltage dividers, transistor biasing, MOSFET gate networks, and pull-up/pull-down configurations.

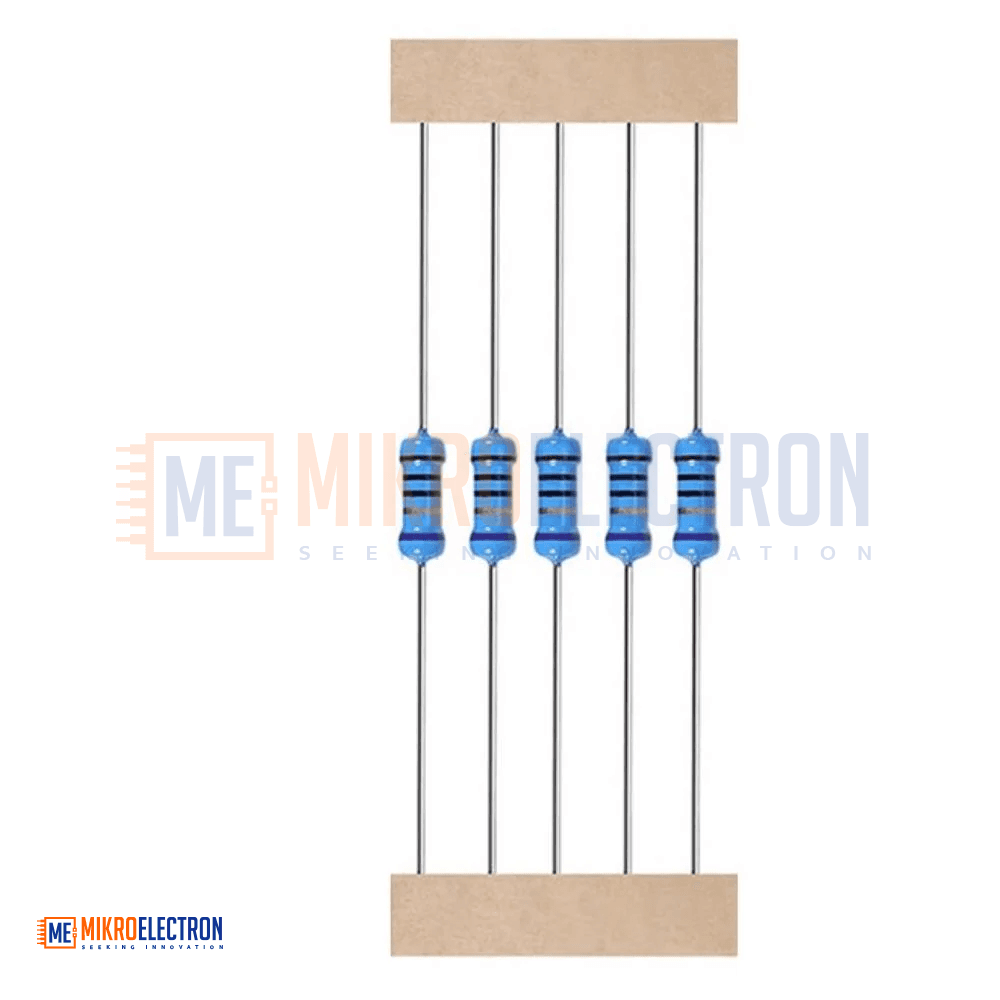

Built in a standard axial-lead through-hole package, this resistor easily integrates with breadboards, perfboards, and printed circuit boards (PCBs), making it ideal for both rapid prototyping and permanent project builds. It is fully compatible with all popular development platforms, including Arduino, Raspberry Pi, ESP32, ESP8266, STM32, and PIC microcontrollers.
Specifications
- Resistance Value: 200 Ohm (Ω)
- Power Rating: 1/4 Watt (0.25W)
- Tolerance: ±1% (Precision Grade)
- Resistor Type: Metal Film
- Mounting Style: Through-Hole (Axial Lead)
- Lead Material: Tinned Copper
- Compliance: RoHS Compliant
- Operating Temperature Range: Typically -55°C to +155°C (standard for metal film)
Applications
- LED Current Limiting — driving standard LEDs from 5V supplies
- Voltage Dividers — generating reference voltages and scaling analog signals
- Pull-up / Pull-down Resistors — stabilizing digital input pins
- Transistor Base Biasing — driving BJTs in switching and amplifier circuits
- MOSFET Gate Resistors — protecting and slowing gate transitions
- Signal Conditioning — filtering and impedance matching
- Arduino & Microcontroller Projects — prototyping and learning kits
- Audio & RF Circuits — gain setting and feedback networks
- Sensor Interfacing — calibration and signal scaling
- Educational Electronics — schools, universities, and STEM workshops
- General-Purpose Electronics — repair, modification, and DIY builds
