One Shield Board (1 shield )
Out Of Stock

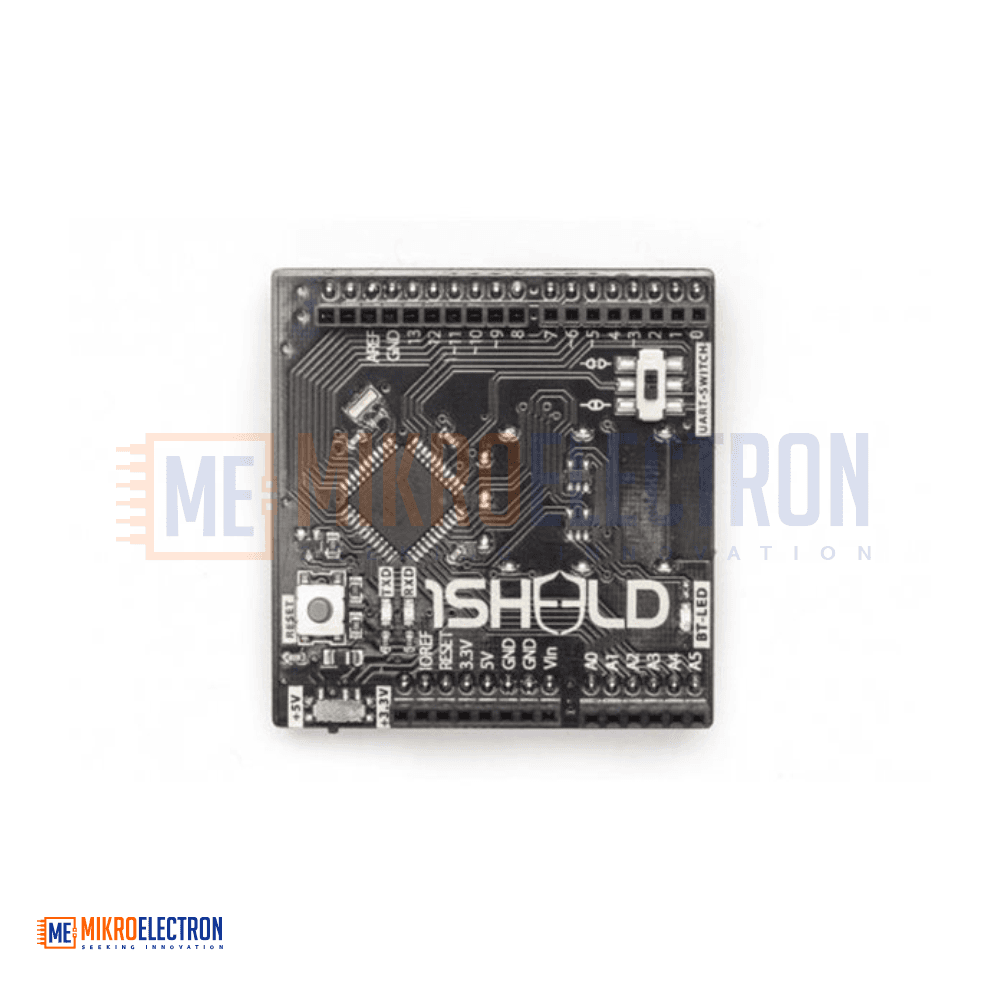

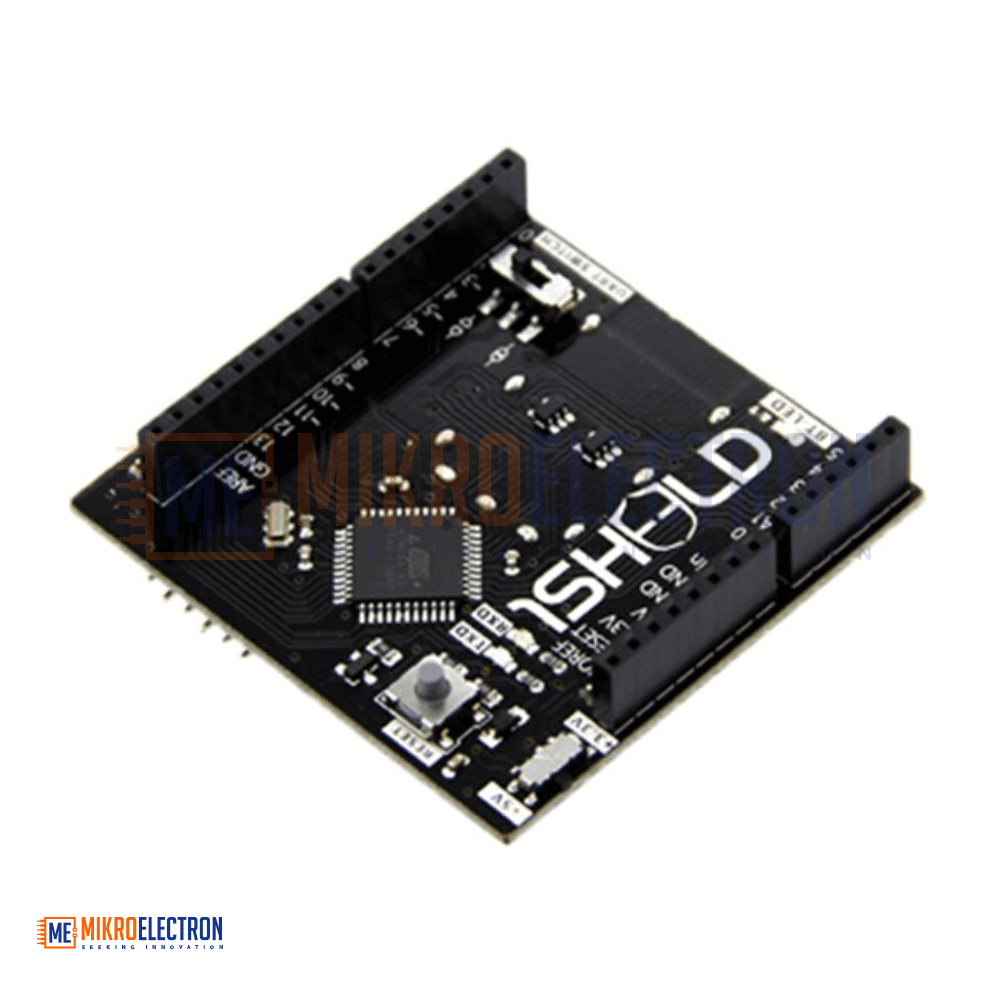

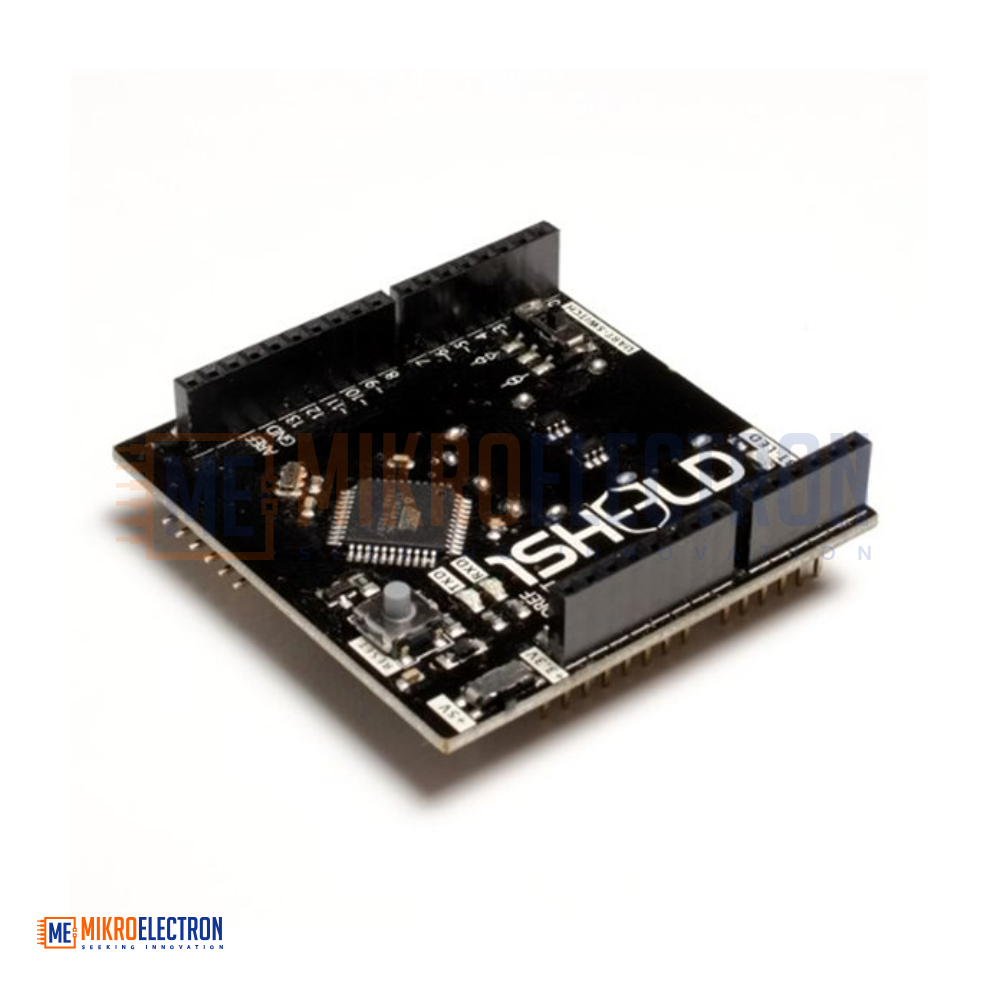

The One Shield Board (1Sheeld+) is an Arduino shield with built-in Bluetooth Low Energy (BLE 4.0) that turns your smartphone into more than 40 different virtual shields. Download the free 1Sheeld app, connect via Bluetooth, and select from over 40 shields. The 1Sheeld library gives your Arduino full control of your phone's capabilities — including sensors, camera, GPS, social media, and voice recognition. Compatible with iOS 9+ and Android 4.3+ devices.
لوحة One Shield Board (1Sheeld+) هي درع لأردوينو مزود بتقنية Bluetooth Low Energy (BLE 4.0) يحول هاتفك الذكي إلى أكثر من 40 درعاً افتراضياً. حمل تطبيق 1Sheeld المجاني، واتصل عبر البلوتوث، واختر من بين أكثر من 40 درعاً. تمنحك مكتبة 1Sheeld تحكماً كاملاً في إمكانيات هاتفك — بما في ذلك المستشعرات والكاميرا ونظام تحديد المواقع ووسائل التواصل الاجتماعي والتعرف على الصوت. متوافق مع أجهزة iOS 9+ و Android 4.3+.
The 1Sheeld+ is a Bluetooth Low Energy (BLE 4.0) shield for Arduino that transforms your smartphone into a versatile development tool. By leveraging the processing power and sensors already present in modern smartphones, this single shield replaces the need to purchase dozens of individual Arduino shields.

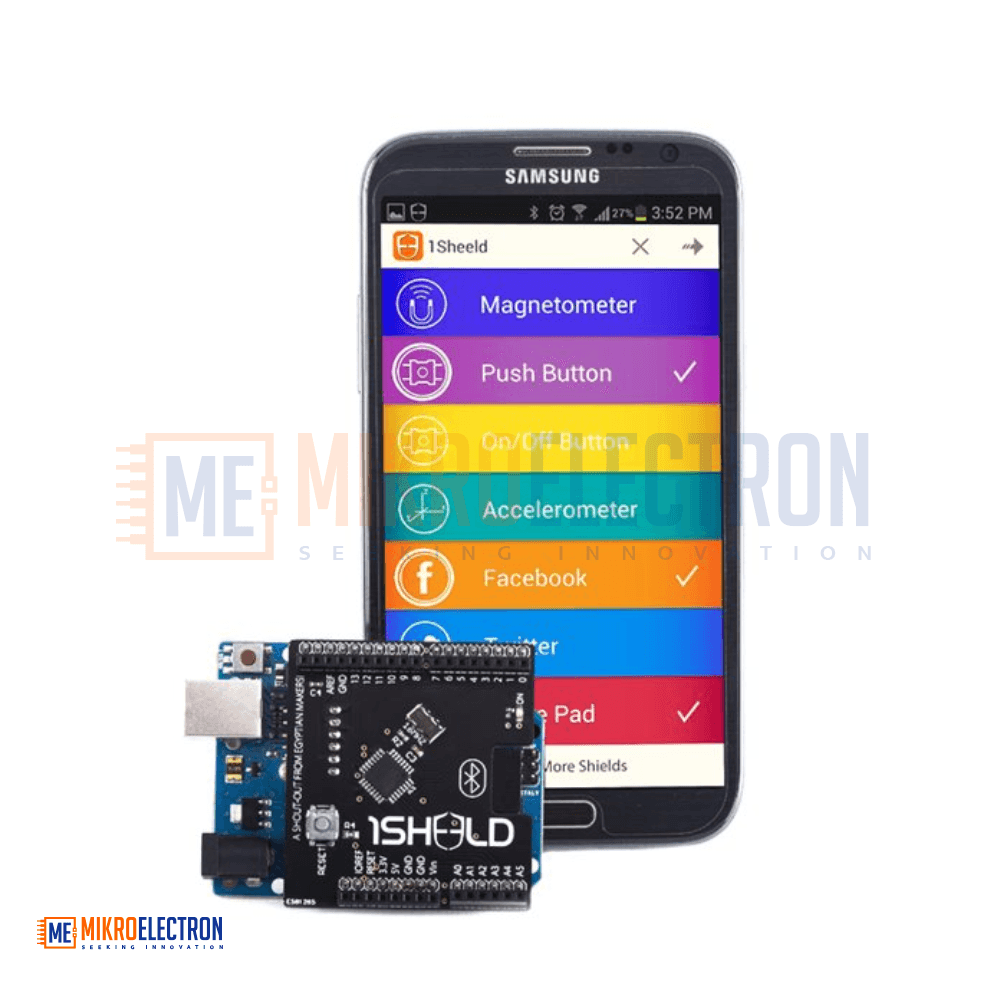

The system consists of two main components:
Hardware shield: A physical board that stacks onto your Arduino and acts as a wireless bridge, piping data between the Arduino and your smartphone via Bluetooth
Mobile app: A free software platform available on the App Store and Google Play Store that manages communication and lets you select from over 40 virtual shields
The shield communicates with Arduino using UART at 115,200 baud and is compatible with 5V and 3.3V boards. It offers two-way control — you can control your Arduino from your phone, or control your phone from your Arduino. The 1Sheeld library (available via Arduino IDE's Library Manager) provides a simple interface to access all virtual shields.
Important: The original 1Sheeld has been discontinued. The 1Sheeld+ variant (with BLE 4.0) is the later version supporting both iOS and Android devices.
Specifications
| Specification | Details |
|---|---|
| Model | 1Sheeld+ |
| Processor | Atmel ATmega162 |
| Operating Frequency | 7.37 MHz (original model: 16 MHz) |
| Bluetooth | HM-10 BLE 4.0 (Low Energy) |
| Wireless Range | Up to 30 feet (approx. 9 meters) |
| Communication | UART at 115,200 baud |
| Voltage Compatibility | 5V and 3.3V boards (selectable via toggle switch) |
| Current Draw | Approx. 50mA |
| Dimensions | 57mm x 55mm x 19mm (2.2" x 2.2" x 0.7") |
| Weight | Approx. 19g (0.7oz) |
| Compatible Boards | Arduino Uno, Mega, Due, Leonardo, RedBoard, and most Arduino-compatible boards |
| OS Compatibility | iOS 9+ (iPhone 4S and later) / Android 4.3+ |
Applications
Rapid prototyping — Test ideas quickly without purchasing individual sensor or communication shields
IoT projects — Use your smartphone as an internet gateway (WiFi/GSM) for Arduino
Remote control and monitoring — Control RC cars, robots, or home automation systems via smartphone
Educational Arduino projects — Learn electronics without investing in multiple shields
Social media integration — Post to Twitter, Facebook, or send emails triggered by hardware events
Sensor-based applications — Access smartphone sensors (accelerometer, gyroscope, GPS, magnetometer, proximity, light, pressure)
Voice-controlled systems — Use voice recognition and text-to-speech capabilities
Data logging — Log sensor data using the smartphone's storage
Camera projects — Capture photos or video triggered by Arduino events
Smart home automation — Integrate with Tasker plugin for automated actions based on hardware events
