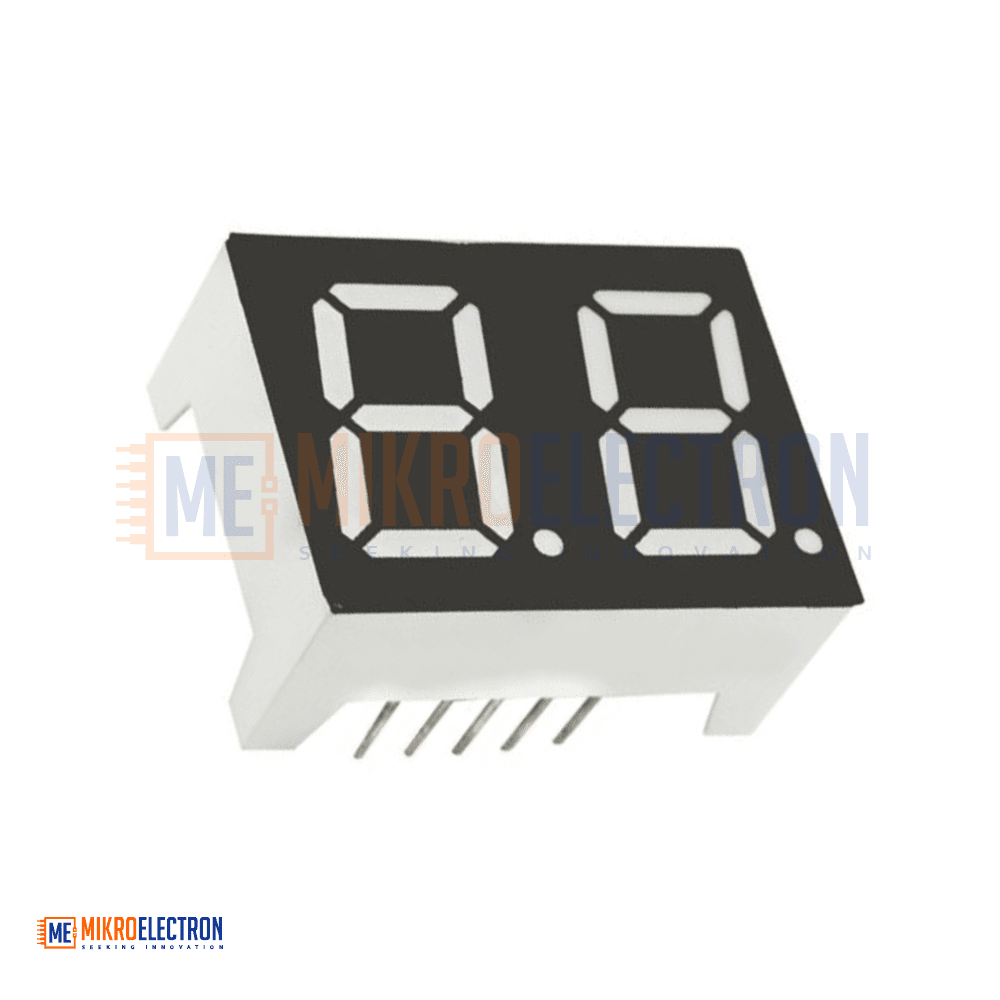

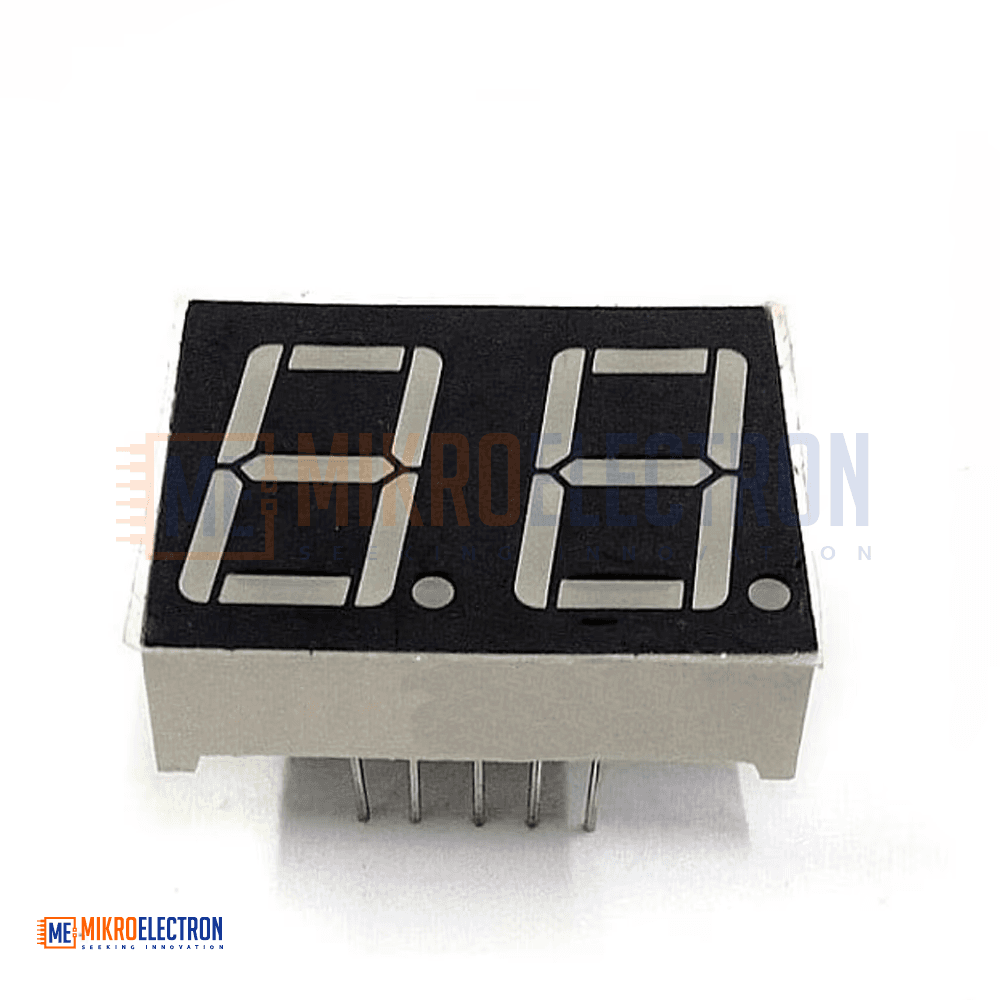

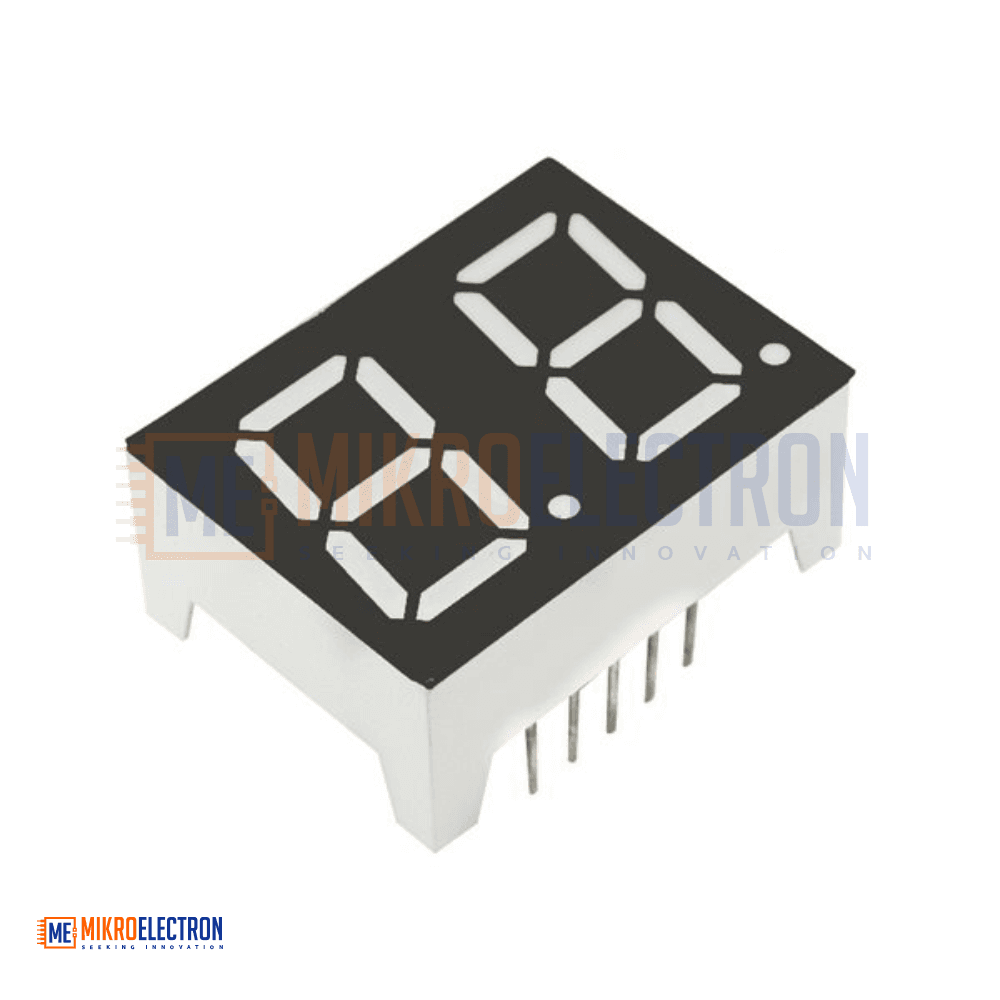

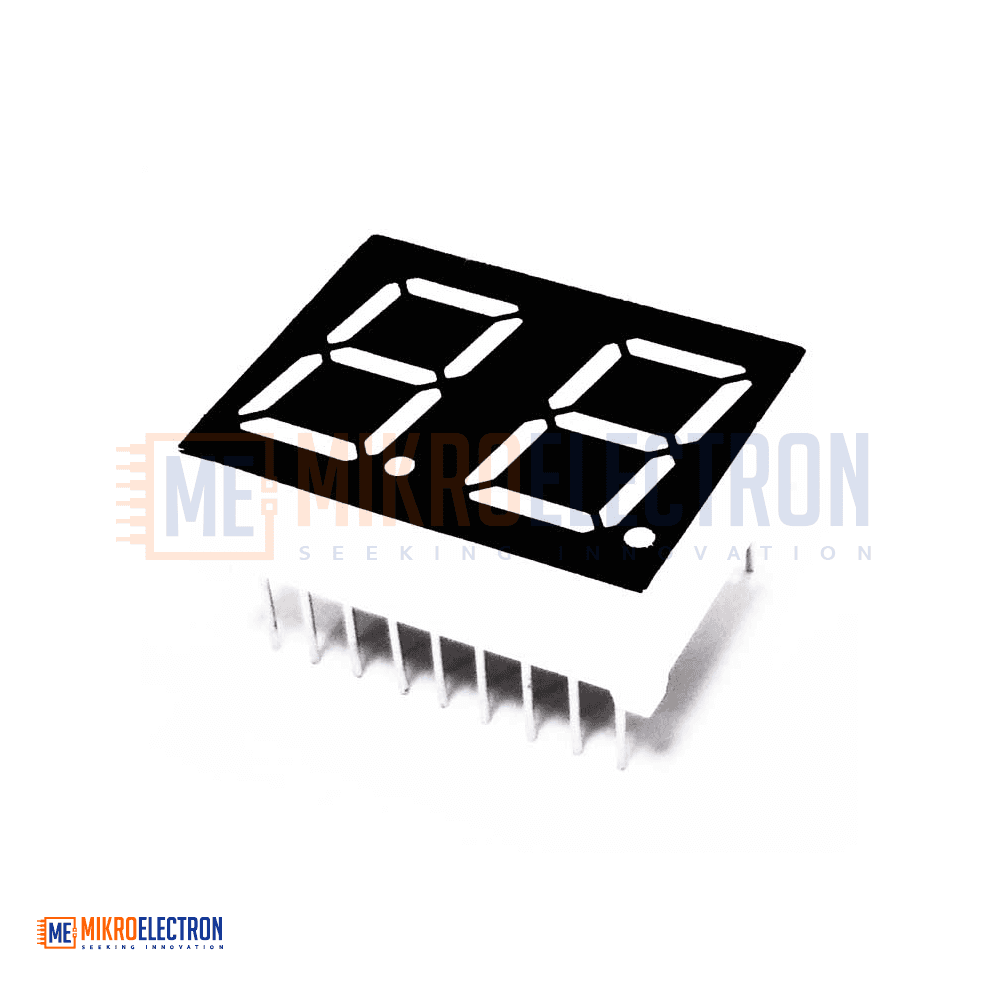

7 segment 2 digit common anode 0.56 inch LED Display CA 18pi
The 7 Segment 2 Digit Common Anode LED Display is a compact 0.56-inch numeric display module designed for displaying numbers and basic characters in electronic circuits. Featuring a common anode configuration and an 18-pin interface, it provides bright and clear visibility for counters, timers, clocks, and measurement devices. The dual-digit design simplifies numeric display applications while ensuring easy integration with microcontrollers, development boards, and embedded electronic systems.
شاشة 7 Segment ثنائية الأرقام Common Anode بقياس 0.56 إنش هي وحدة عرض رقمية مدمجة مصممة لعرض الأرقام وبعض الرموز البسيطة في الدوائر الإلكترونية. تتميز بتوصيل Common Anode وواجهة تحتوي على 18 دبوساً، مما يوفر عرضاً واضحاً ومشرقاً للعدادات، المؤقتات، الساعات، وأجهزة القياس. يساعد تصميم الرقمين في تسهيل تطبيقات العرض الرقمي مع إمكانية دمجها بسهولة مع المتحكمات الدقيقة ولوحات التطوير المختلفة.
The 0.56-inch 2 Digit 7 Segment LED Display (Common Anode) is an electronic display module used for presenting numeric information in digital systems and embedded applications. It contains two integrated 7-segment digits capable of displaying numbers from 00 to 99, along with limited alphabetic characters.
The display uses a Common Anode (CA) configuration, where all anodes of each segment are connected together. Individual segments are controlled by grounding the corresponding cathode pins. This configuration makes the display compatible with many microcontrollers, driver ICs, and digital logic circuits.
With a bright LED output and compact size, the module is suitable for timers, counters, digital clocks, voltmeters, frequency displays, and educational electronics projects. The 18-pin layout allows easy connection to breadboards, PCBs, and display driver circuits.
Its durable construction and clear visibility make it a practical solution for both hobby and industrial electronic applications.
Specifications
| Parameter | Value |
|---|---|
| Display Type | 7 Segment LED Display |
| Digits | 2 Digit |
| Configuration | Common Anode (CA) |
| Digit Size | 0.56 Inch |
| Pin Count | 18 Pins |
| Display Color | LED Numeric Display |
| Mounting Type | Through-hole |
| Viewing Type | Numeric LED Output |
| Operating Type | Multiplexed Segment Display |
| Application Range | Electronic Display Systems |
Applications
- Digital Counters
- Electronic Timers
- Digital Clocks
- Frequency Counters
- Measurement Instruments
- Voltage and Current Displays
- Microcontroller Projects
- Arduino and Embedded Systems
- Industrial Control Panels
- Educational Electronics Projects
