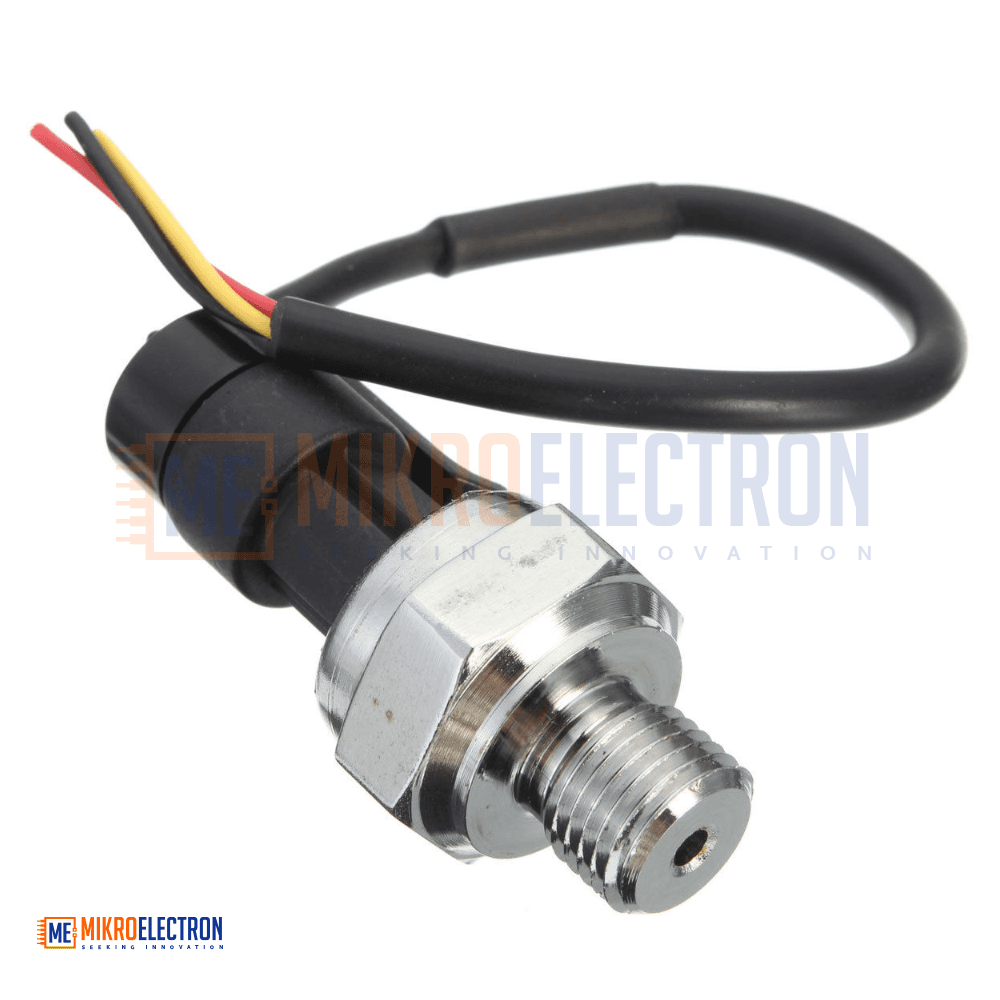

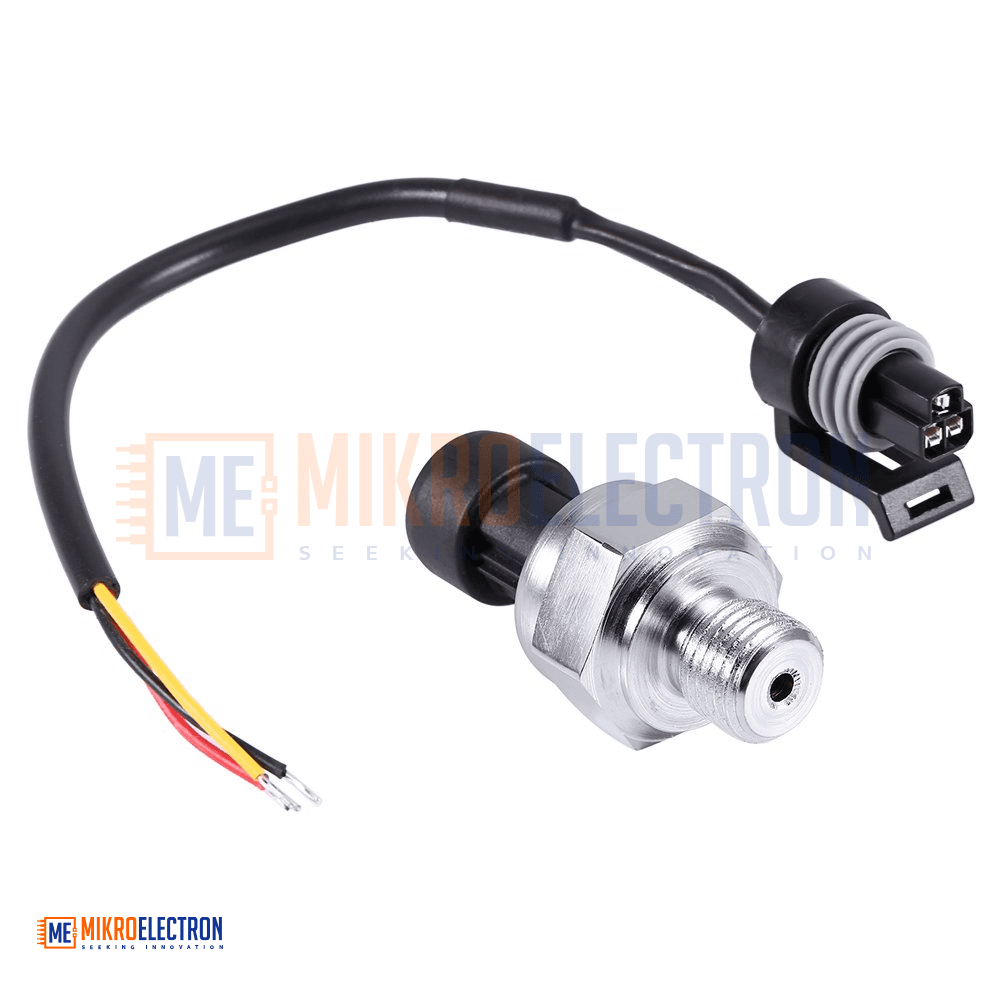

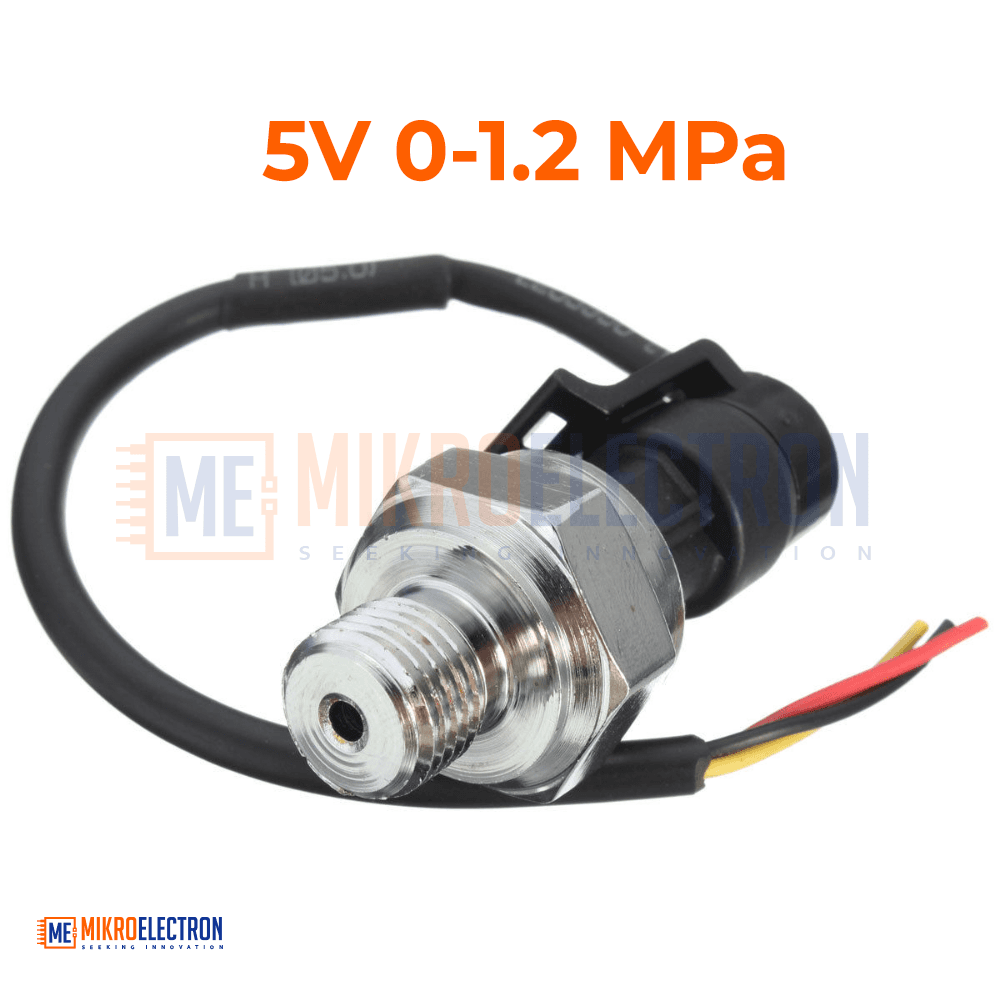

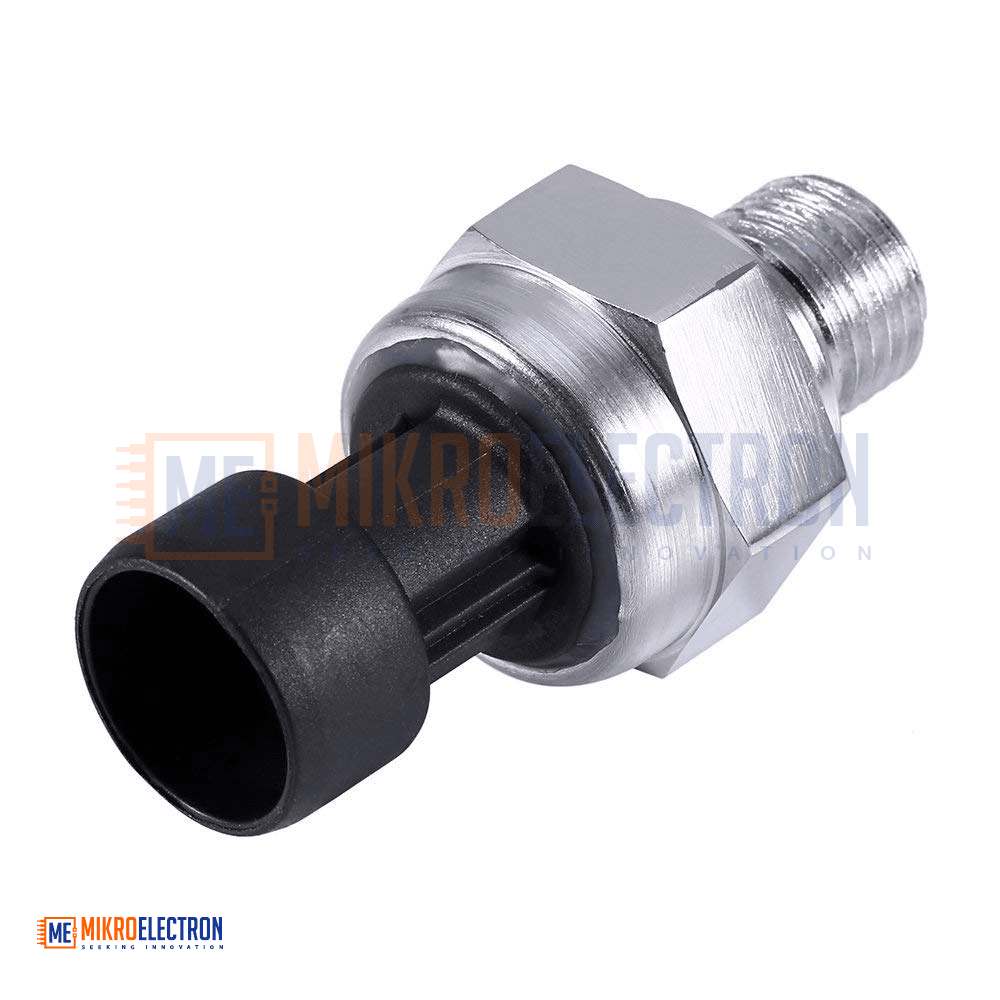

Pressure Transducer Sensor G1/4 inch 5V 0-1.2 MPa
The G1/4" Pressure Transducer Sensor (5V, 0–1.2 MPa) is a high-accuracy industrial-grade sensor designed for measuring the pressure of non-corrosive liquids and gases. Built with a carbon-steel alloy body, stainless-steel diaphragm, and imported sensing chip, it offers a 0.5–4.5V analog output, a ±1.5% FSO accuracy, and an ultra-fast 2 ms response time. With a standard G1/4" thread, waterproof sealed cable, and a service life of 500,000 cycles, it is ideal for water systems, pumps, hydraulics, air compressors, and IoT monitoring projects.
حساس ضغط G1/4 إنش (5 فولت، 0–1.2 ميغاباسكال) هو مستشعر صناعي عالي الدقة مصمم لقياس ضغط السوائل والغازات غير المتآكلة. مصنوع من جسم سبيكة فولاذ كربوني، غشاء فولاذ مقاوم للصدأ، وشريحة استشعار مستوردة، ويوفر خرج تناظري 0.5–4.5 فولت، ودقة ±1.5% FSO، وزمن استجابة سريع جدًا يبلغ 2 ميلي ثانية. بفضل وصلة G1/4 قياسية، وكابل مانع للتسرب، وعمر تشغيلي يبلغ 500,000 دورة، فهو مثالي لأنظمة المياه، المضخات، الهيدروليك، ضواغط الهواء، ومشاريع إنترنت الأشياء.
The G1/4" Pressure Transducer Sensor is a professional-grade pressure-measurement device built for industrial monitoring, automation, and IoT applications. It converts the pressure of liquids or gases into a clean, linear 0.5–4.5V analog voltage that can be read directly by a microcontroller (Arduino, ESP32, STM32, Raspberry Pi with ADC), a PLC, or any standard analog data-logger.

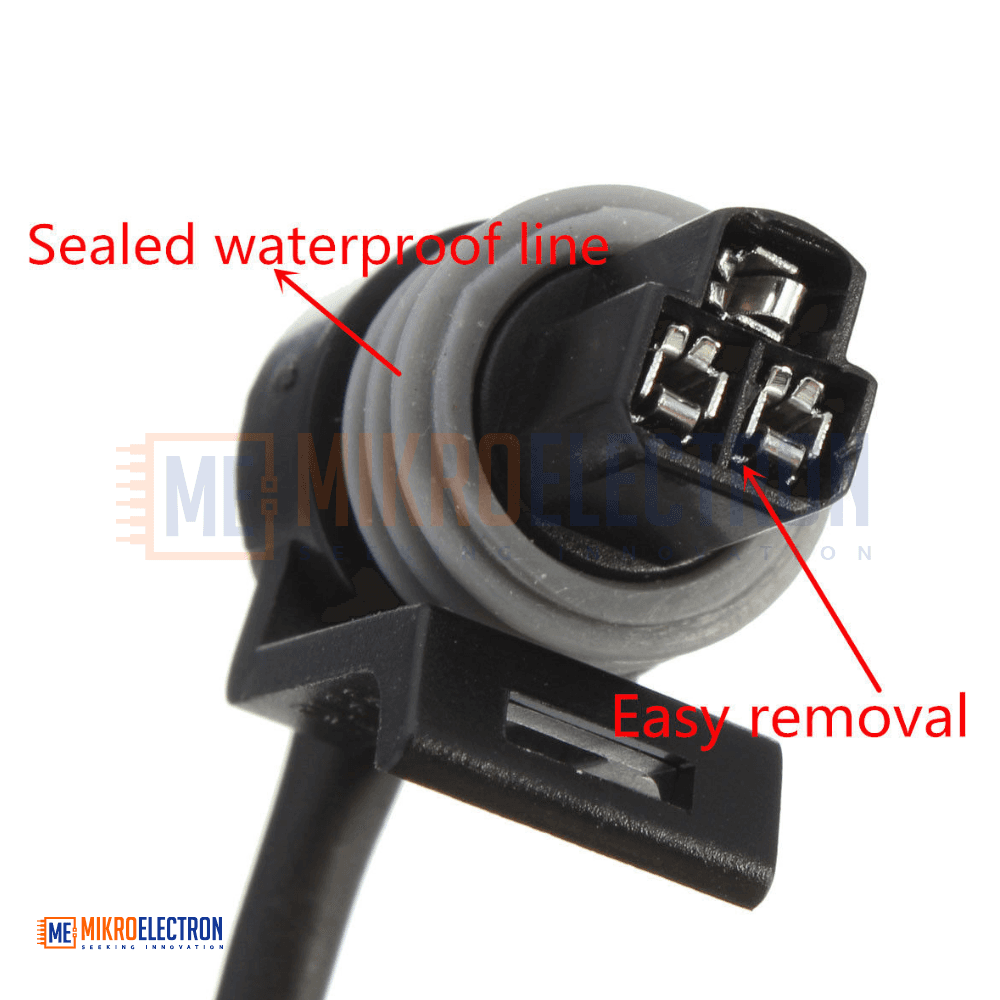

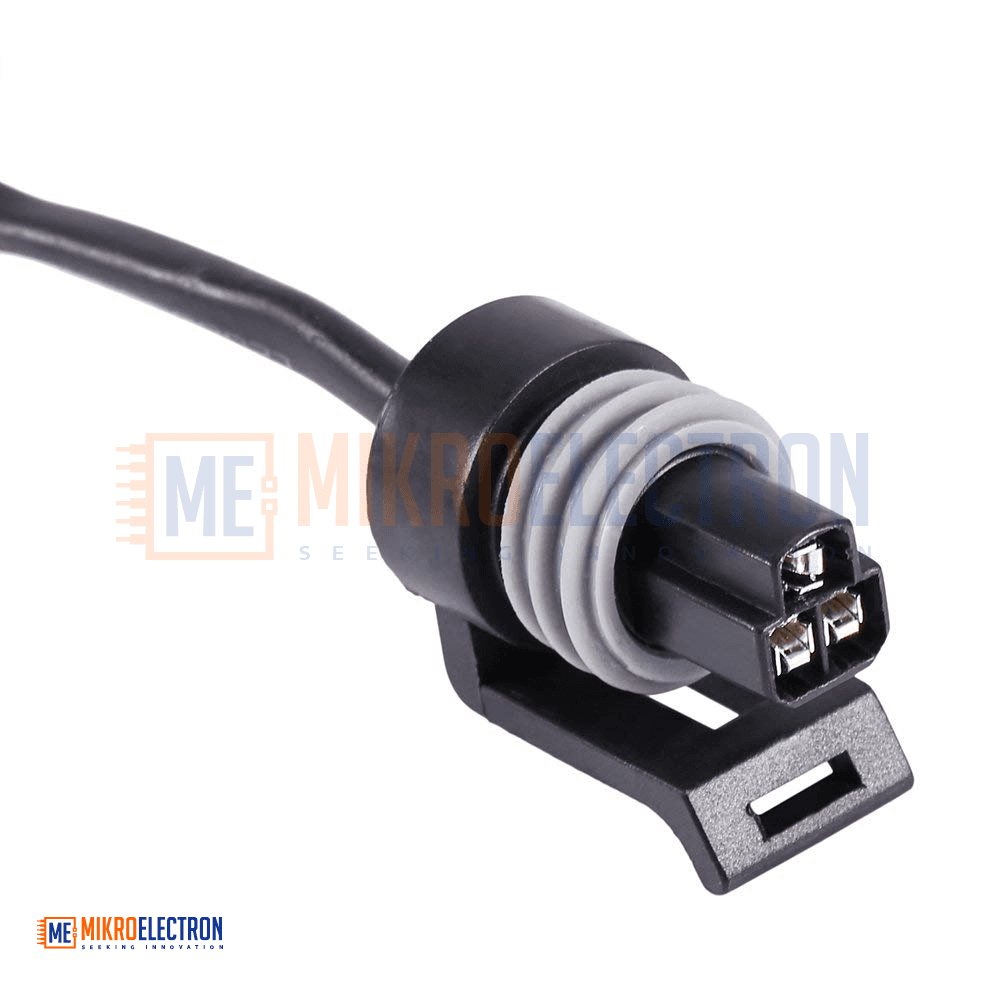

The sensor is constructed from a carbon-steel alloy body for mechanical strength, a stainless-steel diaphragm for corrosion resistance, and uses an imported, factory-calibrated sensing chip for long-term stability. The connection cable is fully sealed and waterproof, allowing the sensor to be installed in humid or outdoor environments without additional protection.
Designed for measuring non-corrosive media, the sensor handles a working range of 0 to 1.2 MPa (about 0–174 PSI / 0–12 bar) with high accuracy of ±1.5% FSO, and can survive momentary overpressure up to 2.4 MPa. Its ultra-fast 2 ms response time makes it suitable for dynamic pressure measurement, such as pump cycling, hydraulic shock detection, and real-time process control. With a rated 500,000-cycle service life, it offers excellent durability for both industrial and DIY use.

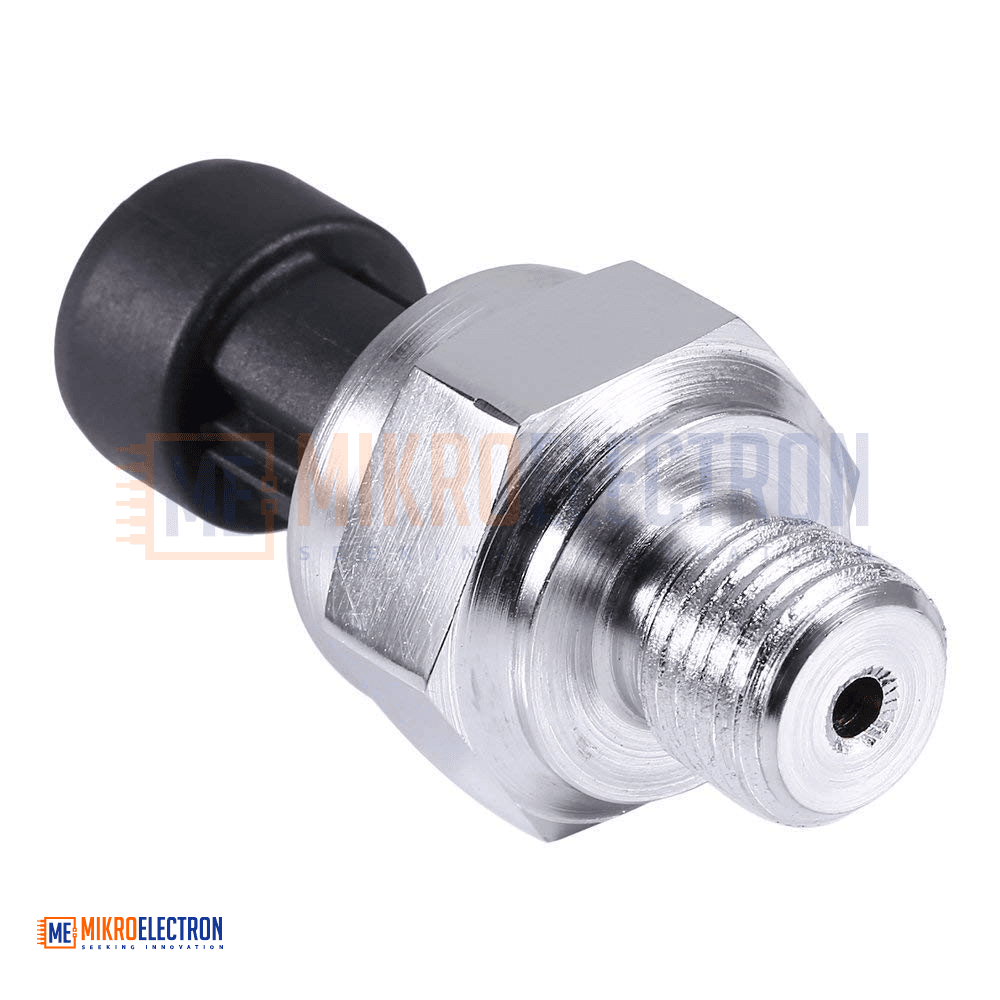

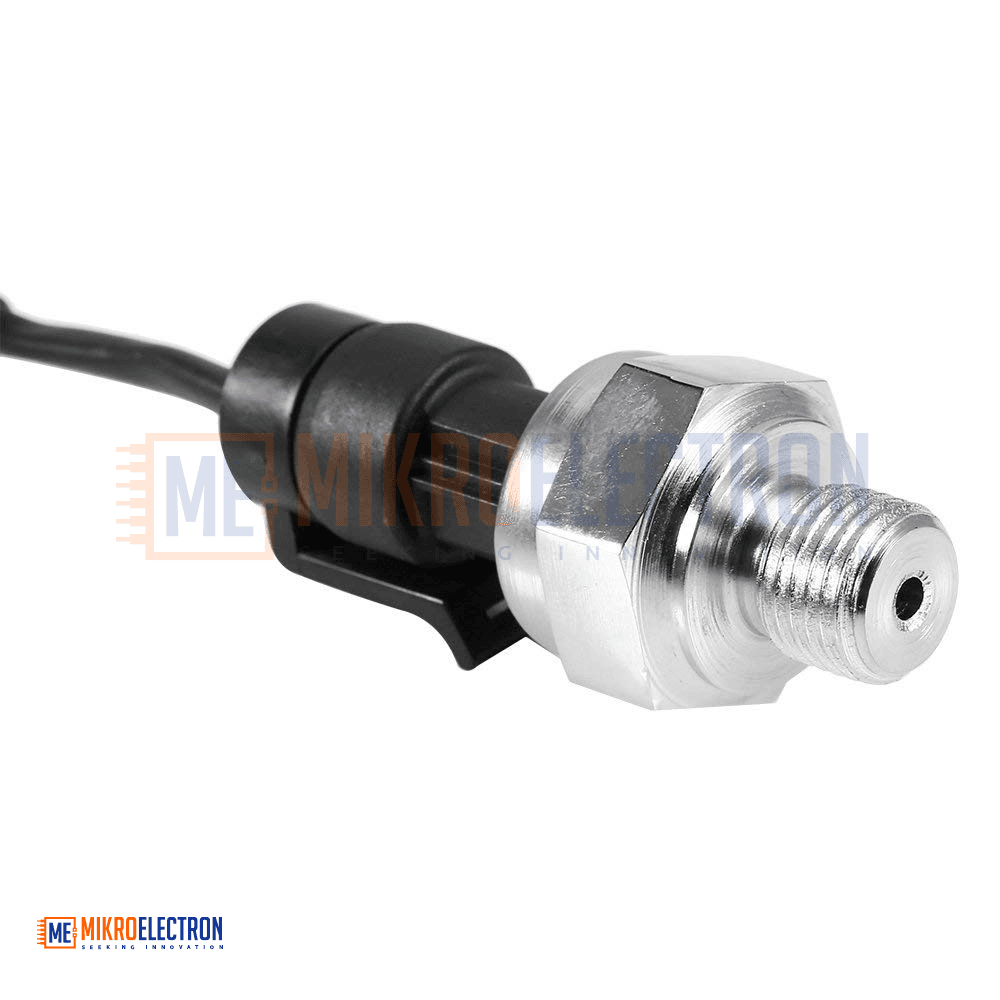

The standard G1/4" male thread allows the sensor to be installed quickly into most common pipe fittings, manifolds, and adapter blocks used in water, pneumatic, and hydraulic systems.
Wiring is simple:
- Red wire → +5V power supply
- Black wire → GND (ground)
- Yellow wire → analog output signal (0.5 – 4.5V)
Specifications
- Working Voltage: 5V DC
- Output Signal: 0.5 – 4.5V DC analog
- Working Pressure Range: 0 – 1.2 MPa (0 – ~174 PSI / 0 – 12 bar)
- Maximum Pressure: 2.4 MPa (overpressure limit)
- Burst / Destroy Pressure: 3.0 MPa
- Working Current: ≤ 10 mA
- Measuring Accuracy: ±1.5% FSO
- Temperature Range Error: ±3.5% FSO
- Response Time: ≤ 2.0 ms
- Working Temperature: 0 – 85 °C
- Storage Temperature: 0 – 100 °C
- Cycle Life: 500,000 cycles
- Thread Connection: G1/4" male thread
- Body Material: Carbon-steel alloy (stainless-steel diaphragm)

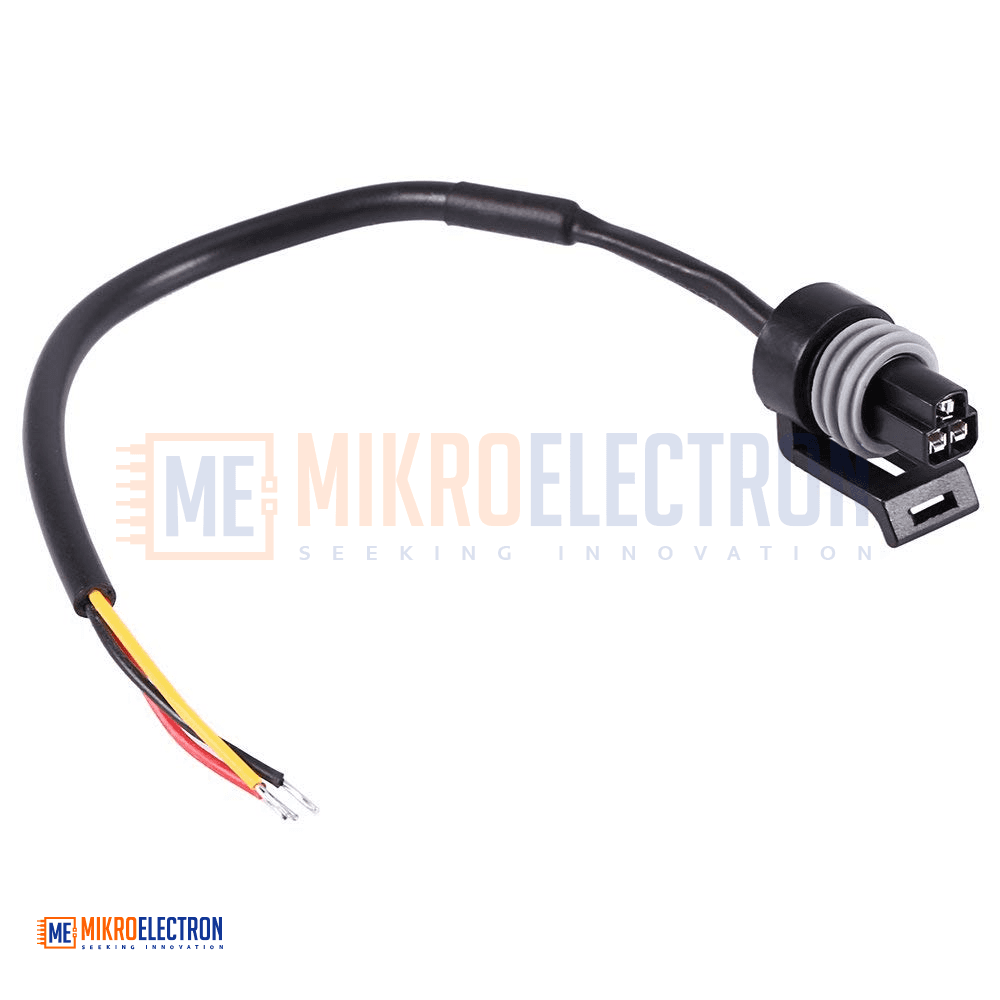

- Cable Length: 19 cm (waterproof sealed)
- Wiring: Red = +5V, Black = GND, Yellow = Signal output
- Compatible Media: Non-corrosive liquids and gases (water, air, oil, etc.)
Applications
- Water pressure monitoring in domestic and irrigation systems
- Pump control (booster pumps, well pumps, circulation pumps)
- Air compressors and pneumatic tools
- Hydraulic systems in machinery and small equipment
- HVAC systems and refrigeration plants
- IoT pressure-monitoring projects (ESP32, ESP8266, Arduino)
- Process control in food, beverage, and chemical industries (non-corrosive media)
- Engine and fuel-line pressure monitoring (non-corrosive fuels)
- Industrial automation with PLC and SCADA systems
- Smart agriculture — drip irrigation, greenhouse water systems
- STEM and engineering education laboratories
- Pressure data-logging and research applications
