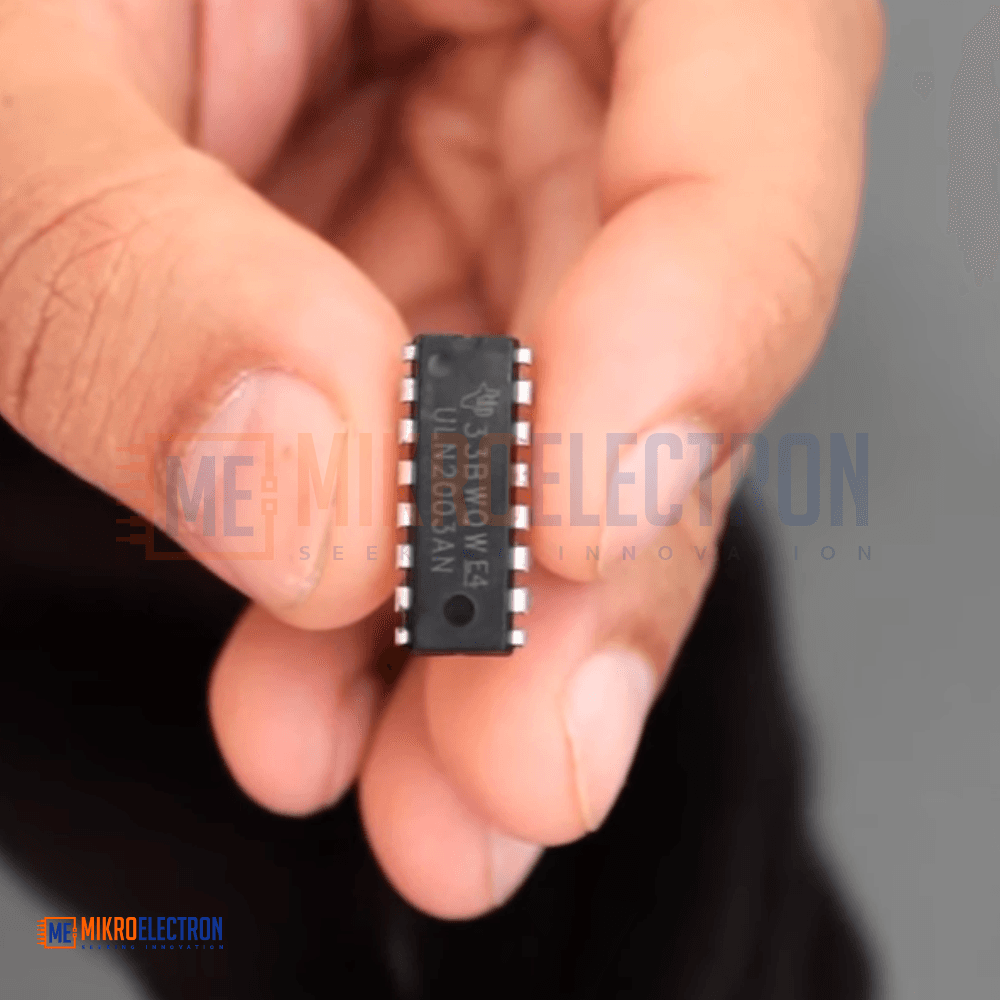

Uln2003 APg
The ULN2003APG Darlington Driver IC is a 7-channel high-voltage, high-current sink driver designed for controlling inductive and high-power loads. It can drive devices such as relays, motors, lamps, and LED displays directly from logic signals. With a 50V output rating and 500mA per channel current capacity, it provides reliable switching performance. Built-in clamp diodes protect against voltage spikes, making it ideal for microcontroller and industrial control applications.
يعد ULN2003APG Darlington Driver IC دائرة متكاملة تحتوي على 7 قنوات قيادة من نوع Darlington للتحكم بالأحمال العالية والجهد المرتفع. يستخدم لتشغيل الريليهات، المحركات، المصابيح، وشاشات LED من خلال إشارات منطقية منخفضة. يتميز بقدرة تحمل جهد حتى 50 فولت وتيار يصل إلى 500mA لكل قناة. يحتوي على دايودات حماية داخلية ضد الجهد العكسي، مما يجعله مناسباً للأنظمة الصناعية والمتحكمات الدقيقة.

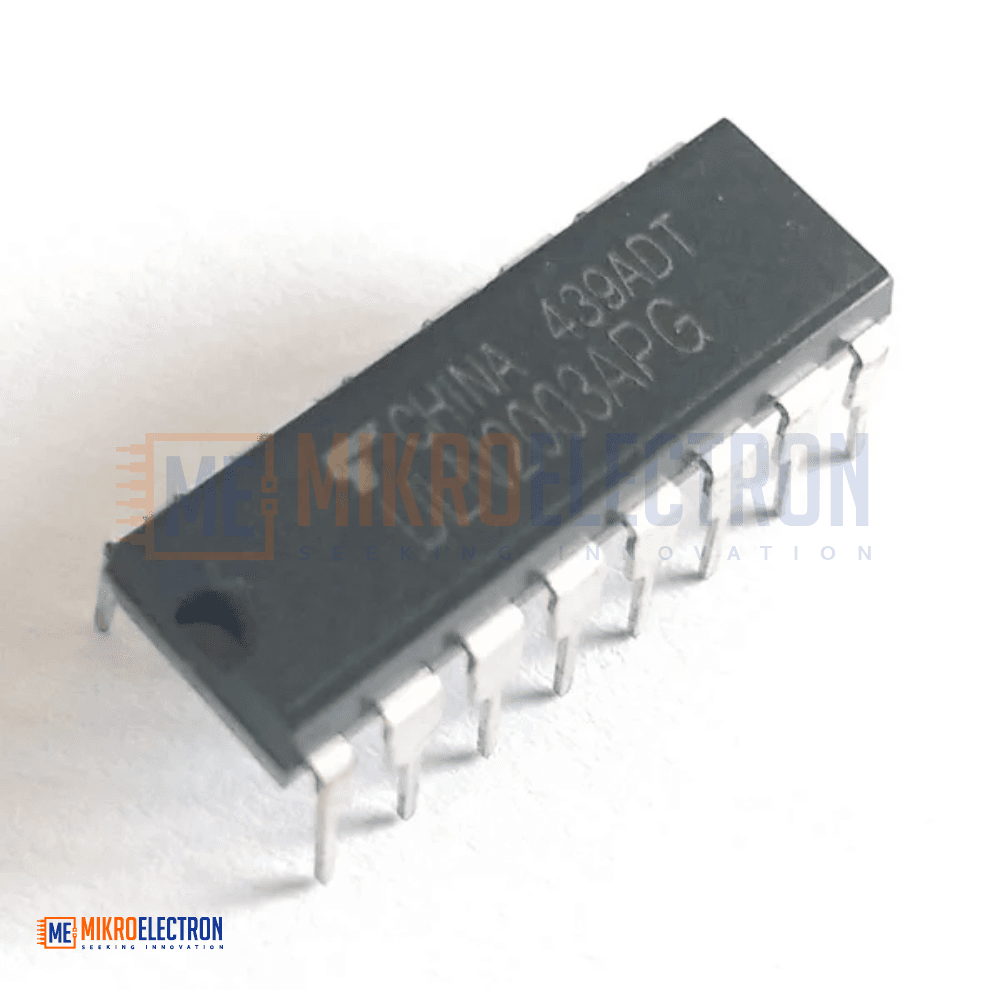

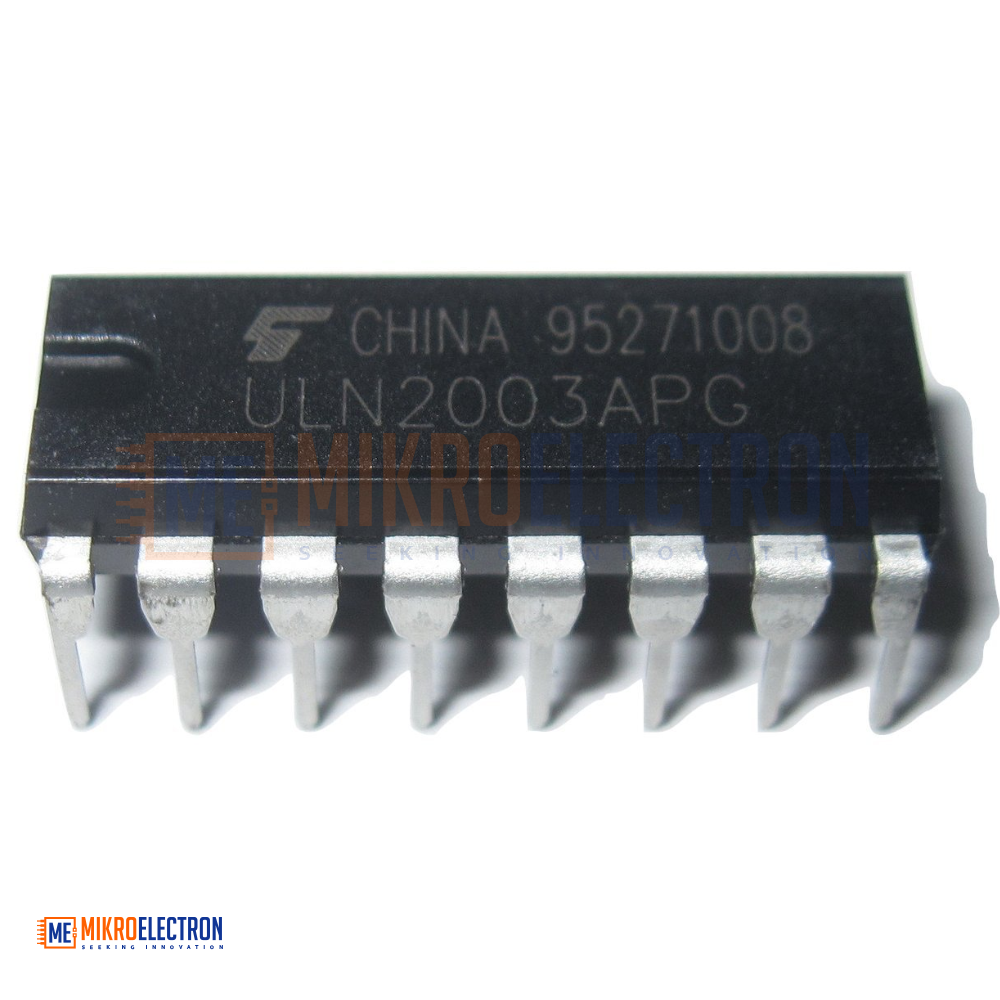

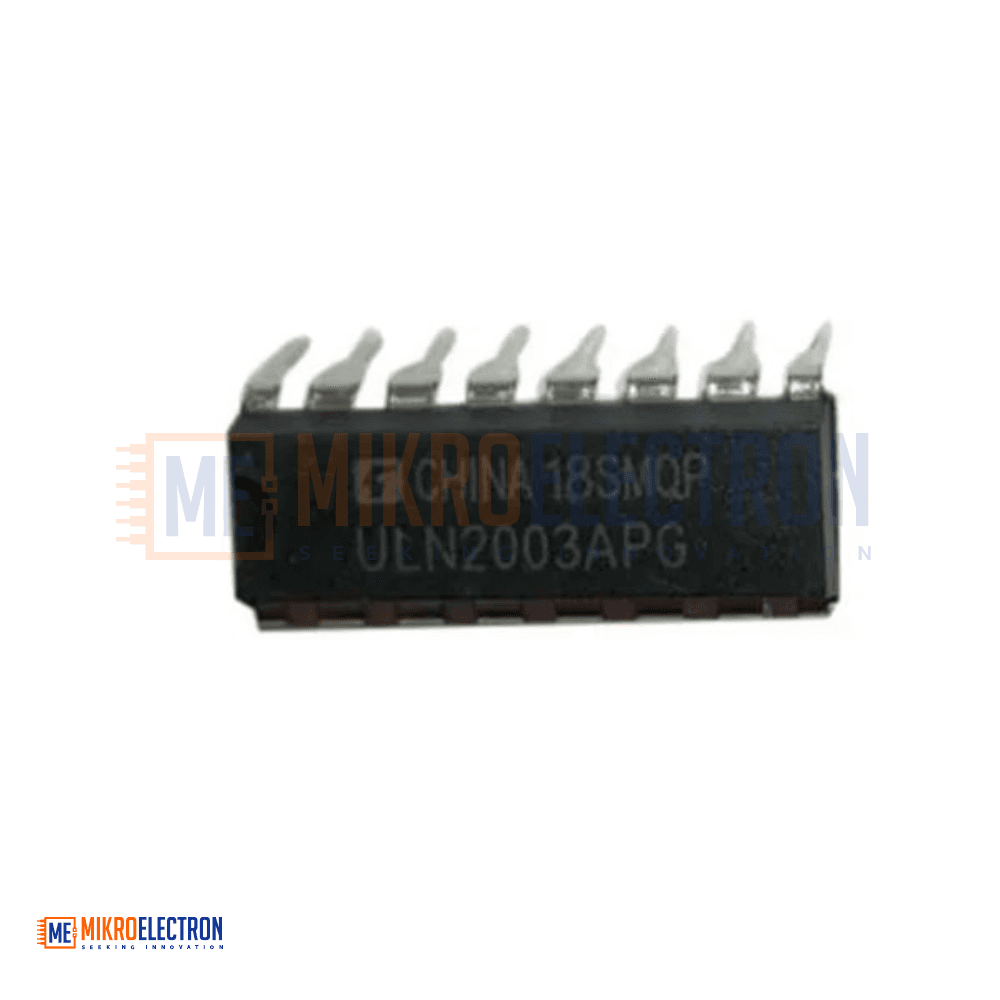

The ULN2003APG is a high-voltage, high-current Darlington transistor array IC consisting of seven NPN Darlington pairs. It is designed to interface low-power logic circuits with high-power loads such as relays, solenoids, motors, lamps, and LED displays.
Each channel of the IC can handle up to 500mA output current and withstand a maximum output voltage of 50V, making it suitable for a wide range of industrial and embedded control systems. The internal Darlington configuration provides high current gain, allowing direct control from CMOS, TTL, and microcontroller outputs.
A key feature of the ULN2003APG is its built-in clamp (flyback) diodes, which protect the circuit from voltage spikes generated by inductive loads. This significantly improves system reliability and eliminates the need for external protection diodes in many applications.
The IC is widely used in automation systems, motor control circuits, relay drivers, and LED display drivers. Its DIP-16 package makes it easy to use on breadboards and PCBs, especially in prototyping and embedded system development.
Specifications
| Parameter | Value |
|---|---|
| Model | ULN2003APG |
| Type | 7-Channel Darlington Sink Driver |
| Number of Channels | 7 |
| Transistor Type | NPN Darlington Array |
| Output Voltage (Max) | 50V |
| Output Current (Per Channel) | 500mA |
| Input Voltage Range | 6V – 15V (logic compatible) |
| Clamp Diode Reverse Voltage | 50V |
| Clamp Diode Forward Current | 500mA |
| Input Compatibility | CMOS, TTL, PMOS |
| Package Type | DIP-16 |
| Mounting Type | Through-hole |
| Operating Temperature | −40°C to +85°C |
| Storage Temperature | −55°C to +150°C |
Applications

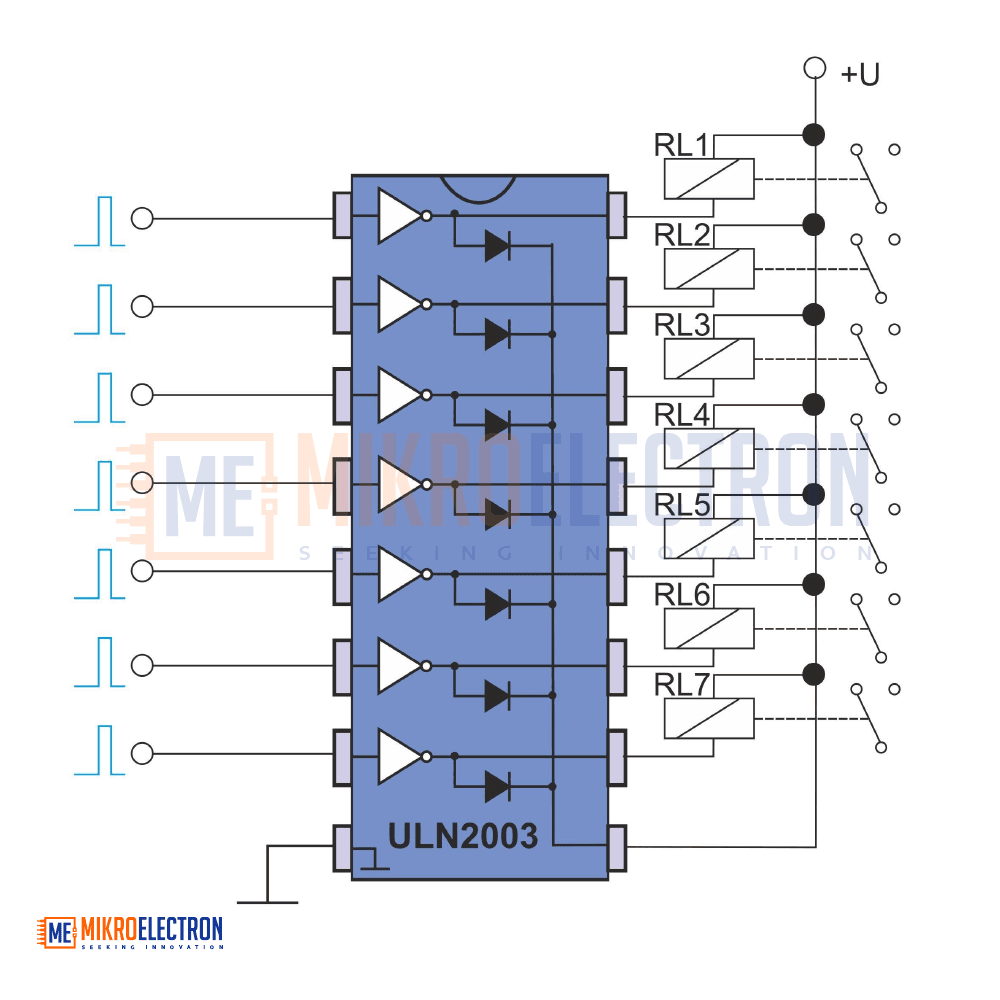

- Relay Driver Circuits
- Stepper Motor Control (e.g., 28BYJ-48)
- LED Display Drivers
- Solenoid Control Systems
- Industrial Automation Systems
- Microcontroller Output Expansion
- Lamp and Lighting Control
- Embedded Control Projects
- Robotics Applications
- Home Automation Systems
