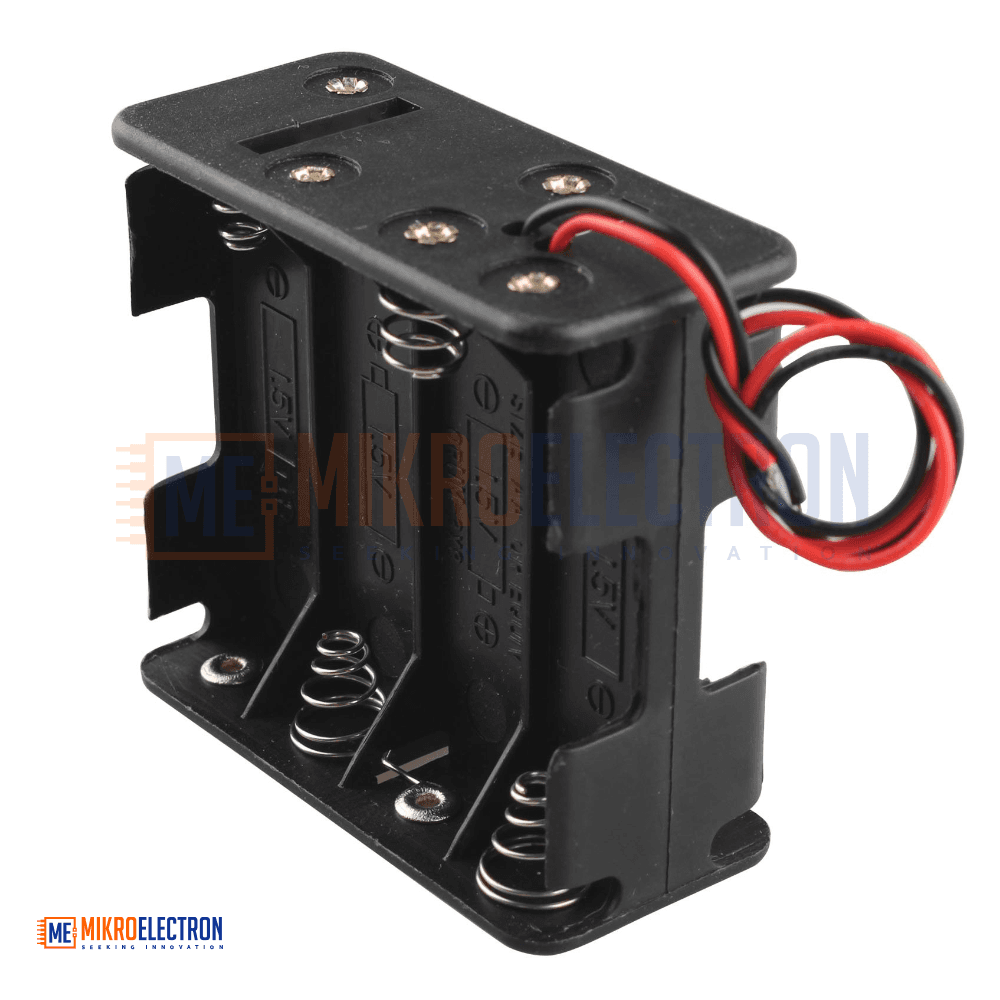

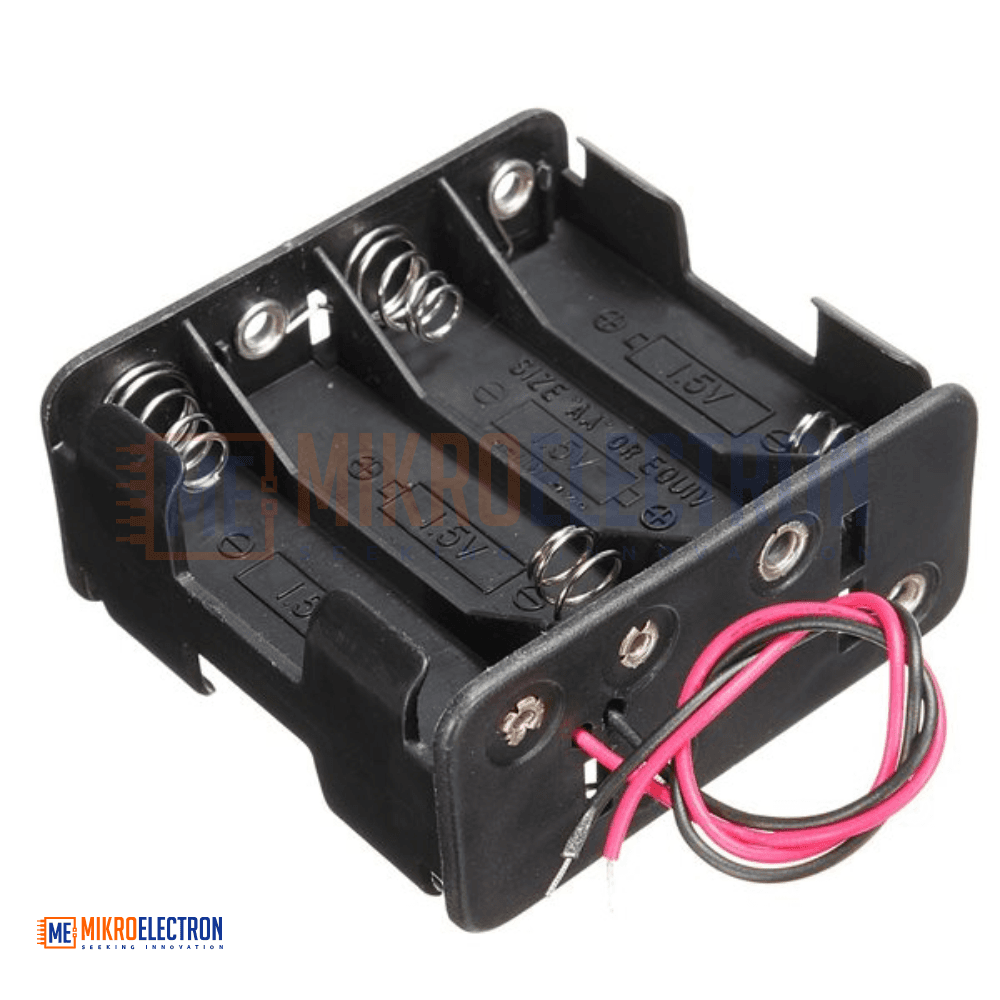

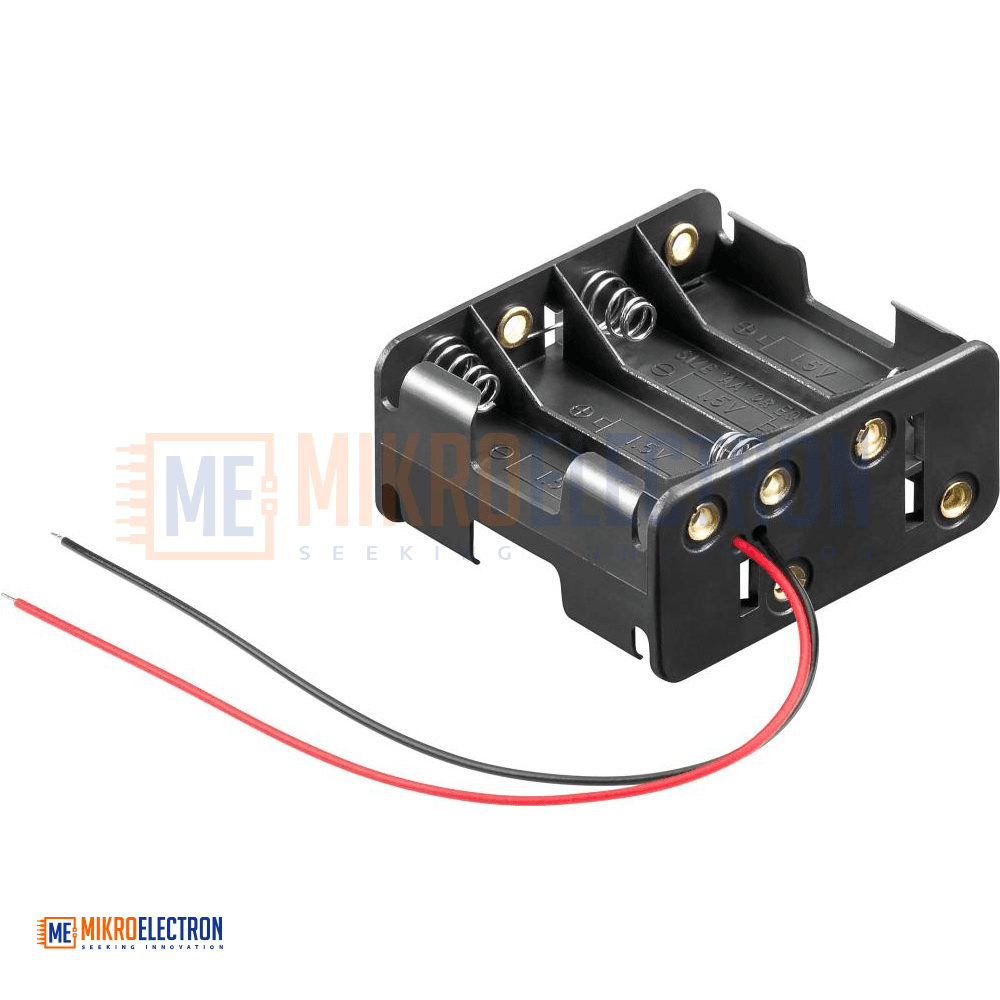

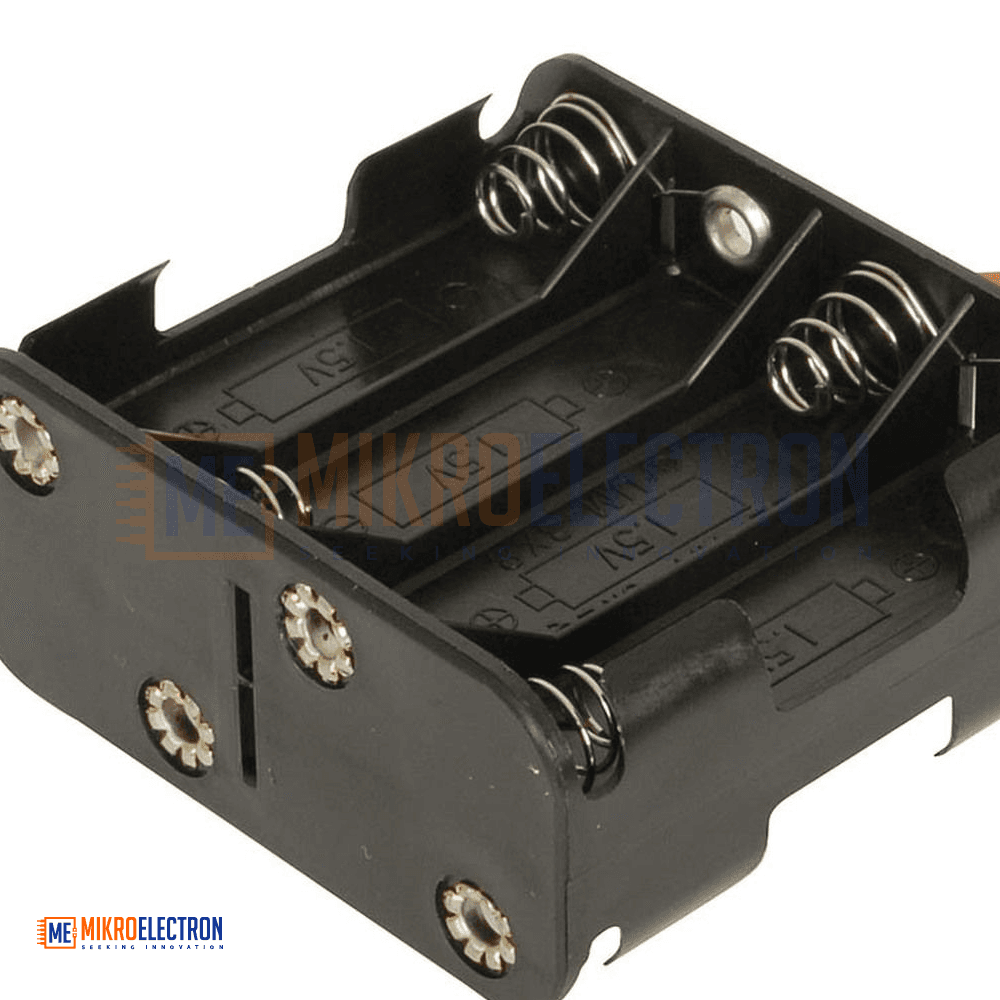

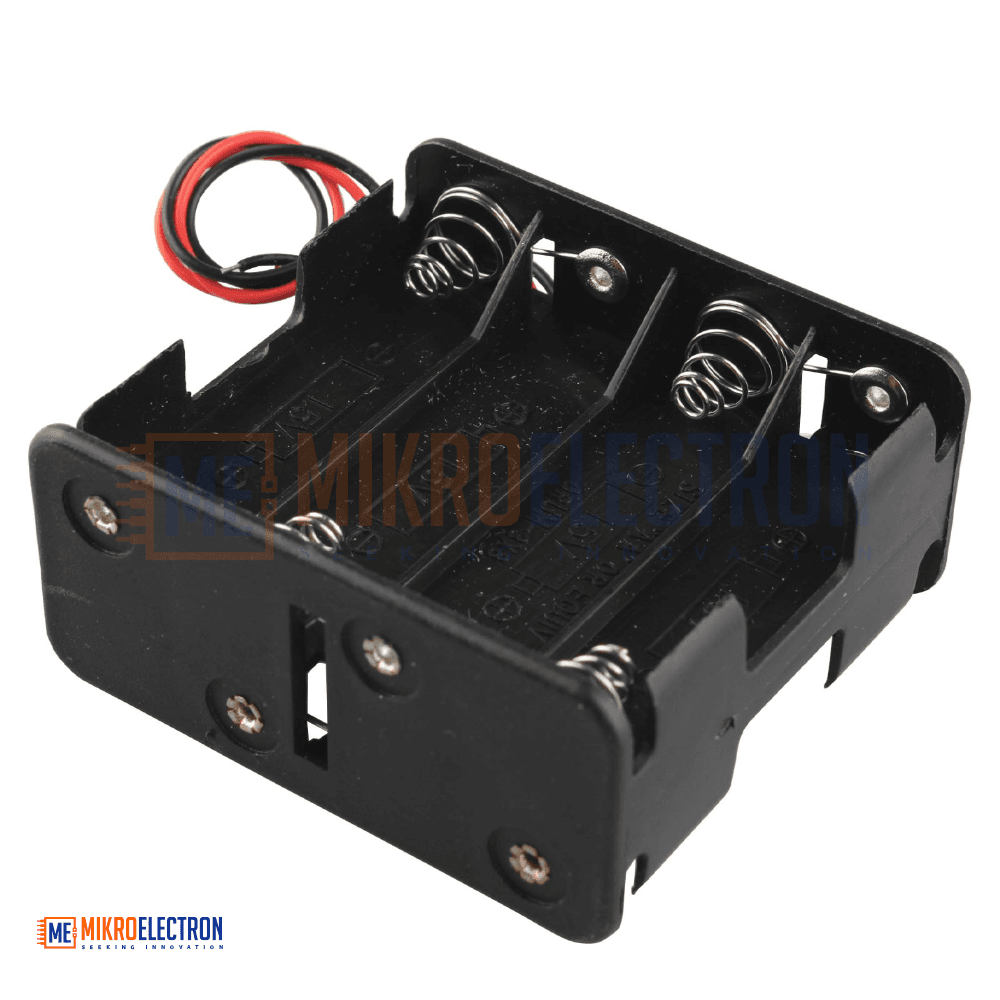

BATTERY HOLDER 8XAA 1.5v
The 8xAA Battery Holder holds 8 AA batteries (1.5V each) for a total of 12V output when wired in series. Made of durable black plastic. Perfect for soldering or connecting as an external power source. Compact size: 57.8×62.5×29.4mm – easy to carry. Keeps batteries organized and protected. Batteries not included. Ideal for DIY electronics, robotics, and portable devices.
حامل البطاريات 8×AA يستوعب 8 بطاريات AA (كل منها 1.5 فولت) لإنتاج 12 فولت عند التوصيل على التوالي. مصنوع من بلاستيك أسود متين. مثالي للحام أو التوصيل كمصدر طاقة خارجي. حجم صغير: 57.8×62.5×29.4 مم – سهل الحمل. يحافظ على تنظيم البطاريات وحمايتها. البطاريات غير متضمنة. مثالي للإلكترونيات DIY والروبوتات والأجهزة المحمولة.
The 8xAA Battery Holder is a storage case designed to hold up to eight AA (LR6) batteries, each providing 1.5V for a combined output of 12 volts when the cells are connected in series (standard configuration). This holder features pre-attached wires or solderable terminals (depending on variant) making it perfect for soldering directly to PCBs or connecting to other power leads. It serves as an excellent external power source for portable electronics, Arduino projects, robotics, and breadboard circuits. The durable black plastic construction protects batteries from impact, dust, and accidental shorts. The compact dimensions (57.8mm length × 62.5mm width × 29.4mm height) allow easy integration into enclosures or carrying in toolkits. The holder keeps batteries organized in individual compartments, preventing polarity reversal and ensuring reliable contact. Batteries are not included. Wire leads are typically color-coded: red for positive (+) and black for negative (-).
Specifications
| Parameter | Value |
|---|---|
| Battery type | 8 × AA (LR6) – 1.5V each |
| Total nominal voltage | 12V (series connection) |
| Material | Plastic (black) |
| Color | Black |
| Dimensions (L×W×H) | 57.8 mm × 62.5 mm × 29.4 mm |
| Connector type | Pre-attached wires or solder lugs (verify product) |
| Wire polarity | Red: positive (+), Black: negative (-) |
| Batteries included | No |
| Operating temperature | Typical plastic range: -10°C to +60°C |
Applications
Portable power supply – 12V source for field electronics without wall outlets
Arduino and Raspberry Pi projects – External 12V input for motor drivers or relays
Robotics – Power for servo motors, DC motors, and controllers
LED lighting strips – Many 12V LED strips run directly from 8×AA batteries
DIY instruments and meters – Battery-powered multimeters, signal generators
Remote sensors and data loggers – Autonomous outdoor electronics
Educational kits – Teach battery series connections and voltage addition
Backup power – Emergency 12V source for small devices
