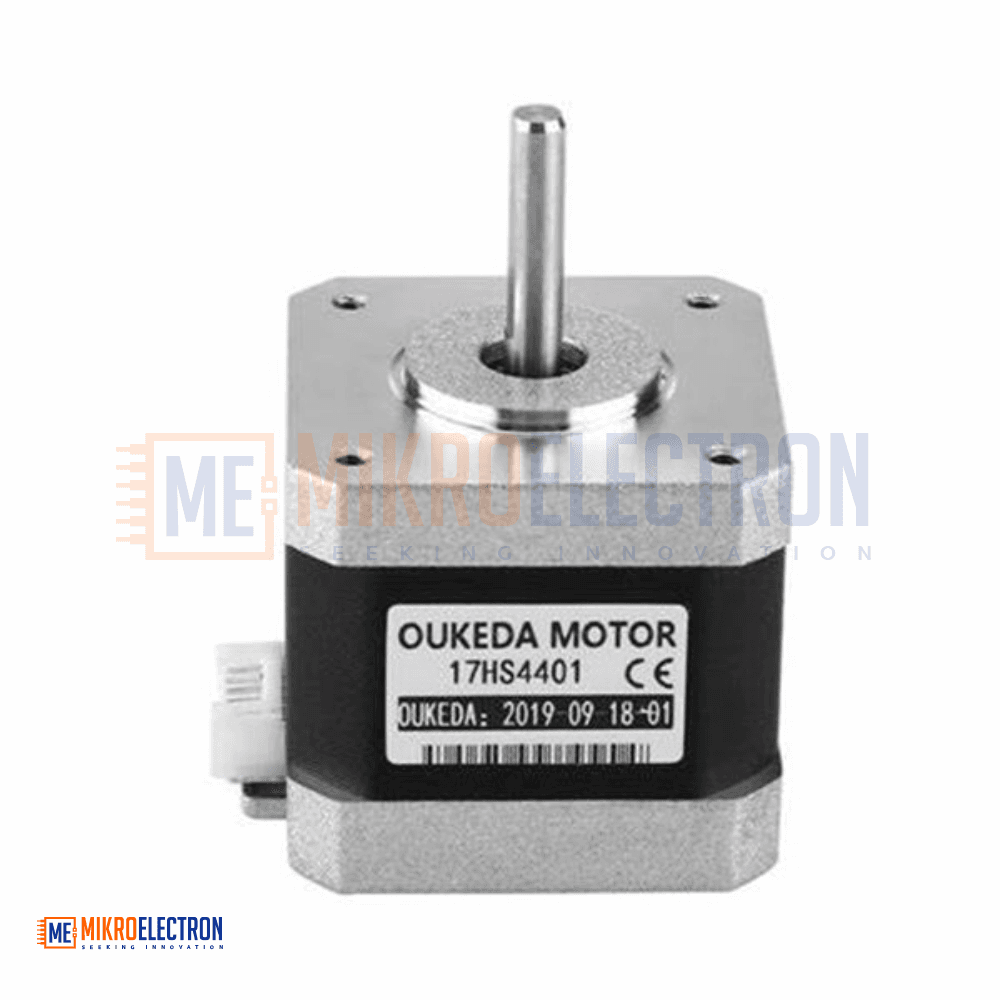

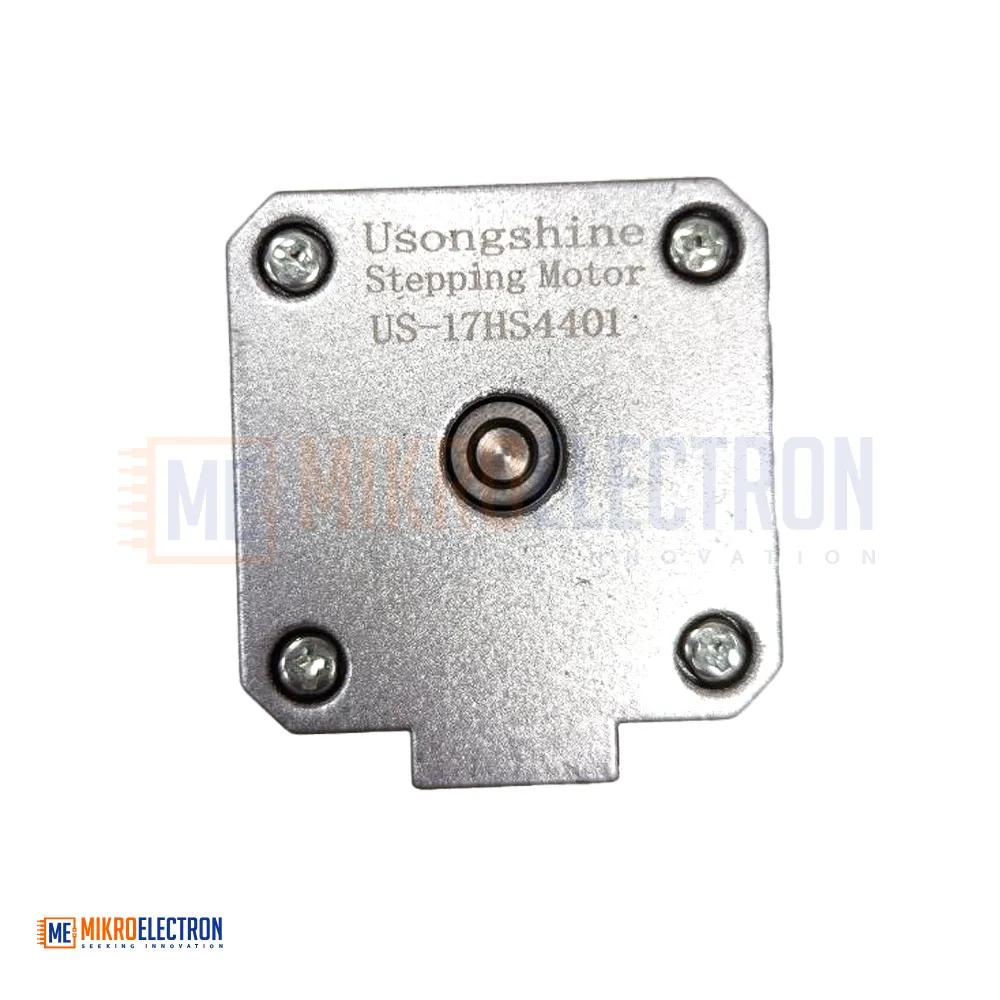

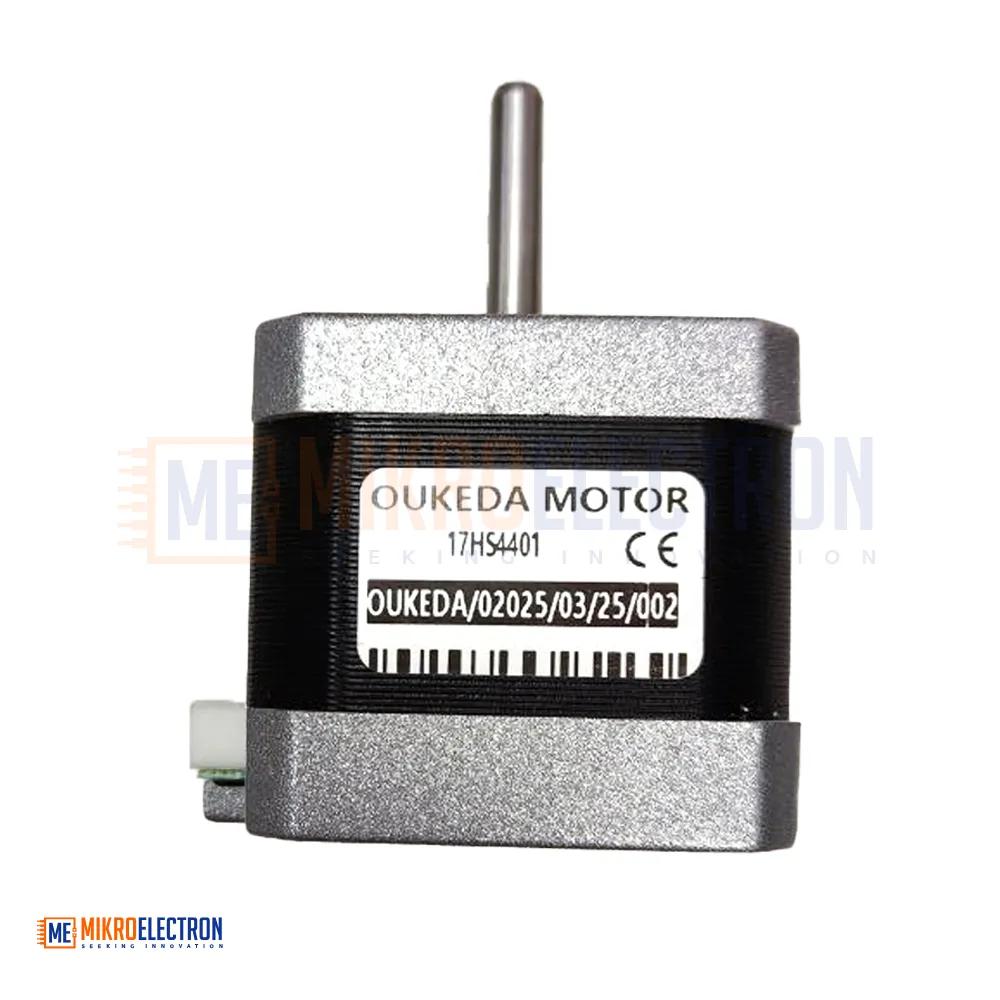

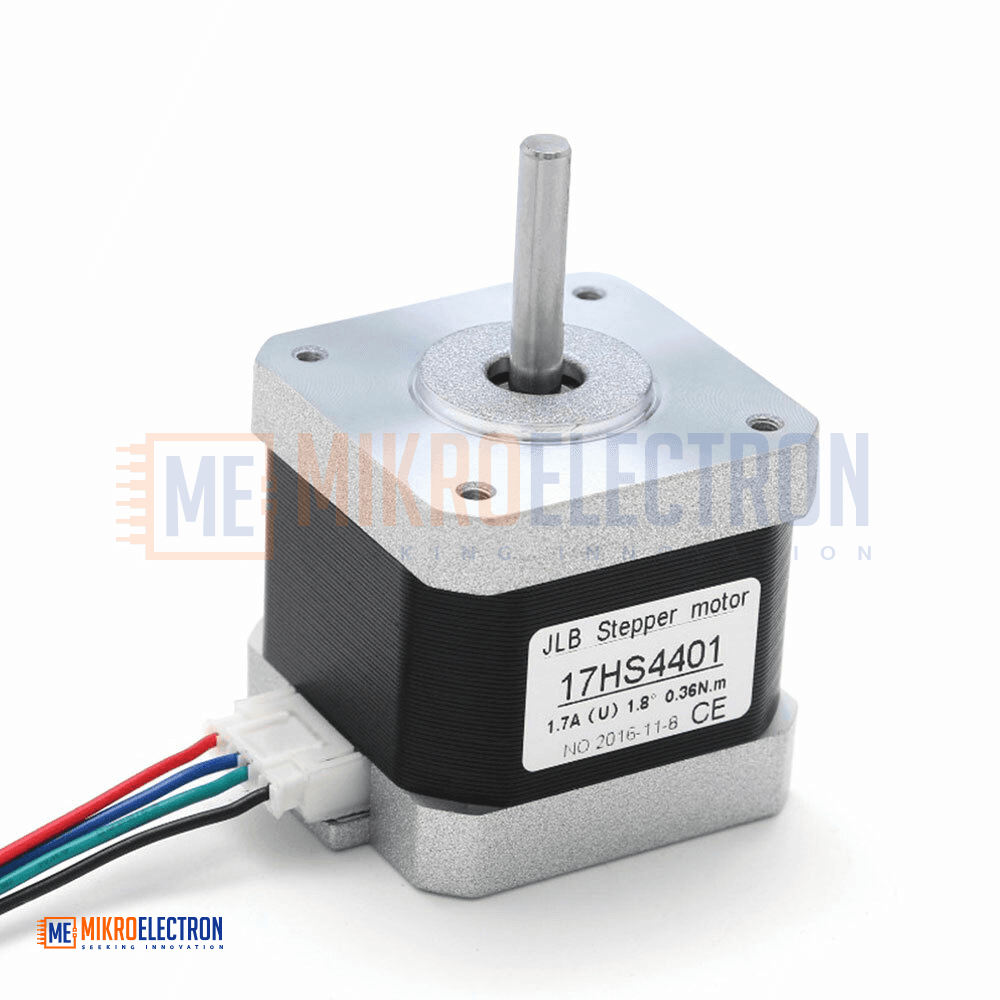

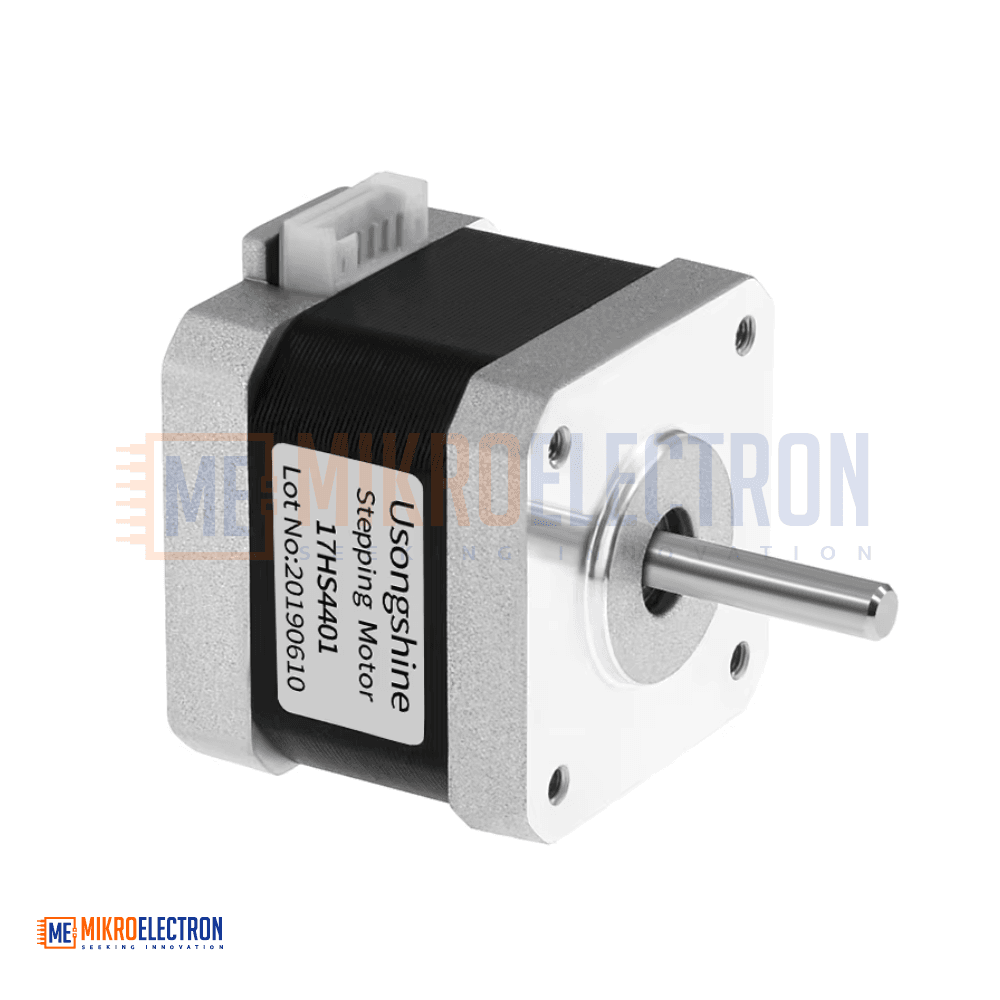

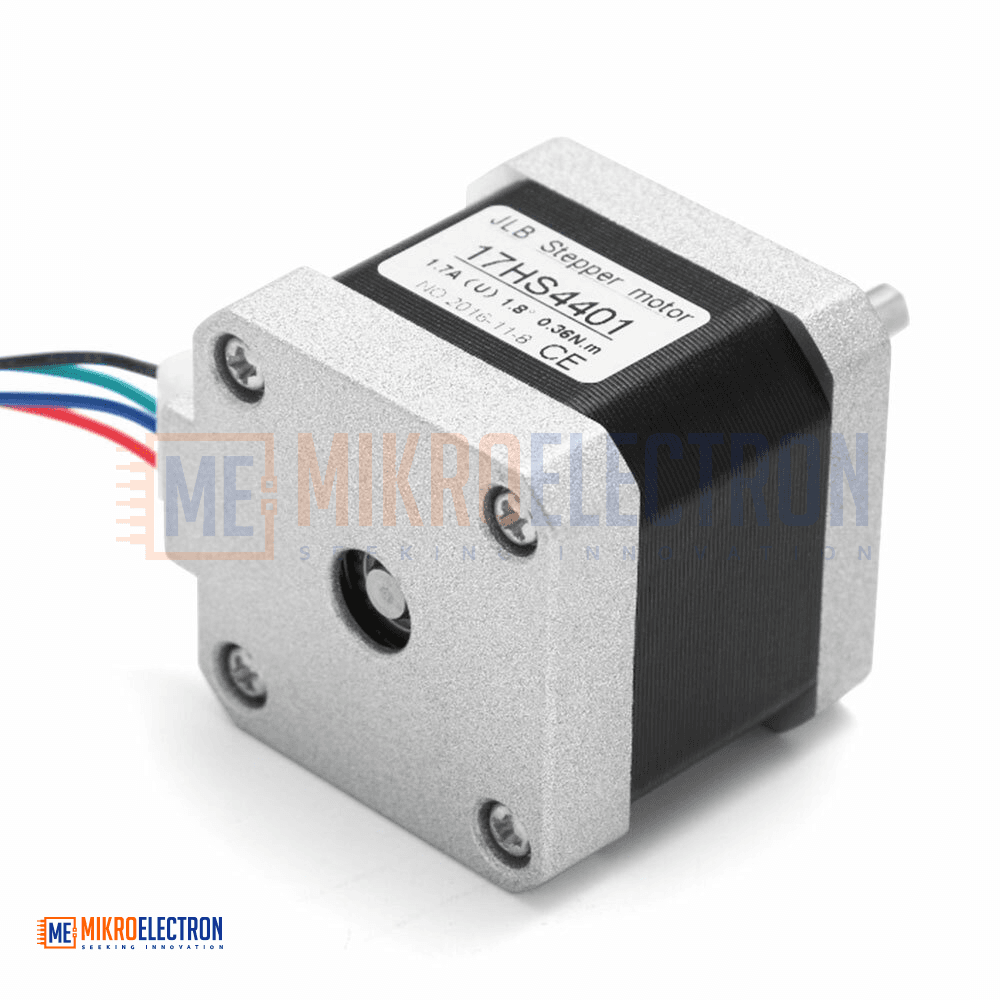

Stepper motor 1.8° per step, 1.7 A, 0.36 N.m ( NEMA17 ) 17HS4401
The NEMA17 17HS4401 Stepper Motor is a compact and high-performance bipolar stepper motor designed for precision motion control applications. It features a 1.8° step angle with 200 steps per revolution, delivering accurate positioning and smooth operation. With a holding torque of 0.36 N·m and 1.7A rated current, it is compatible with popular drivers such as A4988, DRV8825, and TB6600. Ideal for CNC machines, 3D printers, robotics, camera sliders, and automation systems.
محرك الخطوات NEMA17 17HS4401 هو محرك ثنائي القطب عالي الأداء ومصمم لتطبيقات التحكم الحركي الدقيقة. يتميز بزاوية خطوة 1.8 درجة مع 200 خطوة لكل دورة لتوفير حركة سلسة ودقة عالية. يوفر عزم تثبيت يصل إلى 0.36 نيوتن.متر مع تيار تشغيل 1.7 أمبير، ويتوافق مع درايفرات مثل A4988 وDRV8825 وTB6600. مناسب للطابعات ثلاثية الأبعاد، ماكينات CNC، الروبوتات، أنظمة الأتمتة، ومنزلقات الكاميرات.
The 17HS4401 NEMA17 Stepper Motor is a reliable and compact bipolar stepper motor widely used in precision motion control systems. With a standard 1.8° step angle, the motor provides 200 steps per revolution, enabling smooth and accurate rotational movement for automation and positioning applications.
This motor delivers a strong holding torque of 0.36 N·m, making it suitable for medium-load applications such as 3D printers, CNC machines, laser engravers, robotics, camera sliders, and automation equipment. Its 1.7A current rating allows compatibility with many popular stepper motor drivers including A4988, DRV8825, TB6600, TB6560, and DRV8818.
The motor uses a 4-wire bipolar configuration, ensuring efficient operation and easy interfacing with modern stepper drivers. Its compact NEMA17 frame size makes it ideal for projects requiring both power and space efficiency.
Specifications
- Model: 17HS4401
- Motor Type: Bipolar Stepper Motor
- Form Factor: NEMA17
- Step Angle: 1.8° per step
- Steps per Revolution: 200
- Rated Current: 1.7A
- Rated Voltage: 3.4V
- Phase Resistance: 2Ω
- Phase Inductance: 3mH
- Holding Torque: 0.36 N·m (4000 g·cm / 56 oz·in)
- Detent Torque: 220 g·cm
- Rotor Inertia: 54 g·cm²
- Motor Length: 40mm
- Shaft Diameter: 5mm
- Motor Weight: 240g
- Wiring Type: 4-wire bipolar
Applications
- CNC machines
- 3D printers
- Laser engraving machines
- Robotics projects
- Camera sliders
- Automation systems
- XY positioning systems
- DIY motion control projects
- Industrial control equipment
- Precision movement applications
