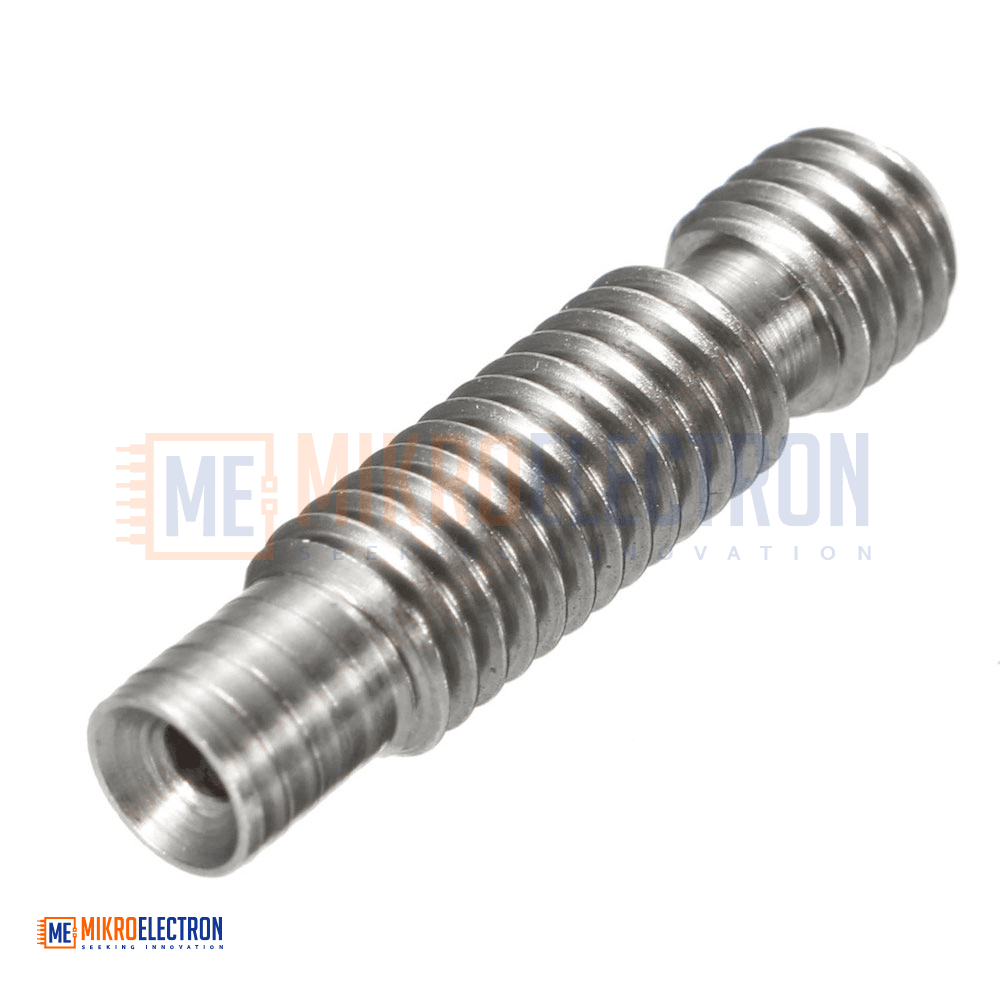

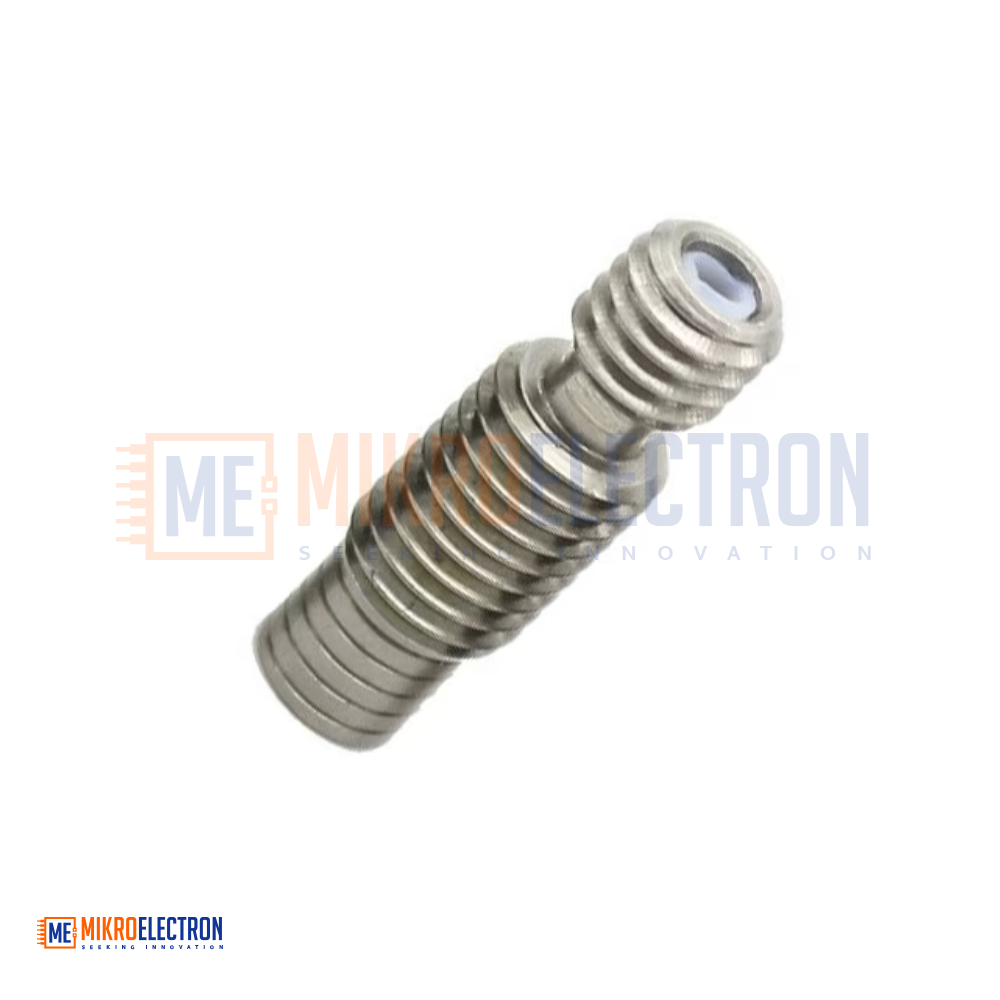

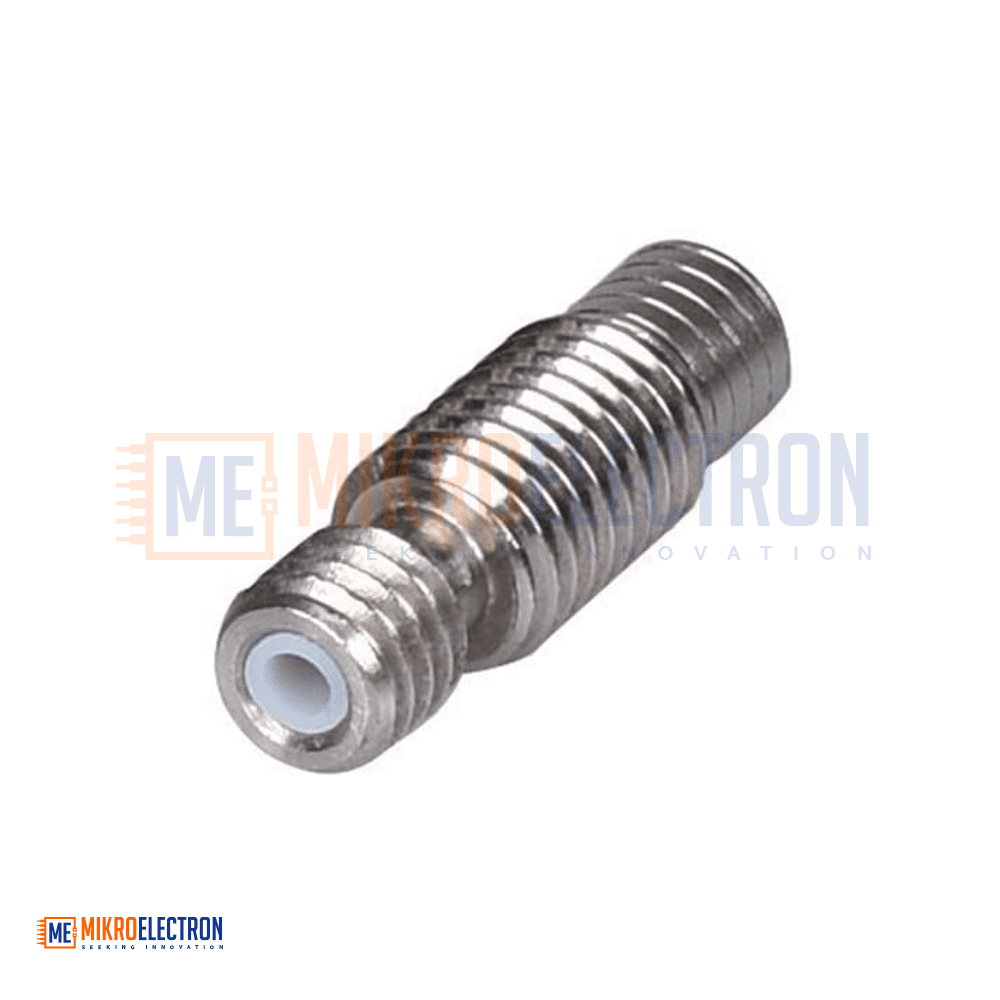

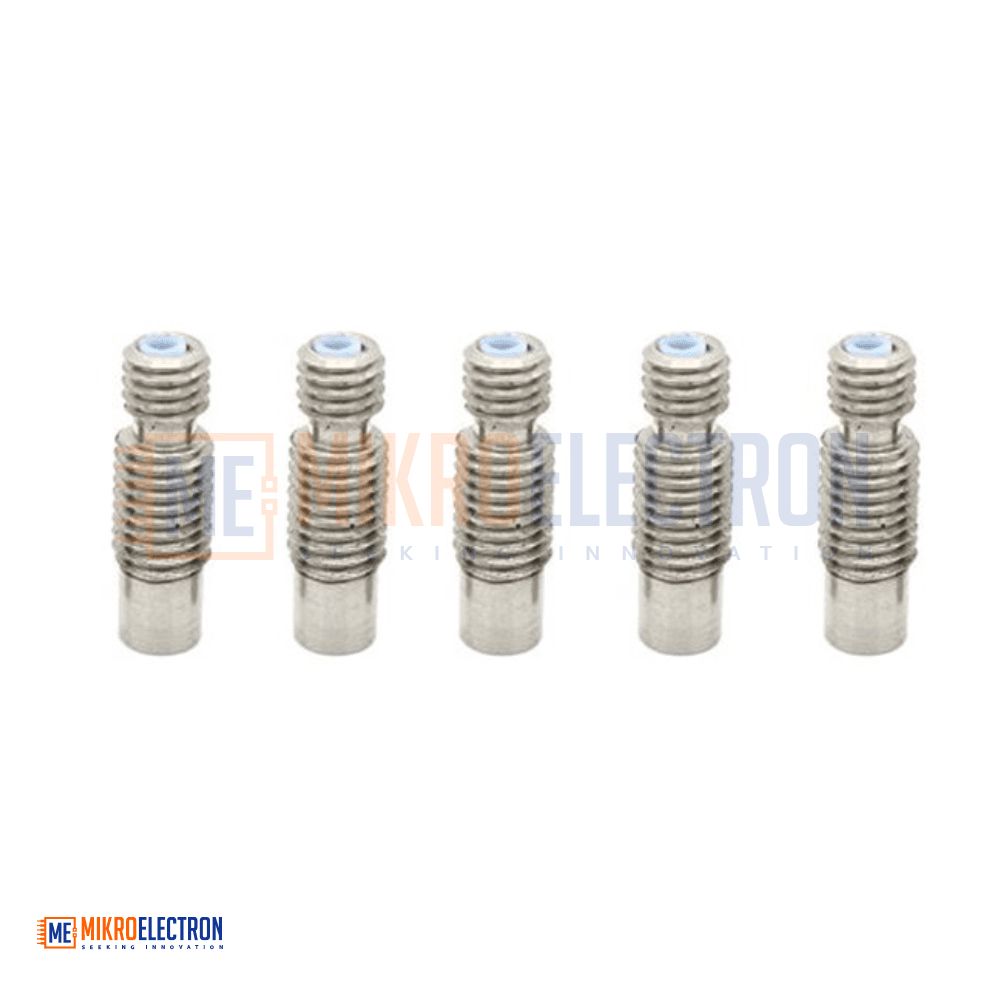

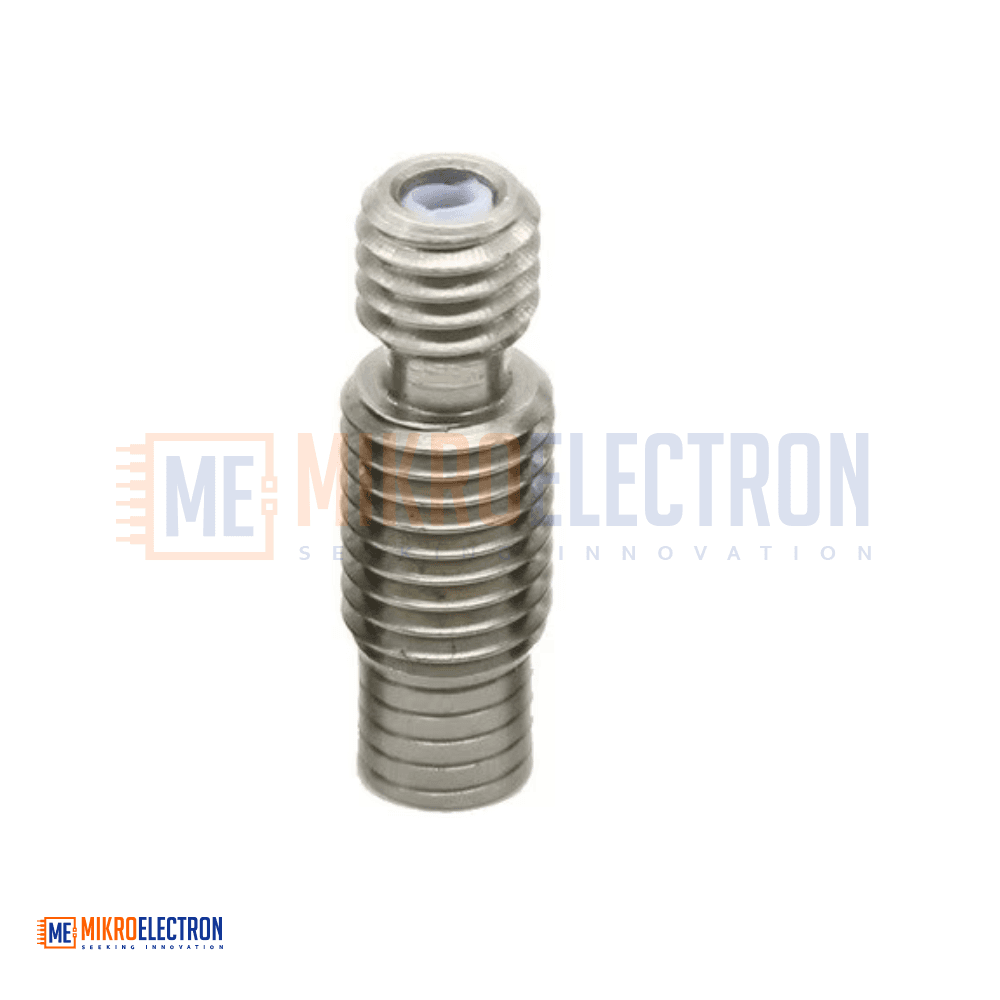

V6 Direct Heat Break Hotend Throat With Teflon Tube for 1.75mm Filament
The V6 Direct Heat Break Hotend Throat with PTFE (Teflon) tube is designed for 1.75mm filament 3D printers using direct drive extruders. Made of stainless steel with internal PTFE liner to reduce friction and prevent clogs. Provides excellent thermal isolation between heater block and heatsink. Compatible with V6/E3D-style hotends (Creality, Anet, Prusa). Ideal upgrade or replacement part.
عنق الخرطوشة الساخن V6 Direct Heat Break مع أنبوب PTFE (تيفلون) مصمم لخيط 1.75 مم في طابعات ثلاثية الأبعاد ذات بثق مباشر. مصنوع من الفولاذ المقاوم للصدأ مع بطانة PTFE داخلية لتقليل الاحتكاك ومنع الانسداد. يوفر عزلاً حرارياً ممتازاً بين كتلة التسخين والمبدد الحراري. متوافق مع خراطيش V6/E3D (Creality, Anet, Prusa). قطعة ترقية أو استبدال مثالية.
The V6 Direct Heat Break Hotend Throat is a precision component for 3D printers using 1.75mm filament and direct drive extruder configurations. It replaces the standard throat in V6-style hotends. The heat break features a stainless steel outer body that provides mechanical strength and excellent thermal isolation, preventing heat from migrating upward from the heater block to the heatsink. Inside, a smooth PTFE (Teflon) liner reduces friction on the filament, ensuring consistent feeding and minimizing clogging, especially with flexible materials or long retraction moves. The bi-metal design (steel with PTFE) creates a clean thermal transition zone, which is critical for reliable extrusion, sharp retraction response, and high-quality prints. This heat break is compatible with all V6/E3D-style hotends found on Creality (Ender 3, CR-10), Anet, Prusa (clones), and many other printers. Threads are M6 on both ends (typically one end for heat sink, one for heater block). The internal diameter is approximately 2mm, ideal for 1.75mm filament. This component is an excellent upgrade to improve print consistency or as a direct replacement for worn or clogged parts.
Specifications
| Parameter | Value |
|---|---|
| Product Type | V6 Direct Heat Break / Throat |
| Filament Size | 1.75mm |
| Material | Stainless steel with PTFE (Teflon) liner |
| Compatibility | V6, E3D-style hotends, direct drive extruders |
| Internal Diameter | ~2mm (for 1.75mm filament) |
| Outer Diameter (threads) | M6 |
| Length | ~22mm (standard for V6) |
| Weight | Approx. 5g |
| Thermal Performance | Excellent insulation between heater block and heatsink |
Applications
Upgrading Creality Ender 3 / CR-10 hotends – Replaces stock throat for more reliable printing
Anet A8 / A10 printers – Direct fit for V6-style conversions
Prusa i3 clones and originals – Improves thermal management and reduces jams
Direct drive extruder setups – Works with Micro Swiss, BMG, Titan, or stock extruders
Printing with flexible filaments (TPU, TPE) – PTFE liner reduces friction and binding
High-retraction printing (PETG, ABS) – Maintains clean melt zone for sharp retractions
Replacing worn or clogged heat breaks – Restore print quality and extrusion consistency
