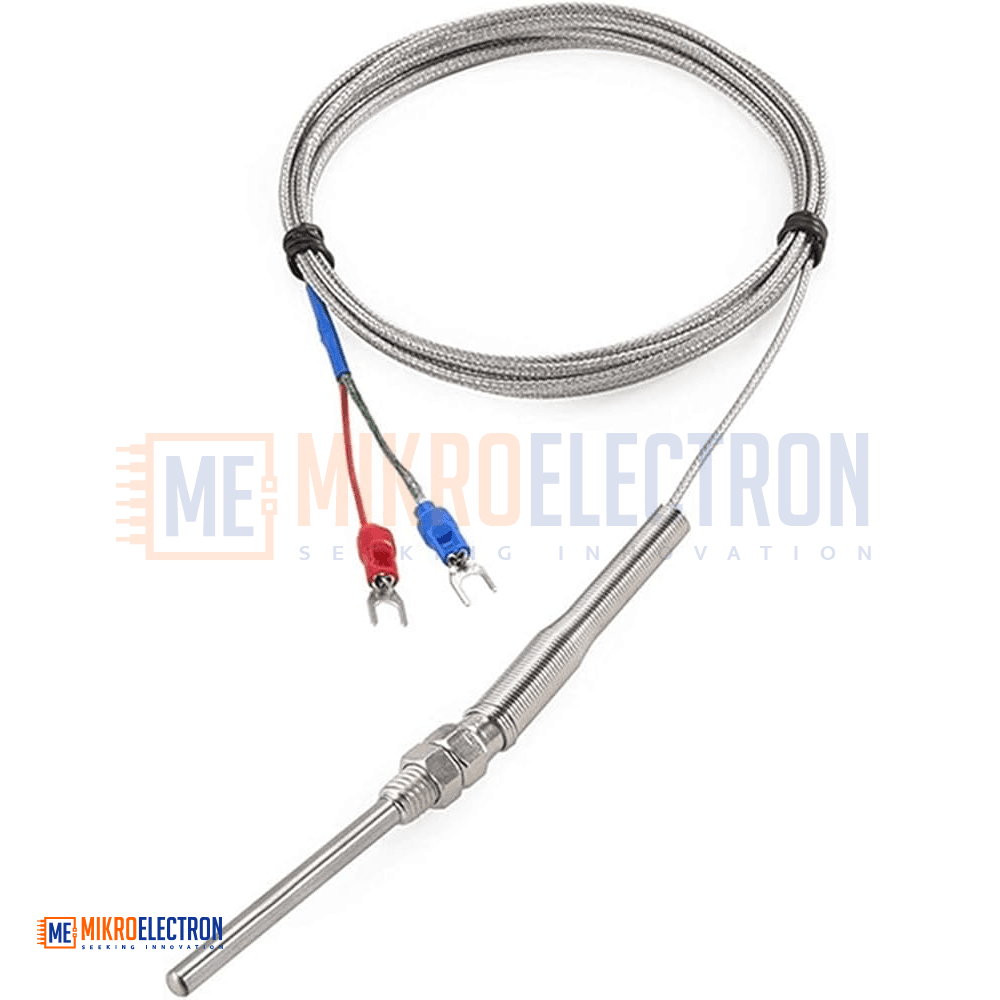

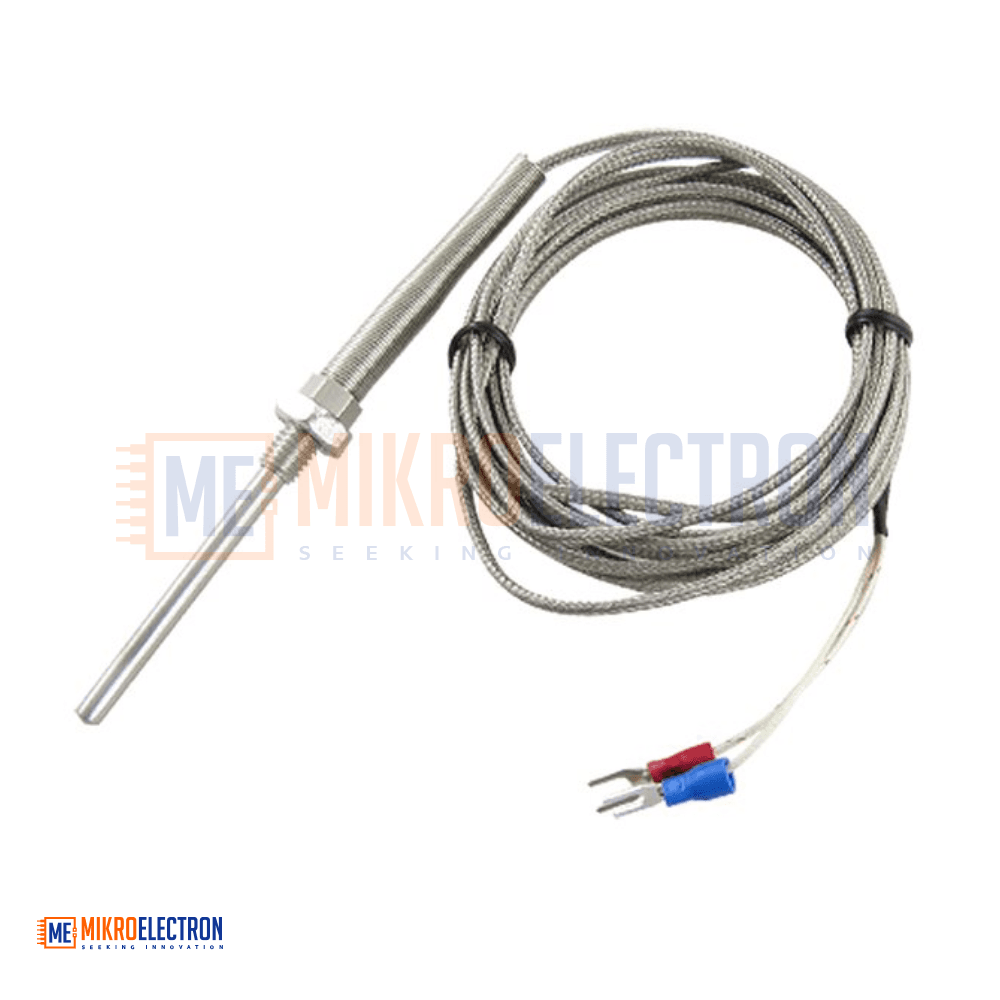

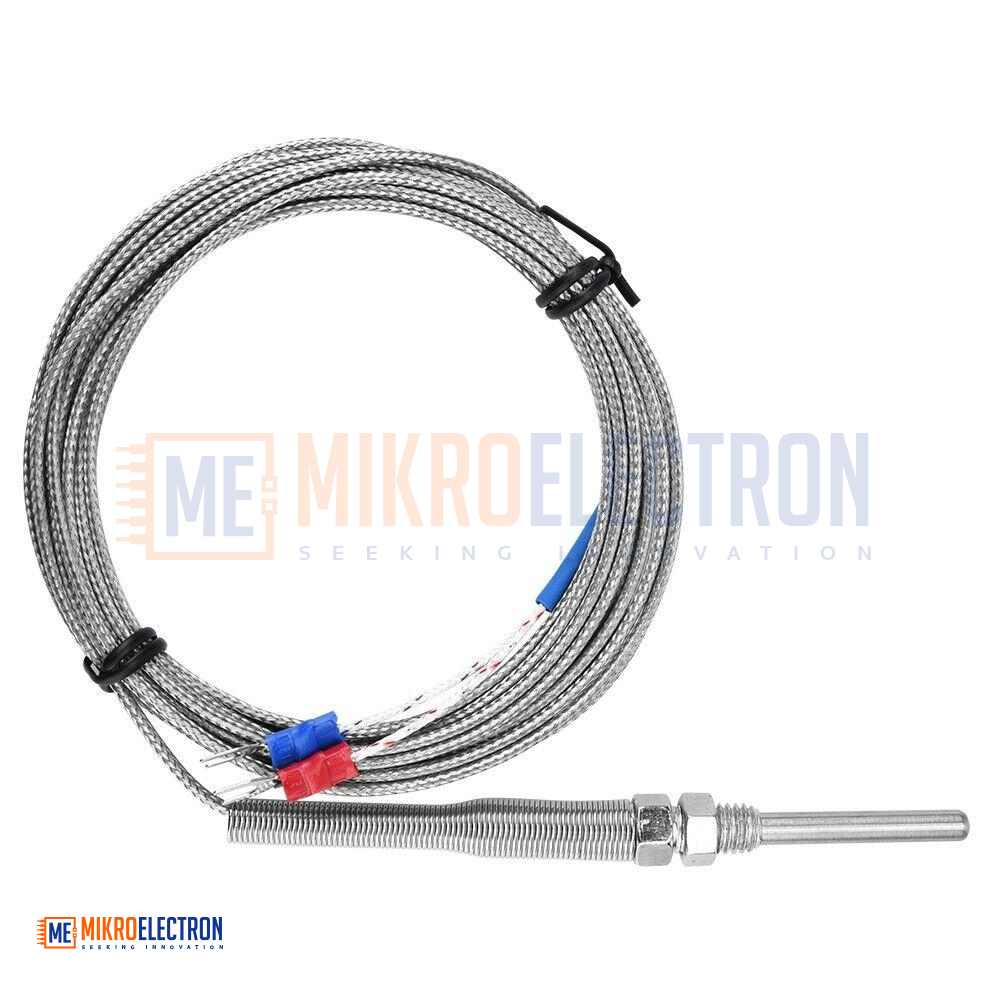

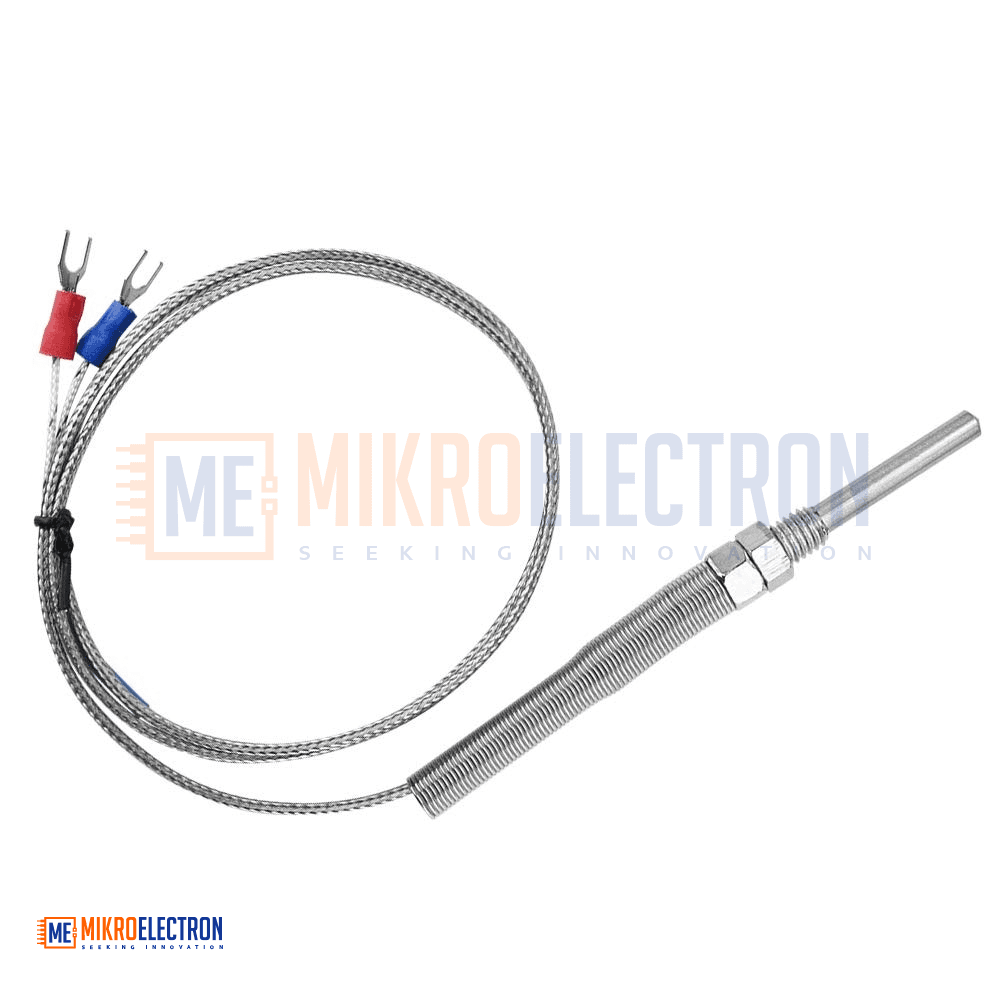

Thermocouple K type Probe Sensor Temperature M8 2meter
The K-Type Thermocouple Probe with M8 thread (or 3/8" NPT) and 2-meter cable measures temperatures from 0°C to 400°C. Stainless steel probe with 5mm diameter and 300mm length. Ideal for industrial temperature sensing, ovens, exhausts, and liquid measurements. Fast response and durable construction. Perfect for use with K-type thermocouple controllers and digital thermometers.
مسبار ترموكوبل من النوع K بخيط M8 (أو 3/8 بوصة NPT) وكابل 2 متر يقيس درجات الحرارة من 0 درجة مئوية إلى 400 درجة مئوية. المسبار من الفولاذ المقاوم للصدأ بقطر 5 مم وطول 300 مم. مثالي لاستشعار درجة الحرارة الصناعية والأفران والعوادم والسوائل. استجابة سريعة وهيكل متين. مناسب للاستخدام مع وحدات تحكم الترموكوبل من النوع K ومقاييس الحرارة الرقمية.

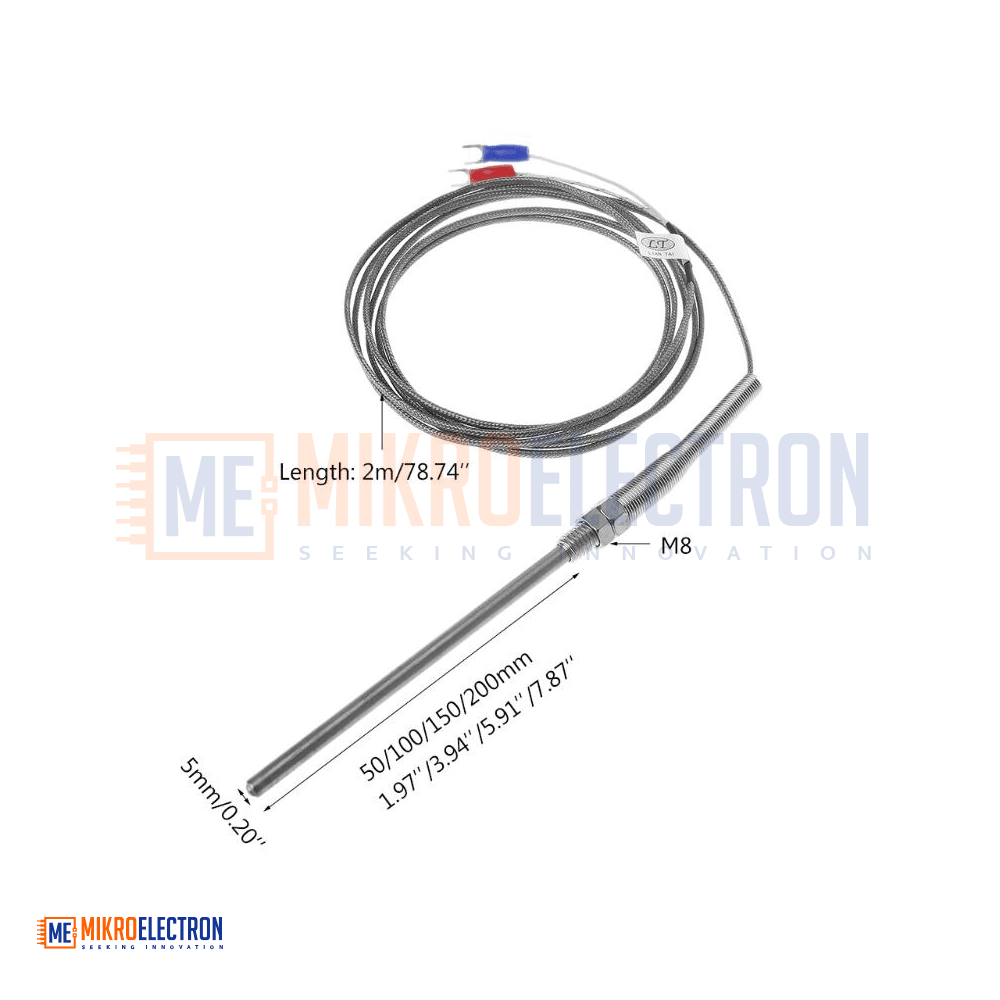

The K-Type Thermocouple Probe is a temperature sensor designed for accurate measurement in demanding environments. It uses the Type K thermocouple (Nickel-Chromium / Nickel-Alumel), which is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C. This probe is rated for an operating range of 0°C to 400°C (32°F to 752°F). The probe body is constructed from stainless steel (5mm diameter, 300mm length), providing excellent corrosion resistance and mechanical strength for industrial applications. The threaded connection is specified as 3/8" NPT (National Pipe Thread) which ensures a leak-tight seal when installed into tanks, pipes, or ovens – the product title also mentions M8, potentially referring to a different thread or a separate variant; verify before use. A 2-meter (approximately 6.6 feet) insulated cable extends from the probe, terminating in bare leads or a standard connector (often a miniature two-pin plug for K-type). The stainless steel sheath offers fast thermal response while protecting the internal thermocouple junction. This probe is compatible with any K-type thermometer, temperature controller, or data logger.
Specifications
| Parameter | Value |
|---|---|
| Thermocouple type | K (Nickel-Chromium / Nickel-Alumel) |
| Operating temperature range | 0°C to 400°C (32°F to 752°F) |
| Probe material | Stainless Steel |
| Probe diameter | 5 mm (0.196 inch) |
| Probe length | 300 mm (3.937 inches / 11.8 inches) |
| Thread size (as provided) | 3/8" NPT (title mentions M8 – confirm actual thread) |
| Cable length | 2 meters (approx. 6.6 feet) |
| Cable type | High-temperature insulated thermocouple wire |
| Connector type | Bare wires or optional miniature K-type plug (verify) |
| Accuracy | Class 2 (typical ±2.2°C or ±0.75% of reading) |
Applications
Industrial temperature monitoring – Boilers, furnaces, ovens, and kilns (up to 400°C)
Exhaust gas temperature measurement – Engines, generators, and HVAC systems
Liquid and bath temperature sensing – Hot water tanks, oil baths, chemical solutions
Plastics and packaging machinery – Extruders, heat sealers, injection molding
Food processing equipment – Ovens, fryers, pasteurizers (within temperature range)
Laboratory experiments – Controlled heating applications
3D printers – Hotend or heated bed temperature monitoring (for high-temperature printers)
Temperature controllers and data loggers – Compatible with any K-type input device
