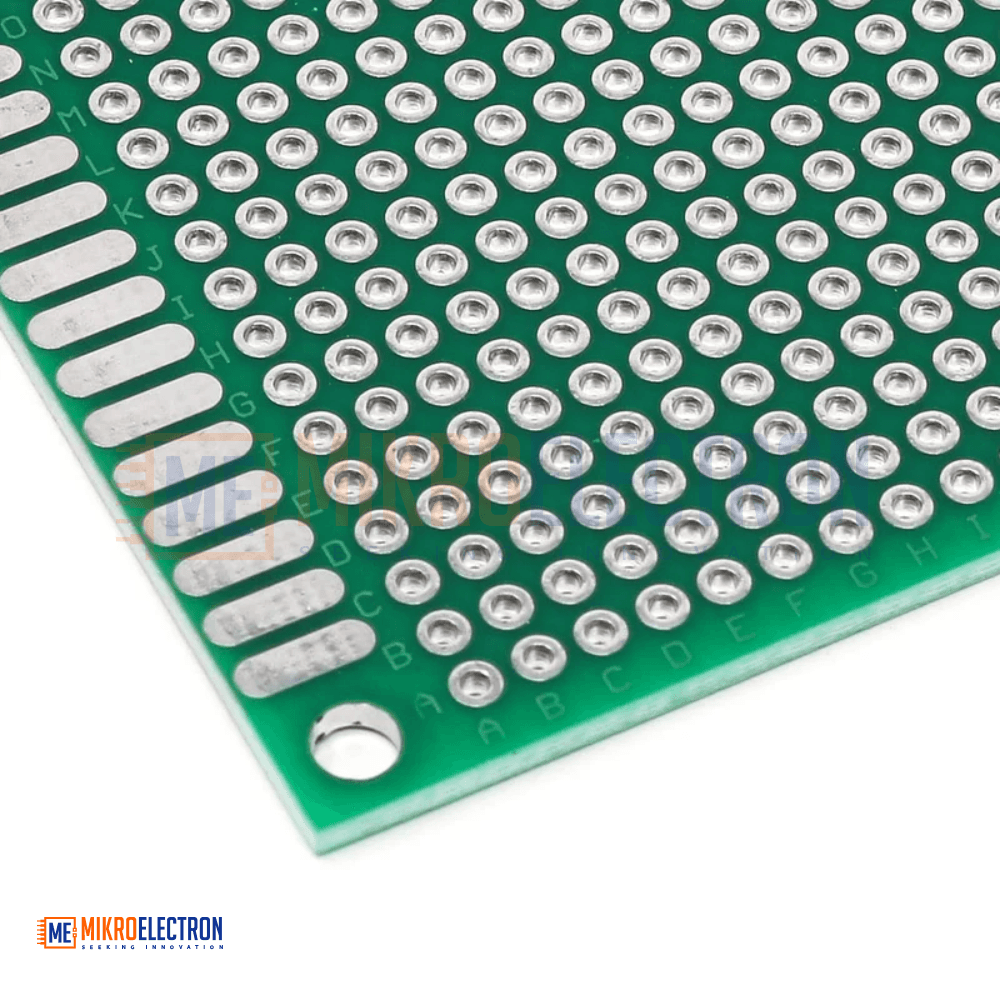

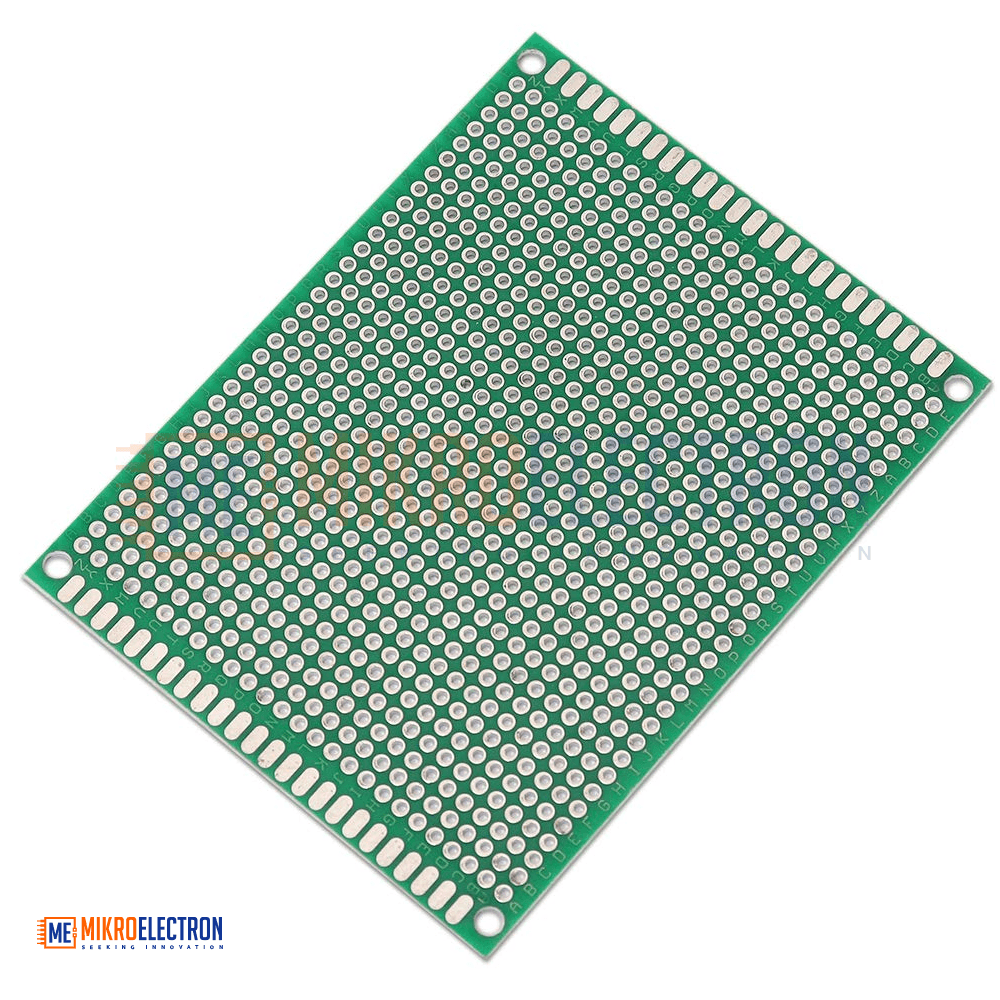

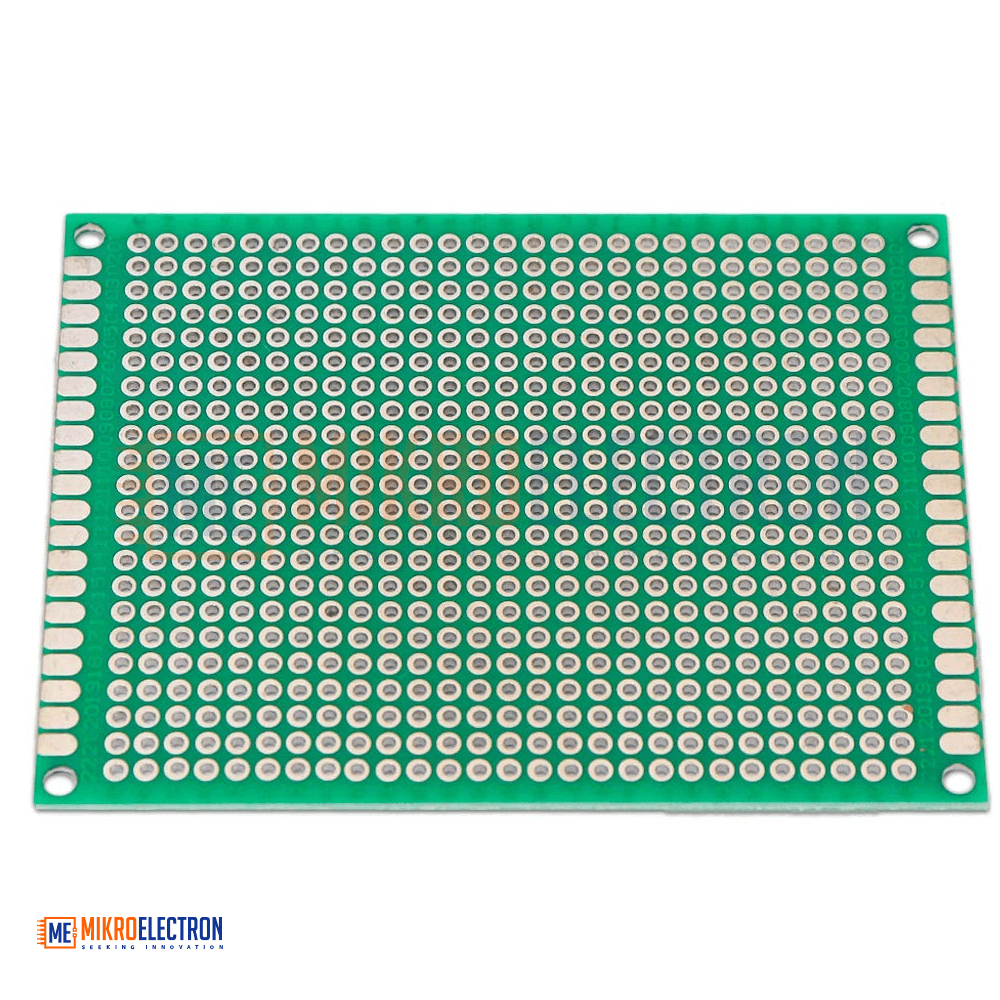

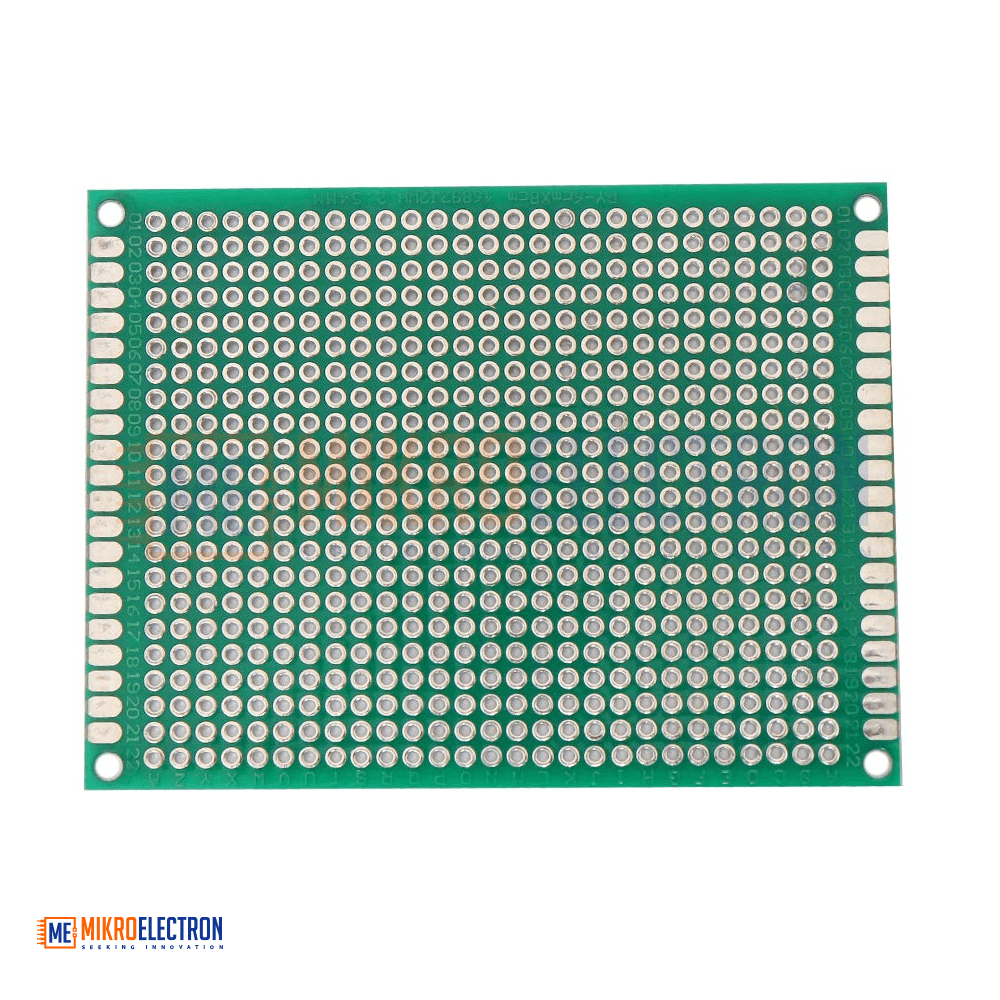

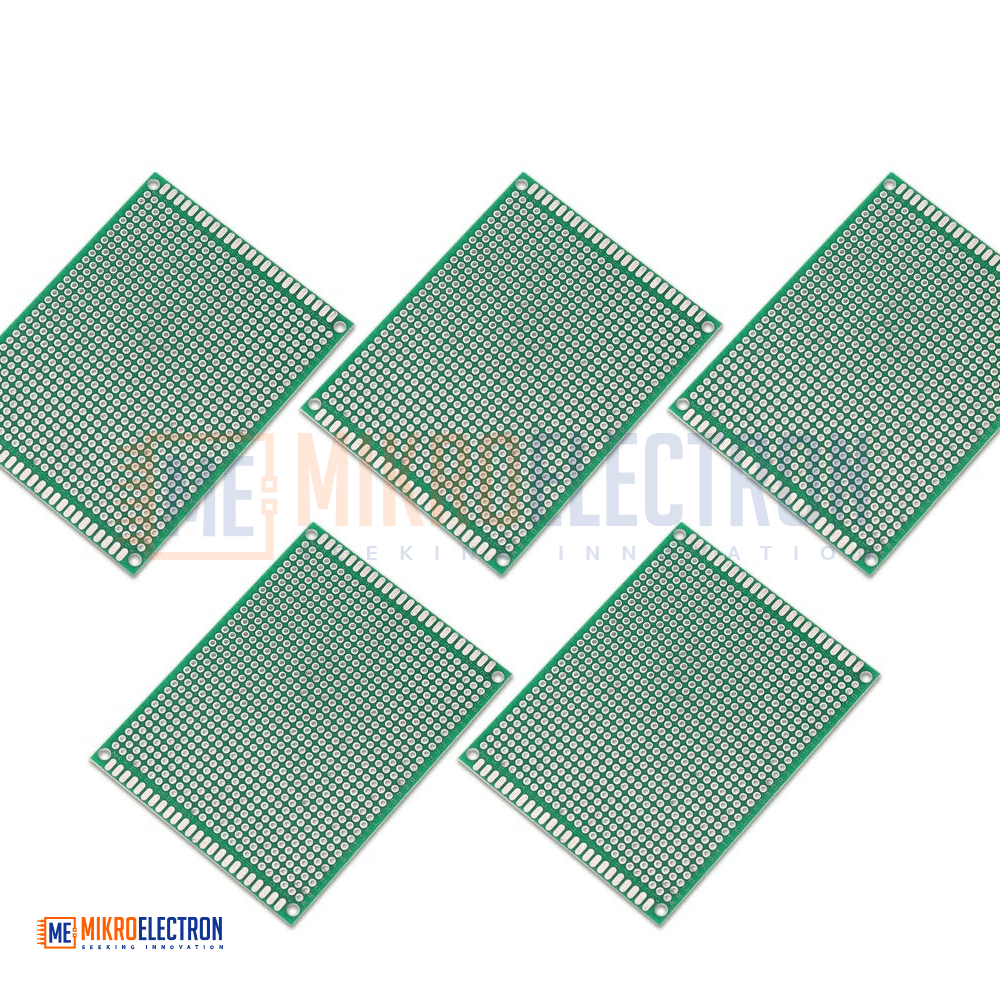

DOUBLE SIDED GREEN PCB 8x6 CM

The Double Sided Green PCB 8×6 cm is a high-quality prototyping printed circuit board designed for electronic circuit assembly and development. Built using durable FR4 fiberglass material, the board provides excellent electrical insulation, heat resistance, and long-lasting mechanical strength.

The PCB features conductive copper layers on both sides, allowing more flexible and efficient circuit routing compared to single-sided boards. This makes it suitable for compact electronic designs and medium-complexity projects where optimized component placement is important.

The board is finished with HASL (Hot Air Solder Leveling) coating, ensuring good solderability and protection against oxidation. Its standard board thickness and accurate hole spacing support a wide variety of through-hole electronic components.

With its compact 8×6 cm size, the PCB is ideal for small embedded systems, sensor circuits, robotics modules, Arduino projects, and educational electronics applications.

Specifications

• Product Type: Double Sided PCB Board

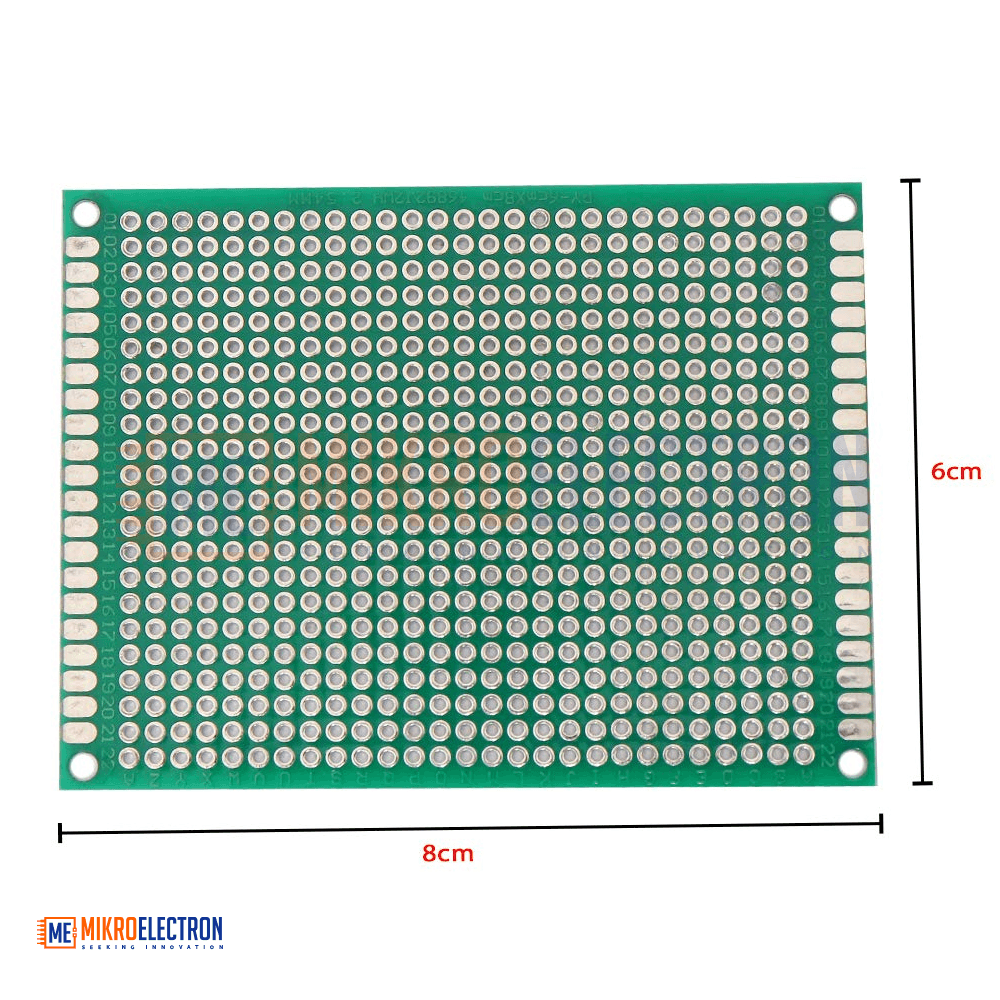

• Board Dimensions: 8 × 6 cm
• Base Material: FR4 Fiberglass
• Copper Layer: Double-sided copper
• Copper Thickness: 1 – 4 OZ
• Board Thickness: 1.6 mm
• Minimum Hole Size: 0.3 mm
• Minimum Line Width: 6 mil
• Minimum Line Spacing: 6 mil
• Surface Finishing: HASL (Hot Air Solder Leveling)
• Board Color: Green

Applications

• Electronic circuit prototyping
• Arduino and microcontroller projects
• Embedded systems development
• Robotics circuits
• DIY electronics projects
• Educational electronics experiments
• Sensor interface modules
• Power and control circuits
• Custom electronic hardware
• Industrial testing applications
