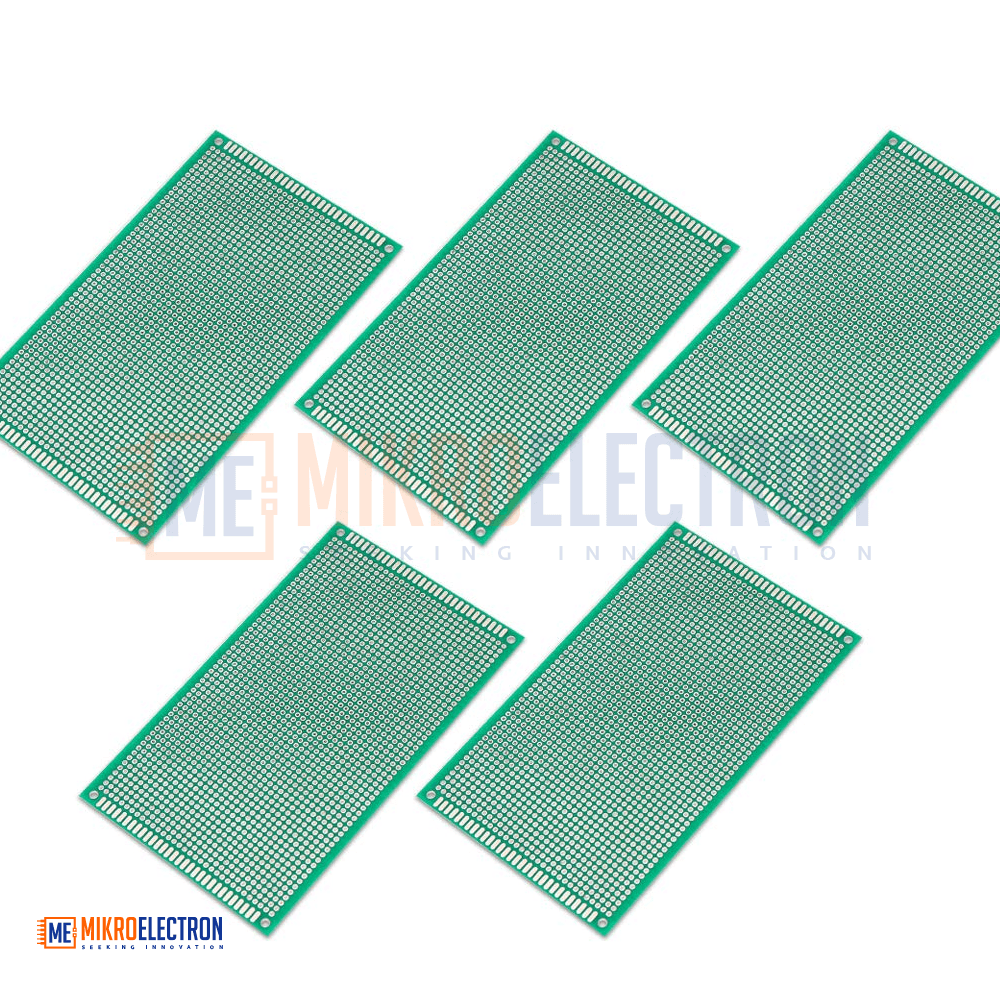

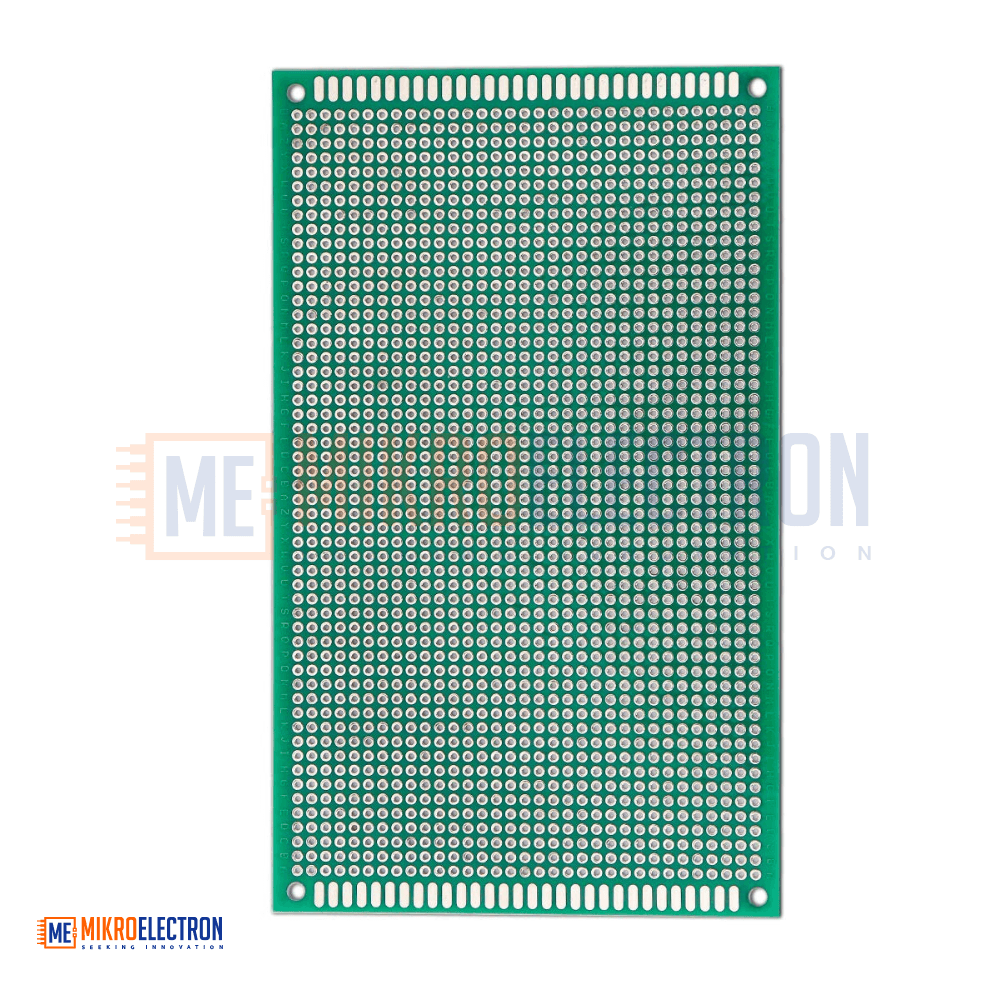

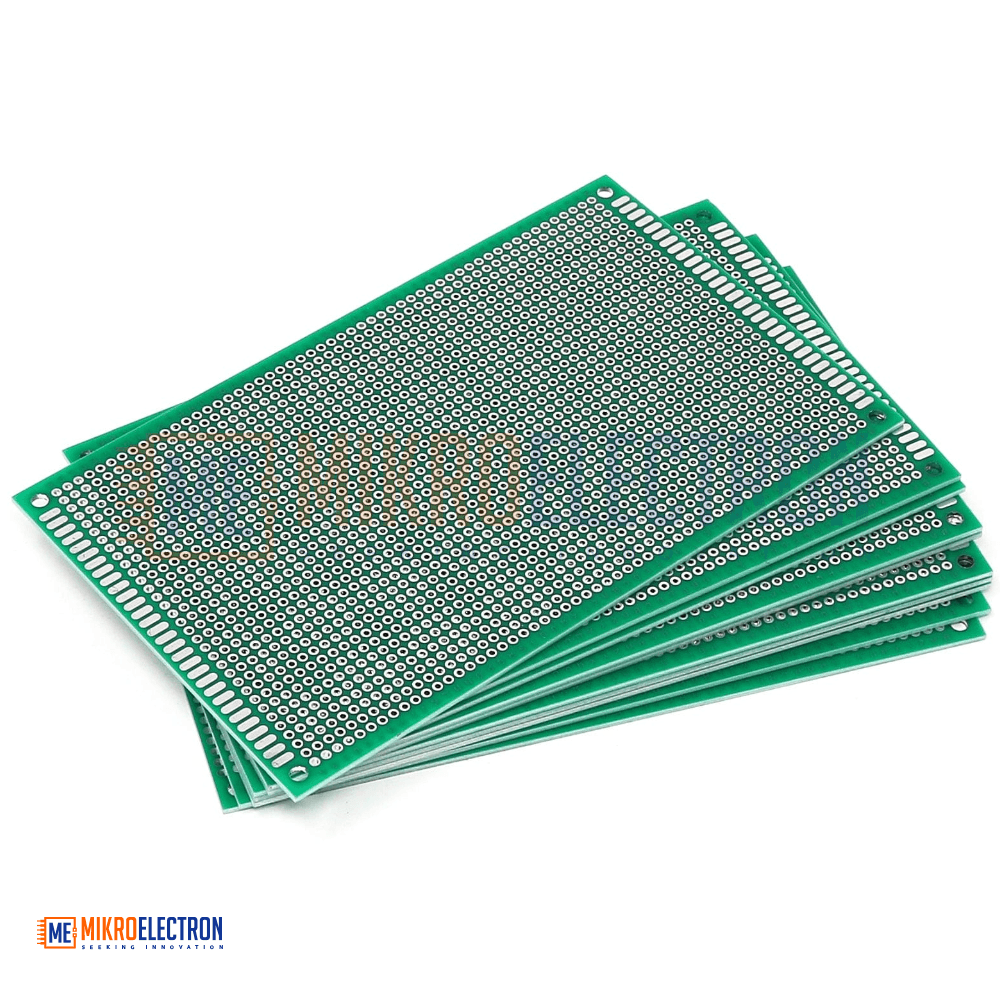

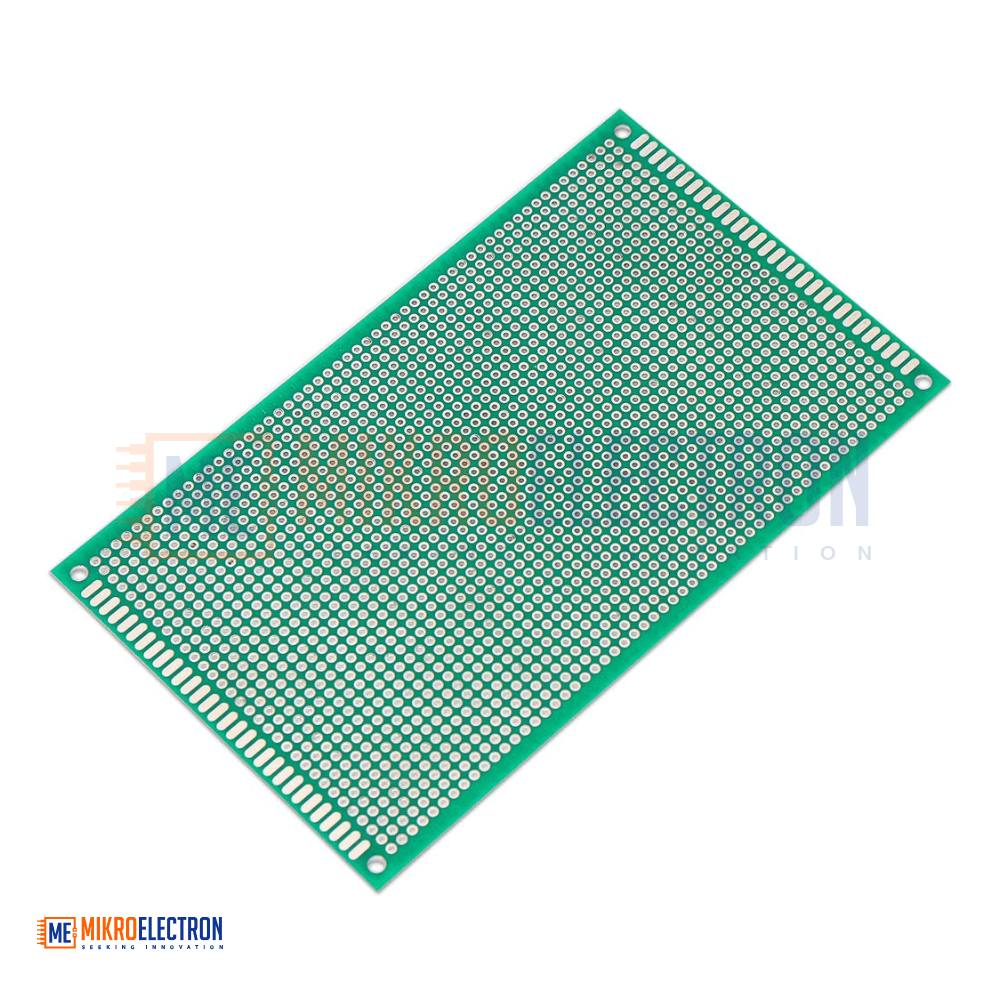

DOUBLE SIDED GREEN PCB 9x15 CM
The Double Sided Green PCB 9×15 cm is a high-quality prototyping circuit board made from durable FR4 fiberglass material with copper layers on both sides for advanced electronic circuit design. It provides reliable conductivity, excellent solderability, and strong mechanical durability. The board is suitable for Arduino projects, embedded systems, robotics, and custom electronic circuit prototyping requiring larger working space and flexible component routing.
لوحة Double Sided Green PCB 9×15 سم هي لوحة دوائر إلكترونية عالية الجودة مخصصة للنماذج الأولية، مصنوعة من مادة FR4 الفيبرجلاس مع طبقتي نحاس على الجانبين لتسهيل تصميم الدوائر الإلكترونية المتقدمة. توفر توصيلًا كهربائيًا موثوقًا وسهولة في اللحام ومتانة عالية، مما يجعلها مناسبة لمشاريع الأردوينو والروبوتات والأنظمة المدمجة وتصميم الدوائر الإلكترونية التي تحتاج إلى مساحة عمل أكبر.
The Double Sided Green PCB 9×15 cm is a professional prototyping printed circuit board designed for building and testing custom electronic circuits. Manufactured using high-strength FR4 fiberglass material, the board offers excellent durability, thermal stability, and electrical insulation for reliable electronic performance.
The PCB features conductive copper layers on both sides, allowing efficient routing of complex circuits and better component organization compared to single-sided boards. The larger 9×15 cm size provides additional workspace for advanced projects and larger circuit layouts.
The board includes a HASL (Hot Air Solder Leveling) surface finish that improves solderability and protects copper traces from oxidation. Its precise hole spacing and standard board thickness make it compatible with a wide range of through-hole electronic components.
This PCB is commonly used for Arduino circuits, robotics systems, embedded electronics, power control modules, and educational electronics projects.
Specifications
- Product Type: Double Sided PCB Board

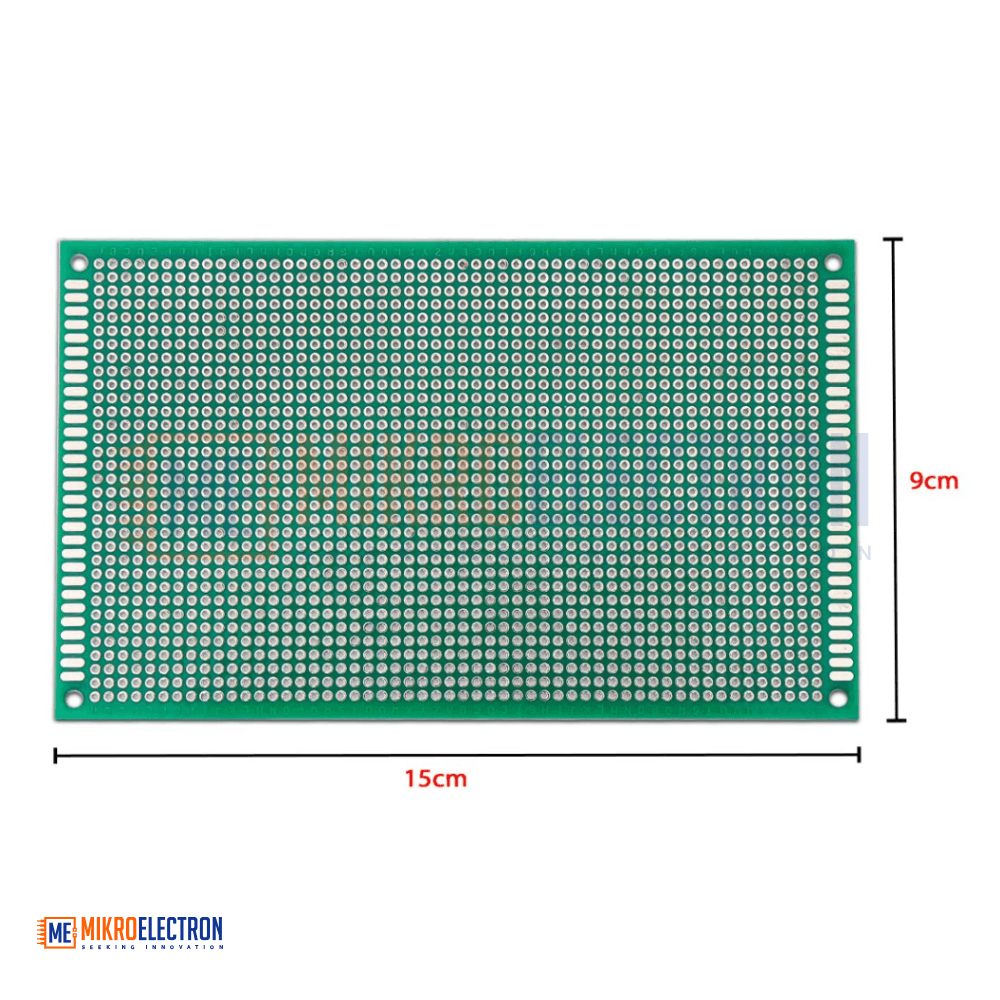

- Board Dimensions: 9 × 15 cm
- Base Material: FR4 Fiberglass
- Copper Layer: Double-sided copper
- Copper Thickness: 1 – 4 OZ
- Board Thickness: 1.6 mm
- Minimum Hole Size: 0.3 mm
- Minimum Line Width: 6 mil
- Minimum Line Spacing: 6 mil
- Surface Finishing: HASL (Hot Air Solder Leveling)
- Board Color: Green
Applications
- Electronic circuit prototyping
- Arduino and microcontroller projects
- Robotics systems
- Embedded systems development
- DIY electronics projects
- Educational and laboratory experiments
- Sensor interface circuits
- Power supply and control circuits
- Industrial electronic testing
- Custom hardware development
