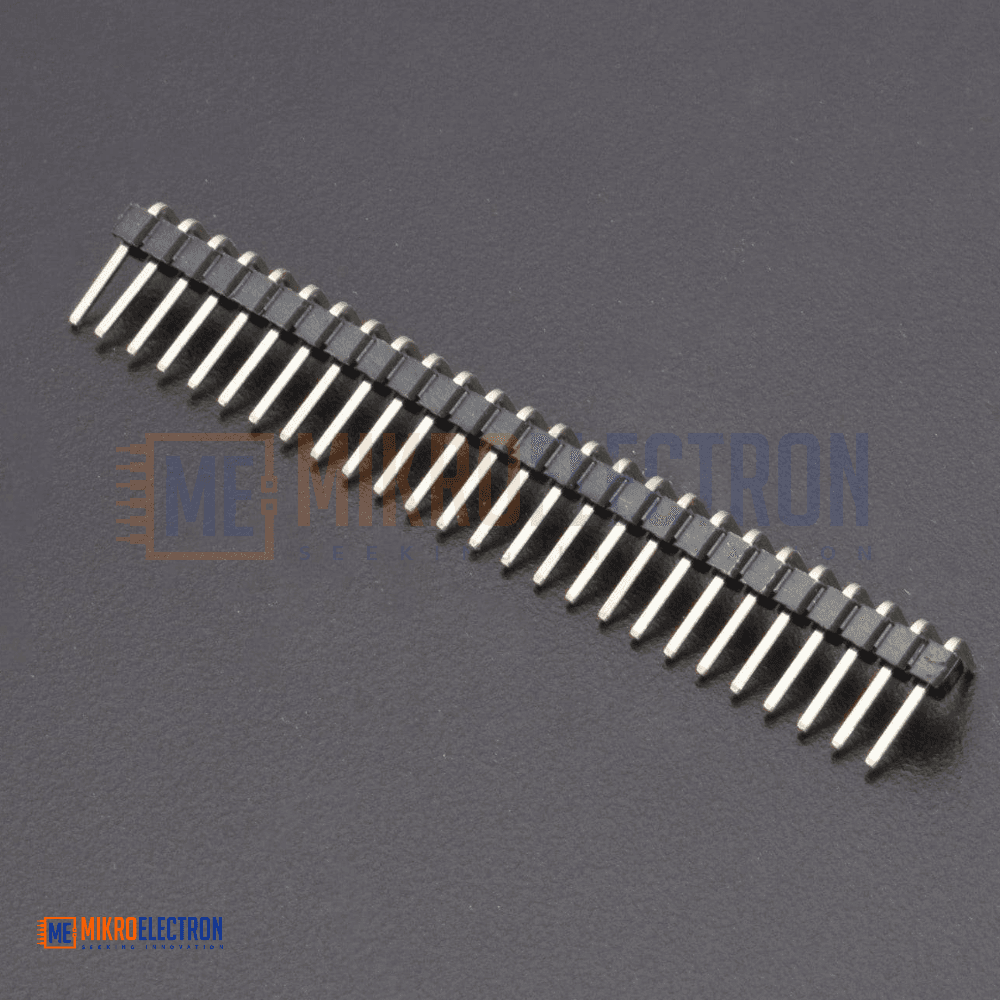

Right-angle Break away male header 90 degree 2.54 mm (40p)

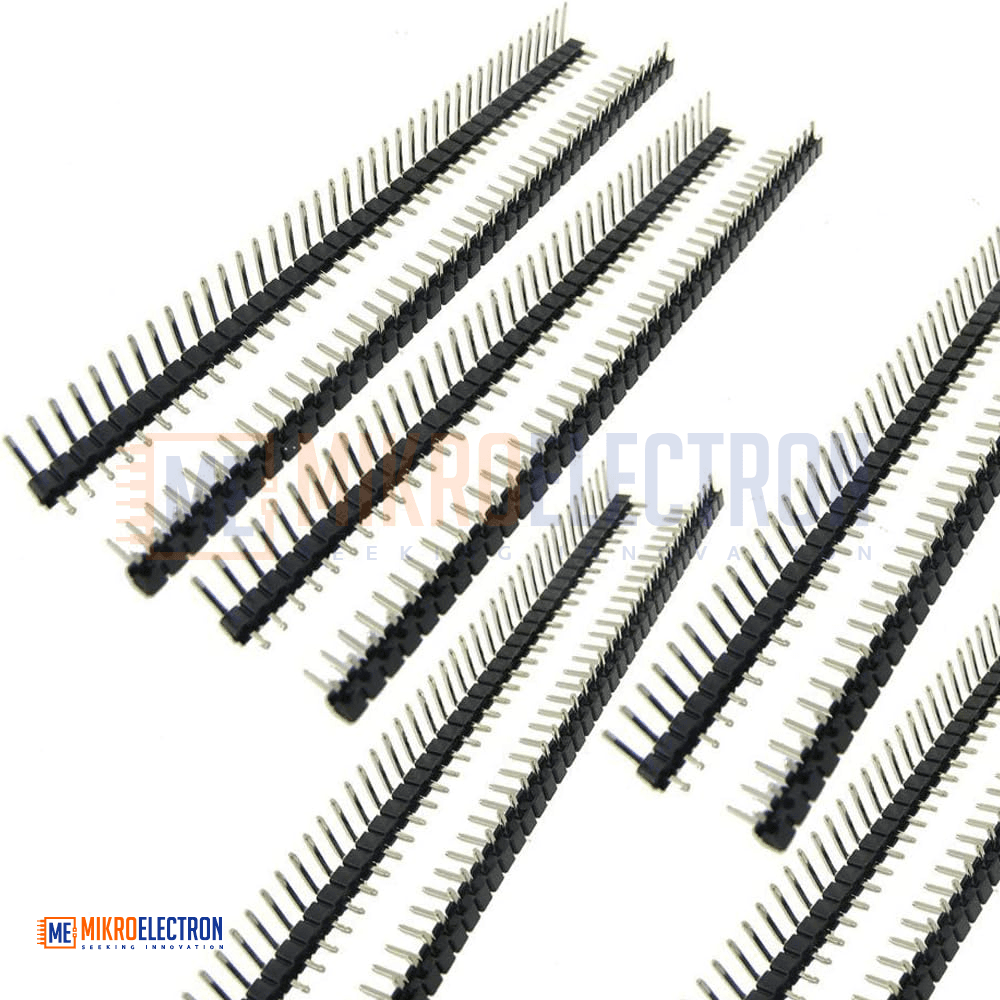

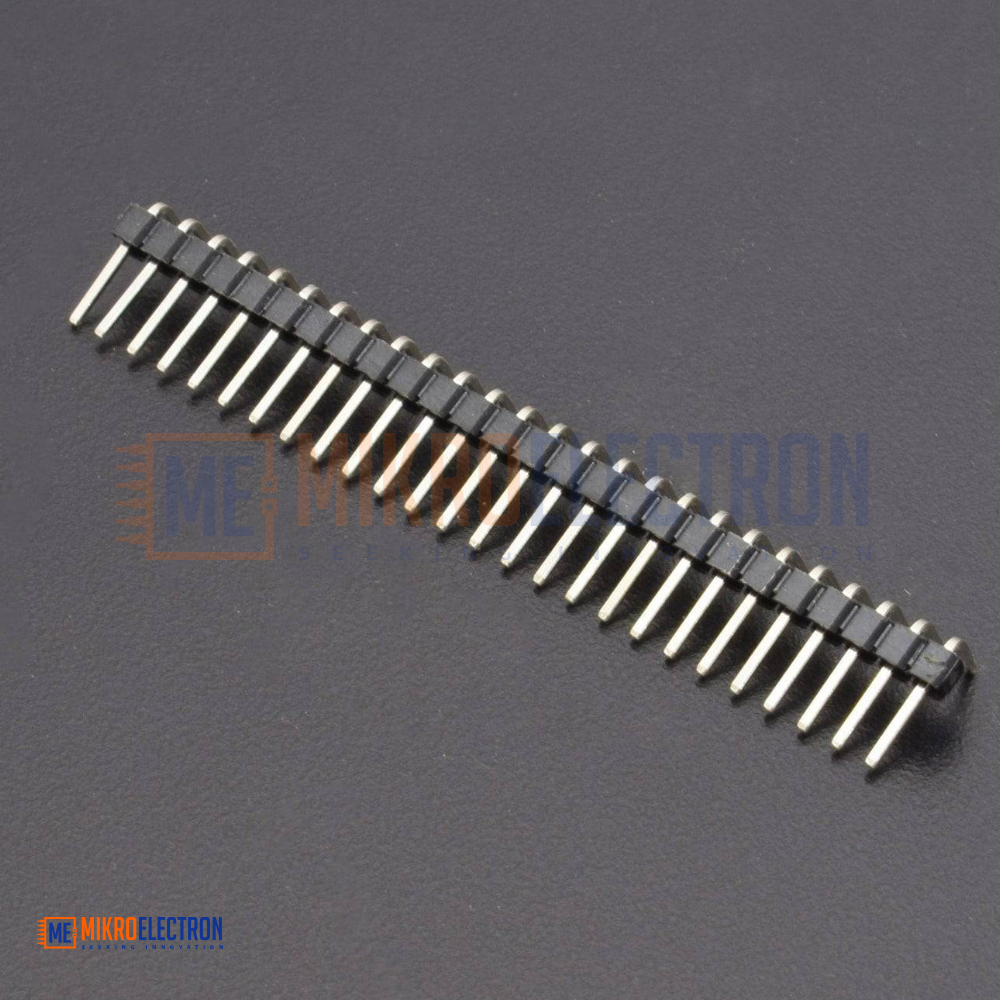

The Right-Angle Breakaway Male Header features 1×40 pins in a single row with 2.54mm spacing. 90-degree bent pins allow horizontal PCB mounting. Breakaway design lets you snap to any pin count (1-40). Made of male pins with standard 0.025 inch square post. Perfect for Arduino shields, sensor modules, and board-to-wire connections. Compatible with breadboards and female headers
الرأس الذكري ذو الزاوية القائمة القابل للكسر يتميز بـ 1×40 دبوساً في صف واحد بمسافة 2.54 مم. زاوية 90 درجة تسمح بالتركيب الأفقي على PCB. تصميم قابل للكسر يمكنك من قص العدد المطلوب من الدبابيس (1-40). مصنوع من دبابيس ذكورية قياسية. مثالي لدروع الأردوينو ووحدات الاستشعار. متوافق مع اللوحات التجريبية والرؤوس الأنثوية.

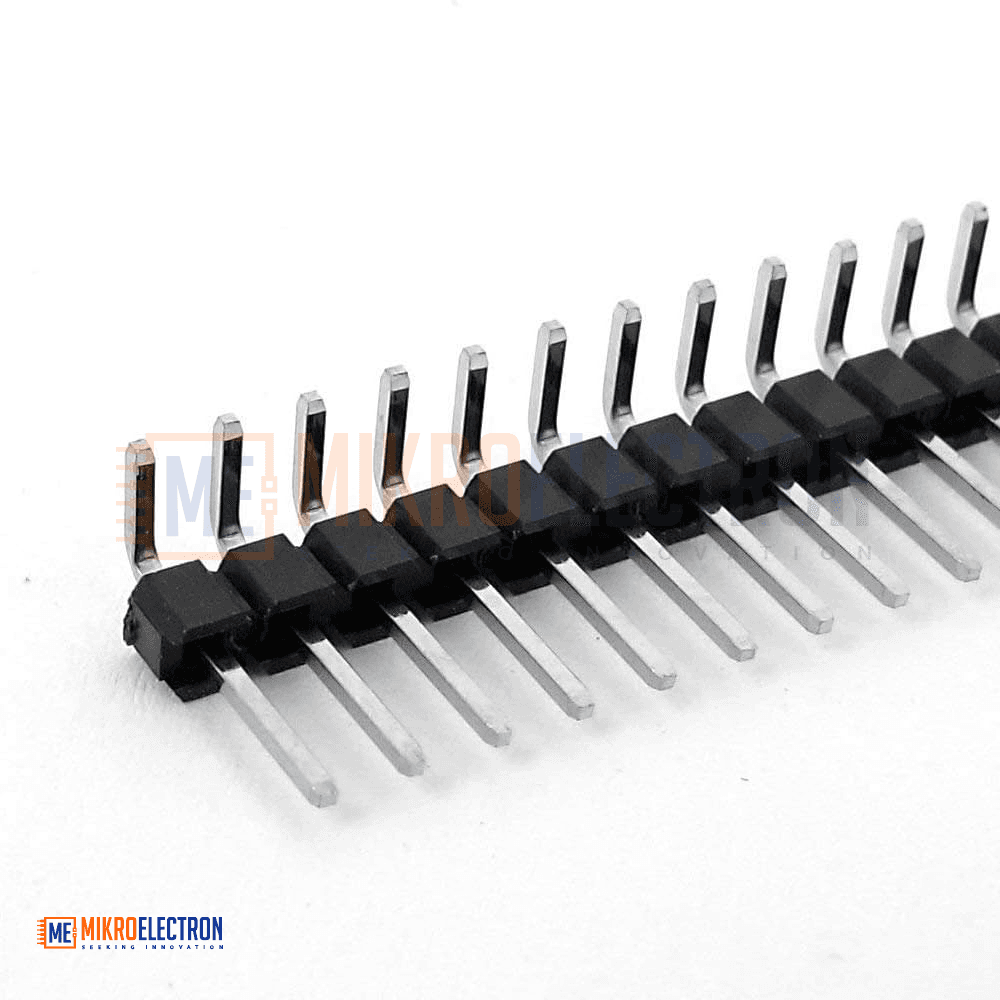

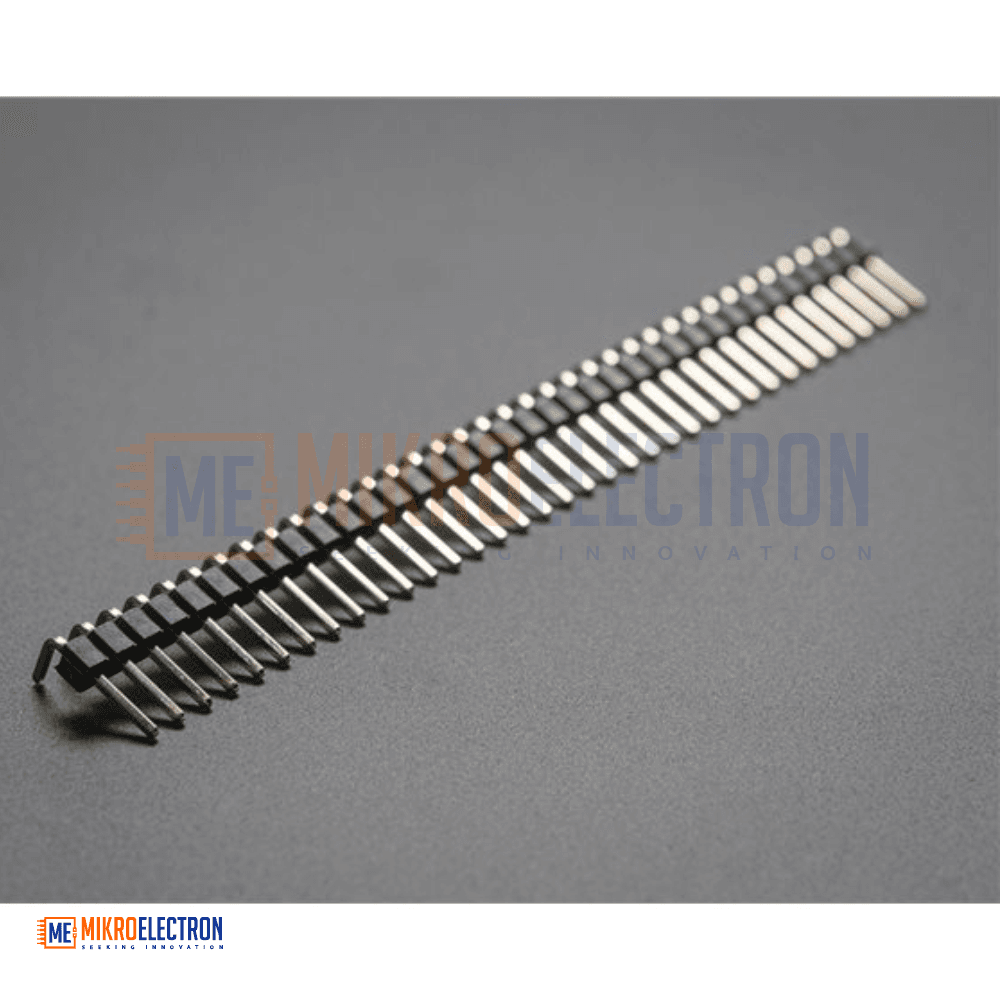

The Right-Angle Breakaway Male Header is a versatile connector component for PCB and electronics projects. It consists of 40 pins arranged in a single row (1×40 configuration) with standard 2.54mm (0.1 inch) pitch – the most common spacing for breadboards, perfboards, and Arduino-compatible boards. The pins are bent at a 90-degree angle, allowing the header to be soldered horizontally onto a PCB, with pins extending perpendicular to the board surface. This is ideal for edge connectors, board-to-board stacking where boards are perpendicular, or creating right-angle female header interfaces. The breakaway (also called snap-off) design features scored notches between each pin, enabling you to snap off any number of pins (1 to 40) using pliers or your fingers – no cutting tools required. Each male pin is a 0.025 inch (0.635 mm) square post, gold-plated or tin-plated for corrosion resistance and reliable electrical contact. These headers are commonly used as shield connectors (Arduino Uno shields), sensor module interfaces (e.g., for HC-SR04 ultrasonic sensors), or programming ports.

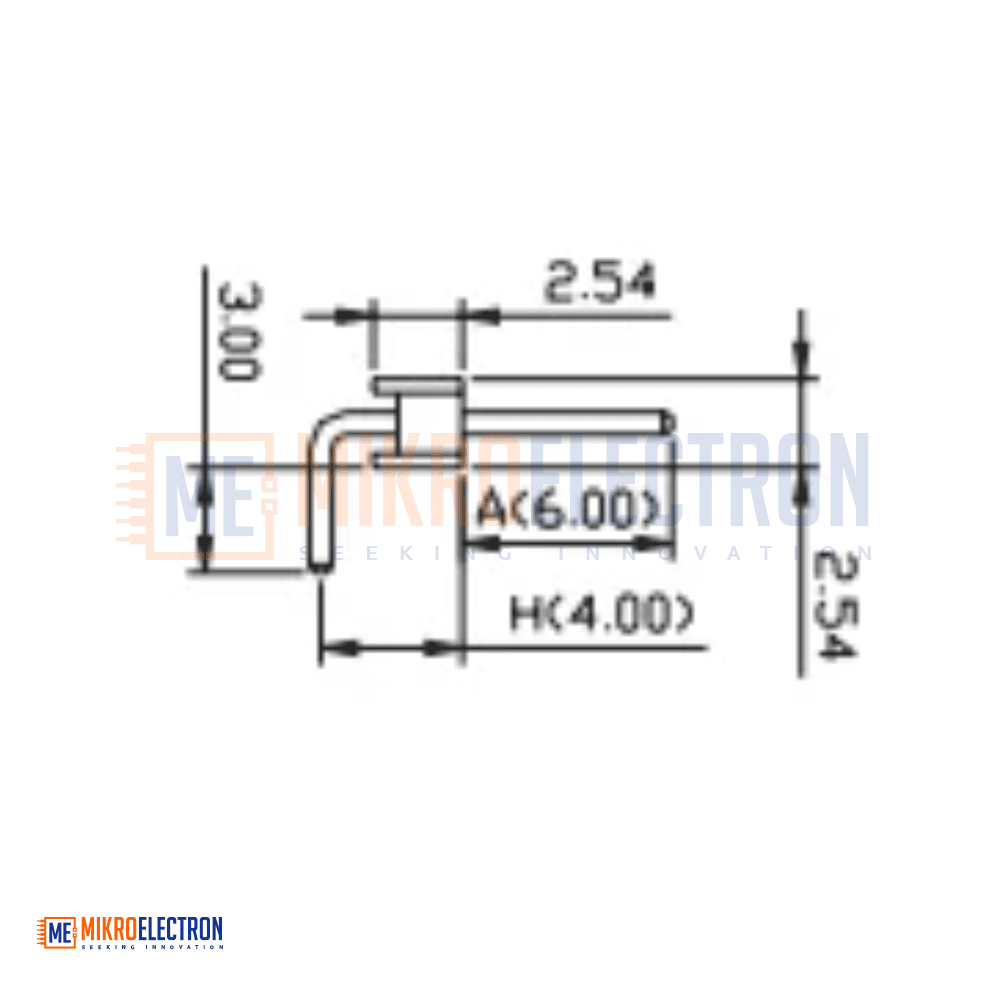

Specifications
| Parameter | Value |
|---|---|
| Type | Right-angle breakaway male header |
| Configuration | 1×40 pins (single row) |
| Pin count | 40 pins (breakable to any smaller count) |
| Pitch (spacing) | 2.54 mm (0.1 inch) |
| Angle | 90 degrees (right-angle) |
| Pin shape | Square post, 0.025 inch (0.635 mm) |
| Pin length (long side) | Approx. 6 mm to 8 mm (solder side) |
| Pin length (short side) | Approx. 3 mm to 4 mm (mating side) |
| Material | Phosphor bronze or brass with tin/gold plating |
| Insulator material | High-temperature plastic (PA46 or PBT) |
| Breakable | Yes – scored between each pin |
Applications
Arduino shield and breakout board connectors – Solder horizontally for perpendicular shield mounting
Sensor module interfaces – HC-SR04, joystick modules, LCD keypads
PCB edge connectors – For boards that insert into card slots or external connectors
Right-angle board-to-board connections – Connect two PCBs at 90 degrees without wires
DIY breadboard adapters – Create custom right-angle headers for compact layouts
Jumper and programming ports – For ICSP, UART, or SWD debug interfaces
Replacing damaged headers – Repair broken connectors on electronics
Prototyping custom shields – Match any pin count from 1 to 40
