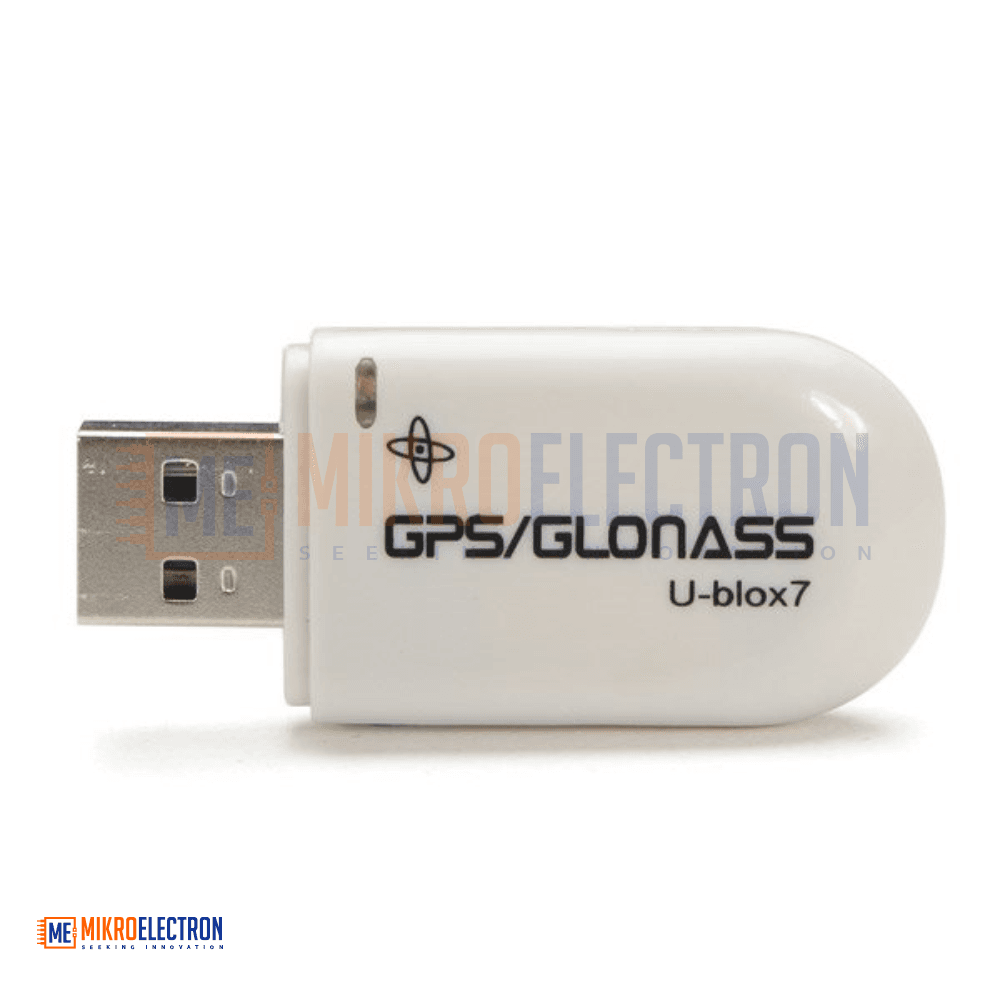

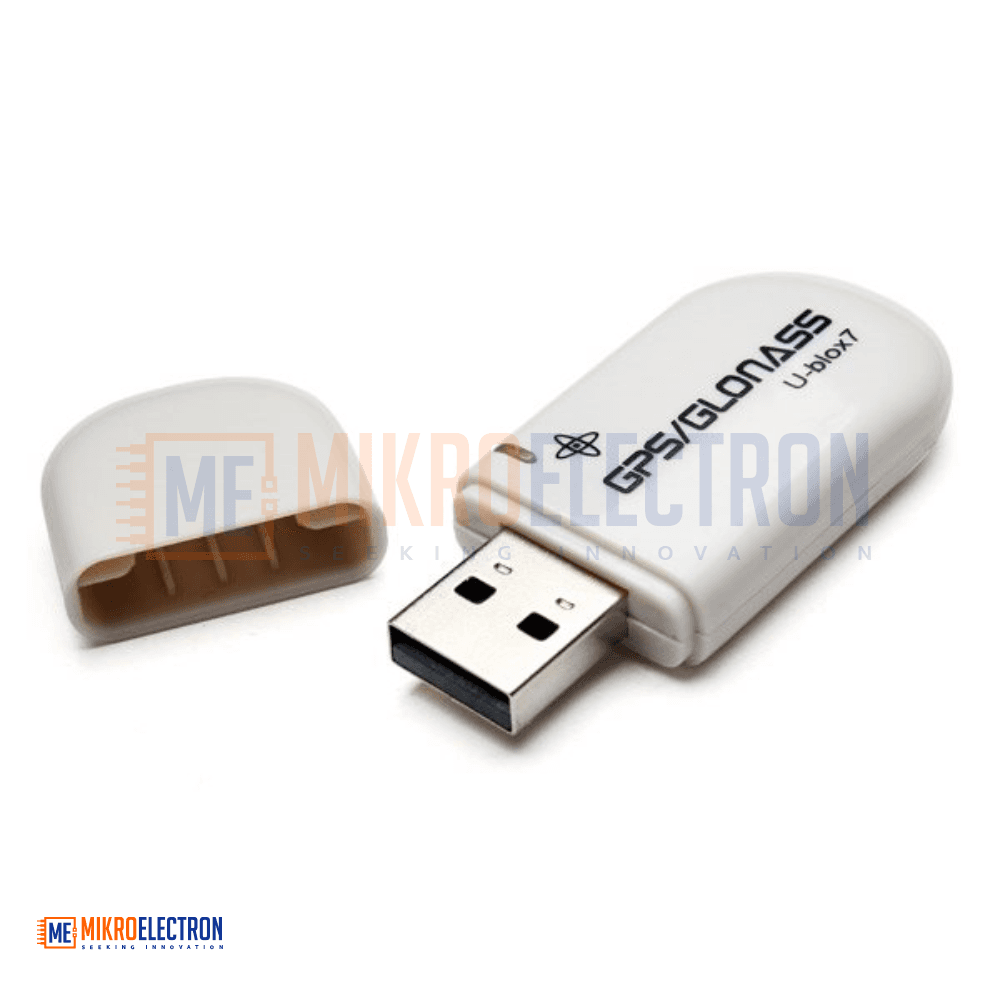

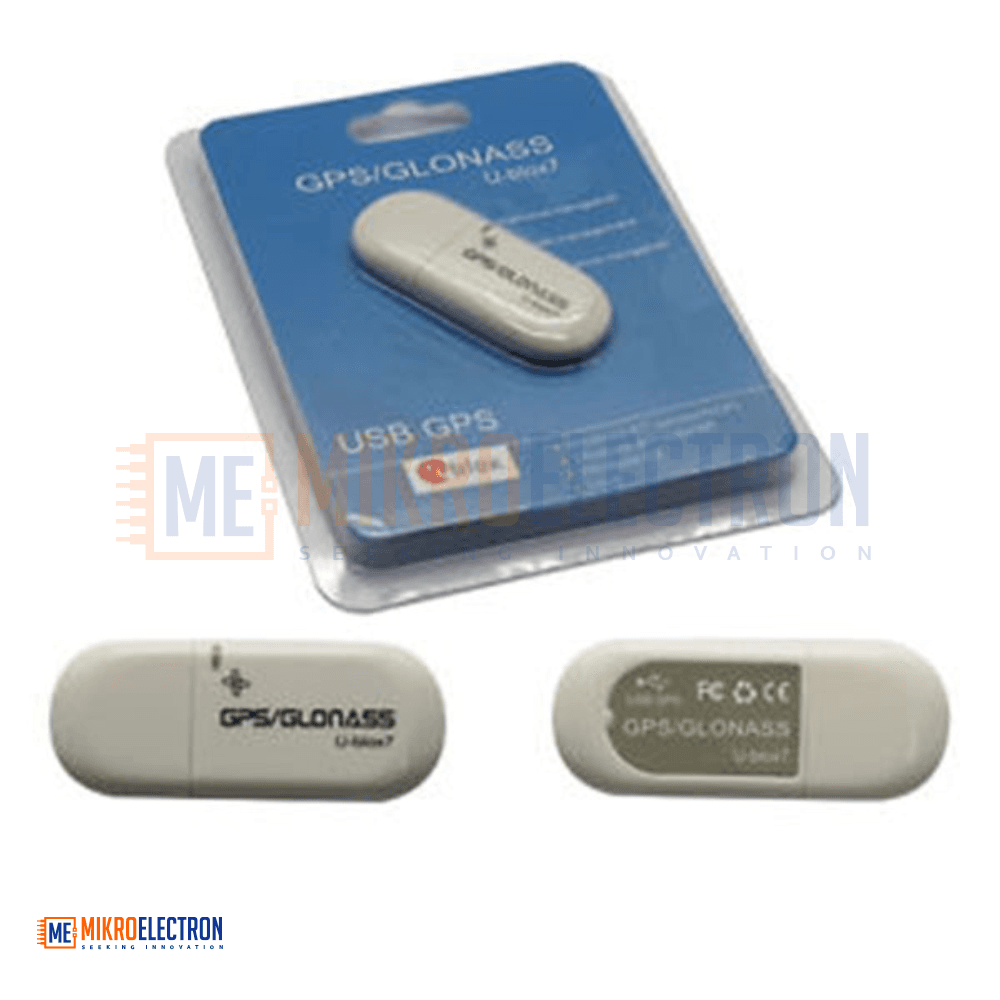

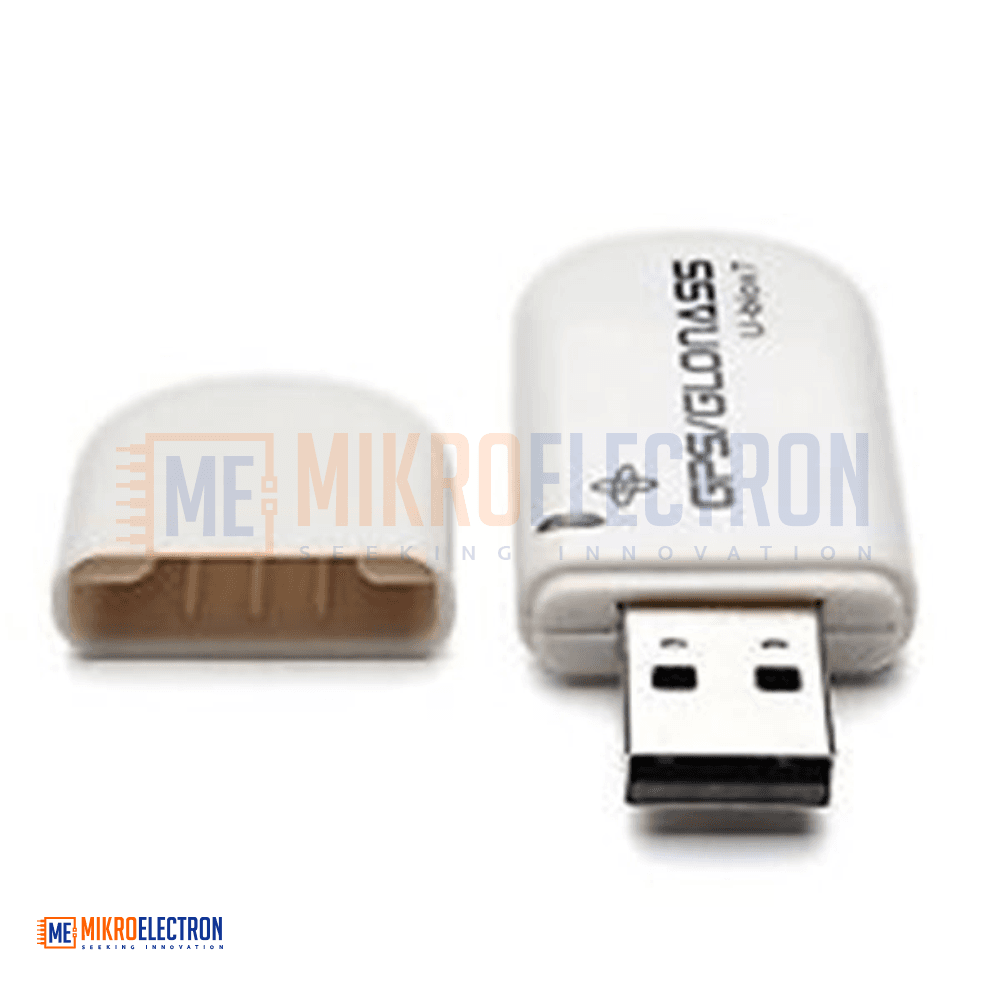

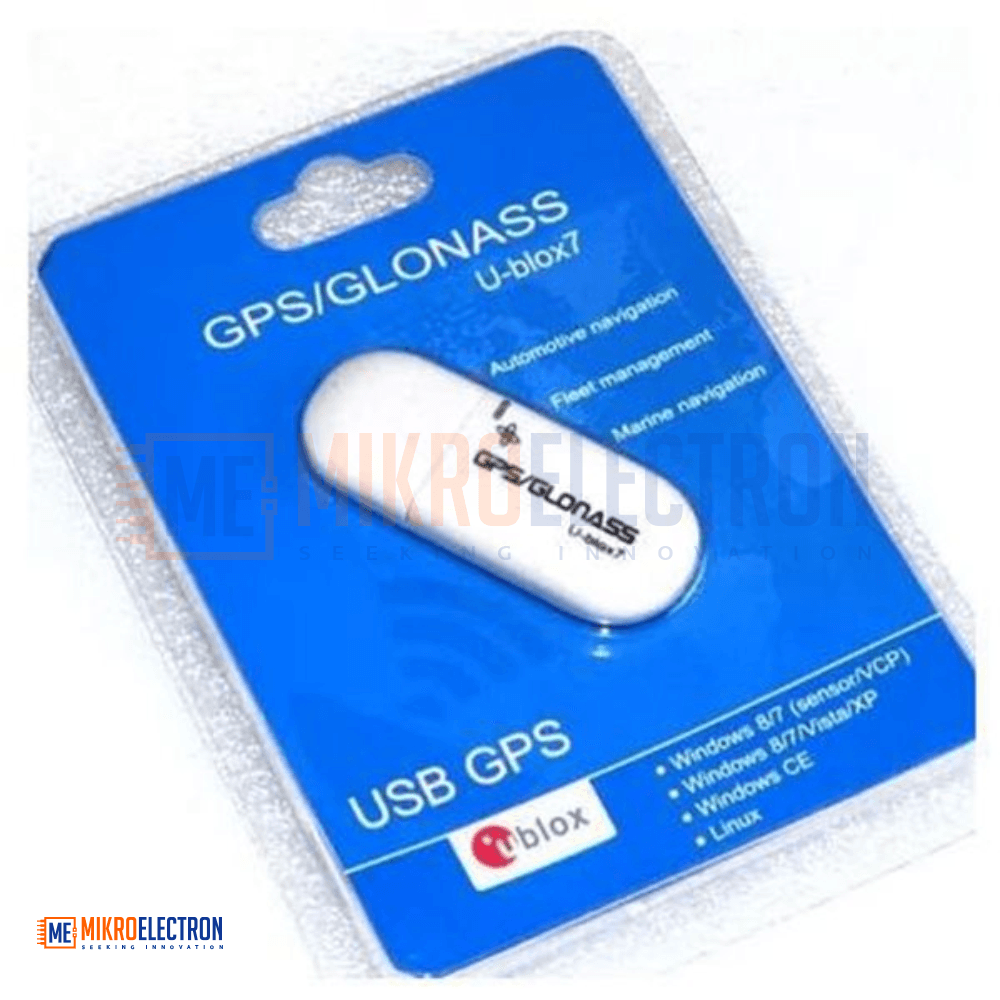

USB GPS/GLONASS External GPS Module
The VK-172 USB GPS/GLONASS Module is a compact external positioning receiver designed for accurate navigation and tracking applications. It supports both GPS and GLONASS satellite systems and connects through a USB interface for easy use with computers and embedded systems. Featuring 56 receiving channels, high positioning accuracy, and automatic baud rate adaptation, the module is compatible with Windows operating systems and applications like Google Earth, making it ideal for navigation, mapping, tracking, and timing projects.
وحدة VK-172 USB GPS/GLONASS هي مستقبل تحديد مواقع خارجي مدمج يوفر دقة عالية في تطبيقات الملاحة والتتبع. تدعم أنظمة الأقمار الصناعية GPS وGLONASS وتتصل عبر واجهة USB لسهولة الاستخدام مع الحواسيب والأنظمة المدمجة. تحتوي على 56 قناة استقبال مع دقة تموضع عالية ودعم التكيف التلقائي لمعدل البود. تتوافق مع أنظمة Windows وبرامج مثل Google Earth، مما يجعلها مناسبة للملاحة، الخرائط، التتبع، وأنظمة التوقيت الدقيقة.
The VK-172 USB GPS/GLONASS External Module is a high-performance satellite navigation receiver designed for positioning, tracking, and timing applications. It supports both GPS and GLONASS satellite systems, improving signal availability and positioning accuracy in various environments.
The module features a simple USB interface, allowing direct connection to computers, embedded systems, and industrial devices without additional hardware. It supports automatic baud rate adaptation and can output GPS protocol data compatible with mapping software such as Google Earth.
With 56 receiving channels, the VK-172 provides reliable satellite acquisition and stable positioning performance. It supports high-speed movement, high-altitude operation, and accurate timing synchronization. The module is suitable for navigation systems, vehicle tracking, geographic data collection, IoT applications, and embedded development projects.
The receiver operates within a wide voltage range and supports multiple Windows operating systems, making it easy to integrate into both commercial and DIY applications.
Specifications
- Model: VK-172
- Type: USB GPS/GLONASS External Receiver Module
- Satellite Systems: GPS / GLONASS
- Interface: USB
- Receiving Channels: 56CH
- Frequency Band: L1 – 1575.42MHz
- C/A Code: 1.023 MHz
- Position Accuracy:
- <2.5m Autonomous
- <2m with SBAS
- Speed Accuracy: <0.1m/s
- Direction Accuracy: <0.5°
- Timing Accuracy: 30ns
- Reference Coordinate System: WGS-84
- Maximum Altitude: 50,000m
- Maximum Speed: 500m/s
- Maximum Acceleration: <4g
- Operating Voltage: 3.3V – 5V
- Operating Temperature: -40°C to +85°C
- Supported Operating Systems:
- Windows 10
- Windows 8
- Windows 7
- Windows Vista
- Windows XP
- Windows CE
Applications
- GPS navigation systems
- Vehicle tracking systems
- Geographic mapping projects
- Timing synchronization systems
- Embedded GPS applications
- Drone and robotics navigation
- IoT location tracking
- Fleet management systems
- Outdoor positioning devices
- Google Earth integration projects
