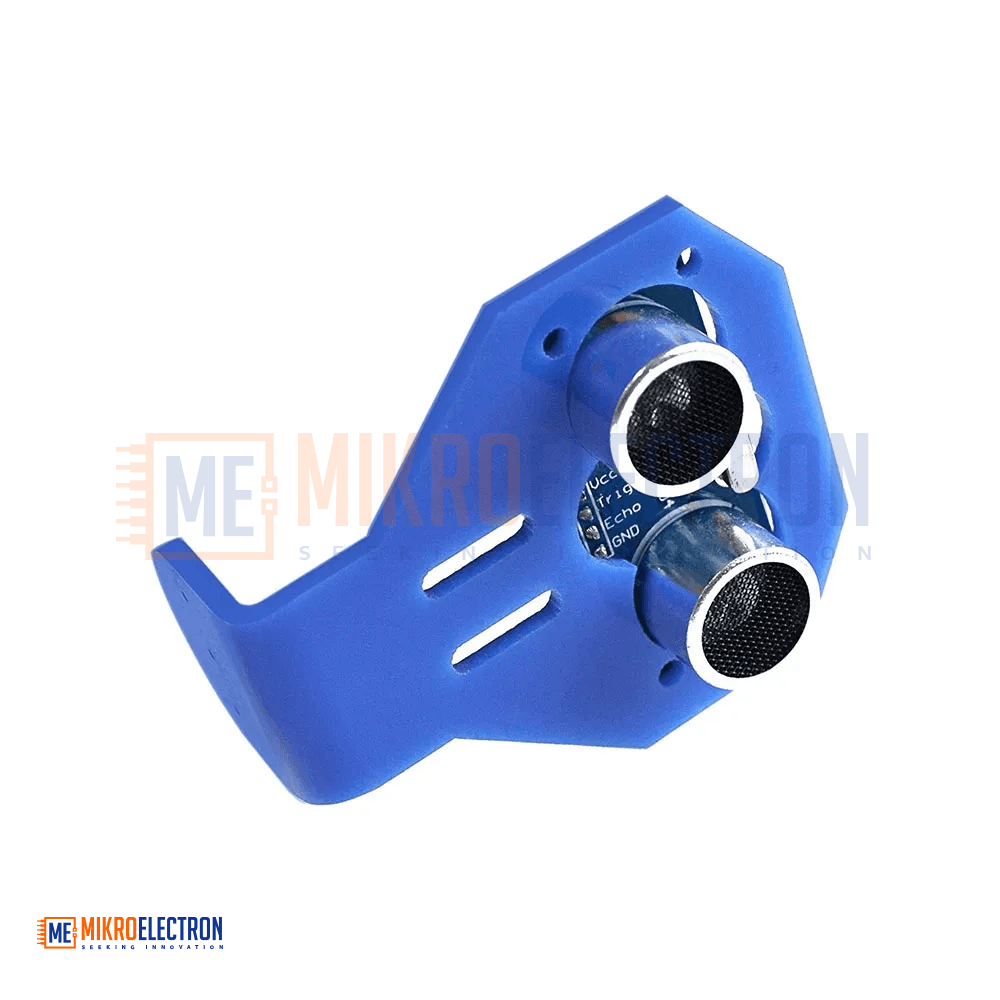

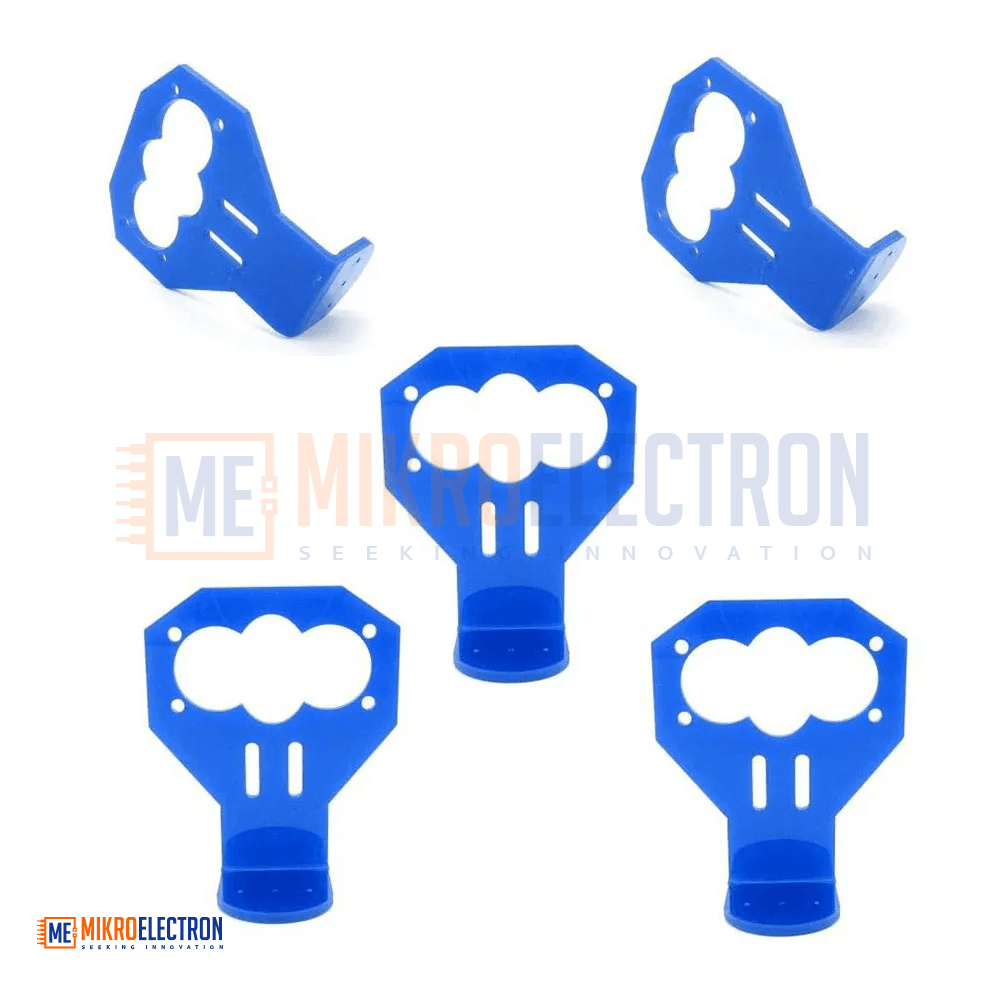

Ultrasonic Fixed Bracket Holder
The Ultrasonic Sensor Fixed Bracket Holder is a precision-cut acrylic mounting bracket designed to securely hold HC-SR04 and similar ultrasonic distance sensors. With an inner diameter of 16mm that perfectly fits the sensor's transducers, and 3.8mm mounting holes for easy installation, it provides a stable and professional mount for your sensor. Ideal for robotics, obstacle avoidance, and DIY Arduino projects, this lightweight holder ensures accurate sensor positioning and clean integration into any chassis or frame.
حامل تثبيت حساس الموجات فوق الصوتية هو قاعدة تثبيت من الأكريليك مقطوعة بدقة، مصممة لتثبيت حساسات المسافة فوق الصوتية مثل HC-SR04 وما شابهها بأمان. يحتوي على قطر داخلي 16 مم مناسب تماماً لمستشعرات الحساس، وثقوب تثبيت بقطر 3.8 مم لسهولة التركيب، مما يوفّر تثبيتاً مستقراً واحترافياً للحساس. مثالي لـ مشاريع الروبوتات وتجنّب العوائق ومشاريع Arduino، يضمن هذا الحامل خفيف الوزن وضعية دقيقة للحساس وتكاملاً نظيفاً مع أي هيكل أو إطار.

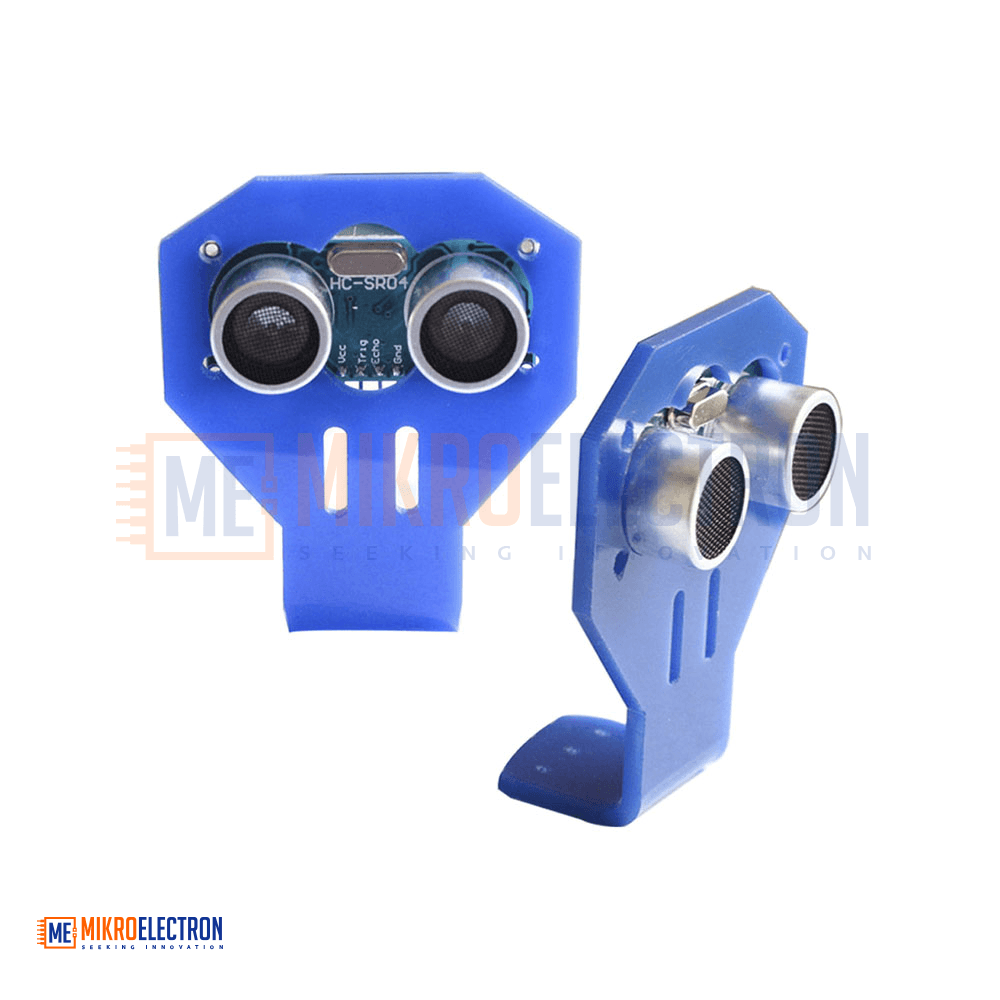

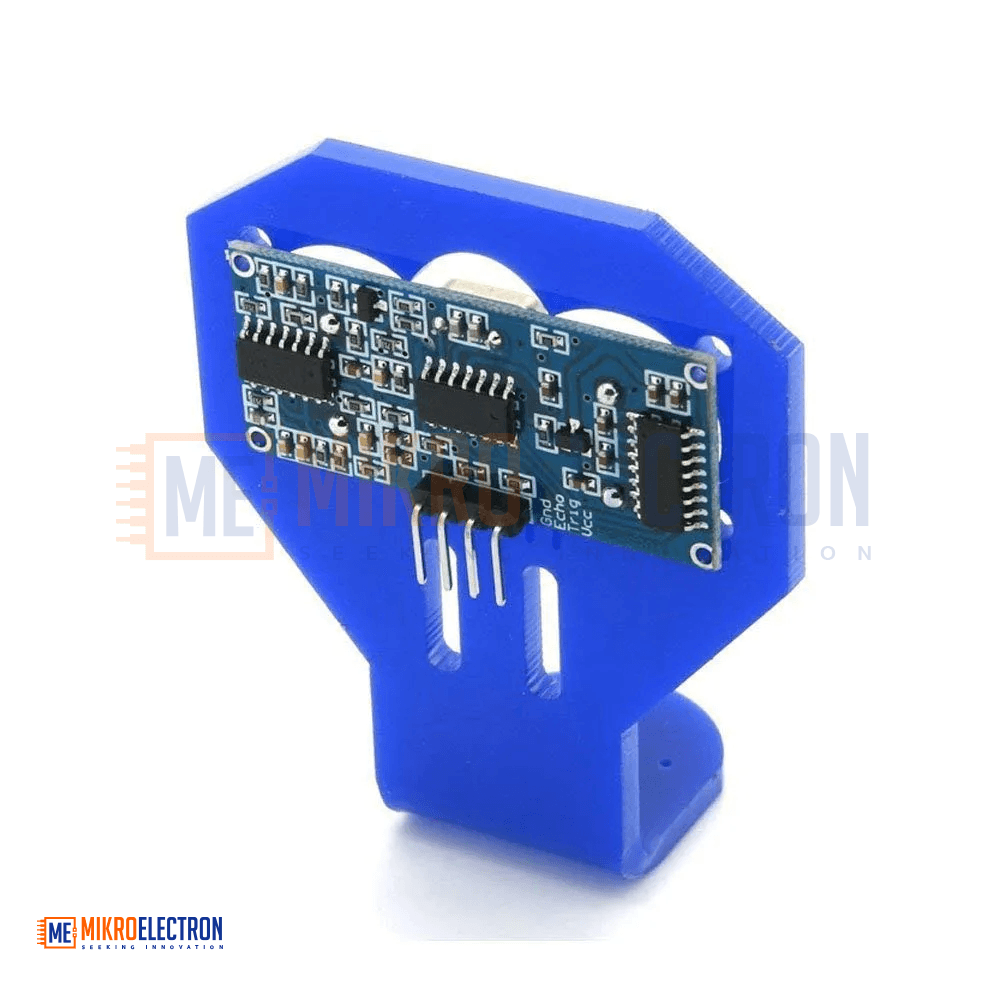

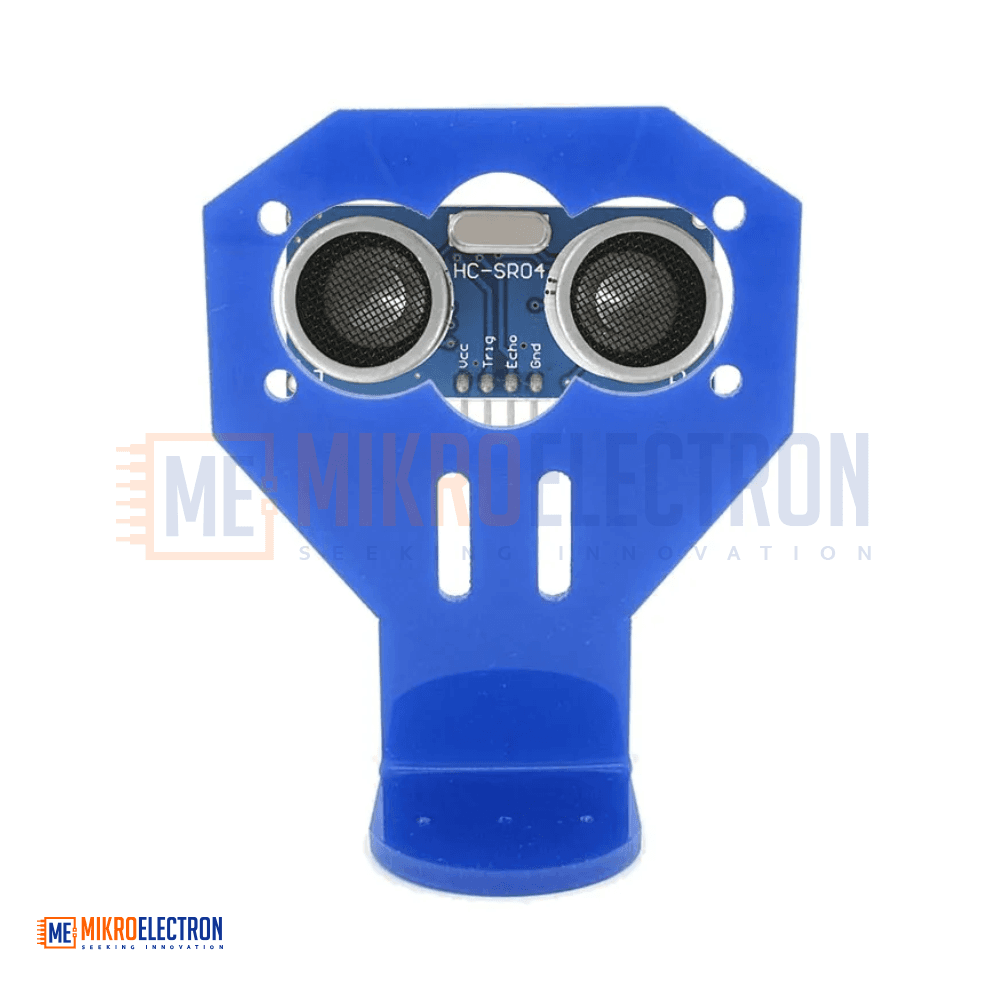

The Ultrasonic Fixed Bracket Holder is a precision-engineered mounting accessory designed specifically for HC-SR04, HC-SR05, US-015, and similar 16mm ultrasonic distance sensors. Manufactured from durable acrylic plastic, this bracket offers a clean, professional, and secure way to install your ultrasonic sensor onto robot chassis, RC cars, drones, automation projects, or any custom electronic build.

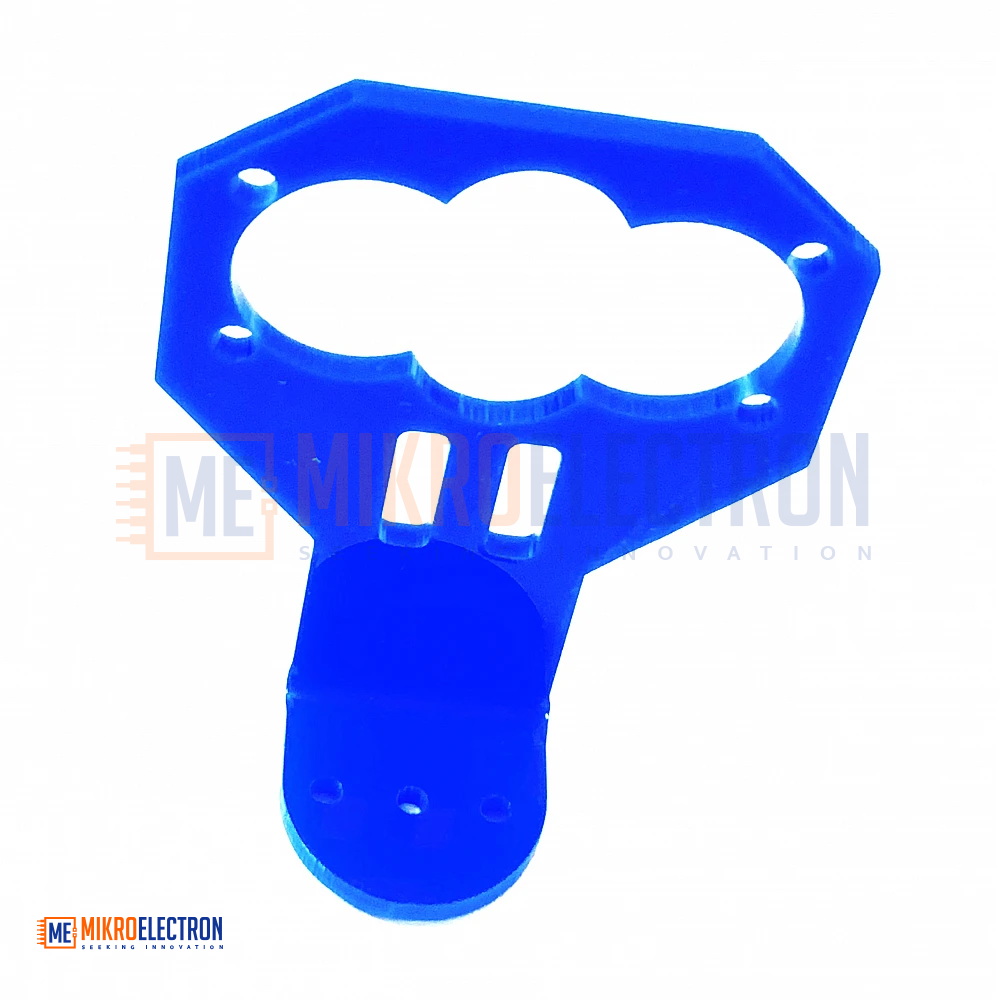

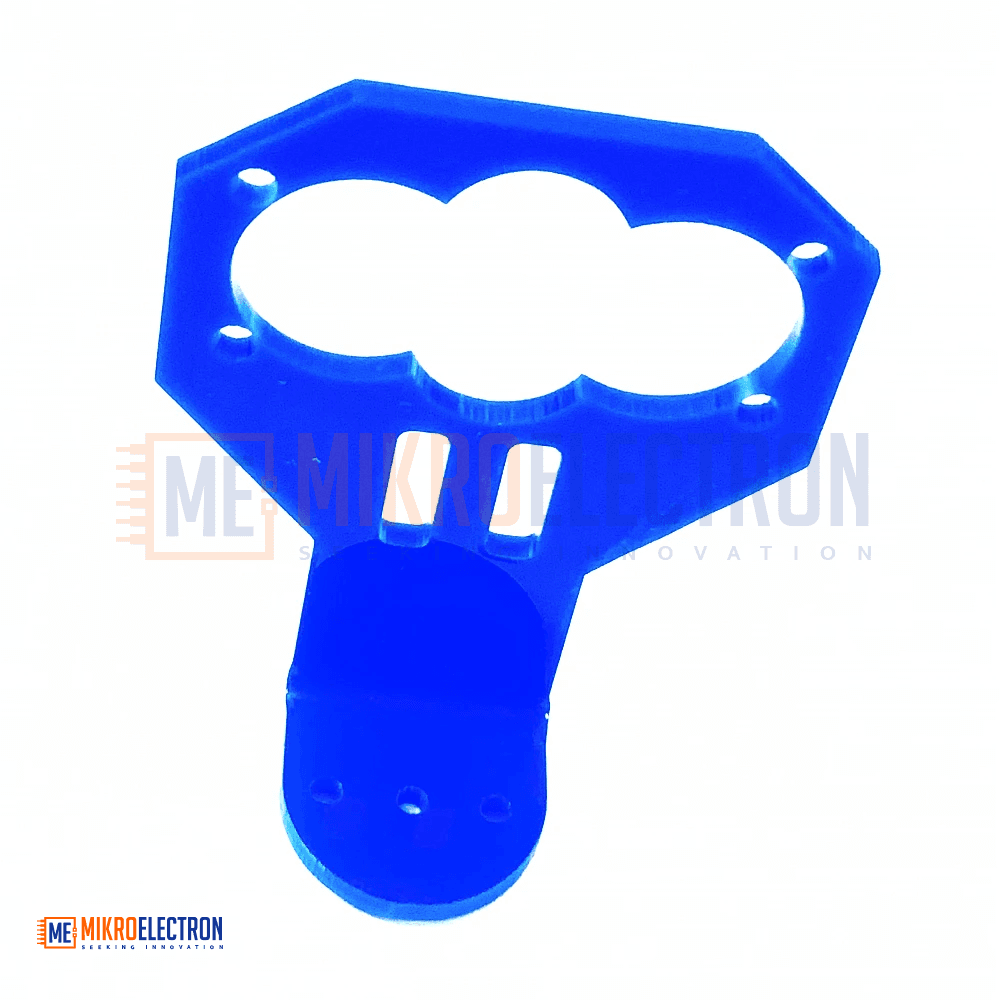

The bracket features two precisely cut 16mm circular openings that snugly hold the ultrasonic transducers in place, ensuring the sensor remains firmly fixed during operation and movement. The 3.8mm mounting holes are sized for standard M3 screws, allowing for easy and flexible installation onto a wide variety of frames, plates, and structures.
With a thickness of 2.8mm to 3.1mm, the bracket is lightweight yet rigid, providing the perfect balance between strength and minimal added mass — a critical consideration in mobile robotics and aerial applications. Its compact form factor allows it to fit into tight spaces while maintaining a clean, finished look on your project.
This holder is a must-have accessory for makers, students, and engineers working with ultrasonic distance sensors, transforming a loose-mounted sensor into a professional, securely integrated component.
Specifications
- Material: Acrylic Plastic
- Thickness: 2.8 mm – 3.1 mm
- Inner Diameter (Sensor Hole): 16 mm
- Mounting Hole Diameter: 3.8 mm (compatible with M3 screws)
- Compatible Sensors: HC-SR04, HC-SR05, US-015 and similar 16mm ultrasonic modules
- Color: Random (Black / Clear / Translucent — varies by stock)
- Mounting Style: Through-Hole / Screw-Mounted
- Number of Sensor Openings: 2 (for transmitter and receiver transducers)
Applications
- Mobile Robotics — front and rear obstacle detection on robot chassis
- Obstacle Avoidance Systems — securely mounting sensors on autonomous vehicles

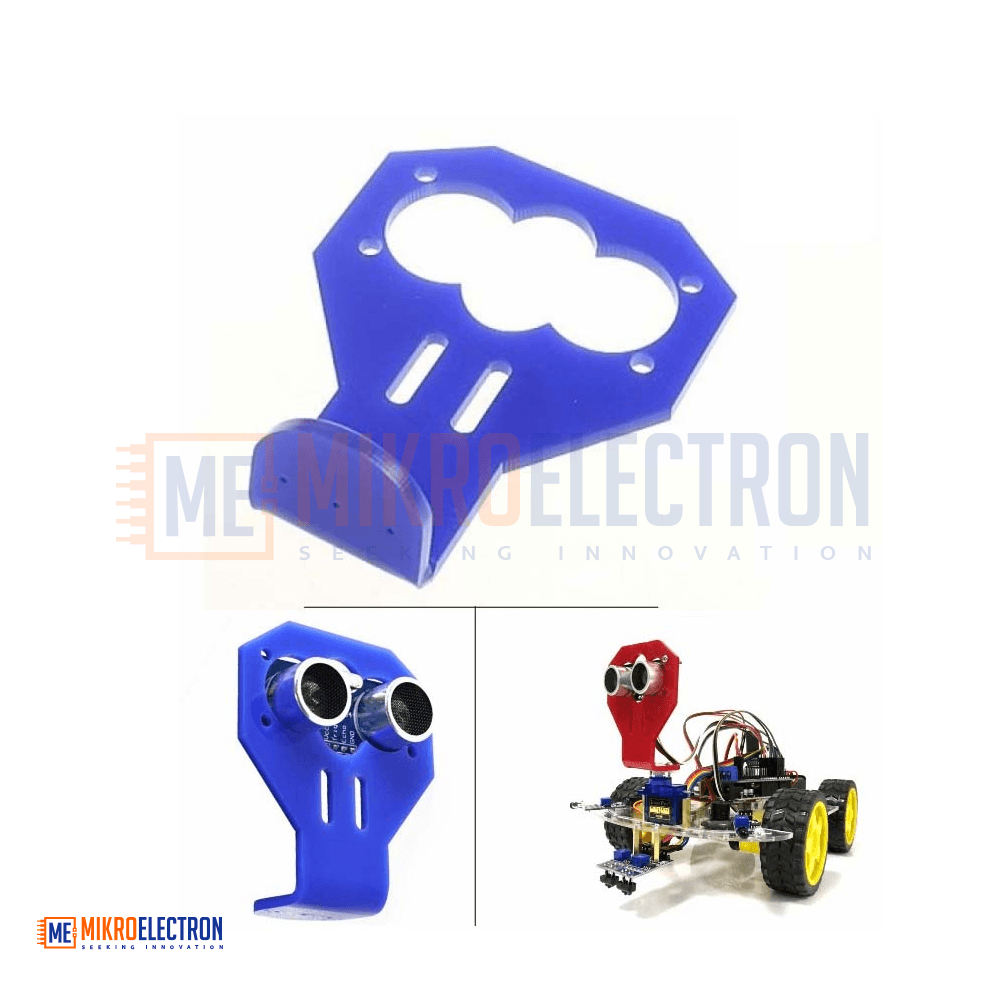

- RC Cars & Smart Cars — Arduino-based smart car kits and educational robots
- Drone & UAV Projects — altitude and proximity sensing payloads
- Smart Parking Systems — fixed-position distance measurement
- Liquid Level Detection — tank and reservoir monitoring setups
- Security & Alarm Systems — wall-mounted intrusion detection
- Industrial Automation — fixed-position object detection on conveyors
- Educational & STEM Projects — university and school robotics labs
- DIY Arduino Projects — clean integration of HC-SR04 modules
- Interactive Art Installations — proximity-triggered displays and exhibits
- Replacement Mount — upgrade for loose or damaged sensor brackets
