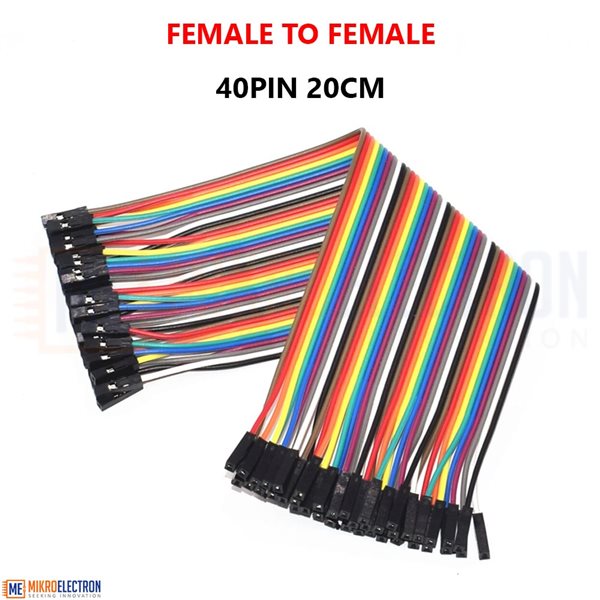

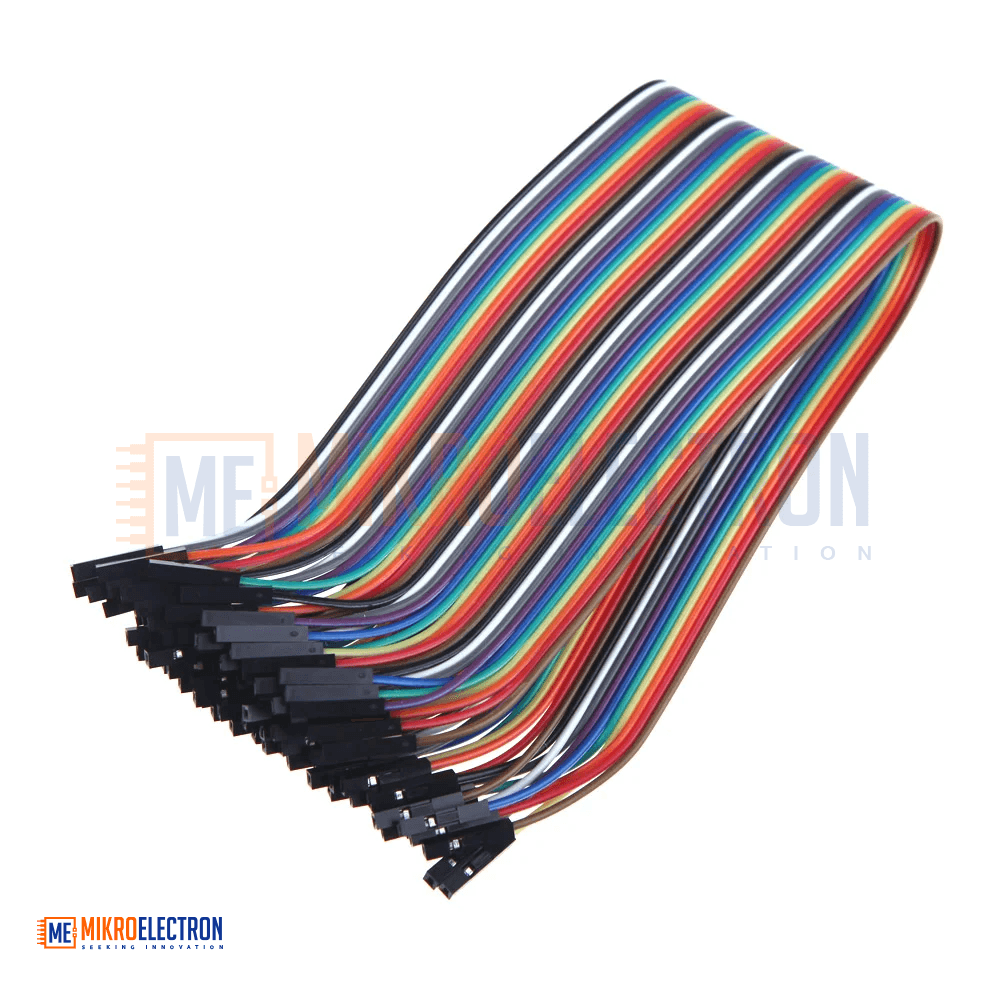

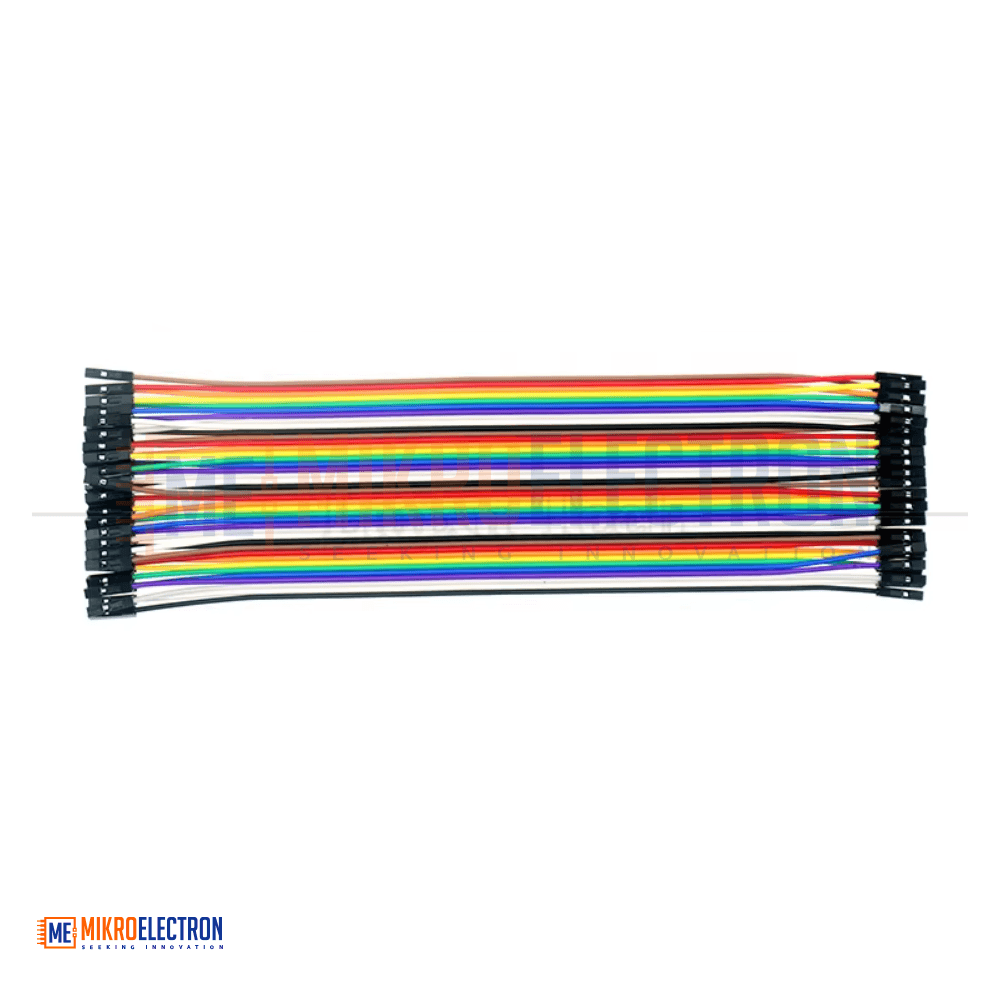

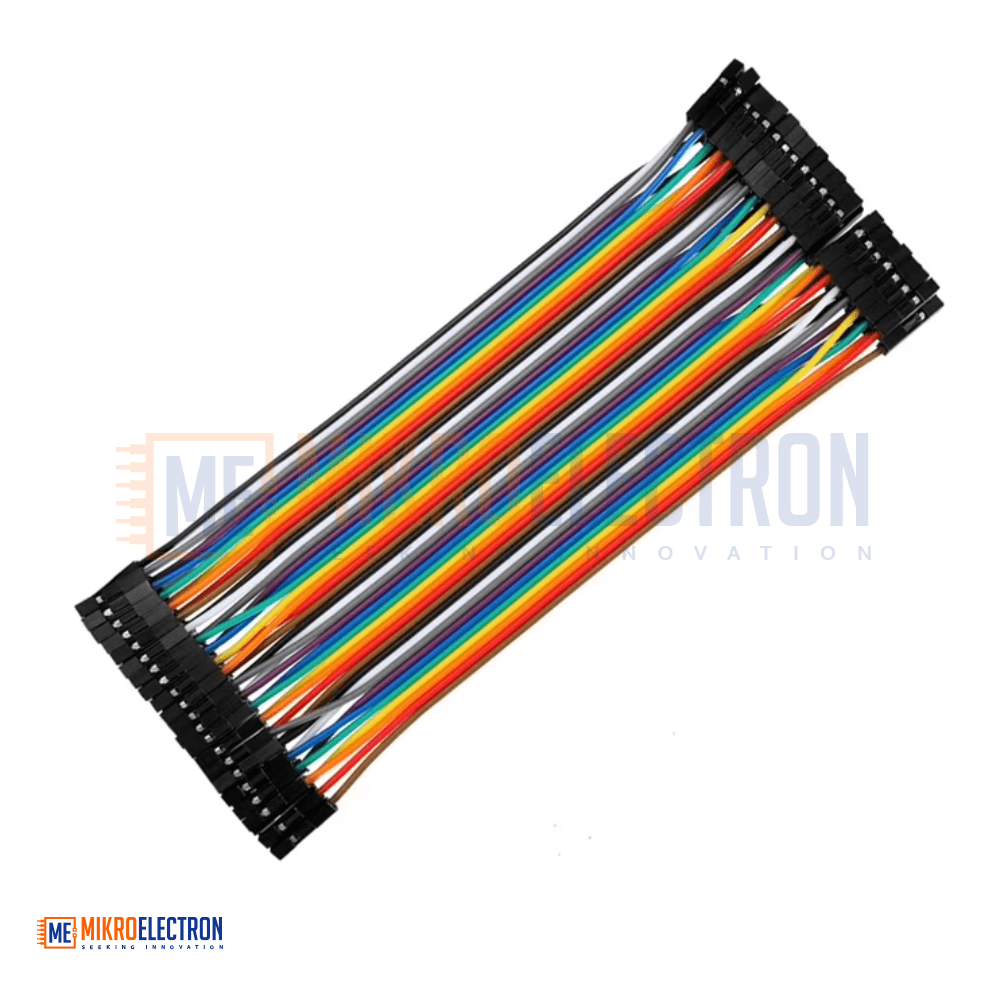

40 wires Female to Female 20cm 40P
The 40-wires Female to Female Dupont Cable (20cm, 40P) is a bundle of 40 individual jumper wires, each with female connectors on both ends. Length: 20cm (7.87 inches). 2.54mm (0.1 inch) pin spacing compatible with breadboards, Arduino, and PCB headers. 28 AWG stranded copper wire with rainbow color PVC insulation. Ideal for connecting microcontrollers, sensors, and displays without soldering.
كابل Dupont من 40 سلكاً من أنثى إلى أنثى (20 سم، 40P) هو حزمة من 40 سلك توصيل فردي، كل سلك يحمل موصلات أنثوية على كلا الطرفين. الطول: 20 سم. مسافة بين الدبابيس 2.54 مم متوافقة مع اللوحات التجريبية وأردوينو. سلك نحاسي مجدول 28 AWG بعزل PVC بألوان قوس قزح. مثالية لتوصيل المتحكمات الدقيقة والمستشعرات وشاشات العرض دون لحام.
The 40-wires Female to Female Dupont Cable (20cm, 40P) is a versatile ribbon-style jumper wire bundle designed for rapid prototyping and permanent PCB connections. The bundle contains 40 individual wires, each terminated with female socket connectors on both ends. These female connectors are designed to plug directly onto male header pins with 2.54mm (0.1 inch) pitch – the standard spacing used on Arduino boards, Raspberry Pi GPIO, breadboards, and most development boards. The 20cm (approximately 7.87 inches) length provides sufficient reach between components without excessive slack, making it ideal for tidy project layouts. Each wire uses 28 AWG stranded copper conductor with PVC insulation for flexibility and durability. The rainbow color coding (different colors per wire) simplifies circuit identification and troubleshooting. This cable is especially useful for connecting devices with male pin headers (such as sensors, LCD displays, or microcontrollers) to other boards or to breadboards. The female-to-female configuration works with male pins on PCBs, Arduino shields, and sensor modules. No soldering is required – simply push the connectors onto the target pins for a secure friction fit.
Specifications
| Parameter | Value |
|---|---|
| Quantity of wires | 40 wires |
| Connector type | Female to Female (both ends) |
| Pin count | 40 |
| Pin spacing | 2.54mm (0.1 inch) |
| Cable length | 20cm (7.87 inches) |
| Wire gauge | 28 AWG |
| Conductor material | Copper wire (stranded) |
| Insulation material | PVC |
| Color | Rainbow (each wire has a different color) |
| Connector housing | Black plastic, open-top type for secure grip |
| Temperature range | -20°C to +80°C (typical for PVC) |
Applications
Connecting Arduino / Raspberry Pi to breadboards – Plug female ends to male pins on microcontroller and other ends to breadboard jumpers
Interfacing sensors and modules – Connect ultrasonic sensors (HC-SR04), PIR motion sensors, temperature sensors, etc.
LCD and OLED display connections – 16x2 LCD modules with male pin headers
Programming and debugging – Connect USB-to-serial adapters to ESP8266, ESP32, or Arduino Pro Mini
PCB to PCB connections – Link multiple boards inside an enclosure without soldering
Prototyping and test fixtures – Quickly reconfigure circuits by changing jumper positions
Educational kits and workshops – Easy, reusable connections for students learning electronics
Repair and replacement – Replace damaged individual jumper wires in existing projects
