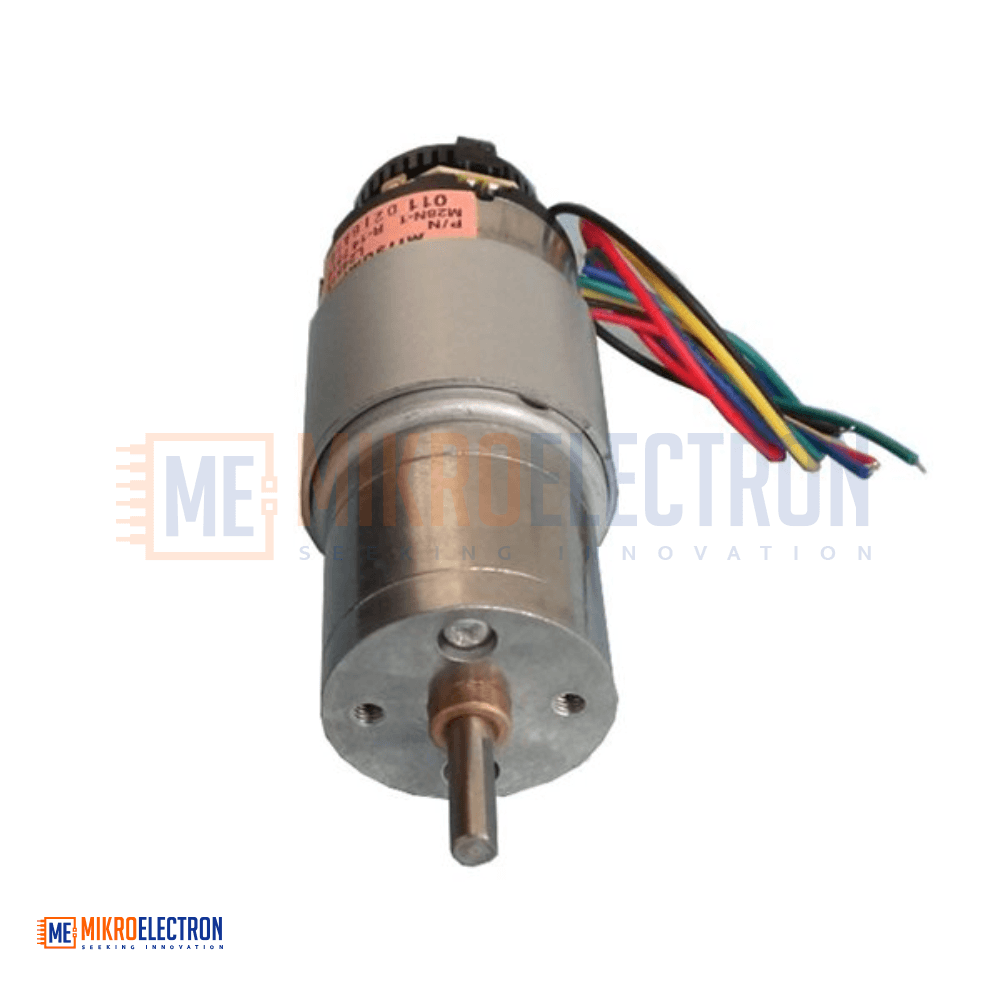

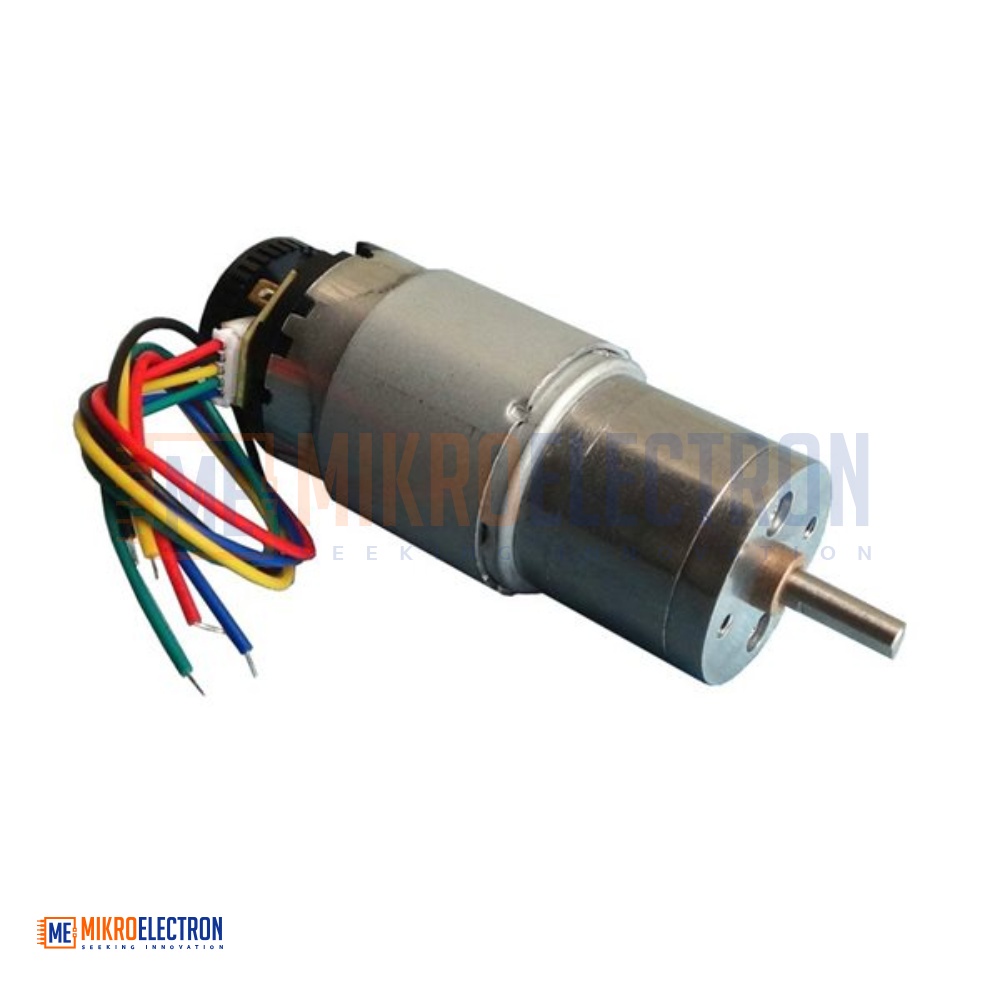

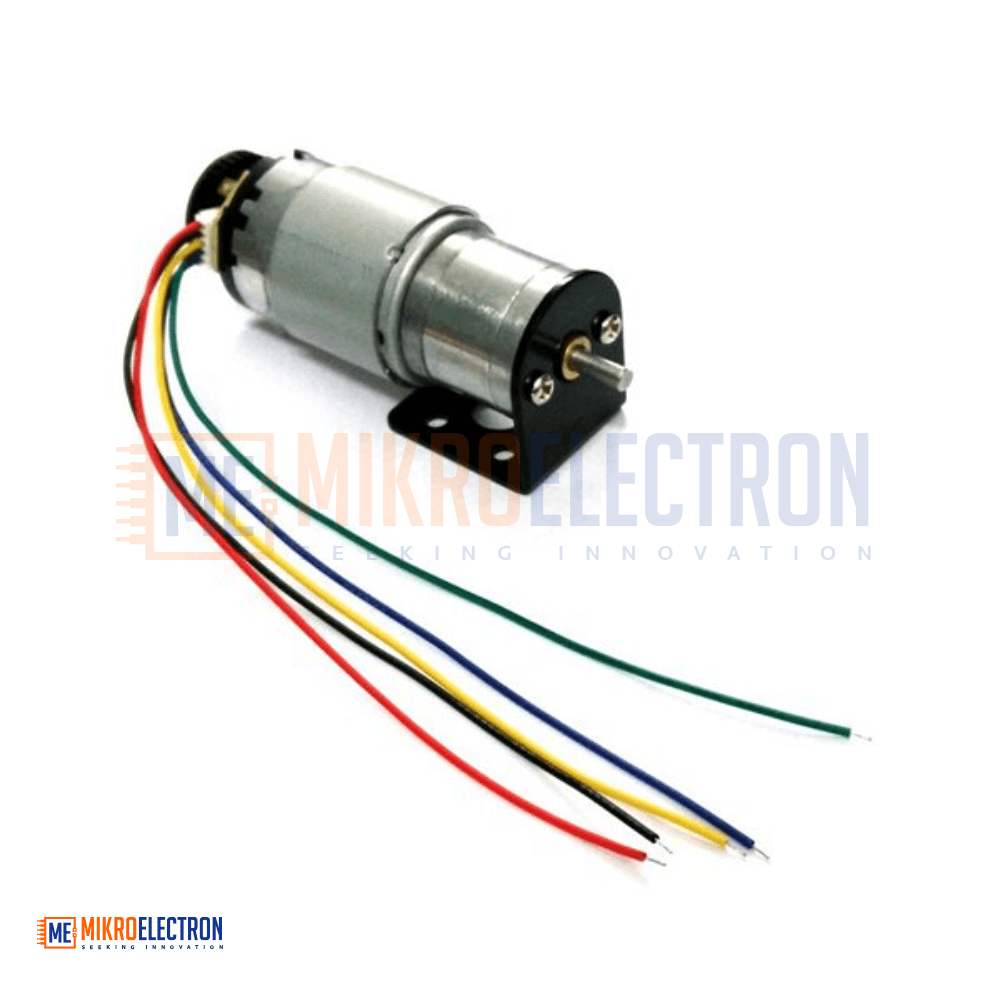

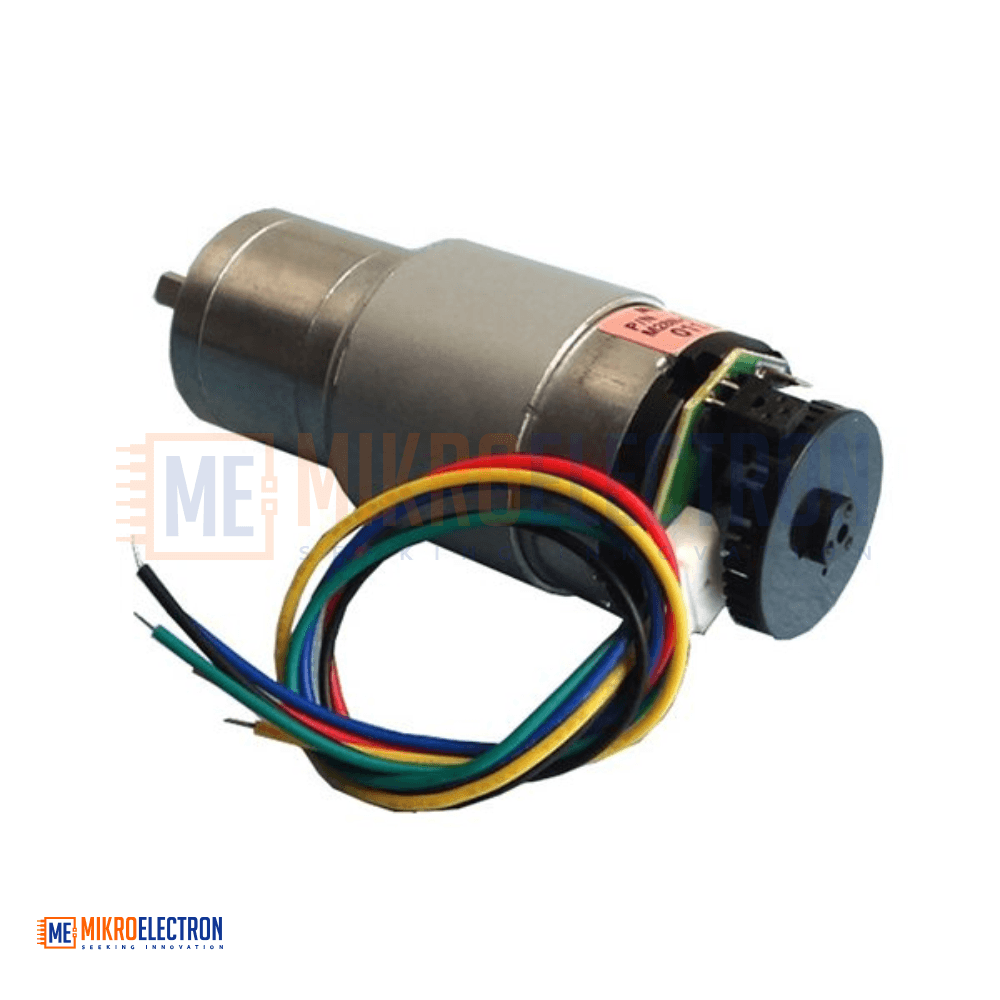

DC geared Motor with Encoder 12V 125RPM
DC Geared Motor with Encoder 12V 125RPM is a high-precision motor designed for robotics and automation projects. It operates at 12V with a speed of approximately 125–130 RPM and includes a 41-line encoder for accurate speed and position feedback. The geared mechanism provides higher torque and stable performance, making it suitable for smart cars, robotic platforms, motion control systems, and embedded electronics applications requiring reliable and precise motor control.
محرك تيار مستمر مزود بعلبة تروس وإنكودر 12V 125RPM هو محرك عالي الدقة مخصص لمشاريع الروبوتات والأتمتة. يعمل بجهد 12 فولت بسرعة تقارب 125–130 دورة في الدقيقة ويحتوي على إنكودر 41 خط لقياس السرعة والموضع بدقة عالية. يوفر نظام التروس عزماً أعلى وأداءً مستقراً، مما يجعله مناسباً للسيارات الذكية، المنصات الروبوتية، أنظمة التحكم بالحركة، وتطبيقات الإلكترونيات المدمجة التي تتطلب تحكماً دقيقاً وموثوقاً بالمحرك.
The DC Geared Motor with Encoder 12V 125RPM is a compact and efficient motor solution designed for precision motion control applications. It combines a durable DC motor, a reduction gearbox, and a high-resolution encoder to deliver accurate speed monitoring and positioning capabilities.
Operating at 12V DC, the motor provides a stable output speed of approximately 125–130 RPM while generating increased torque through its internal gearbox. The integrated 41-line encoder enables precise rotational feedback, making the motor ideal for closed-loop control systems and intelligent robotic applications.

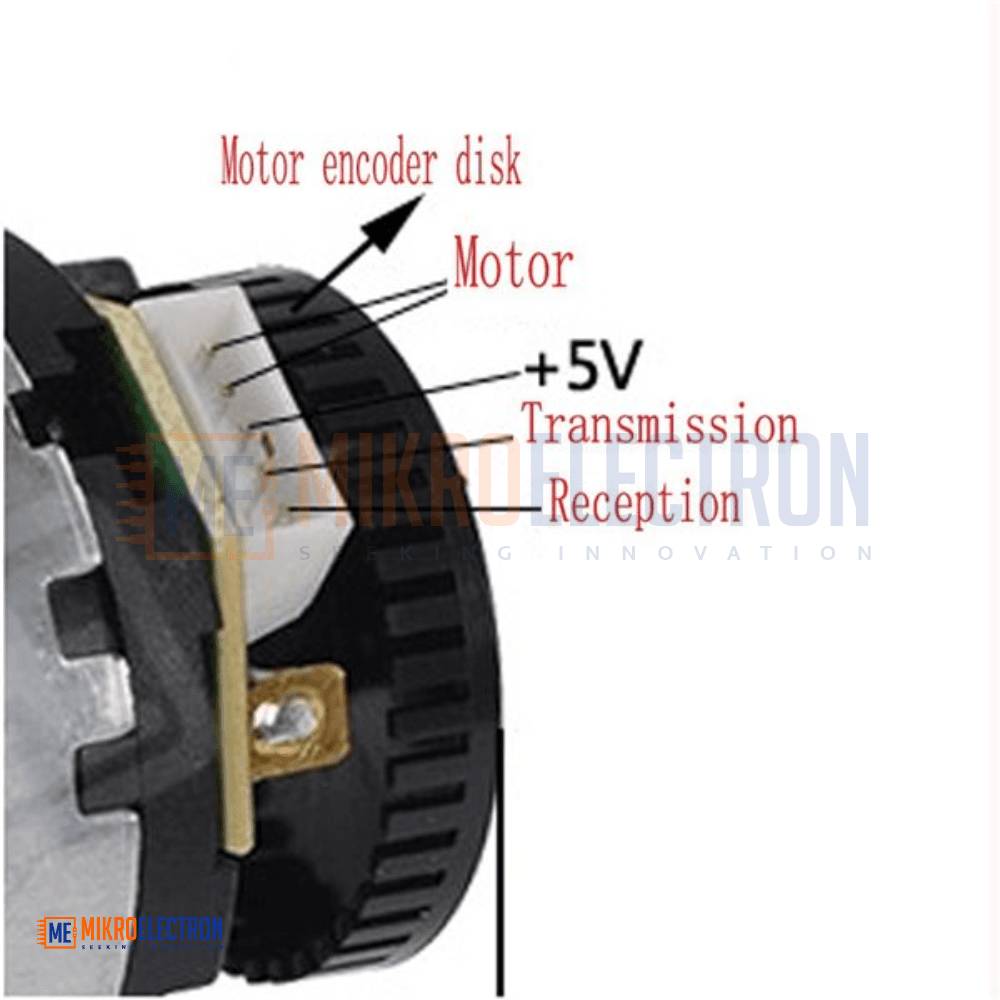

Because the encoder is mounted on the motor shaft before gear reduction, the effective output shaft resolution becomes significantly higher after reduction, reaching approximately 1394 pulses per output shaft revolution. This high-resolution feedback allows smooth speed regulation and accurate movement tracking.
The motor is widely used in robotics, smart vehicles, automation systems, and embedded control projects where accurate motion feedback and stable torque are required.

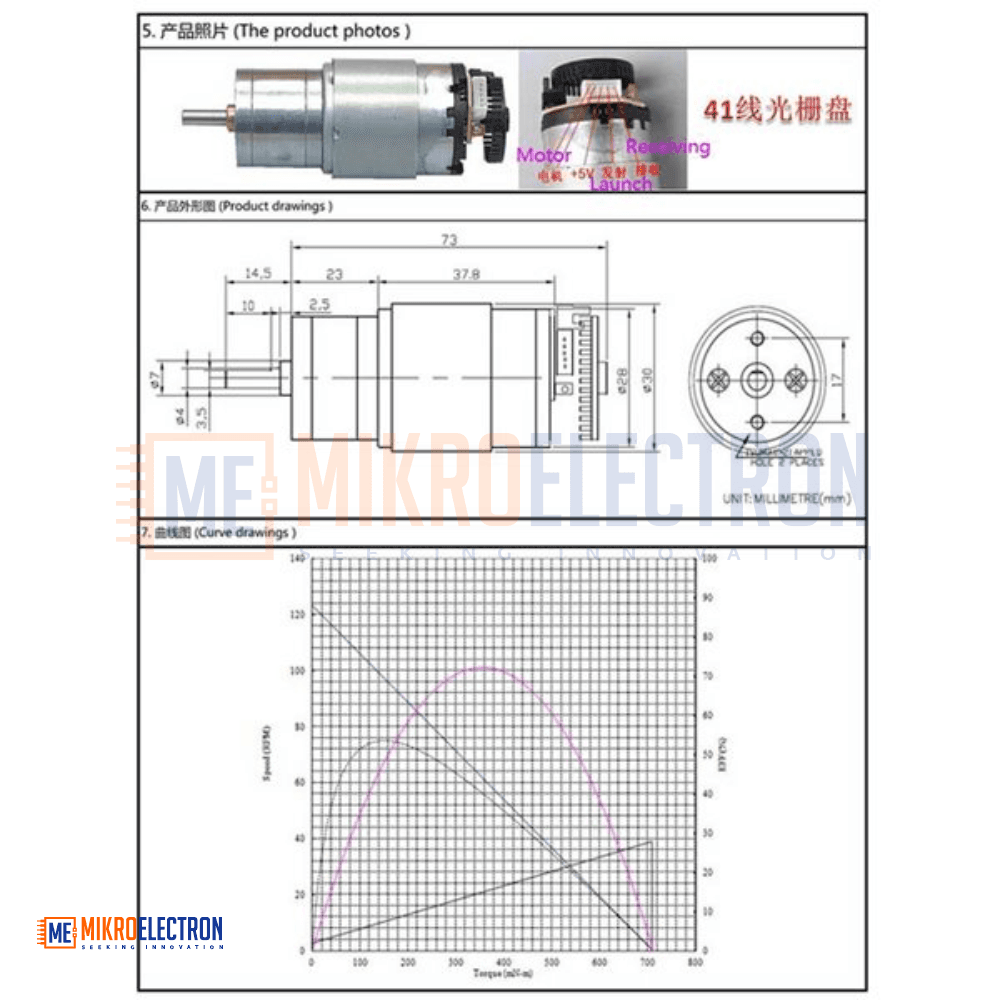

Specifications
- Motor Type: DC Geared Motor with Encoder
- Rated Voltage: 12V DC
- Rated Speed: 125–130 RPM
- Load Torque: 2 kg.cm
- Stall Torque: 6.5 kg.cm
- No-Load Current: 110 mA
- Stall Current: 1500 mA
- Encoder Resolution: 41 lines
- Gear Reduction Ratio: Approximately 1:34
- Effective Output Resolution: 1394 pulses/revolution
- Feedback Type: Optical Encoder
- Control Compatibility: Suitable for microcontrollers and embedded systems
Applications
- Smart robotic cars
- Line-following robots
- Autonomous mobile robots
- Motion control systems
- Industrial automation projects
- Encoder-based speed control systems
- DIY electronics and robotics projects
- Position tracking applications
- Arduino and microcontroller projects
- Educational robotics systems
