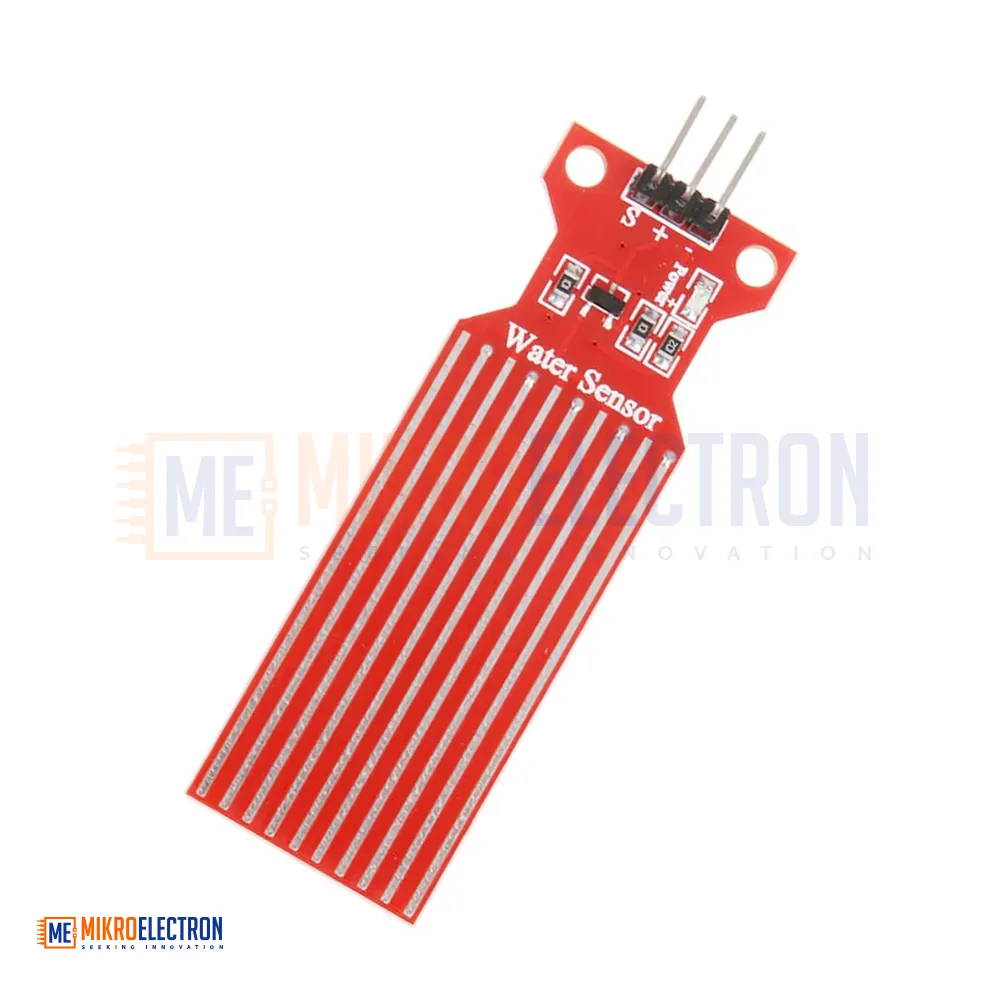

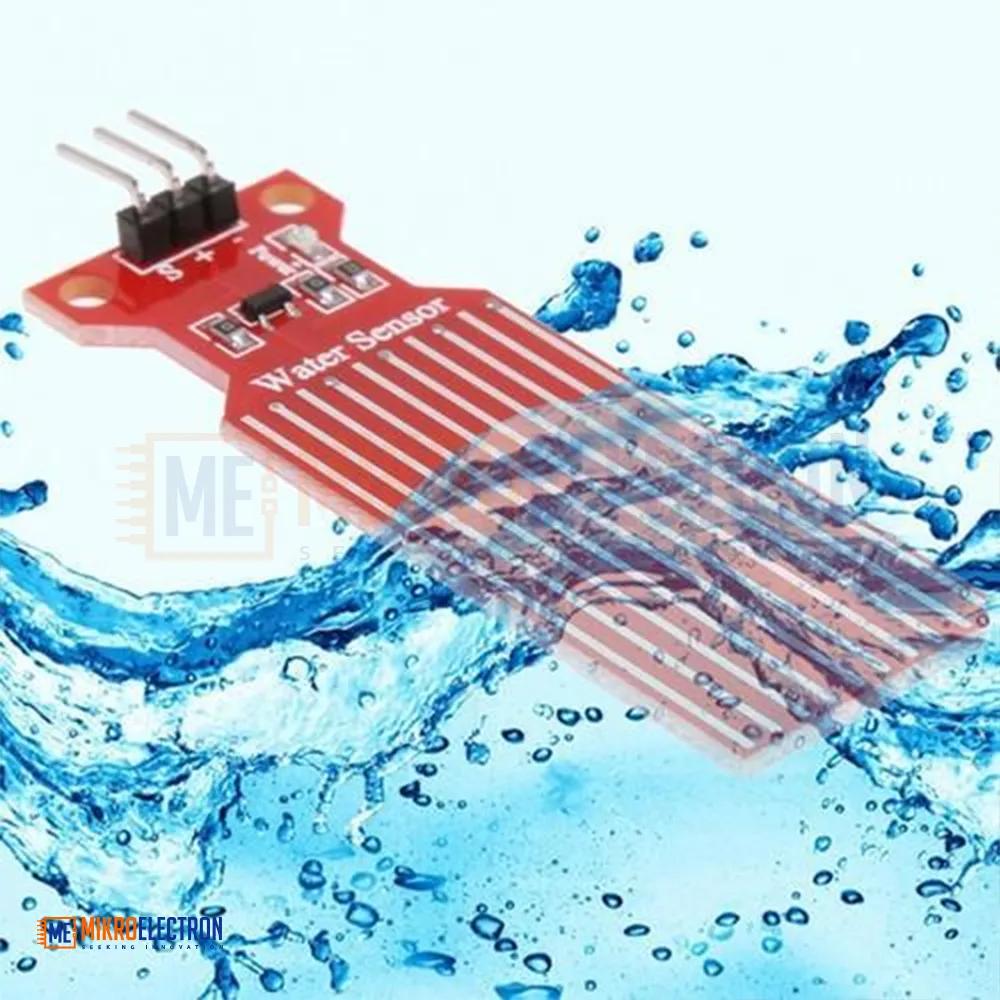

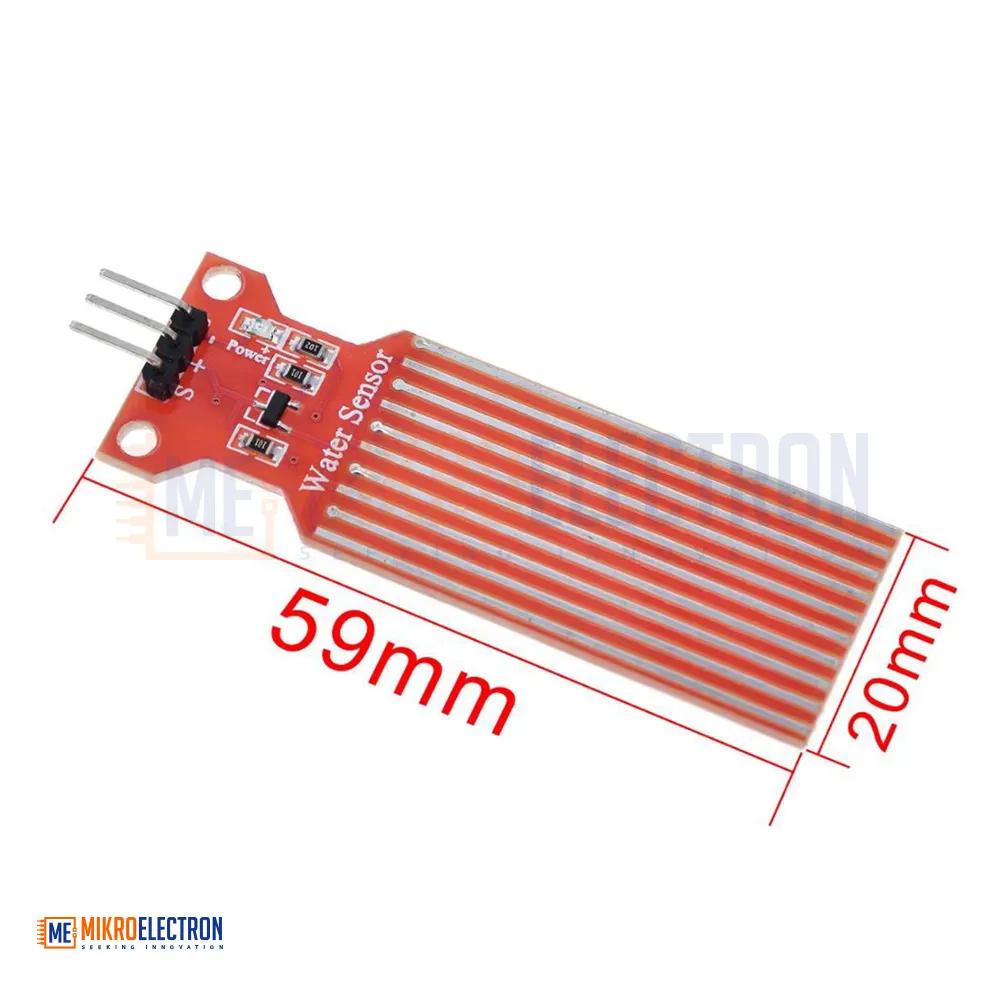

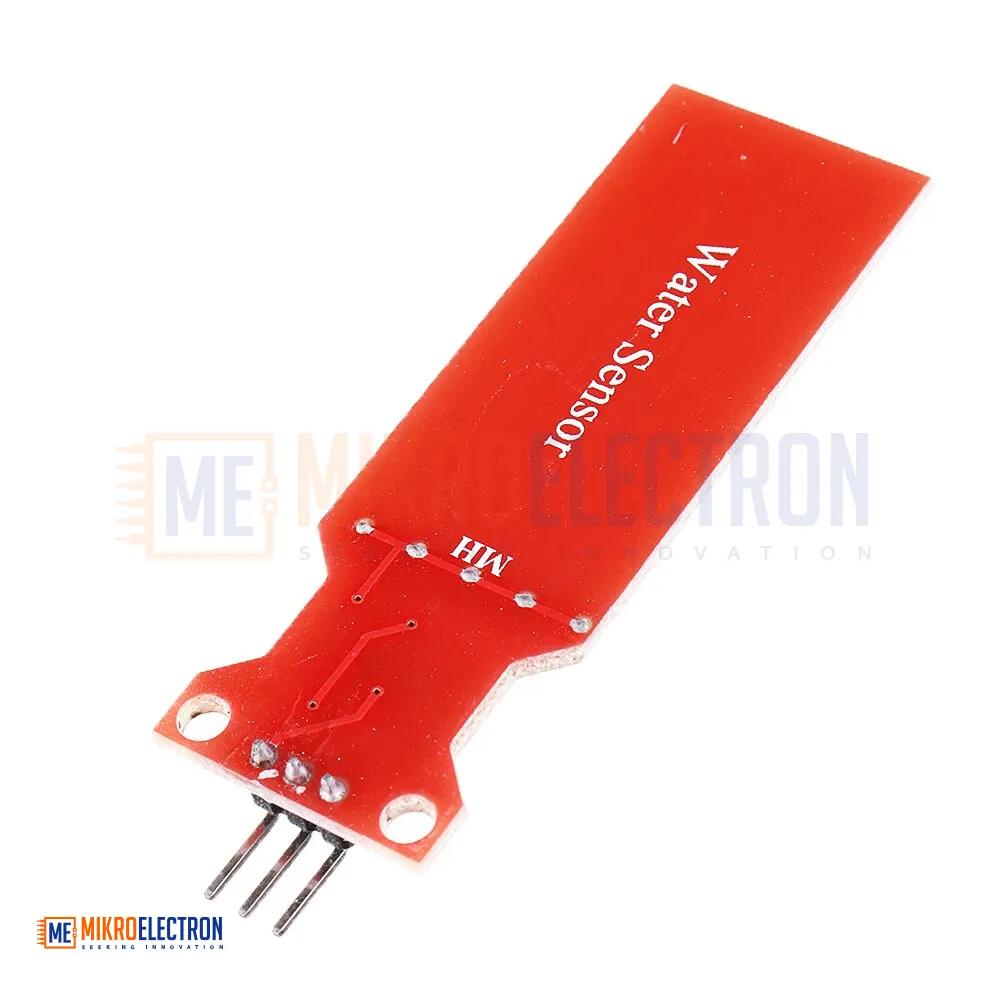

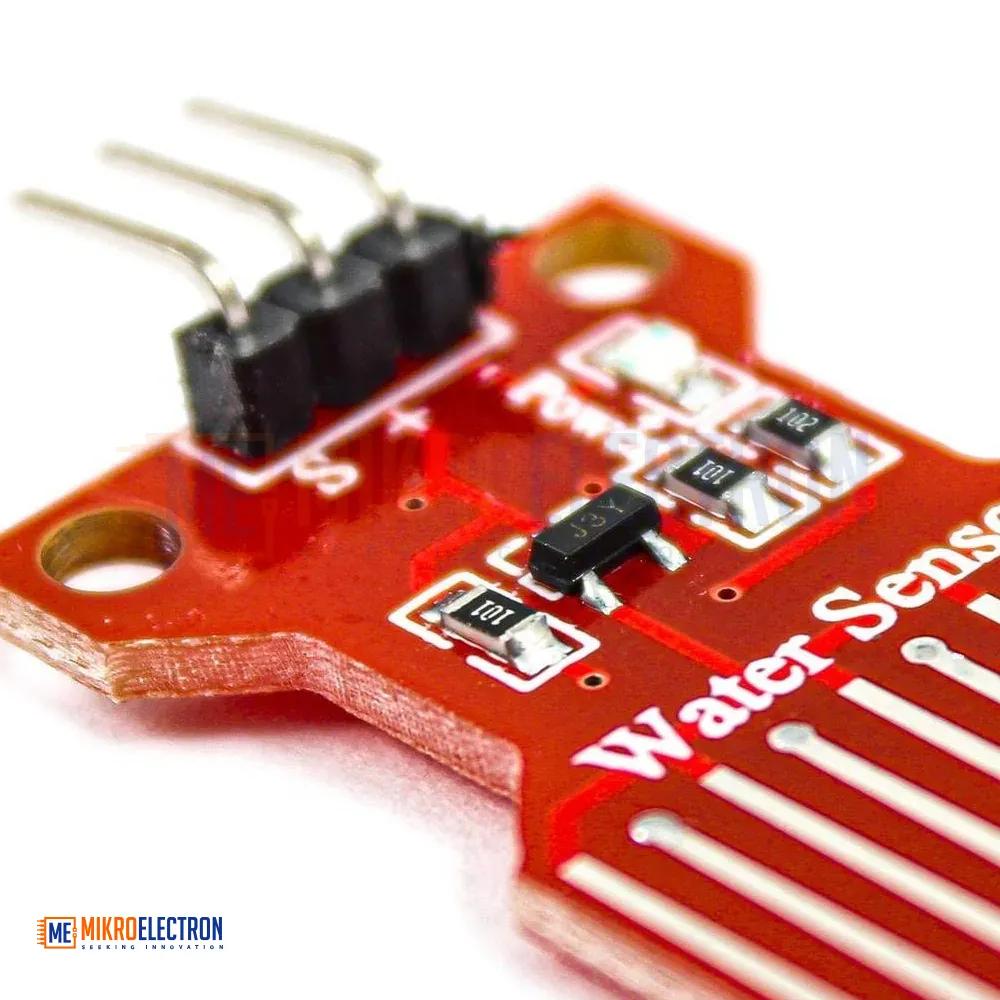

Rain Water Level Detection Sensor Module
The Rain Water Level Detection Sensor Module is an analog liquid level sensing board designed for detecting and measuring water levels in electronic projects. It works by using exposed conductive traces to sense water contact and convert it into an analog signal readable by microcontrollers such as Arduino. The sensor features high conductivity and corrosion resistance due to its plated surface design. It is compact, easy to use, energy efficient, and suitable for water level alarms and monitoring systems.
وحدة استشعار مستوى مياه الأمطار هي لوحة استشعار تناظرية مصممة لاكتشاف وقياس مستويات المياه في المشاريع الإلكترونية. تعمل باستخدام خطوط موصلة مكشوفة لاستشعار ملامسة الماء وتحويلها إلى إشارة تناظرية يمكن قراءتها مباشرة بواسطة متحكمات مثل Arduino. يتميز الحساس بسطح مطلي يوفر موصلية عالية ومقاومة للتآكل. كما أنه صغير الحجم، سهل الاستخدام، موفر للطاقة، ومناسب لأنظمة إنذار ومراقبة مستوى المياه.
The Rain Water Level Detection Sensor Module is a compact and reliable analog sensor designed for detecting the presence and level of water in various electronic applications. The module uses a series of exposed parallel conductive traces to measure water droplets and liquid levels through changes in conductivity.
When water comes into contact with the sensor surface, the module generates an analog voltage signal proportional to the detected water level. This analog output can be directly connected to microcontroller boards such as Arduino for creating water level alarms, rain detection systems, automatic water pumps, and smart monitoring applications.
The sensor surface is specially plated to improve electrical conductivity and increase corrosion resistance, helping extend operational durability. Its simple structure, low power consumption, and easy interfacing make it an excellent solution for hobby, educational, and industrial monitoring projects.
Specifications
- Product Type: Water Level Detection Sensor Module
- Sensor Type: Analog Output
- Material: RF4
- Color: Red
- Operating Voltage: 3.3V – 5V
- Working Current: Less than 20mA
- Output Voltage: 0 ~ 2.3V (fully soaked condition)
- Interface Pins:
- Signal Output
- GND
- VCC
- Approximate Service Life: 1 Year
- Weight: 8g
- Packaging Dimensions: 120 × 78 × 10 mm
- Packaging Type: Anti-static Sealing Bag
Applications
- Rain detection systems
- Water level monitoring
- Water tank overflow alarms
- Automatic irrigation systems
- Smart agriculture projects
- Arduino and microcontroller projects
- Liquid leakage detection
- Home automation systems
- DIY electronics projects
- Industrial water monitoring systems
