Solid State Relay Module 5V 8-Channel Low Level Trigger
5V 8-Channel Solid State Relay Module is a high-performance electronic switching board designed for controlling multiple AC loads using low-voltage control signals. Featuring eight solid state relay channels with low-level trigger activation, the module supports loads up to 240V AC / 2A per channel. Operating from a 5V DC supply, it provides silent, fast, and reliable switching, making it suitable for Arduino, ESP8266, automation systems, industrial controls, and embedded electronics applications.
وحدة Solid State Relay ثمانية القنوات 5V هي لوحة تبديل إلكترونية عالية الأداء مخصصة للتحكم بعدة أحمال كهربائية باستخدام إشارات تحكم منخفضة الجهد. تحتوي على ثماني قنوات ريليه إلكتروني تعمل بنظام التفعيل بالمستوى المنخفض وتدعم أحمالاً حتى 240 فولت AC / 2 أمبير لكل قناة. تعمل بجهد 5 فولت DC وتوفر تبديلًا سريعًا وصامتًا وموثوقاً، مما يجعلها مناسبة لمشاريع Arduino وESP8266 وأنظمة الأتمتة والتحكم الصناعي والإلكترونيات المدمجة.
The 5V 8-Channel Solid State Relay Module Low Level Trigger is a compact multi-channel switching module designed for controlling AC electrical loads through microcontroller and embedded system outputs.
The module integrates eight independent solid state relay channels, allowing simultaneous control of multiple devices or circuits. Using solid-state switching technology instead of mechanical contacts, the module offers silent operation, fast switching speed, longer lifespan, and improved reliability.
The module operates using a 5V DC power supply and supports low-level trigger control, where each relay channel activates when the input signal voltage is between 0V and 2.5V. The relay remains OFF when the input signal voltage is between 3.3V and 5V.
For convenient wiring and secure connections, the board includes both 2.54mm header pins and blue KF301 screw terminals. Its compact design makes it suitable for automation systems, smart home control, industrial switching applications, and multi-channel embedded projects.
Specifications
- Product Type: Solid State Relay Module
- Channels: 8-Channel
- Trigger Type: Low-Level Trigger
- Operating Voltage: 5V DC
- Input Current: 160mA
- Maximum Output Load: 240V AC / 2A per channel
- Trigger Voltage Range: 0V – 2.5V (ON)
- OFF Voltage Range: 3.3V – 5V (OFF)
- Module Dimensions: 103 × 53 × 21 mm
- Switching Technology: Solid State Relay (SSR)
- Connection Type:
- 2.54mm pin headers
- KF301 screw terminals

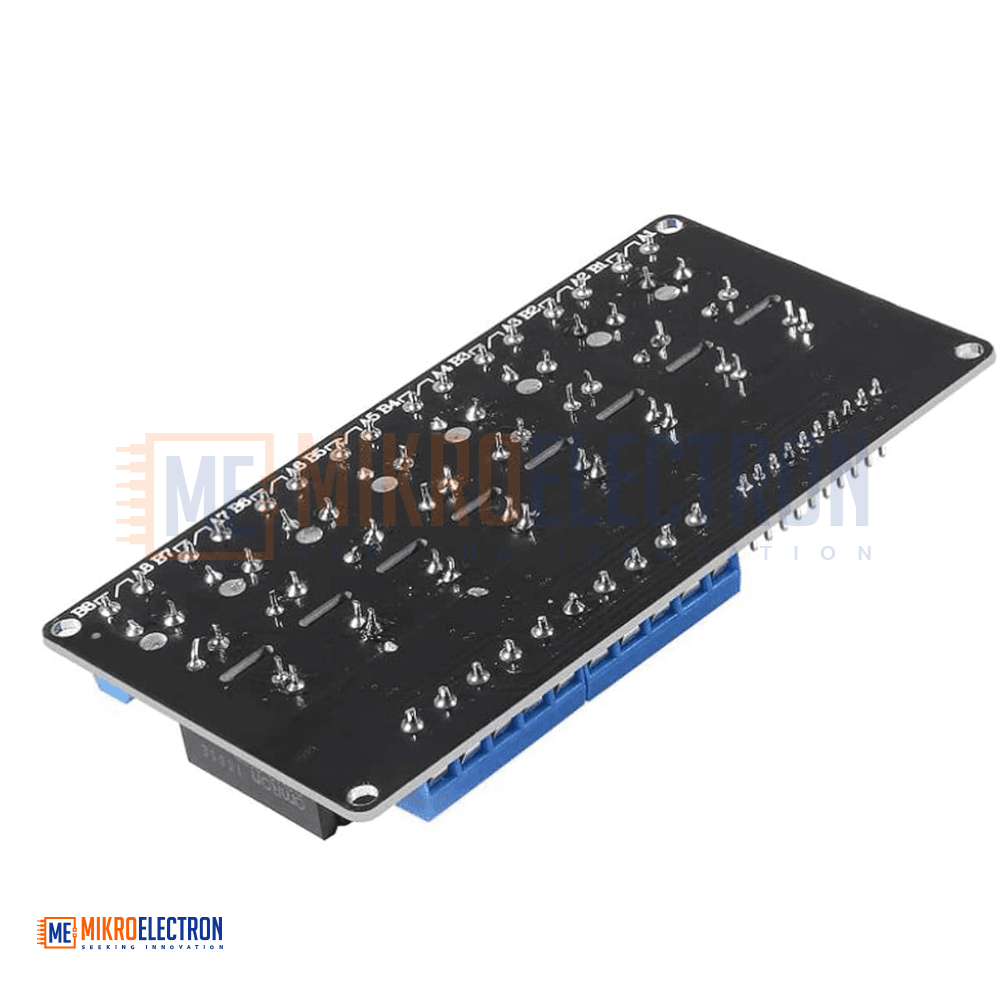

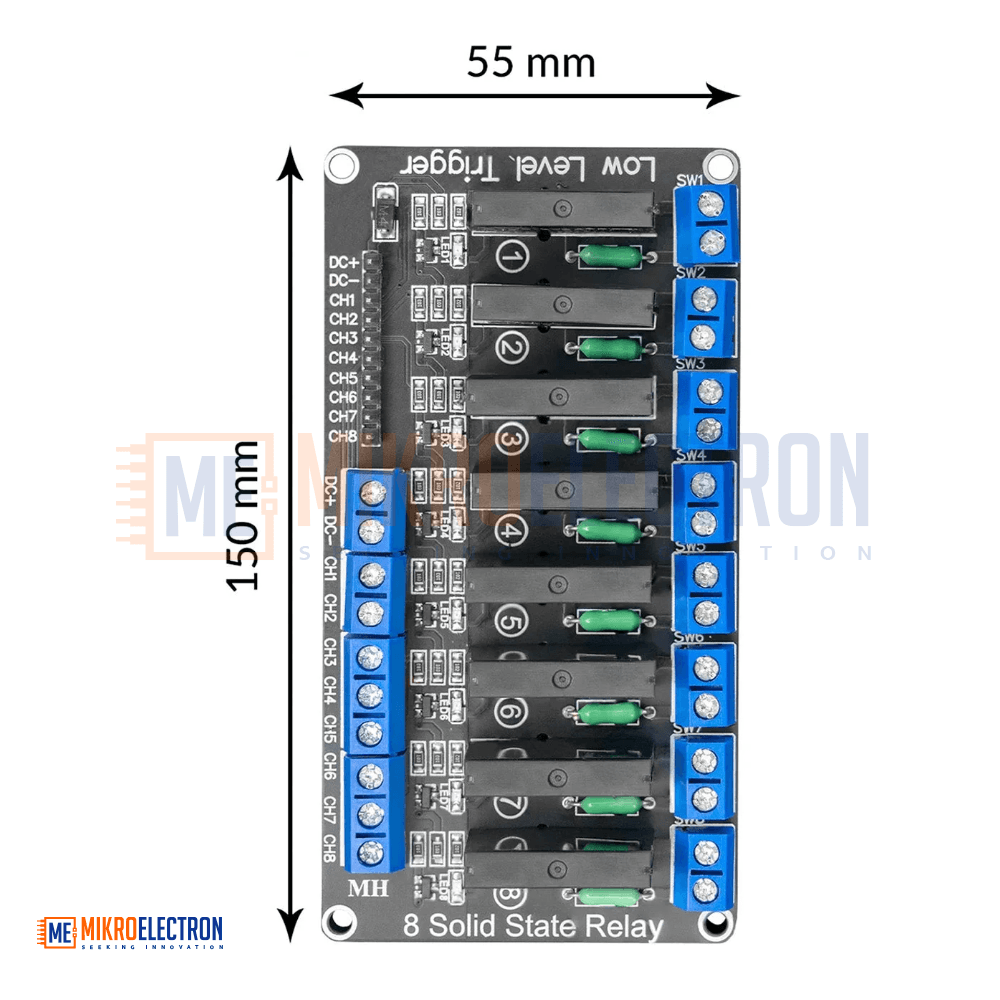

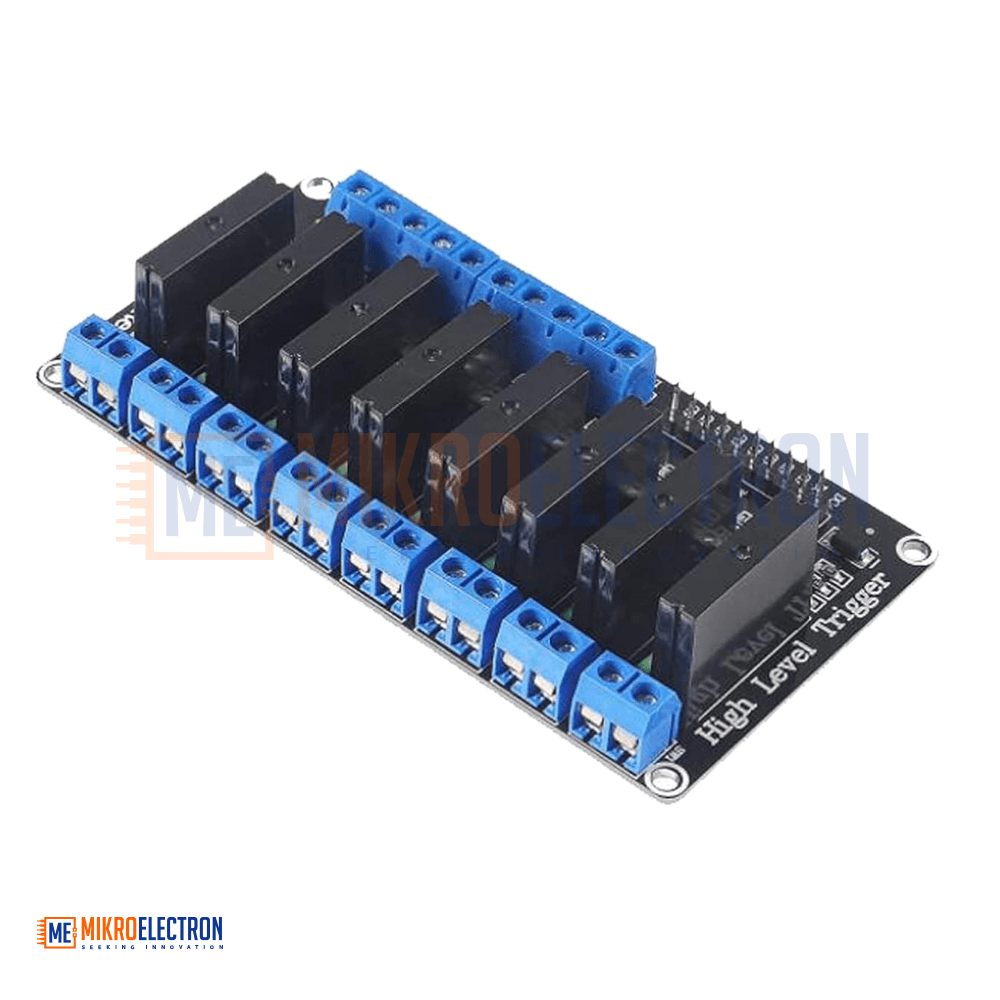

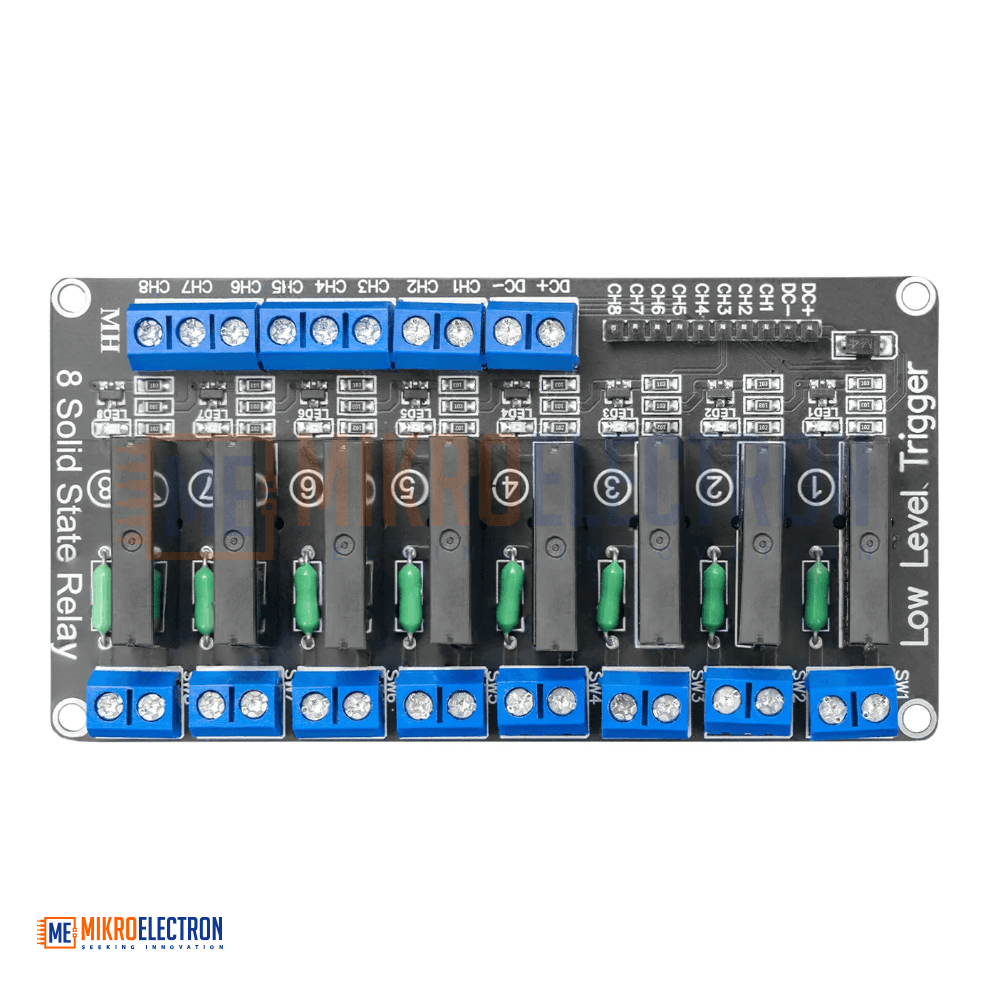

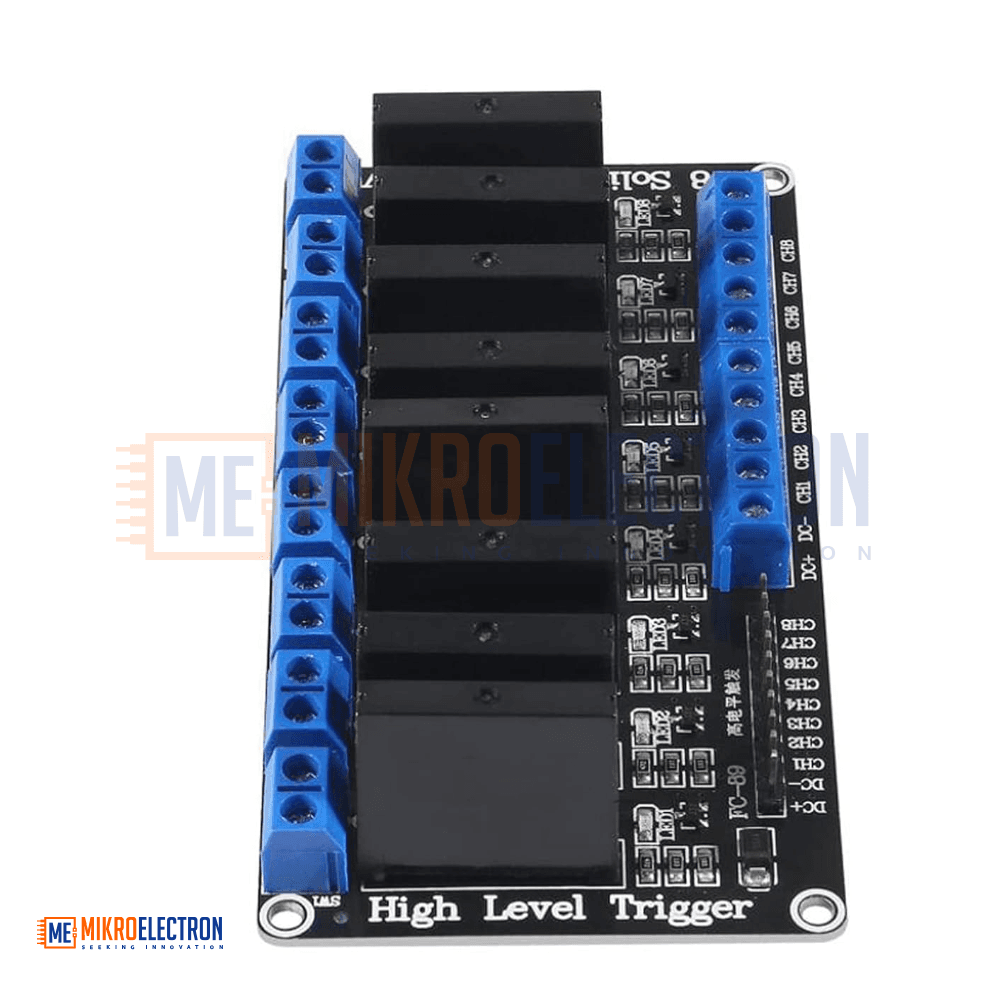

Module Interface
Power Input
- DC+ → Positive power supply input
- DC− → Negative power supply (GND)
Control Inputs
- CH1 → Channel 1 trigger input
- CH2 → Channel 2 trigger input
- CH3 → Channel 3 trigger input
- CH4 → Channel 4 trigger input
- CH5 → Channel 5 trigger input
- CH6 → Channel 6 trigger input
- CH7 → Channel 7 trigger input
- CH8 → Channel 8 trigger input
Trigger Mode: Low-level active
Applications
- Arduino and ESP8266 automation projects
- Industrial control systems
- Smart home switching systems
- Multi-channel AC load control
- Lighting automation systems
- Embedded electronics applications
- Remote switching systems
- IoT and automation projects
- DIY electronic control systems
- Microcontroller-based industrial interfaces
