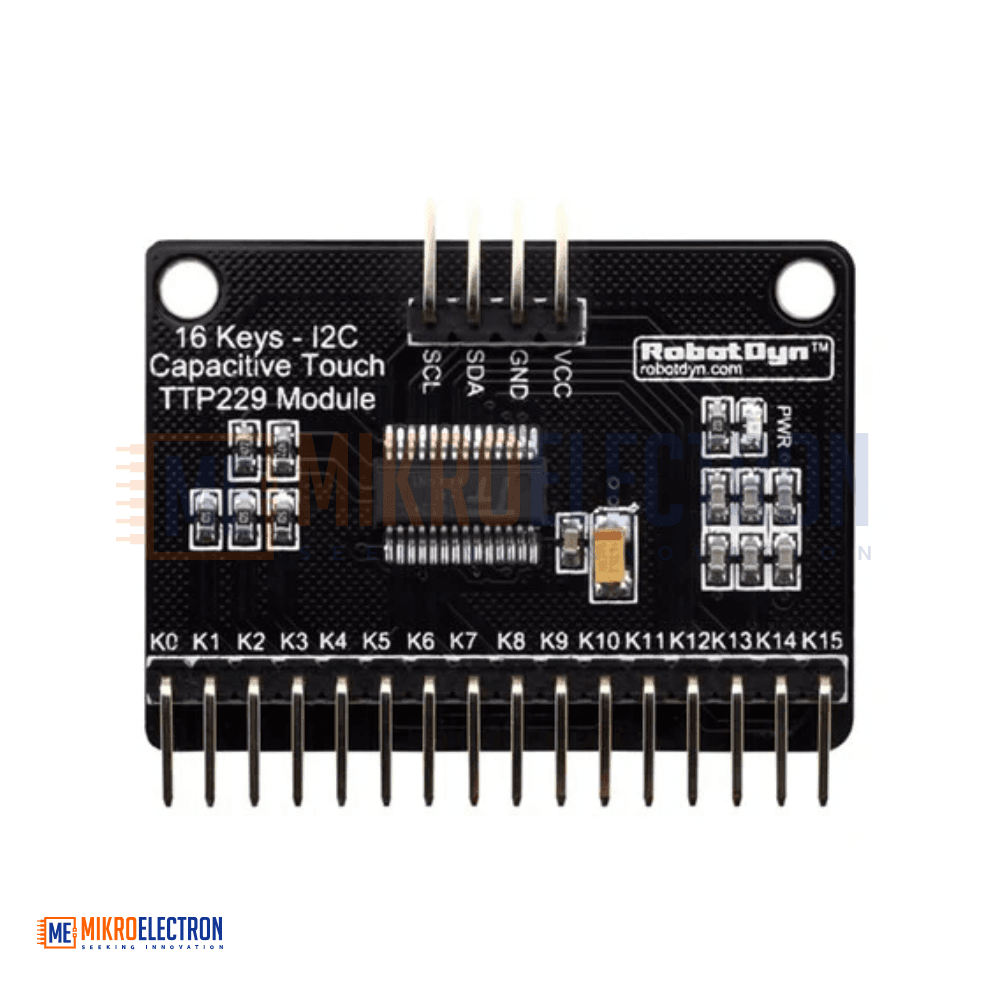

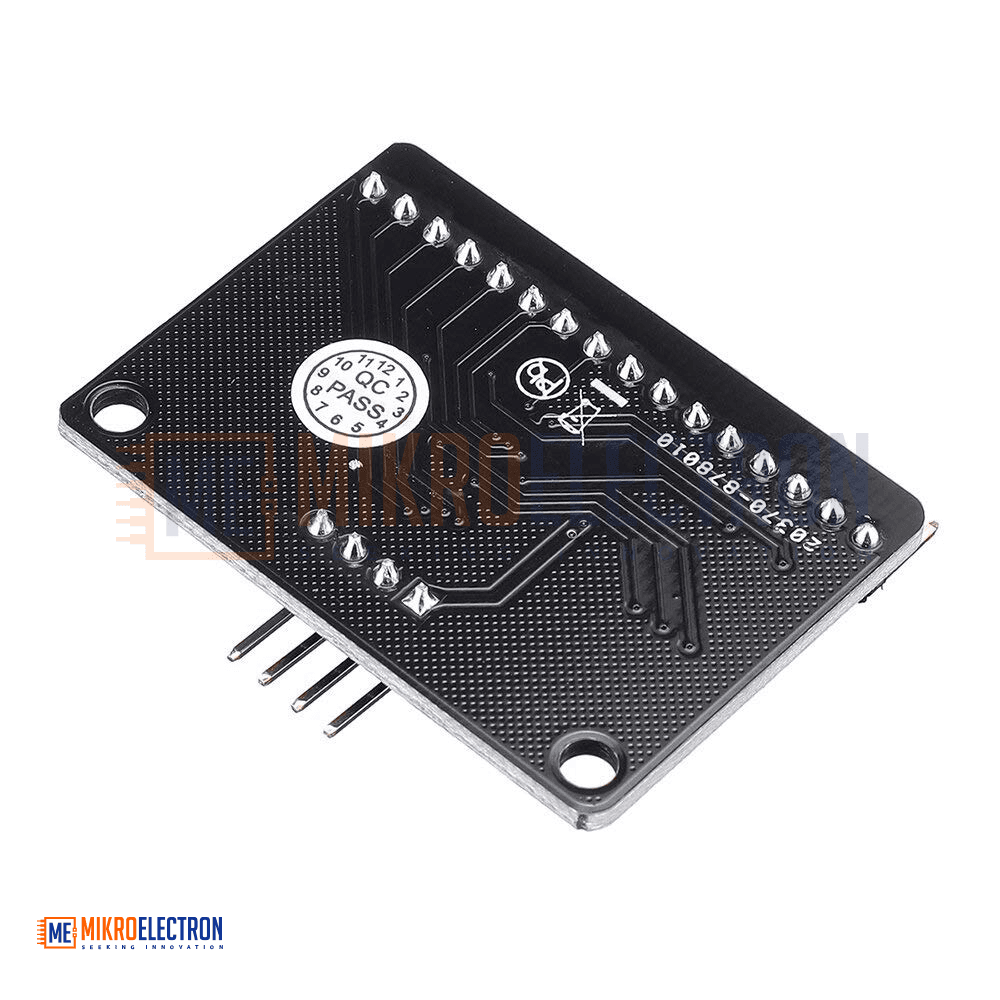

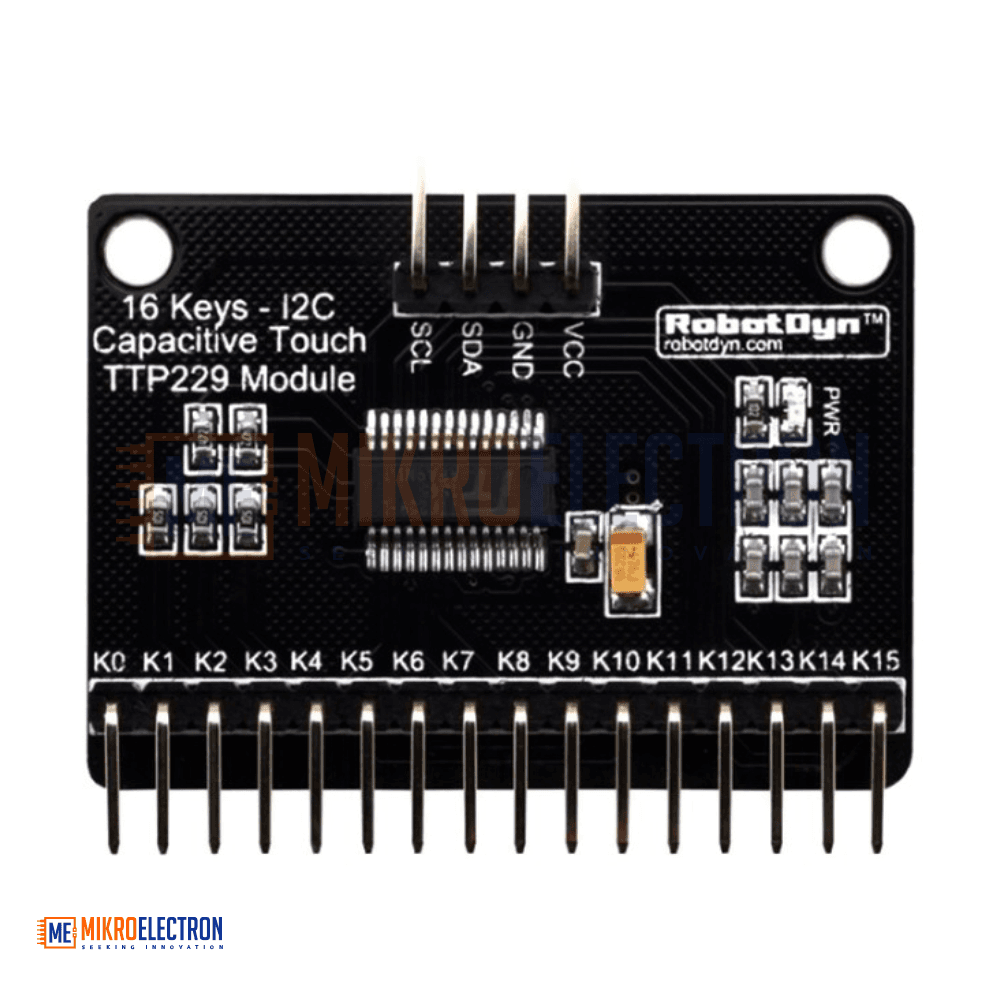

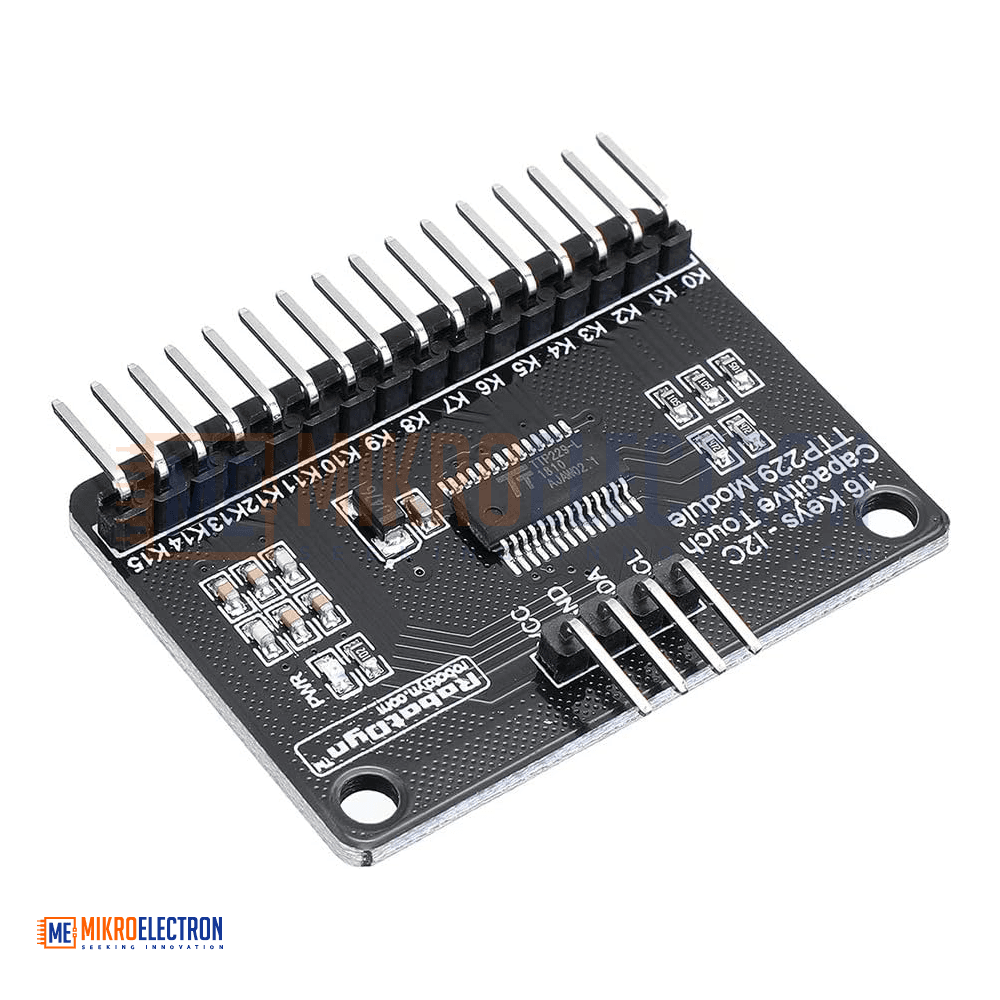

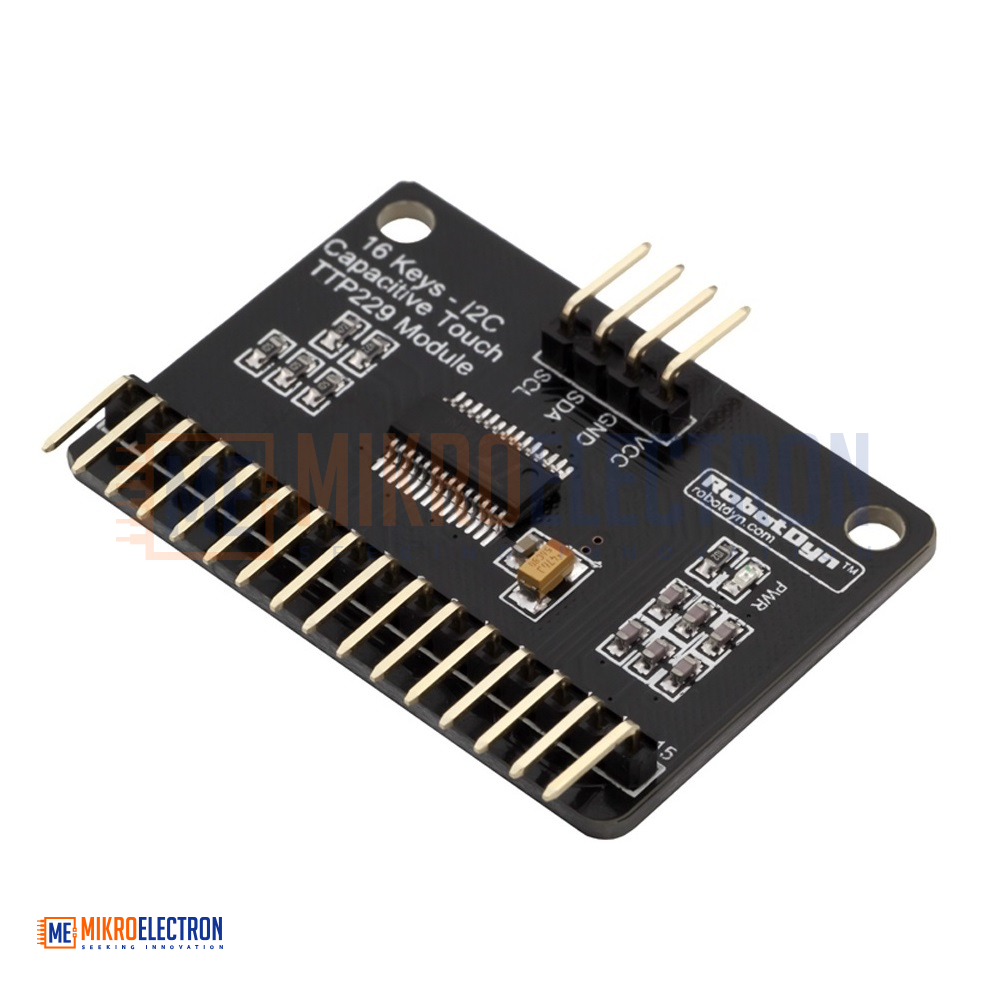

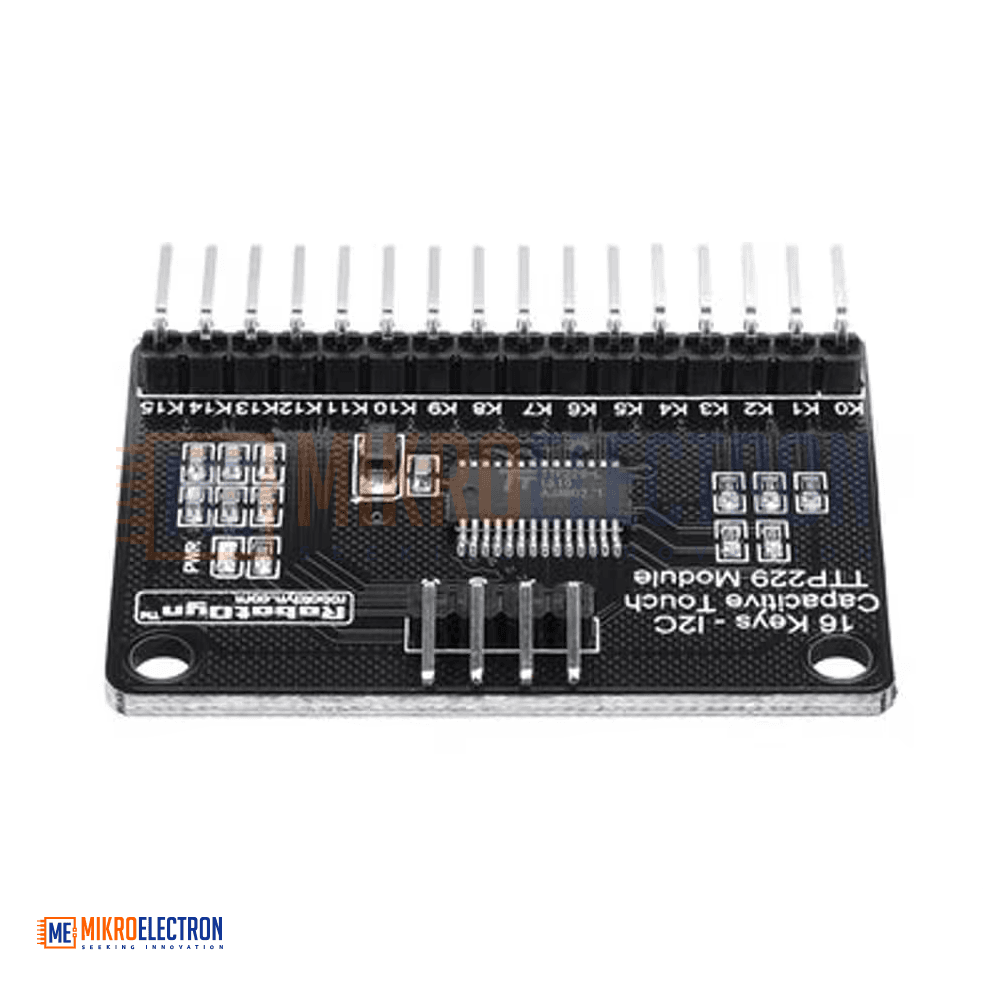

Touch Ttp229 Module I2c Bus

The TTP229 Touch Module I2C Bus is a capacitive touch sensing module designed to provide reliable touch input for electronic and embedded systems. The module supports up to 16 touch-sensitive keys and uses the I2C communication protocol for easy integration with microcontrollers and development boards.

The module operates in a dedicated 16-key mode, enabling multiple touch inputs for user interface applications. It can detect touch through conductive surfaces such as metal pads, conductive ink patterns, touch keypads, and even certain conductive objects like fruits or conductive pens.

Using capacitive sensing technology, the TTP229 eliminates the need for mechanical buttons, improving durability and providing a modern touch-control interface. The module is compatible with Arduino, Raspberry Pi, STM32, ESP32, and many other microcontroller platforms.

Its compact design and low-power operation make it suitable for smart control panels, interactive projects, touch keyboards, home automation systems, and educational electronics applications.

Specifications

• Model: TTP229 Touch Module
• Touch Technology: Capacitive touch sensing
• Communication Interface: I2C Bus
• Supported Keys: Up to 16 touch keys
• Operating Mode: 16-key mode
• Input Type: Capacitive touch inputs
• Compatible Platforms: Arduino, Raspberry Pi, STM32, ESP32, AVR, PIC
• Touch Input Materials:
  • Metal pads
  • Capacitive keypads
  • Conductive ink prints
  • Conductive objects

Applications

• Touch keypad systems
• Arduino and Raspberry Pi projects
• Smart home control panels
• Interactive electronic interfaces
• Touch-sensitive keyboards
• Embedded control systems
• Industrial touch panels
• Educational electronics projects
• DIY capacitive touch systems
• Modern replacement for mechanical buttons
