GPIO Expansion Board Hat Multi-function for Raspberry Pi High Quality

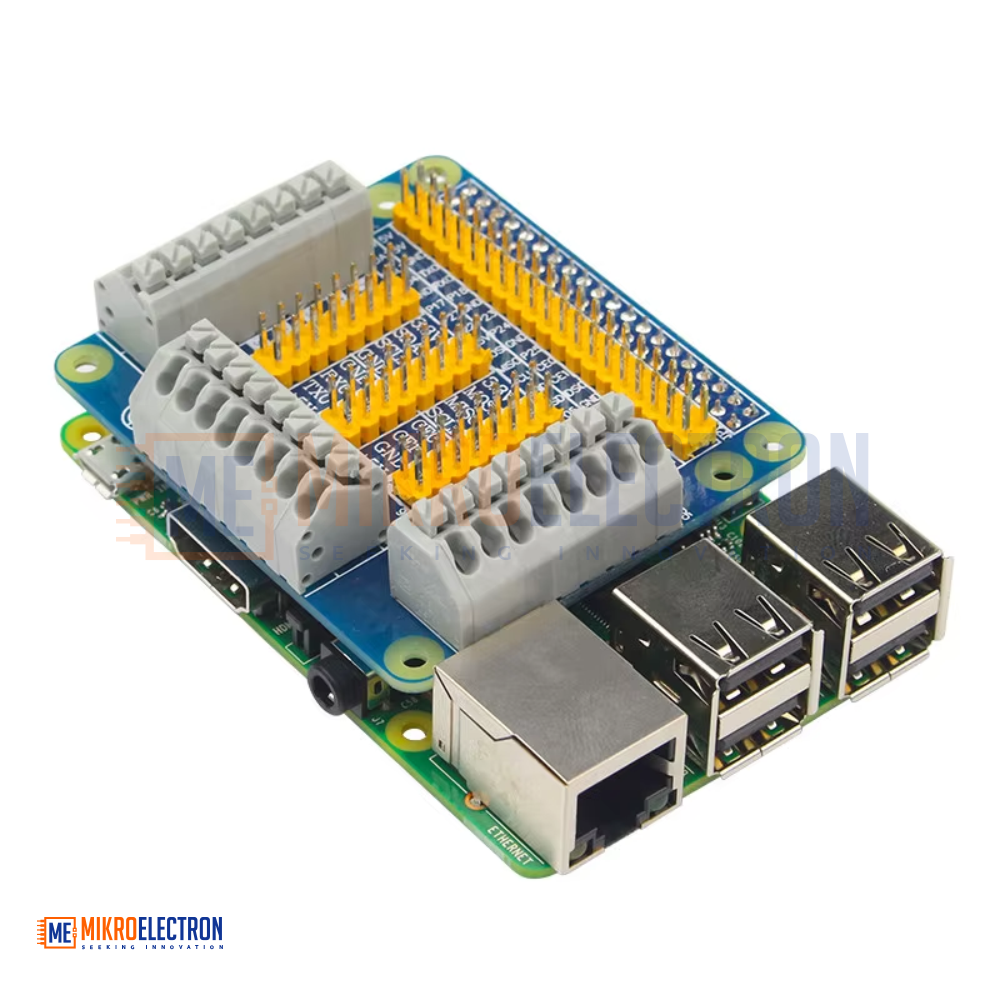

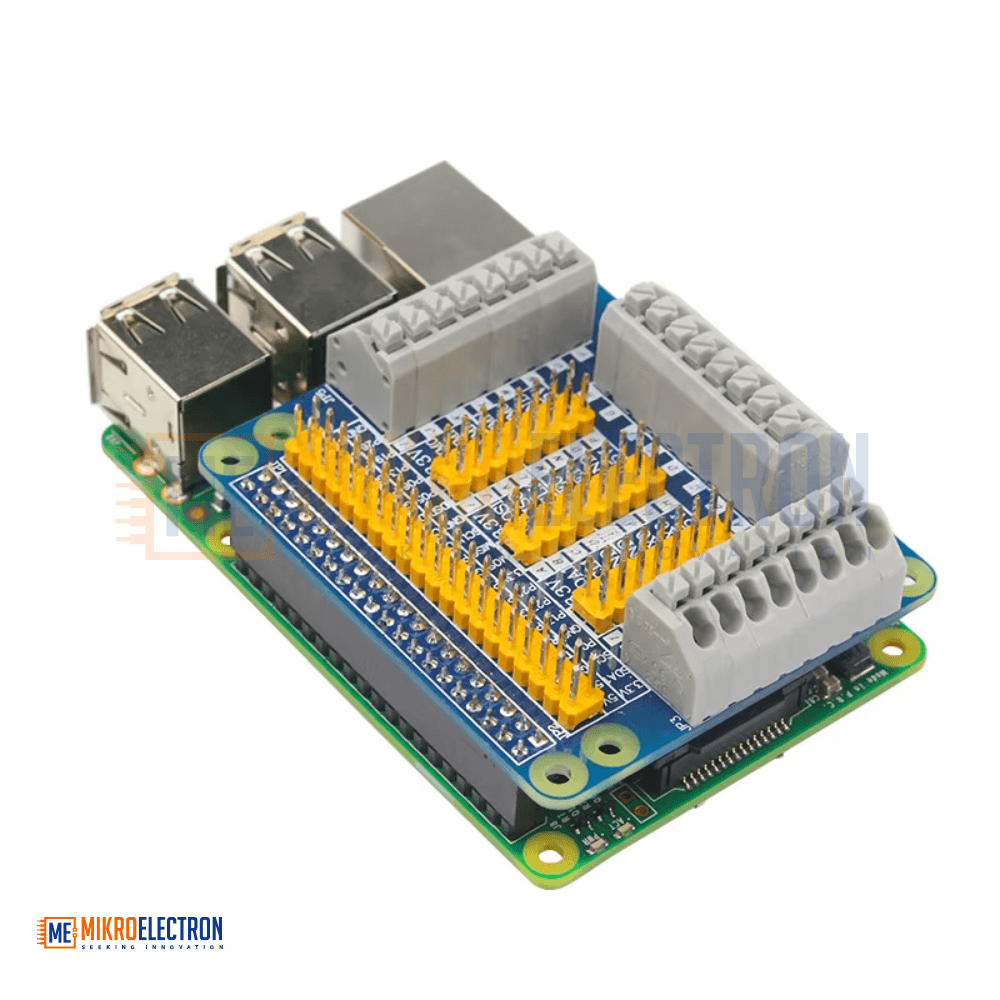

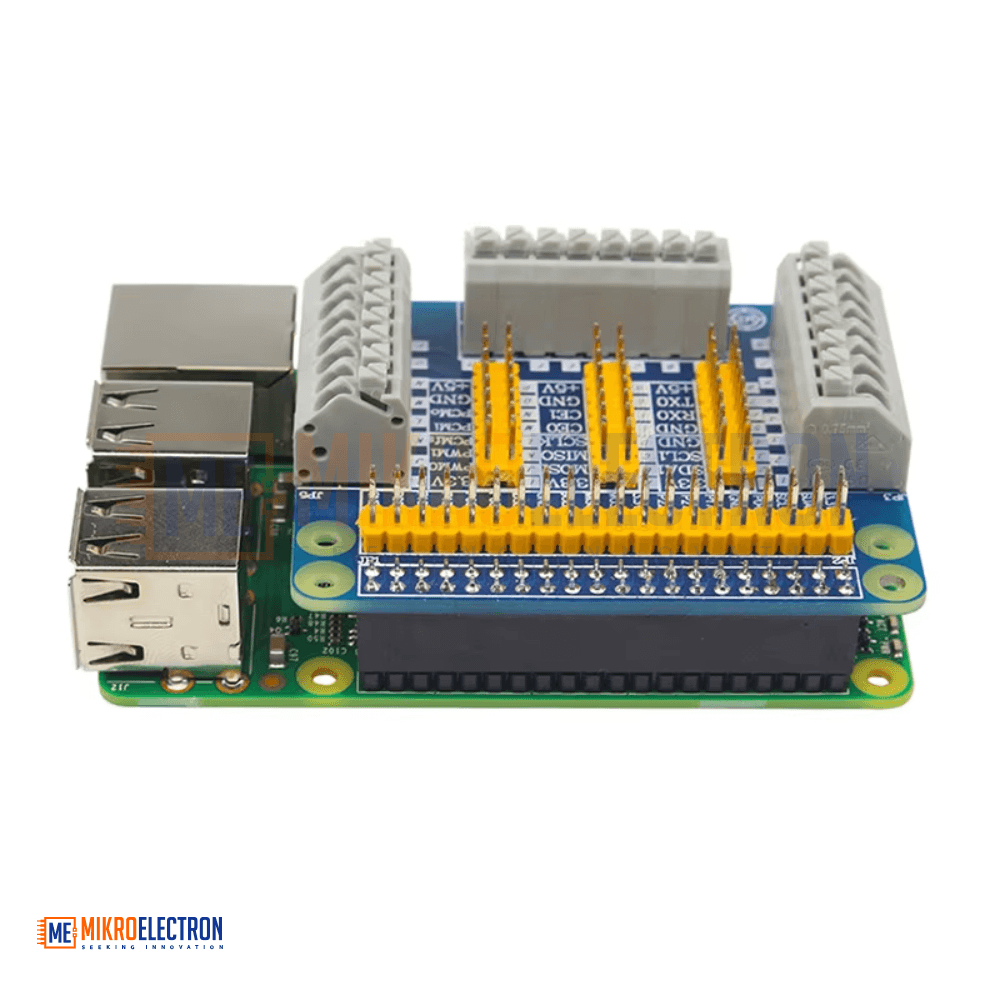

GPIO Expansion Board HAT for Raspberry Pi is a multifunctional GPIO breakout board designed to simplify wiring and prototyping with Raspberry Pi development boards. Compatible with Raspberry Pi 2, 3 Model B, and B+, it expands the 40-pin GPIO interface into multiple accessible headers and push-to-release terminal blocks for convenient connections. The board includes mounting hardware and jumper configuration support, making it ideal for electronics development, robotics, automation, and embedded system projects.
لوحة توسعة GPIO متعددة الوظائف لـ Raspberry Pi هي لوحة توسعة عملية مصممة لتسهيل التوصيلات والتجارب الإلكترونية مع لوحات Raspberry Pi. تدعم Raspberry Pi 2 و3 Model B وB+ وتقوم بتوسعة منفذ GPIO ذي 40 دبوساً إلى عدة مخارج ورؤوس توصيل مع أطراف تثبيت سريعة الاستخدام. تأتي مع أدوات التثبيت ووصلات الجمبر، مما يجعلها مناسبة لمشاريع الإلكترونيات والروبوتات والأتمتة والأنظمة المدمجة والتطوير التعليمي والاحترافي.
The GPIO Expansion Board HAT Multi-function for Raspberry Pi is a convenient and versatile expansion accessory designed to simplify GPIO access and external device connections for Raspberry Pi systems. It is fully compatible with Raspberry Pi 2, Raspberry Pi 3 Model B, and Raspberry Pi B+ boards.

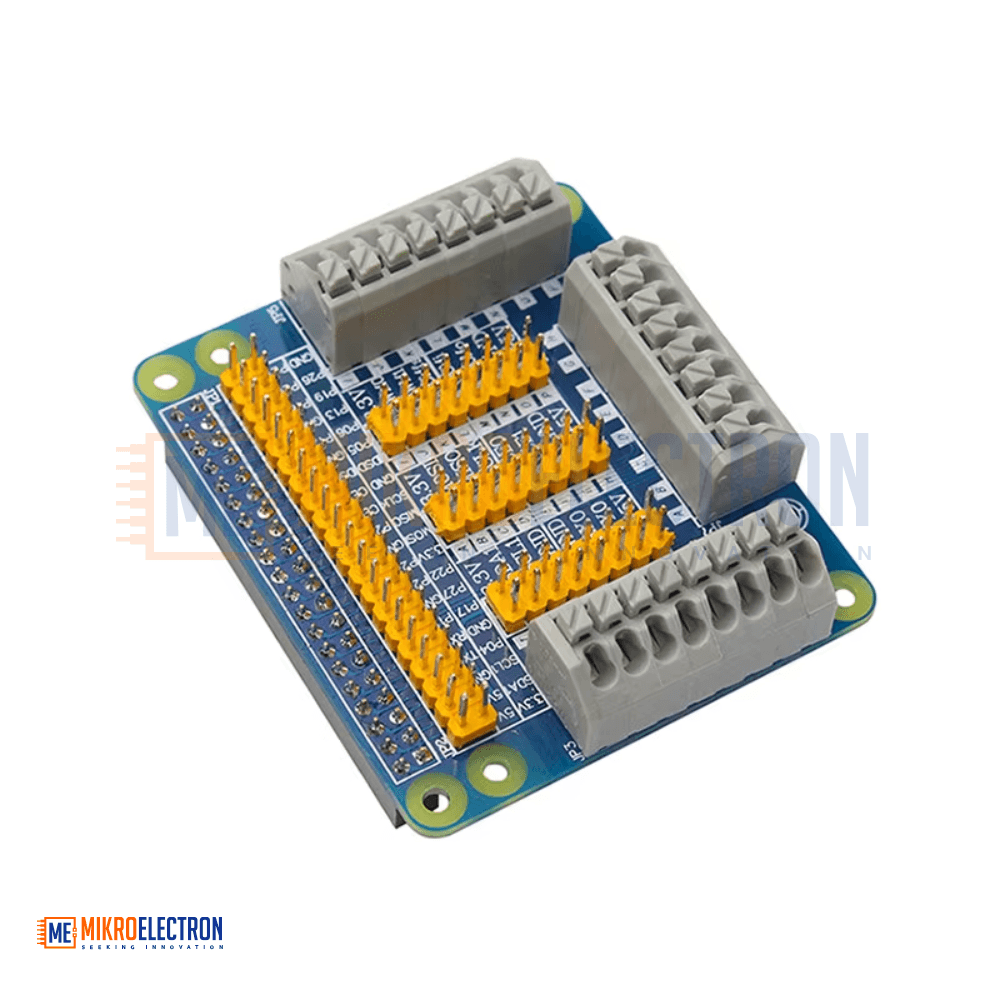

The expansion board extends the standard 40-pin GPIO interface into multiple connection options, including a duplicated 2×20 male header, additional separated 2×8 male headers, and easy-to-use push-to-release terminal blocks. This configuration allows users to connect sensors, modules, motors, displays, and other peripherals more efficiently during prototyping and development.
The board includes mini jumper caps for GPIO configuration and comes with mounting accessories such as screws, nuts, washers, and spacers for secure installation on the Raspberry Pi board.

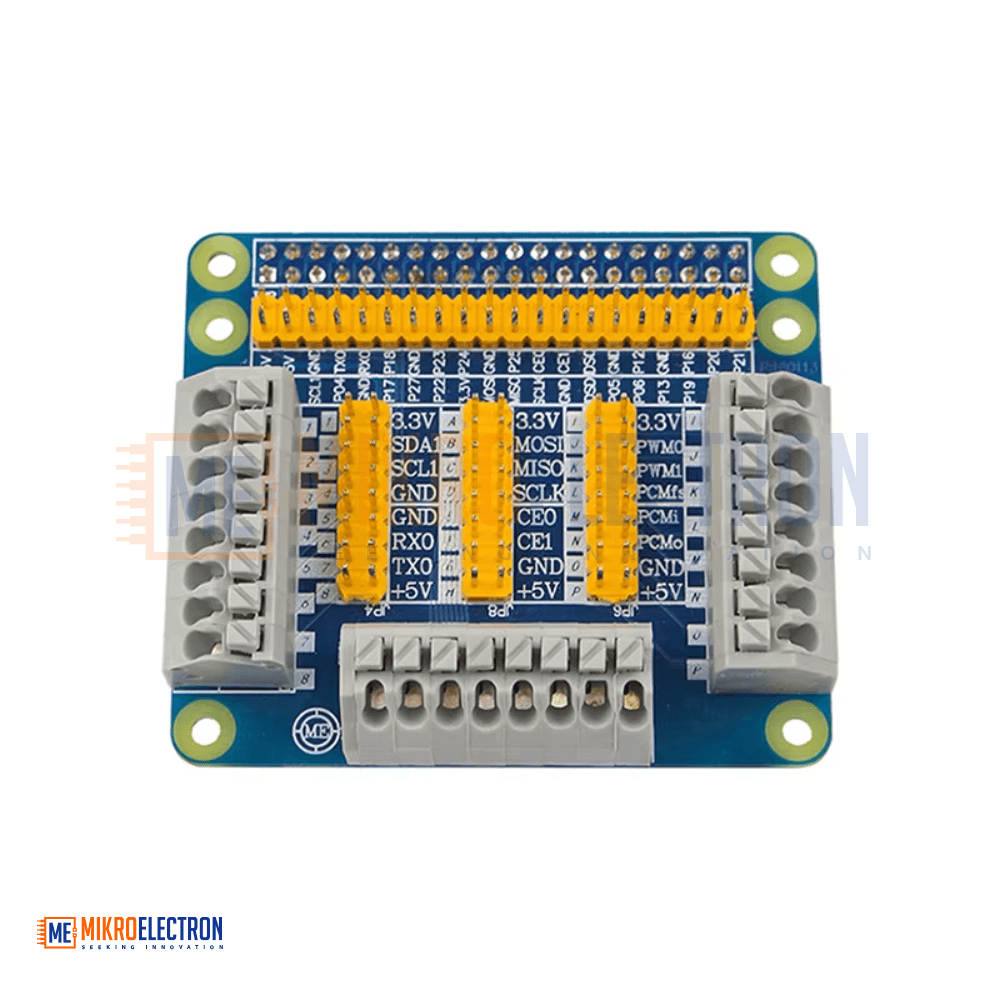

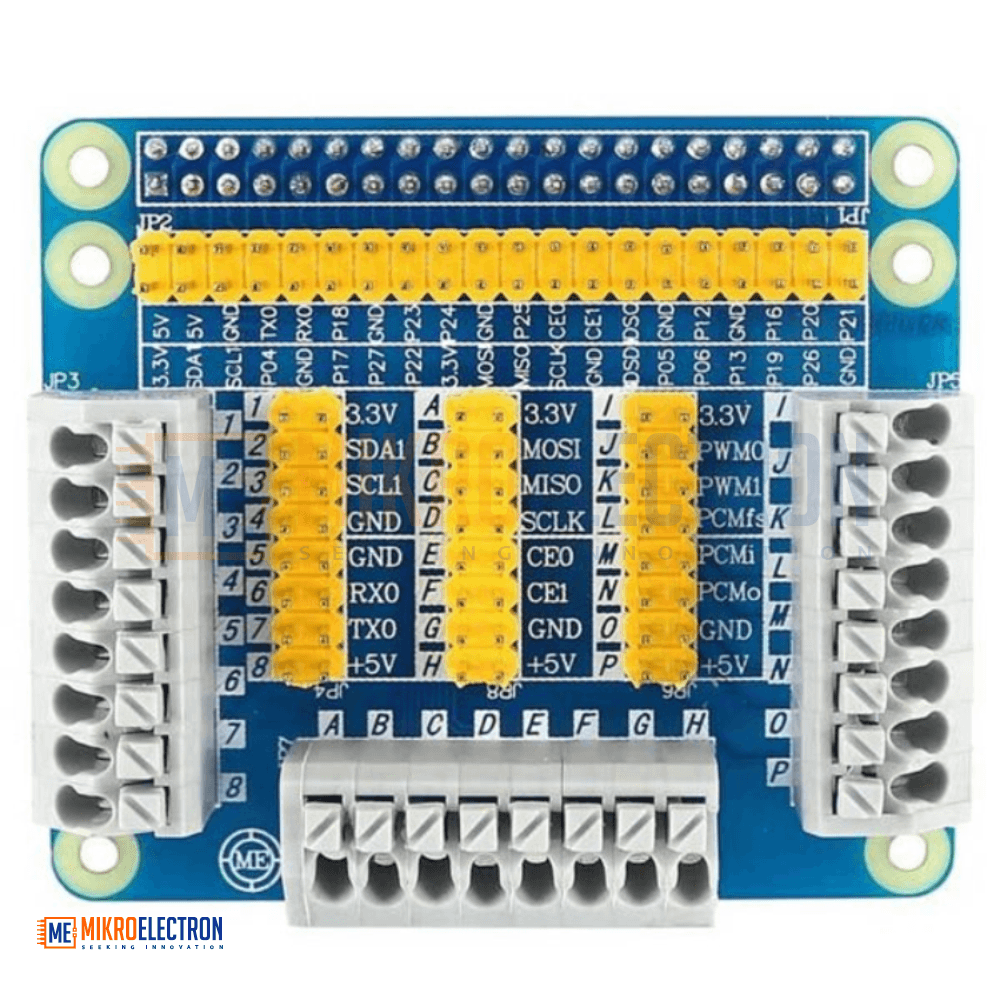

Clearly labeled GPIO pins improve usability and reduce wiring errors, while the terminal block system enables quick and tool-free wire connections. This makes the expansion HAT ideal for educational projects, robotics, IoT systems, industrial automation, and embedded electronics development.
Note: Raspberry Pi board is not included.
Specifications
- Product Type: GPIO Expansion Board HAT
- Compatible Boards: Raspberry Pi 2, Raspberry Pi 3 Model B, Raspberry Pi B+
- GPIO Interface: 40-Pin Expansion
- Header Type: 2×20 Male Header
- Additional Headers: 3 × 2×8 Male Headers
- Terminal Type: Push-to-Release Terminal Blocks
- Board Size: Approx. 6.5 × 5.5 cm
- Dimensions: 2.55 × 2.16 inch
- Package Weight: 43g
- Configuration Support: Mini Jumper Caps Included
- Mounting Accessories: Screws, Nuts, Washers, and Spacers Included
Applications
- Raspberry Pi prototyping
- GPIO signal expansion
- Robotics and automation projects
- IoT and smart home systems
- Sensor and module interfacing
- Educational electronics development
- Embedded systems projects
- Industrial control systems
- DIY Raspberry Pi projects
- Breadboard and external hardware connections
