XS3868 Wireless Bluetooth Module Stereo Audio Module

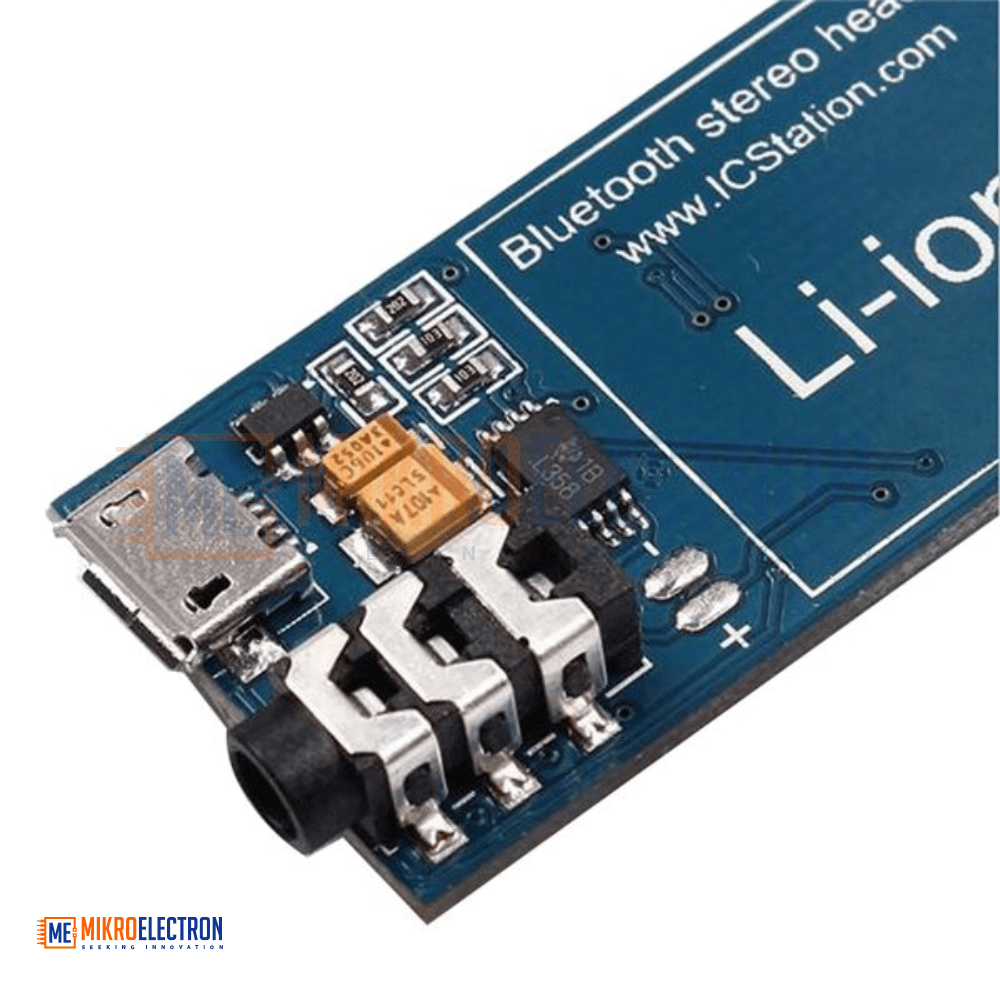

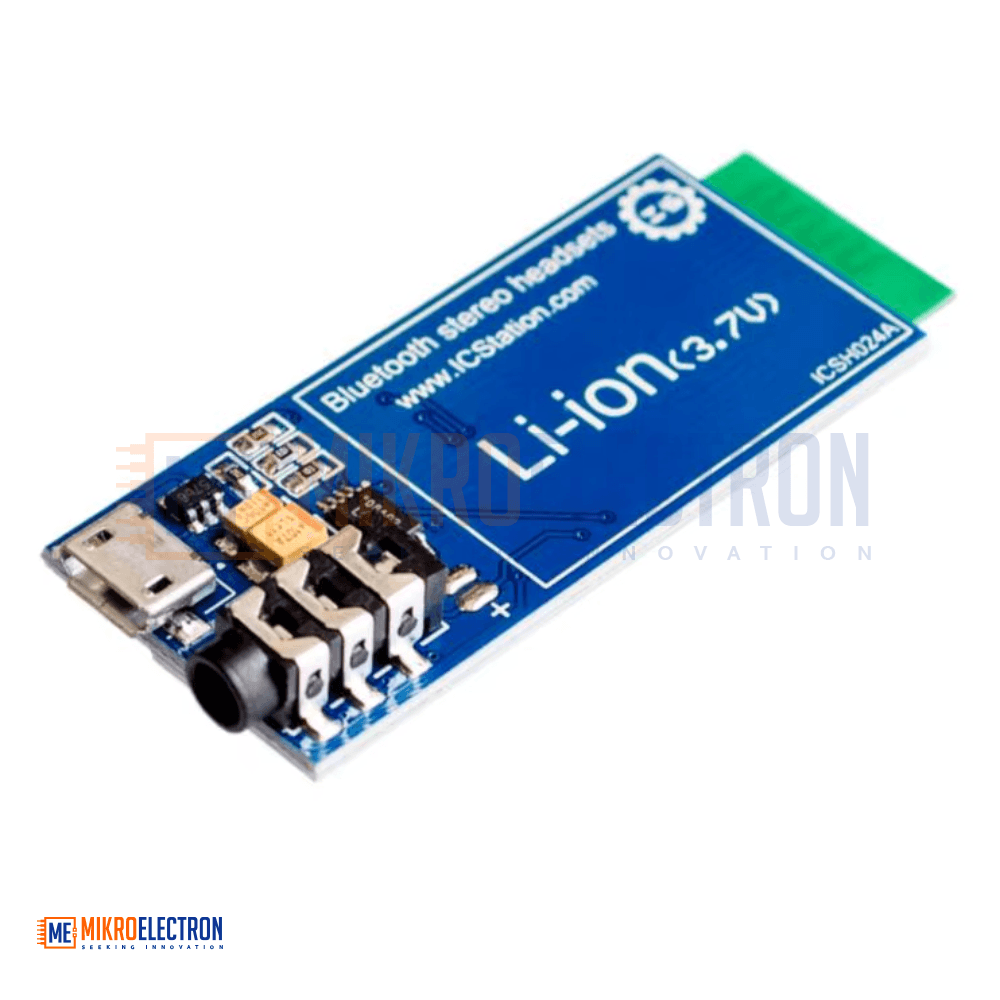

XS3868 Wireless Bluetooth Stereo Audio Module is a compact Bluetooth audio receiver module based on the OVC3860 chip, supporting A2DP and AVRCP audio protocols for wireless stereo music transmission and playback control. Designed for DIY audio systems and Bluetooth speaker applications, it provides stable wireless connectivity, low power consumption, USB charging support, and onboard playback controls. Ideal for Bluetooth speakers, wireless headsets, portable audio devices, and embedded audio projects.
وحدة الصوت اللاسلكية XS3868 Bluetooth Stereo Audio Module هي وحدة استقبال صوت بلوتوث صغيرة تعتمد على شريحة OVC3860 وتدعم بروتوكولات A2DP و AVRCP لنقل الصوت اللاسلكي والتحكم بالموسيقى. صُممت لتطبيقات الصوت اللاسلكي ومشاريع DIY، حيث توفر اتصالاً مستقراً واستهلاكاً منخفضاً للطاقة مع دعم الشحن عبر USB وأزرار التحكم بالتشغيل. تعد مناسبة للسماعات اللاسلكية وسماعات الرأس وأنظمة الصوت المحمولة والمشاريع الإلكترونية الصوتية المختلفة.

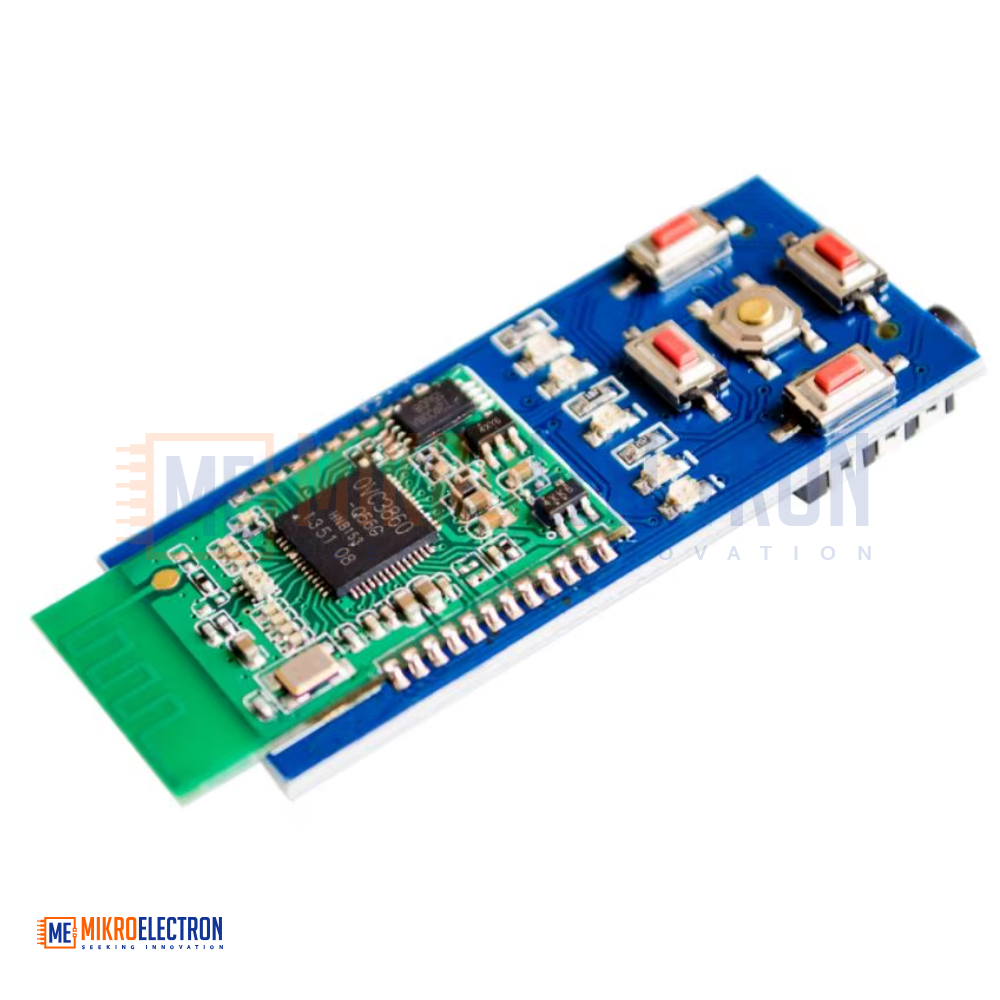

The XS3868 Wireless Bluetooth Module Stereo Audio Module is a compact and efficient Bluetooth audio receiver board designed for wireless stereo music streaming and audio control applications. Powered by the advanced OVC3860 Bluetooth audio chip, the module supports popular Bluetooth audio protocols including A2DP for high-quality stereo audio transmission and AVRCP for playback control functionality.
The module is suitable for building Bluetooth-enabled speakers, wireless headphones, portable audio systems, and DIY embedded audio devices. It provides stable wireless audio connectivity with low power consumption and supports USB charging functionality for battery-powered applications.

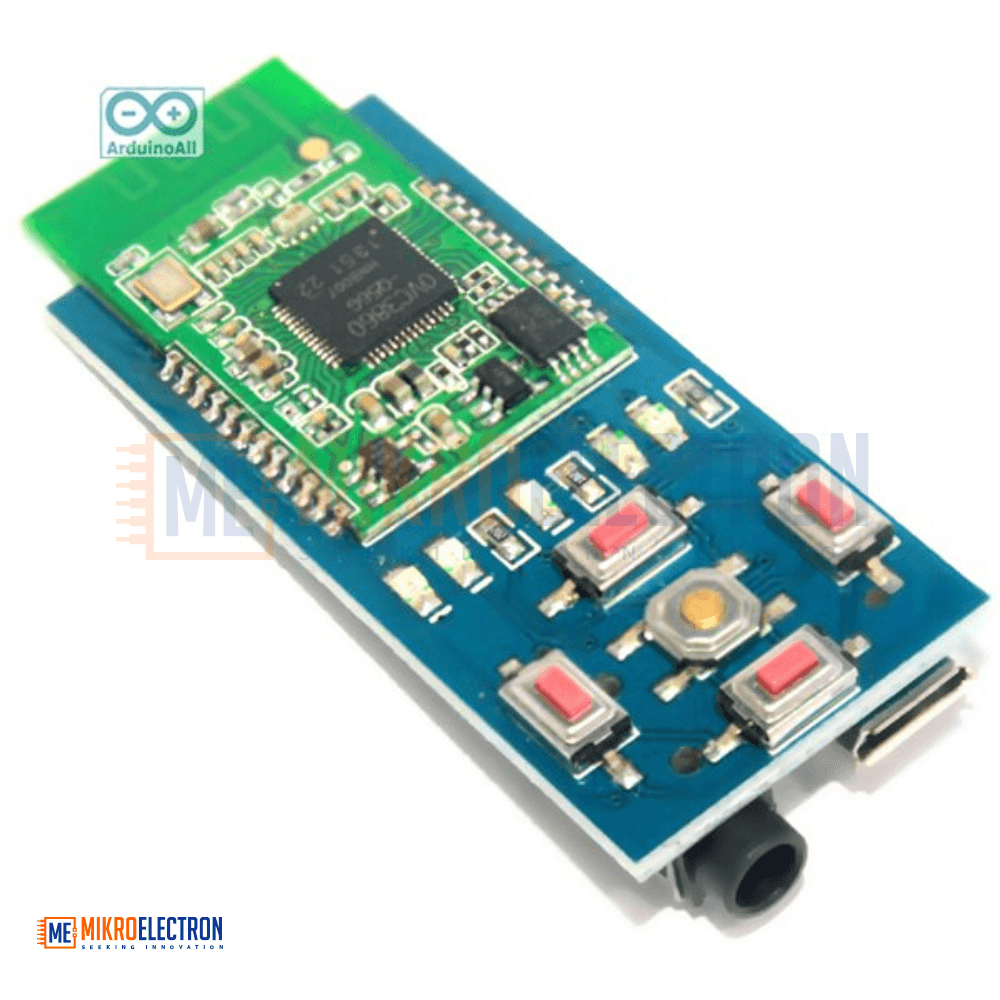

Integrated control functions allow users to manage music playback, track switching, volume adjustment, and power control directly from the module interface. Multiple LED indicators provide charging status, Bluetooth operation status, and low battery alerts.
Its compact size and simple integration make the XS3868 ideal for audio enthusiasts, electronics hobbyists, and embedded system developers working on wireless sound projects.
Specifications
- Product Type: Wireless Bluetooth Audio Module
- Model: XS3868
- Bluetooth Chip: OVC3860
- Supported Protocols: A2DP, AVRCP
- Audio Type: Stereo Bluetooth Audio
- USB Charging Voltage: 4.2V – 9V
- USB Charging Current: 400mA
- Module Operating Voltage: 3.6V – 4.2V
- Music Playback Current: 80mA (Max)
- Standby Current: Less than 1mA
- Module Size: 49 × 22 mm (without soldering)
- Module Size with XS3868: 54.5 × 22 mm

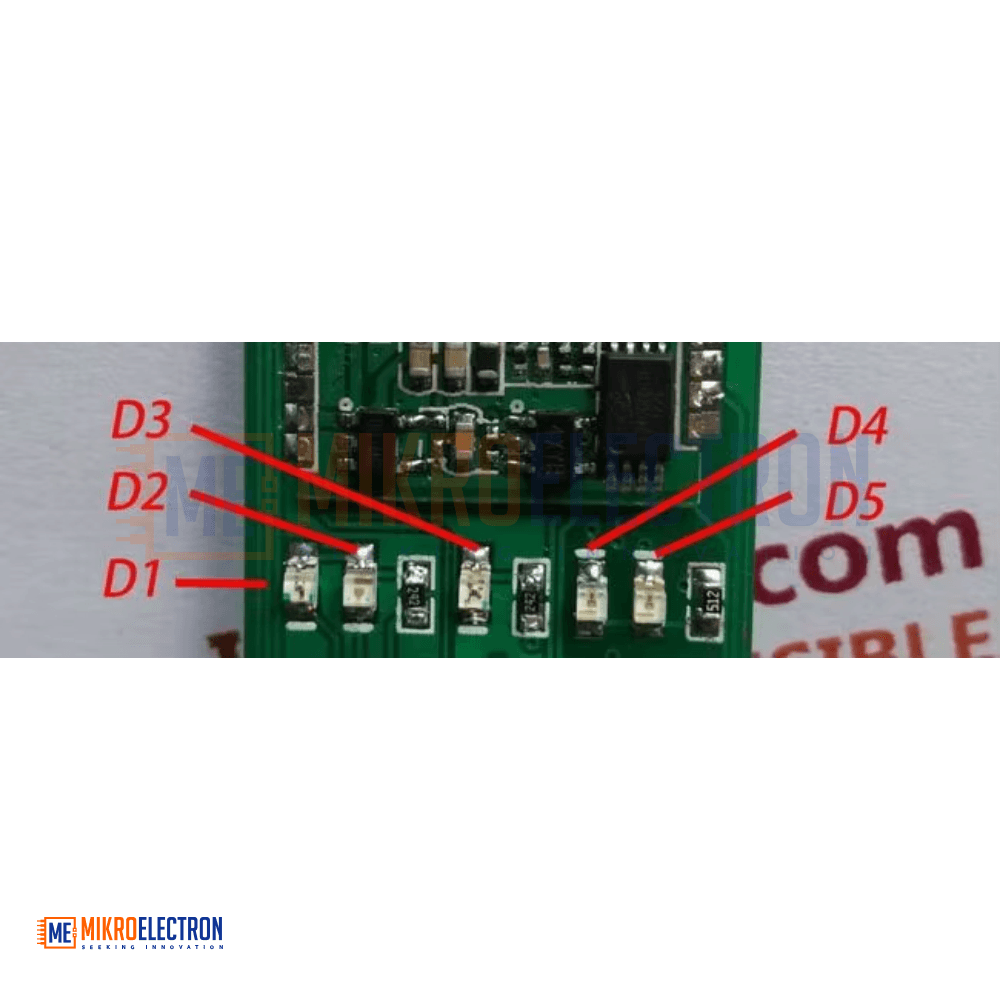

LED Indicators
- D1: Charging Indicator
- D2: Charging Complete Indicator
- D3: Low Battery Indicator
- D4: Bluetooth Working Indicator LED1
- D5: Bluetooth Working Indicator LED2

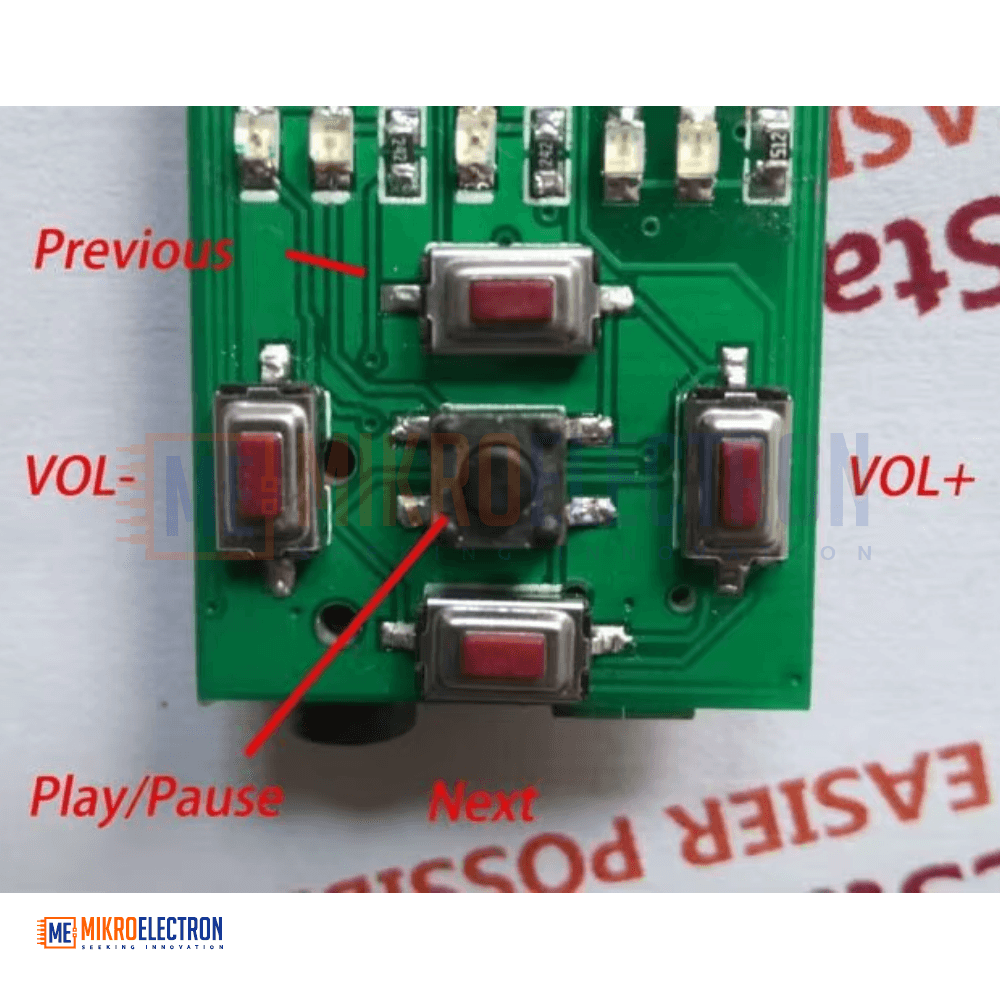

Button Functions
- Previous: Previous Track
- Next: Next Track
- VOL-: Volume Down
- VOL+: Volume Up
- Play/Pause: Play or Pause Music
- Long Press Play/Pause: Power ON/OFF
Applications
- Bluetooth stereo speakers
- Wireless audio systems
- Bluetooth headphones and headsets
- DIY portable speaker projects
- Home audio upgrades
- Embedded wireless sound devices
- Educational electronics projects
- Audio streaming systems
- Battery-powered audio devices
- Consumer electronic products
