vertical axis micro wind turbines
The Mini Vertical Wind Generator Kit is a compact DC wind turbine model designed for education, demonstrations, and DIY learning. Featuring a vertical-axis design with four blades and an integrated 5mm LED indicator, it generates power from airflow without batteries. Easy to assemble and able to rotate 360° to capture wind from any direction, this micro wind turbine is ideal for science experiments, STEM education, and hands-on renewable energy exploration.
عدة مولّد الرياح العمودي المصغّر هي نموذج توربين رياح صغير يعمل بتيار مستمر (DC)، صُمّم للأغراض التعليمية، والعروض التوضيحية، والتعلّم الذاتي (DIY).
يتميز بتصميم محور عمودي مع أربع شفرات ومؤشر LED مدمج بقطر 5 مم، حيث يقوم بتوليد الطاقة من تدفق الهواء دون الحاجة إلى بطاريات.
العدة سهلة التركيب، وقادرة على الدوران بزاوية 360° لالتقاط الرياح من أي اتجاه، مما يجعل هذا التوربين المصغّر مثاليًا لتجارب العلوم، وتعليم STEM، واستكشاف مفاهيم الطاقة المتجددة بطريقة عملية وتفاعلية.

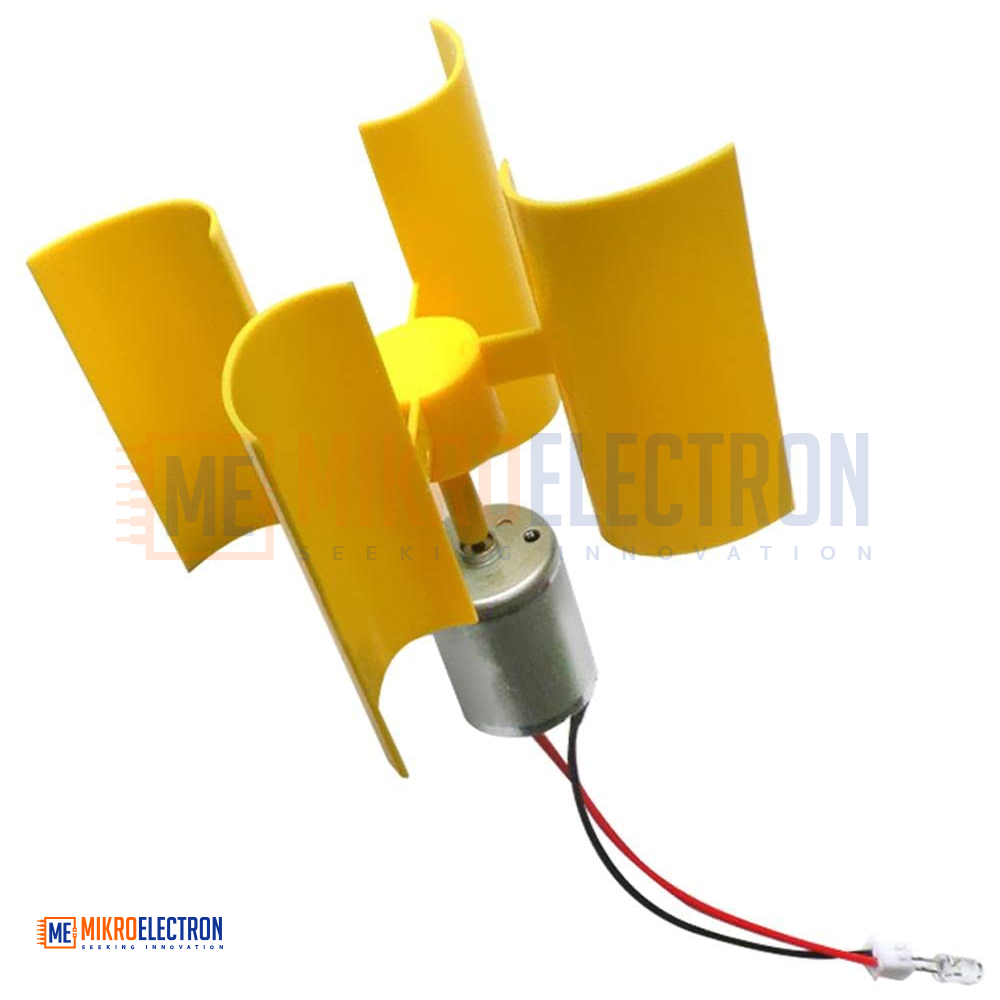

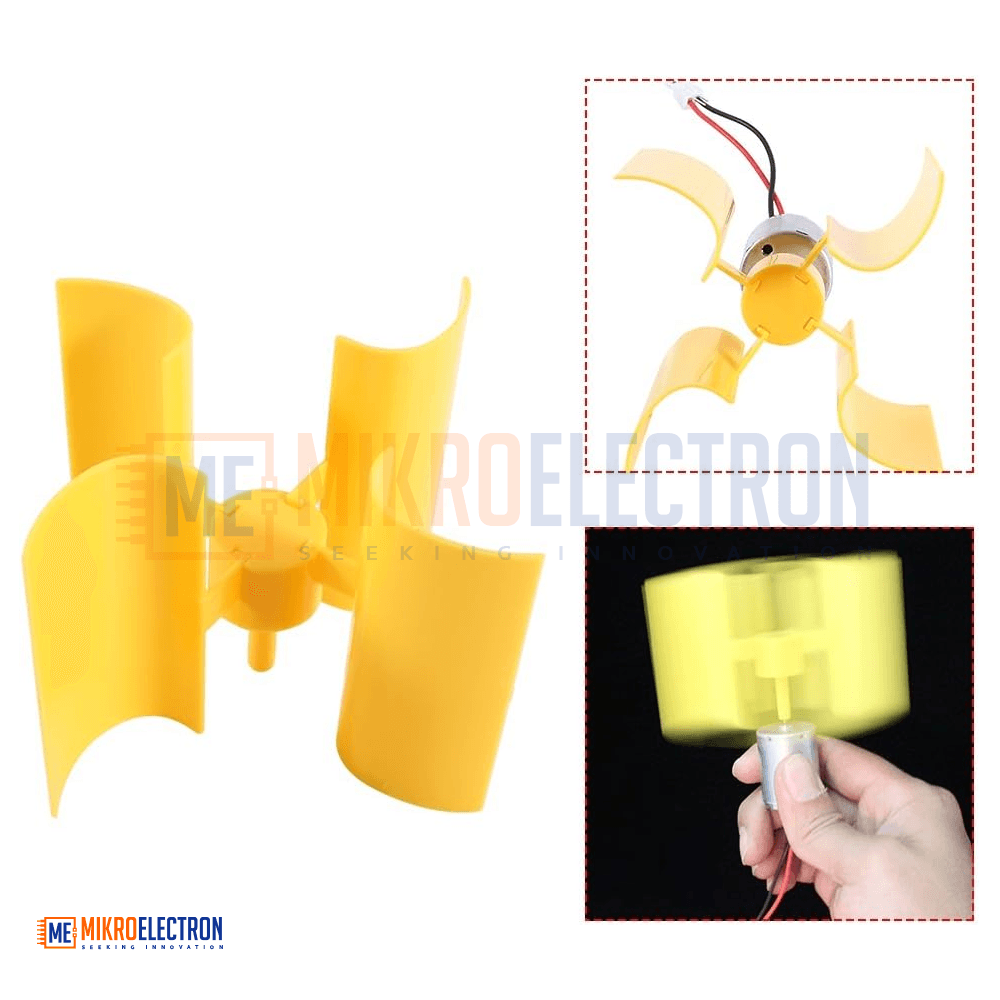

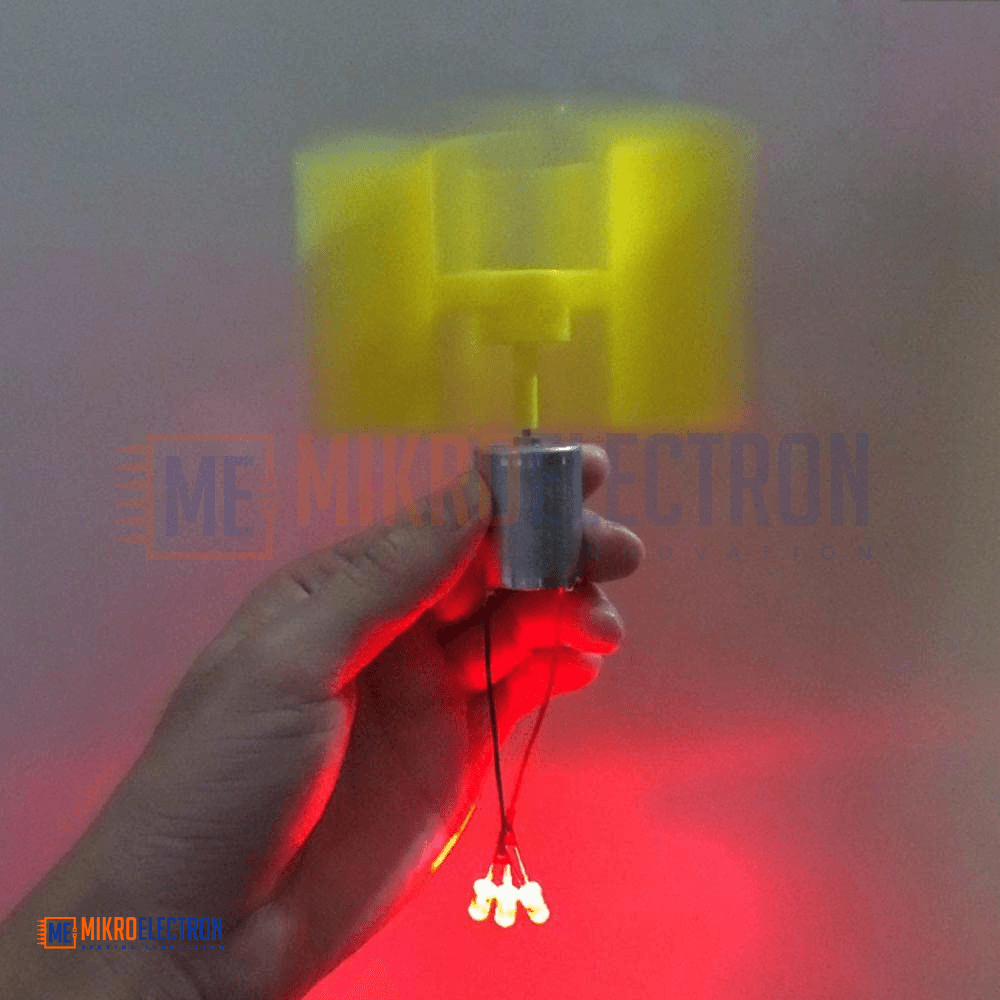

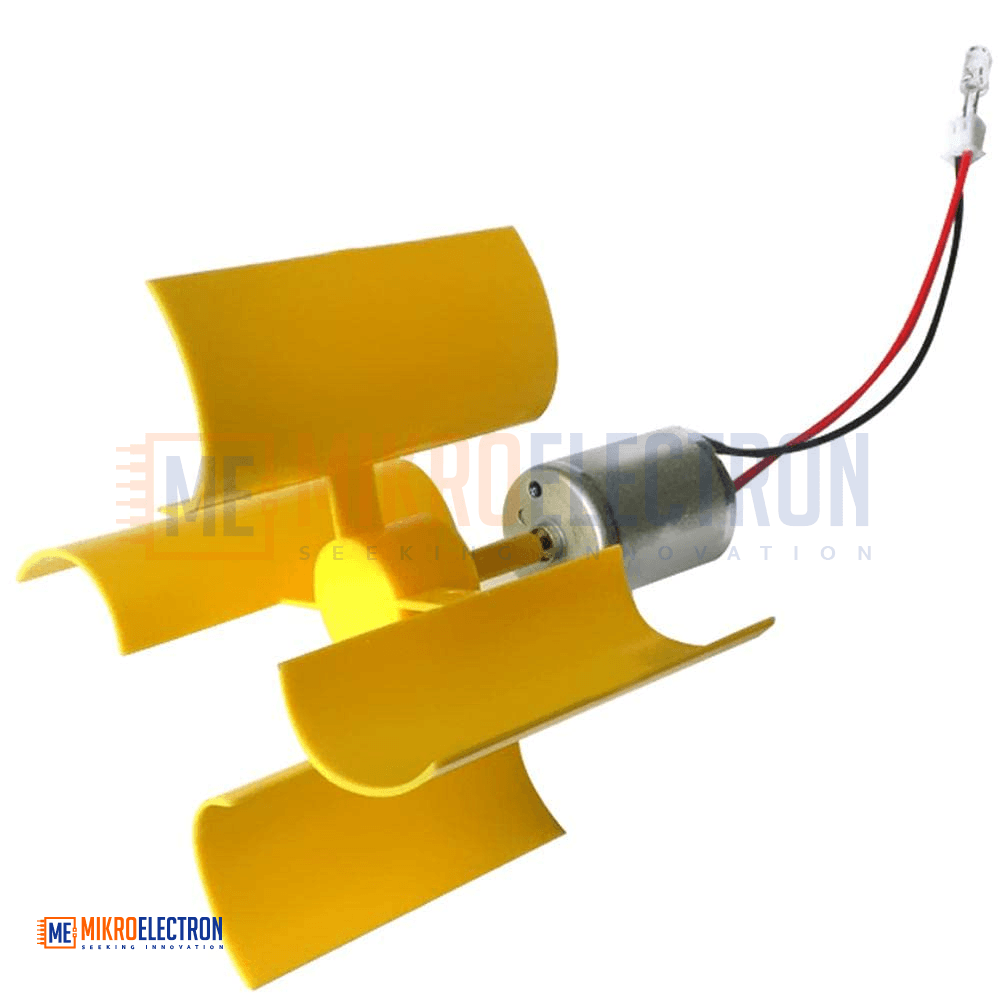

The Generic Mini Vertical Wind Generator Kit is a high-quality educational model that demonstrates the basic principles of wind power generation. Using a vertical-axis turbine design, it captures wind from any direction and converts it into DC electrical energy to power a built-in 5mm LED lamp.

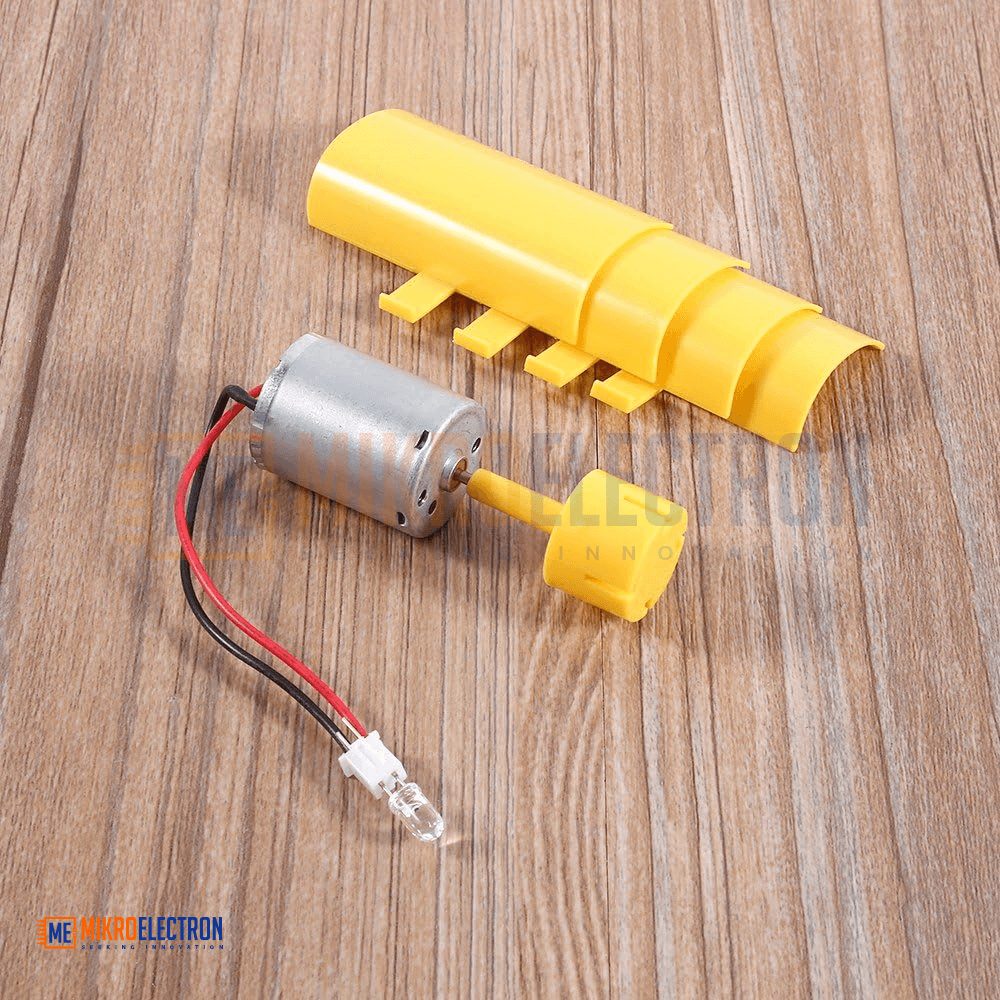

This kit is supplied as a complete DIY assembly set, allowing users to build the wind generator themselves while learning about renewable energy, mechanical motion, and electricity. Its low start-up wind requirement makes it easy to demonstrate using natural airflow, breath, or a household fan. Compact, lightweight, and safe, it is perfect for classrooms, workshops, and parent-child educational activities.
Specifications
Product Type: Mini Vertical Axis Wind Generator Kit
Power Generation: DC
Rated Power: 0.55 W
Output Voltage: 0.01 – 5.5 V
Output Current: 0.01 – 100 mA
Rated Wind Speed: 5.5 m/s
Rated Speed: 100 – 6000 RPM

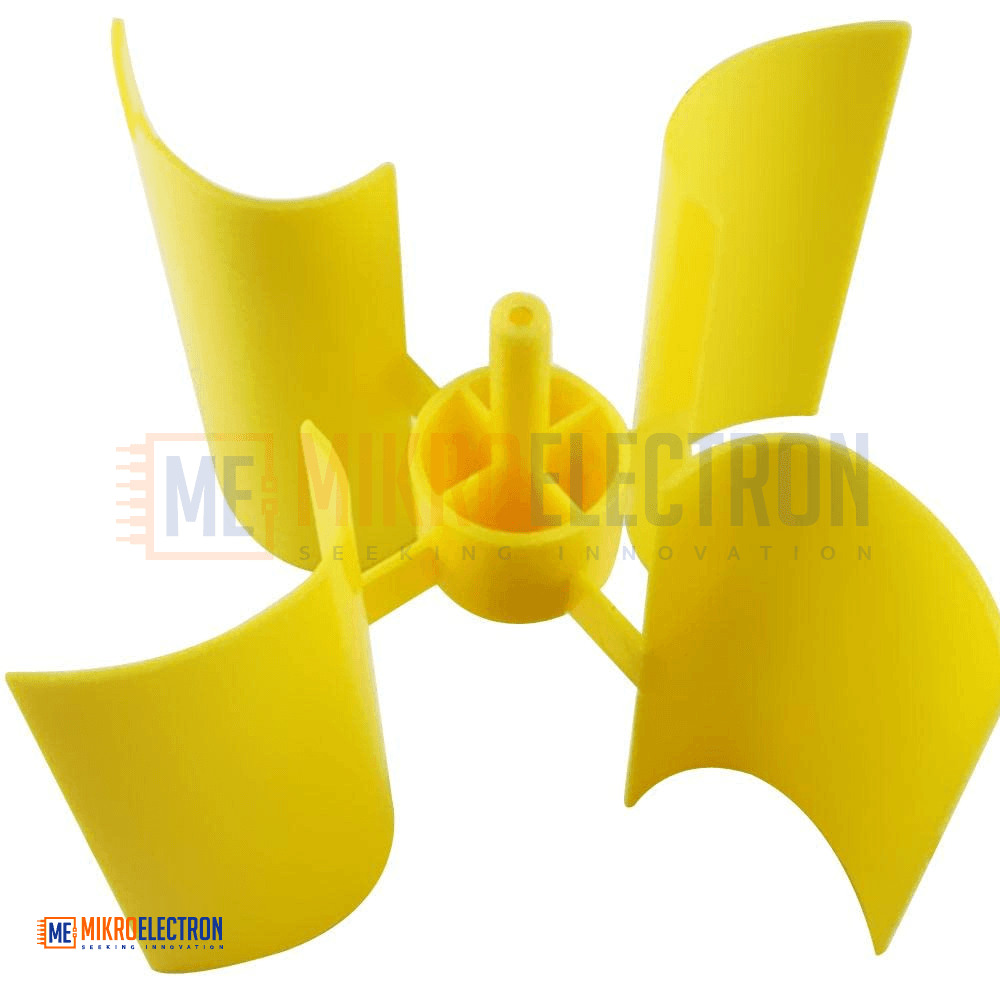

Number of Blades: 4

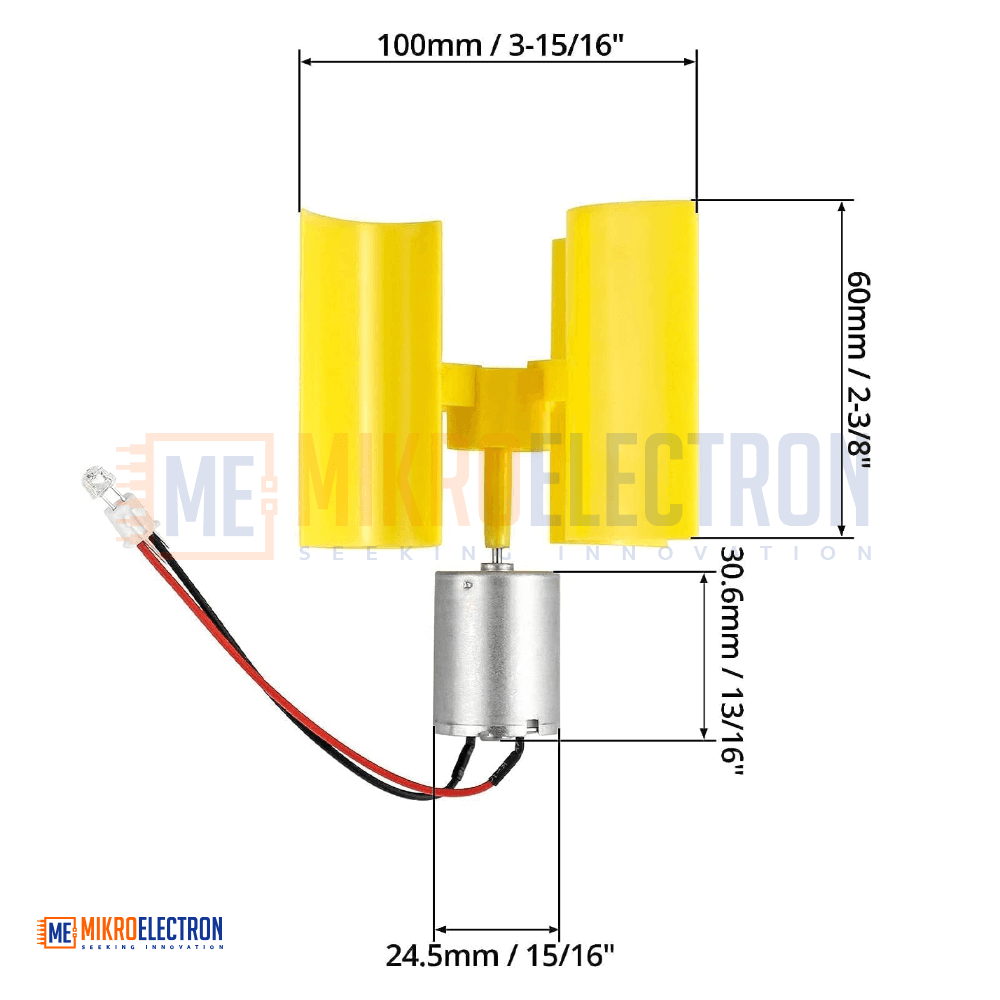

Wind Wheel Diameter (Installed): 100 mm (3.9 in)
Finish Size: 100 × 60 mm
Blade Aperture: 1.95 mm

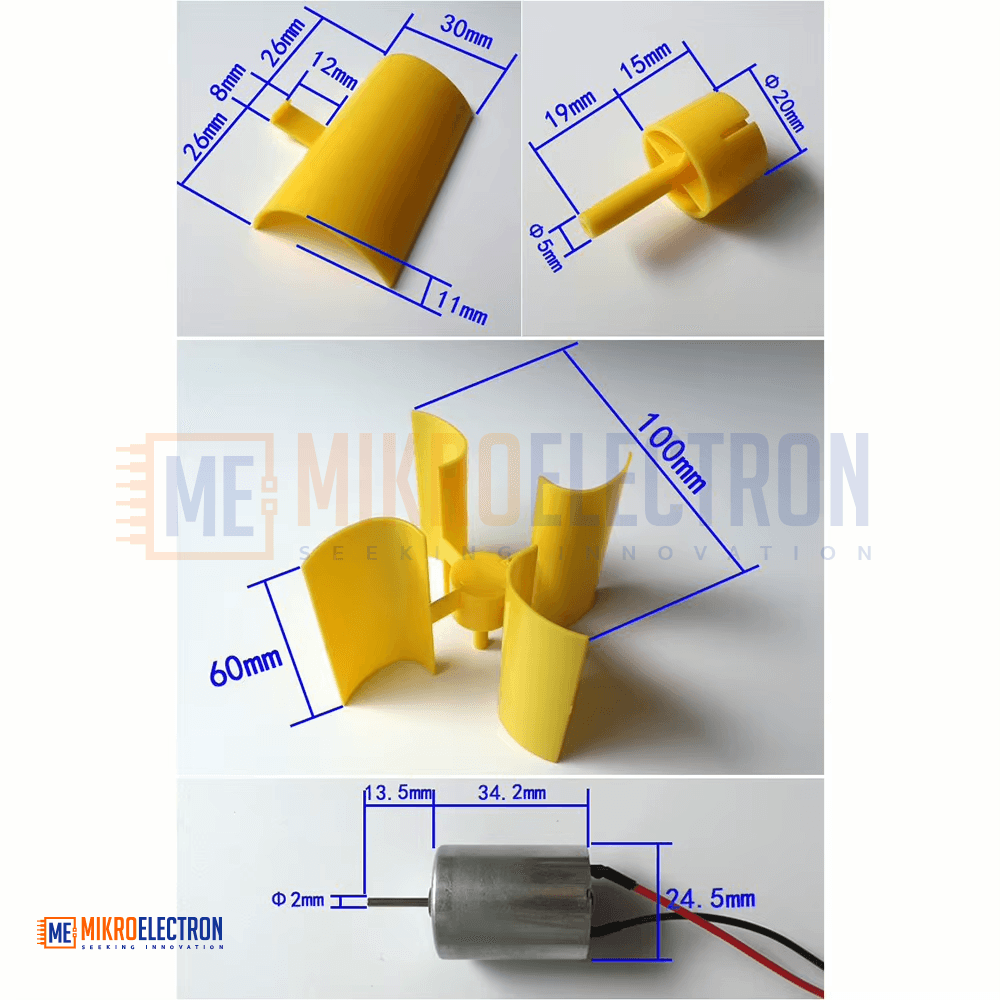

Motor Specifications
Motor Diameter: 24.5 mm
Motor Height: 34.2 mm (including bearing housing)
Output Shaft Diameter: 2.0 mm
Output Shaft Length: 13.5 mm
Weight: Approx. 60 g
LED Indicator: F5 / 5 mm LED lamp bead
Applications
Science education and teaching experiments
Renewable energy demonstrations
STEM learning and workshops
DIY and hobby projects
Parent-child educational activities
Classroom and science fair displays
