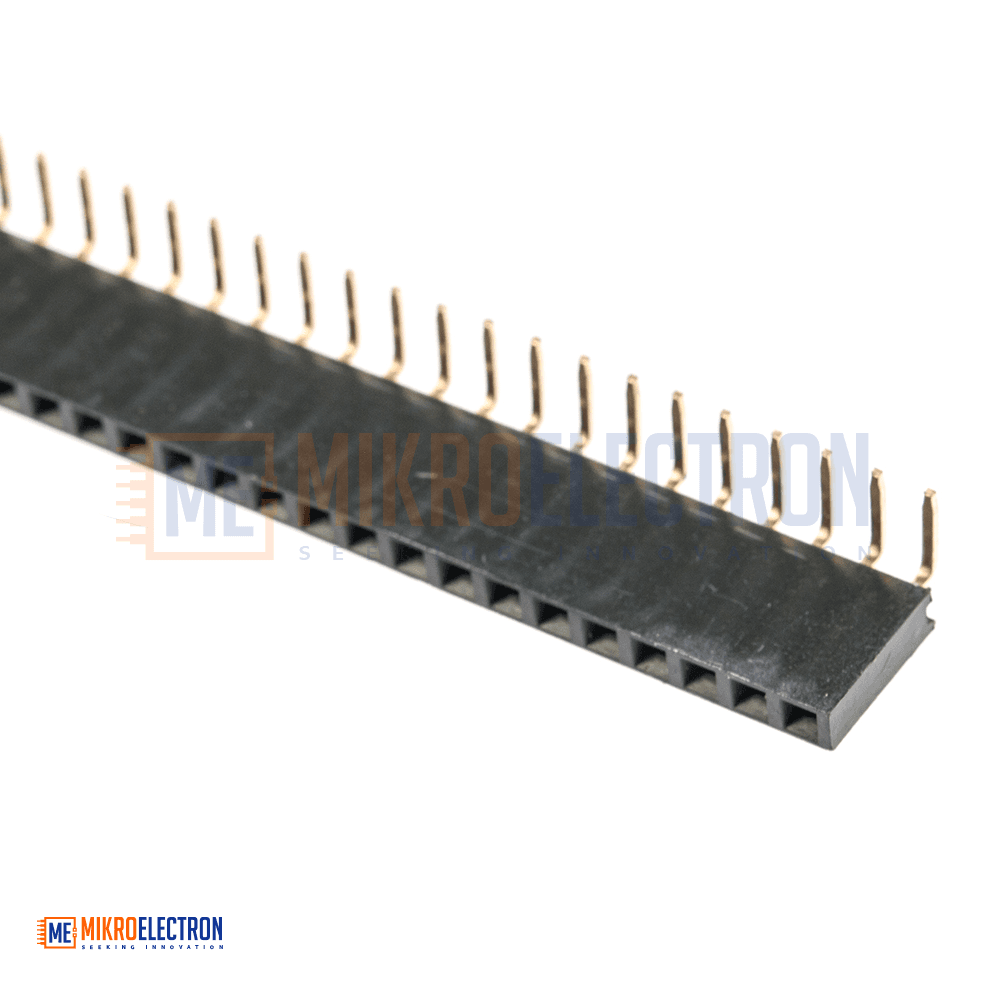

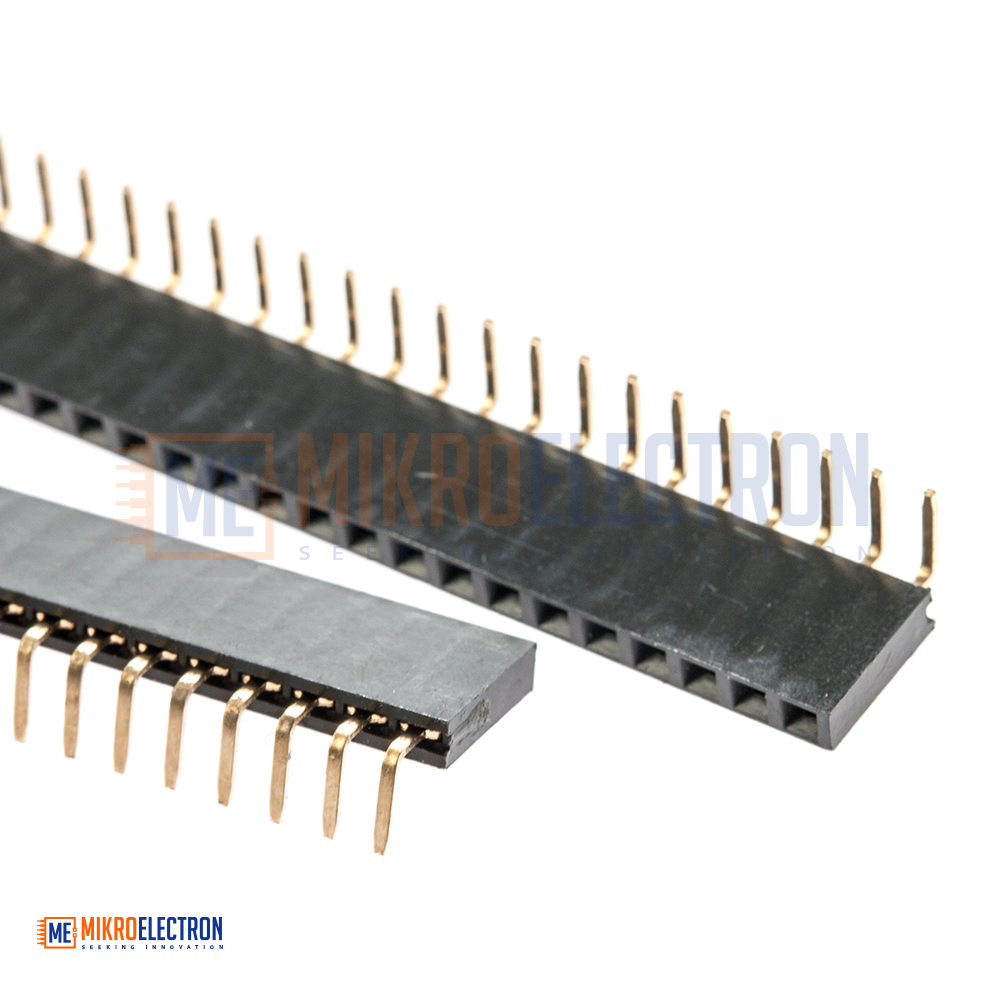

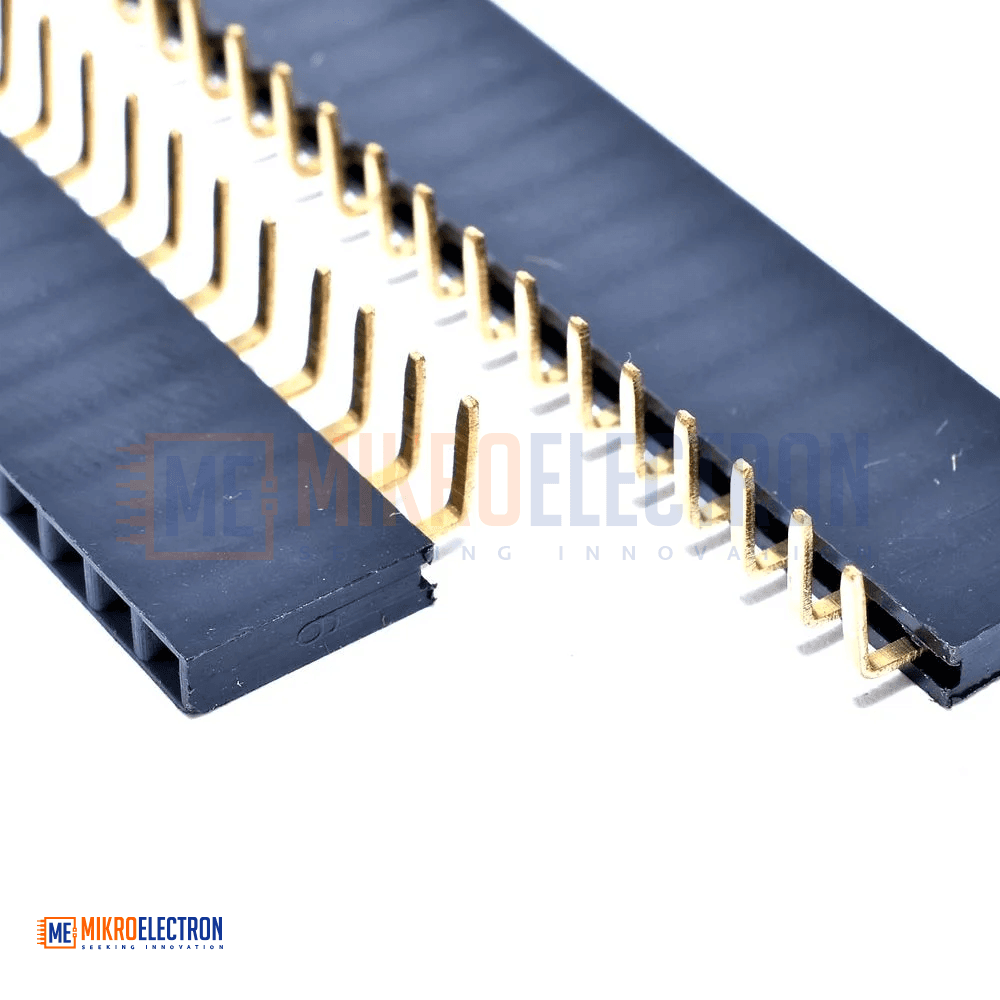

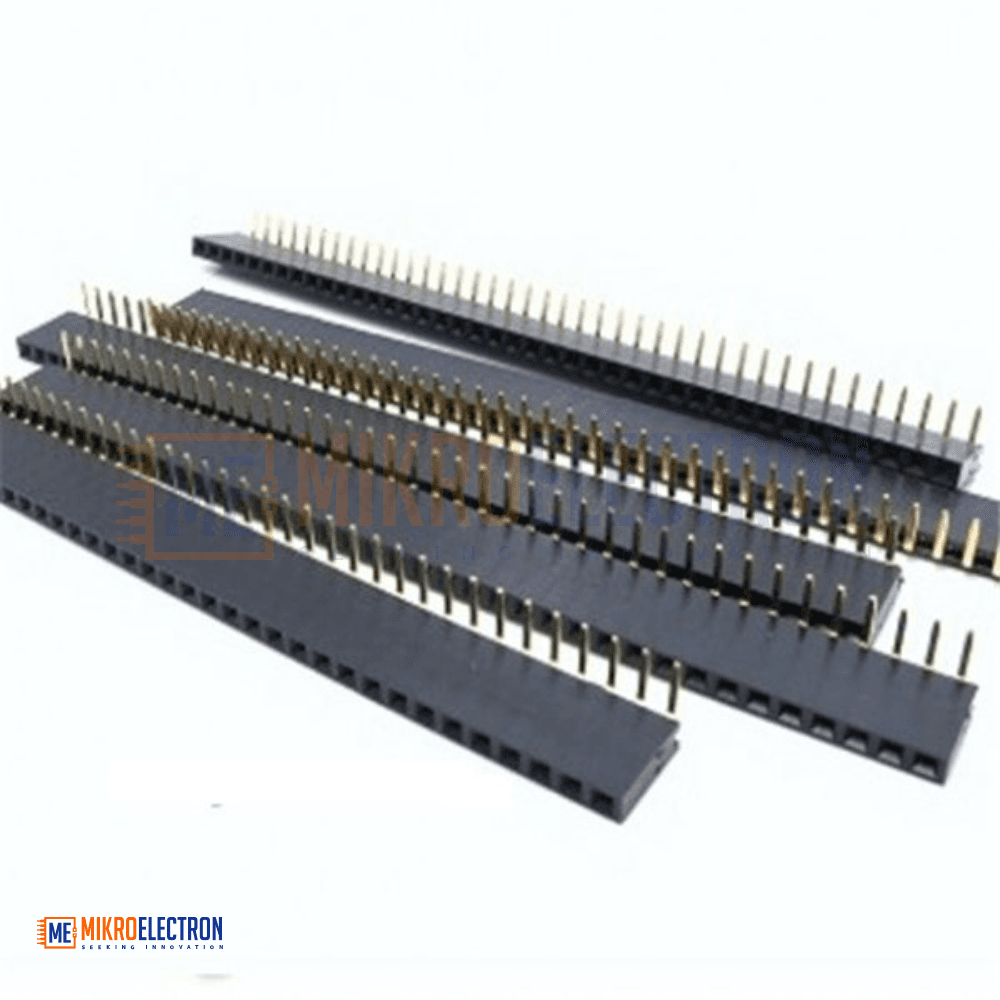

1x40 Pin 2.54mm Right Angle Single Row Female Pin Connector
1×40 Pin 2.54mm Right Angle Single Row Female Pin Connector is a durable PCB connector designed for reliable horizontal board-to-board and module connections in electronic projects. Featuring a standard 2.54mm pitch with a right-angle female header design, it provides stable electrical contact while saving vertical space in compact circuit layouts. The 40-pin single-row configuration supports versatile connectivity for Arduino, Raspberry Pi, embedded systems, prototyping boards, and various DIY or professional electronic applications.
موصل أنثى بزاوية قائمة 1×40 دبوس بمسافة 2.54 مم هو موصل إلكتروني متين مصمم لتوفير اتصالات موثوقة بين اللوحات والوحدات الإلكترونية المختلفة. يتميز بتصميم زاوية قائمة مع مسافة قياسية 2.54 مم لتوفير المساحة داخل الدوائر الإلكترونية المدمجة. يضم 40 دبوساً بصف واحد لتسهيل التوصيل مع الأردوينو والراسبيري باي ووحدات التطوير المختلفة، مما يجعله مناسباً للمشاريع التعليمية والأنظمة المدمجة والتطبيقات الإلكترونية الاحترافية.
The 1×40 Pin 2.54mm Right Angle Single Row Female Pin Connector is a versatile electronic connector designed for PCB mounting, module interfacing, and compact embedded system applications. Its right-angle structure allows horizontal connections, making it ideal for space-saving circuit layouts and organized cable routing.
With a standard 2.54mm pitch, this connector is fully compatible with breadboards, development boards, Arduino modules, Raspberry Pi accessories, ESP boards, and various PCB designs. The 40-pin single-row female configuration provides flexible connectivity options for signal, power, and communication interfaces.
The durable plastic housing and metal contacts ensure stable electrical performance and reliable mechanical support during long-term use. Its through-hole mounting design simplifies soldering and installation for both prototyping and permanent PCB assembly.
This connector is widely used in electronics development, robotics, automation systems, communication modules, educational projects, and industrial electronic devices.
Specifications
- Product Type: Female Pin Connector
- Pin Configuration: 1×40 Pins
- Connector Type: Female Header
- Pitch Size: 2.54mm
- Pin Type: Right Angle
- Row Configuration: Single Row
- Mounting Type: Through Hole PCB Mount
- Housing Material: Insulated Plastic
- Contact Material: Metal Pins
- Application Type: PCB and Module Connection
Applications
- Arduino and Raspberry Pi projects
- PCB prototyping and assembly
- Embedded systems connections
- Sensor and module interfacing
- Robotics and automation systems
- Breadboard and development board connections
- DIY electronics projects
- Industrial electronic equipment
- Communication and control systems
- Educational electronics experiments
