Plug 7Pins GX12-7 Male Female Panel Metal Wire Connector
The GX12-7 Aviation Plug Connector is a durable 7-pin circular metal connector with a 12mm (M12) panel-mount thread. Made from a zinc alloy nickel-plated shell with silver-plated copper contacts, it offers reliable, secure connections for signal and low-power wiring. Rated at 5A / AC 125V, the threaded coupling provides a tight, vibration-resistant lock. Ideal for industrial equipment, robotics, CNC machines, and electronics projects. Includes male and female parts. RoHS compliant.
موصل الطيران GX12-7 هو موصل معدني دائري بـ7 أطراف بوصلة تثبيت لوحية قياس 12 ملم (M12). مصنوع من غلاف من سبيكة الزنك المطلية بالنيكل مع أطراف نحاسية مطلية بالفضة، ويوفر اتصالات آمنة وموثوقة لـأسلاك الإشارة والطاقة المنخفضة. بتقييم 5 أمبير / 125 فولت تيار متردد، توفر الوصلة الملولبة قفلاً محكماً مقاوماً للاهتزاز. مثالي لـالمعدات الصناعية، الروبوتات، آلات CNC، والمشاريع الإلكترونية. يشمل القطعتين الذكر والأنثى. متوافق مع RoHS.

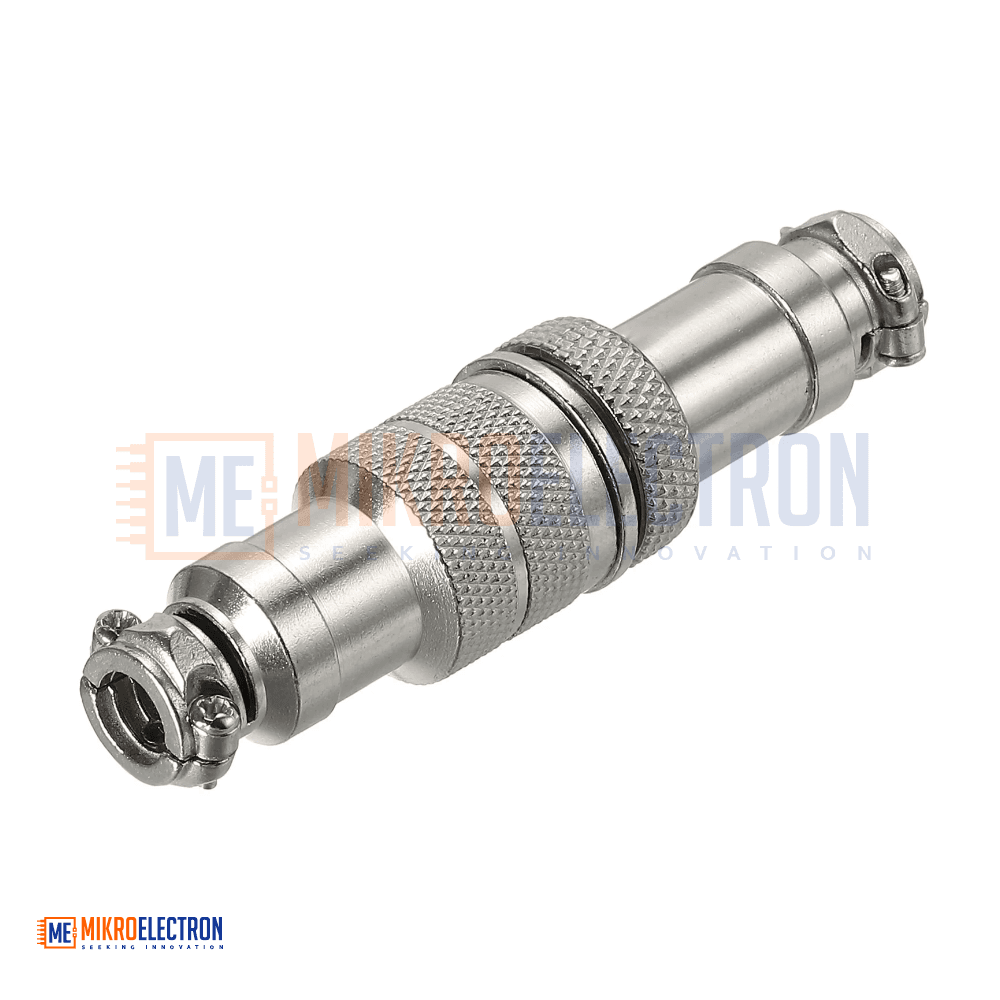

The GX12-7 Aviation Plug Connector is a high-quality circular panel-mount connector designed for secure, reliable cable connections in a wide variety of electrical and electronic applications. The "aviation plug" design uses a threaded screw-locking coupling that holds the male and female halves firmly together, making it highly resistant to vibration, accidental disconnection, and loosening — a major advantage over standard push-fit connectors.
This model features 7 pins (poles), allowing you to pass multiple signal or power lines through a single connector. It mounts through a 12mm (M12) panel hole, making it easy to install on enclosures, control boxes, machine panels, and project cases for a clean, professional-looking wiring interface.
The connector is built for durability: the shell is made from zinc alloy with a nickel-plated finish for corrosion resistance and mechanical strength, the contacts are silver-plated copper for excellent conductivity and low contact resistance, and the insulating insert is made from bakelite, which offers good heat resistance and electrical insulation. Together these materials ensure stable, long-lasting performance.
Rated at 5A and AC 125V, the GX12-7 is well suited for signal transmission and low- to medium-power wiring. It is widely used in industrial automation, robotics, CNC machines, 3D printers, sensors, motors, audio/lighting equipment, and DIY electronics projects. The set includes both the male and female connector parts, ready to be soldered to your wires.
Important note: Connections are made by soldering wires to the pin cups. Observe the pin numbering / orientation carefully so the male and female halves match correctly, and do not exceed the 5A per-contact / 125V rating.
Specifications
- Model Number: GX12-7
- Connector Type: Circular aviation / panel-mount connector
- Number of Pins: 7 pins
- Mounting Hole Diameter: 12mm (M12)
- Rated Voltage: AC 125V
- Rated Current: 5A (per contact)
- Coupling Type: Threaded screw-lock
- Shell Material: Zinc alloy with nickel plating
- Contact Material: Copper (silver-plated)
- Insulator / Insert Material: Bakelite
- Connection Method: Solder cup terminals
- Mounting: Panel mount (front/rear depending on orientation)
- Compliance: RoHS compliant

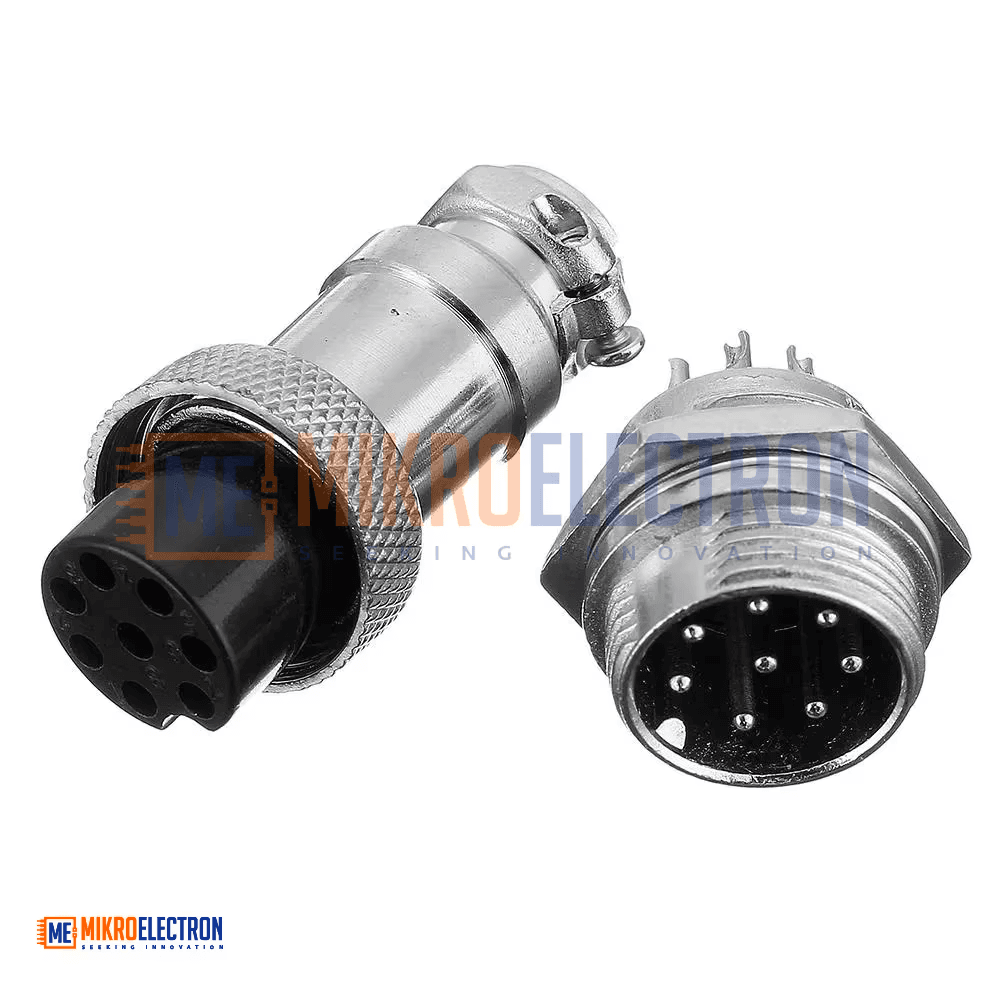

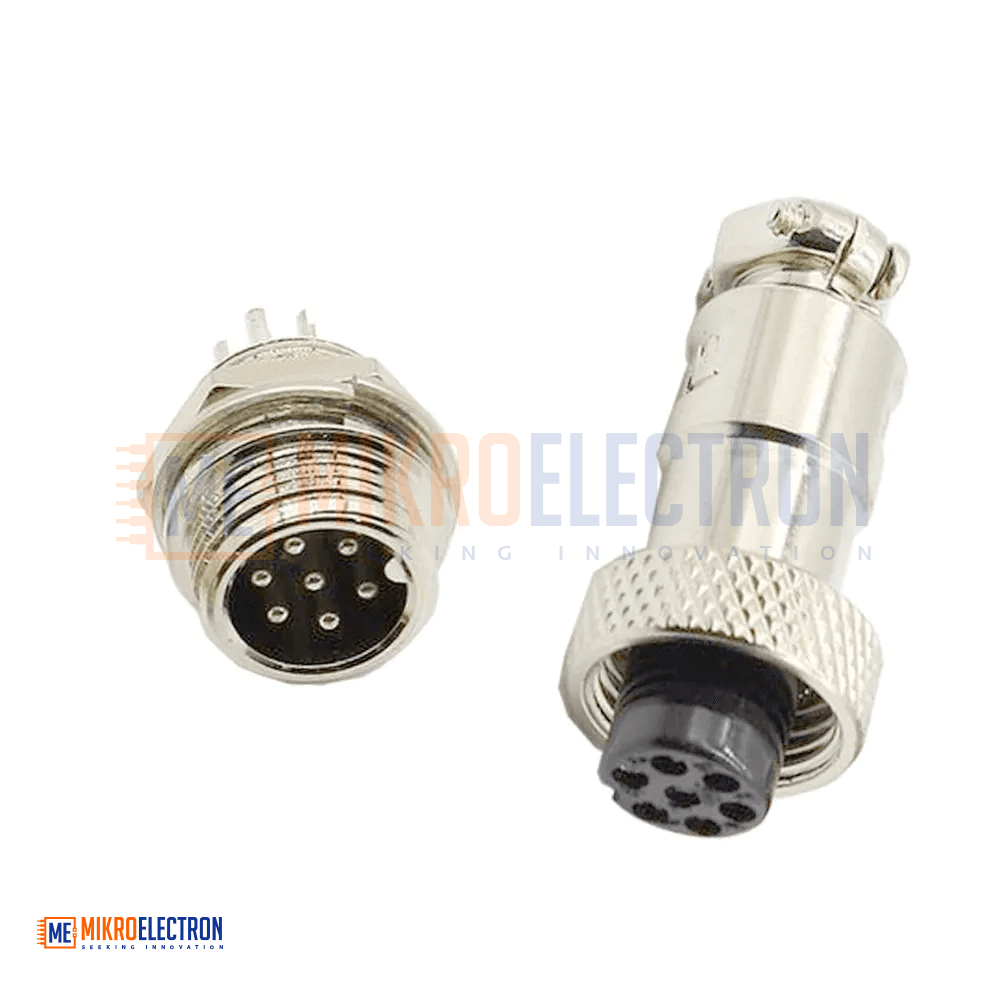

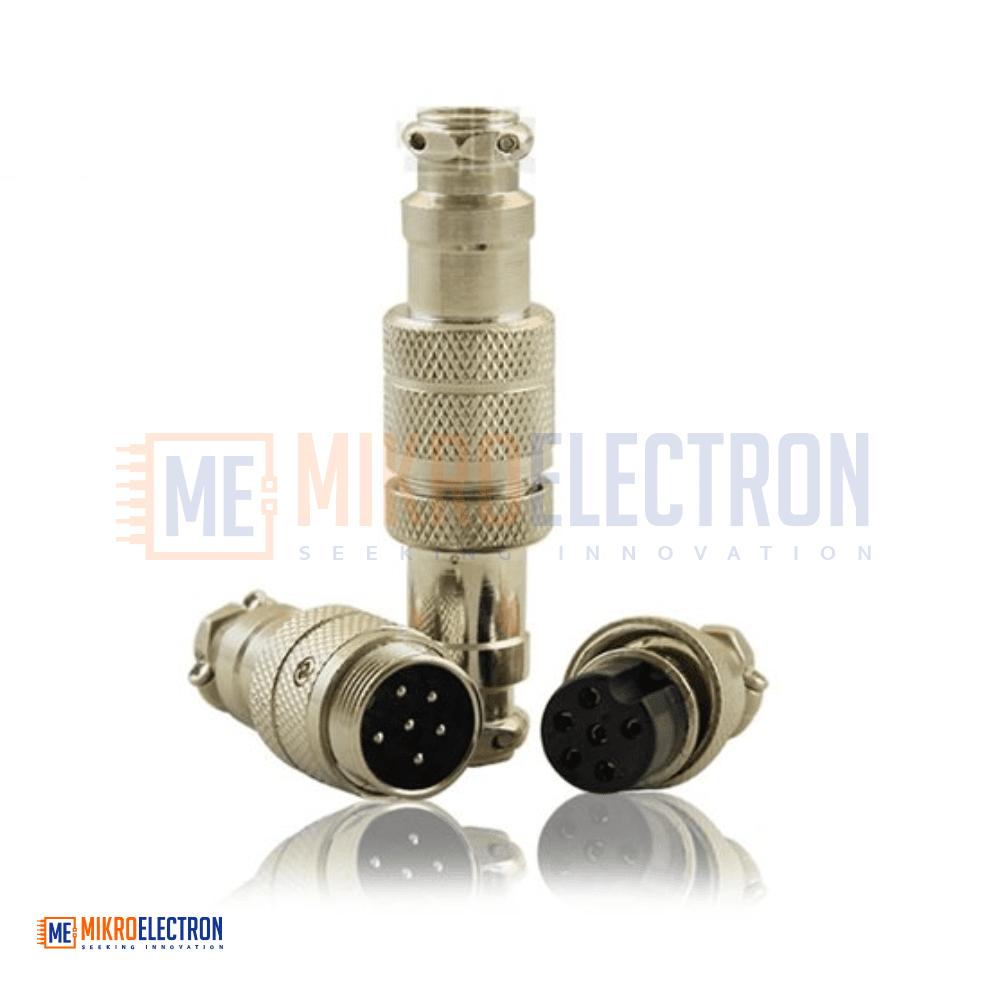

- Included: 1× Male plug + 1× Female socket
Materials Overview
- Shell: Zinc alloy, nickel-plated — strong and corrosion-resistant
- Contacts: Silver-plated copper — high conductivity, low resistance
- Insert: Bakelite — heat-resistant electrical insulation
Applications
- Industrial equipment and machinery wiring
- Robotics and automation systems
- CNC machines and 3D printers
- Sensor and encoder connections
- Motor and servo wiring
- Stage lighting and audio equipment
- Control panels and enclosures
- Electric scooters, e-bikes, and battery packs
- DIY electronics and prototyping projects
- Test equipment and instrumentation
- Security and surveillance systems
- Multi-signal cable assemblies
