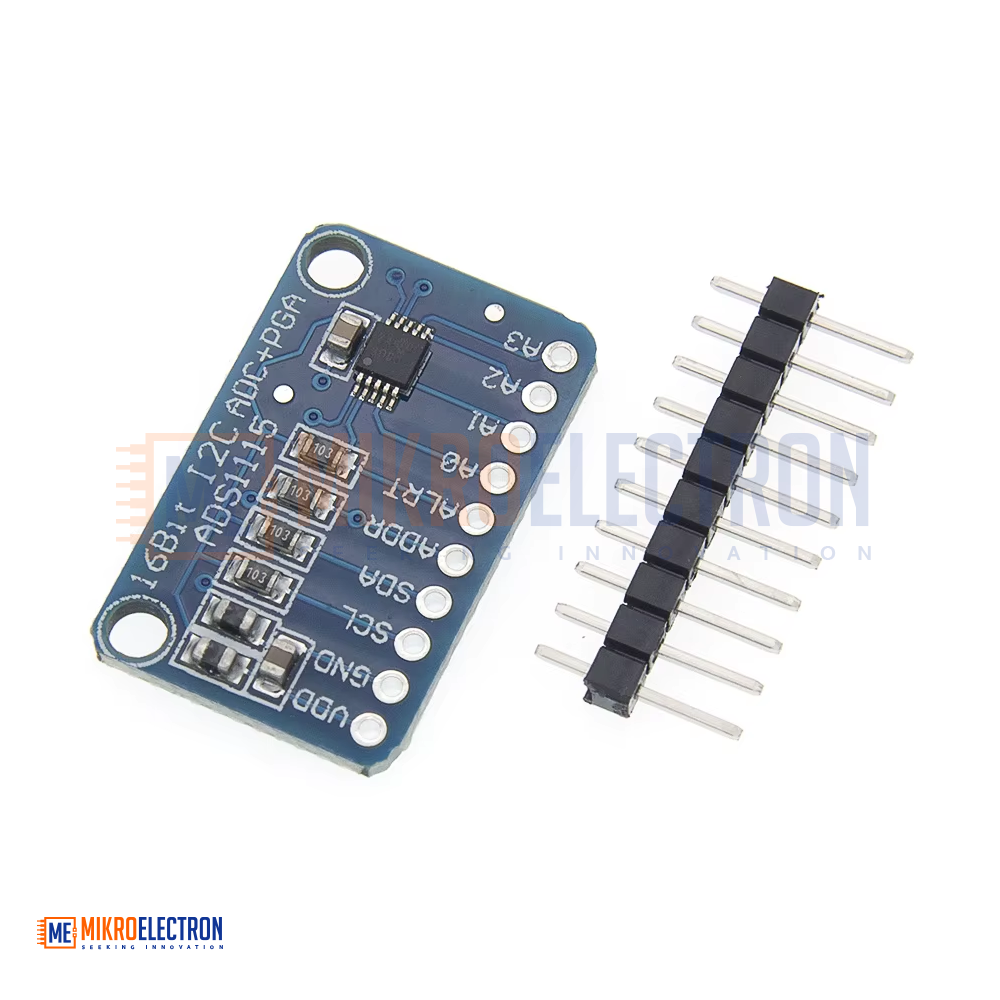

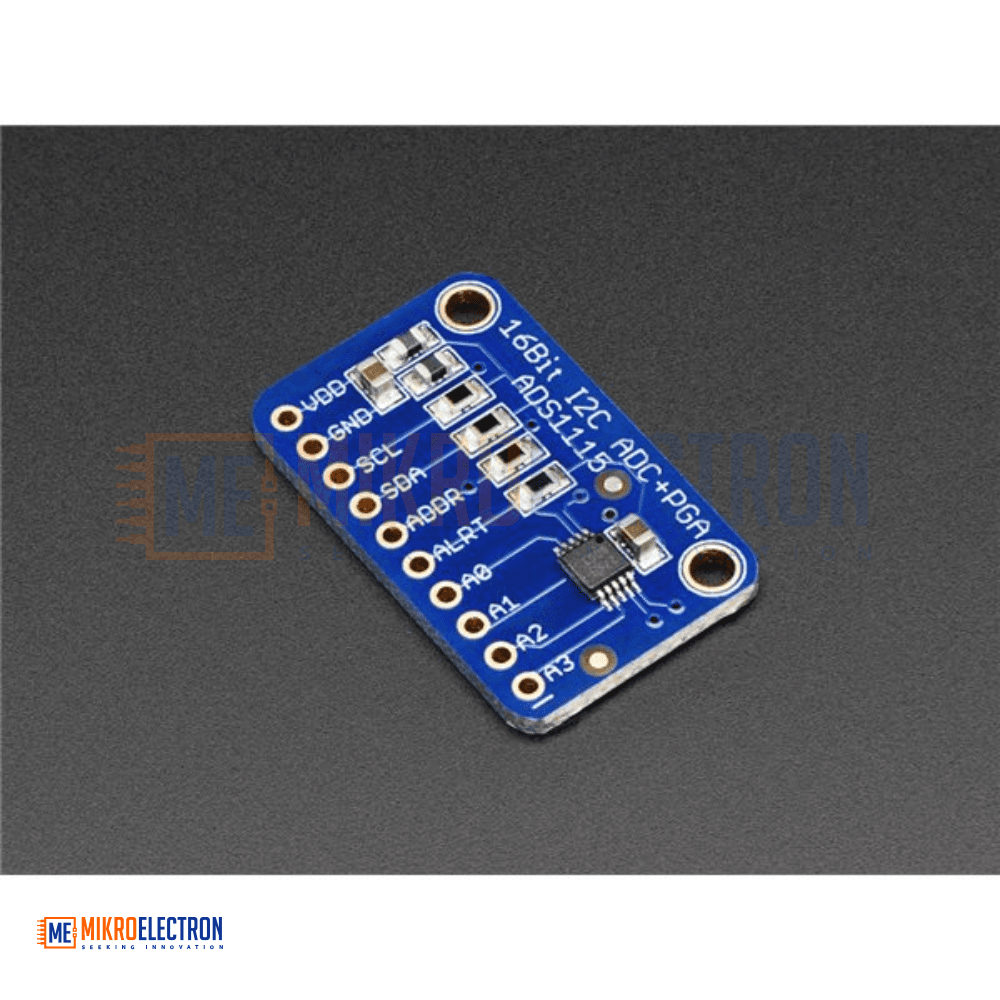

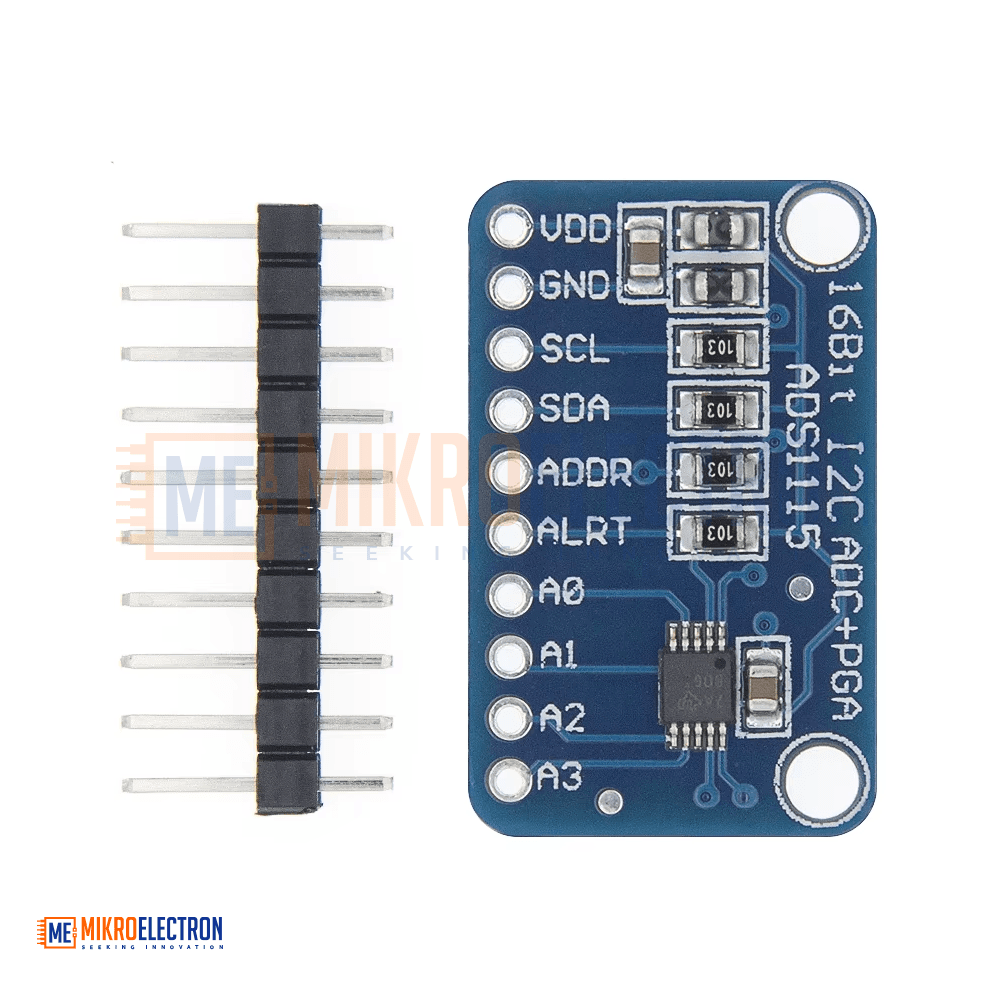

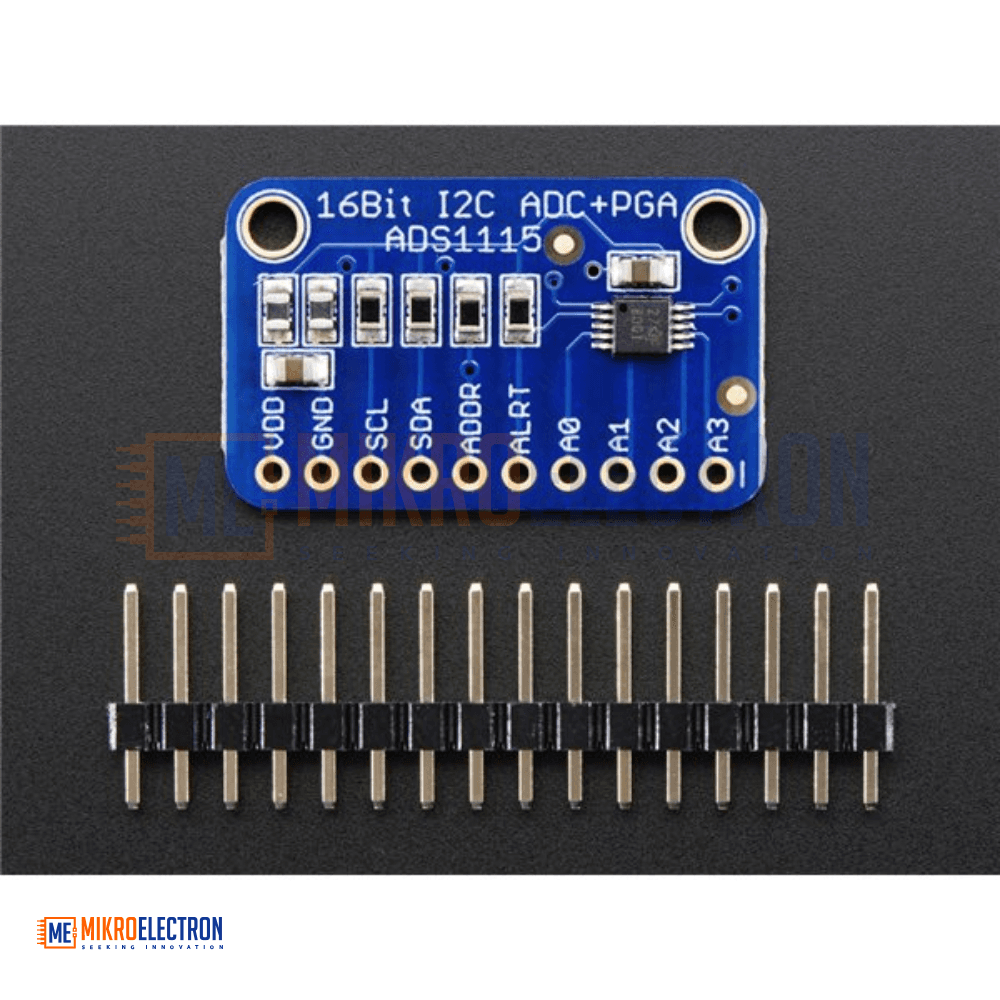

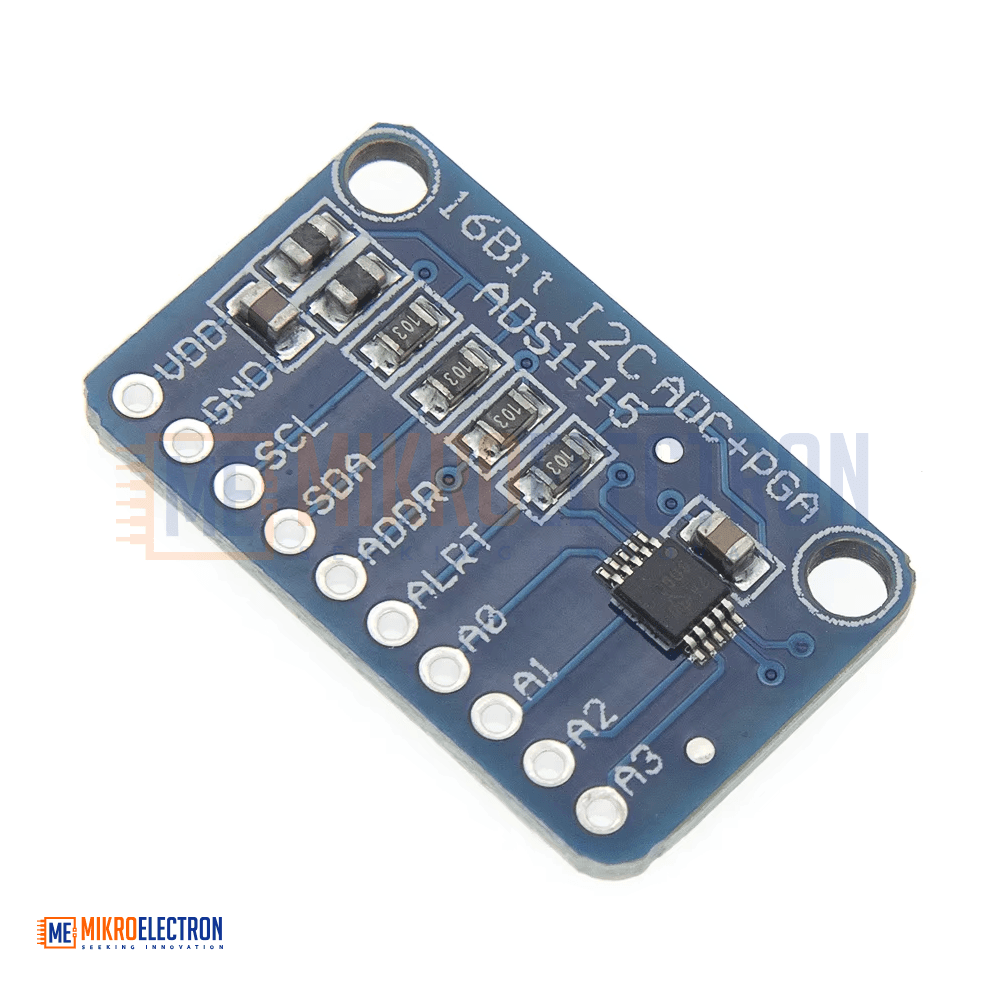

I2C ADS1115 16 Bit ADC 4 channel Module

The ADS1115 ADC Module is a high-resolution 16-bit analog-to-digital converter designed for accurate signal measurement in embedded and industrial applications. The module communicates through the I2C interface, allowing easy integration with microcontrollers such as Arduino, ESP32, Raspberry Pi, STM32, and other development platforms.

The ADS1115 supports four single-ended analog inputs or two differential input channels, making it suitable for measuring sensors, voltages, and low-level analog signals with excellent precision.

The module includes an internal programmable gain amplifier (PGA) that allows users to select different voltage ranges for improved measurement accuracy. It also features a programmable data rate from 8 samples per second (SPS) up to 860 SPS, providing flexibility between speed and precision.

With its low power consumption and built-in comparator, the ADS1115 is ideal for portable devices, automation systems, battery monitoring, and sensor-based applications.

Specifications

• Chipset: ADS1115
• ADC Resolution: 16-Bit
• Interface Type: I2C
• I2C Address Range: 0x48 to 0x4B
• Input Channels:
  • 4 Single-Ended Inputs
  • 2 Differential Inputs

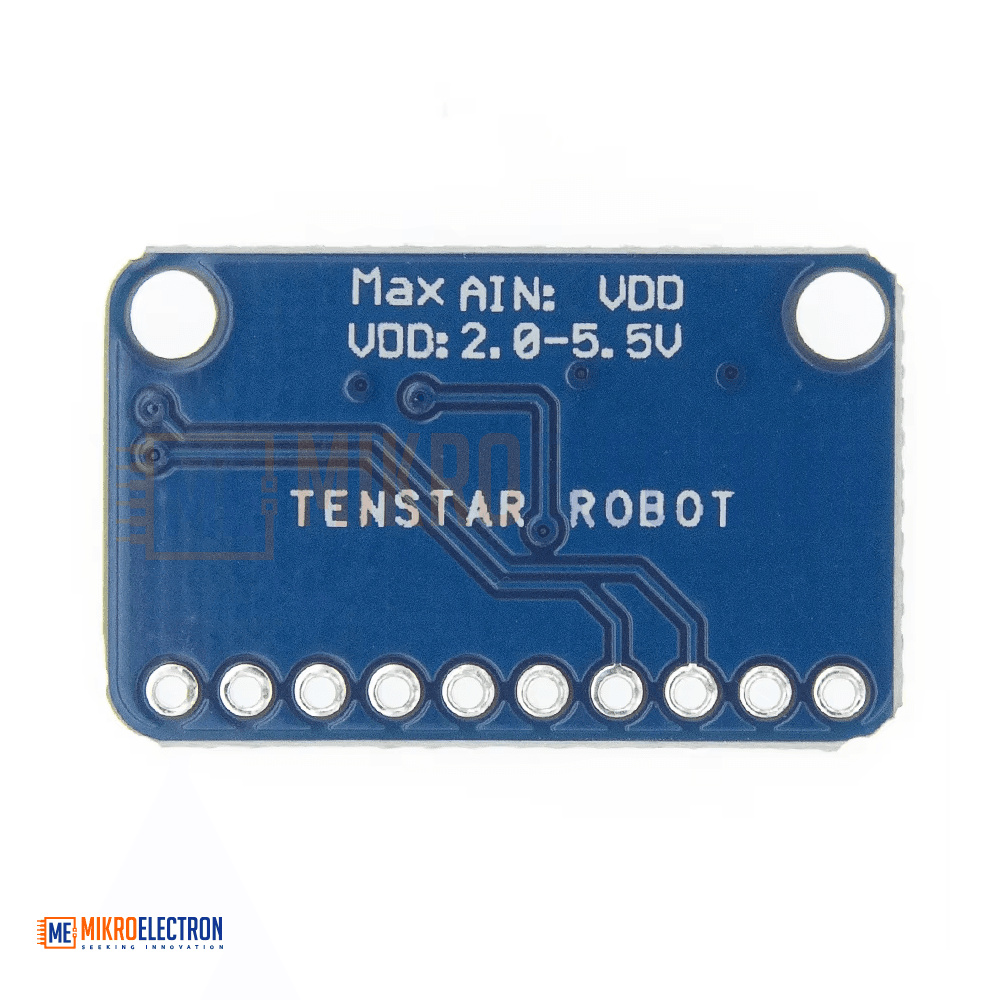

• Operating Voltage: 2.0V – 5.5V
• Channel Input Voltage: 0V – VDD
• Programmable Data Rate: 8 SPS to 860 SPS
• Continuous Mode Current Consumption: 150µA
• Single-Shot Mode: Auto Power-Down
• Integrated PGA (Programmable Gain Amplifier)
• Internal Oscillator
• Internal Low-Drift Voltage Reference
• Programmable Comparator
• Board Size: 18mm × 28mm

Programmable Input Voltage Ranges

• ±0.256V
• ±0.512V
• ±1.024V
• ±2.048V
• ±4.096V
• ±6.144V

Applications

• Portable measurement instruments
• Sensor signal acquisition
• Battery voltage monitoring
• Temperature measurement systems
• Industrial automation
• Process control systems
• Data logging projects
• Arduino and Raspberry Pi projects
• IoT monitoring systems
• Precision analog sensing applications
