TRIAC BT139 16A 600V

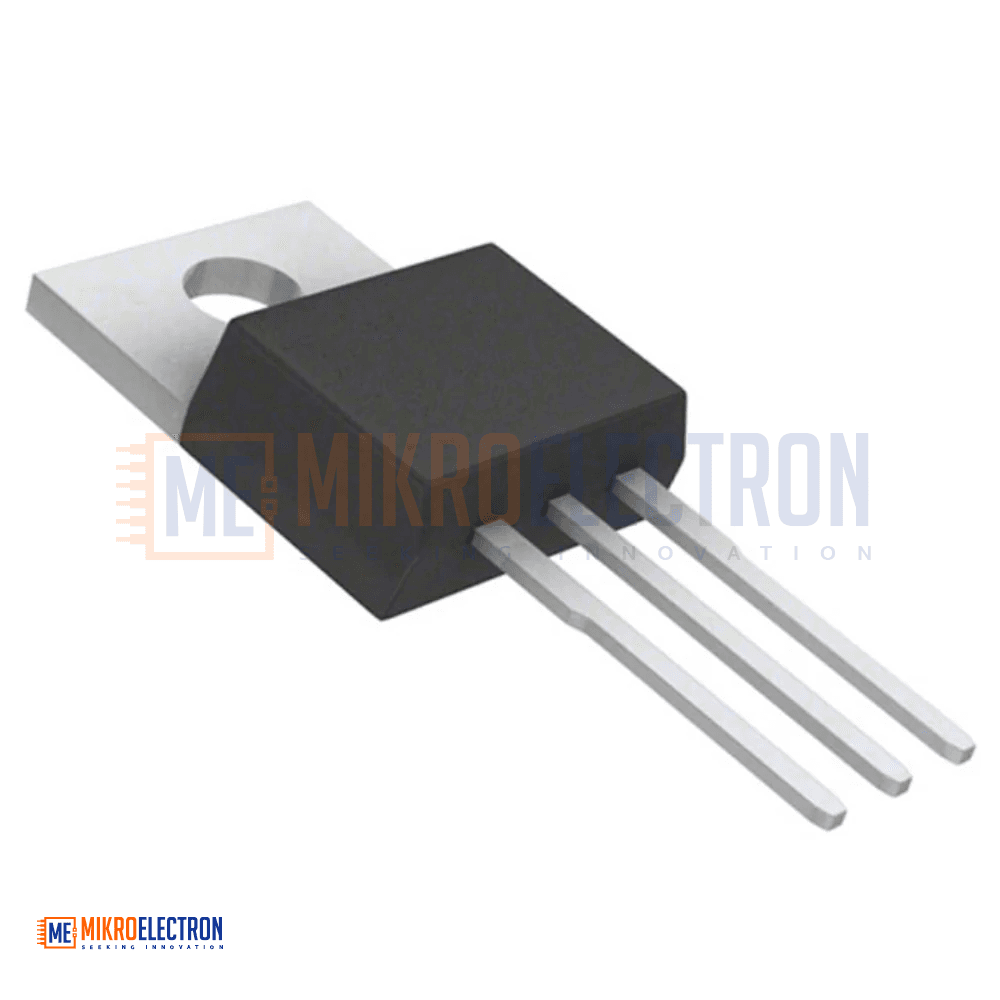

The BT139 is a high-performance 16A, 600V TRIAC (TRIode for Alternating Current) designed for AC switching and phase-control applications. Manufactured by leading semiconductor companies including NXP/WeEn and STMicroelectronics, the BT139 has become an industry-standard component for power control circuits in domestic, industrial, and DIY electronics.

A TRIAC is a bidirectional semiconductor switch capable of conducting current in both directions when triggered, making it perfectly suited for AC voltage control. The BT139 belongs to the "series E" sensitive gate family, which means it can be triggered by very small gate currents — allowing it to be driven directly from microcontroller pins, optocoupler outputs (such as MOC3021/MOC3041), and standard logic ICs without requiring complex driver circuitry.

The TRIAC features planar passivation technology, which enhances voltage ruggedness, blocking voltage stability, and long-term reliability under thermal and electrical stress. With its four-quadrant triggering capability (Q1, Q2, Q3, Q4), the BT139 ensures consistent operation regardless of the polarity of the gate signal or the main current direction, providing reliable triggering in all phases of the AC cycle.

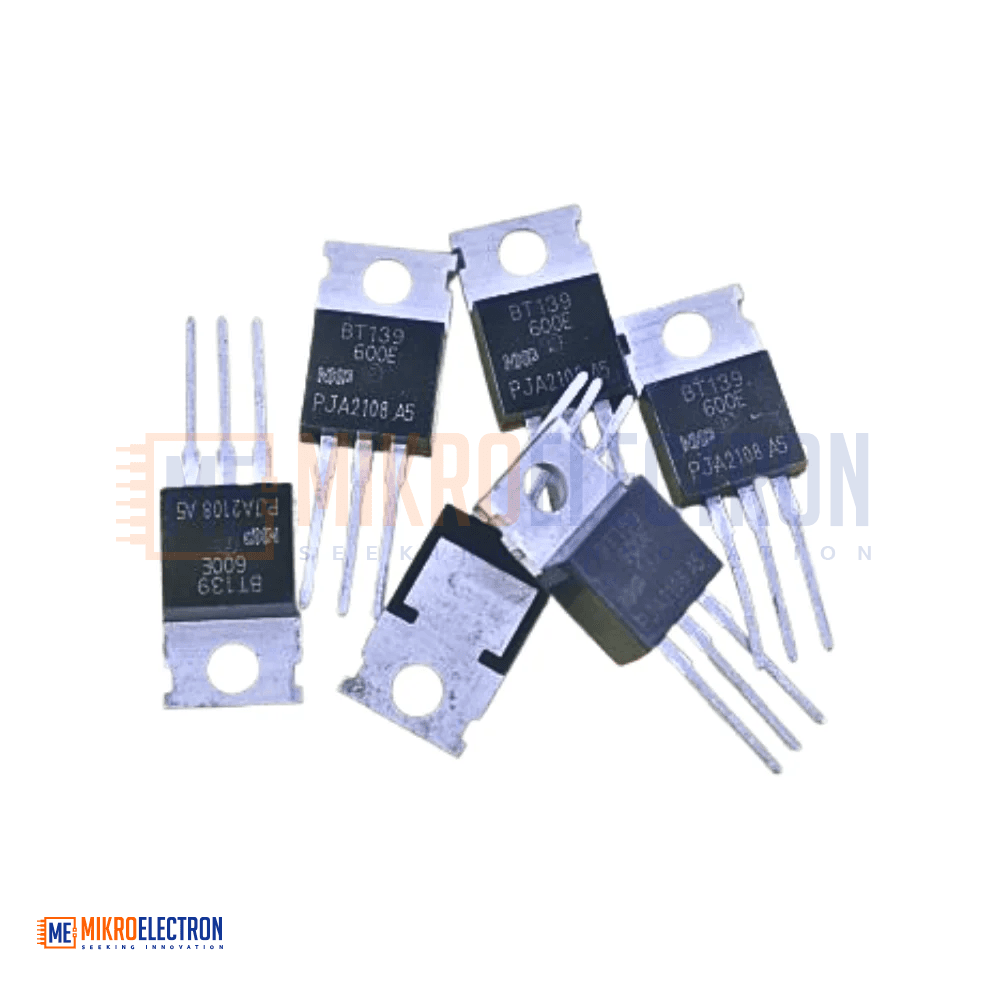

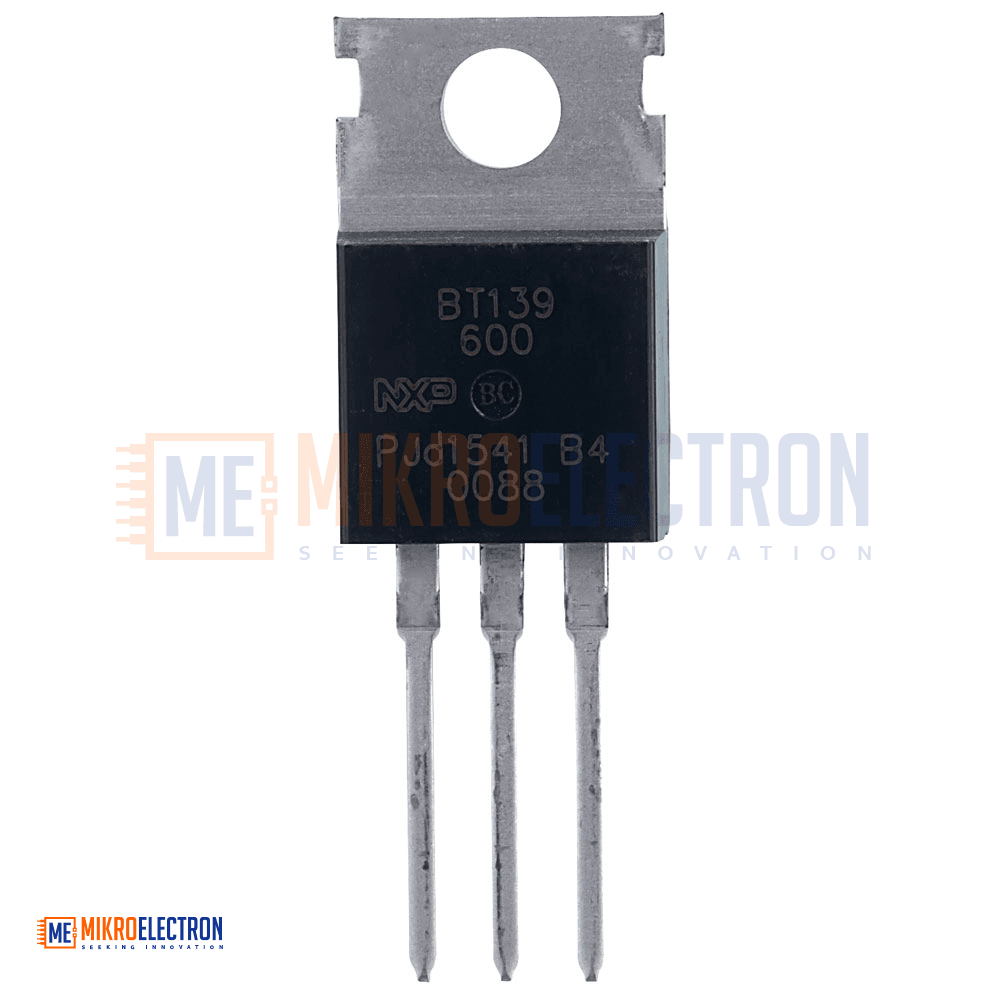

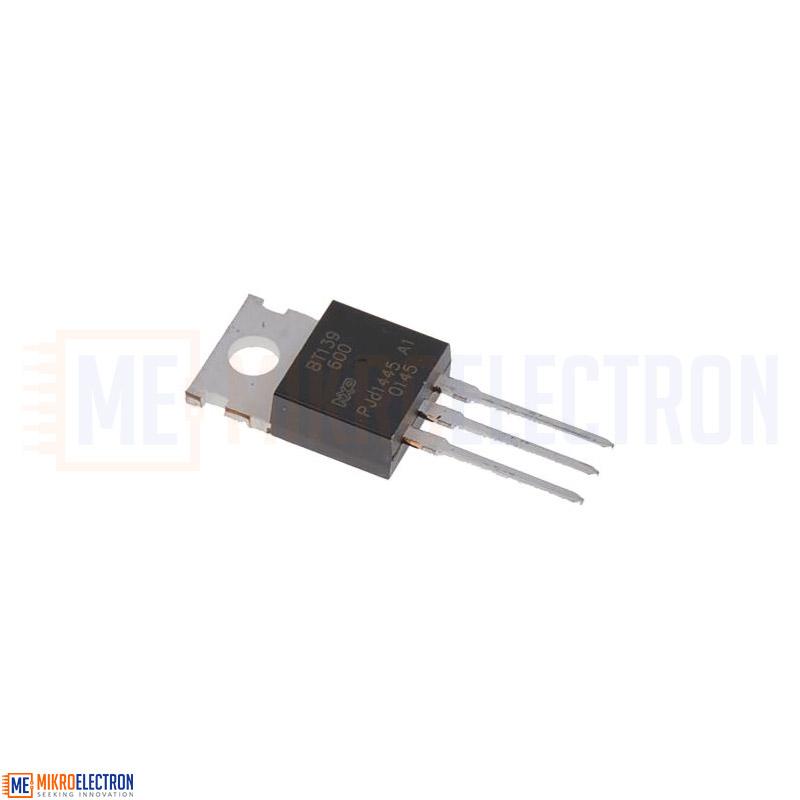

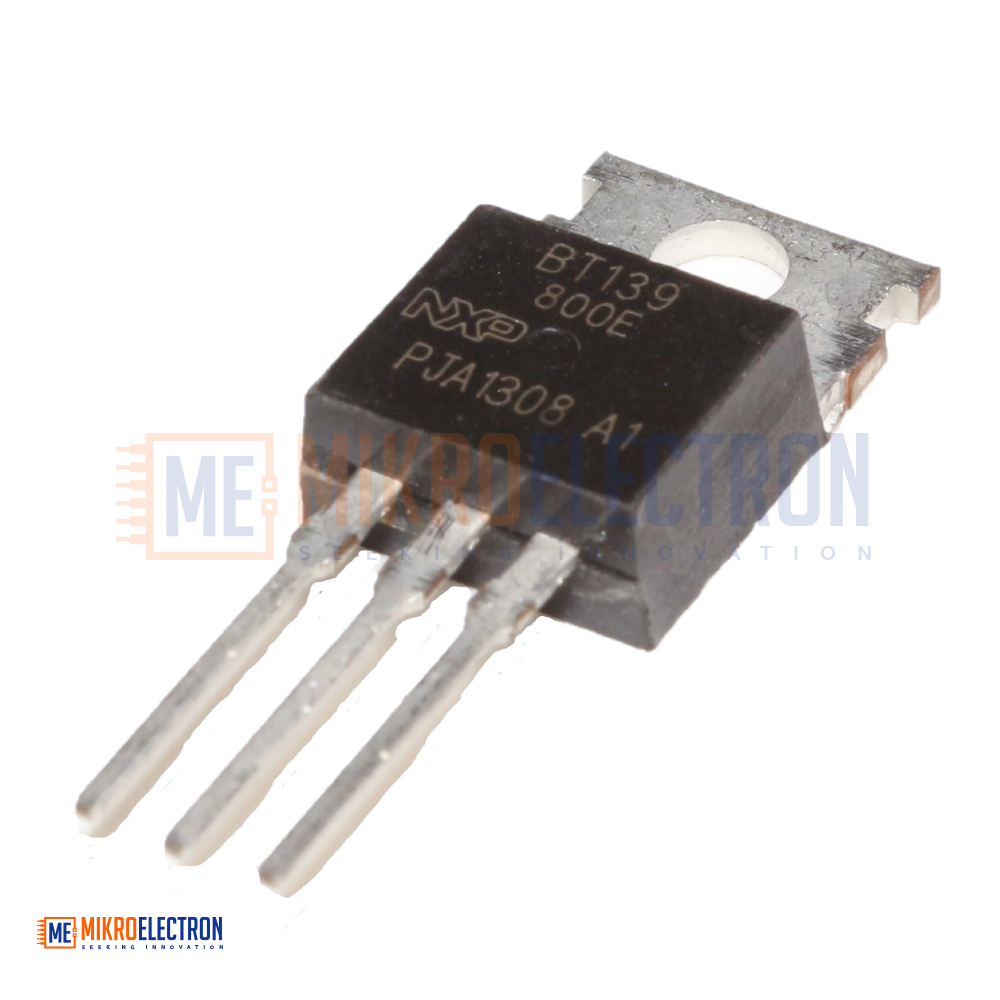

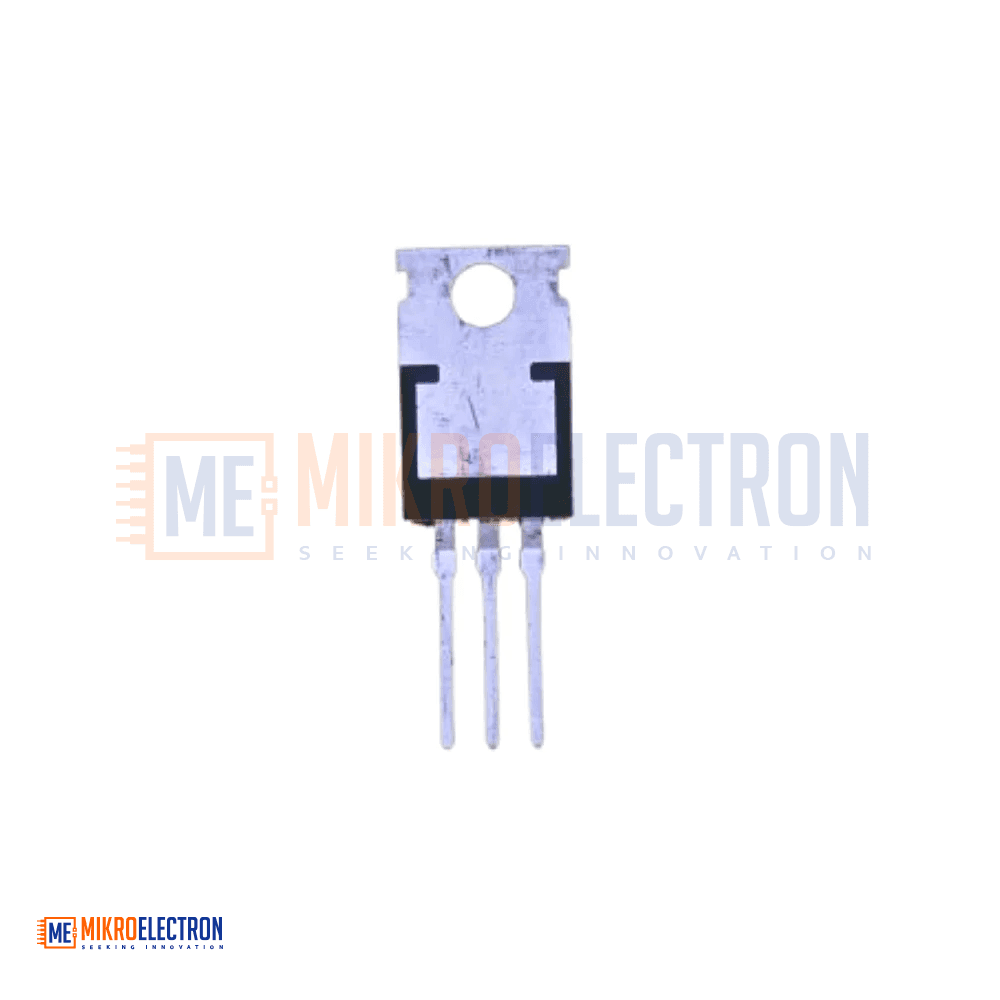

Housed in a robust TO-220AB (SOT78) plastic package, the BT139 is easy to mount on heatsinks for high-power applications and integrates seamlessly into PCBs, terminal boards, or socket-mounted designs. Its 600V blocking voltage makes it suitable for 220–240V AC mains-powered applications worldwide, while the 16A current rating allows it to handle substantial loads such as motors, heaters, and lamps.

This TRIAC is widely used in light dimmer circuits, fan speed controllers, heating element regulators, soft-start motor drivers, and AC switching modules, making it a must-have component for anyone building AC power control circuits.

Specifications

• Part Number: BT139-600
• Type: Four-Quadrant Sensitive Gate TRIAC
• Package: TO-220AB (SOT78) — 3-pin Plastic Power Package
• Repetitive Peak Off-State Voltage (V_DRM): 600 V
• RMS On-State Current (I_T(RMS)): 16 A
• Non-Repetitive Peak On-State Current (I_TSM): 155 A (10 ms, sinusoidal)
• Peak Gate Trigger Current (I_GT): 5 mA – 10 mA (sensitive gate)
• Gate Trigger Voltage (V_GT): ~1.5 V (typical)
• Holding Current (I_H): ~22 mA (typical)
• Latching Current (I_L): ~40 mA (typical)
• Maximum Junction Temperature (T_jmax): +125 °C
• Storage Temperature: -40°C to +150°C
• Triggering Quadrants: Q1, Q2, Q3, Q4 (all four)
• Critical Rate of Rise of Off-State Voltage (dV/dt): Typically >250 V/µs
• Compliance: RoHS Compliant

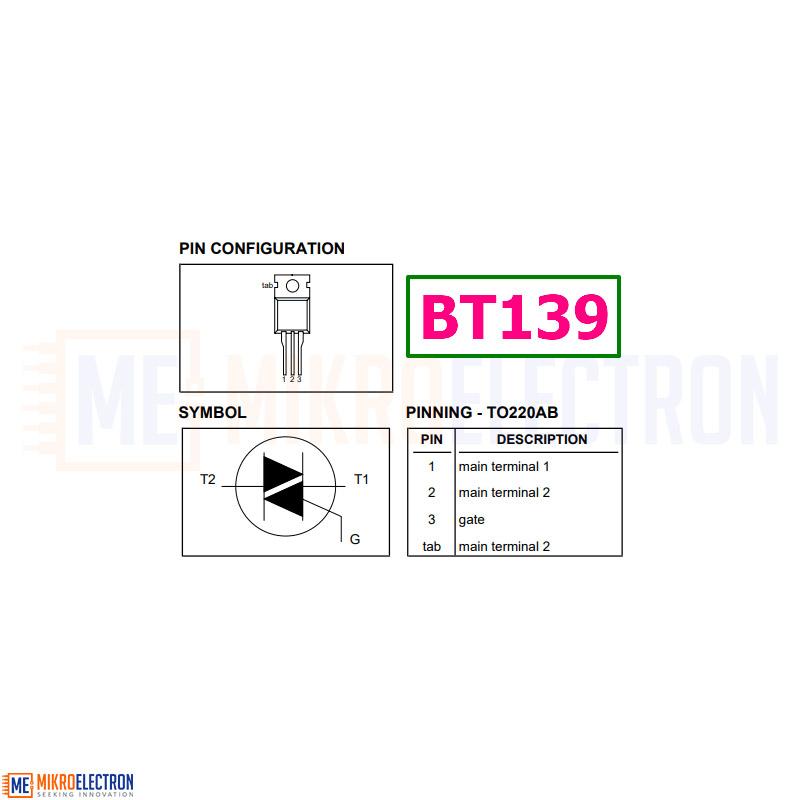

Pinout (TO-220AB)

• Pin 1: MT1 (Main Terminal 1)
• Pin 2: MT2 (Main Terminal 2) — connected to the metal tab
• Pin 3: Gate (G)

Applications

• AC Light Dimmers — incandescent and halogen lamp brightness control
• Fan Speed Controllers — variable-speed control for ceiling and exhaust fans
• Motor Speed Control — universal AC motors in tools and appliances
• Heater Power Regulation — water heaters, ovens, and industrial heating
• Soft-Start Circuits — gradual turn-on for motors and large loads
• Static AC Switching — solid-state switching of AC loads from microcontrollers
• Home Appliance Control — washing machines, blenders, and food processors
• Industrial Lighting Control — phase-angle dimming systems
• Domestic Lighting Control — dimmer switches and smart lighting
• Temperature Regulation — closed-loop heating control with thermostats
• Solenoid AC Switching — large electrically-actuated valves
• Arduino & Microcontroller AC Control — paired with MOC3021/MOC3041 optocouplers
• Power Electronics Education — teaching AC switching and phase control
• AC Relay Replacement — silent, fast solid-state switching alternative
• DIY Smart Home Projects — WiFi-controlled lighting and heating systems
