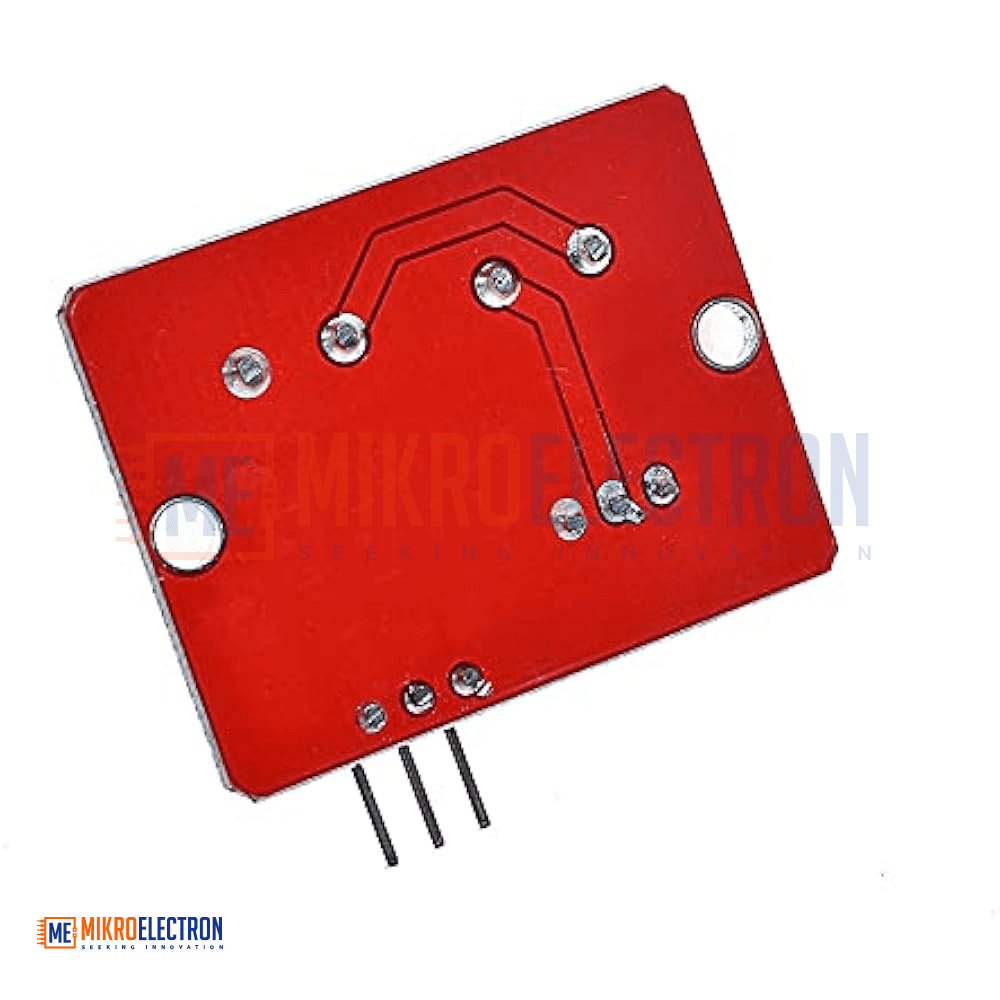

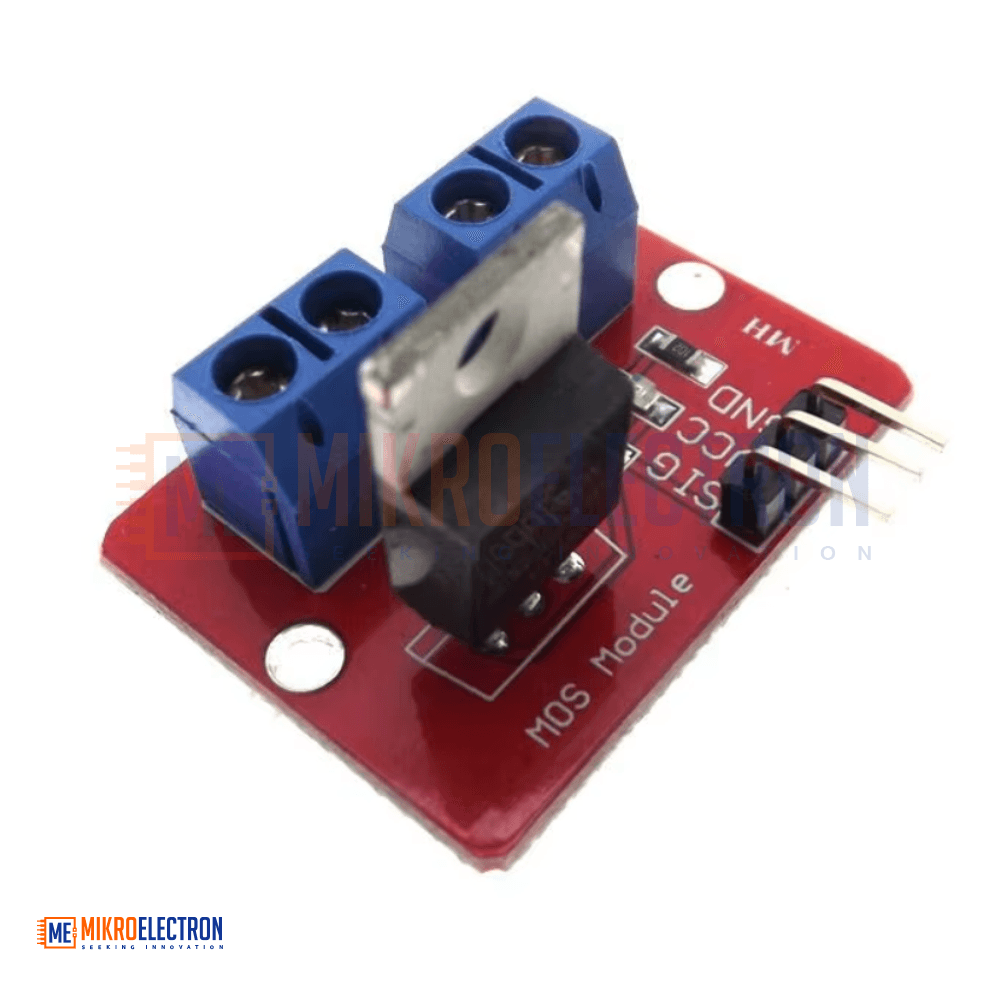

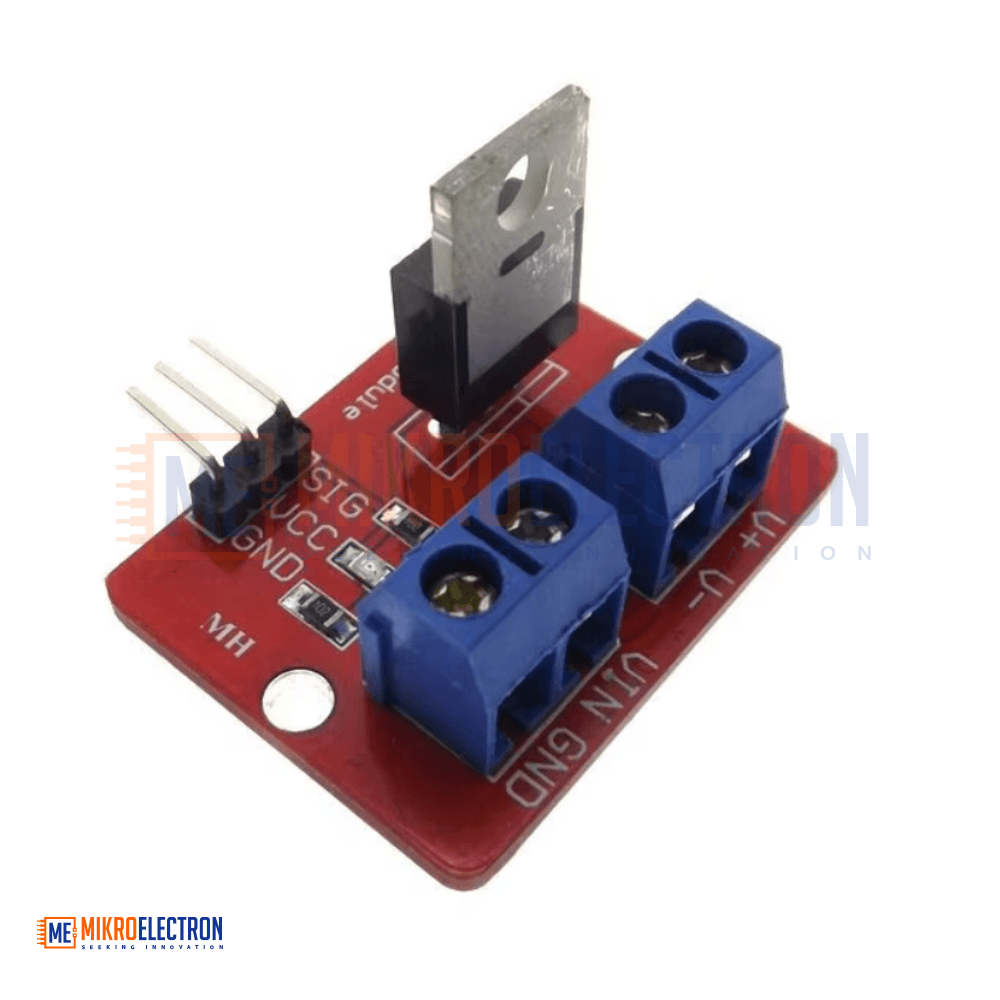

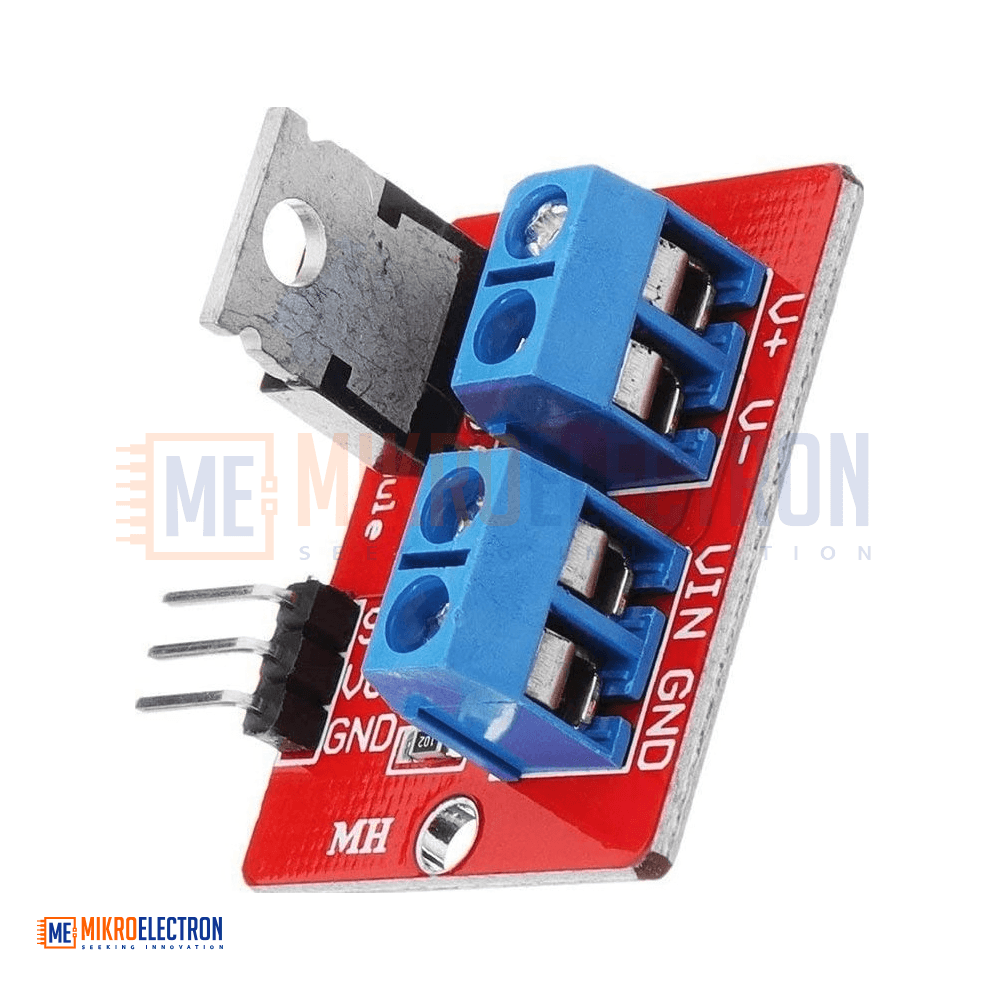

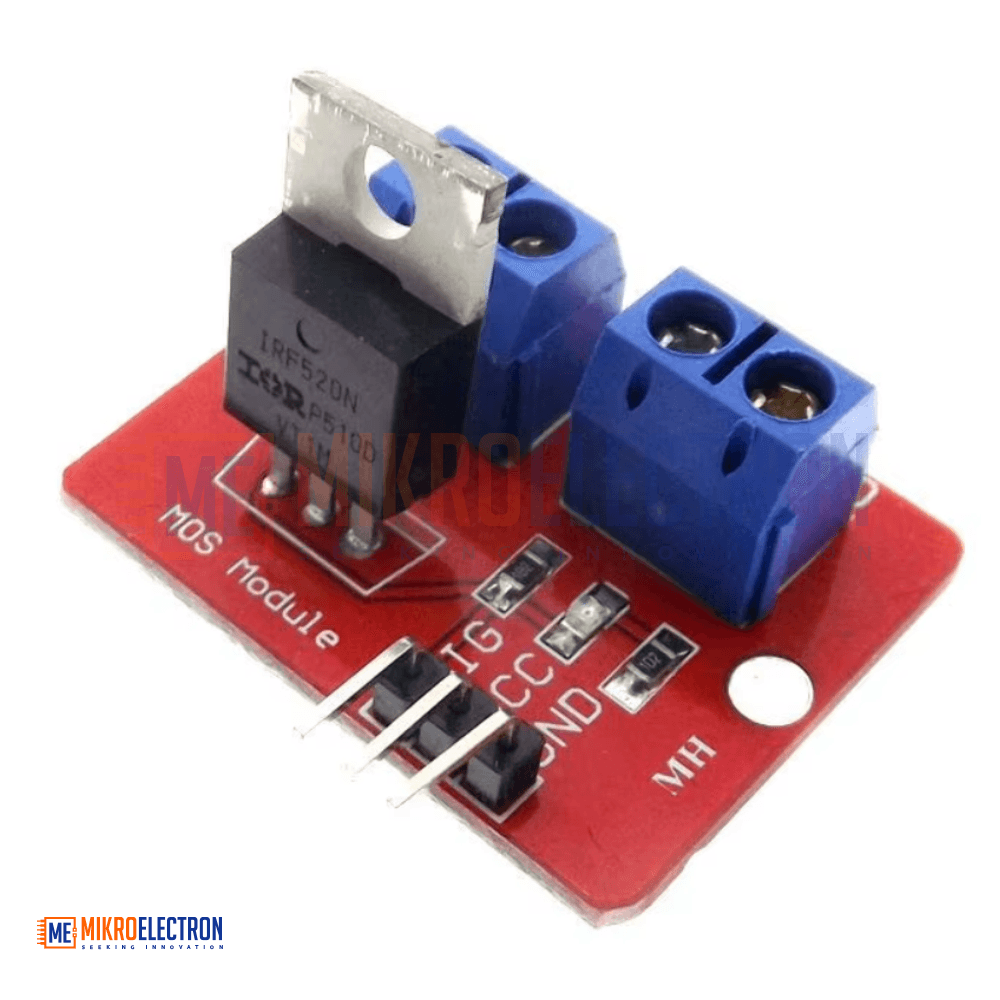

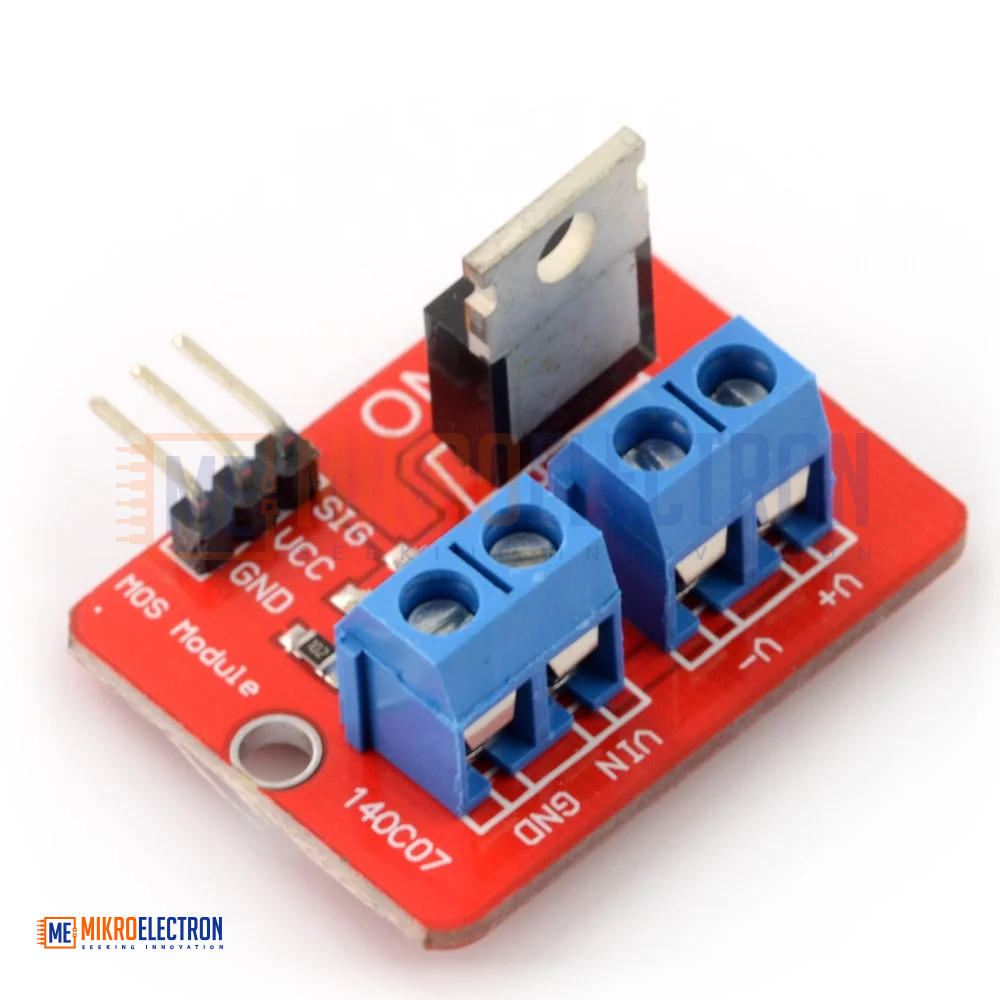

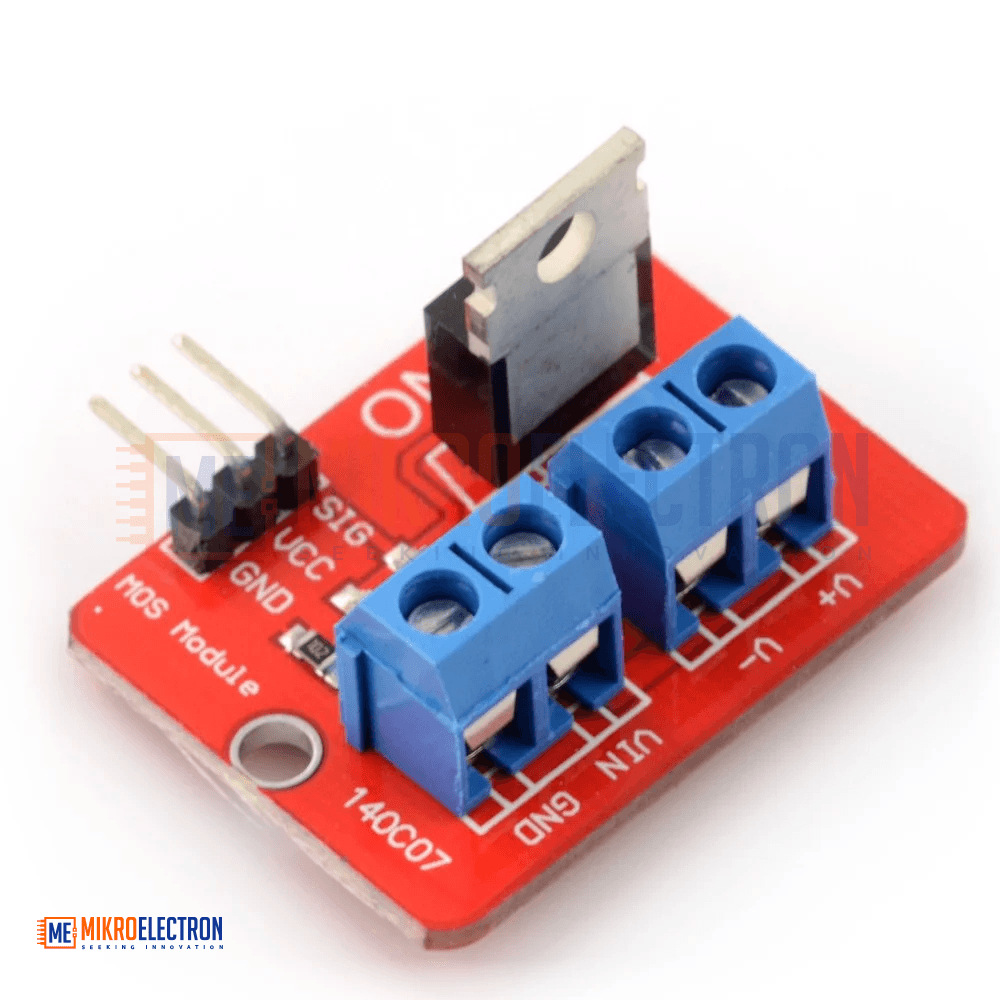

0-24V Top Mosfet Button IRF520 MOS Driver Module
IRF520 MOSFET Driver Module 0–24V is a power control module designed for switching and PWM control of high-current DC loads using microcontrollers such as Arduino, Raspberry Pi, ARM, and other MCU platforms. Based on the IRF520 power MOSFET, it supports load voltages up to 24V and currents below 5A. The module is ideal for controlling DC motors, LED strips, pumps, and solenoid valves with efficient PWM dimming and speed control functionality.
وحدة قيادة MOSFET IRF520 بجهد 0–24V هي وحدة تحكم بالطاقة مخصصة لتشغيل الأحمال الكهربائية والتحكم بها باستخدام PWM عبر الأردوينو والراسبيري باي ووحدات MCU المختلفة. تعتمد على ترانزستور IRF520 MOSFET وتدعم أحمالاً حتى 24V وتياراً أقل من 5A. تعد مناسبة للتحكم بمحركات DC وشرائط LED والمضخات والصمامات الكهربائية مع إمكانية التعتيم التدريجي والتحكم بسرعة المحركات بكفاءة عالية.
The 0–24V IRF520 MOS Driver Module is a compact and efficient power switching module designed for controlling high-current DC devices using low-voltage digital control signals from microcontrollers and development boards.
The module uses the original IRF520 Power MOSFET, allowing users to control DC loads through digital signals or PWM output from Arduino, Raspberry Pi, ARM controllers, ESP modules, and other embedded platforms. It supports output load voltages from 0V to 24V with load currents up to 5A under proper cooling conditions.

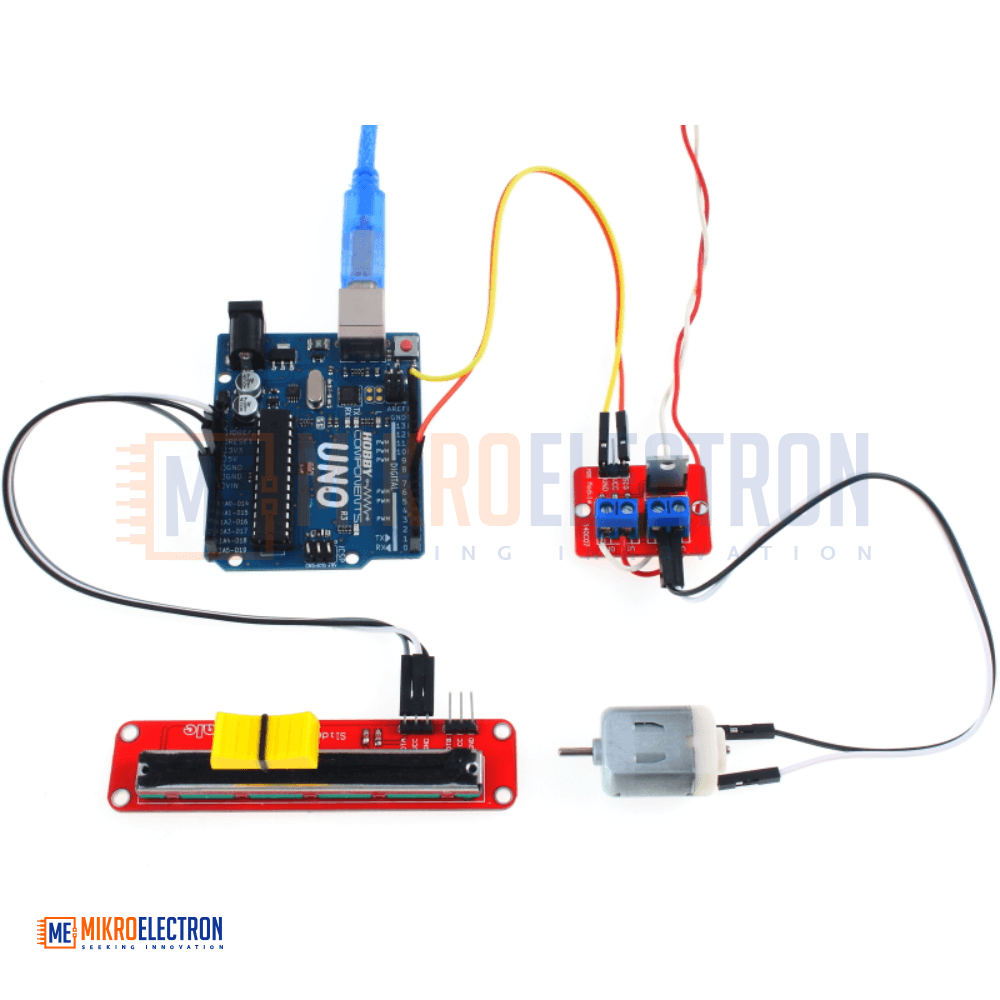

The module is ideal for applications requiring PWM-based power control such as LED dimming, DC motor speed control, micro pump activation, solenoid valve driving, and automation systems. PWM control enables smooth brightness adjustment and variable-speed motor operation.
Its compact PCB layout allows easy integration into DIY electronics, robotics, industrial automation, and embedded control projects.
Important Note: A heatsink is recommended for loads exceeding 1A to ensure stable and safe operation.

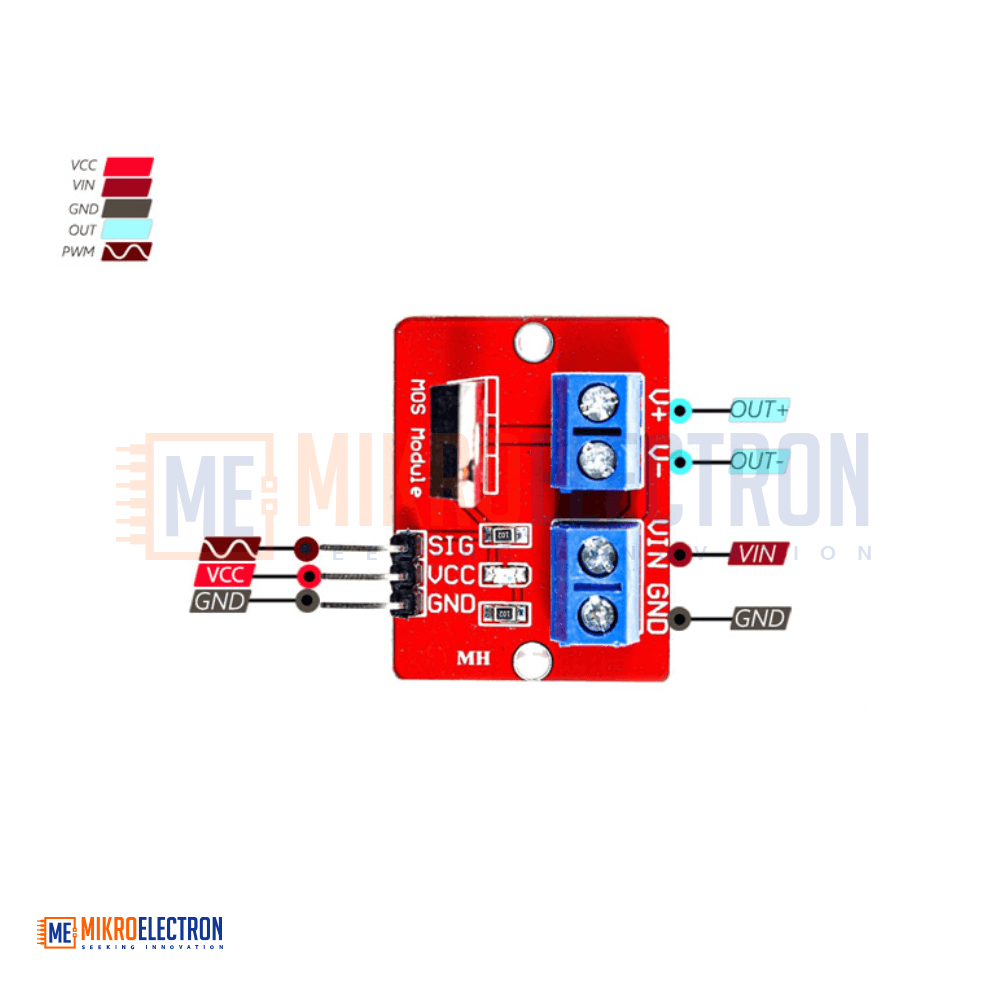

Specifications
- Product Type: MOSFET Driver Module
- MOSFET Model: IRF520
- Control Voltage: 3.3V / 5V Digital Signal
- Output Load Voltage: 0–24V DC
- Maximum Load Current: <5A
- Recommended Cooling: Heatsink required above 1A
- Control Method: Digital Signal / PWM

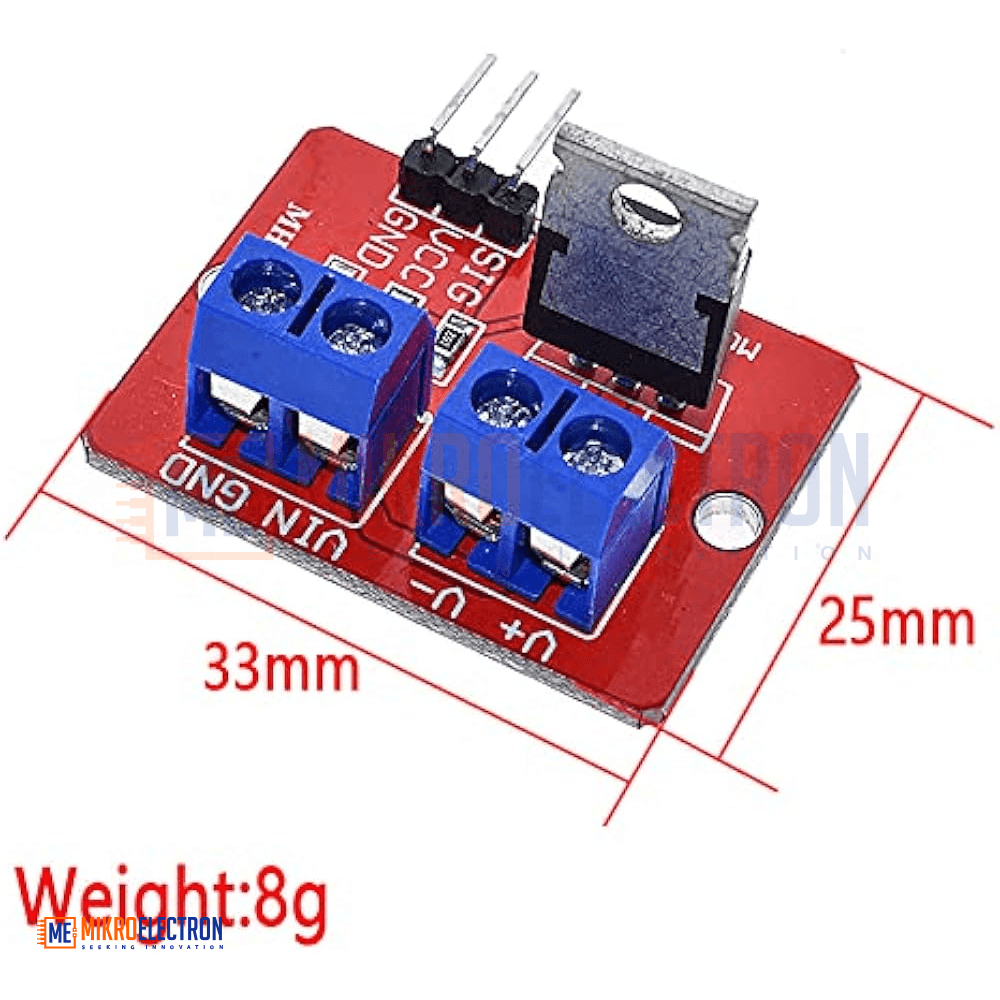

- Board Dimensions: 33 × 24 mm
- Weight: 10g
- Compatible Platforms: Arduino, MCU, ARM, Raspberry Pi
- Application Type: DC Load Switching and PWM Control
Applications

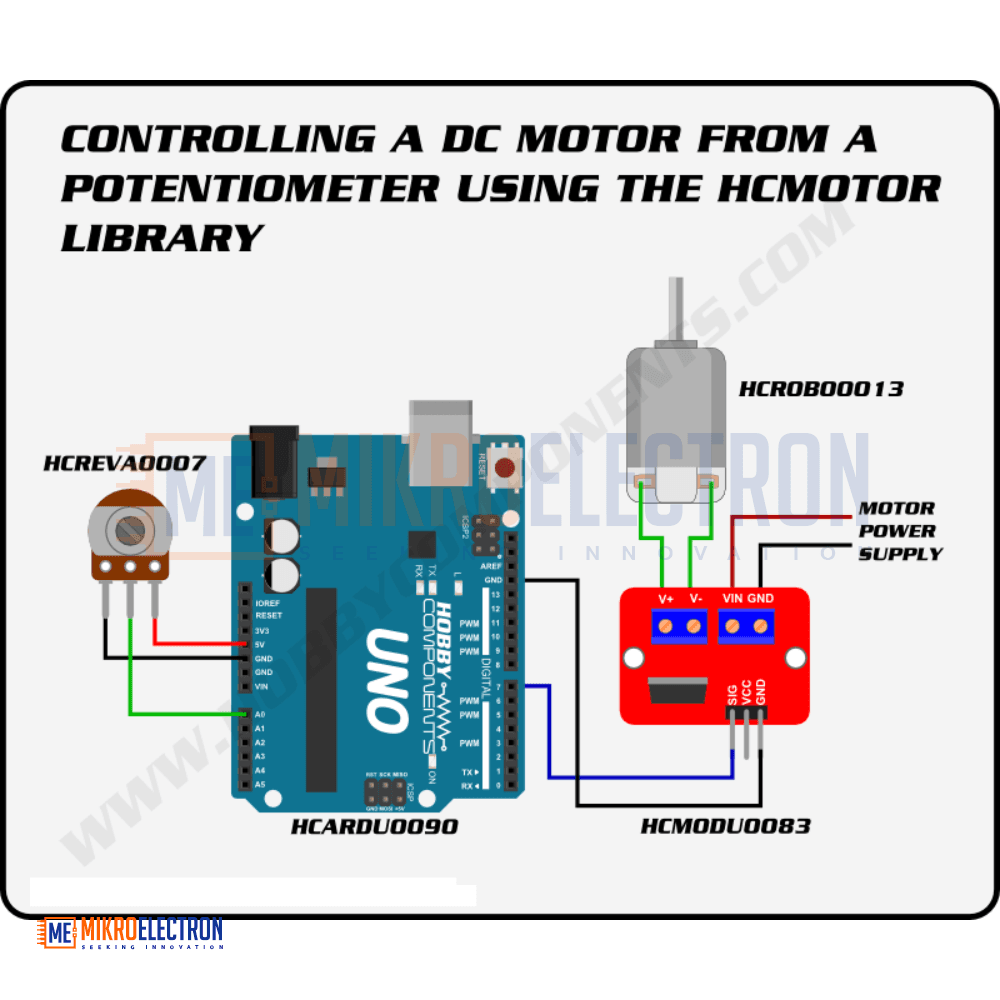

- DC motor speed control
- LED strip dimming systems
- Solenoid valve control
- Micro pump switching
- Smart home automation projects
- Robotics and automation systems
- Embedded control systems
- PWM power regulation applications
- DIY electronics projects
- Industrial control circuits
