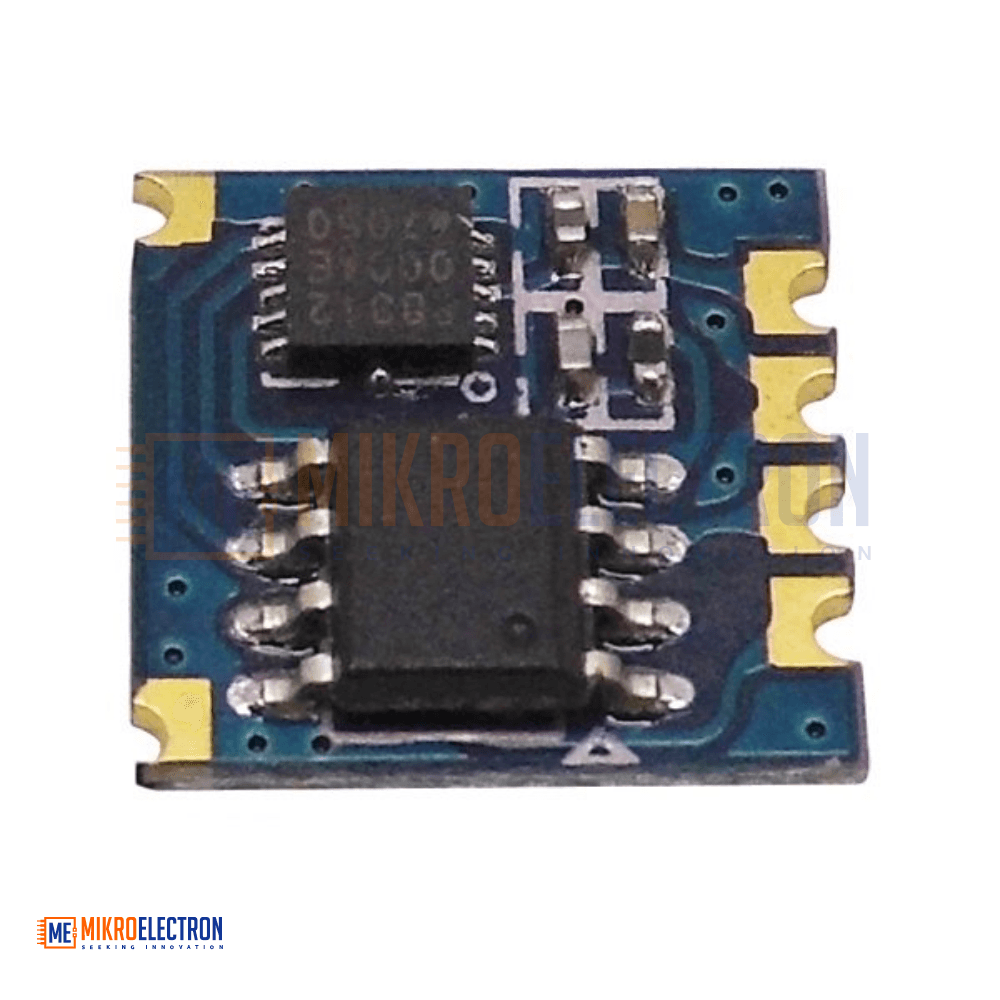

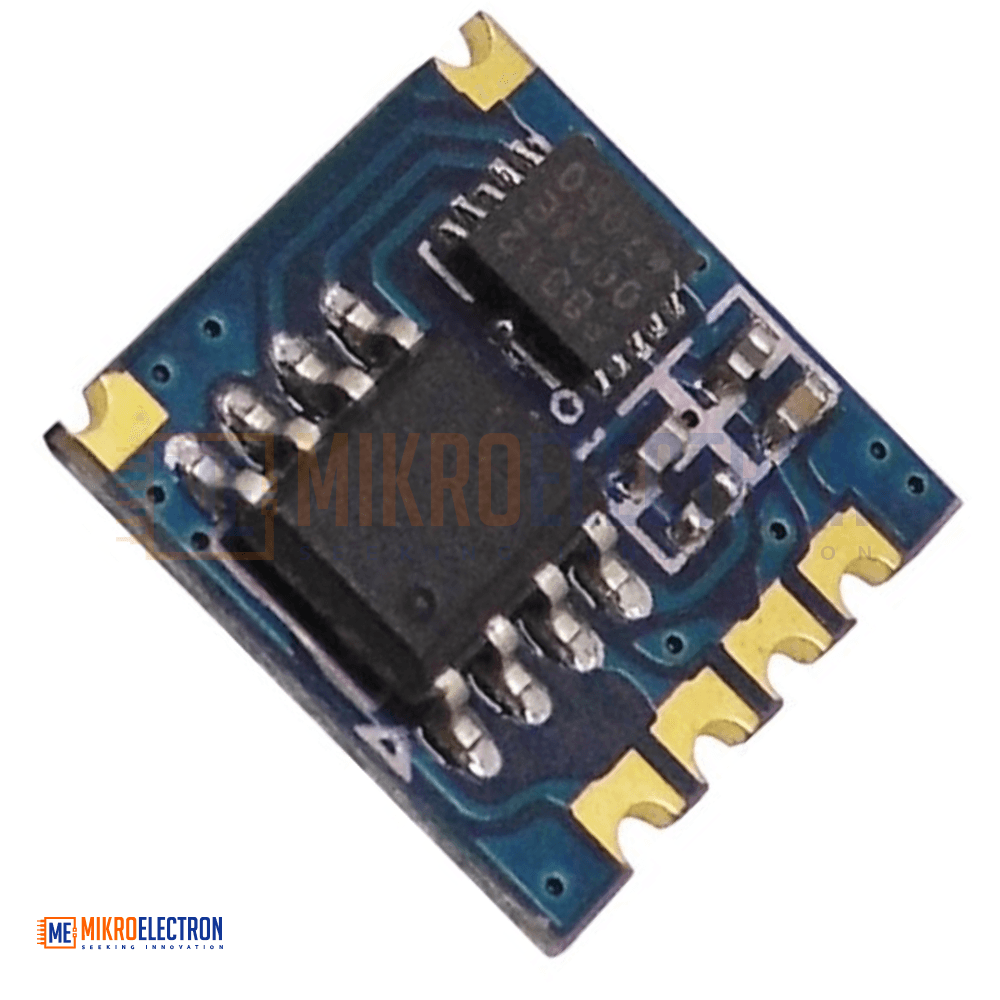

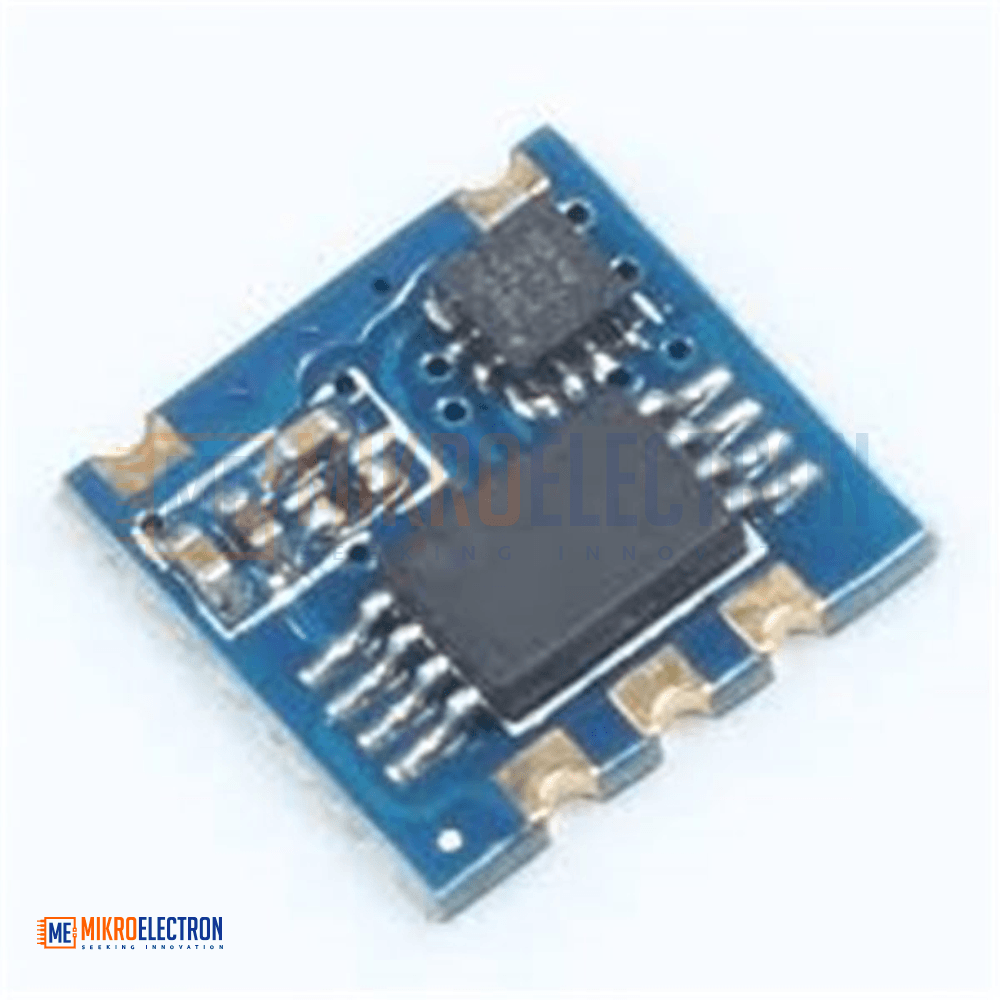

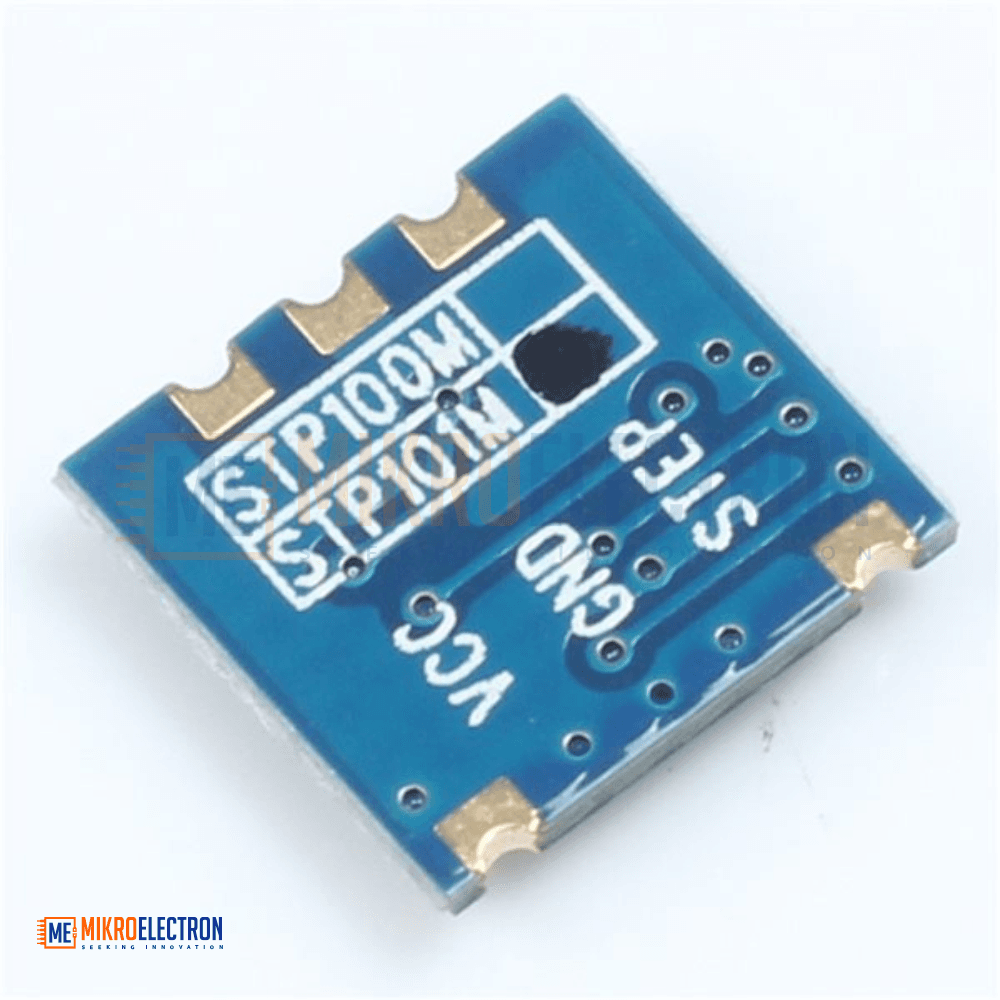

Pedometer STP101M 3D Module
The STP101M 3D Pedometer Module is a compact and low-power motion sensing module designed for accurate step counting applications. It integrates a 3D MEMS G-sensor and MCU chipset with a high-precision pedometer algorithm that detects movement in any direction. Featuring an impulse pulse output interface, ultra-small size, and very low power consumption, the module is ideal for wearable electronics, healthcare devices, sports equipment, and portable outdoor products.
وحدة STP101M 3D Pedometer Module هي وحدة صغيرة الحجم ومنخفضة استهلاك الطاقة مخصصة لقياس الخطوات بدقة عالية. تحتوي على حساس حركة ثلاثي الأبعاد MEMS مع متحكم MCU مدمج وخوارزمية متطورة لعدّ الخطوات في جميع الاتجاهات. تتميز بواجهة خرج نبضي، واستهلاك منخفض جداً للطاقة، مما يجعلها مناسبة للأجهزة القابلة للارتداء، والمنتجات الصحية، والأجهزة الرياضية، والمعدات المحمولة الخاصة بالأنشطة الخارجية.
The STP101M 3D Pedometer Module is an advanced motion detection and step counting module that combines a high-performance 3D MEMS G-sensor with an integrated MCU chipset. The module uses a highly accurate 3D pedometer algorithm capable of detecting movement and counting steps precisely in any orientation or direction.
Designed with an ultra-compact form factor and extremely low power consumption, the STP101M is suitable for portable and battery-powered devices. Its pulse-type digital output interface allows easy integration into embedded systems, wearable electronics, healthcare products, and fitness devices.
The module delivers reliable step-counting performance while maintaining very low working and standby currents, making it ideal for continuous operation in low-power applications.
Specifications
- Model: STP101M
- Module Type: 3D Pedometer Module
- Sensor Type: 3D MEMS G-Sensor
- Integrated Components: G-Sensor + MCU
- Interface Type: Pulse Output Interface
- Operating Voltage: 2.3V – 3.6V
- Working Current: <25uA
- Static Current: <4uA
- Algorithm Type: High Precision 3D Pedometer Algorithm
- Direction Detection: Multi-directional motion sensing
- Power Consumption: Ultra-low power
- Size: Ultra-small compact design
Applications
- 3D pedometer devices
- MP3 pedometer systems
- Outdoor handheld devices
- Healthcare and fitness products
- Smart wearable electronics
- Sports monitoring equipment
- Pedometer shoes
- Portable motion tracking systems
- Embedded low-power devices
